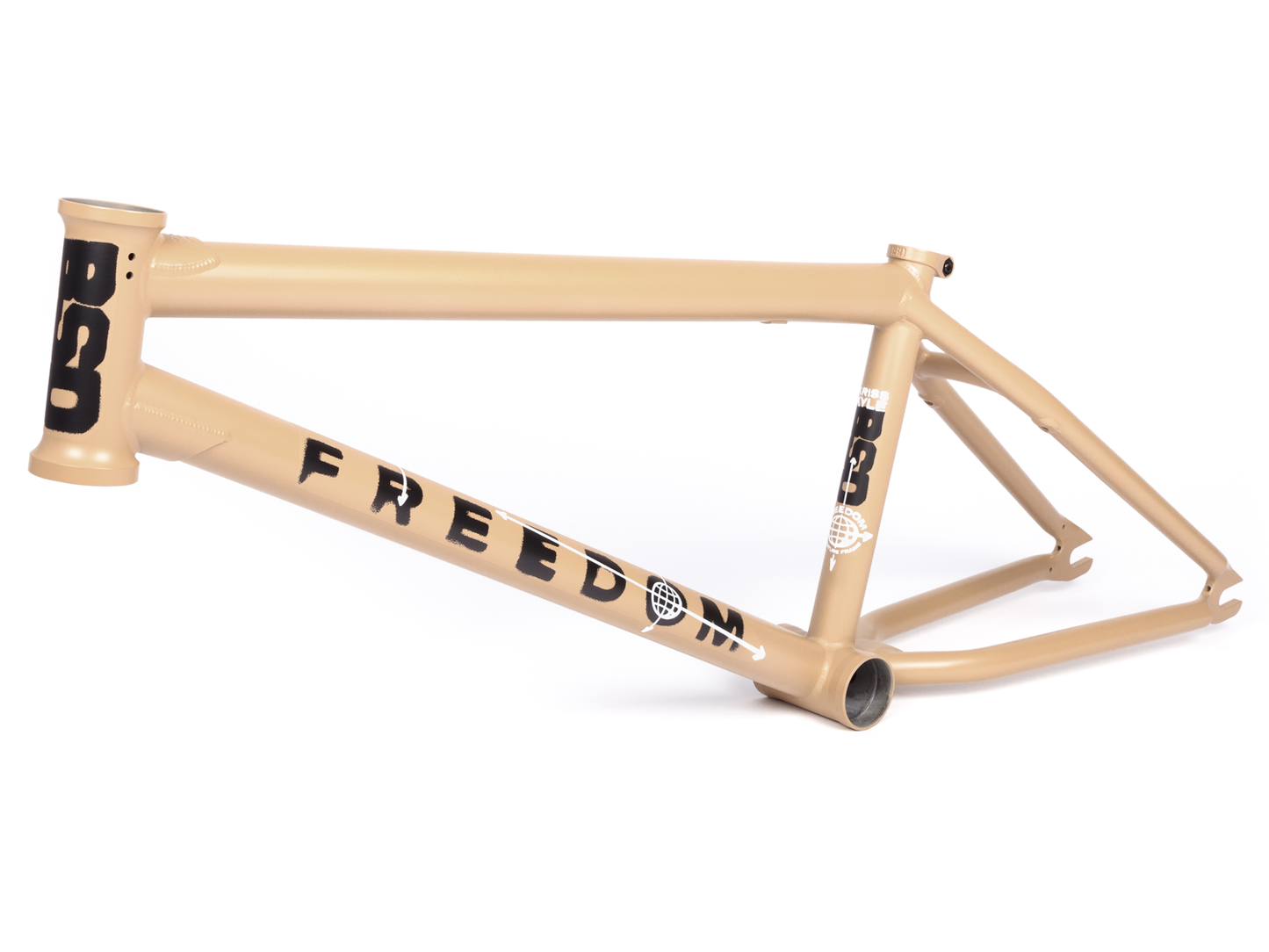

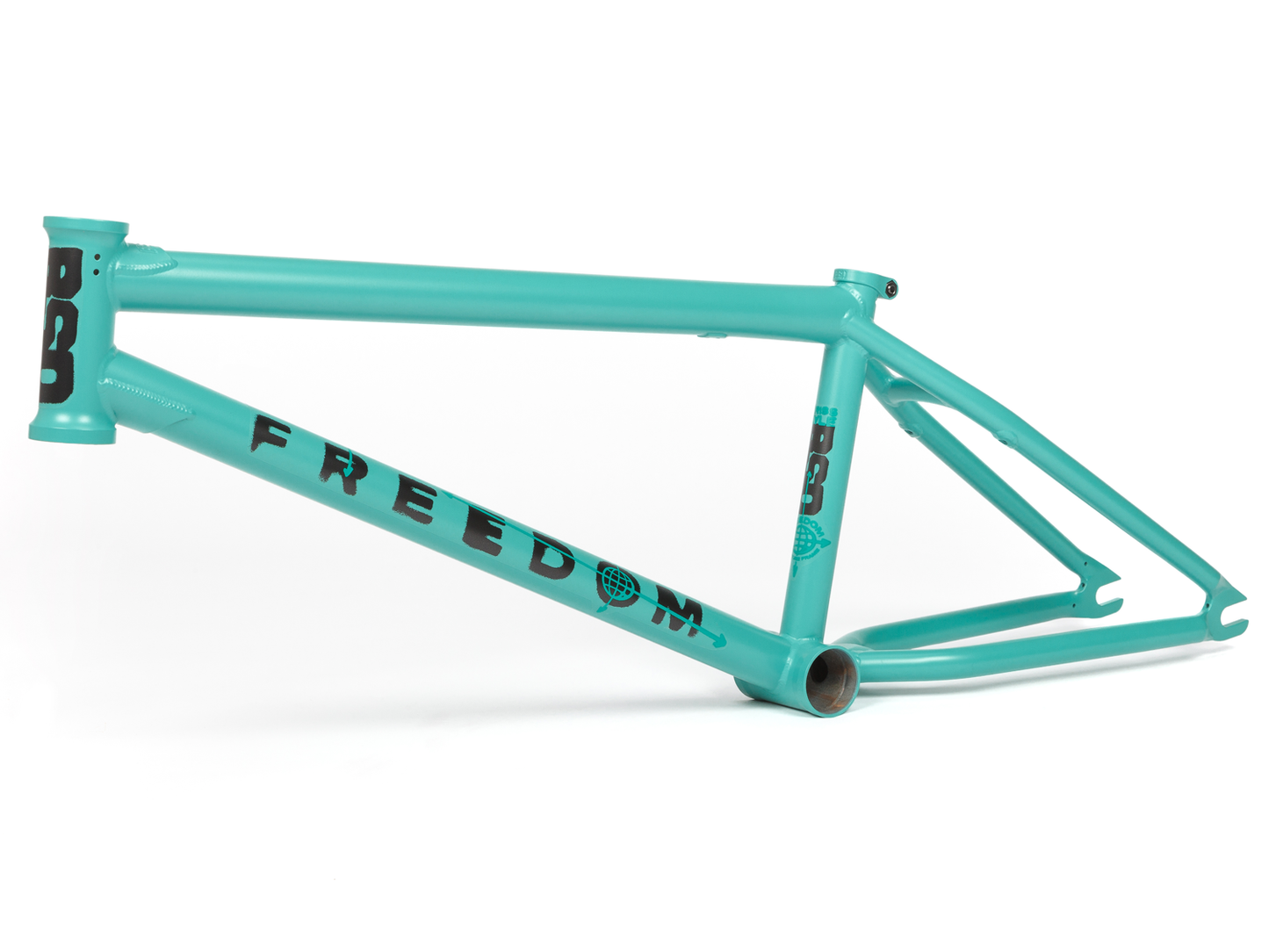

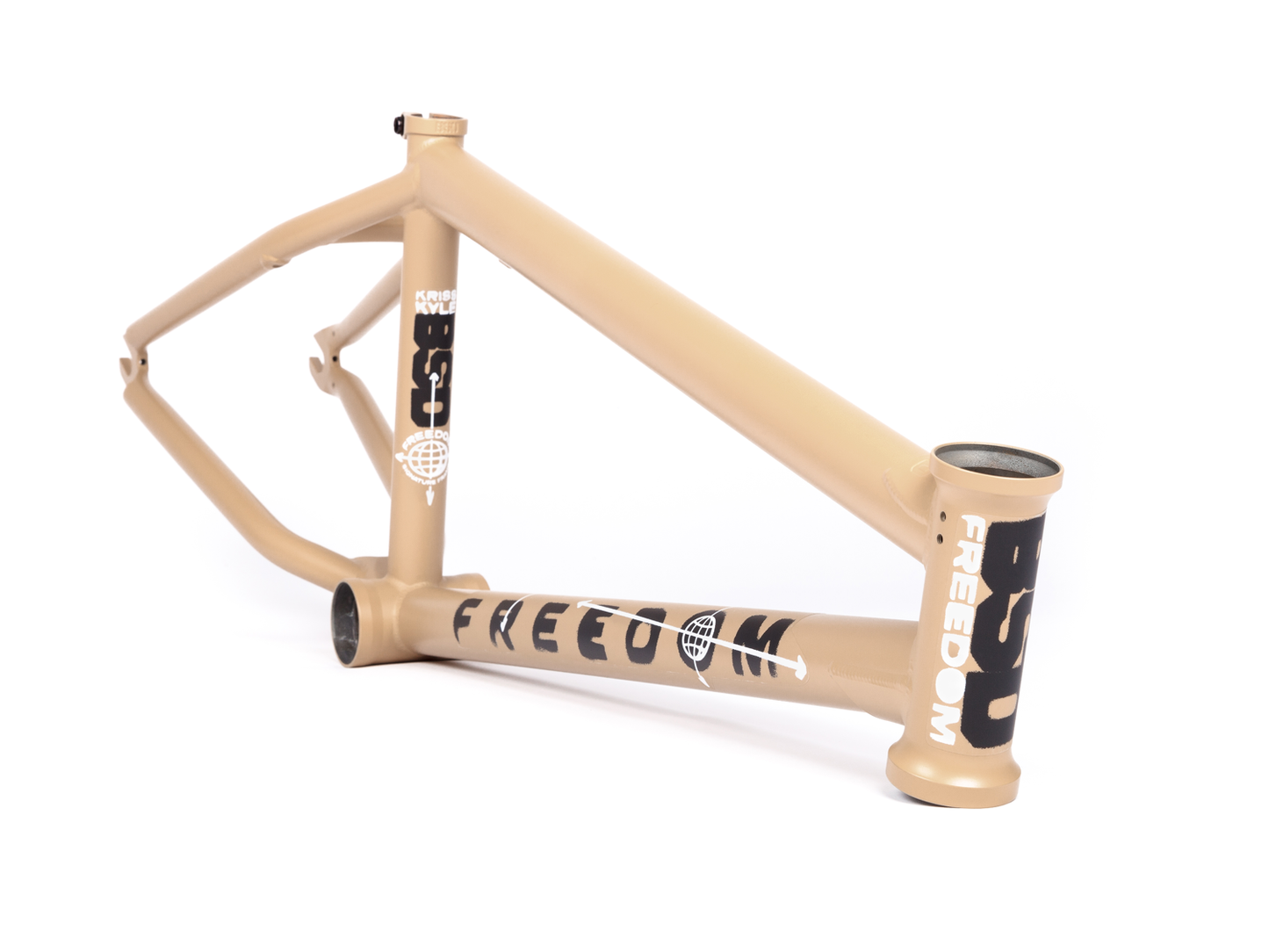

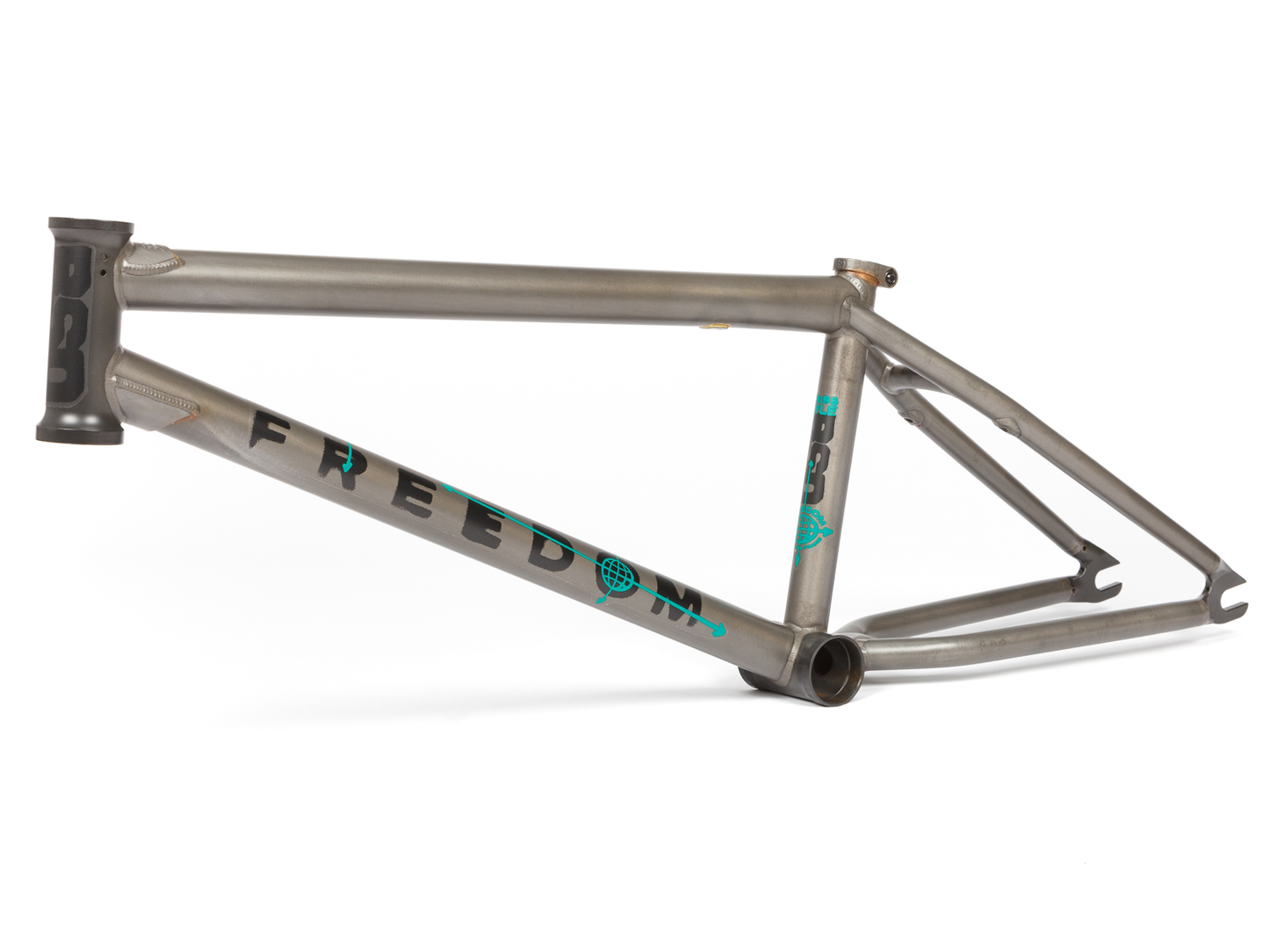

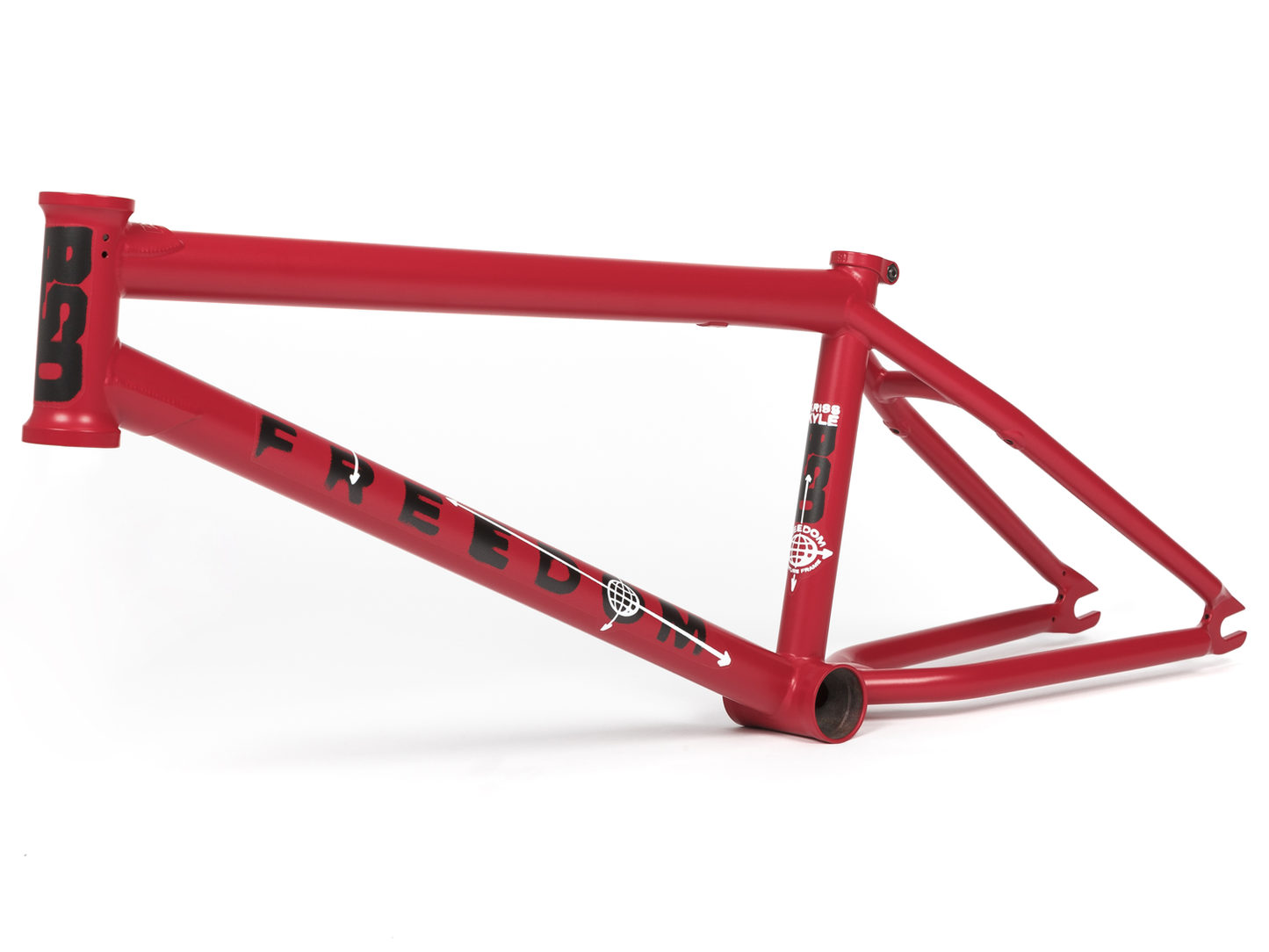

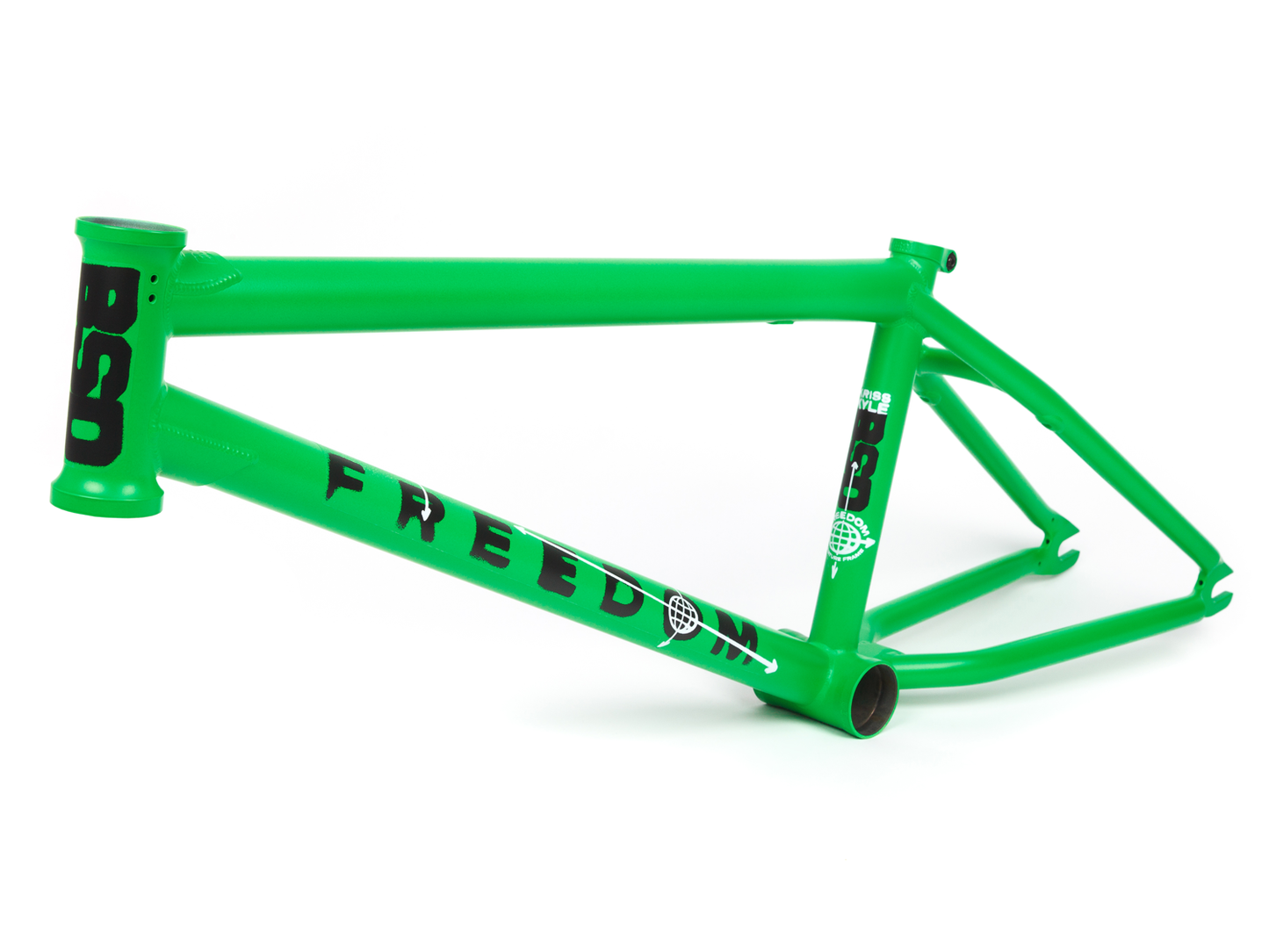

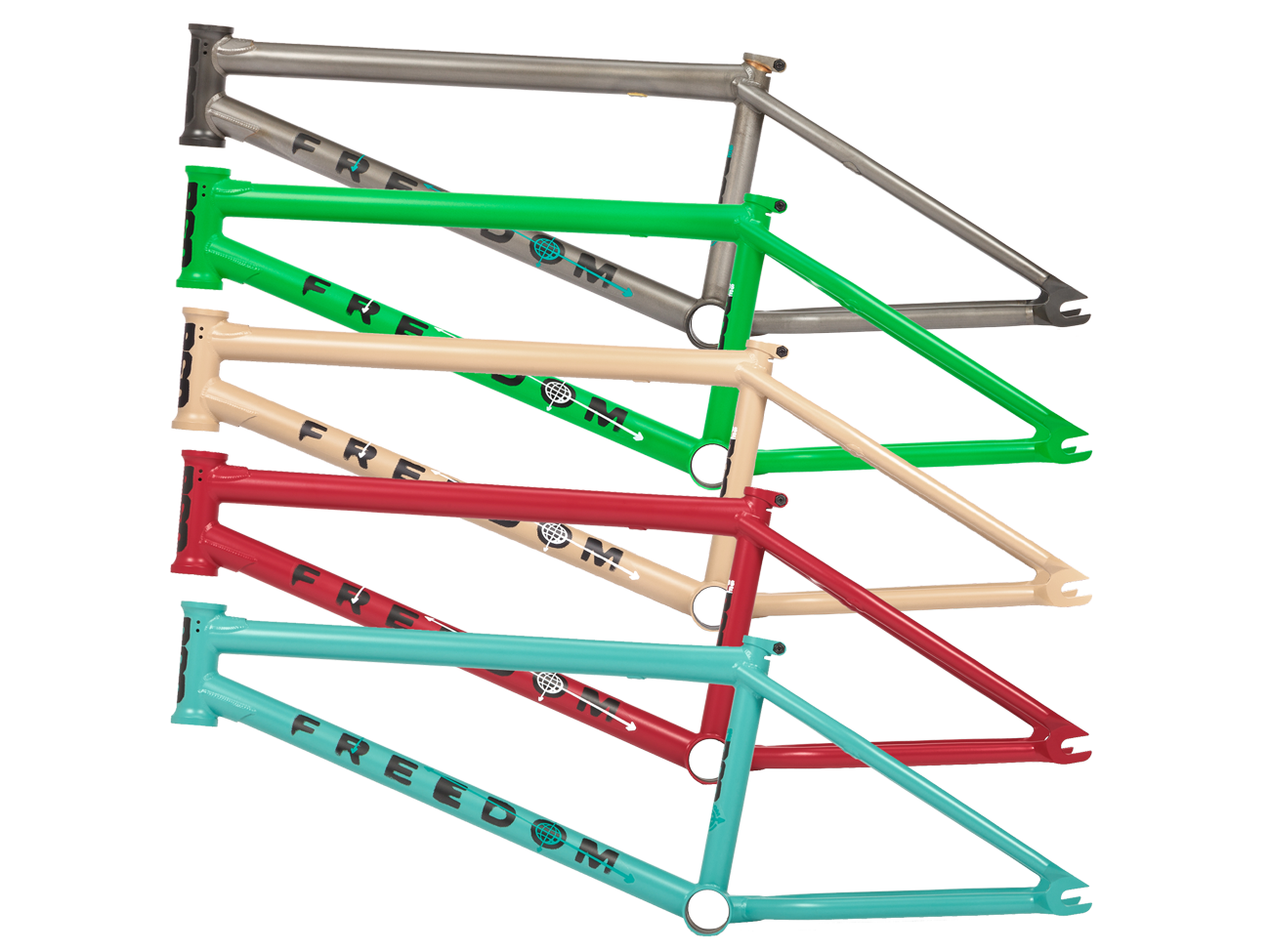

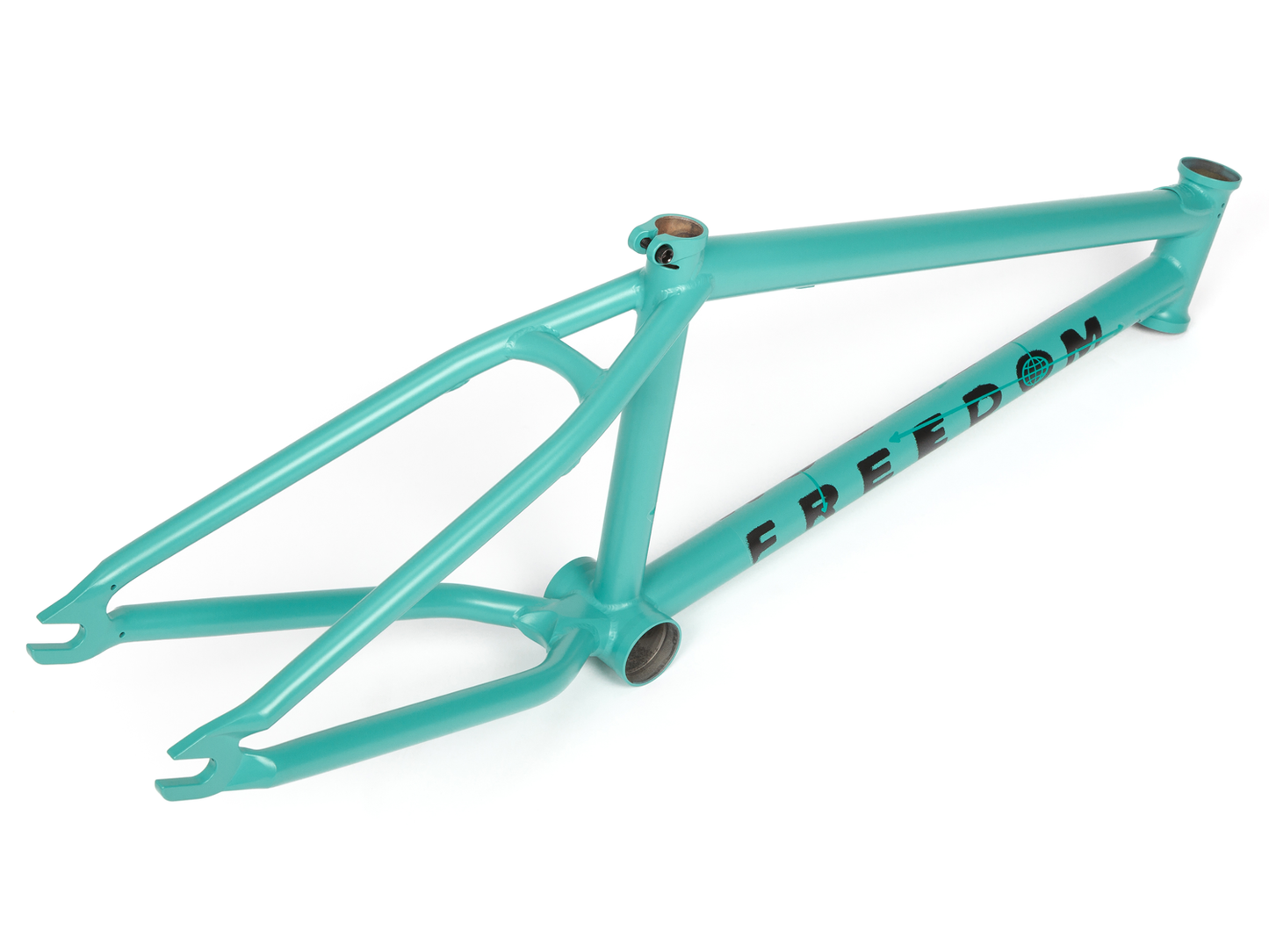

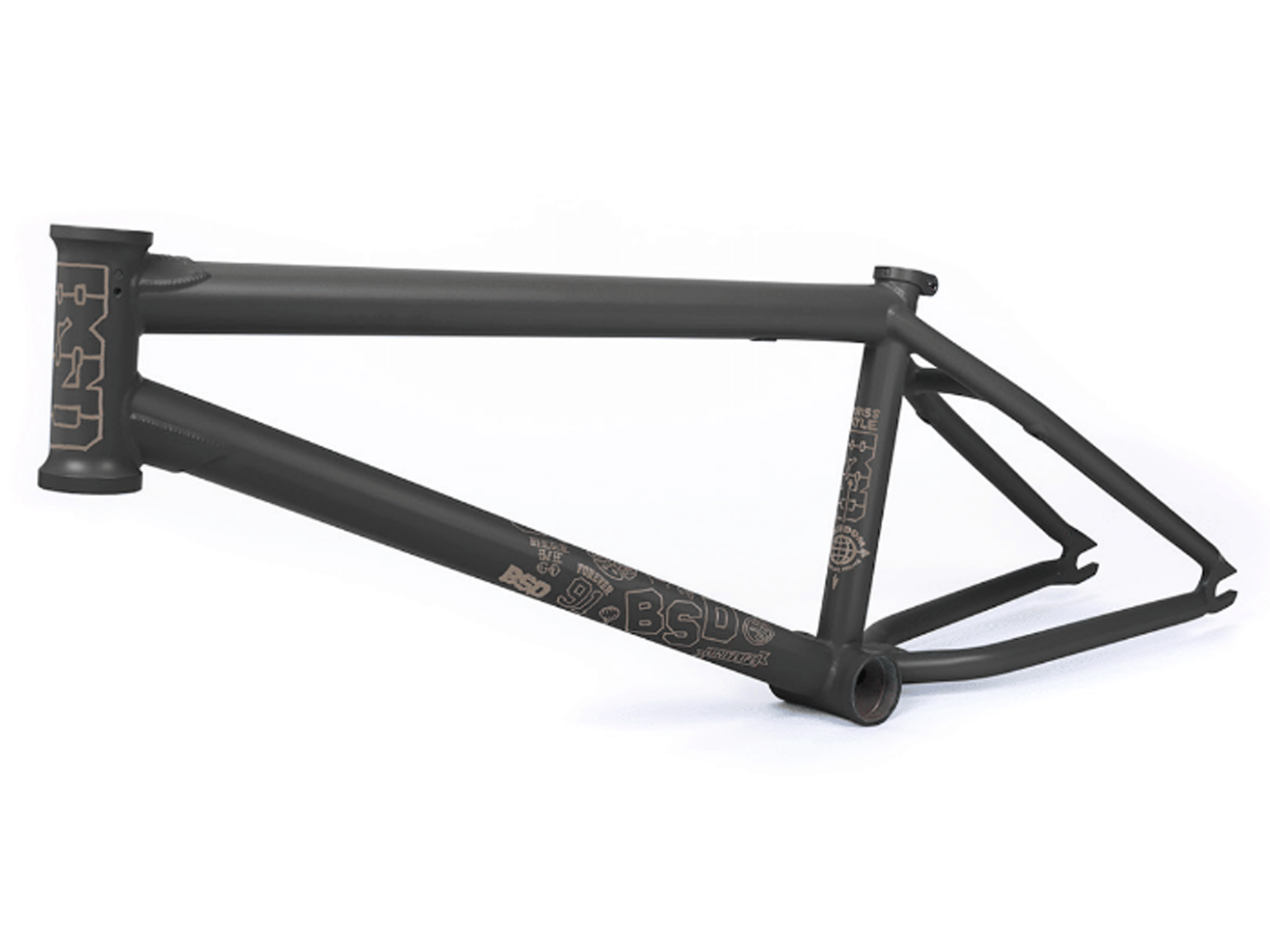

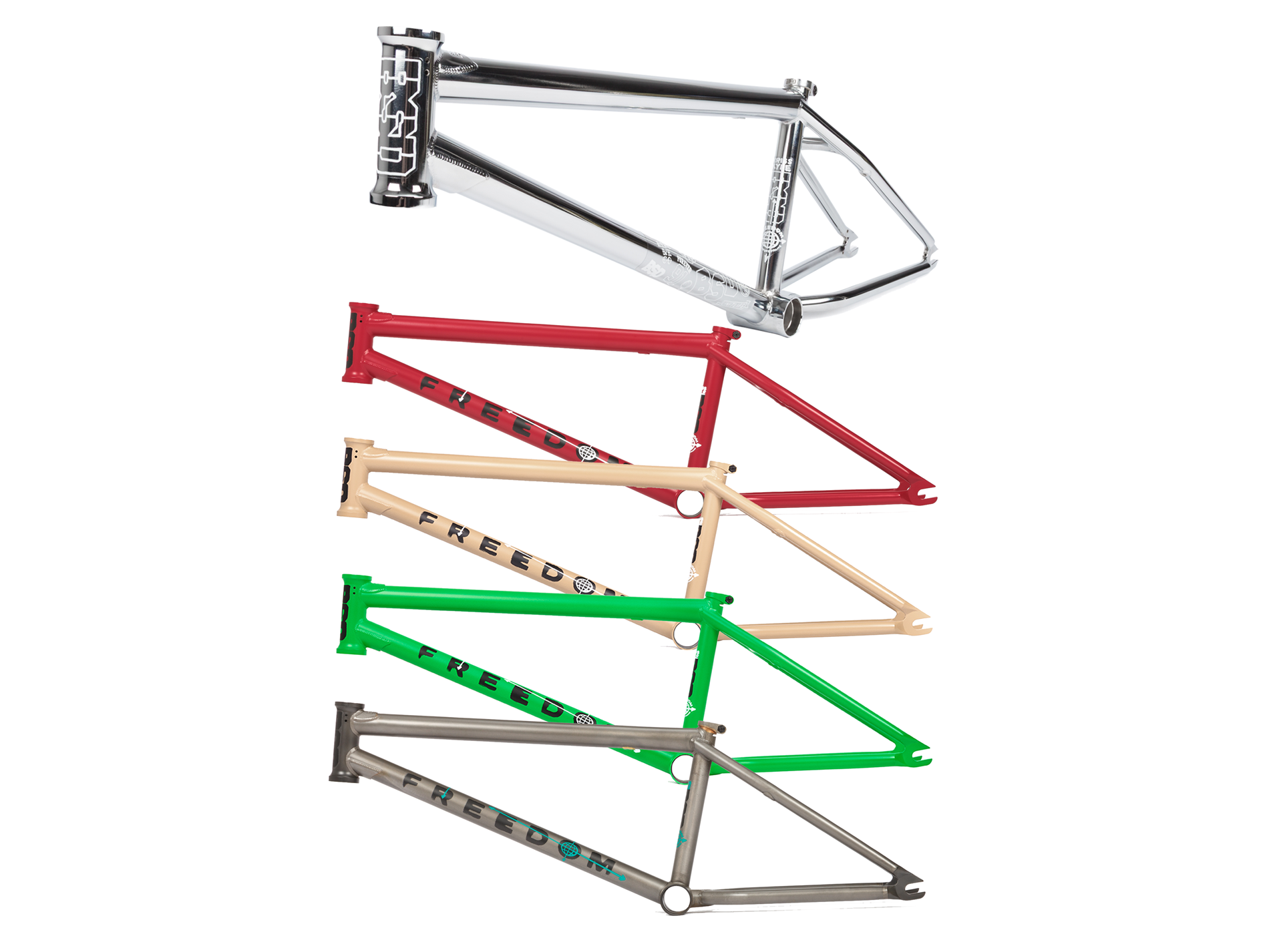

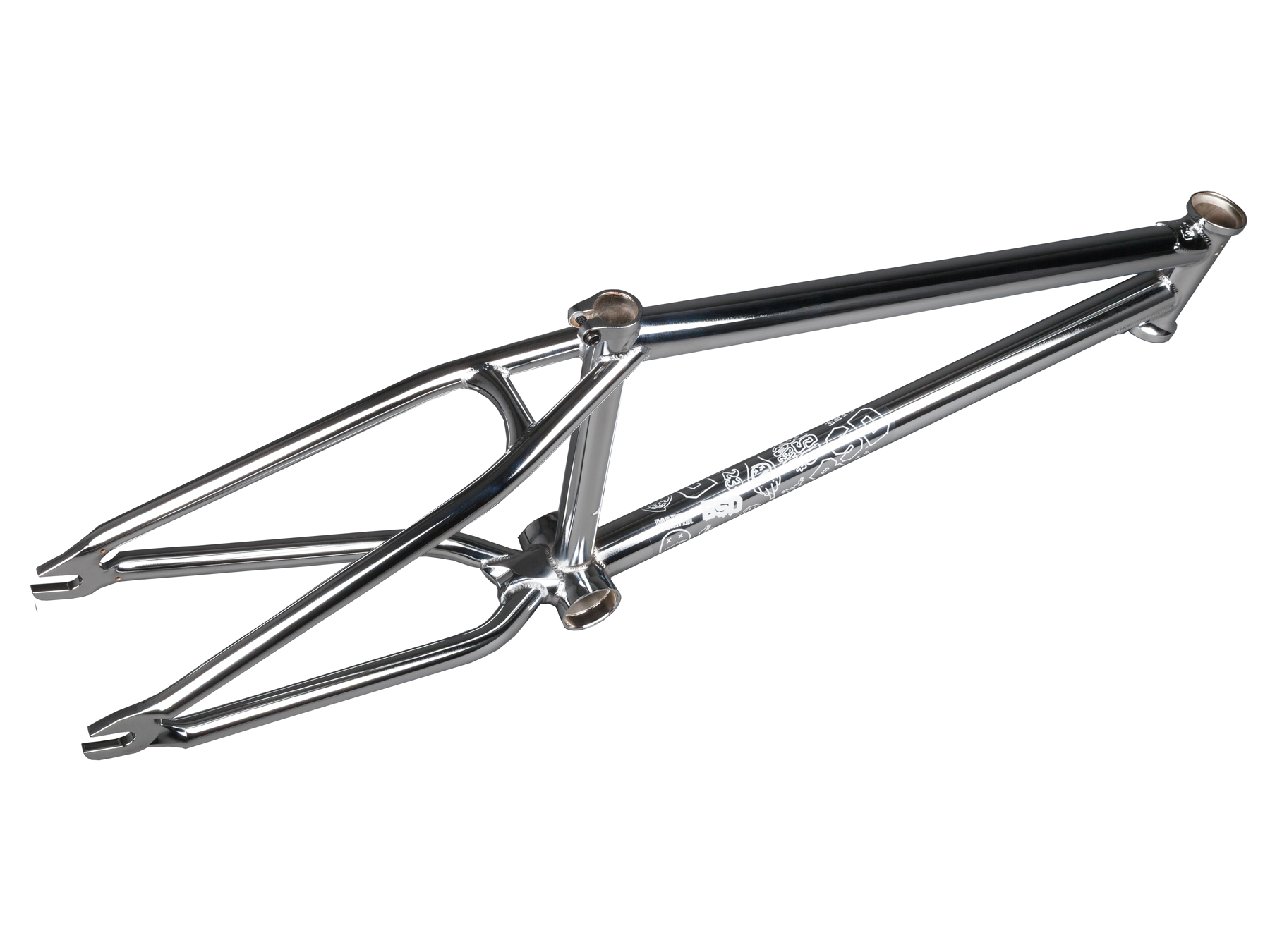

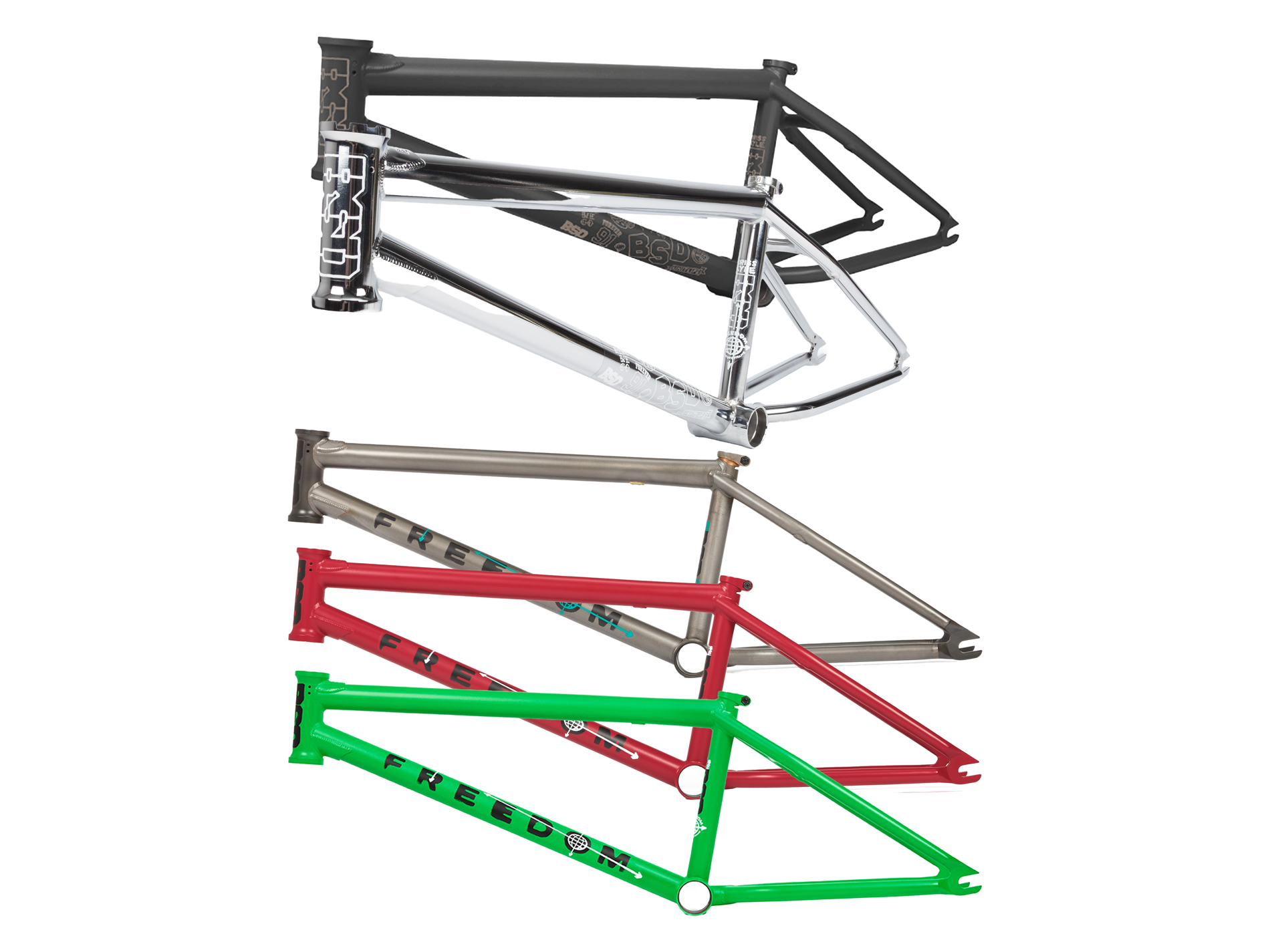

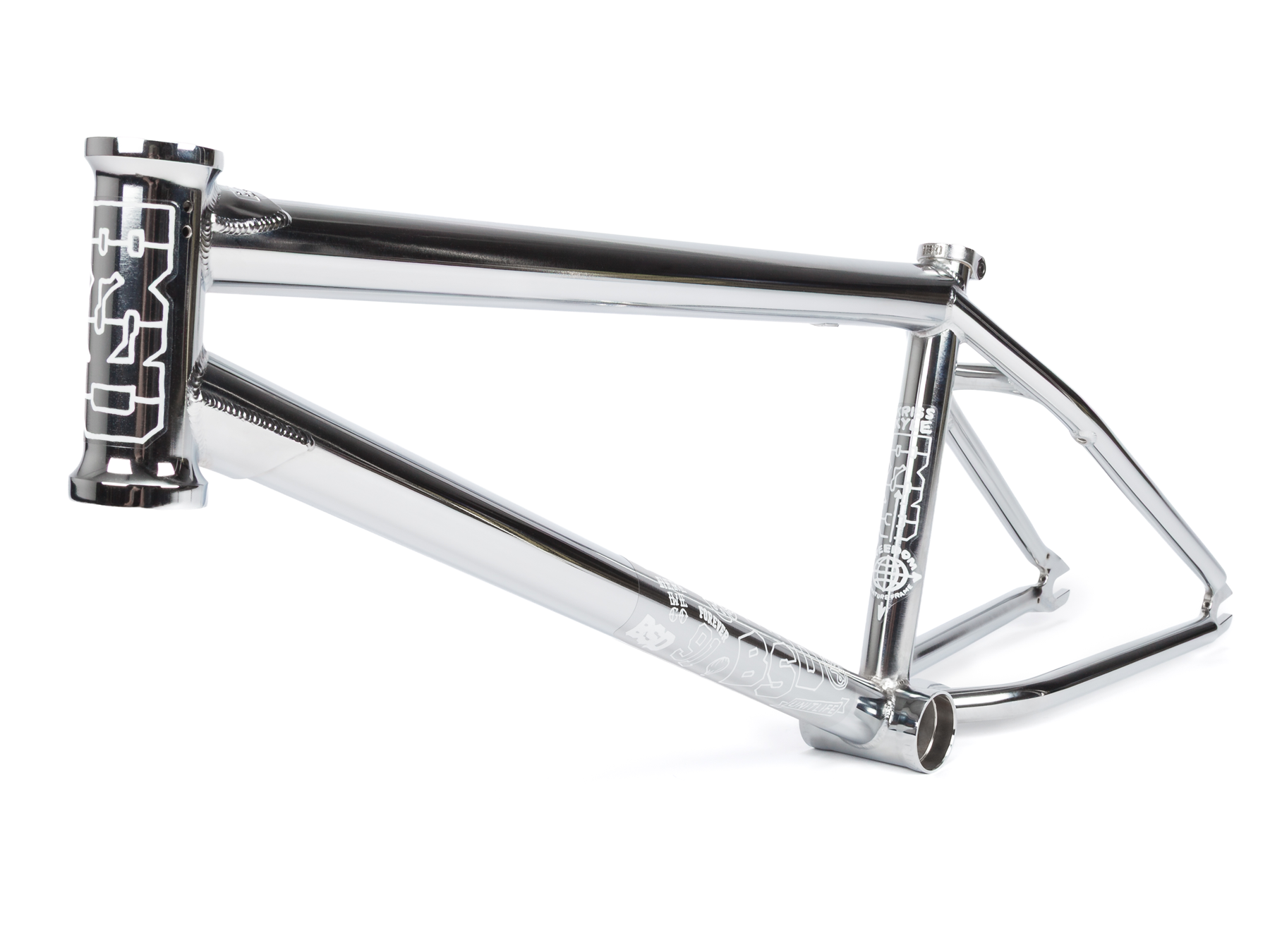

BSD Freedom (Kris Kyle) Frame
BSD Freedom (Kris Kyle) Frame
Couldn't load pickup availability

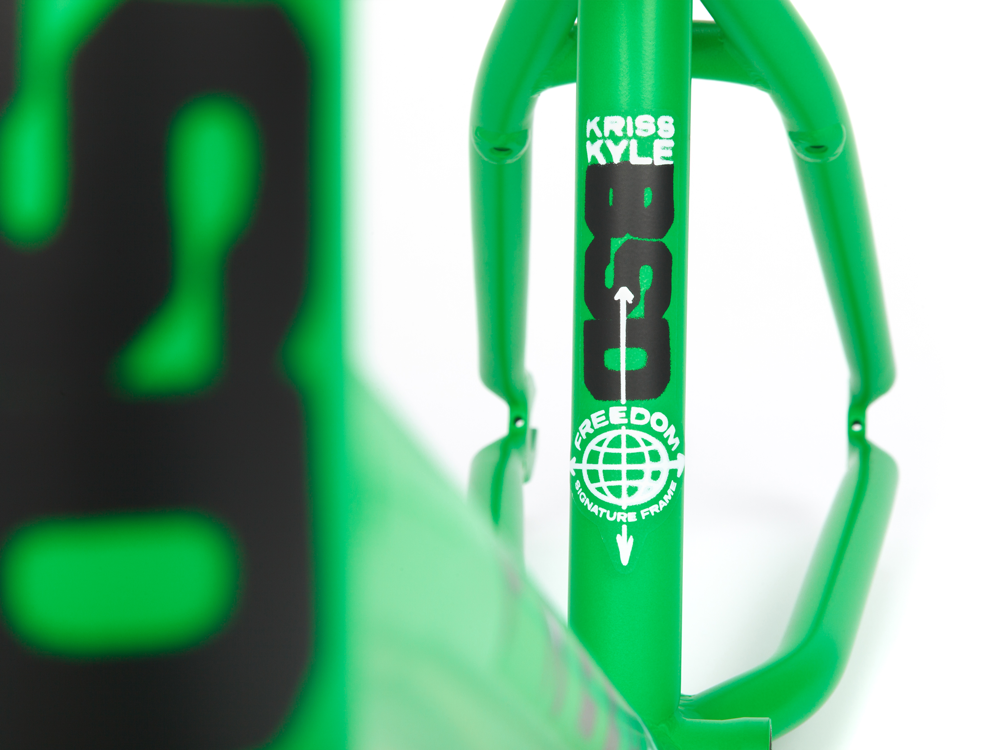

Kriss Kyle is the type of rider who likes to ride it all—bowls, street, dirt, you name it. His signature Freedom frame is built to perform on any terrain. It combines the stability of a low 11.5" BB, the responsiveness of a 75° head angle, and the versatility of a short rear end. To enhance rear triangle stiffness, BSD incorporated an invest-cast wishbone and invest-cast seat stay bridge—perfect for those sideways landings!
Features
- Invest cast wishbone
- Extra wide rear end
- Invest cast seat stay bridge

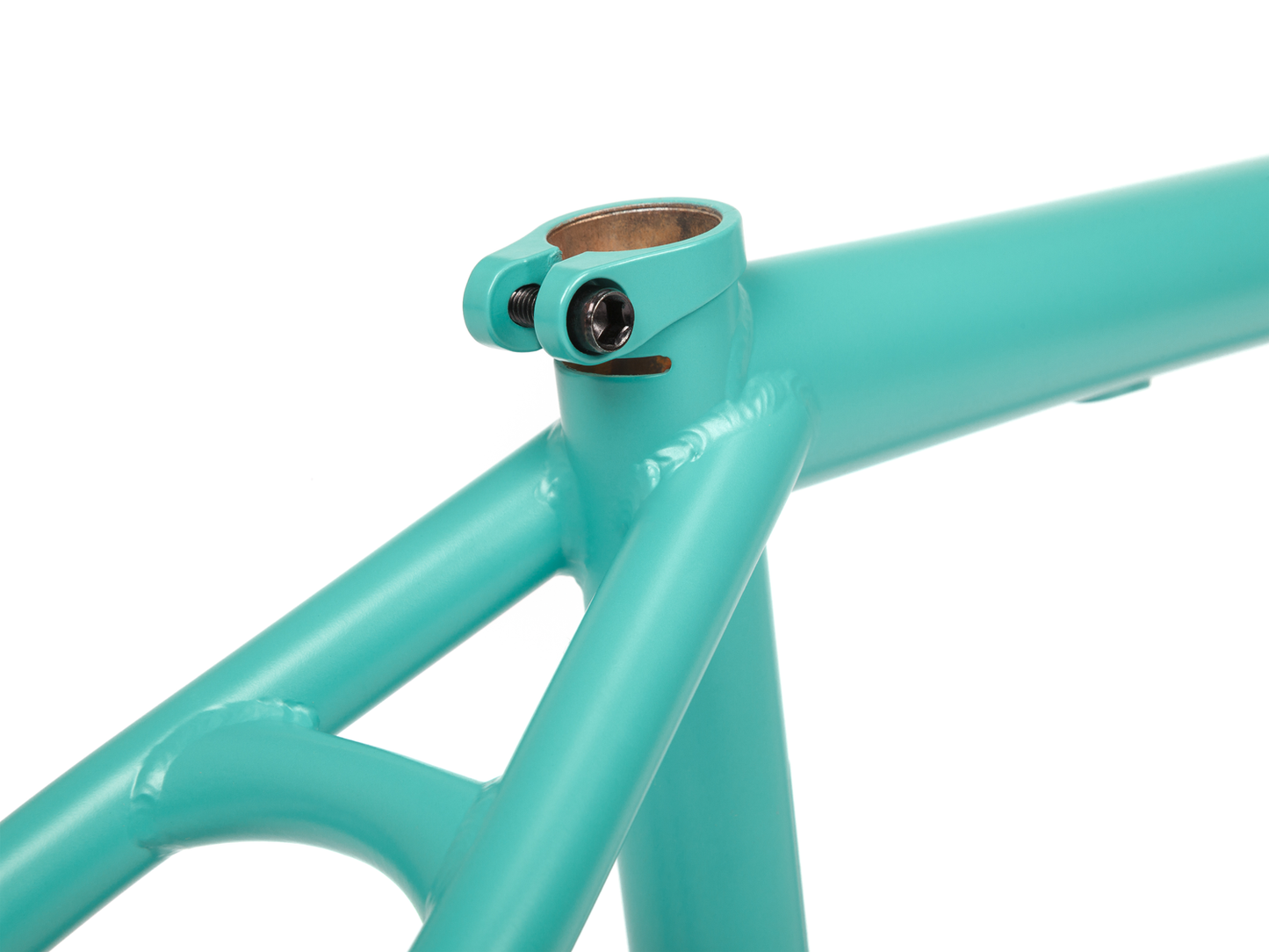

- Invest cast seat clamp
- REMOVABLE brake mounts (Not included)
- 7mm thick invest cast dropouts
- Built-in chain tensioners included
Specifications
Tubing: Sanko Japanese seamless 4130 CrMo / triple butted

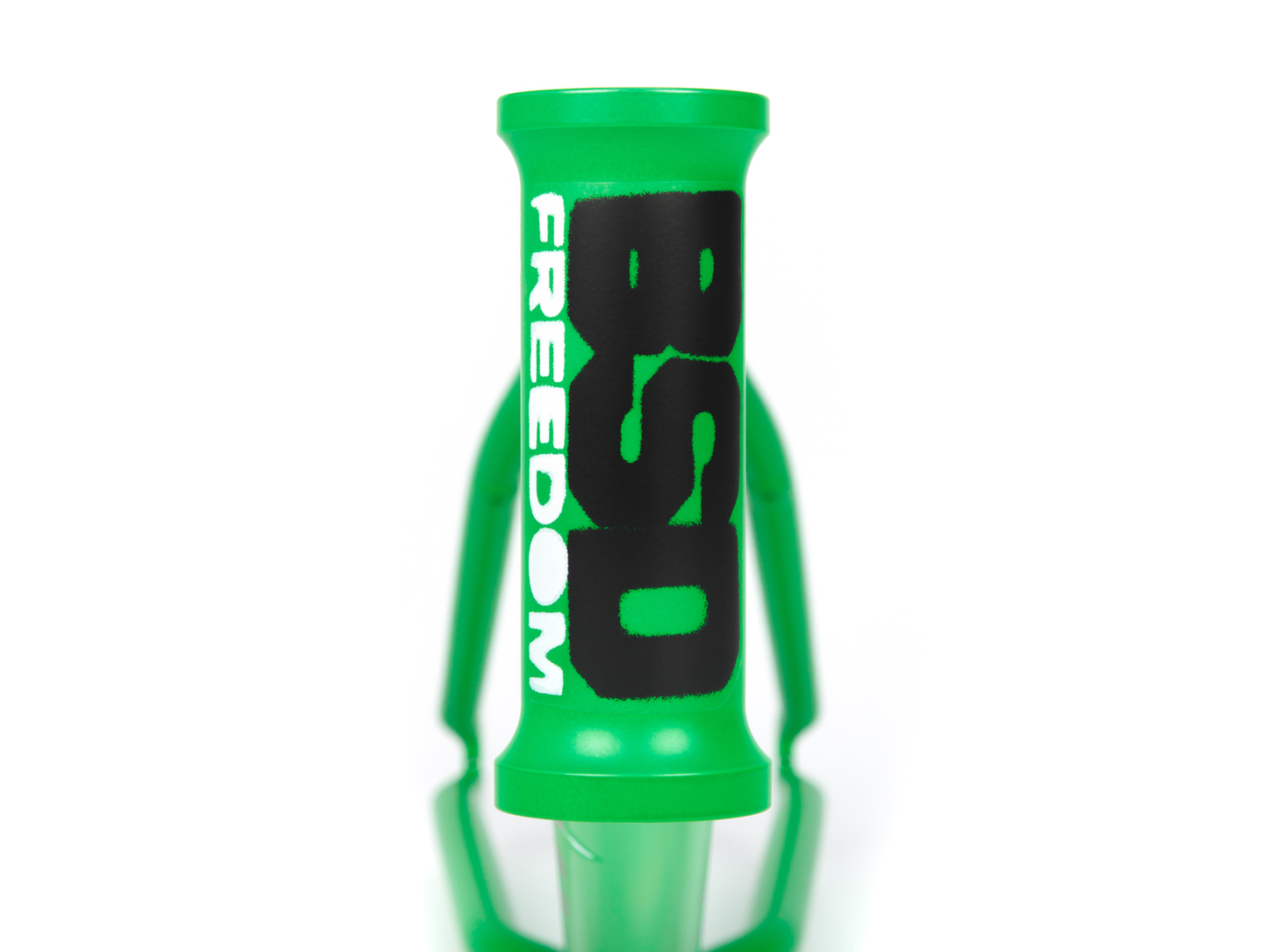

Headtube: Heat-treated 4130 CrMo / CNC / Offset thickness

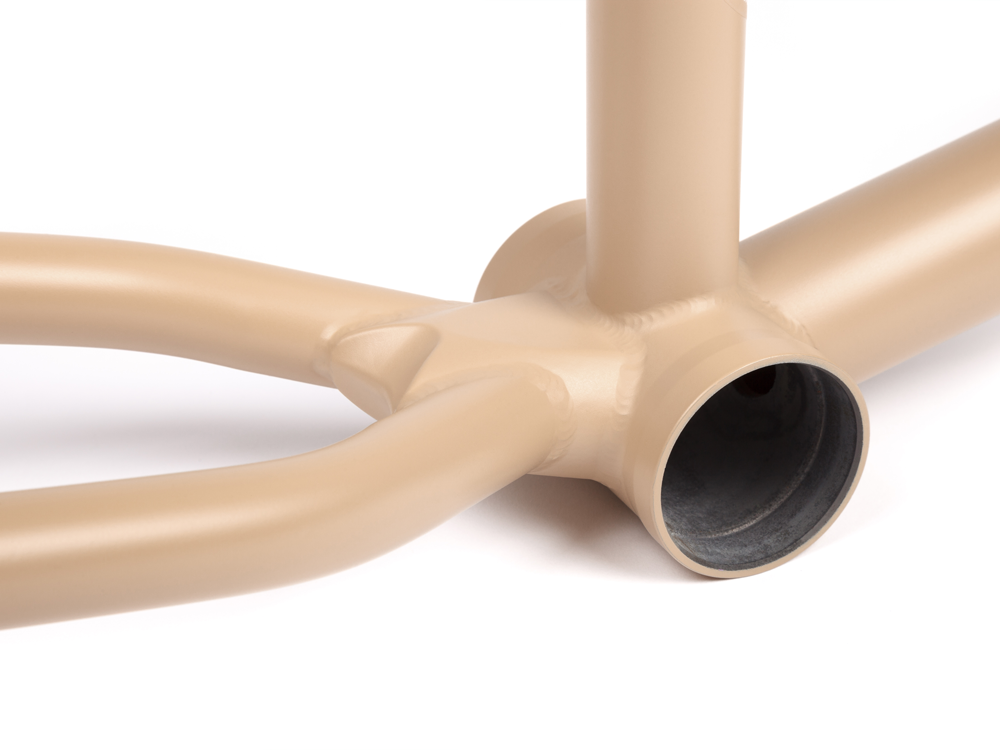

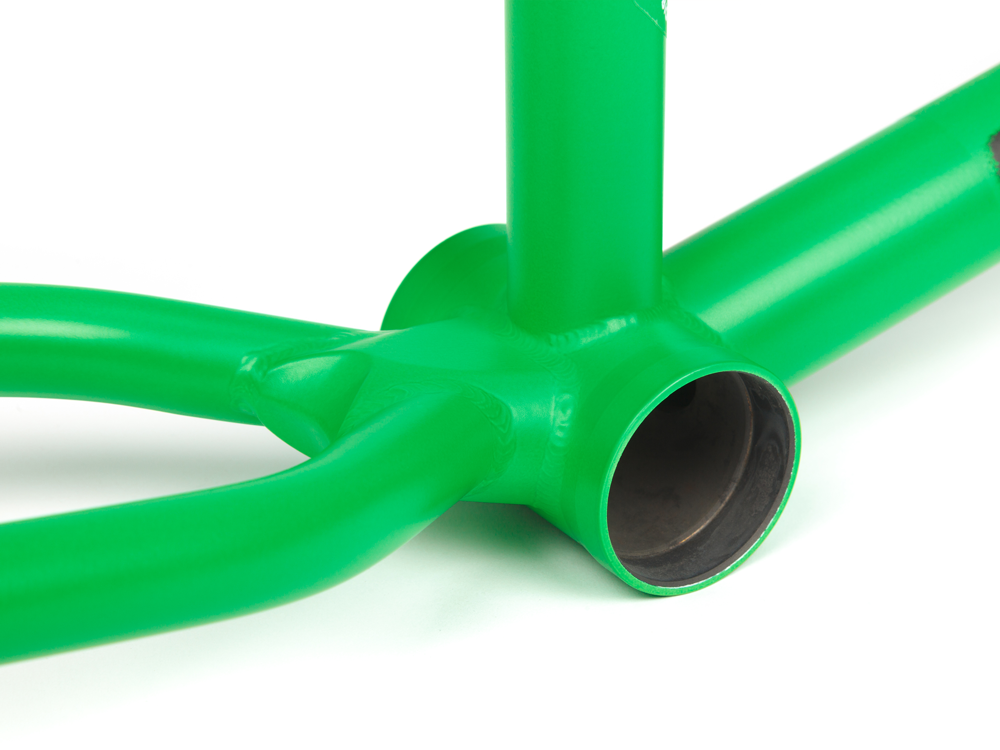

Bottom Bracket: Heat-treated 4130 CrMo / CNC machined
Chainstay Wishbone: Heat-treated 4130 CrMo / Invest cast
Dropouts: Heat-treated 4130 CrMo / Invest cast
Seatclamp: Heat-treated 4130 CrMo / Invest cast
Geometry
Top Tube Length - 20.5” / 20.8” / 21.1” / 21.5”
Chainstay Length - 13.2” - 13.625”
Head Tube Angle - 75°
Seat Tube Angle - 69.5°
BB Height - 11.5”
Standover Height - 9”
Weight - 2.26kg
