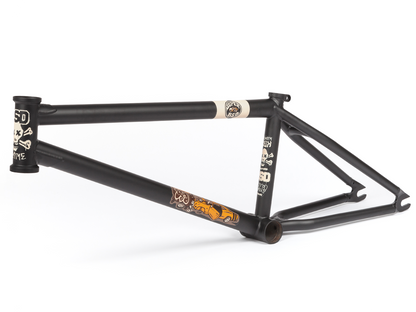

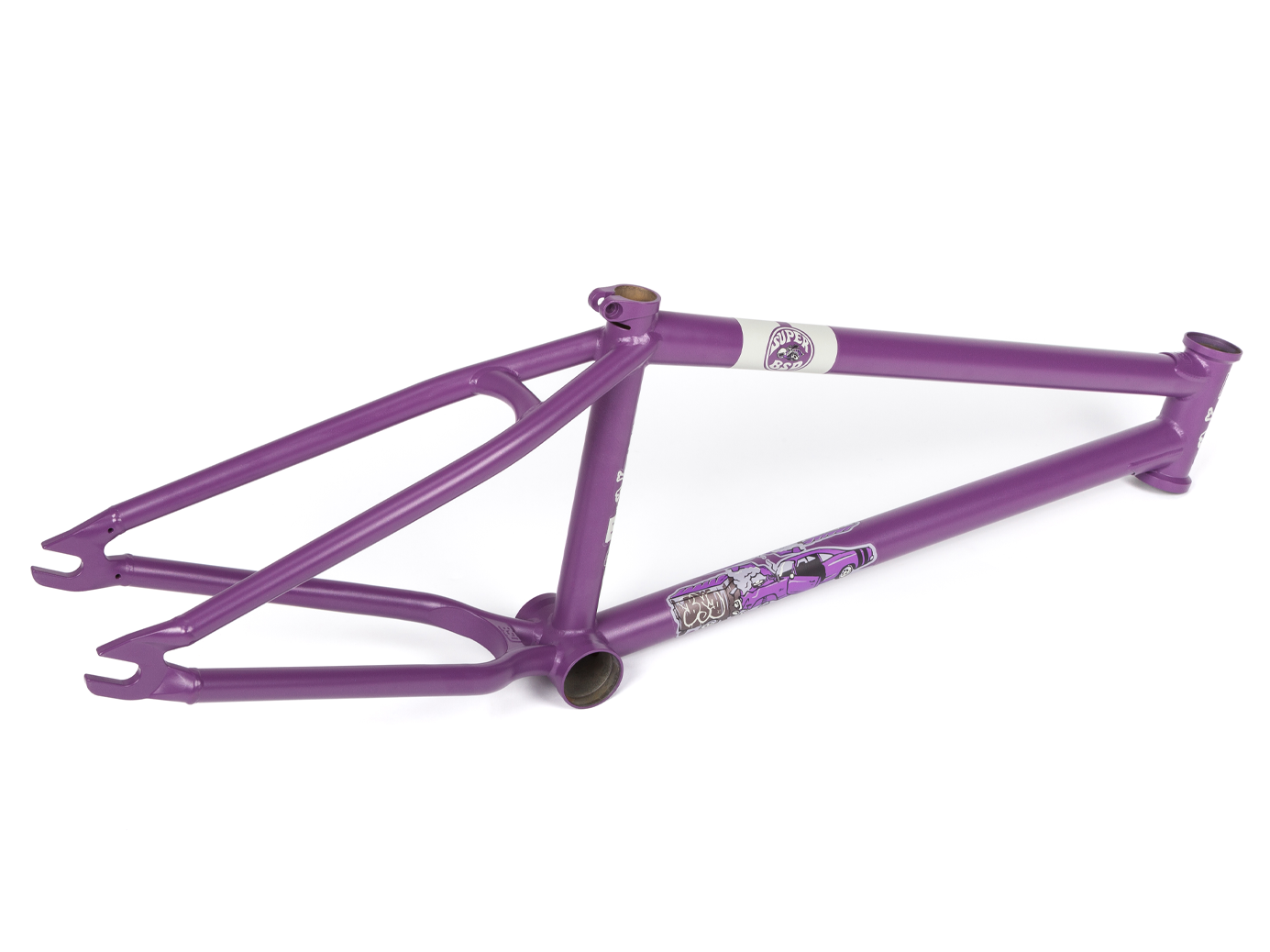

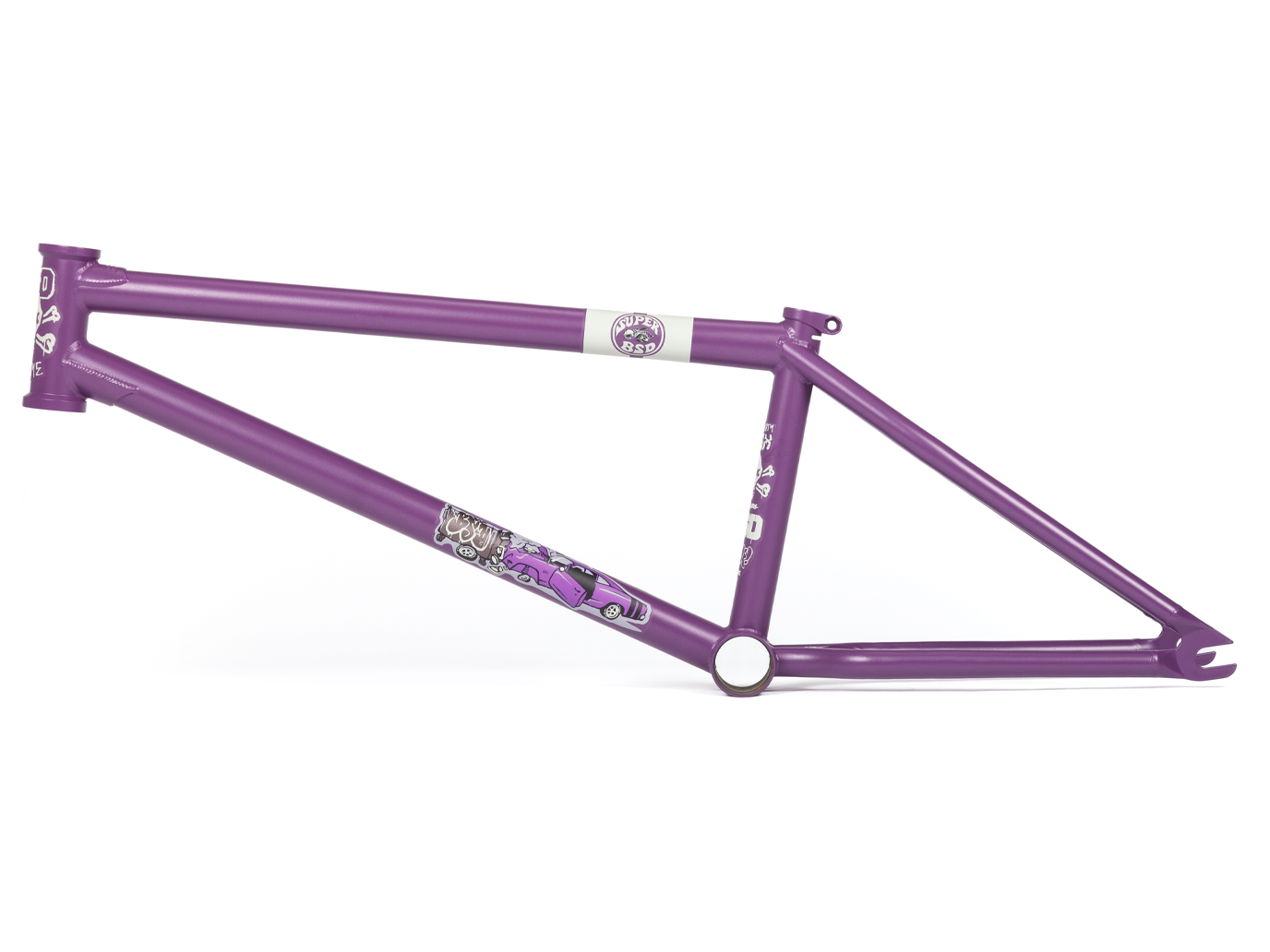

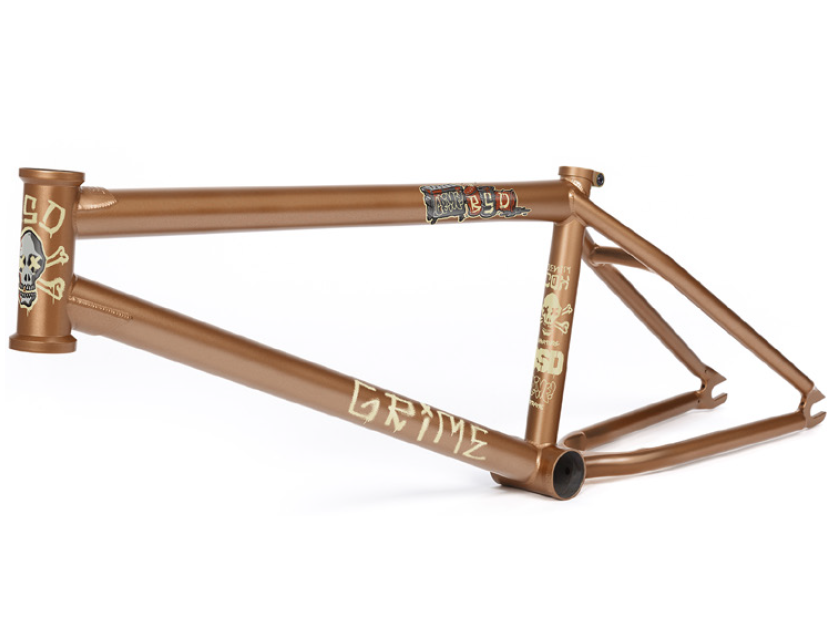

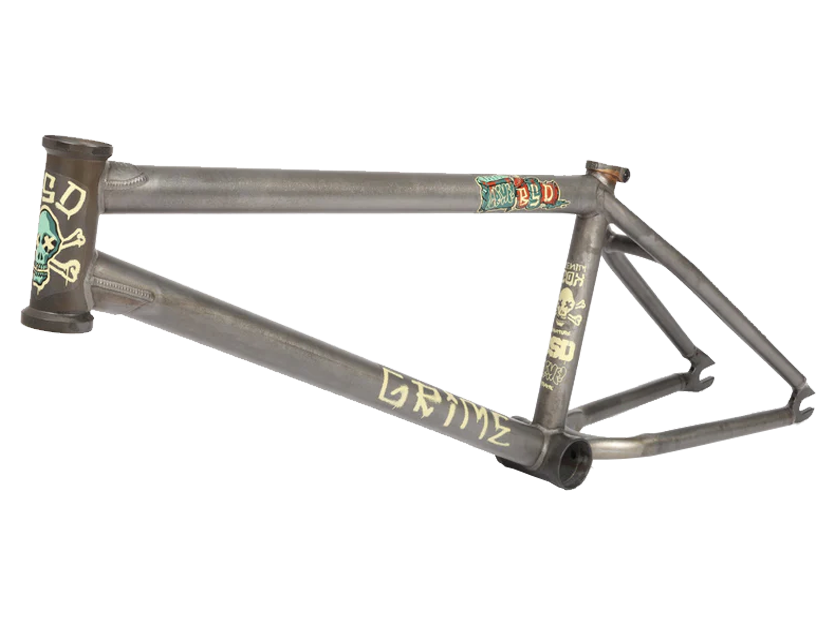

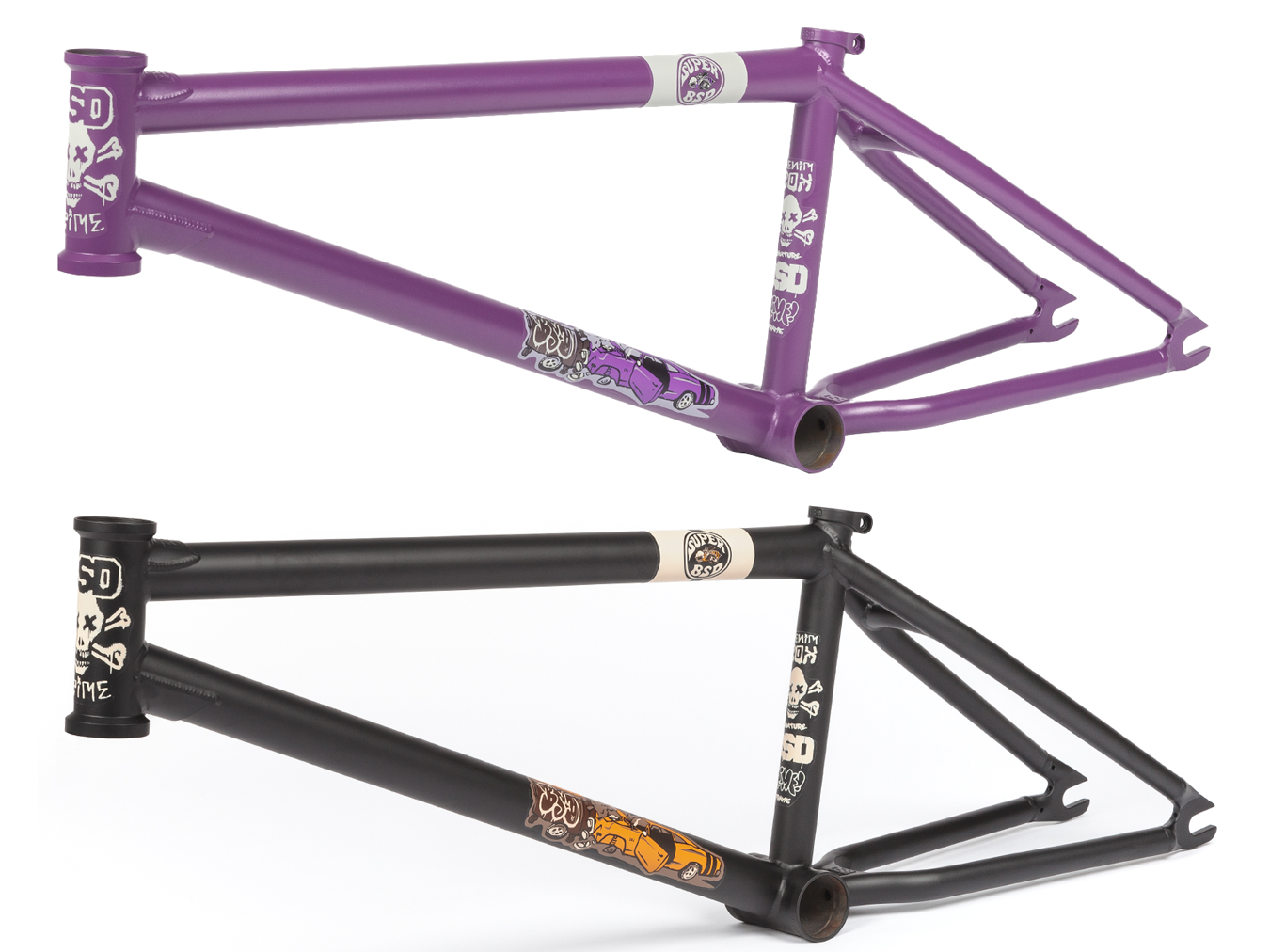

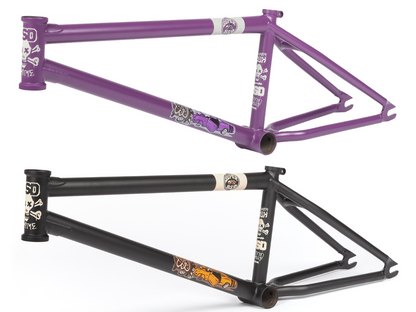

BSD Grime (Denim Cox) Frame

BSD Grime (Denim Cox) Frame

$749.99 AUD
$749.99 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

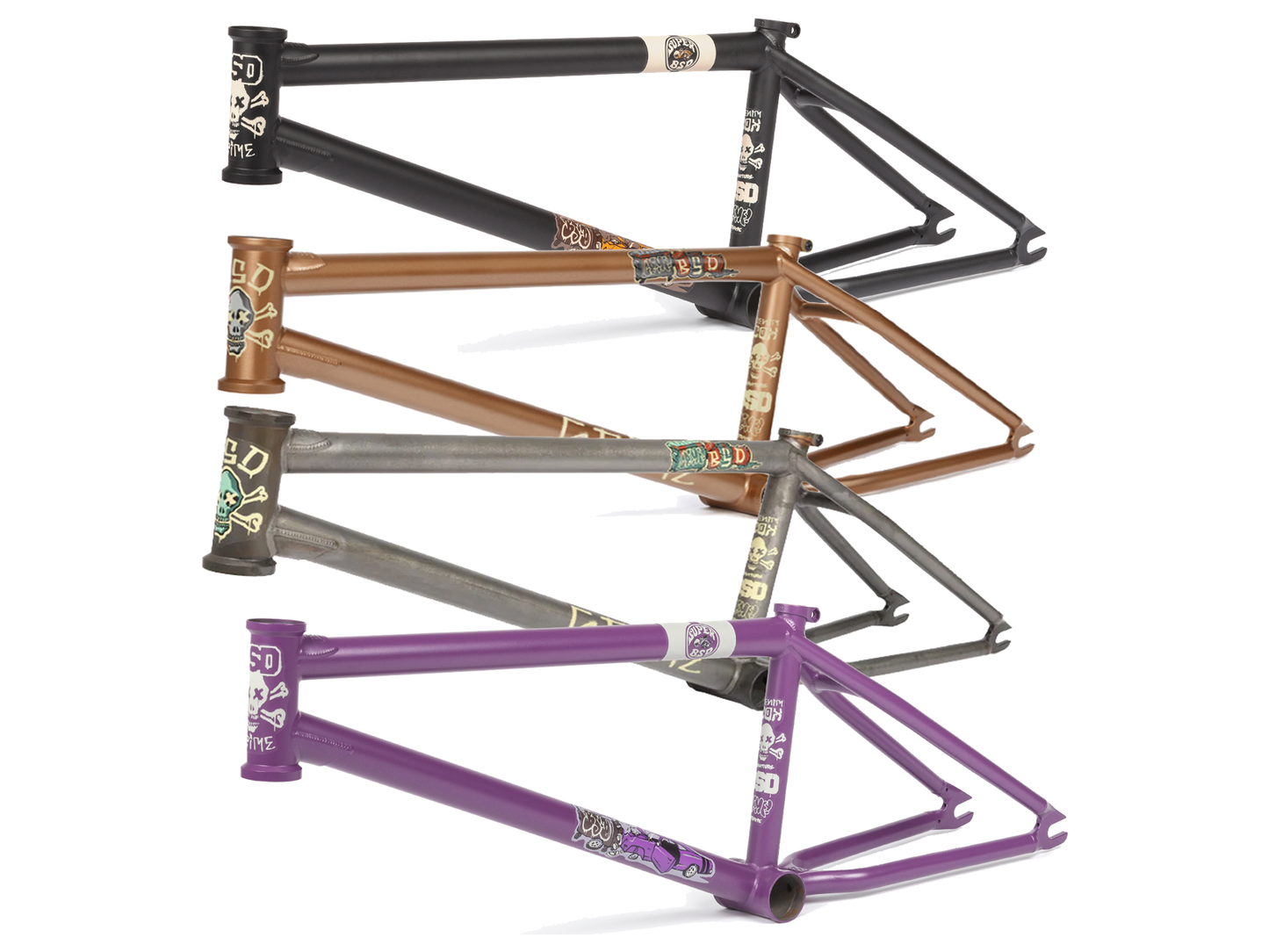

Colour
Top Tube Length
Denim Cox  is a wild man, and the Grime frame is built to handle the abuse he dishes out every day! "MORE SPEED, LESS DOUBT!" Designed to Denim’s specifications, it features a steep 75.5° head angle, a 12.8–13.2” rear end length with an invest-cast chainstay yoke for added tyre clearance, and a 9” standover height.

Features
- ALVX invest cast yoke
- Extra wide rear end
- External Gussets

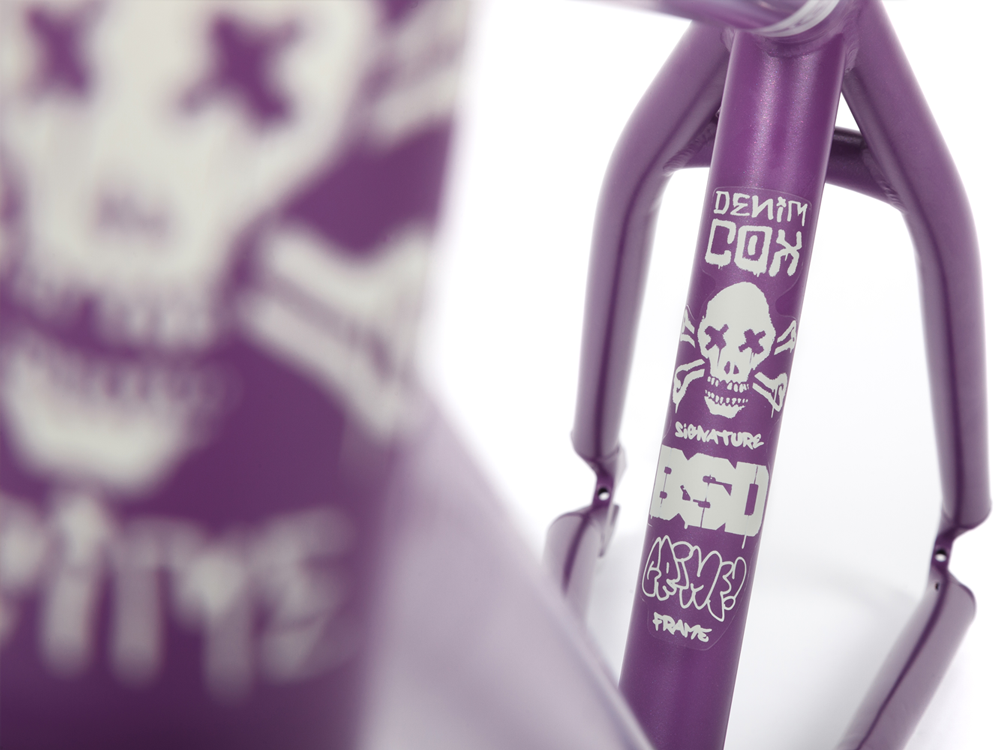

- Invest Cast Seatstay Bridge
- NO brake mounts
- 7mm thick invest cast dropouts
- Built in chain tensioners

Specifications
Tubing: Sanko Japanese seamless 4130 CrMo / triple butted

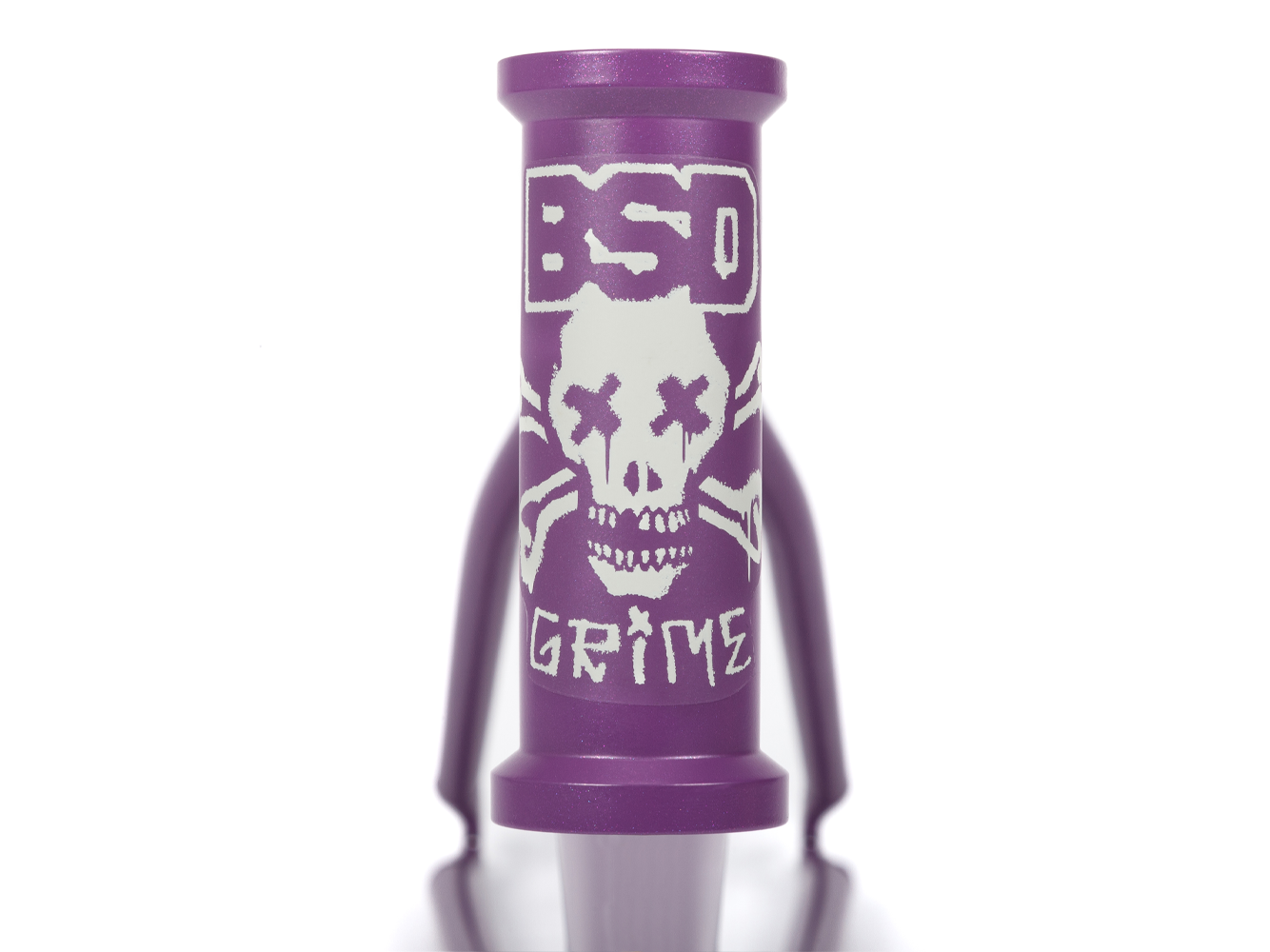

Headtube: Heat treated 4130 CrMo / CNC / Offset thickness
Bottom Bracket: Heat treated 4130 CrMo / CNC machined

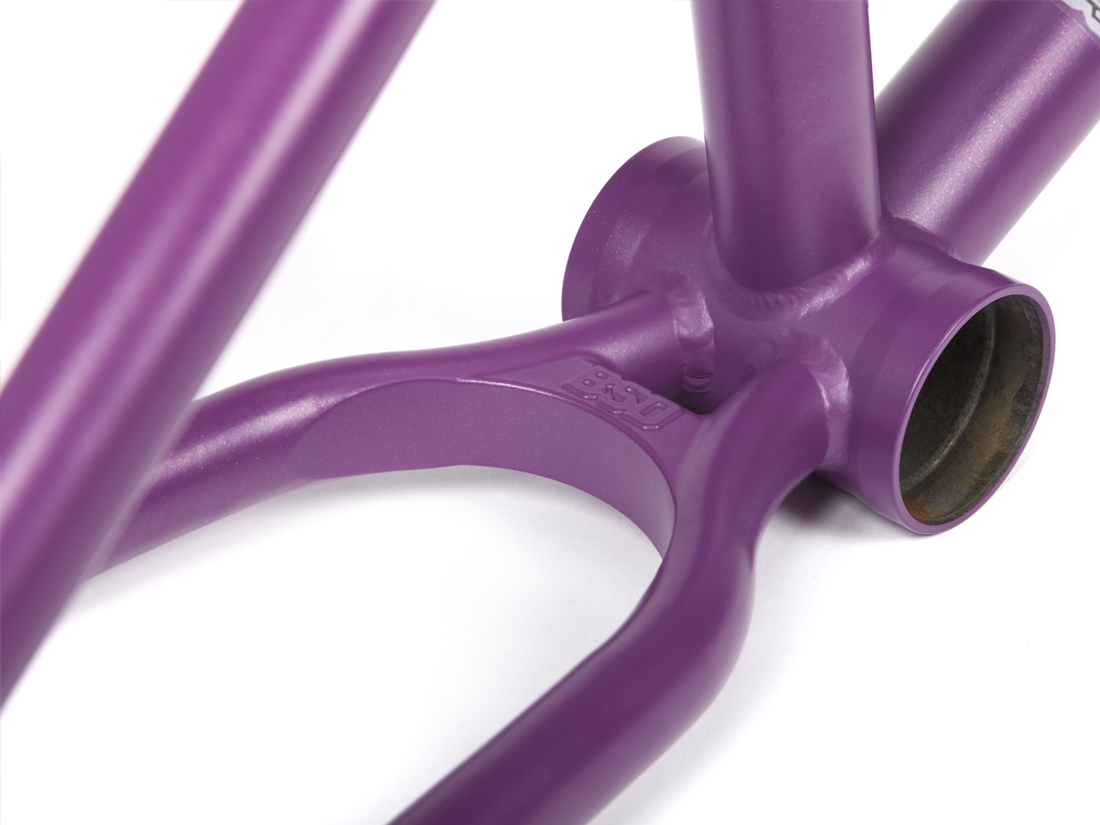

Chainstay Wishbone: Heat treated 4130 CrMo / Invest cast
Dropouts: Heat treated 4130 CrMo / Invest cast
Seatclamp: Heat treated 4130 CrMo / Invest cast

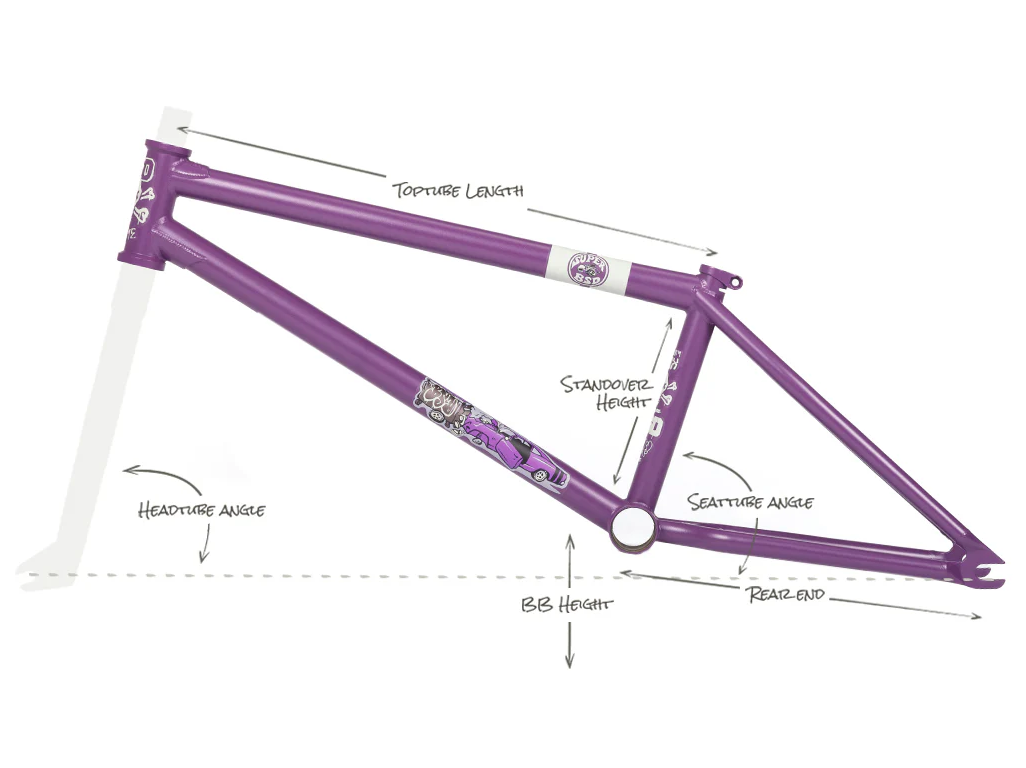

Geometry
Top Tube Length - 20.8", 21.0", 21.2”
Chainstay Length - 12.8” - 13.2”
Head Tube Angle - 75.5°
Seat Tube Angle - 71°
BB Height - 11.7”
Standover Height - 9”
Weight - 2.3kgs
