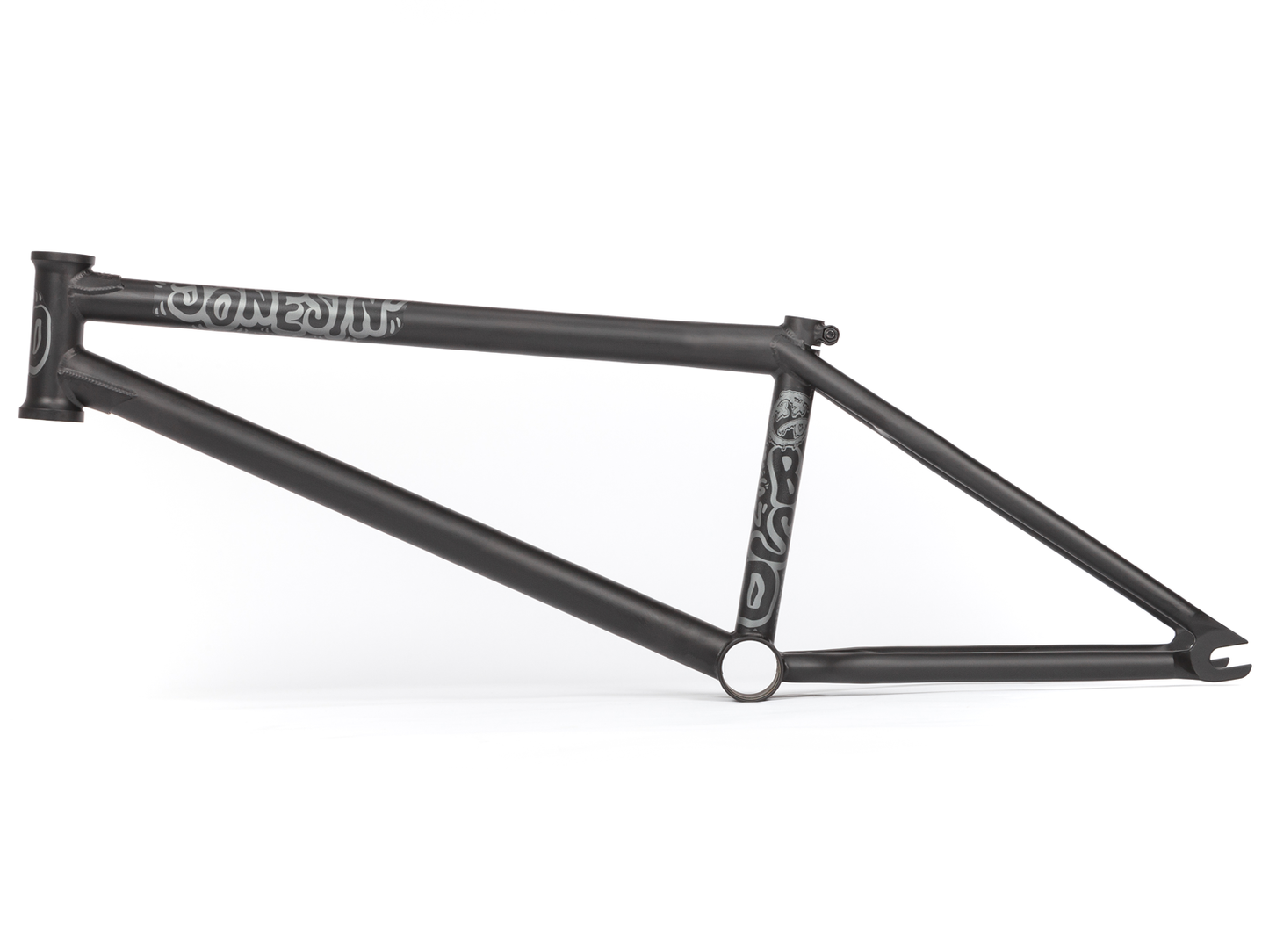

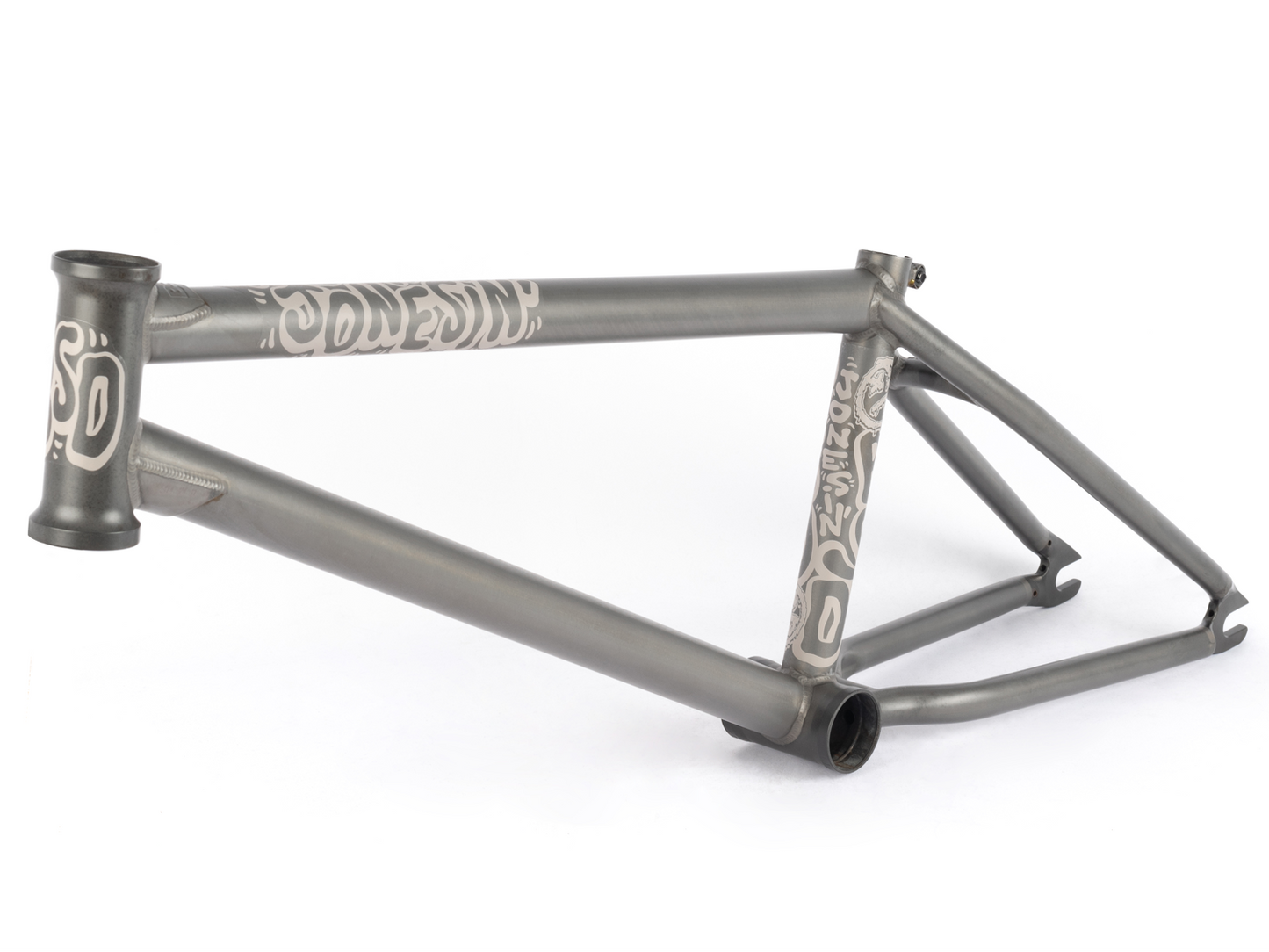

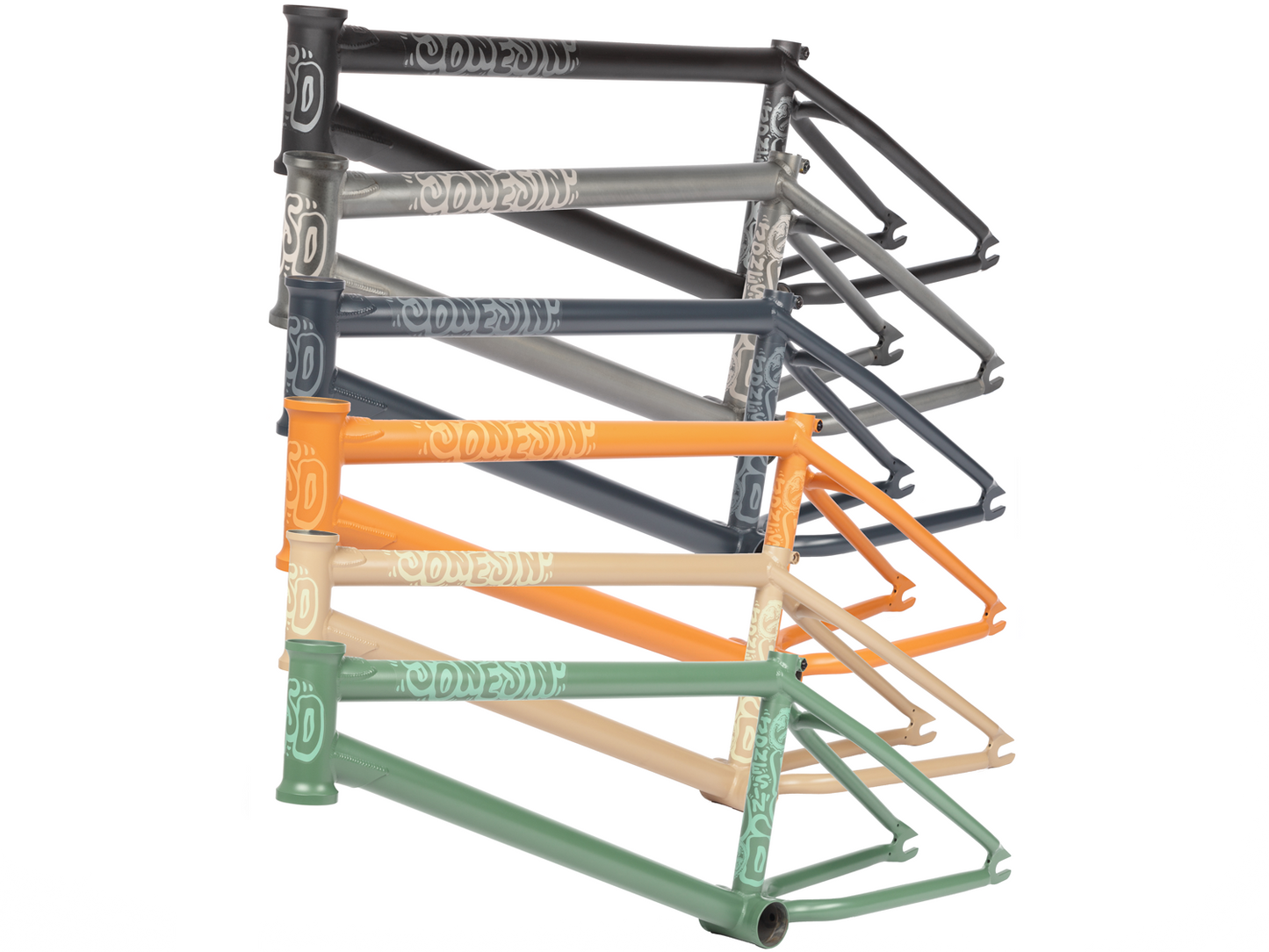

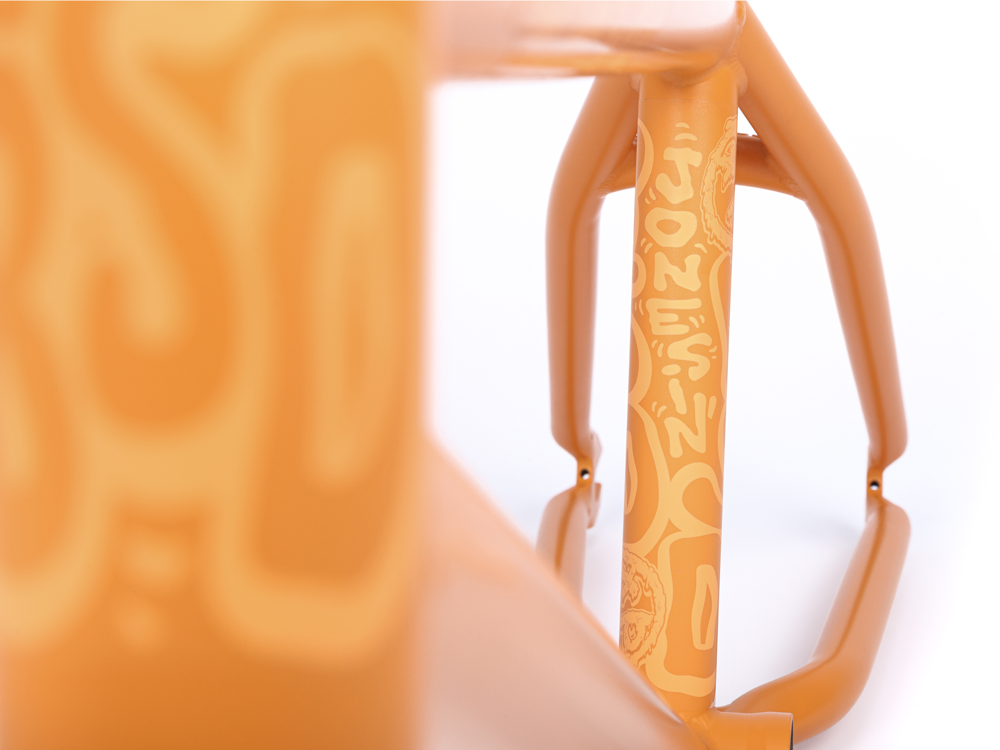

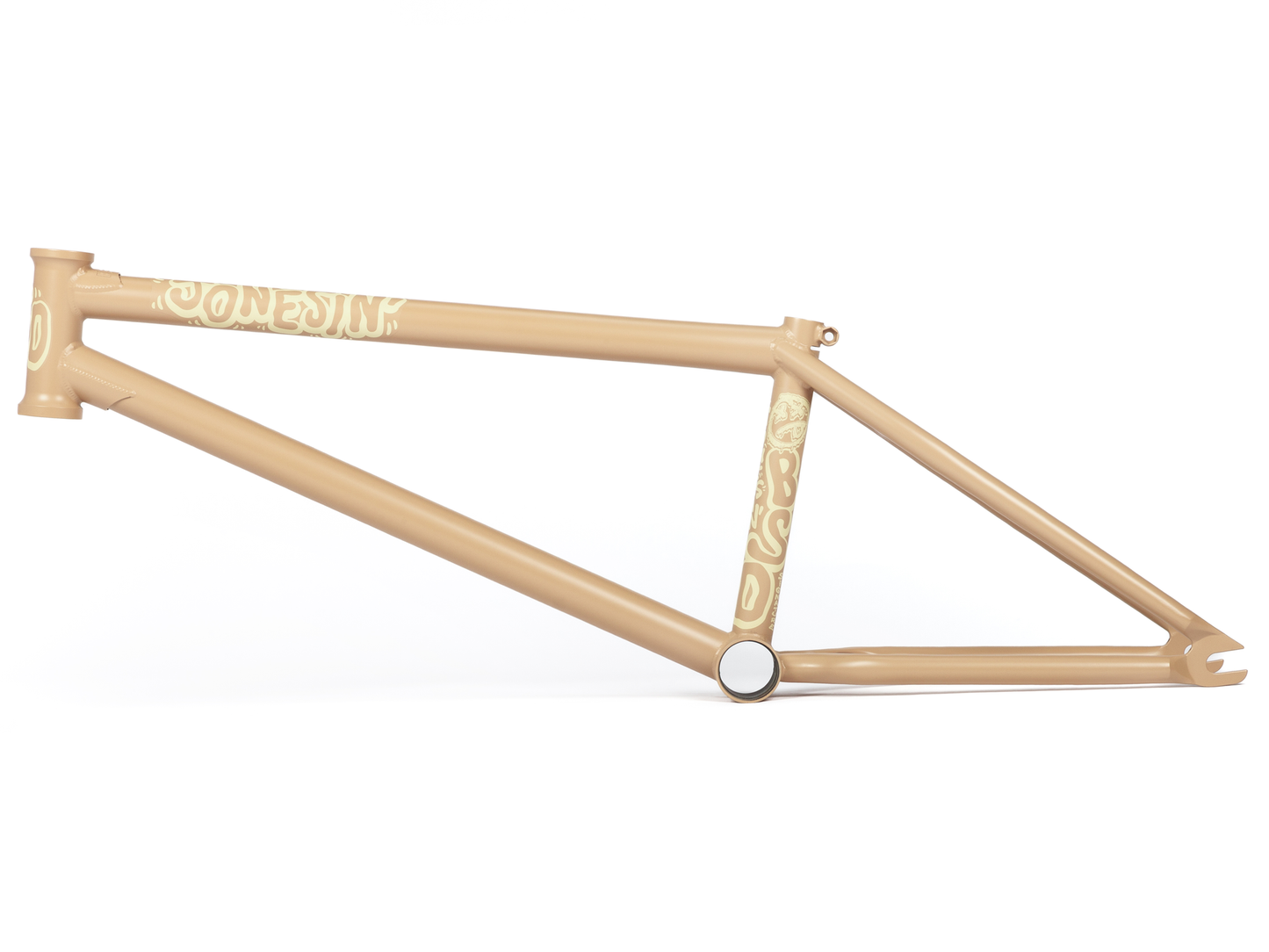

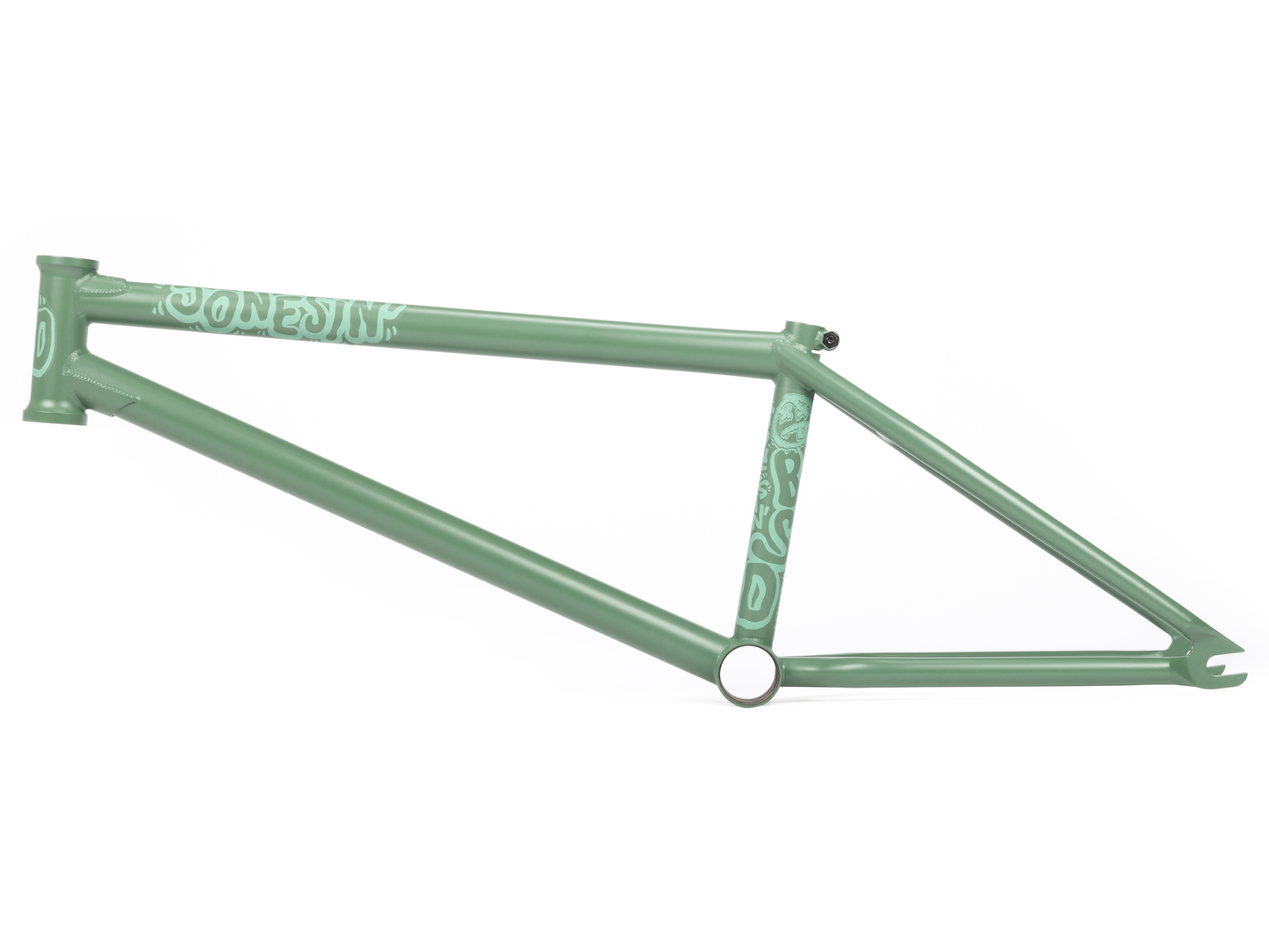

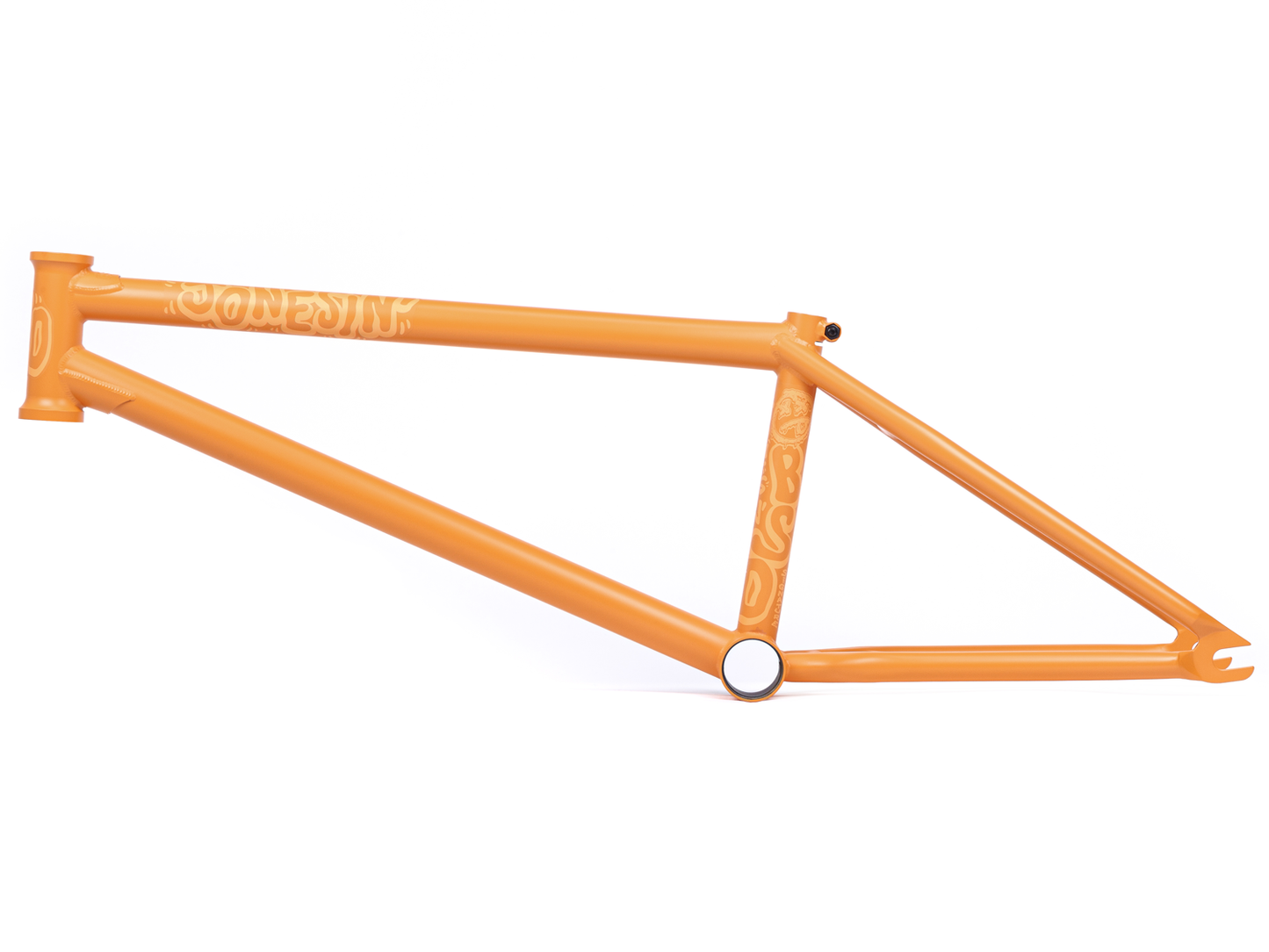

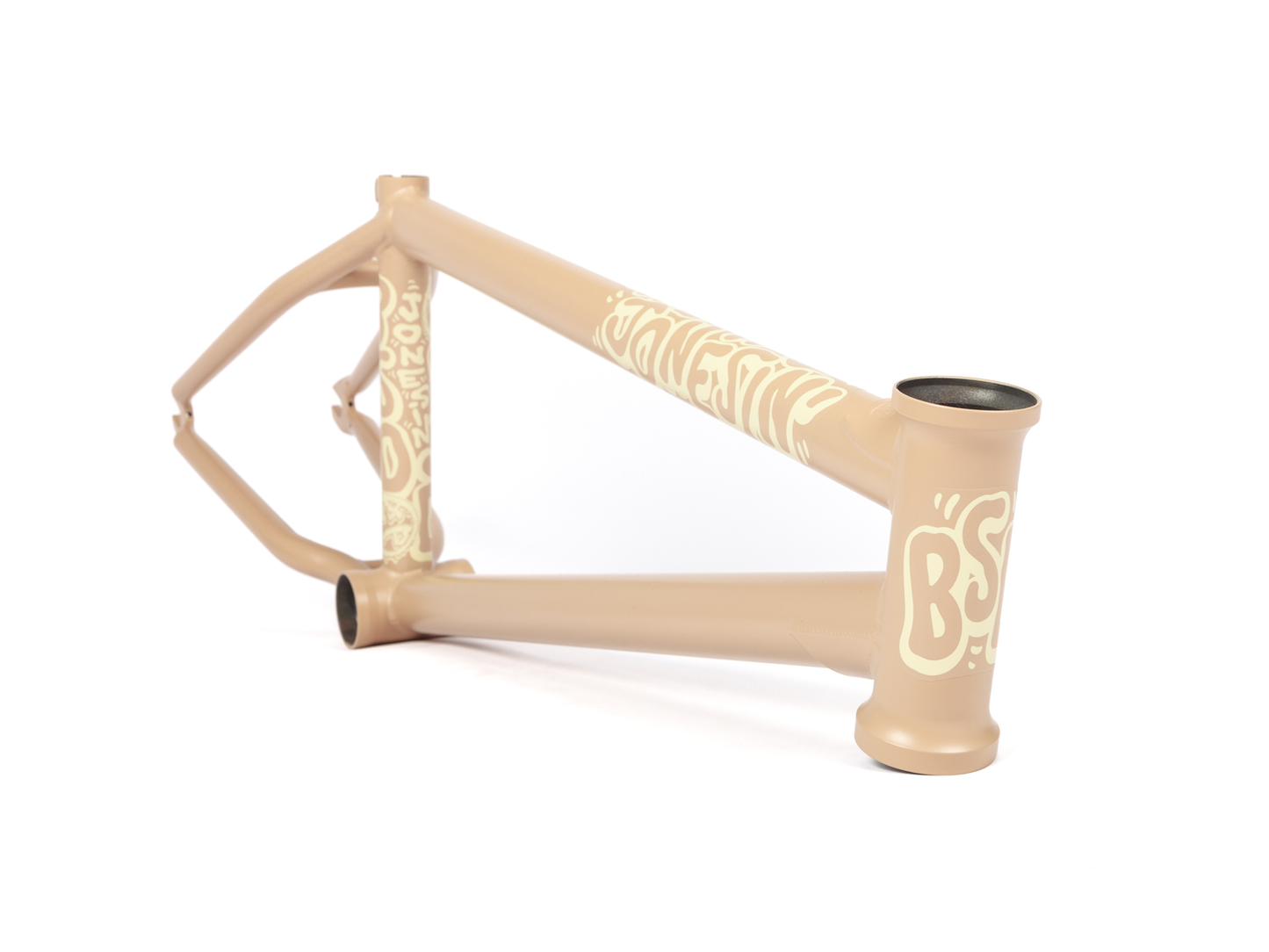

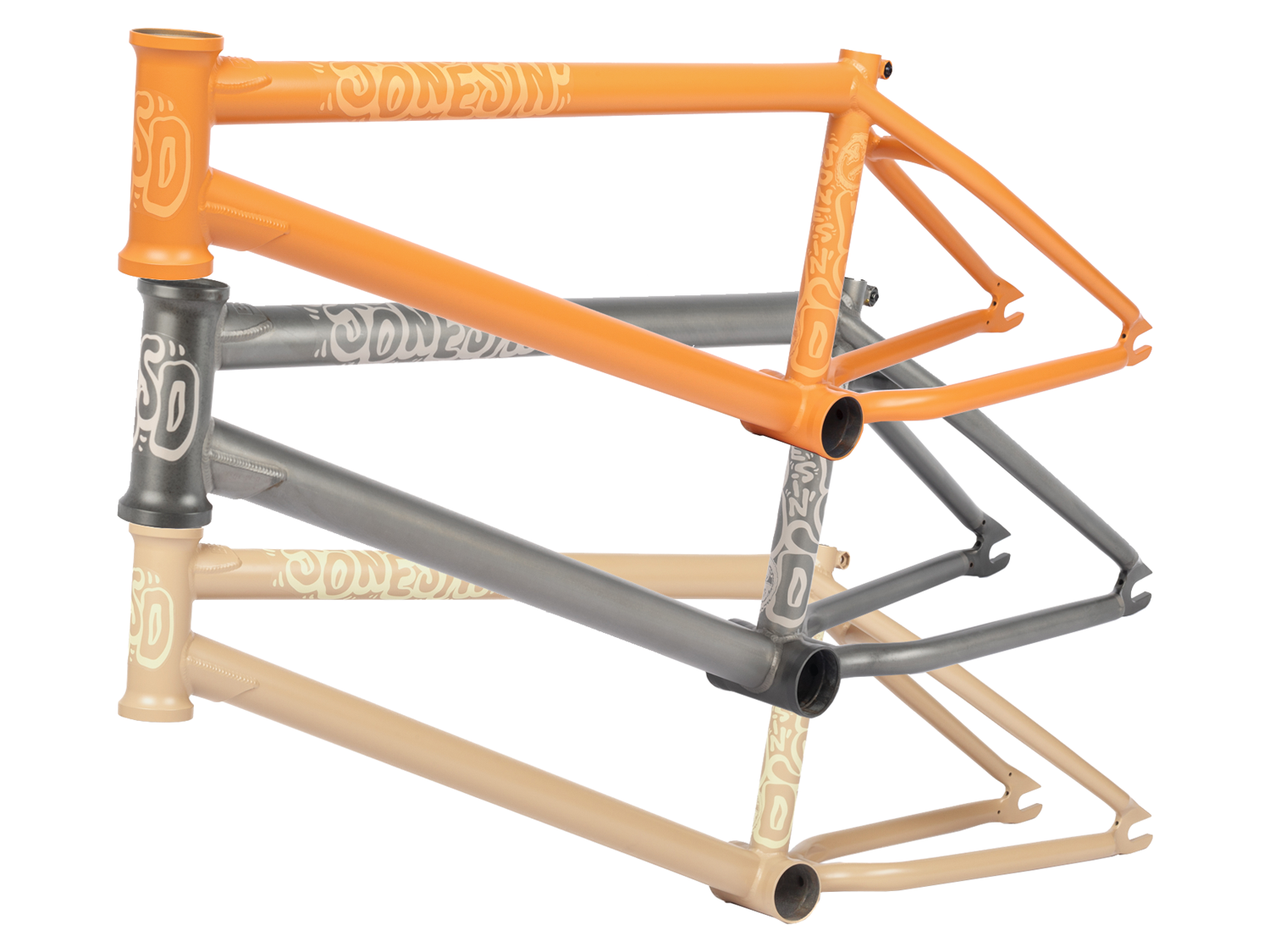

BSD Jonesin (Sam Jones) Frame
BSD Jonesin (Sam Jones) Frame
Couldn't load pickup availability
The JONESIN’ frame is Sam Jones' signature frame. As you may know Sam is a master of front end tricks and he designed his new frame with a steep 76° headangle especially for those moves. Coupled with a short 12.7-13.2" rear end and a 8.9” standover as well as using our new superscoop chainstay tubing for added tire clearance...
Features
- SuperScoop chainstays
- Extra wide rear end
- Invest cast seatstay bridge
- NO brake mounts
- 7mm thick invest cast dropouts
- Built in chain tensioners
Specifications
Toptube lengths - 20.8 / 21
Headtube angle - 76°
Headtube length - 117mm
Seattube angle - 71°
Rear end length - 12.7-13.2"
BB Height - 11.7"
Standover height - 8.9"
Weight - 2.7kg
Brake mounts - None - brakeless
Tubing - Sanko Japanese seamless 4130 CrMo / triple butted

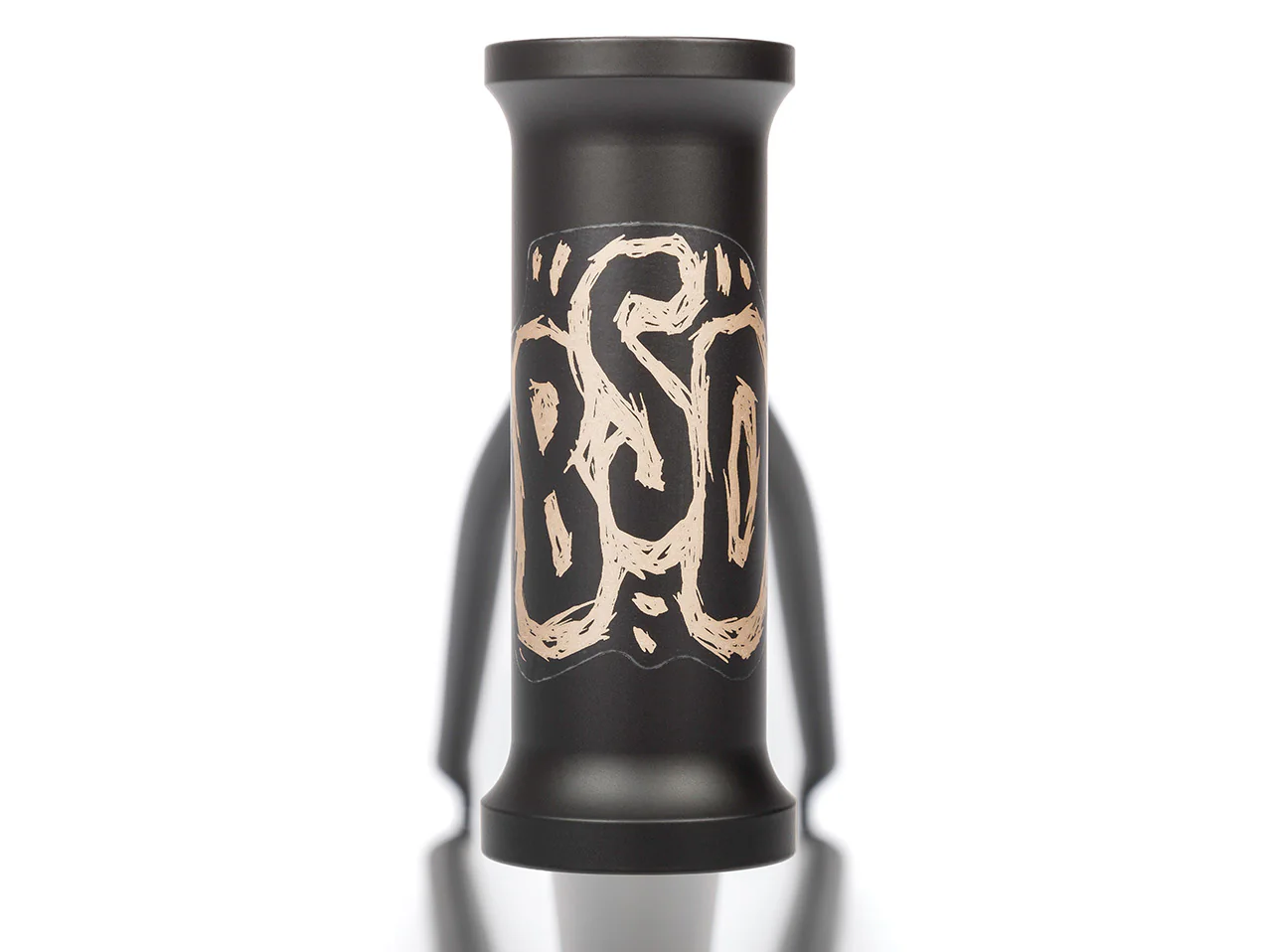

Headtube - Heat treated 4130 CrMo / CNC / Offset thickness
Bottom Bracket - Heat treated 4130 CrMo / CNC machined
Chainstay - SuperScoop tubing
Dropouts - Heat treated 4130 CrMo / Invest cast
Seatclamp - Built in
