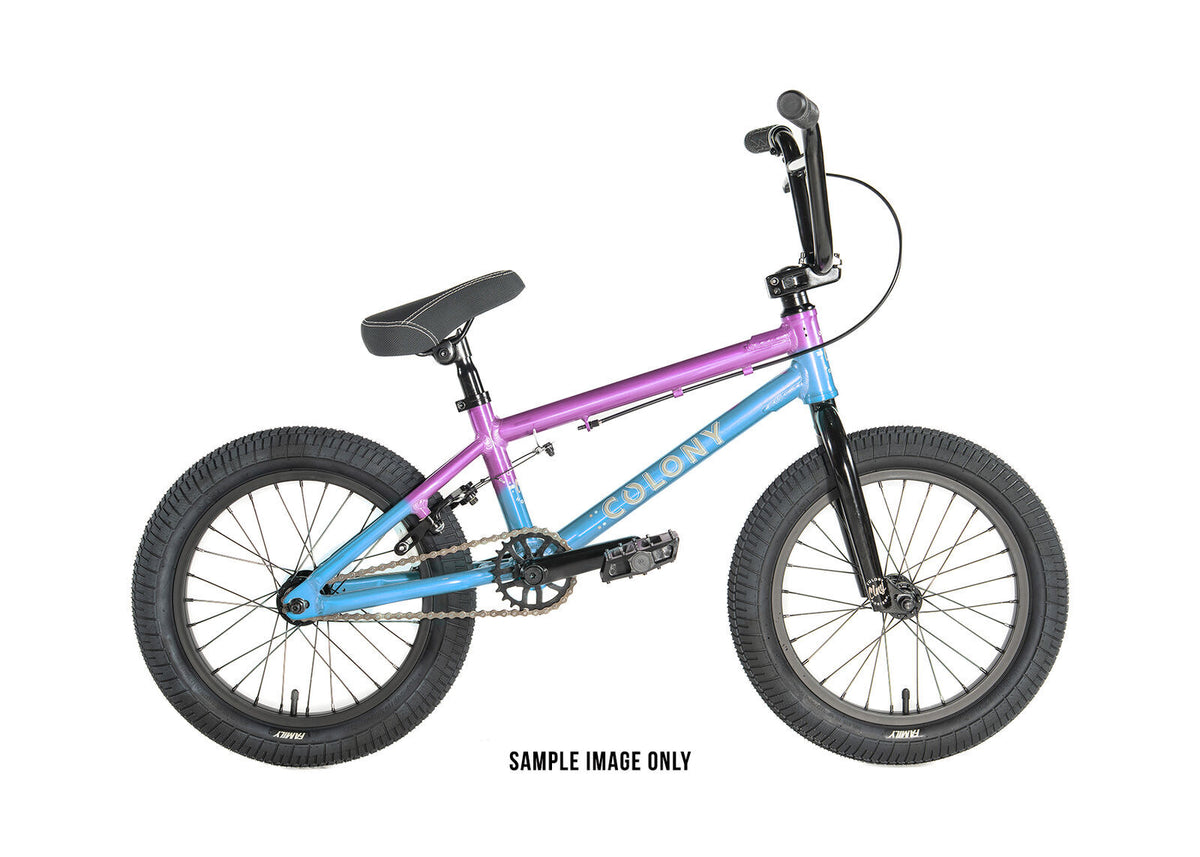

Colony Horizon 16"

Built around a lightweight alloy frame, coupled with appropriately sized geometry, makes these the perfect bike for the younger, smaller BMXers starting out. Progression & having fun with BMX will come naturally, for all styles of riding, including those aspiring to be a future BMX Freestyle Olympic athlete. With the Colony Horizon series of BMX bikes, there is no limit to where BMX could be taken.

• Frame: Colony Horizon 16” 15.9”TT 6061T6 Alloy, 11.25” rear, 75.0º HA, 71º ST, Mid BB, 1-1/8" Integrated Headset.

• Bottom Bracket height 9.5 inches.

• Standover Height 42cm. Ground to top tube.

• Forks: Colony Horizon 16” CrMo tapered legs.

• Handlebars: Colony Horizon 7.0” rise 23” wide CrMo.

• Grips: Colony Horizon

• Headset: 1-1/8” Integrated

• Stem: Colony Horizon Alloy Top Load short reach.

• Brakes (rear): 990 style with clear pads.

• Brake lever (right): Alloy short reach.

• Cables: Slick (rear).

• Sprocket: Colony Horizon 25T.

• Crankset: Colony Horizon Tubular CrMo 3pce 125mm.

• Bottom Bracket: MID sealed bearing.

• Chain: KMC.

• Pedals: Plastic.

• Rims: Alloy Single Wall 28hole.

• Front Tyre: Family F2128 16” x 2.1”.

• Rear Tyre: Family F2128 16” x 2.1”.

• Spokes: Black steel.

• Front Hub: Colony Horizon Alloy, sealed bearing, 10mm axle, 28H

• Rear Hub: Colony Horizon Alloy, Full sealed bearing cassette, 10mm axle with 9T driver, 28H

• Seat: Colony Horizon Railed.

• Seatpost:  Alloy 27.2mm diameter.

• Weight: 8.8 kgs.

• Colours: Clear Black & Clear Teal

• Note: Bike specification &/or colours subject to vary slightly

STANDOVER HEIGHT

FROM GROUND TO TOP TUBE: 420mm

FROM GROUND TO SEAT: 530mm (at lowest position)

PLEASE NOTE: UPDATED IMAGES OF COMPLETES ARE COMING ASAP. THE BUILDS ARE VERY SIMILAR TO THE LAST MODEL IN THE PURPLE & GOLD FOR REFERENCE. TO SECURE YOUR BIKE FOR MAY 2024, PLEASE BUY NOW!
