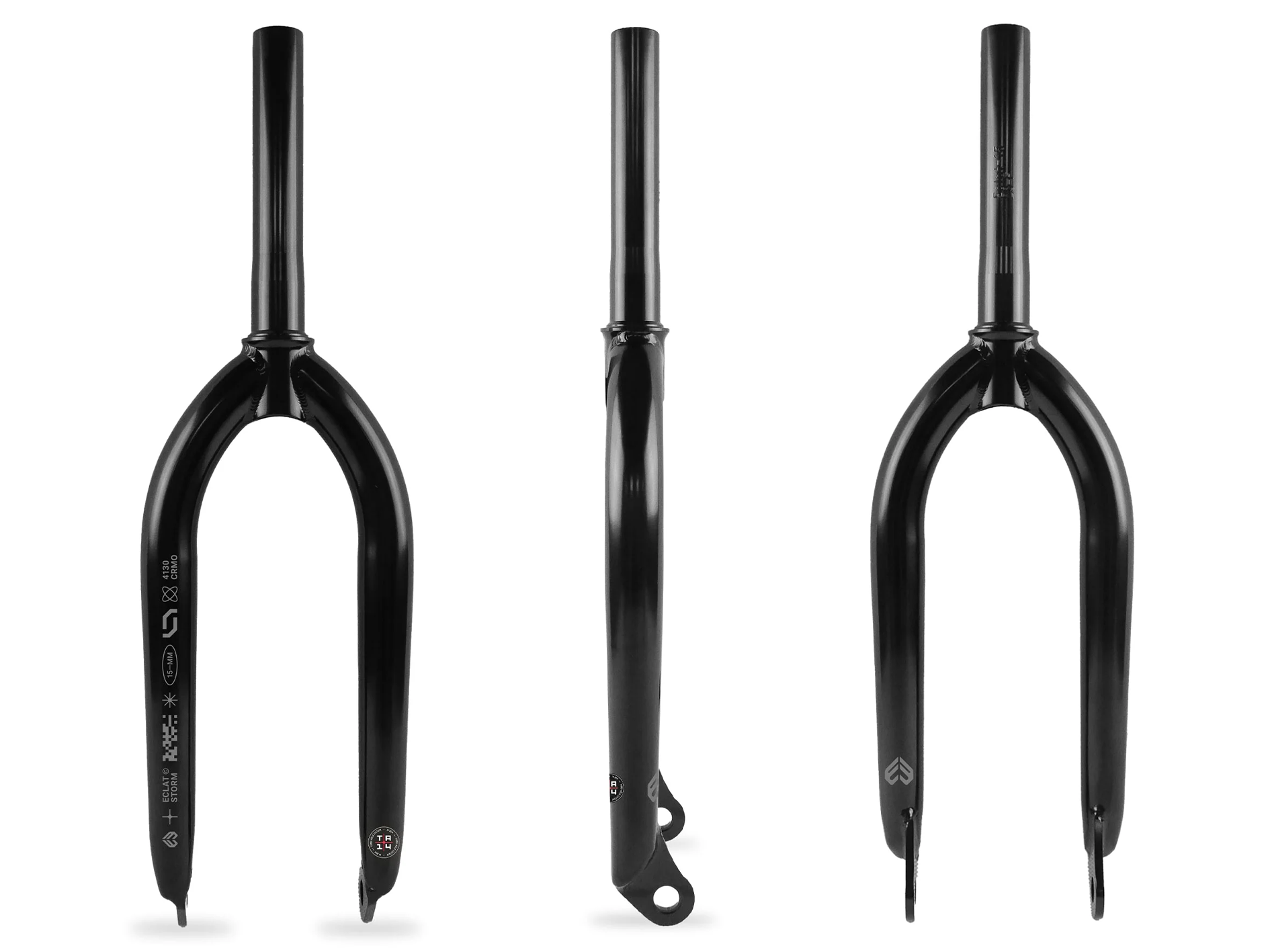

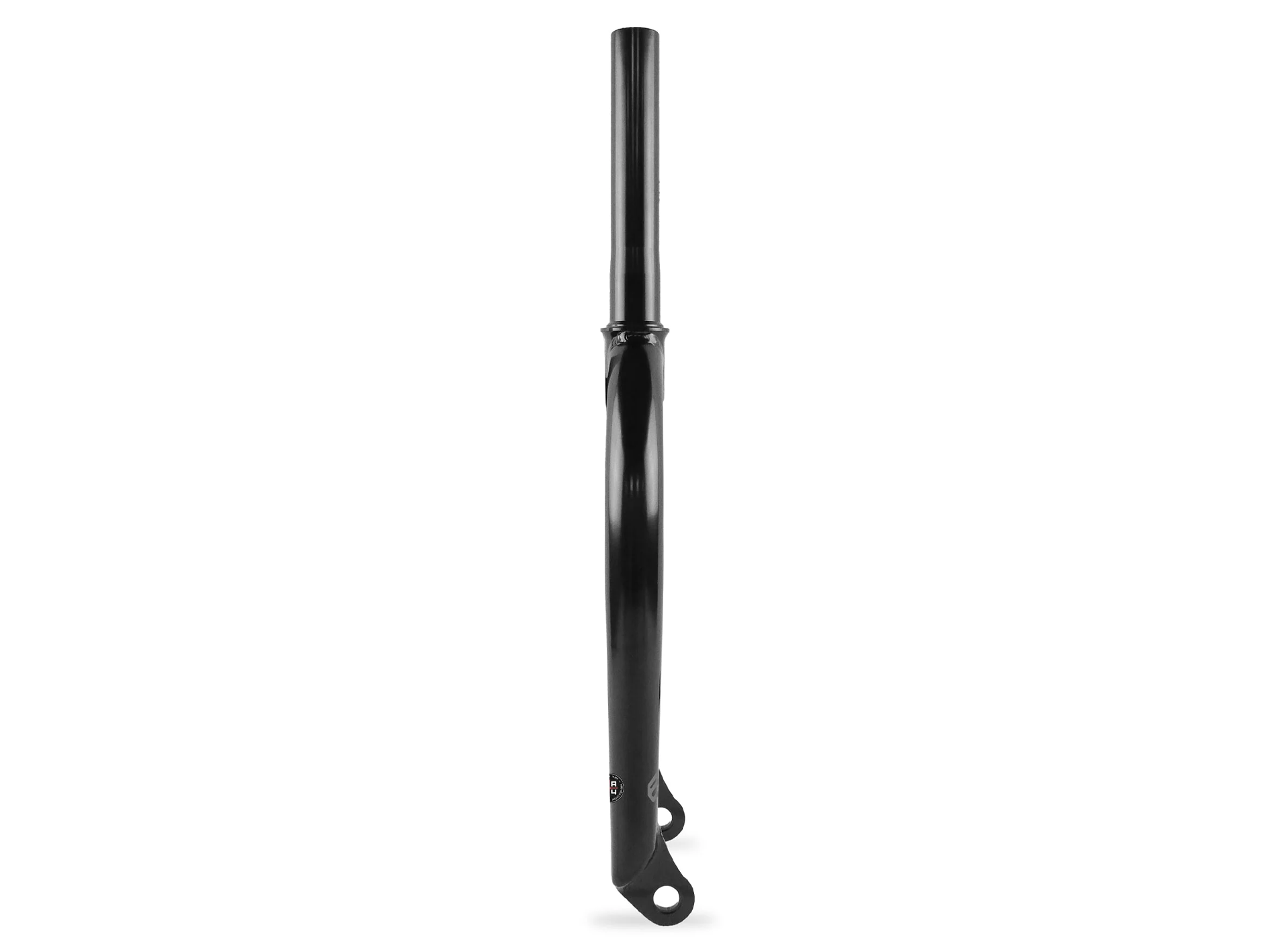

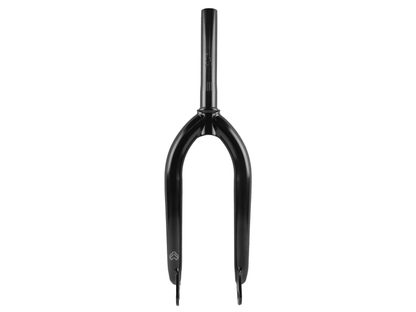

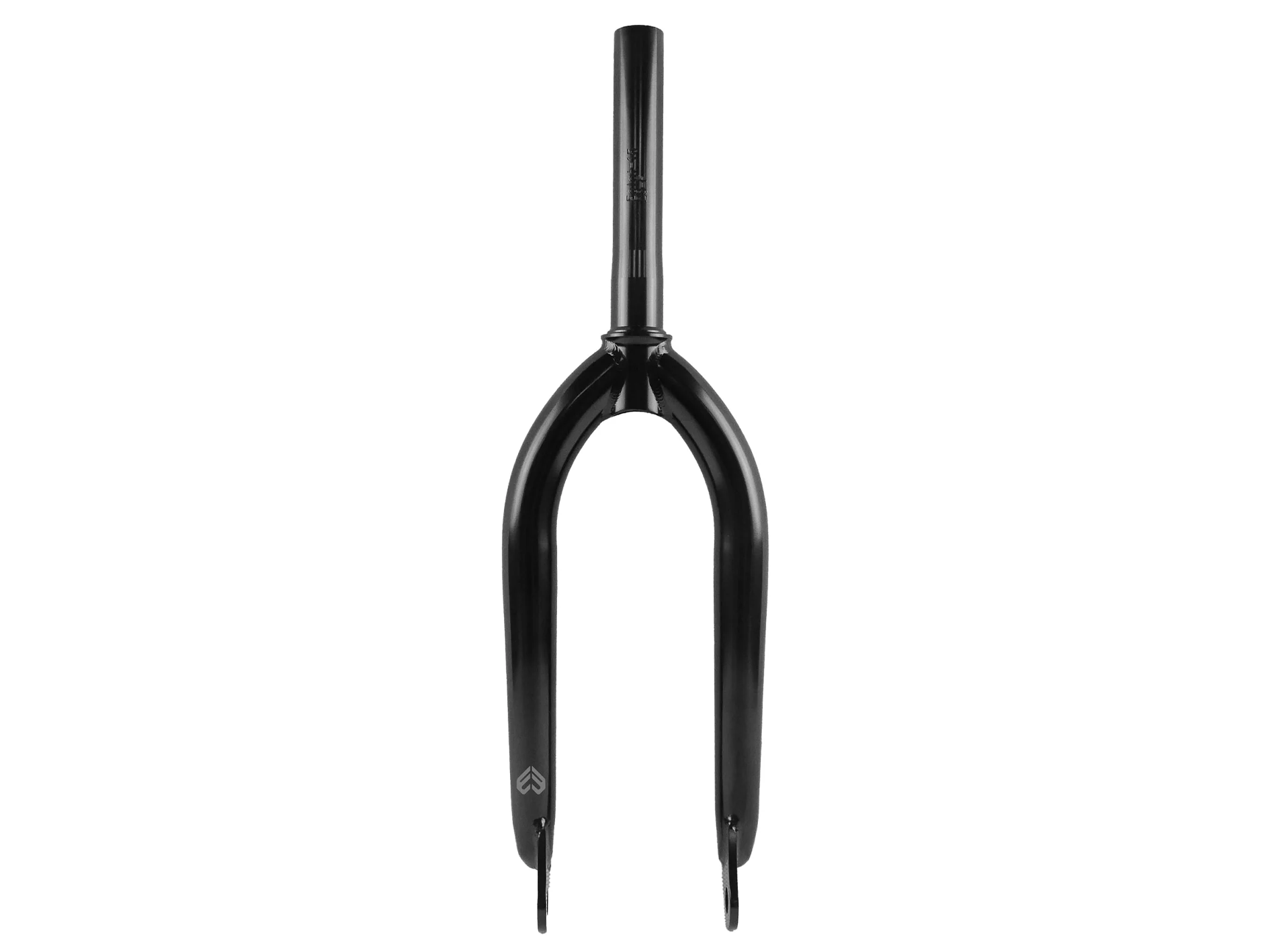

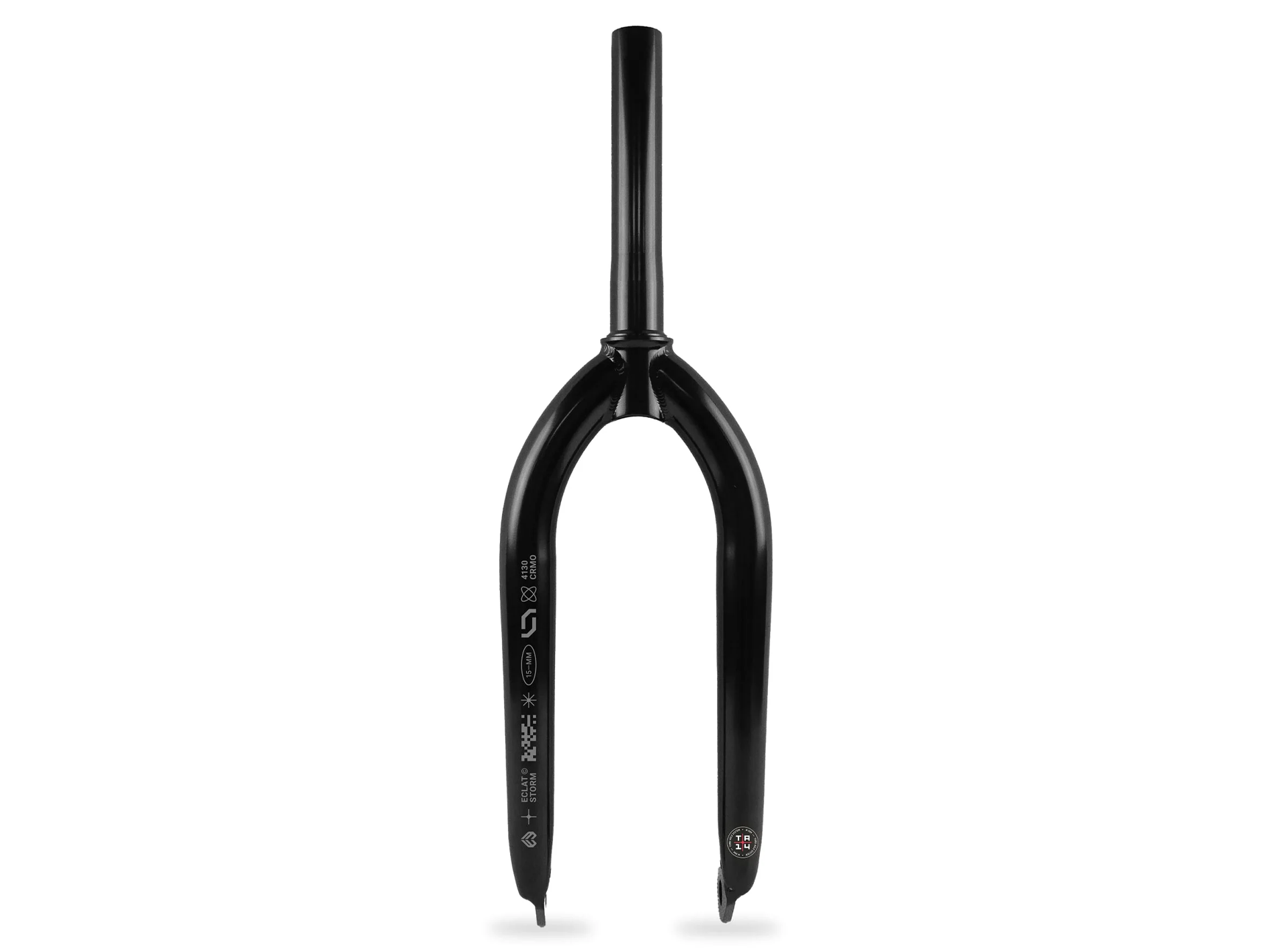

ECLAT Storm TA 25 Fork

A stronger, superior modern BMX fork with a fresh look! Taking the legendary Storm Fork as a base, éclat developed an all-new updated version designed around the introduction of their new thru-axle (TA) hub system. By using a closed-style dropout, they were able to create a stiffer and stronger dropout concept that fits the new Cortex 14mm TA front hubs, as well as fitting all of their existing 3/8” bolt female hubs with the supplied adaptors. The fork crown has also been improved upon by using a larger diameter fork crown with a smooth taper, they created a stronger interface between the fork leg and the crown as well as a super clean, flush transition into the frame head tube. Covered by éclat's Lifetime Guarantee.

Specifications:
Material: Full liquid post-heat-treated seamless 4130 CrMo
Steerer Length: 170mm, new oversize fork crown for stronger junction
Offset: 25mm
Topbolt: M24 thread, 6061-T6 alloy
Weight: 988g

Features:
• New evolution of the tried and tested Storm Fork
• New-school closed dropout design for superior strength
• For 14mm thru-axle (TA) hubs or female front hubs with 3/8" bolts (adaptors included)
• Oversized fork crown for improved leg junction
• Flush fit with frame head tube
• 2.4" tyre clearance

Machining:
• Fully CNC’d steerer and butted fork blades
• Integrated crown race
• Mechanically formed fork leg
• Designed for integrated 45° headsets
• CNC recess for 10 mm adaptor

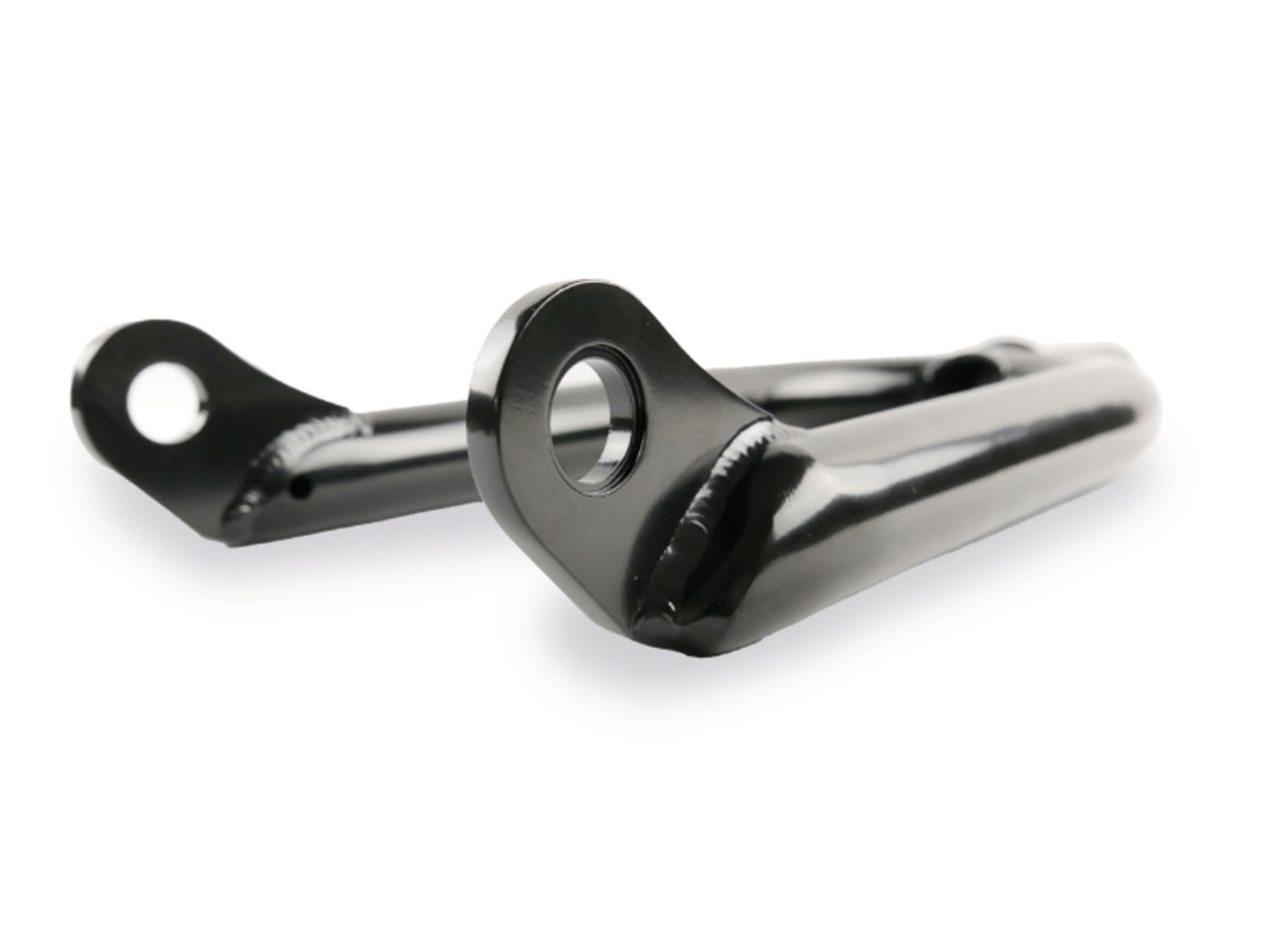

Dropouts:
• Thru-axle / female axle-specific closed dropout
• CNC-machined laser cut 5mm thick
• Heat-treated 4130 CrMo
• For 14mm thru-axle or 3/8" female bolt hubs
• 3/8" adaptors included

*Not compatible with male axle front hubs, will fit most 3/8" female bolt hubs and 14mm thru-axle Eclat Cortex TA front hubs*
