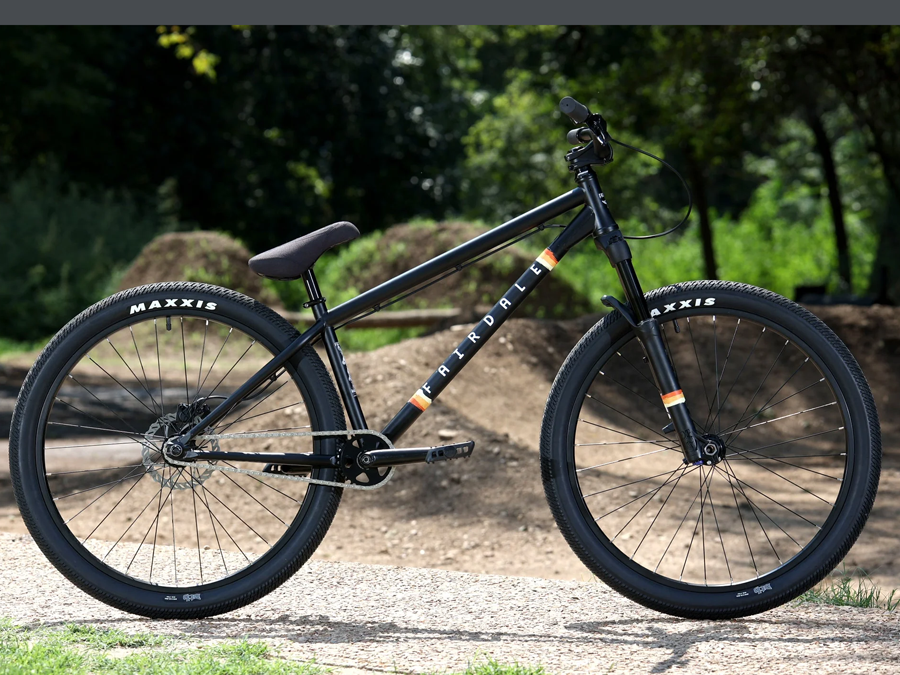

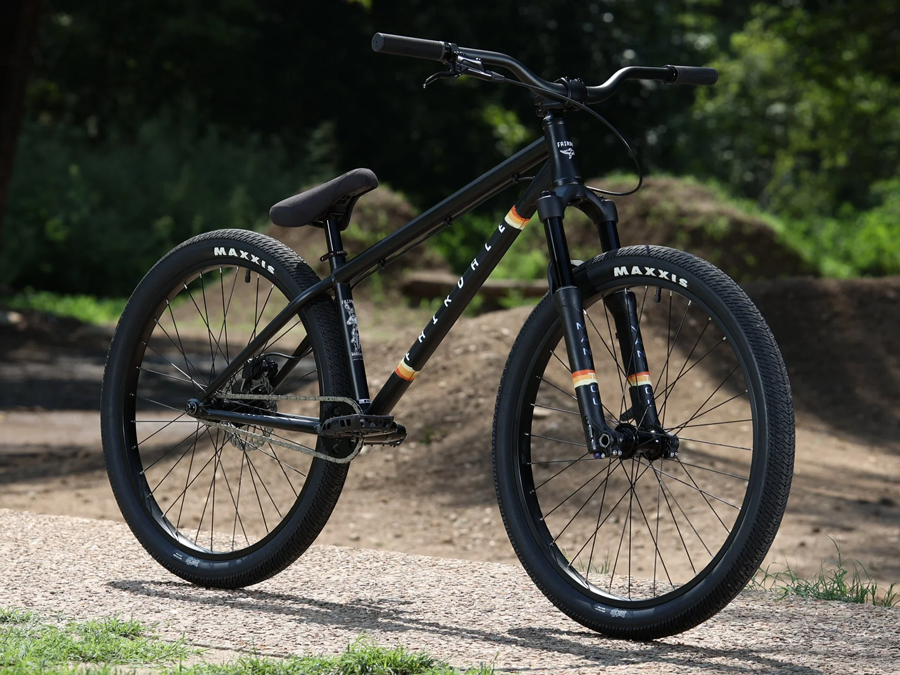

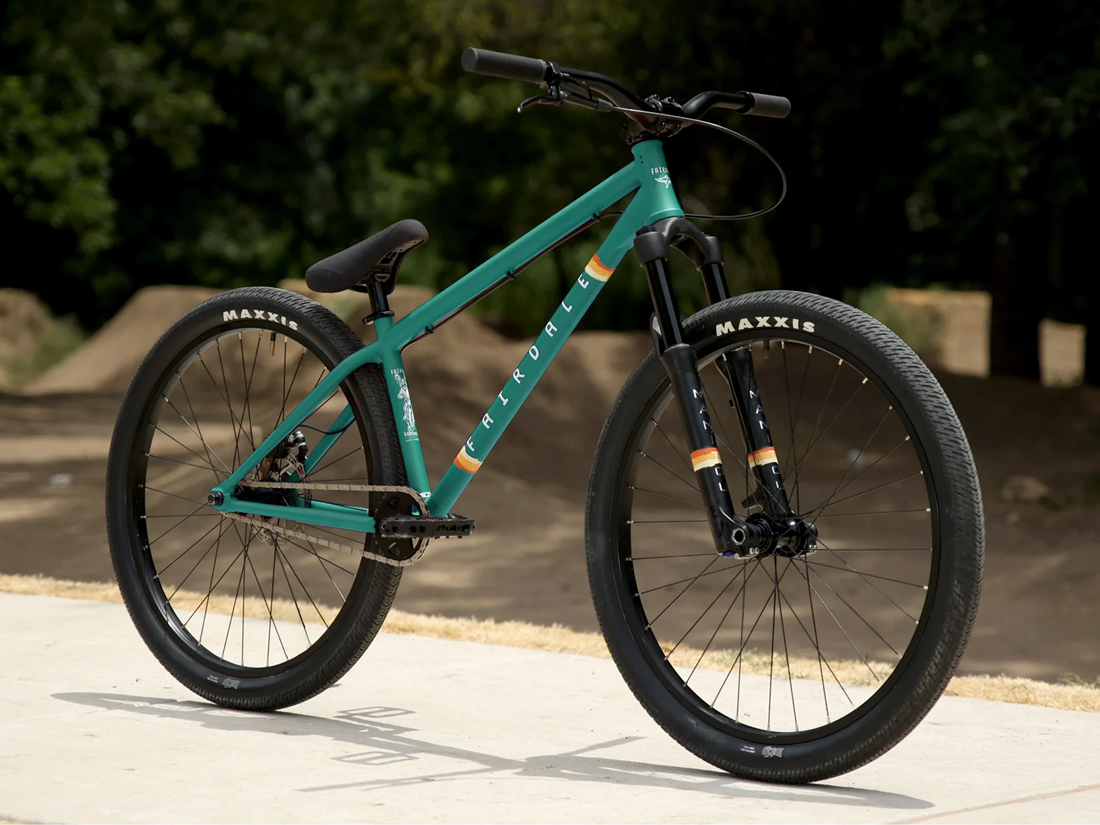

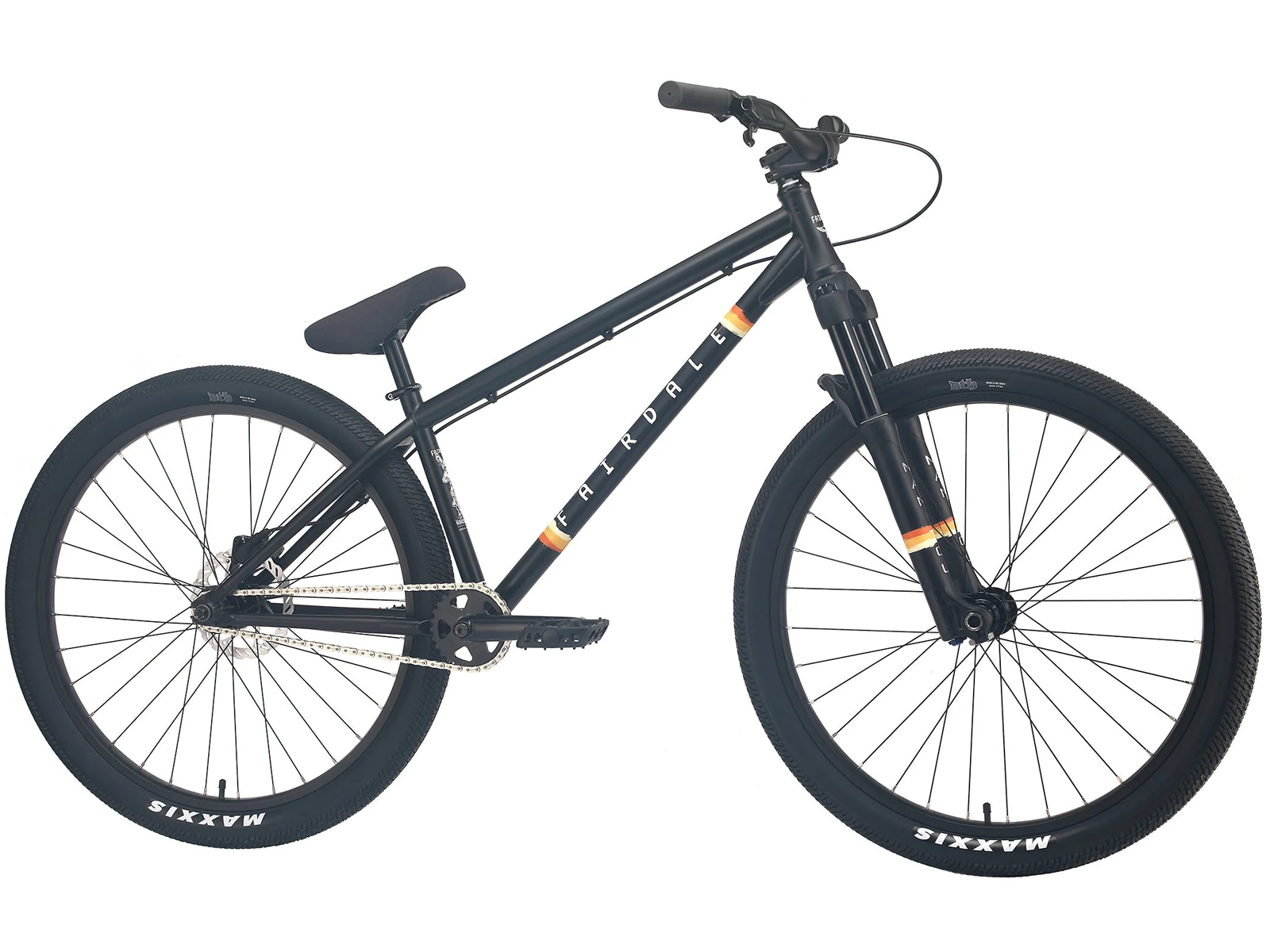

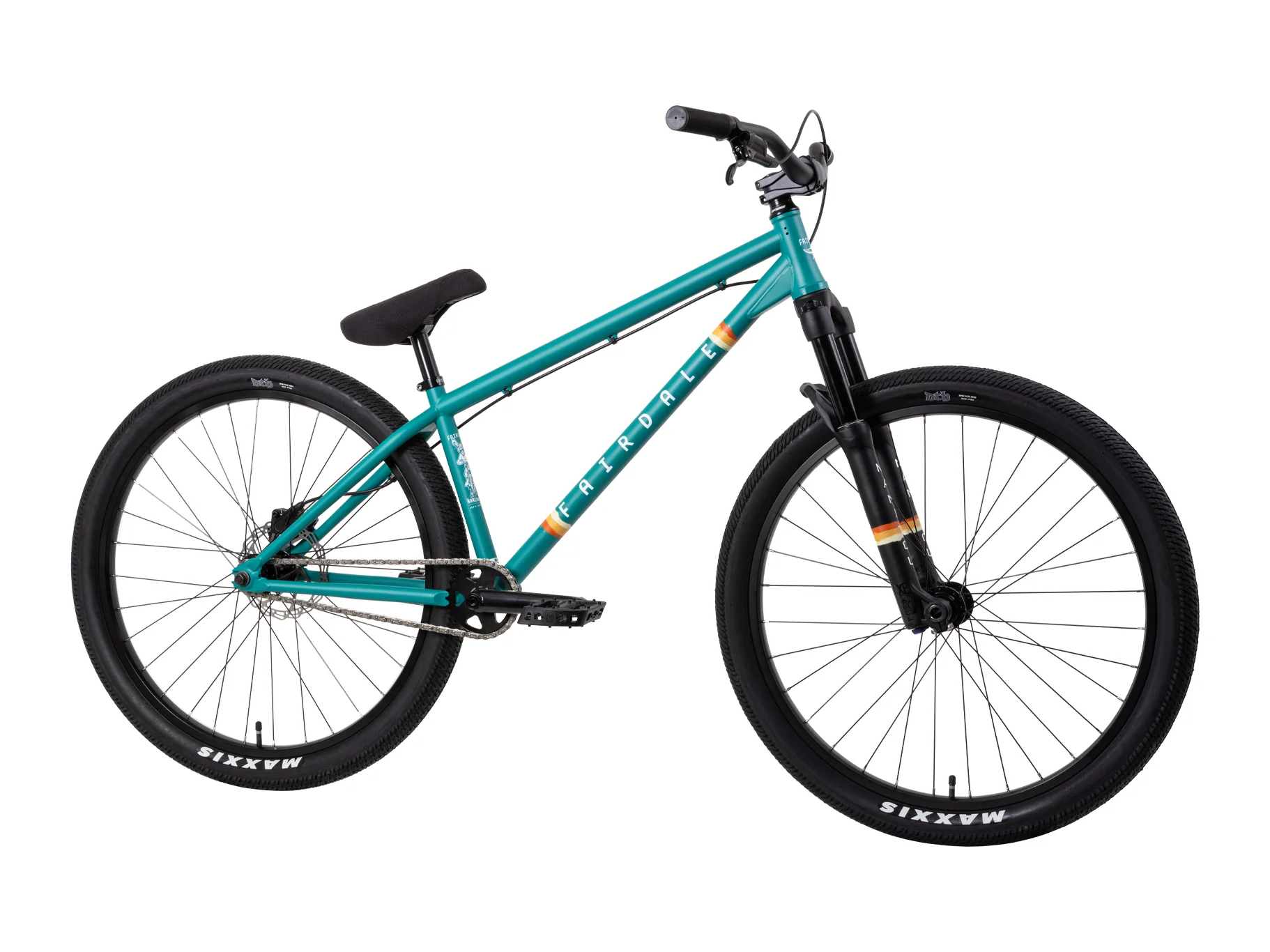

FAIRDALE 26" Hareraiser FX DJ Bike
FAIRDALE 26" Hareraiser FX DJ Bike
Couldn't load pickup availability
This fully capable 26" DJ frame is made of 100% 4130 chromoly with a 3/8" axle slot, integrated chain tensioners, BSA 73mm threaded bottom bracket, ultra-short chainstays and a tapered 1-1/8” to 1-1/2” head tube with removable tabs for a traditional BMX-style Gyro.
Designed from the ground up to make the transition between riding a MTB, DJ bike, and BMX as seamless as possible.
Specifications
Frame: 100% 4130 chromoly DJ frame, 3/8" Dropout, Threaded 73mm BB, Disc Mount

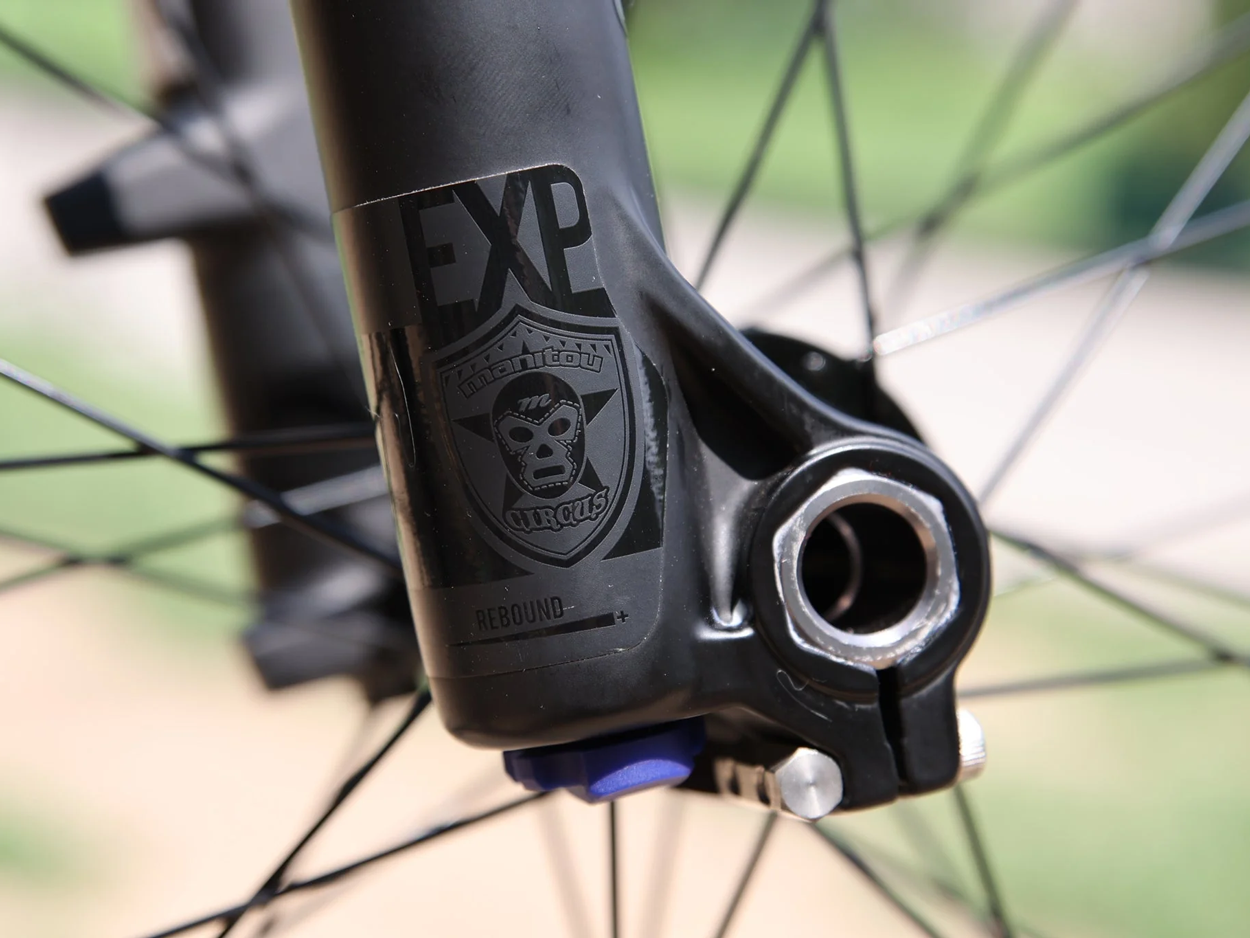

Fork: Manitou Circus Expert, 100mm, 20mm Thru-Axle

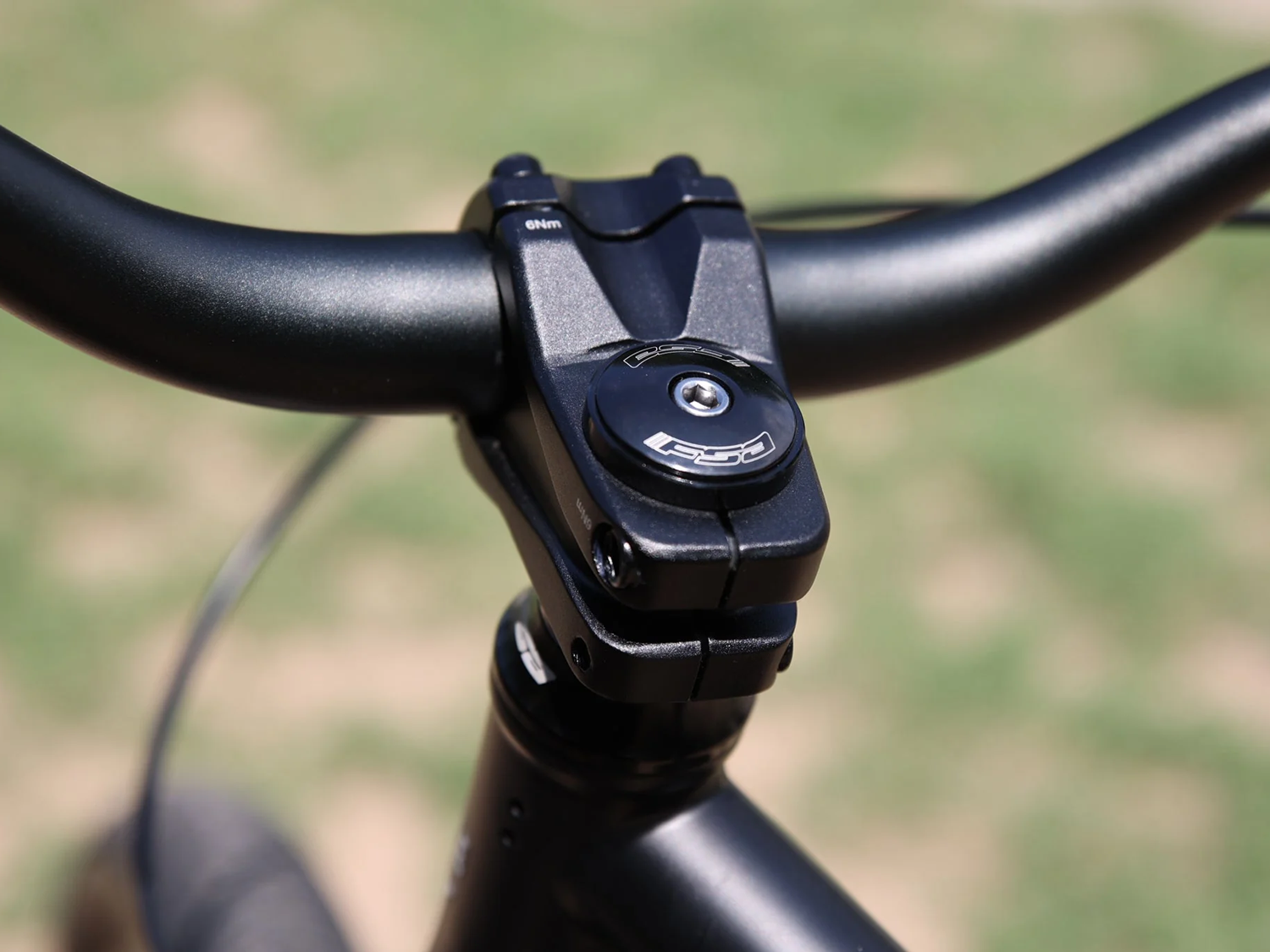

Handlebar: 2" rise, 30" wide, 31.8mm bore, Aluminum
Stem: 50mm
Headset: FSA Orbit Sealed

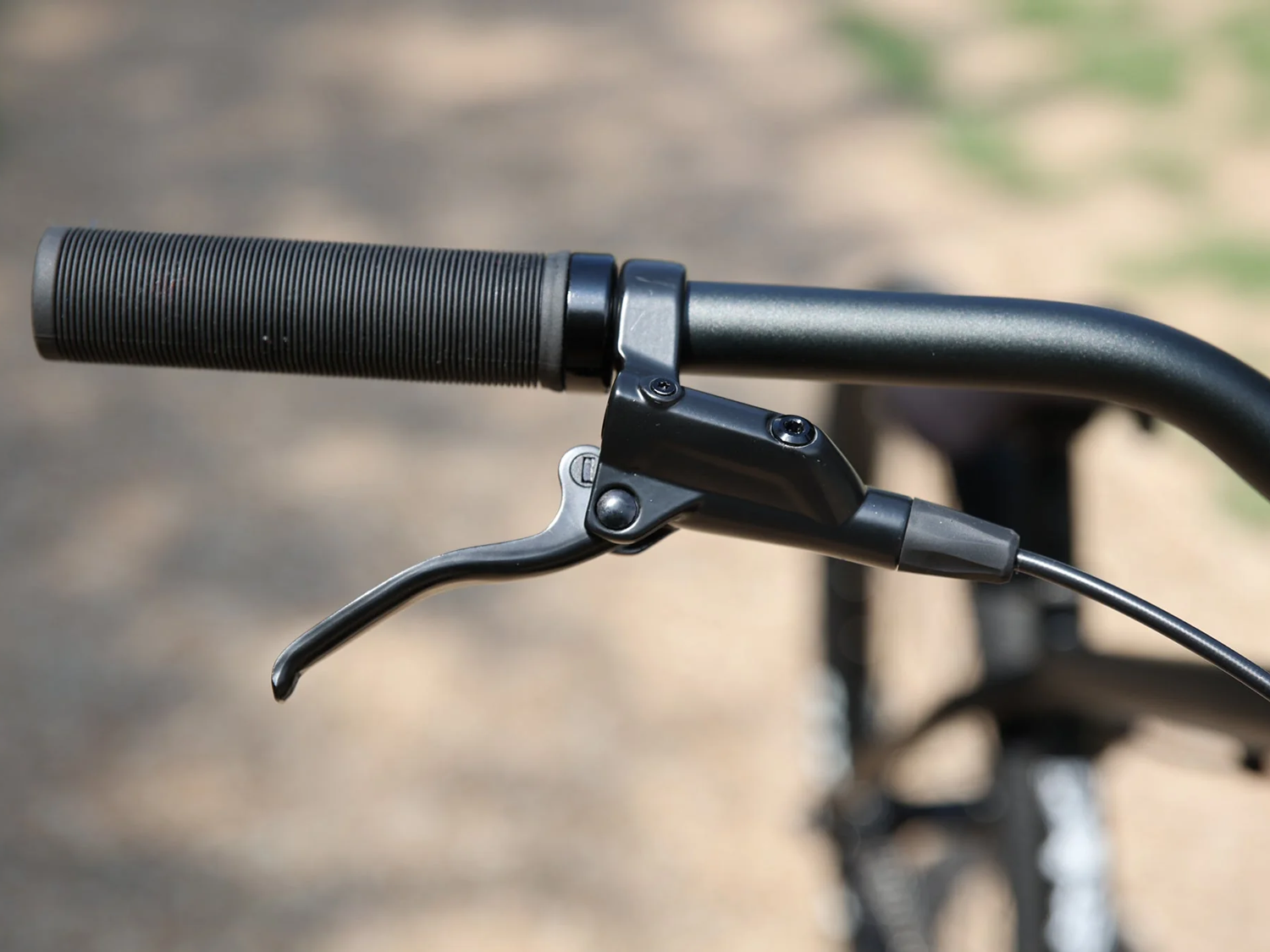

Brake Lever: Hydraulic
Brakes: Hydraulic
Grips: Lock-on

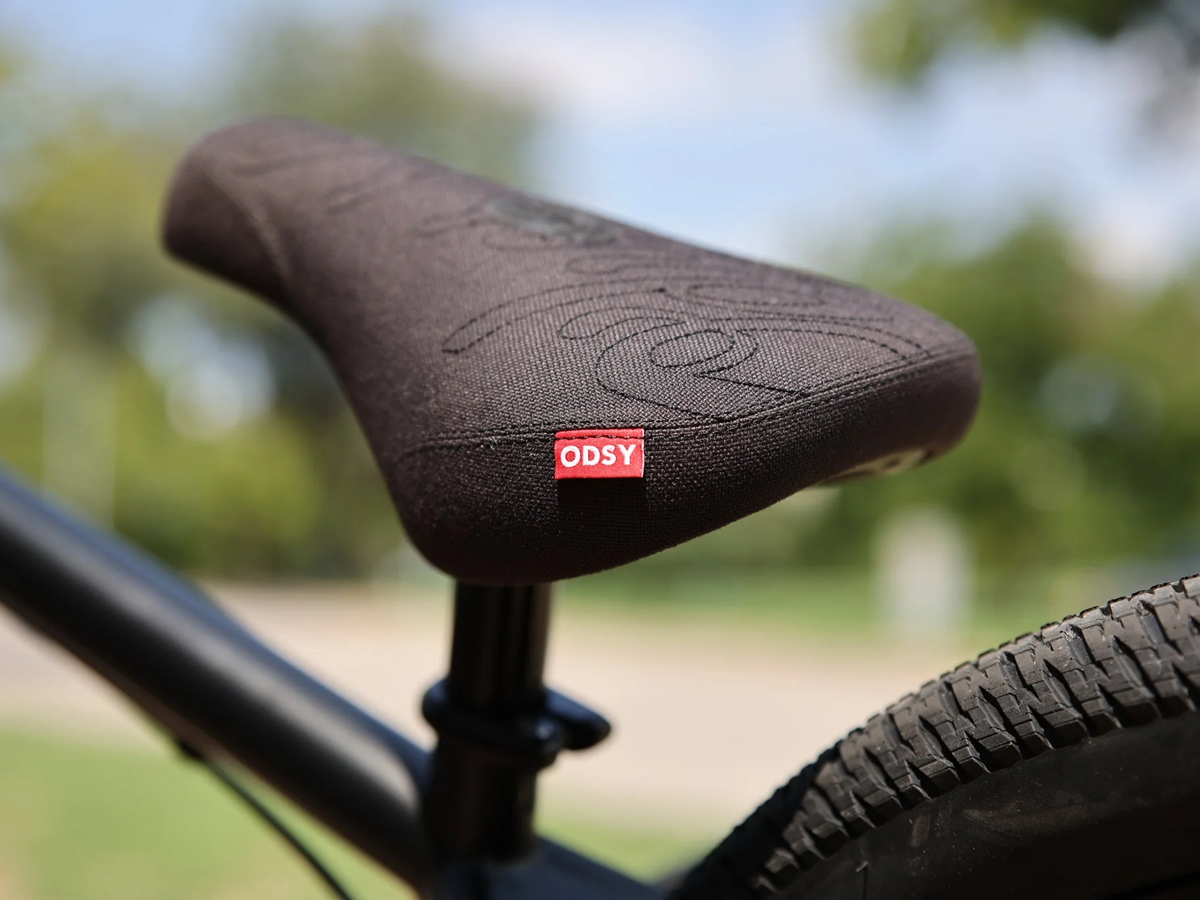

Saddle: Odyssey Big Stitch, Pivotal
Seat Post: Pivotal 27.2mm
Seat Clamp: Fairdale 30mm
Cranks: 19mm 48-Spline, 170mm

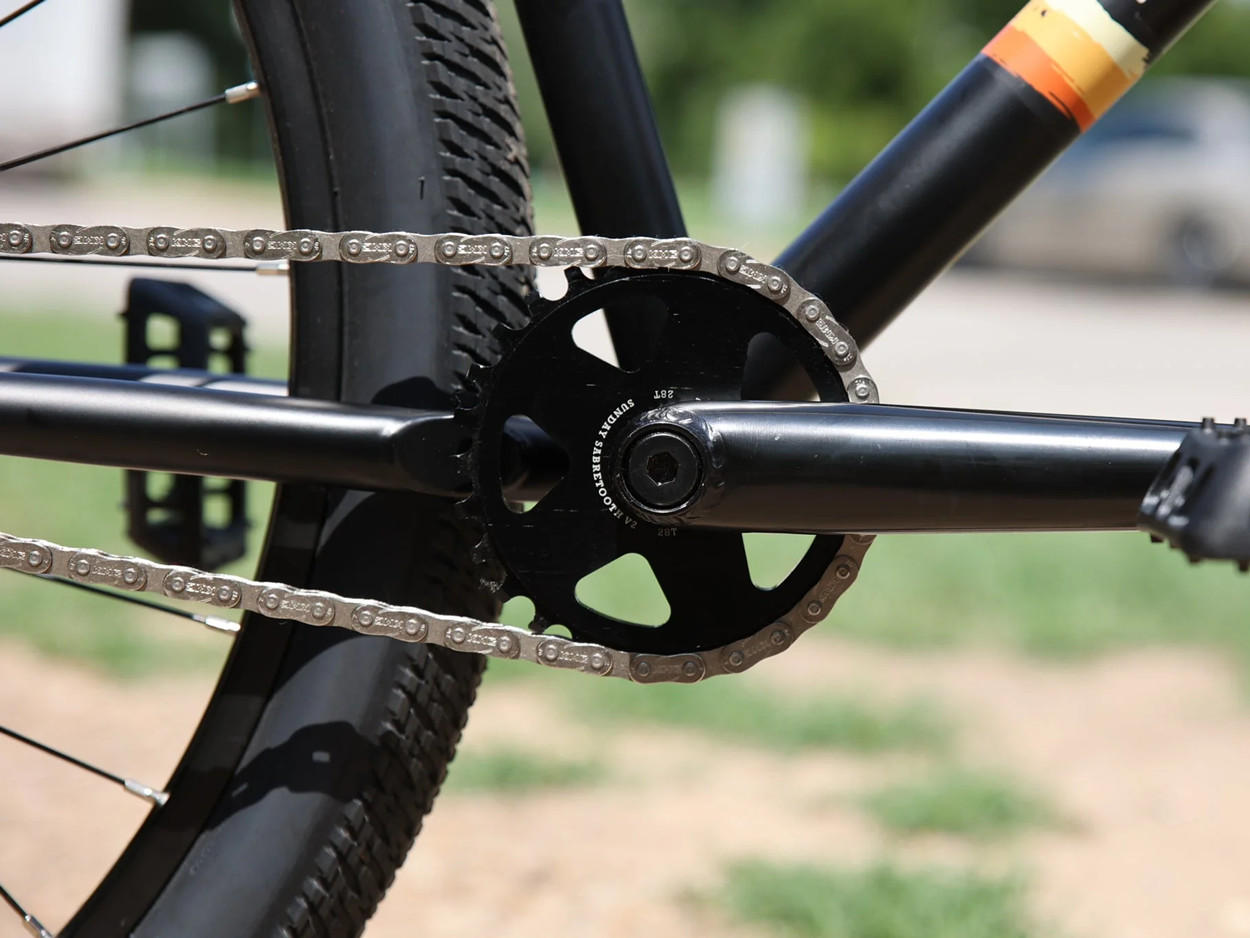

Chainwheel: 28T
BB Parts: Euro
Pedals: Odyssey Twisted Pro PC
Rims: 26" 32H
Front Hub: Sealed 20mm Thru Axle
Rear Hub: Sealed Cassette, 3/8" Axle, Disc

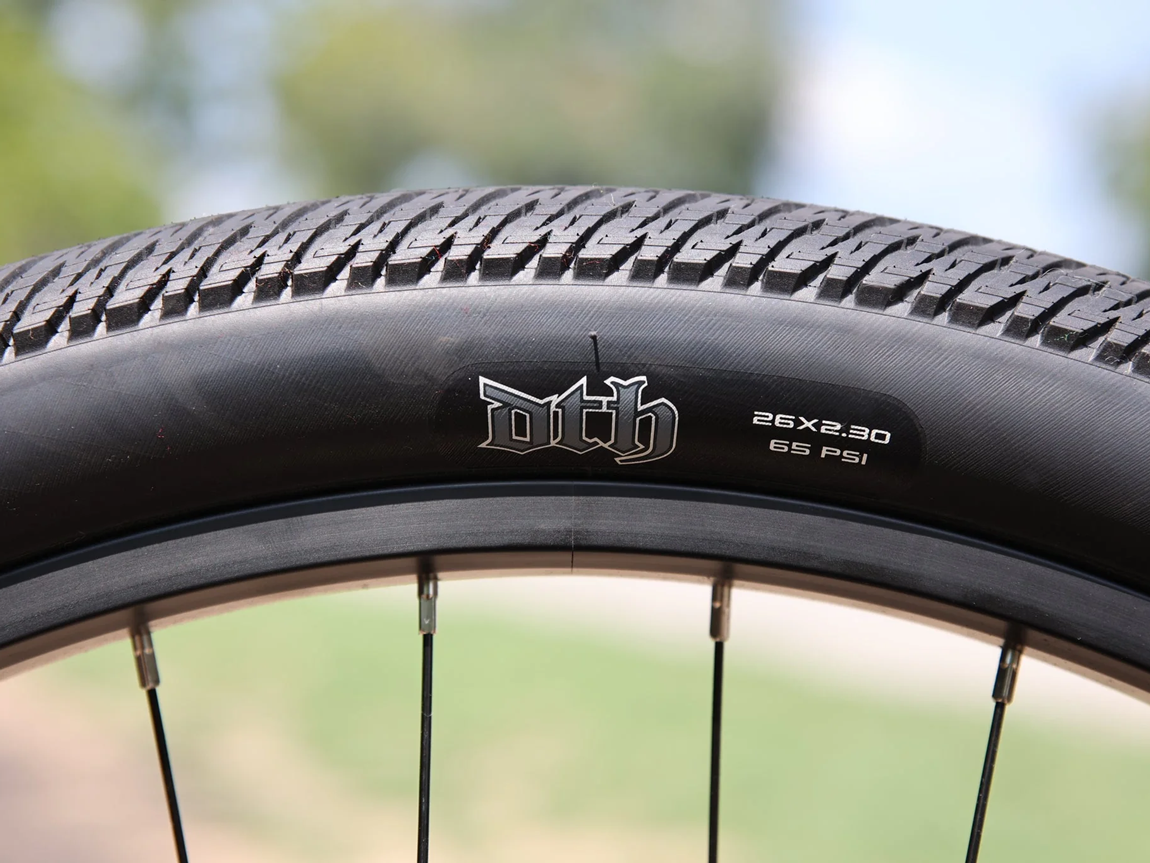

Tires: Maxxis DTH 2.3"
Chain: KMC Z1eHX
Driver: 12T
Geometry
Fork Travel: 100mm
Fork Axle to Crown: 482mm
Fork Offset: 40mm
Top Tube (Effective): S/M - 600mm / M/L - 625mm
Seat Tube (BB Centre to TT Centre): 340mm
Seat Tube Angle: 72°
Head Tube Length: 120mm
Head Tube Angle: 69.5°
Chain Stay Length: 379-389mm
Standover: 690mm
Stack: 570mm
Reach: S/M - 415mm / M/L - 440mm
BB Drop: 20mm
Rear Dropout Spacing: 10 x 135mm
BB Type: 73mm threaded
Seat Post: 27.2mm
Seat Clamp: 30mm
Rear Tyre Clearance: 2.3"
Wheel Size: 26"
