S&M Mad Dog 22 (Chris Moeller) Frame
S&M Mad Dog 22 (Chris Moeller) Frame
Couldn't load pickup availability

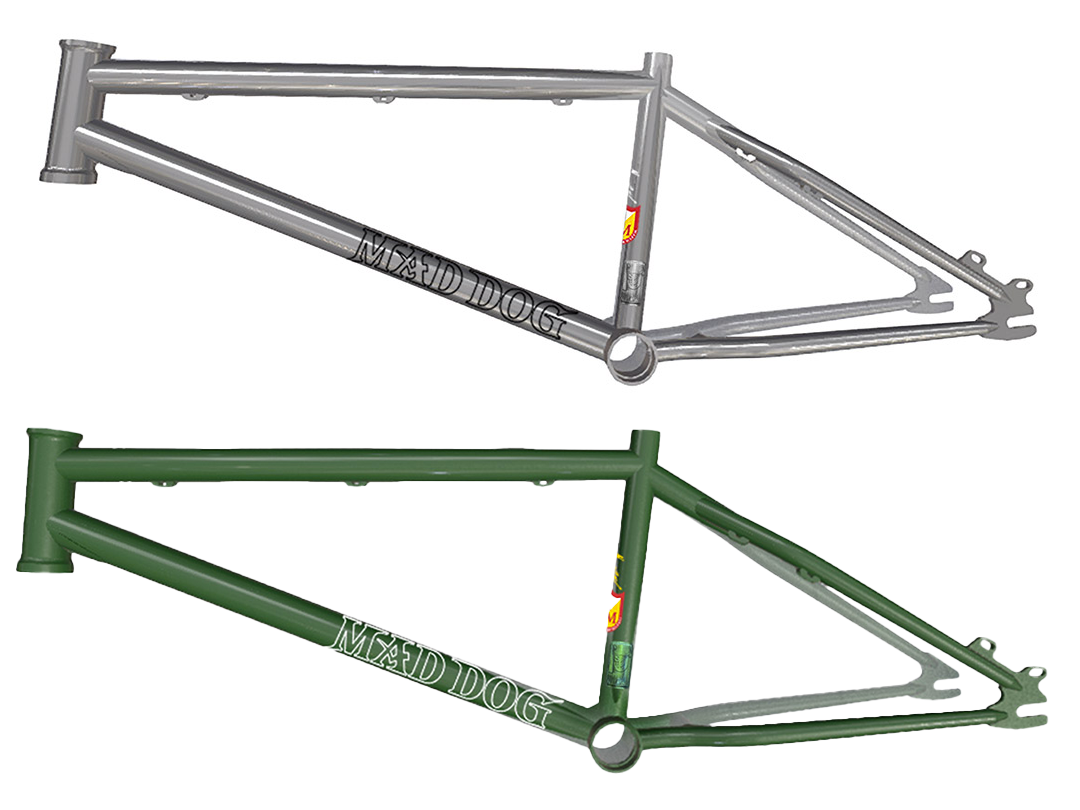

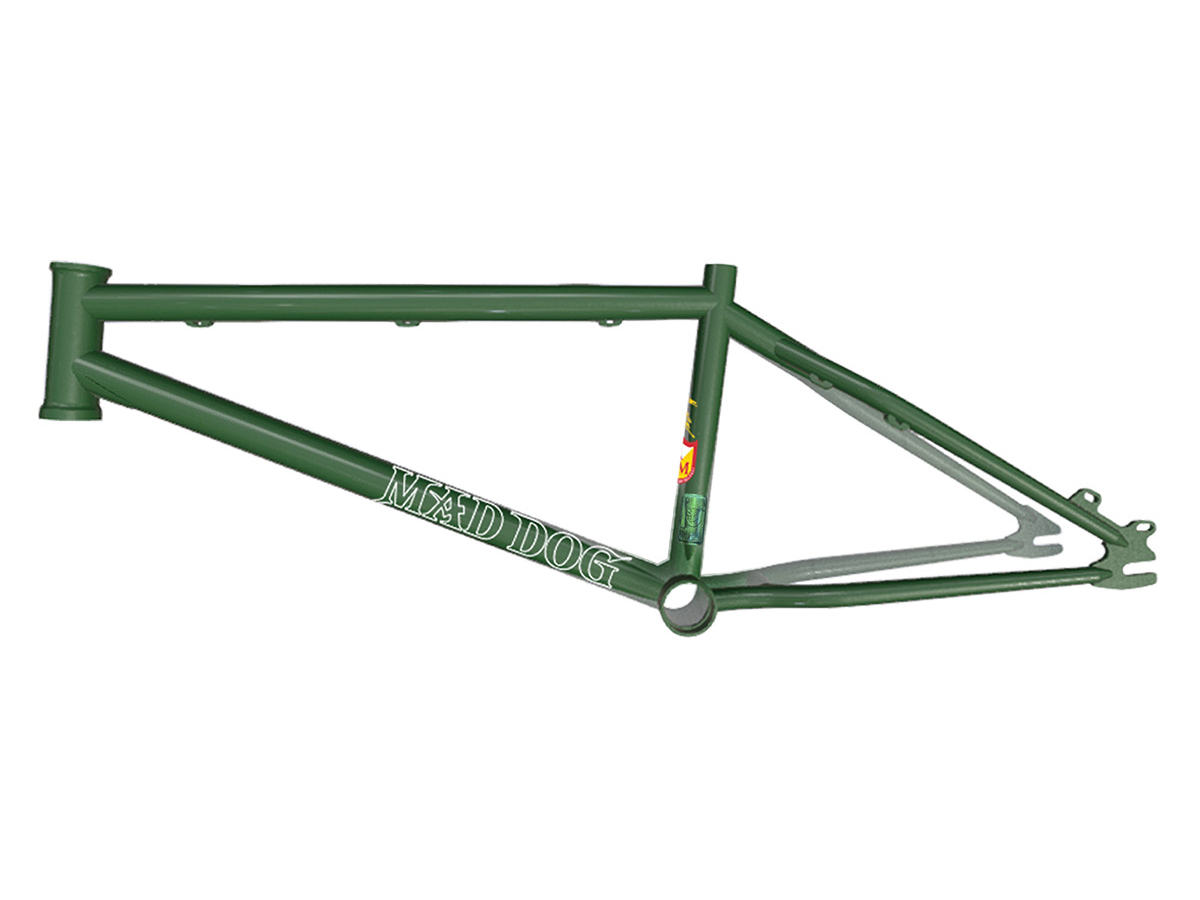

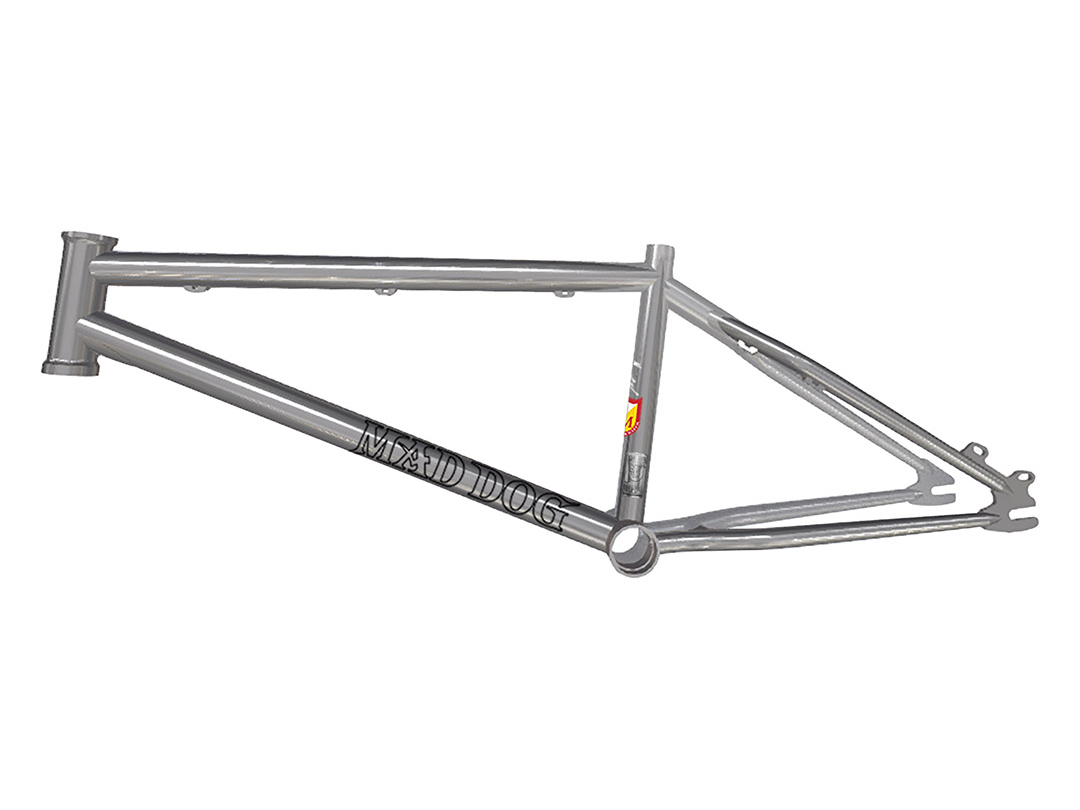

Throw a dog a wishbone! And a disc brake, with a tall stand-over, but keep it light (sub 5lbs) and you’ve got yourself the reincarnated Chris “Mad Dog” Moeller frame. It only took 36 years for S&M’s Top Dawg to drop another bike custom-crafted for his breed of biking, but much like the original, it's designed for dudes who want to terrorize the trails and the track and claim their territory doing it.
Engraved Shield on Headtube. Engraved ’87’ on BB shell. MAD DOG-tag on seat-tube
*The disk mount is designed for a 120mm rotor with 0mm IS to POST mount adaptor (Hub with narrow flange width recommended for spoke/caliper clearance), 140mm rotor requires a 20mm IS to POST mount adaptor.
Specifications
Top tube lengths - 22″, 22.25″, 22.5″
Rear end length - 14.15″
Head tube angle - 74.25°
Standover height - 10″
BB height - 11.8″
Seat tube angle - 71°
Head tube style - 5″ Tall Integrated Campy Style
BB - Mid
Brake mounts -Disk 120mm Rotor Spacing with 0mm IS to POST mount adaptor, 140mm Rotor with 20mm IS to POST mount adaptor.
Dropouts - 3/8″
Seat Post Size - 1″ / 25.4mm – Frame slotted for 28.6mm Seatpost Clamp
Weight - 5.1 lbs
Max Tyre Clearance - 22X2.35″
Max Sprocket Sizing - 36T
