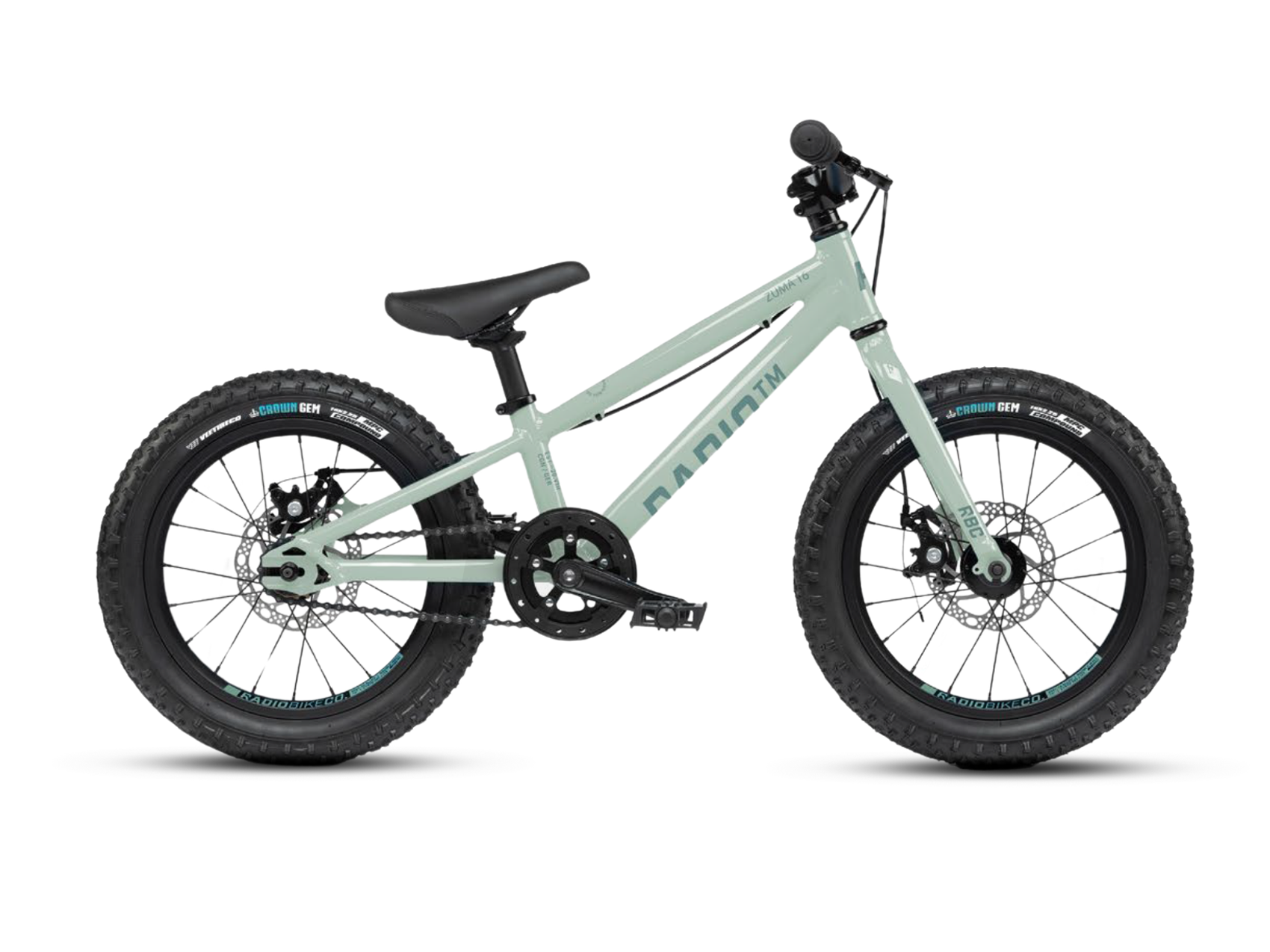

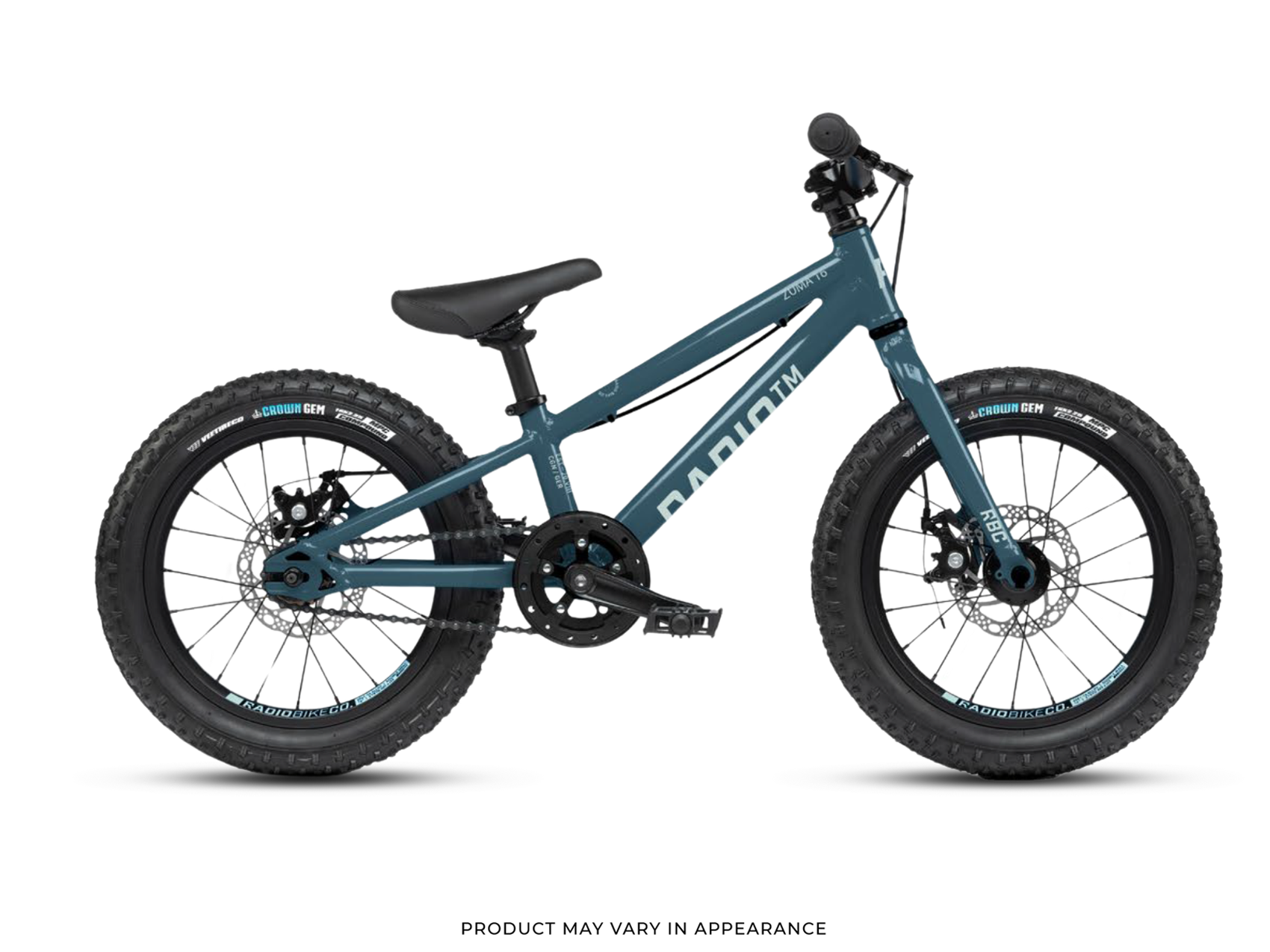

RADIO 16" Zuma Bike

Buying a bike for your child can be daunting, that’s why Radio developed the Zuma range to make it that much easier. Based around the concept of a kid sized mtb bike, the Zuma bikes are incredibly lightweight, with carefully researched geometry and designed specifically around smaller riders as the perfect balance between a bike for a child to learn the basics on, and a more advanced mtb for off-road riding conditions for weekend rides with the parents.

With a full range of sizes from 14” for the first-time rider, all the way through to a 26” wheeled machine for the aspiring rookie, there is a Zuma for every rider. These carefully spec’d bikes feature a super lightweight alloy frame and fork with double wall rims and children-specific aftermarket components from KMC, FSA, Vee Rubber and Satori, making them suit the rider’s size perfectly, but look, feel and ride just like a high-end full adult size mtb.

Children are the future, and the Zuma line is designed to give them the best possible start in that future…

Features
- 16” wheel kids mtb
- Perfect first bike!
- Lightweight 6061-T6 alloy frame & fork
- Disc brakes front & rear
- Kids specific components & geometry
- Vee Rubber tyres

Specifications
Frame - Radio Zuma 16 frame, 6061-T6 alloy
Fork - Radio Zuma 16 straight rigid fork, 6061-T6 alloy
Bars - SATORI bar, 6061-T6 alloy, 19mm grip tube, 25.4mm bar bore, 1”rise
Grips - Radio Junior grips, 100mm, with flange
Stem - Radio Zuma 30 frontload stem, alloy, 30mm reach
Headset - FSA A-headset, loose ball
Lever - Promax BL-367 lever, alloy
Brakes - Tektro MD280 — mechanical disc front & rear brake, 140mm rotors
Cranks - Radio Junior 3pc crank, forged alloy, 114mm length
BB - Radio bb set, BSA, square taper, sealed bearing
Pedals - Radio Junior pedals, nylon
Chain - KMC chain, S1 type, 1/2” × 1/8”
Sprocket - Radio sprocket, steel, 28t
Cassette - 16t freewheel, crmo
Front Hub - Radio disc hub, alloy shell, loose ball, 3/8”s crmo axle, 20h
Rear Hub - Radio disc hub, alloy shell, for freewheel, sealed,3/8”s crmo axle, 20h
Front Rim - Radio J25SE rim, alloy, double wall, 20h
Rear Rim - Radio J25SE rim, alloy, double wall, 20h
Seat - Radio Zuma 1416 railed seat
Seat Post - Promax SP-2019 seat post, alloy, multi-adjust, 250mm × 27.2mm
Seat Clamp - Radio Slim seat clamp, alloy
Tyres - Vee tyre Crown Gem tyres, 2.25” front & rear
Weight - 8.11kg / 17.88lbs

Frame Geometry
Top tube length - 14.75"
Chain stay length - 11.4"
Head tube angle - 69°
Seat tube length - 73°
BB height - 8"
Standover height - 5.8"
