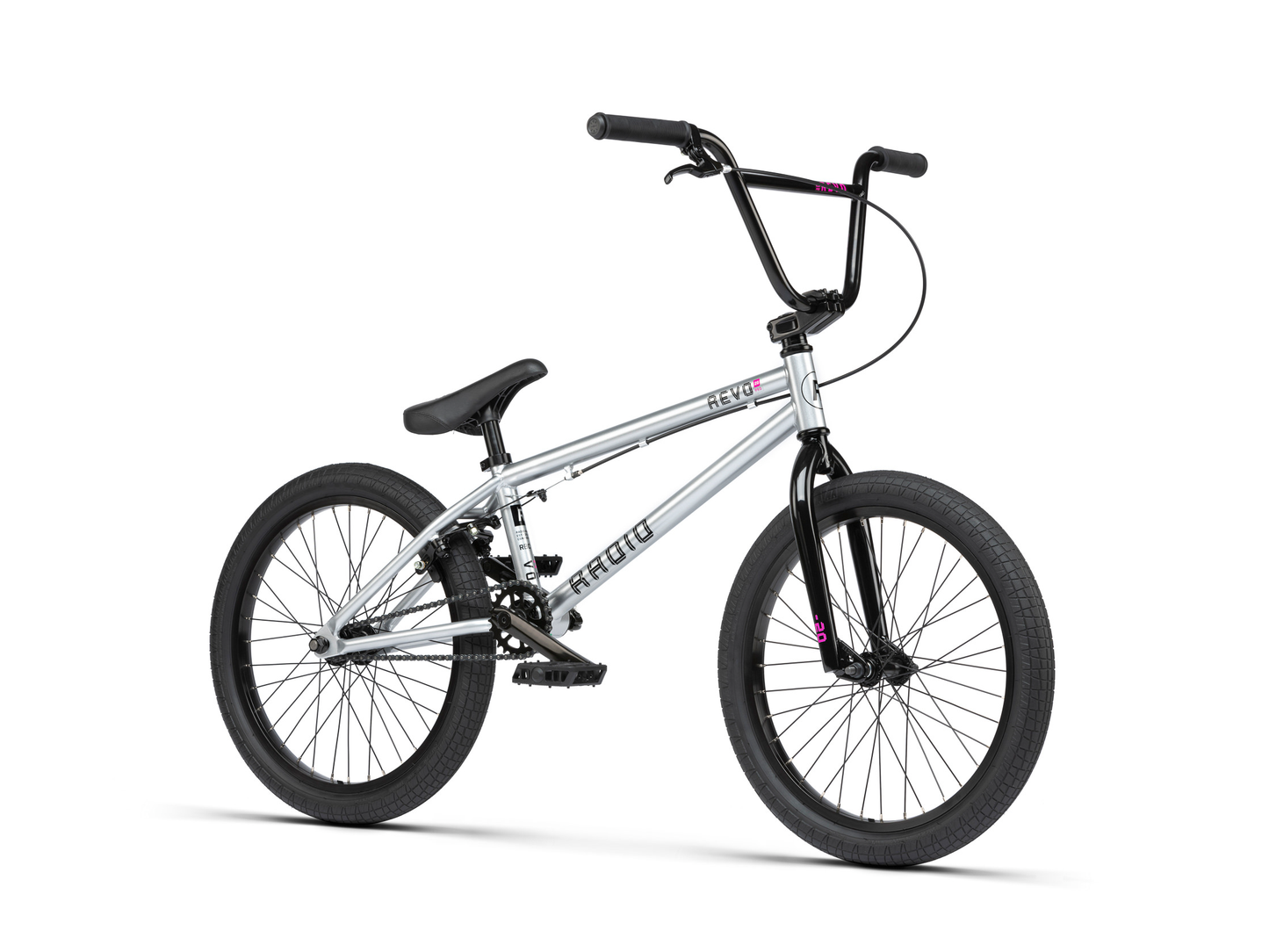

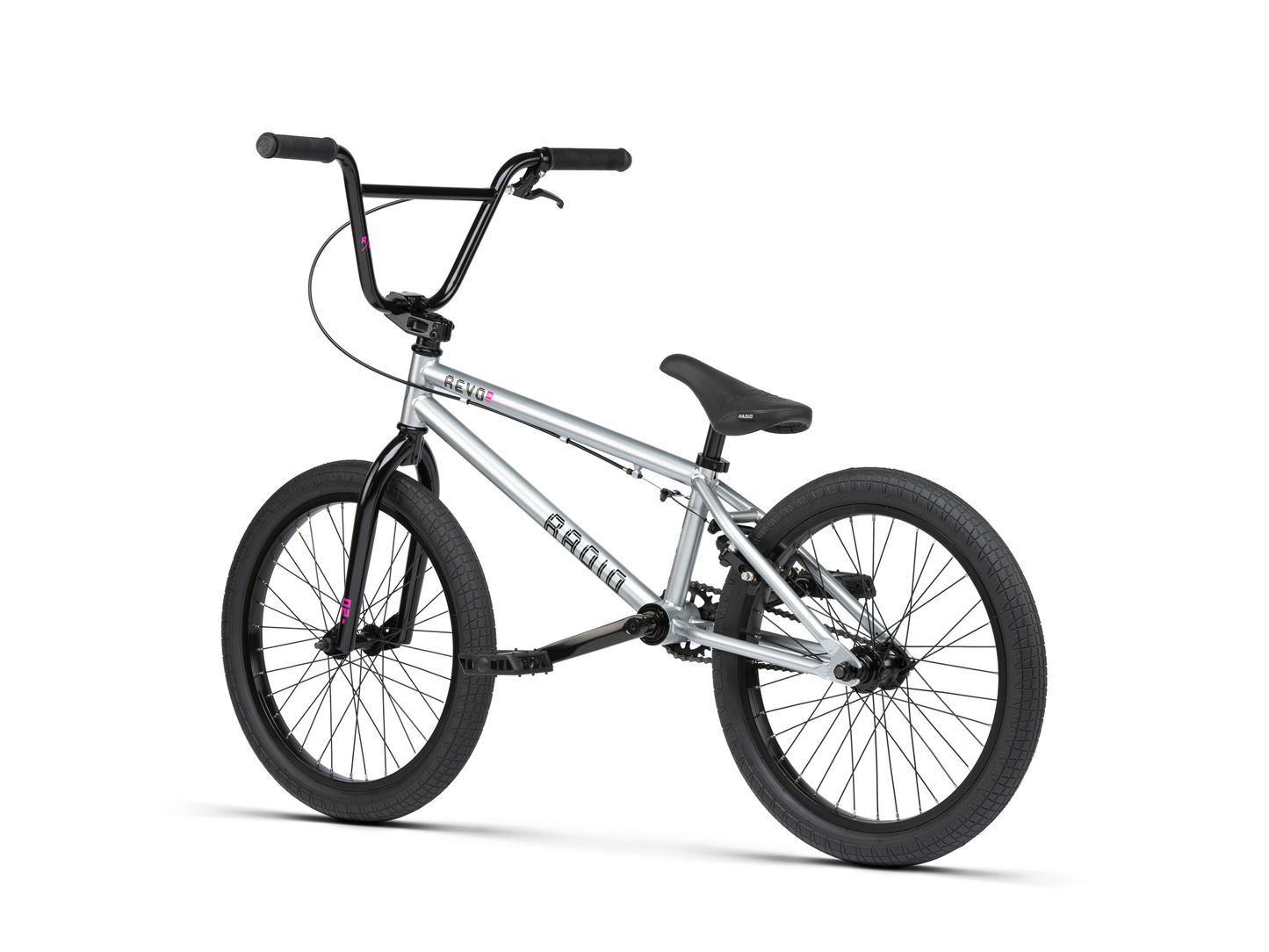

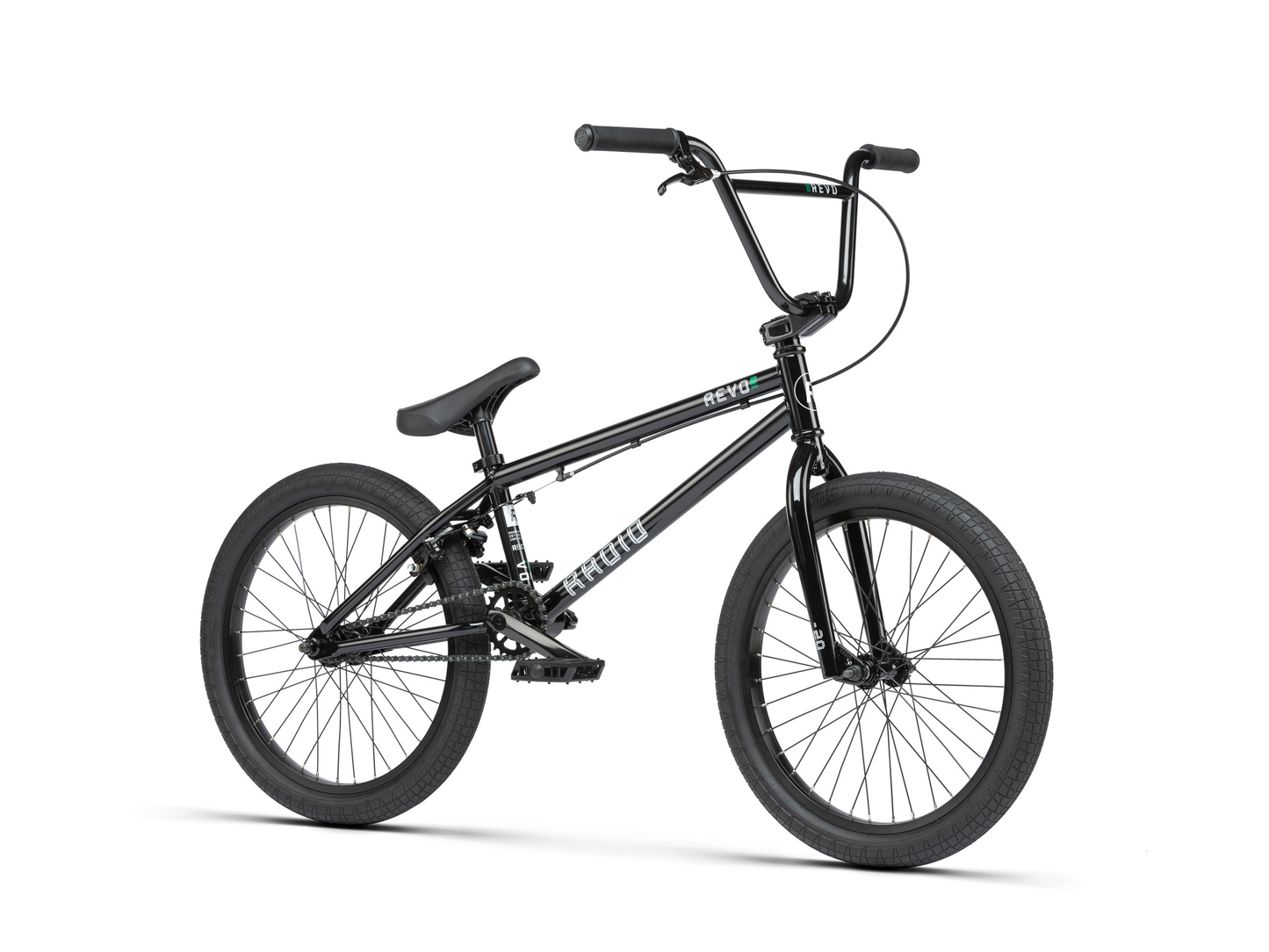

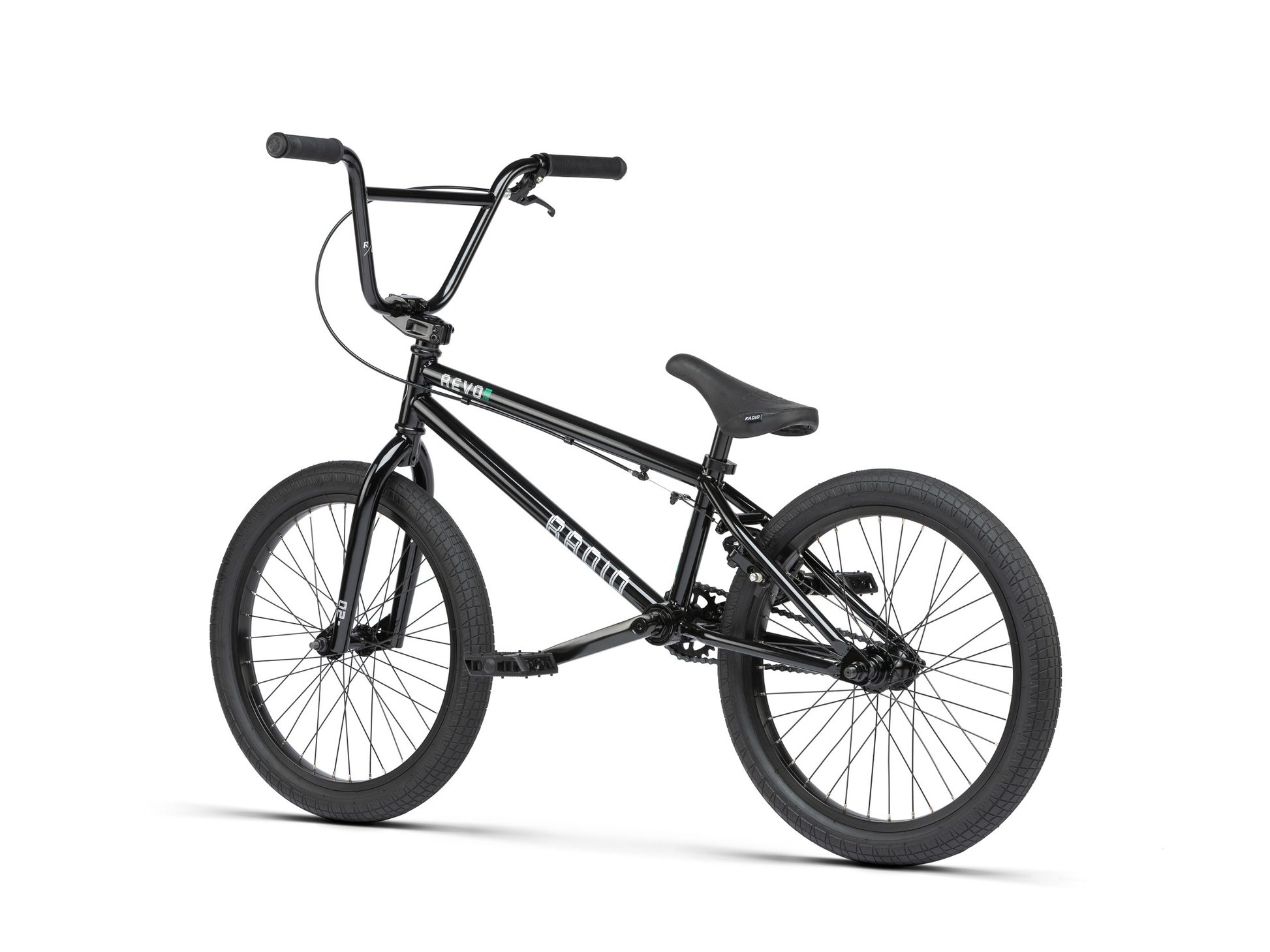

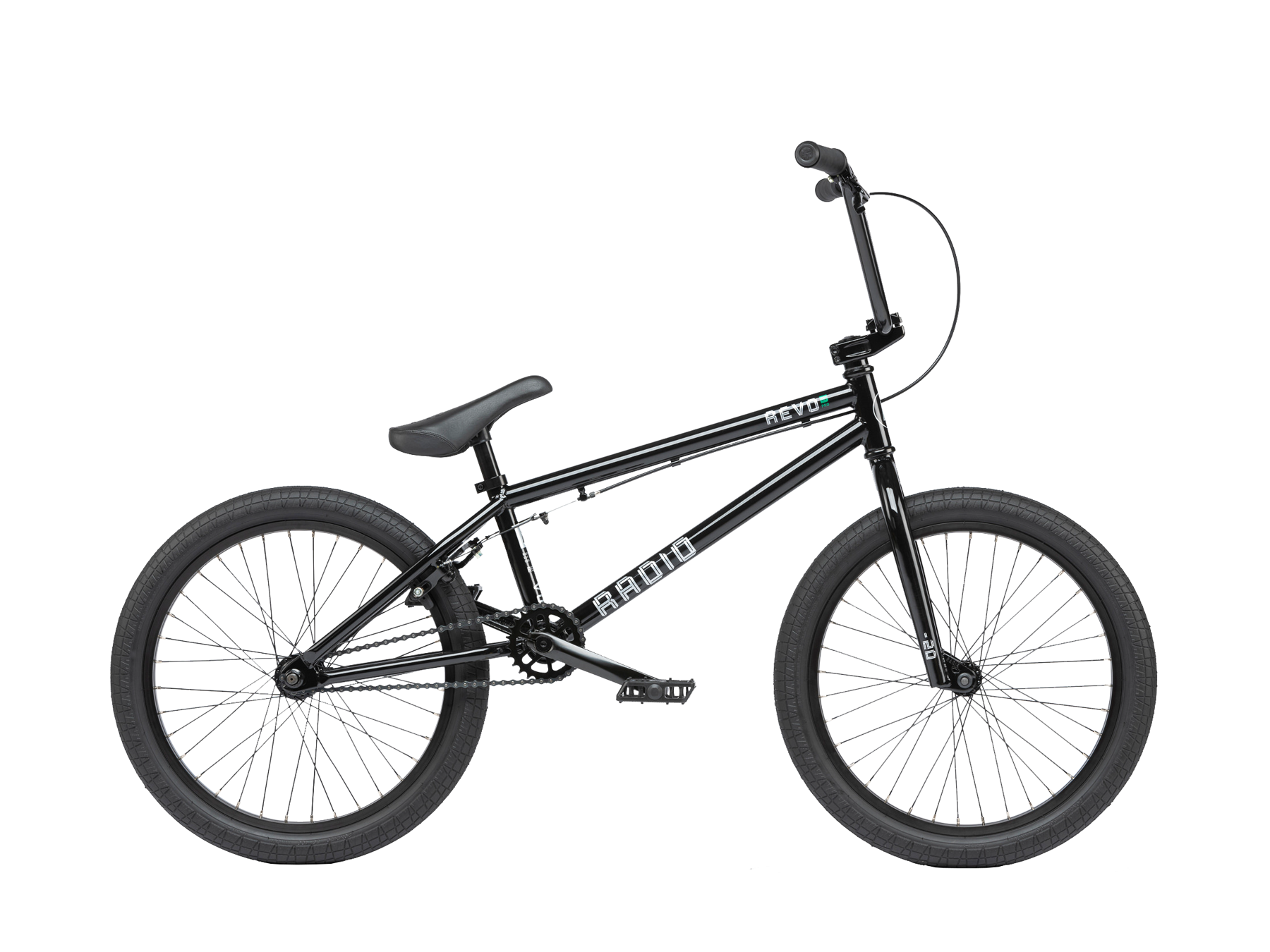

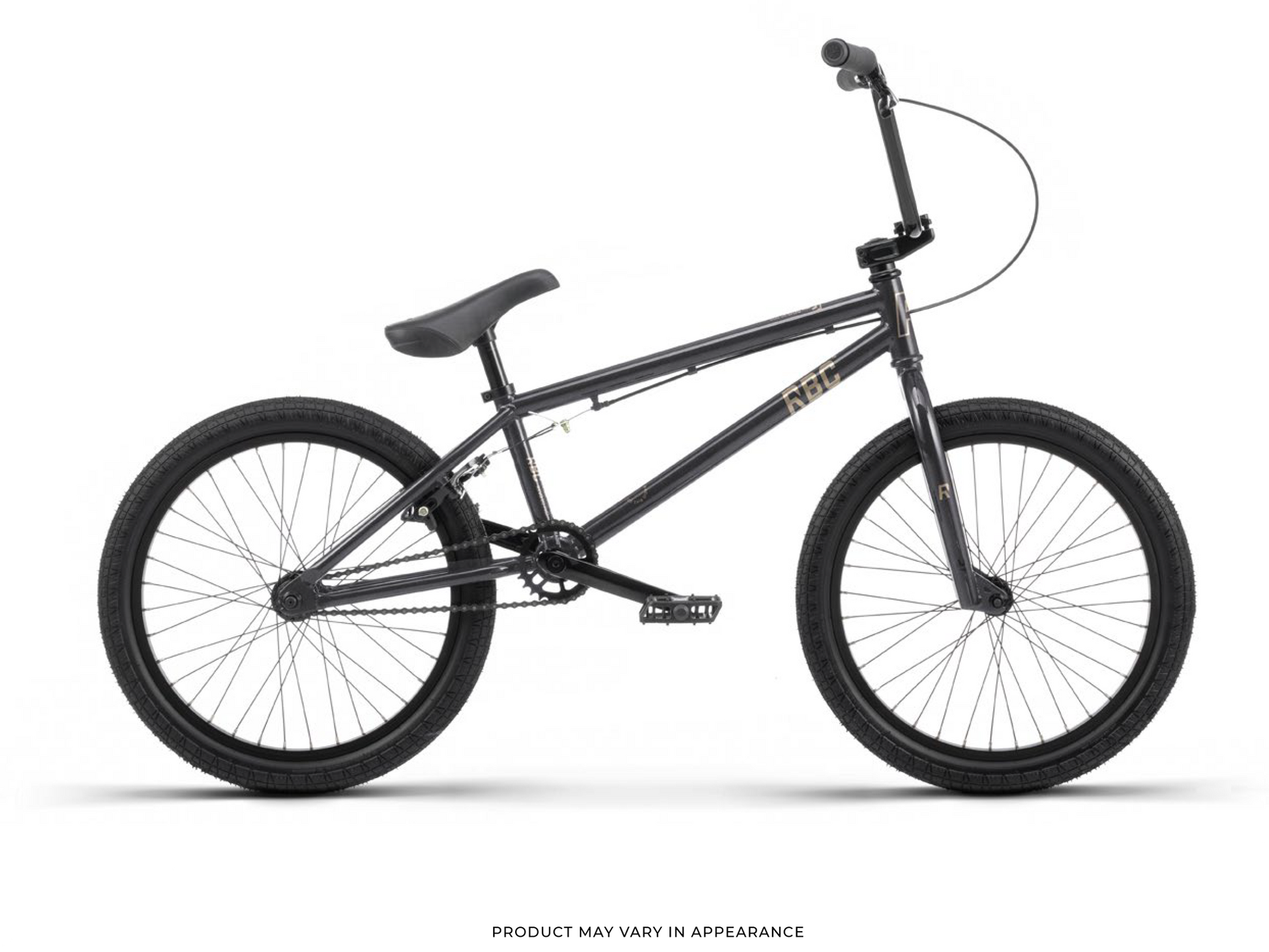

RADIO 20" Revo Pro Bike

RADIO 20" Revo Pro Bike

$649.99 AUD
$649.99 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.
Colour
The Revo line allows you to get your first taste of the BMX world on a solid and well-designed bike. Radio took extra care when hand selecting the components on these bikes to ensure that the bike could be ridden straight out of the box, simple to work on and maintain, but also easily upgradable over time. Despite the low price-point, the Revo is packed full of great features like 25-9 gearing, tapered fork legs, and short/responsive pro-inspired geometry.

Building on the Revo 20″, the Revo Pro adds a 3pc crank upgrade making this machine even more dialled than ever before.

Specifications
Frame - Radio 'Revo Pro 20' frame, full 1020 hi-ten
Fork - Radio 'AM 20' fork, 1020 hi-ten, Cr-Mo steerer
Handlebar - Radio 'Revo Pro 20' bar, hi-ten

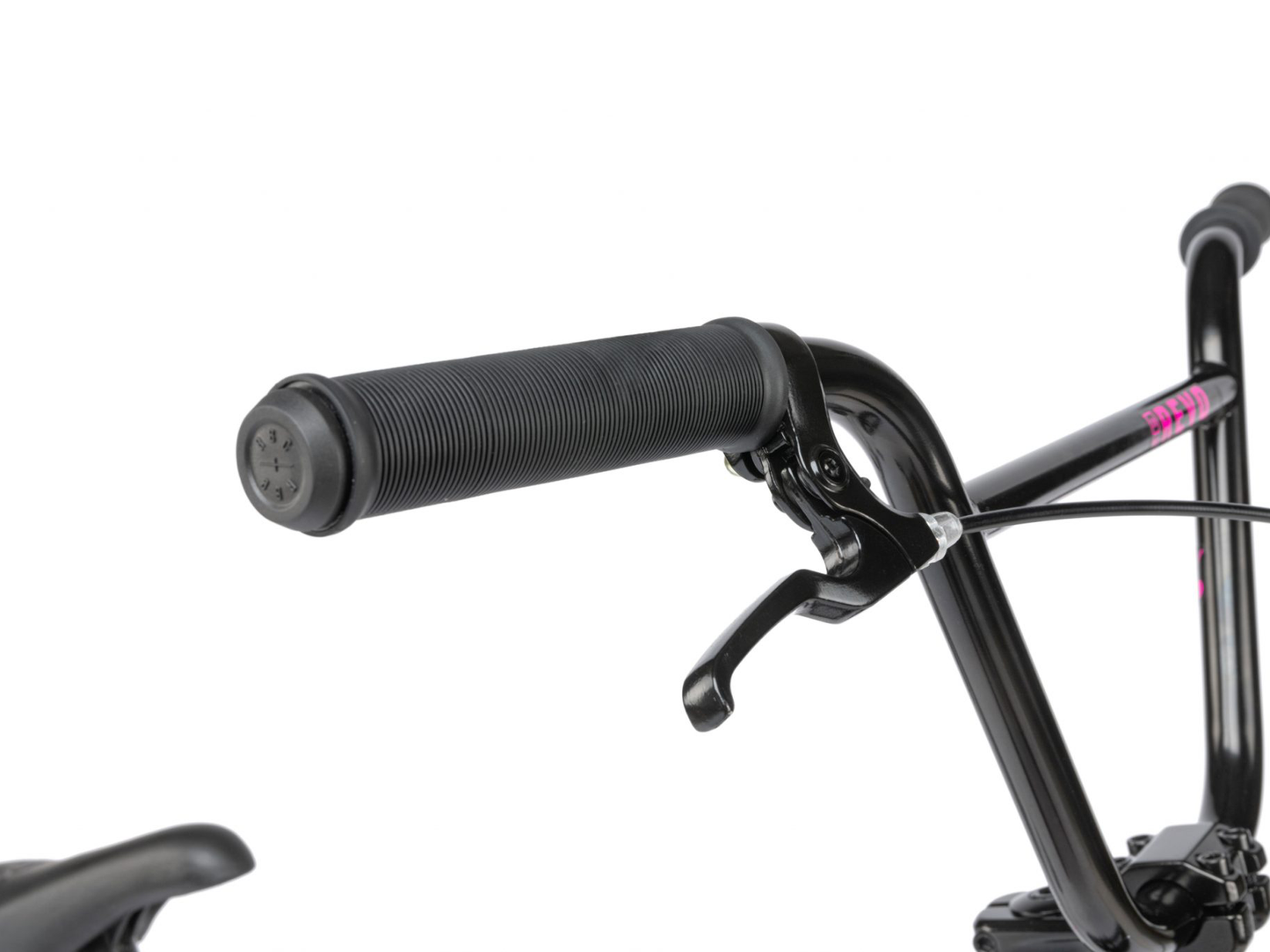

Grips - Radio 'AM' grips, flangeless, 150mm

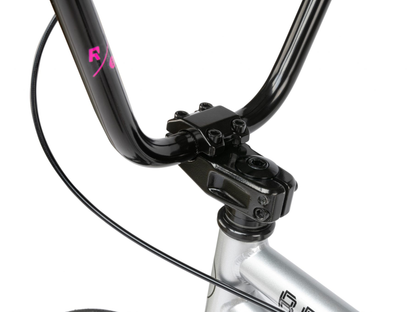

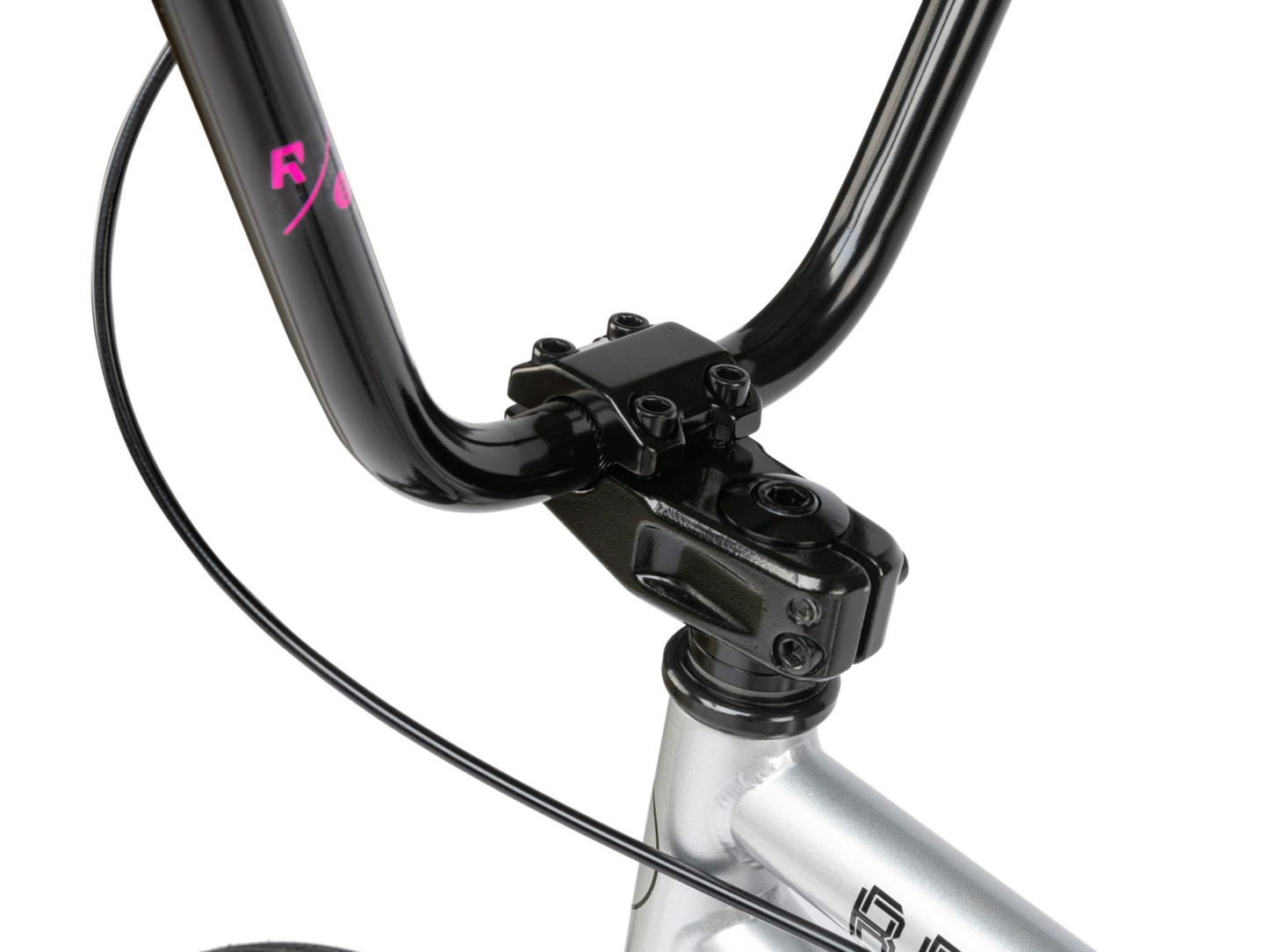

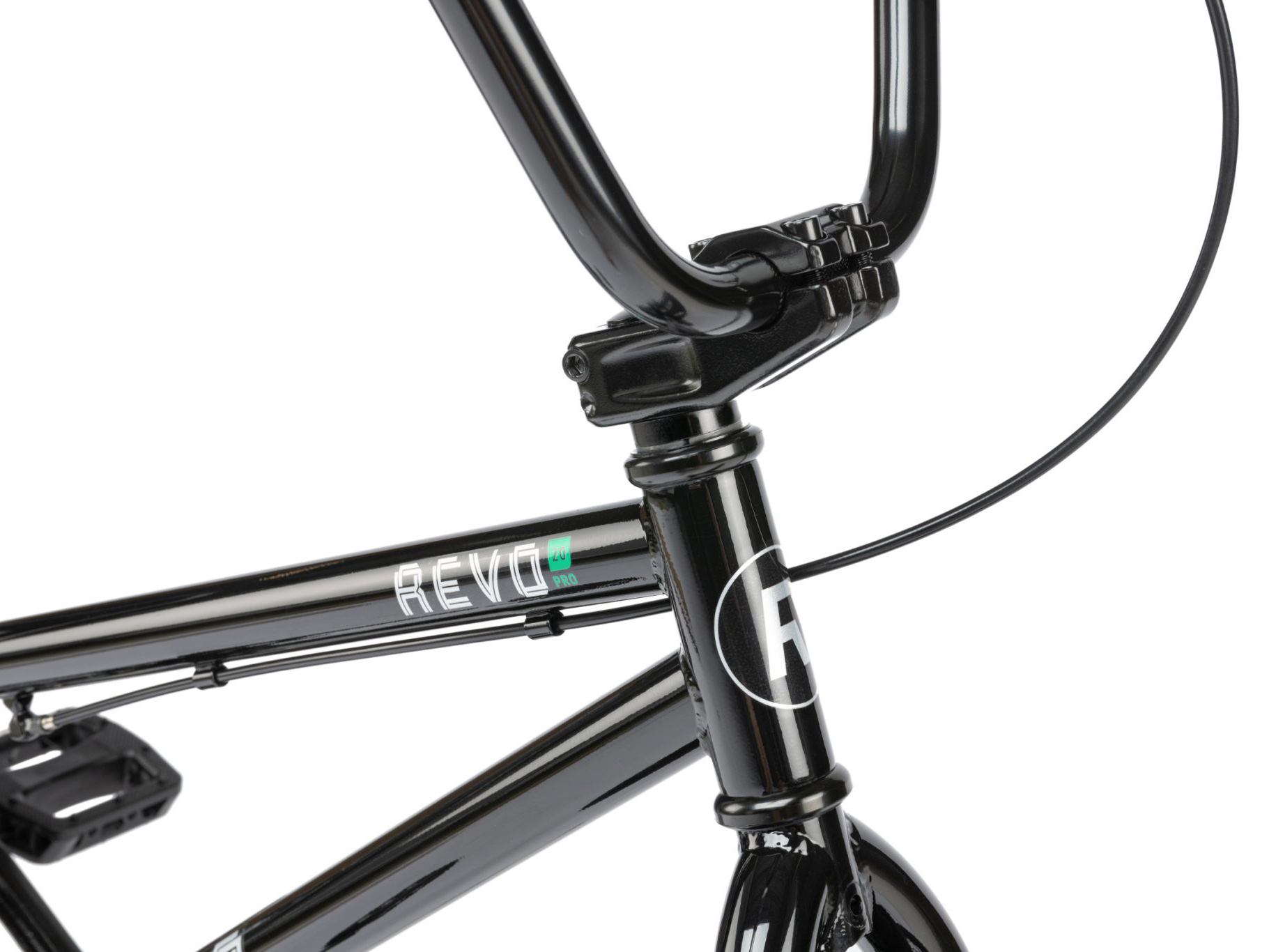

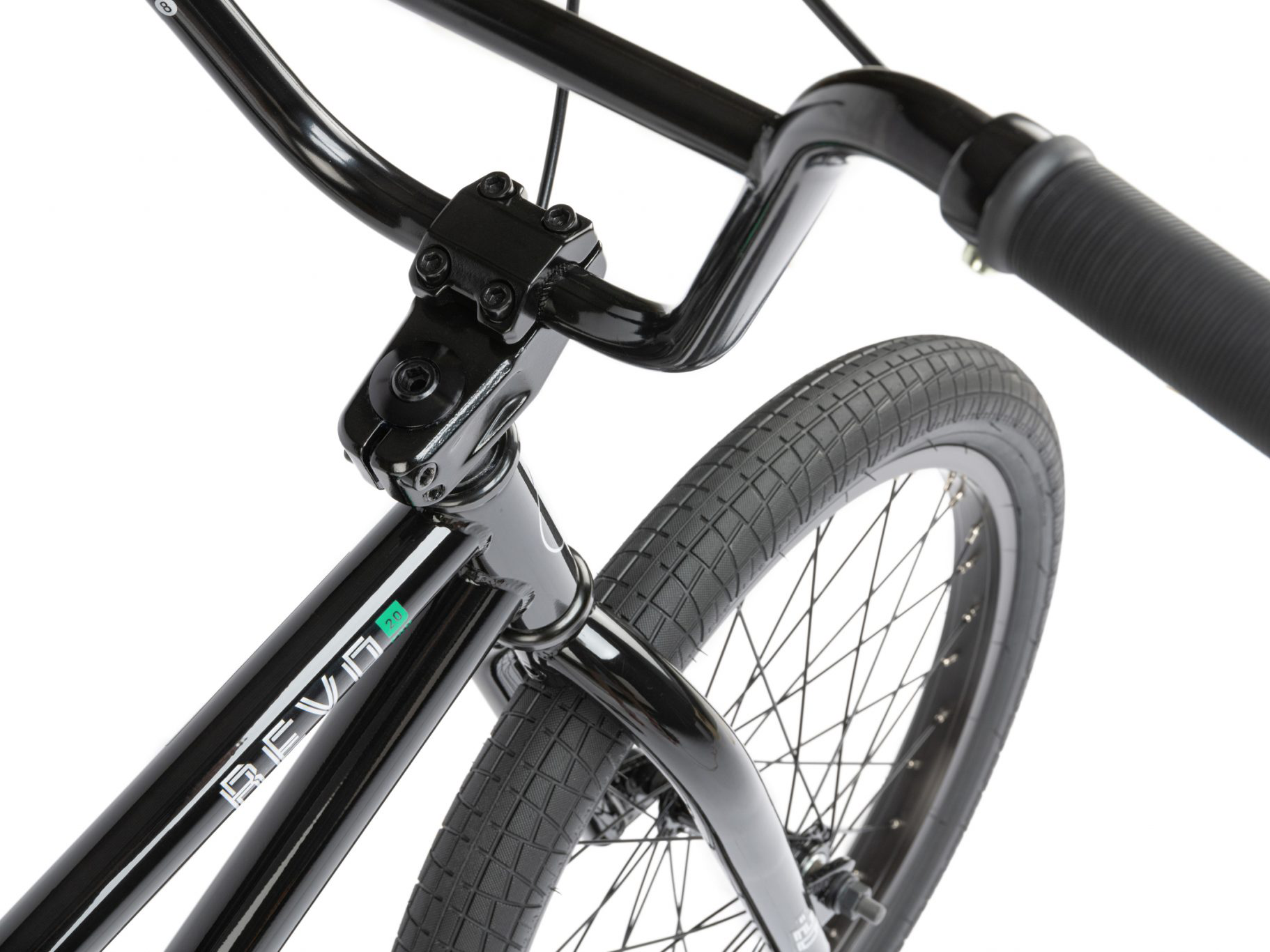

Stem - Salt 'AM' topload stem, 50mm reach
Headset - FSA a-head-set loose ball
Gyro - Salt 'AM' rotor with Salt 'AM' rotor cables
Brake lever - Radio 'AM' alloy brake lever
Brake - Radio 'AM' alloy u-brake rear

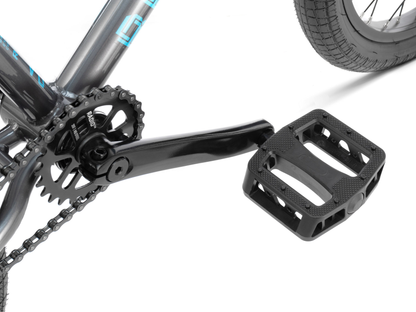

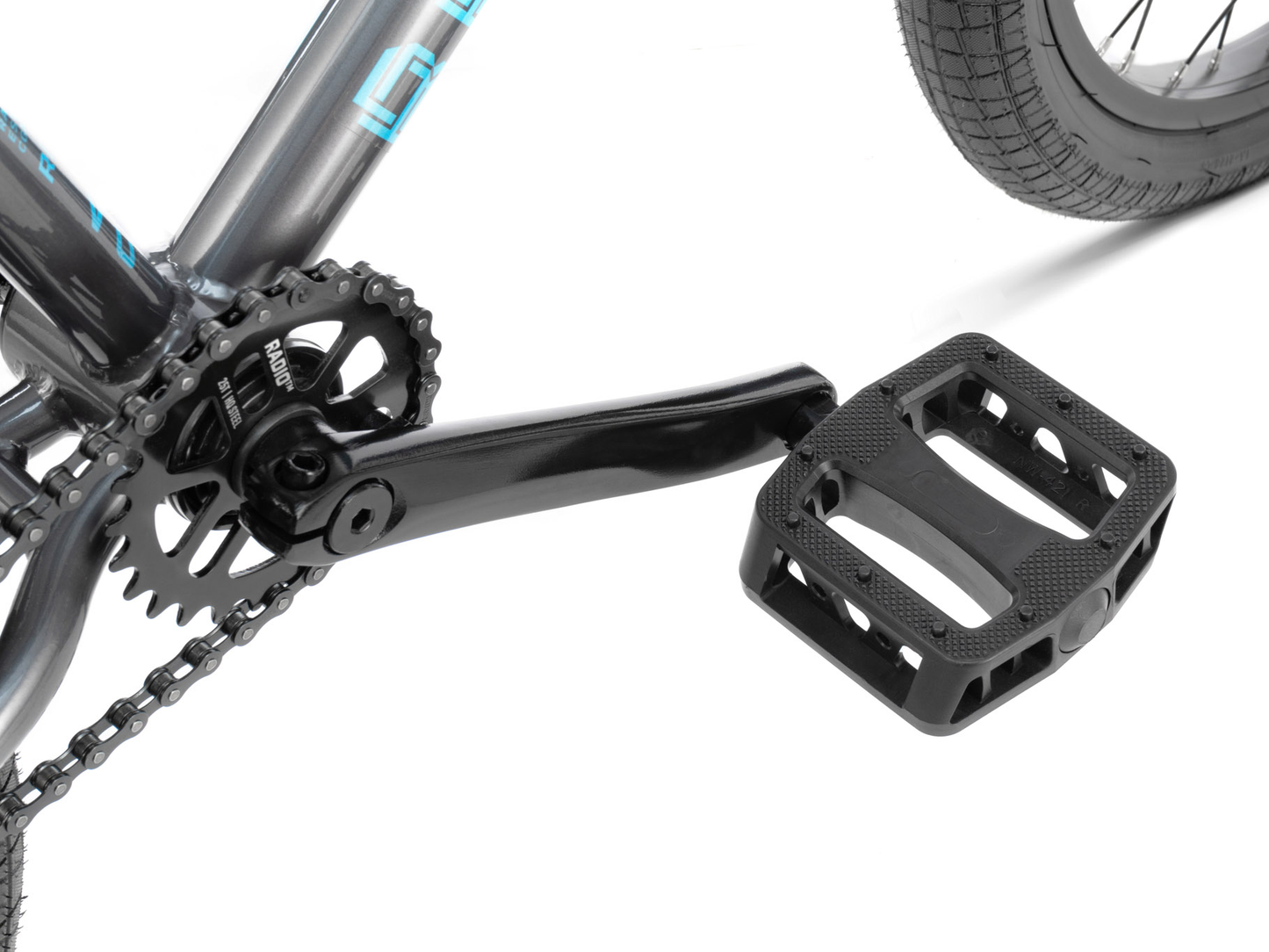

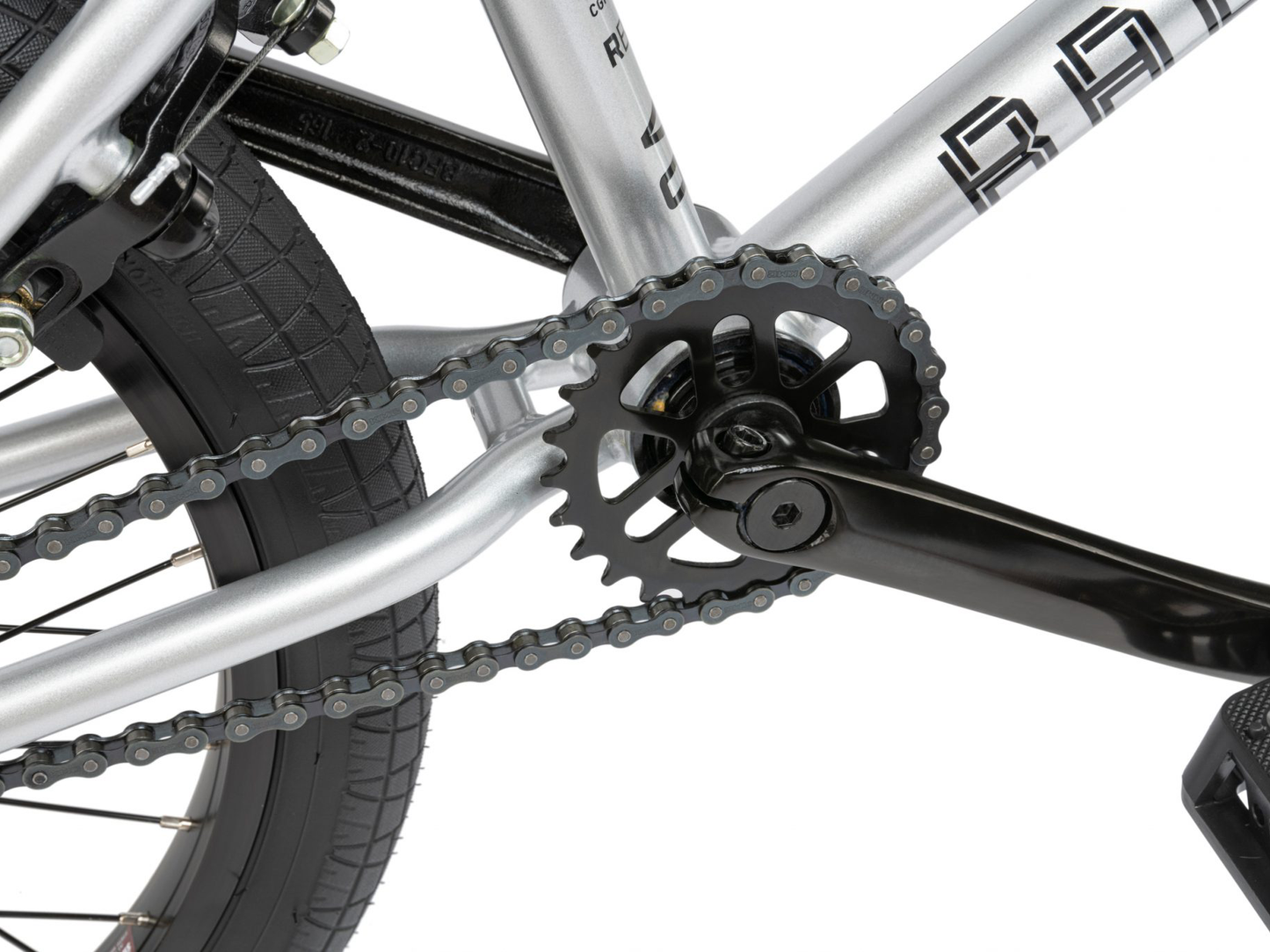

Crank - Radio 'Rookie' 3pc forged crank Cr-Mo, 170mm

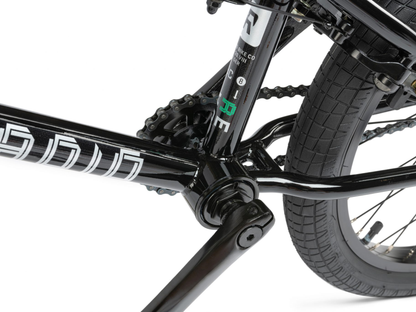

BB - USA size, loose ball
Pedals - Radio 'Rookie' nylon pedals
Chain - KMC 'S1' chain

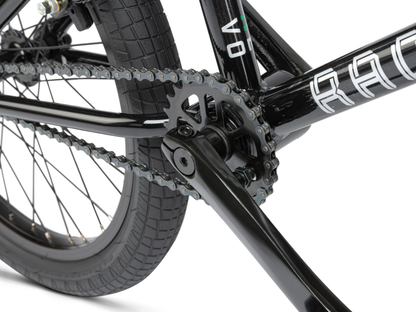

Sprocket - Radio 'Rookie' sprocket, steel, 25T
Driver - 9T, cassette

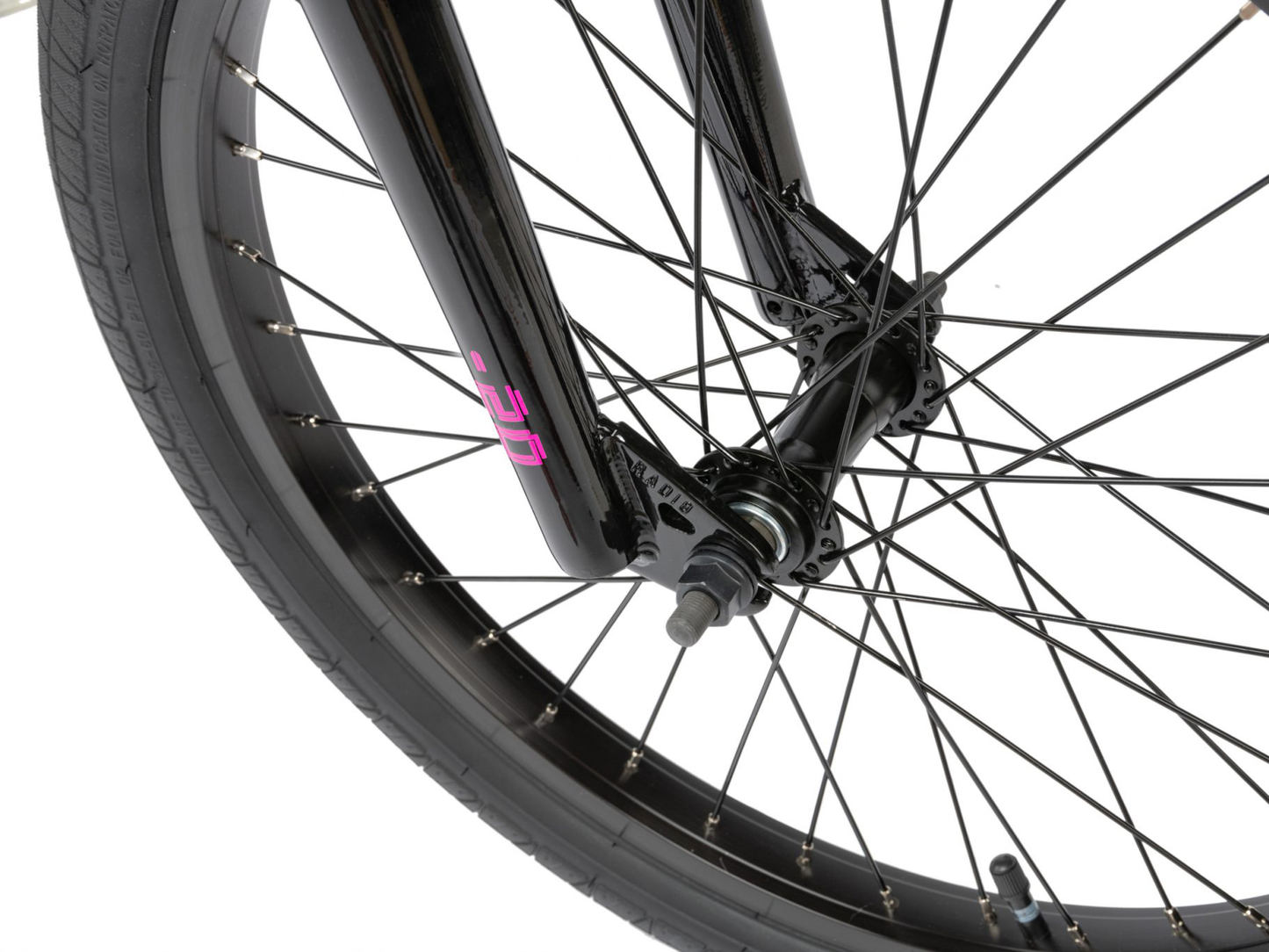

Front hub - Radio 'Rookie' steel hub, Lb, 3/8" 36H

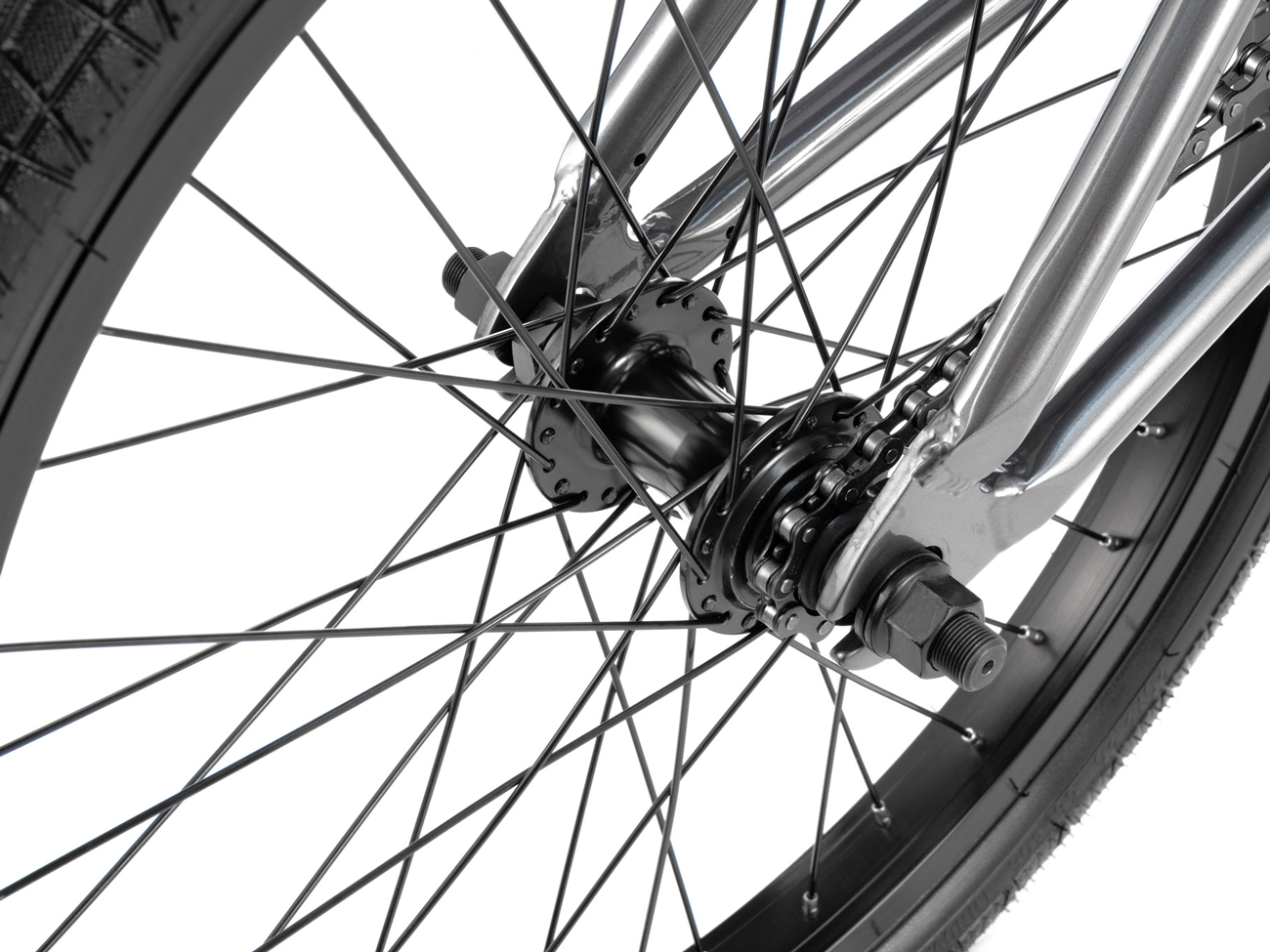

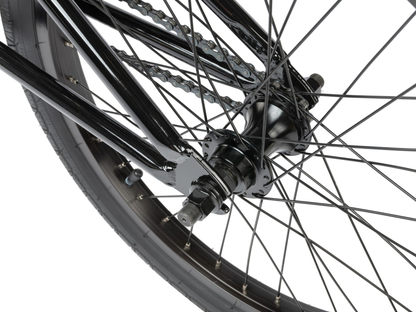

Rear hub - Radio 'Rookie' cassette hub, steel, Lb, 9T, 14mm axle, 36H
Front rim - Salt 'AM' rim, straight single wall, 36H
Rear rim - Salt 'AM' rim, straight single wall, 36H

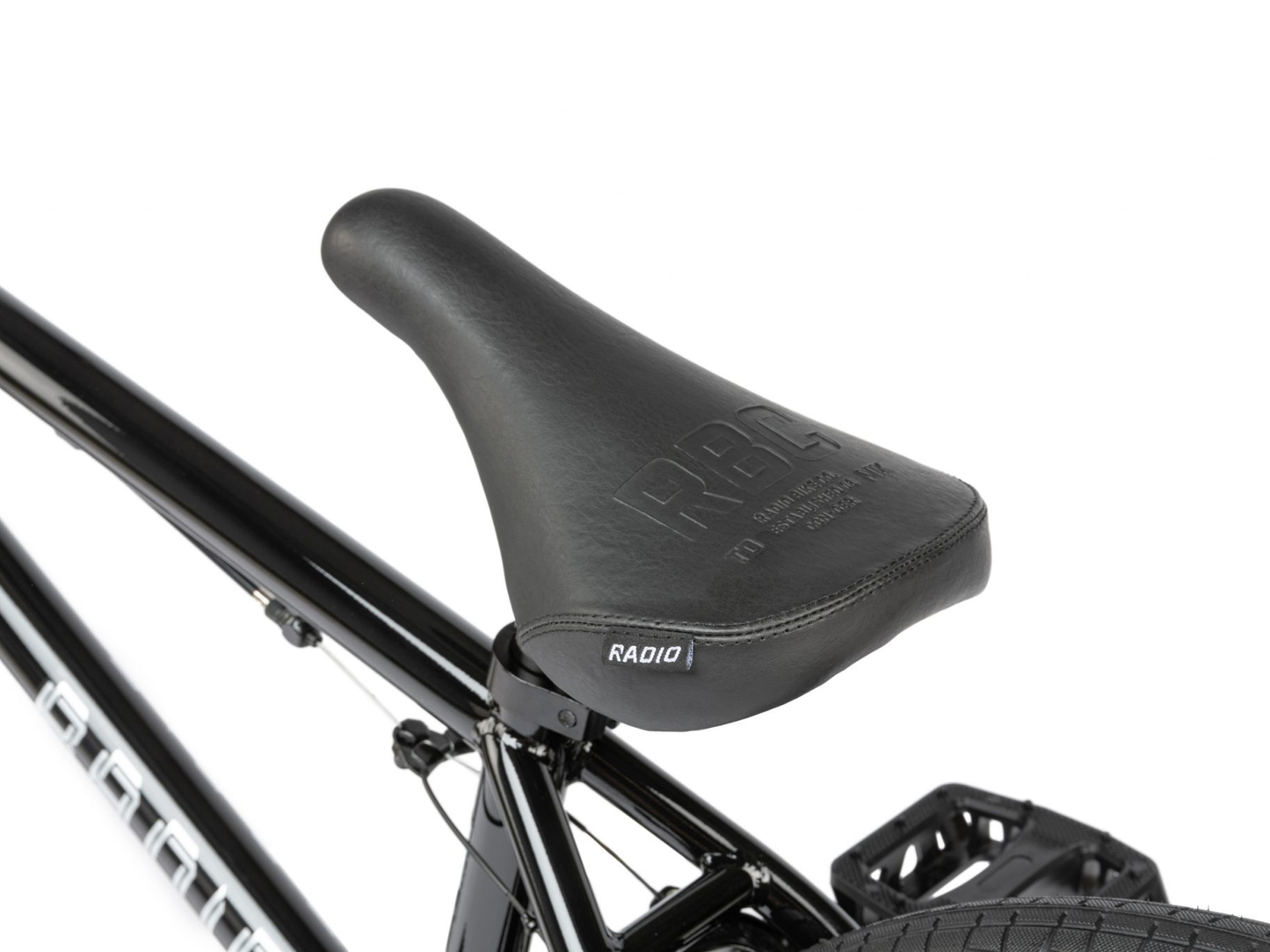

Seat - Radio 'Century' slim combo seat
Seat clamp - Radio slim alloy seat clamp

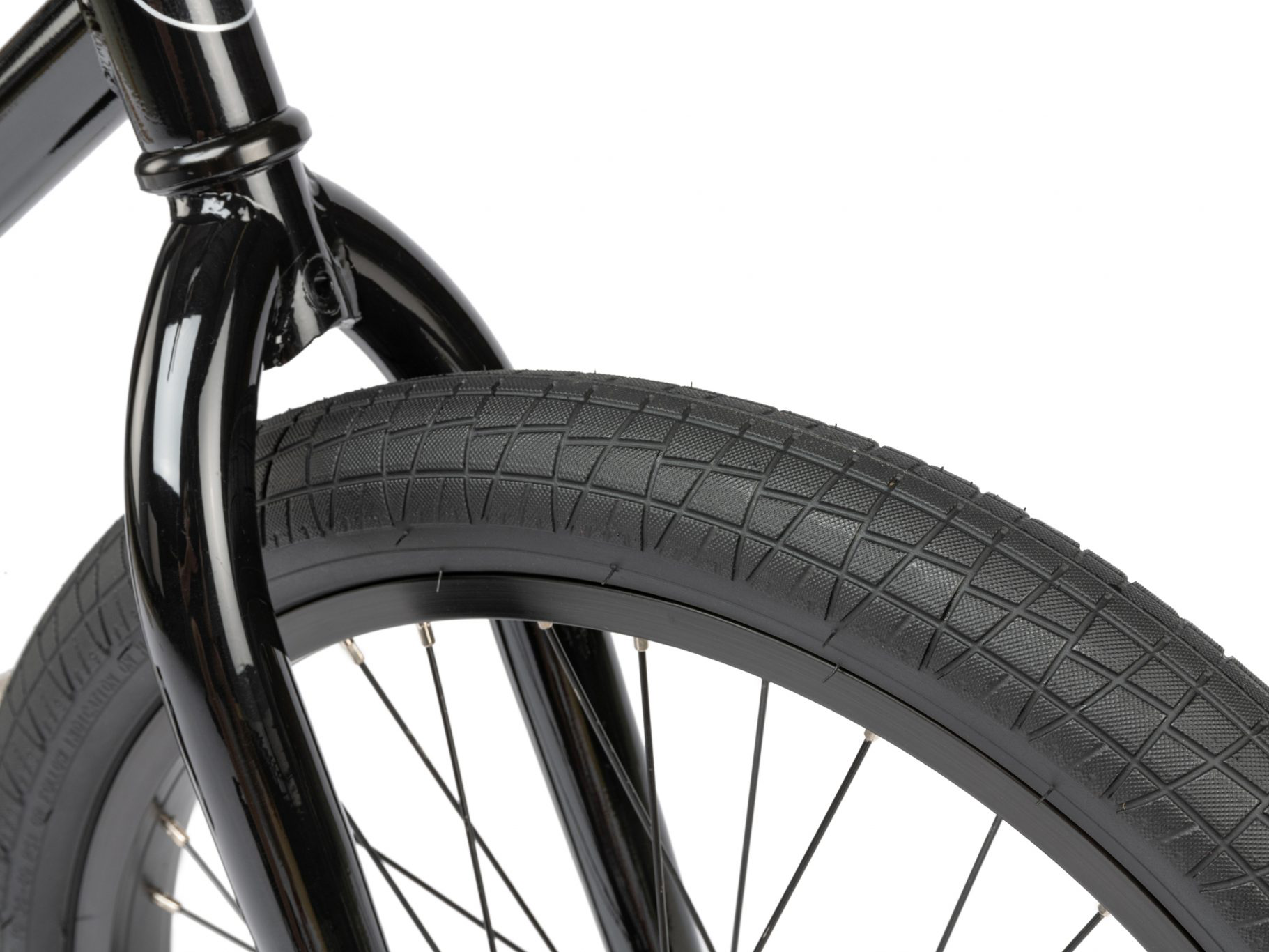

Tyres - Radio 'Rookie' tyres, 20″x2.2″, front & rear
Weight - 12.51kg

Frame geometry
Top tube length - 20″
Chain stay length - 13″
Head tube angle - 75°
Seat tube angle - 71.5°
Bottom bracket height - 11.75″
Standover height - 7.8″

Handlebar geometry
Rise - 8.75″
Width - 29″
Backsweep - 11°
Upsweep - 2°
