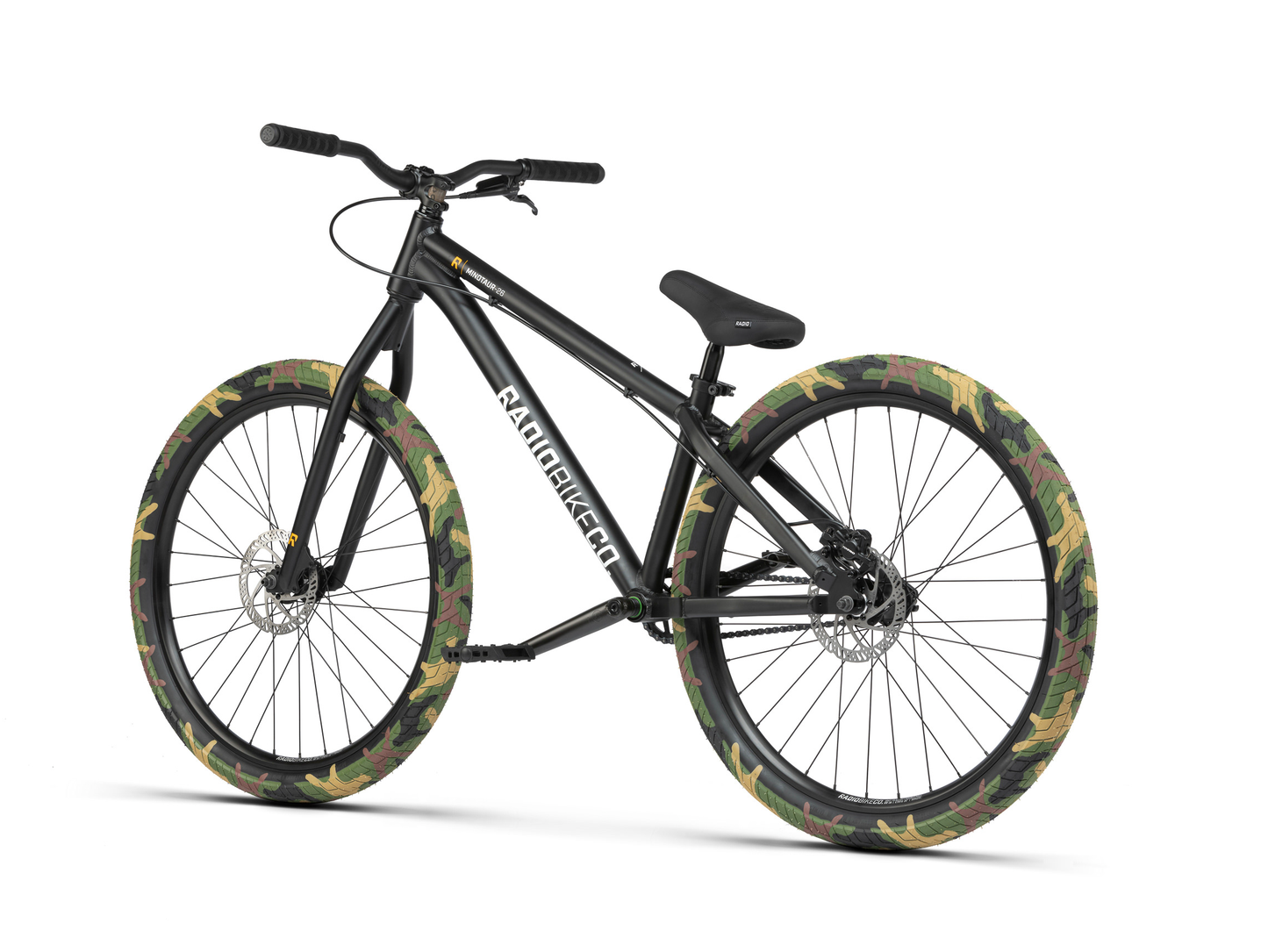

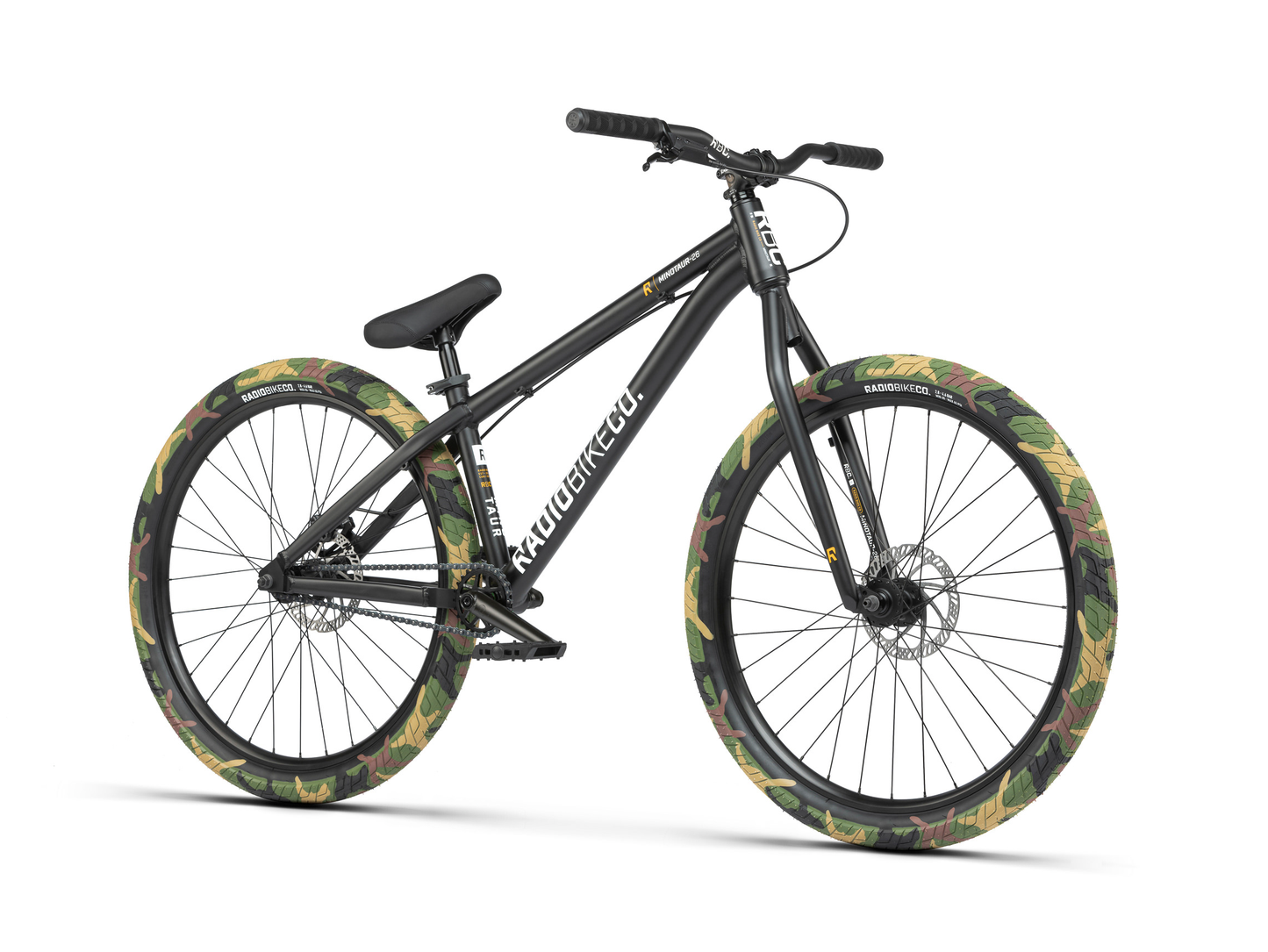

RADIO 26" Minotaur Bike

RADIO 26" Minotaur Bike

Regular price $1,699.99 AUD
Regular price Sale price $1,699.99 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.
Colour
Simply for shredding. The Minotaur is a dirt/pump track beast with a full 6061-T6 alloy frame for performance, and their own rigid chromoly fork for simplicity, speed and style. By using a rigid fork Radio was able to not only offer an easily upgradable bike with a pro-spec alloy frame for a much lower price, but also create a bike that simply didn’t exist yet. The Minotaur is a bike that is as fun to ride as it looks. With camo Radio Helix tyres and a rigid fork, this is one lively bike design for nothing but fun!

Specifications
Frame - Radio 'Minotaur' frame, 6061-T6 alloy, tapered head tube, forged yoke
Fork - Radio 'Minotaur fork, full Cr-Mo, tapered Cr-Mo steerer, 28mm offset

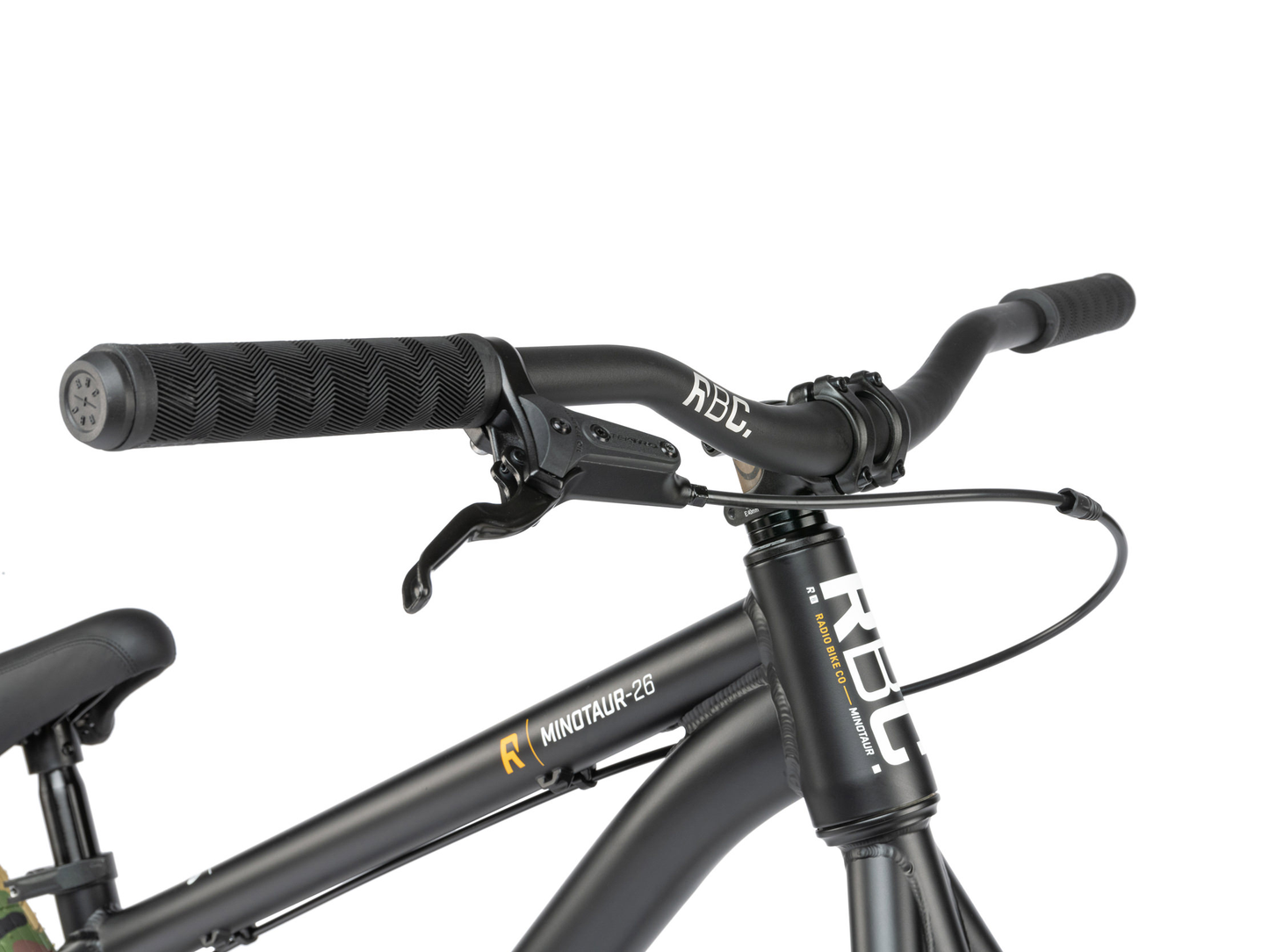

Handlebar - Radio 'Asura' bar, 6061-T6 alloy, 31.8mm
Grips - Radio 'Frequency XL' grips, flangeless, 160mm
Stem - Radio 'Zoom' frontload stem, alloy, 40mm reach
Headset - FSA No.57e integrated a-headset, 1-1/8″-1.5″
Brake lever - Tektro 'RS-360A' front lever / Tektro 'HD-M275' rear lever

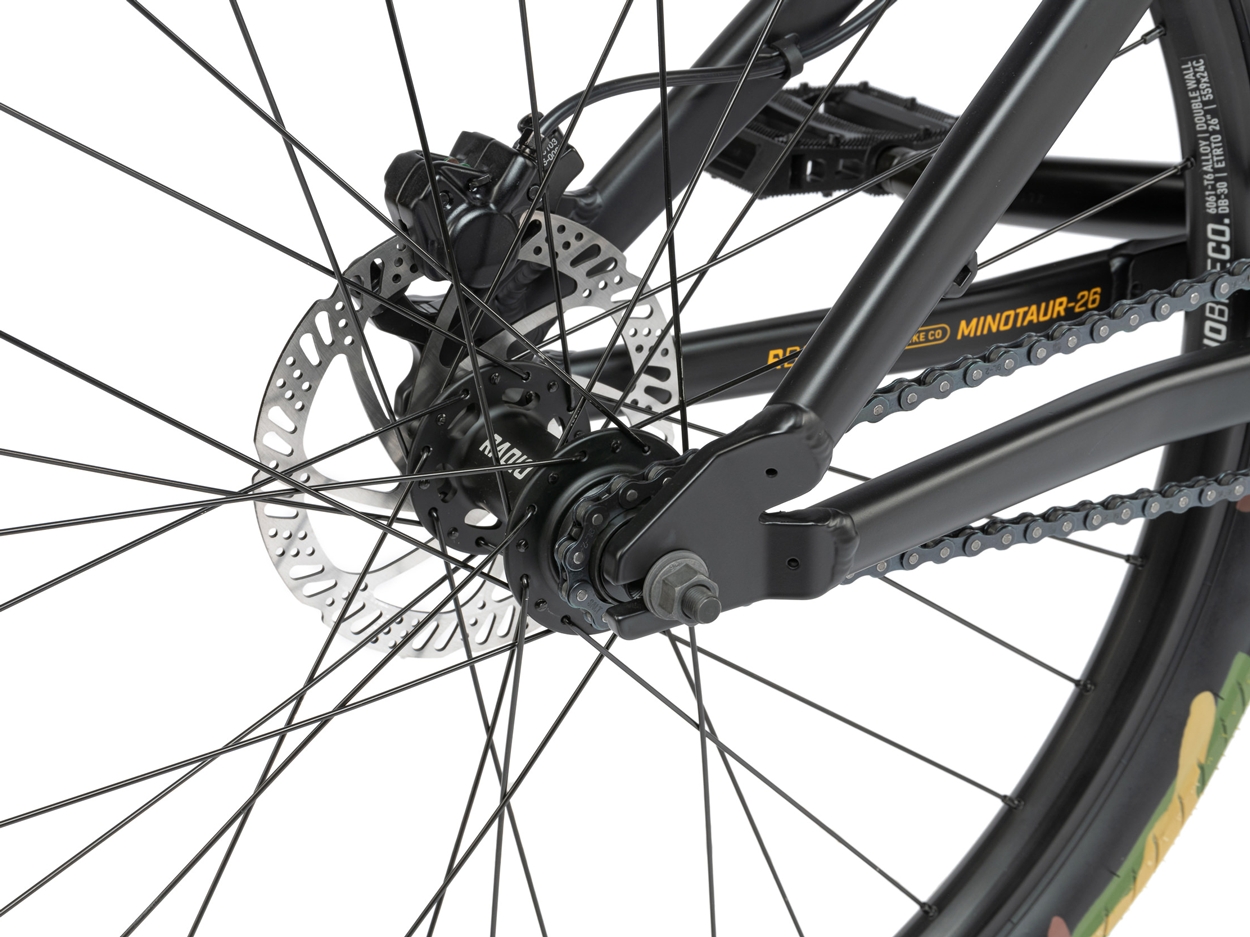

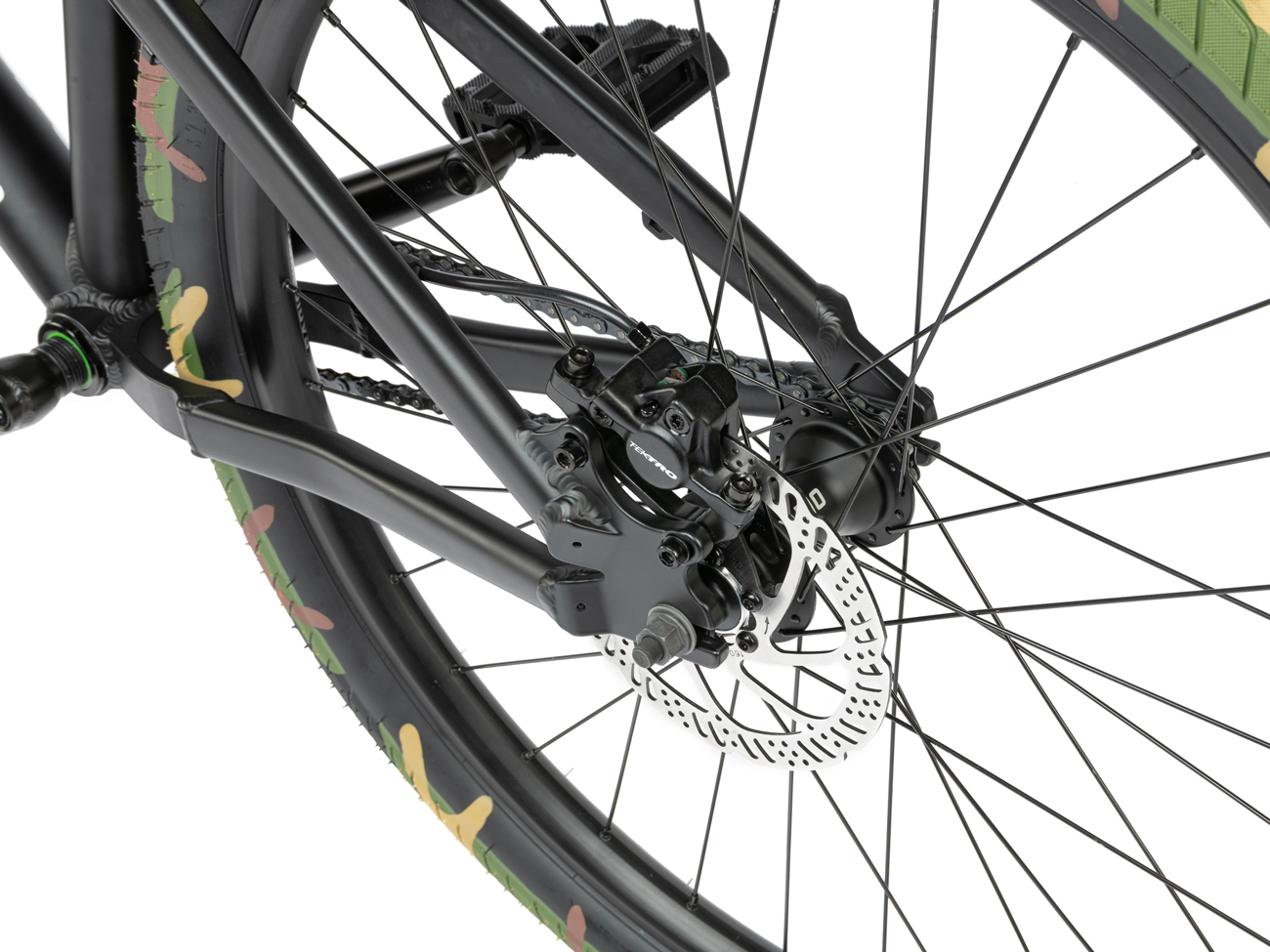

Brake - Tektro 'Aries' mechanical disc brake, 160mm rotor, front / Tektro 'HD-M275' hydraulic disc brake, 160mm rotor

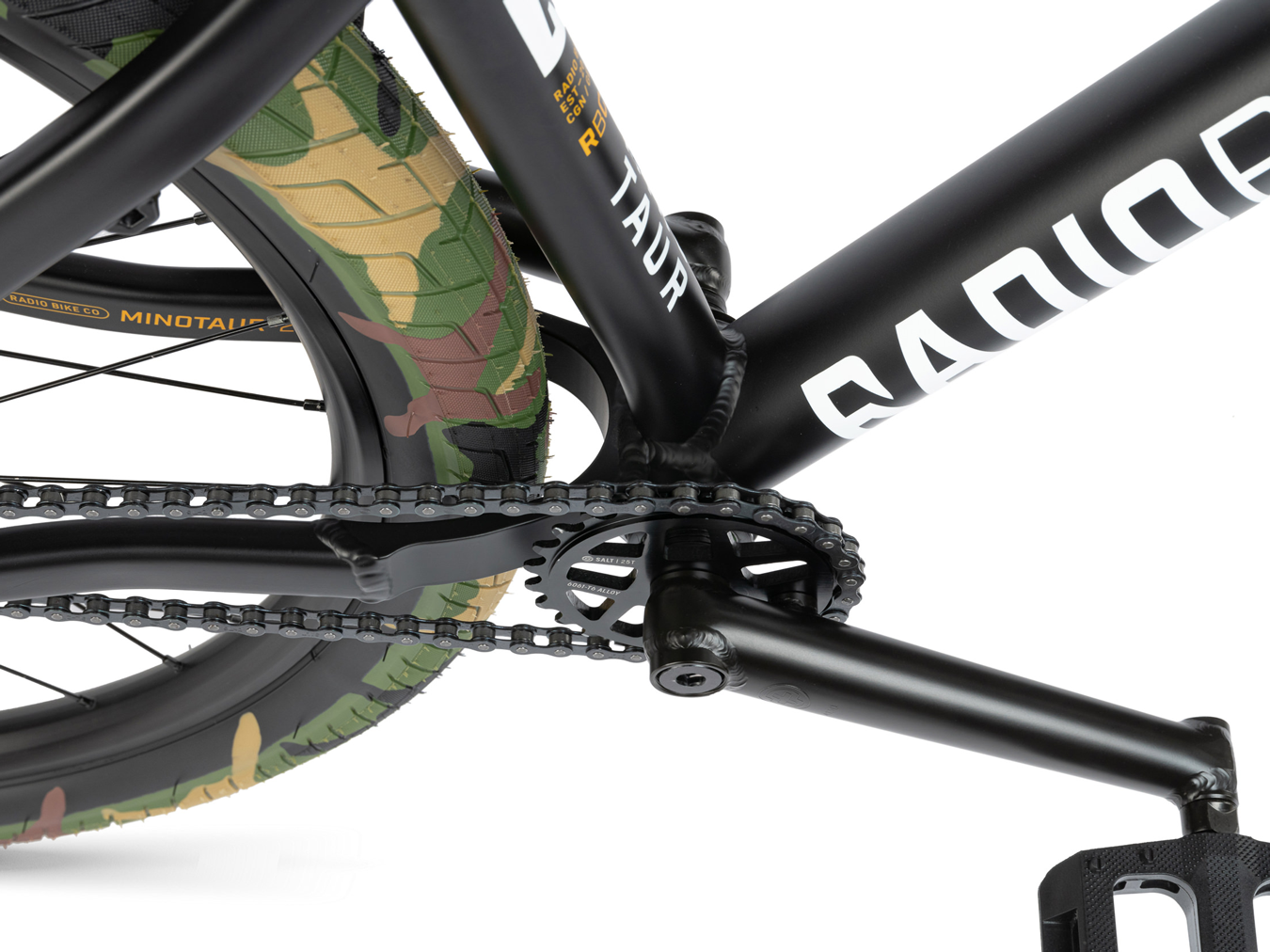

Crank - Saltplus 'Ultra' 3pc crank, TSS, Cr-Mo, 170mm, 8 spline
Bb - Radio BSA19 BB set, sealed bearing
Pedals - Radio 'Slim' nylon fibreglass pedals
Chain - Salt 'AM' chain, WZ1 type
Sprocket - Salt 'Gateway' sprocket, alloy, 25T
Driver - Cassette driver, 10T, sealed bearing

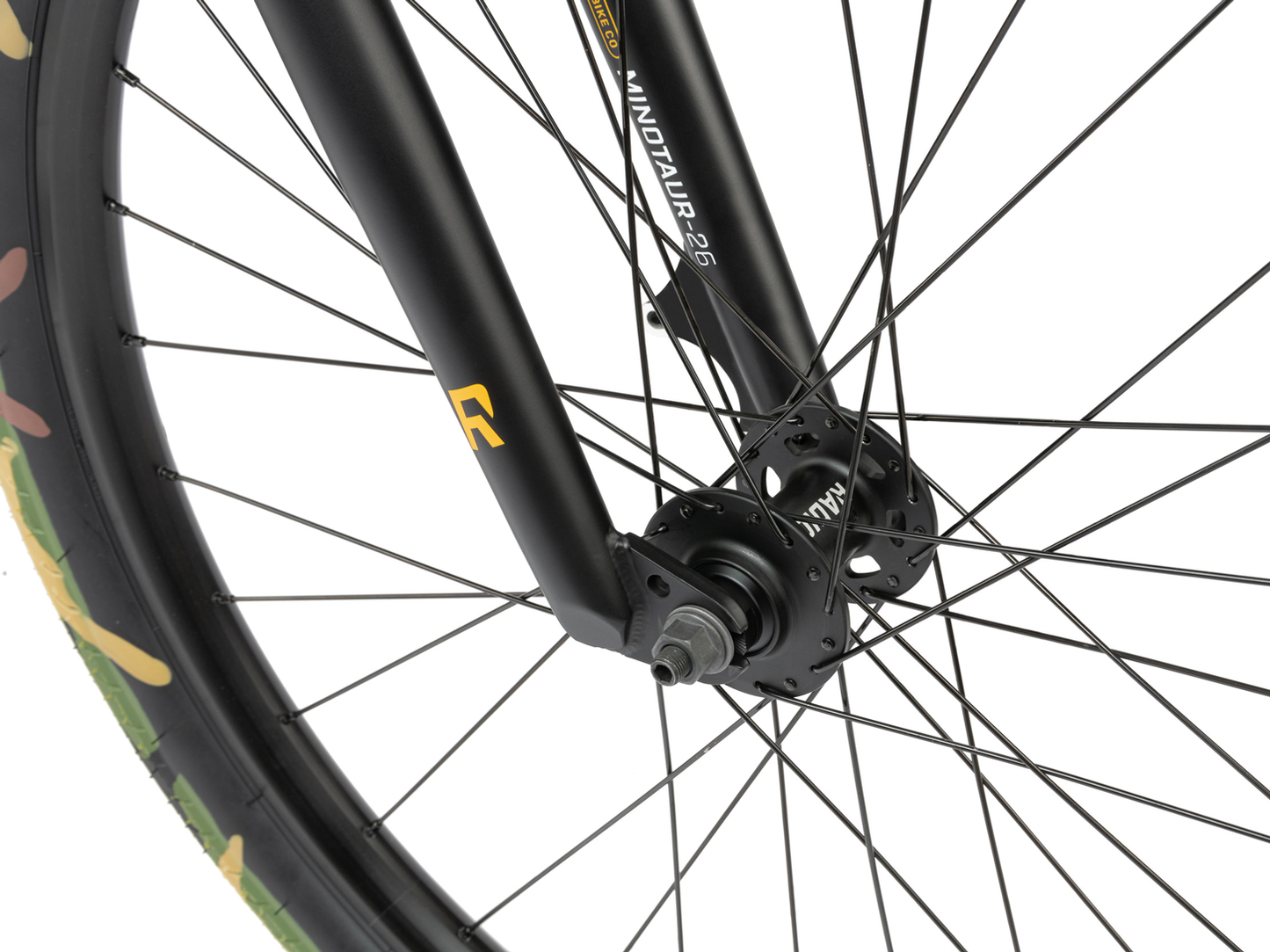

Front hub - Radio 'AM-Dj' disc hub, alloy, sealed, 3/8″S male axle, 32h
Rear hub - Radio 'Pro-Dj' disc hub, alloy, sealed, 3/8″S male axle, 32h
Front rim - Radio 'DB30 rim', double wall
Rear rim - Radio 'DB30 rim', double wall

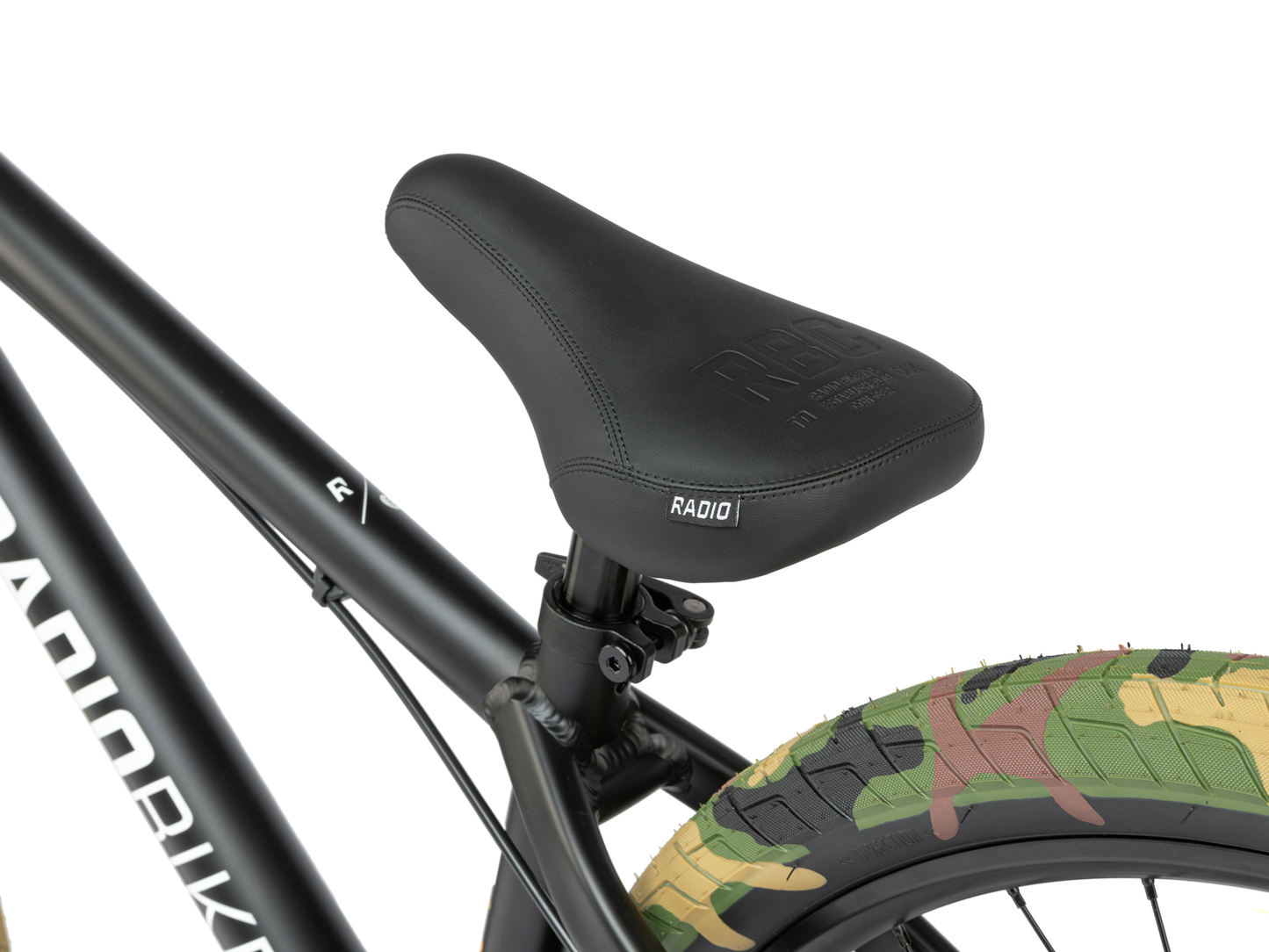

Seat - Radio 'Dj' medium padded combo seat

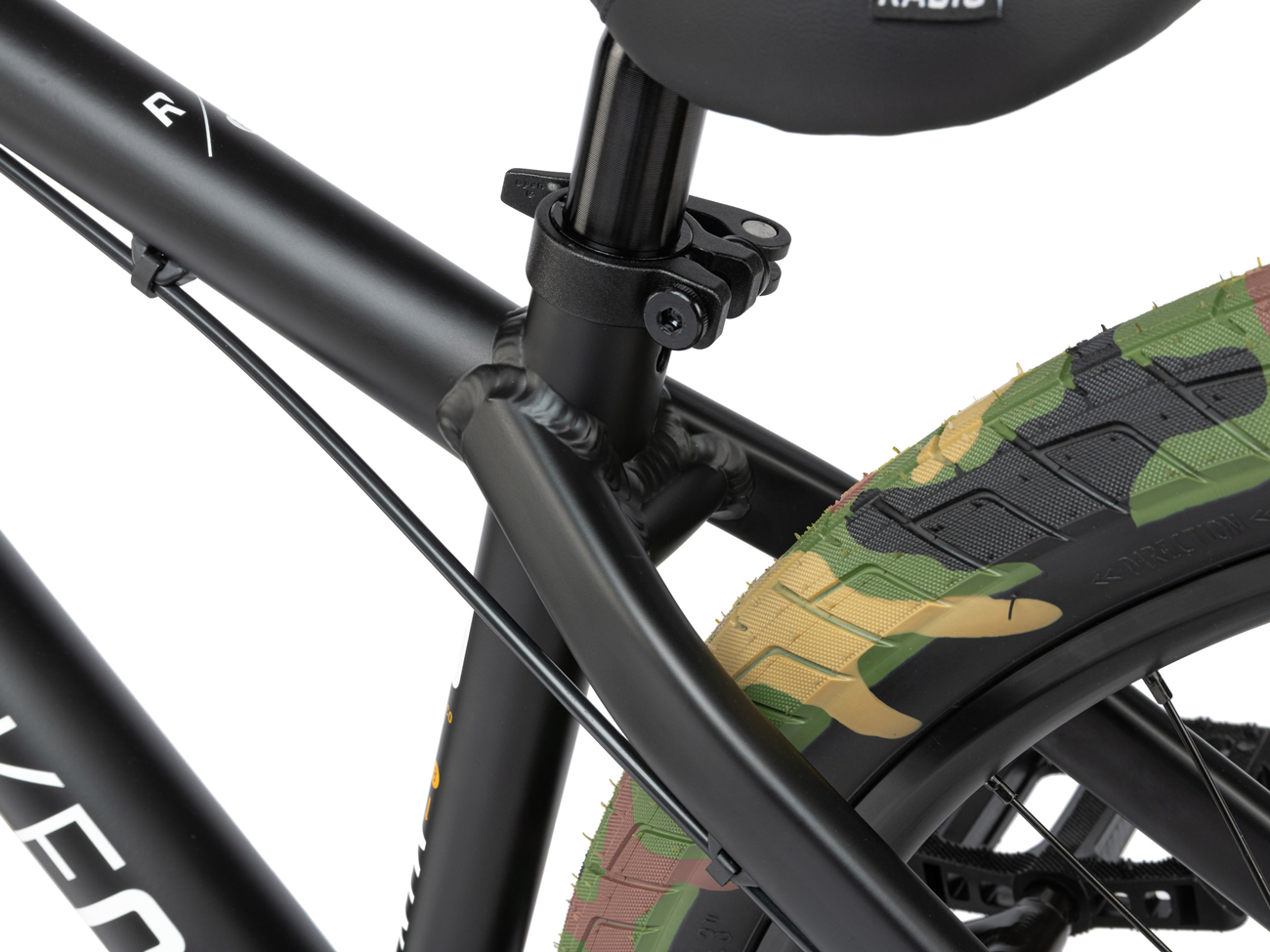

Seat clamp - Radio quick-release seat clamp, alloy

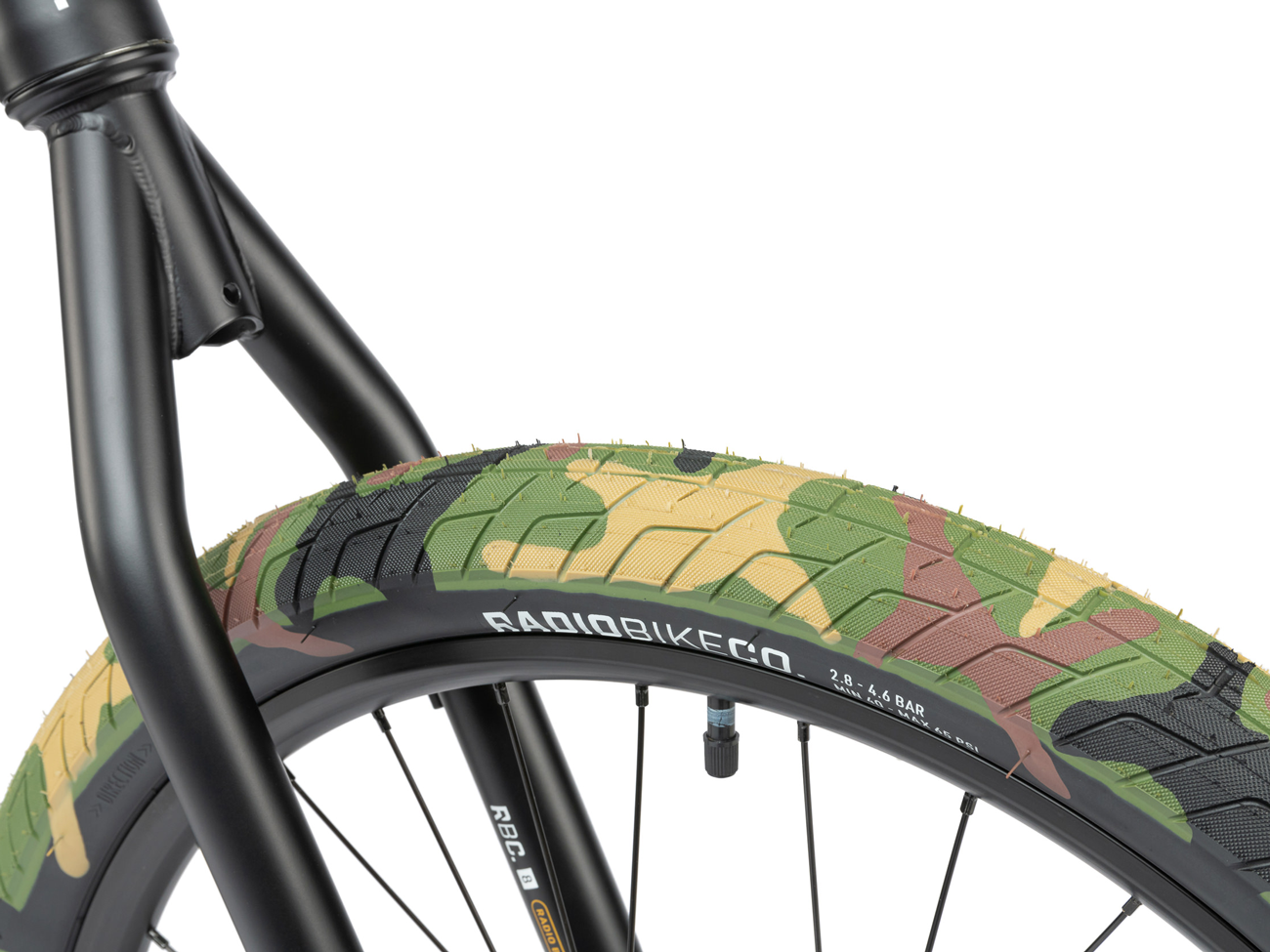

Tyres - Radio 'Helix' tyres, 2.3″, front & rear
Weight - 11.87kg / 26.17lbs

Frame geometry
Top tube length - 22.6″
Chain stay length - 15″
Head tube angle - 69°
Seat tube angle - 72°
Bottom bracket height - 20mm drop
Standover height - 11″

Handlebar geometry
Rise - 50mm
Width - 740mm
Backsweep - 8°
Upsweep - 3°
