RADIO Icarus 26 Frame

RADIO Icarus 26 Frame

$1,099.99 AUD
$1,099.99 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

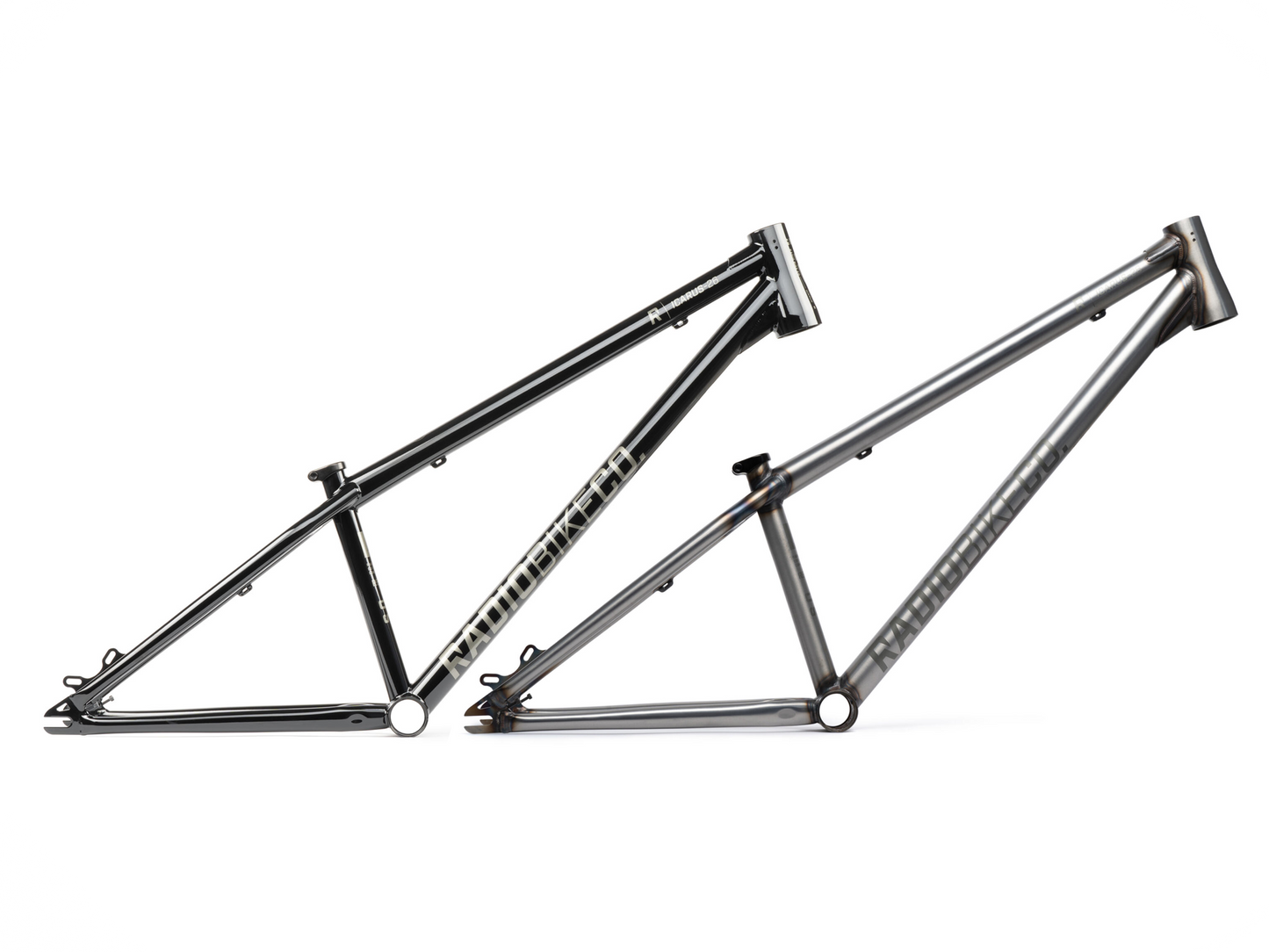

Colour
Top Tube

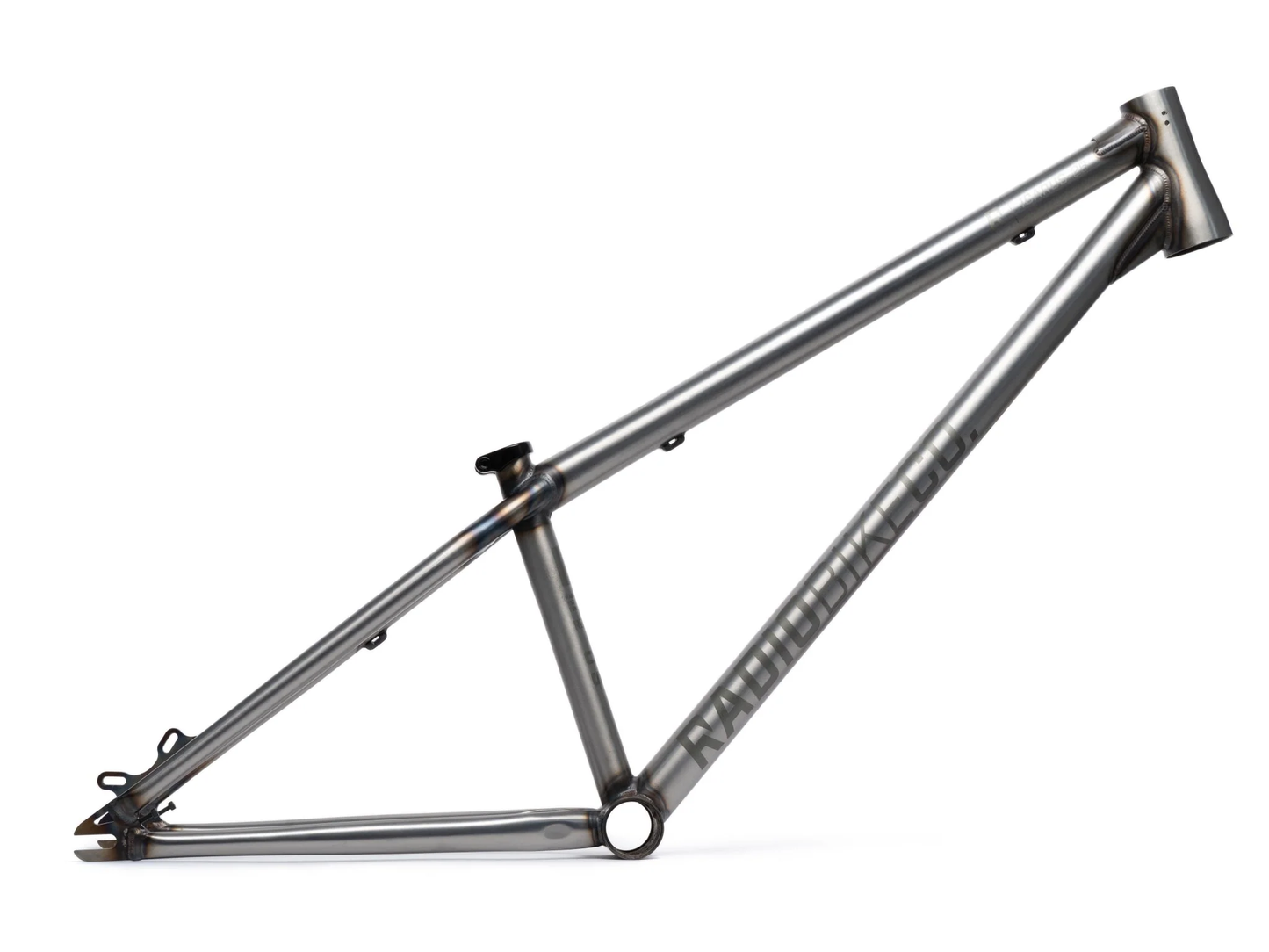

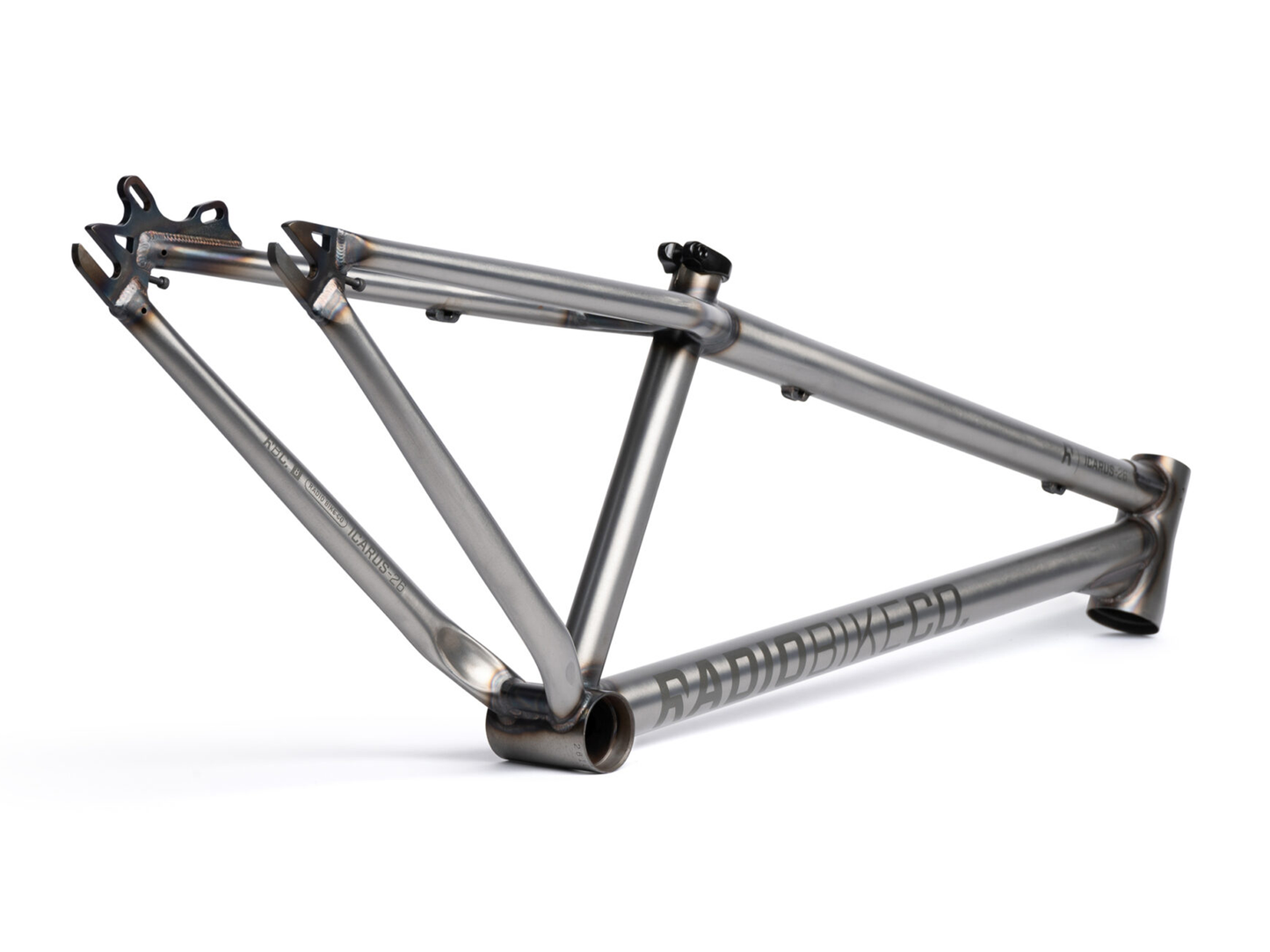

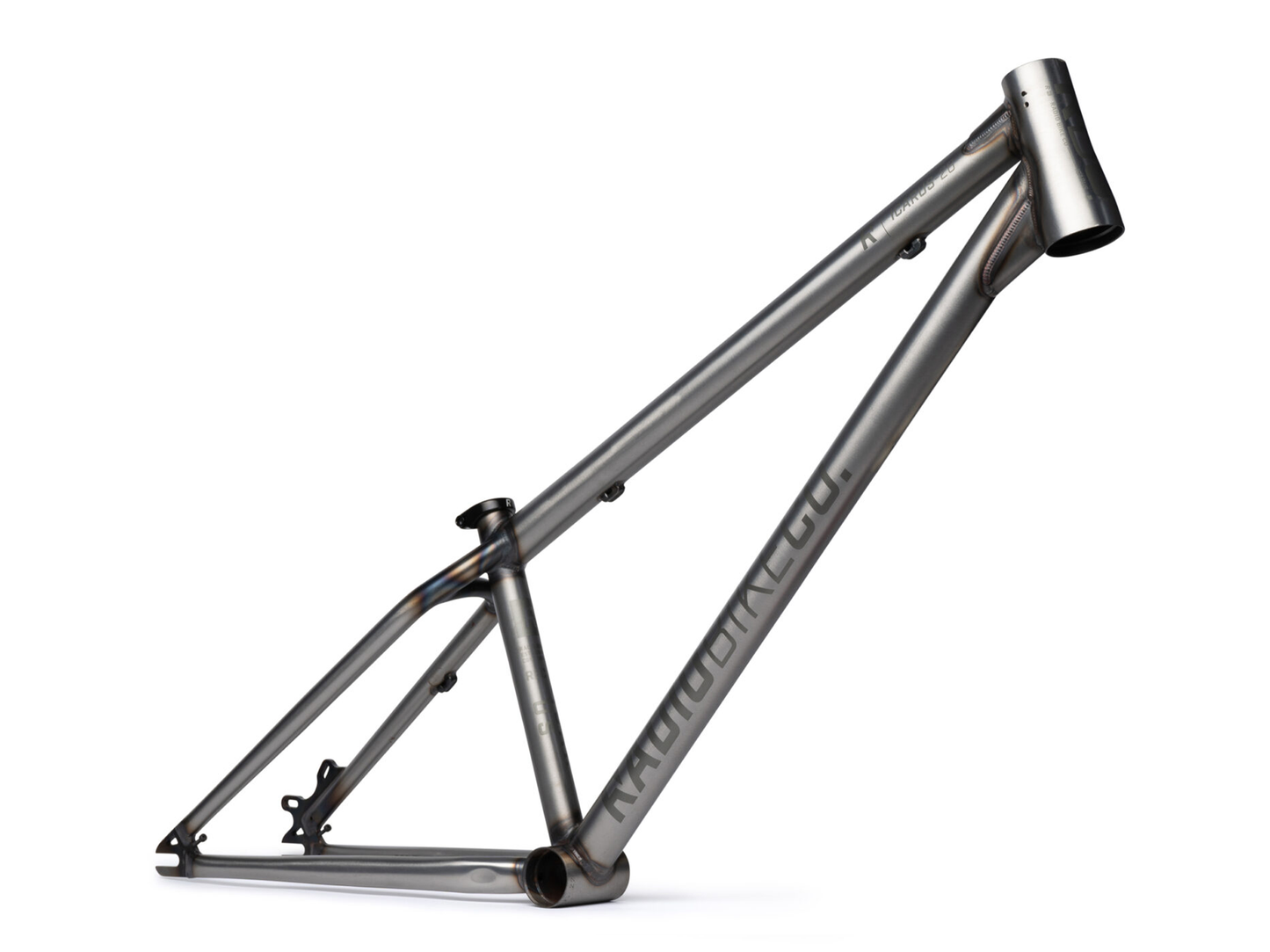

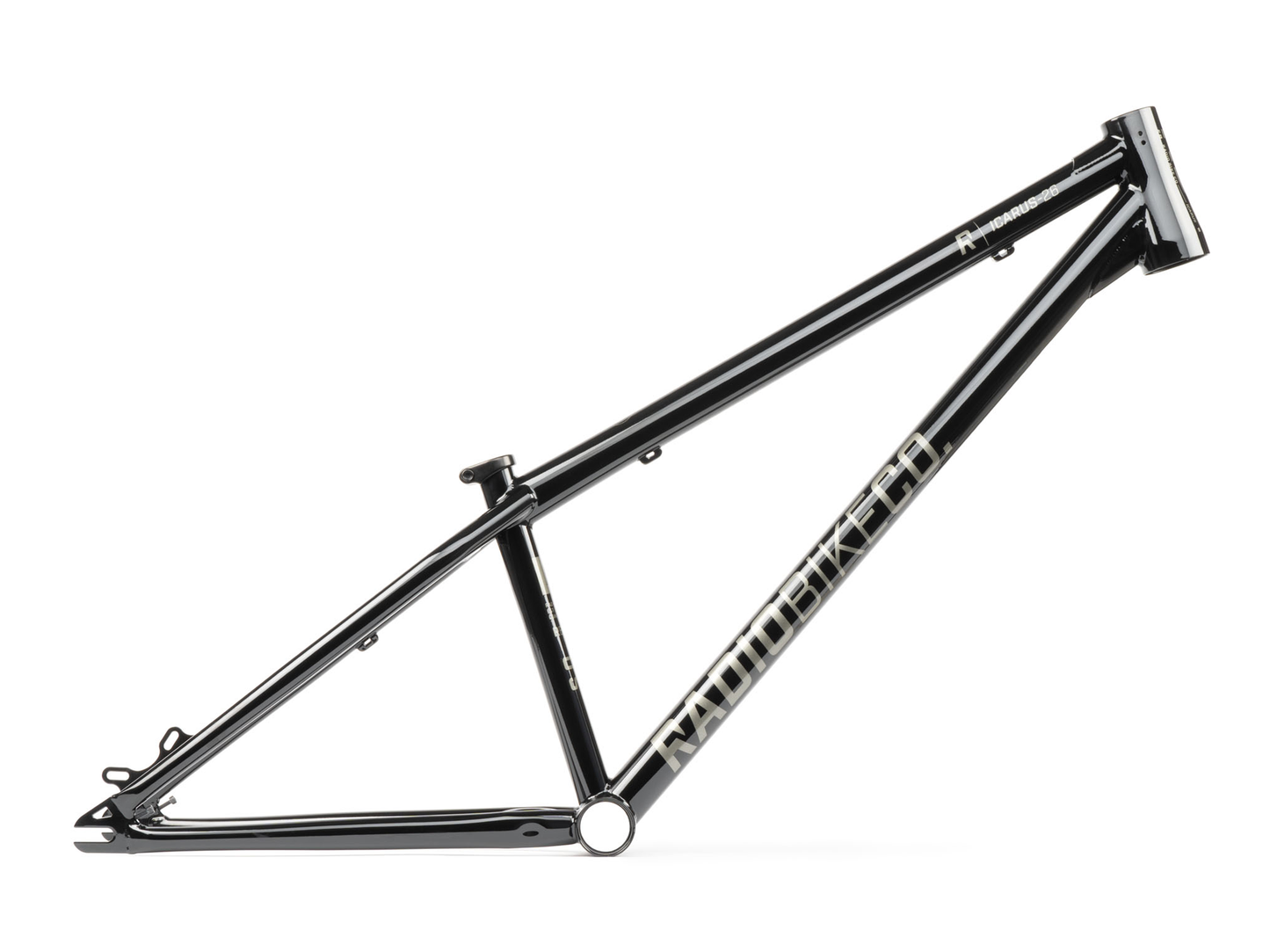

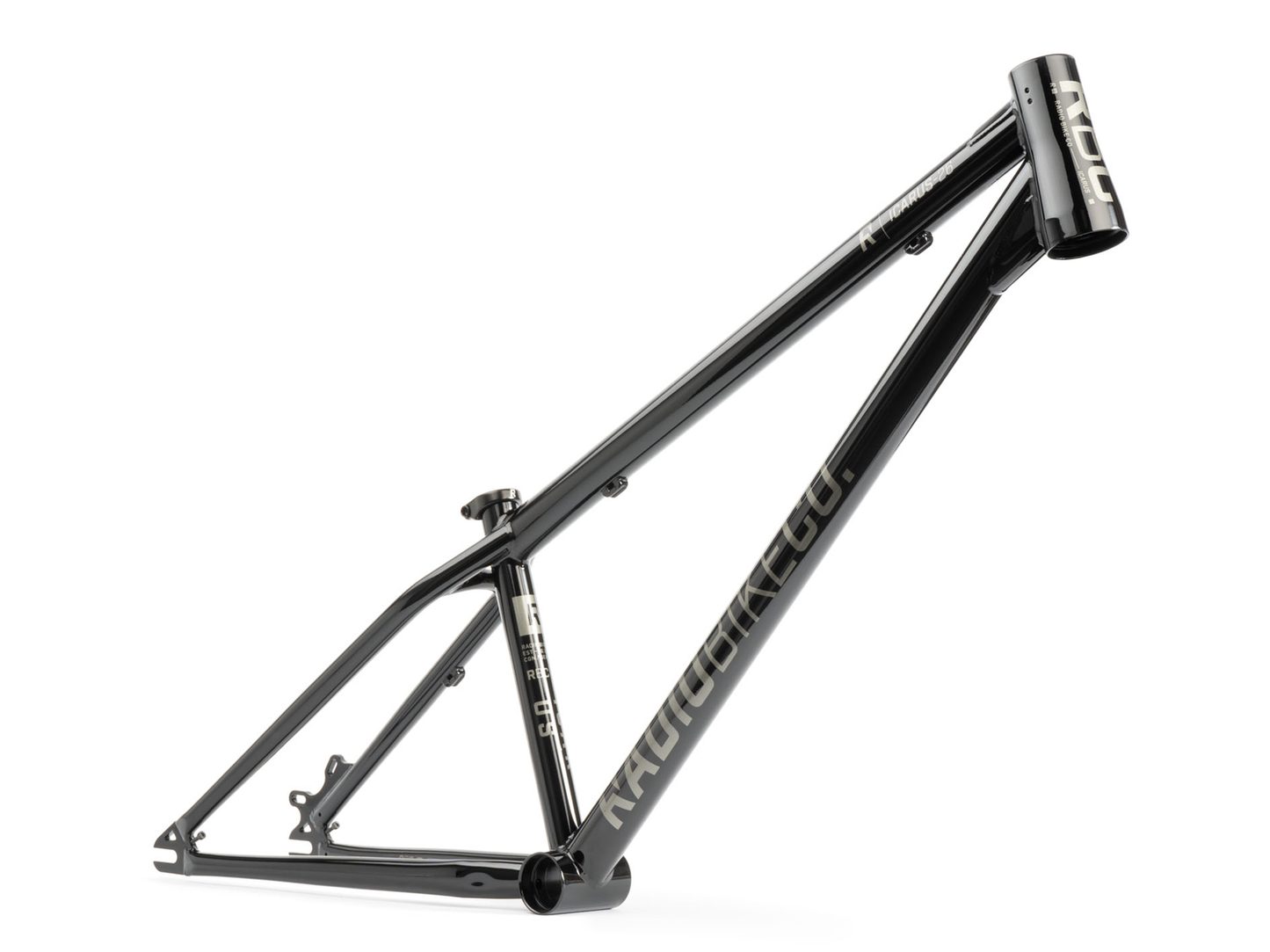

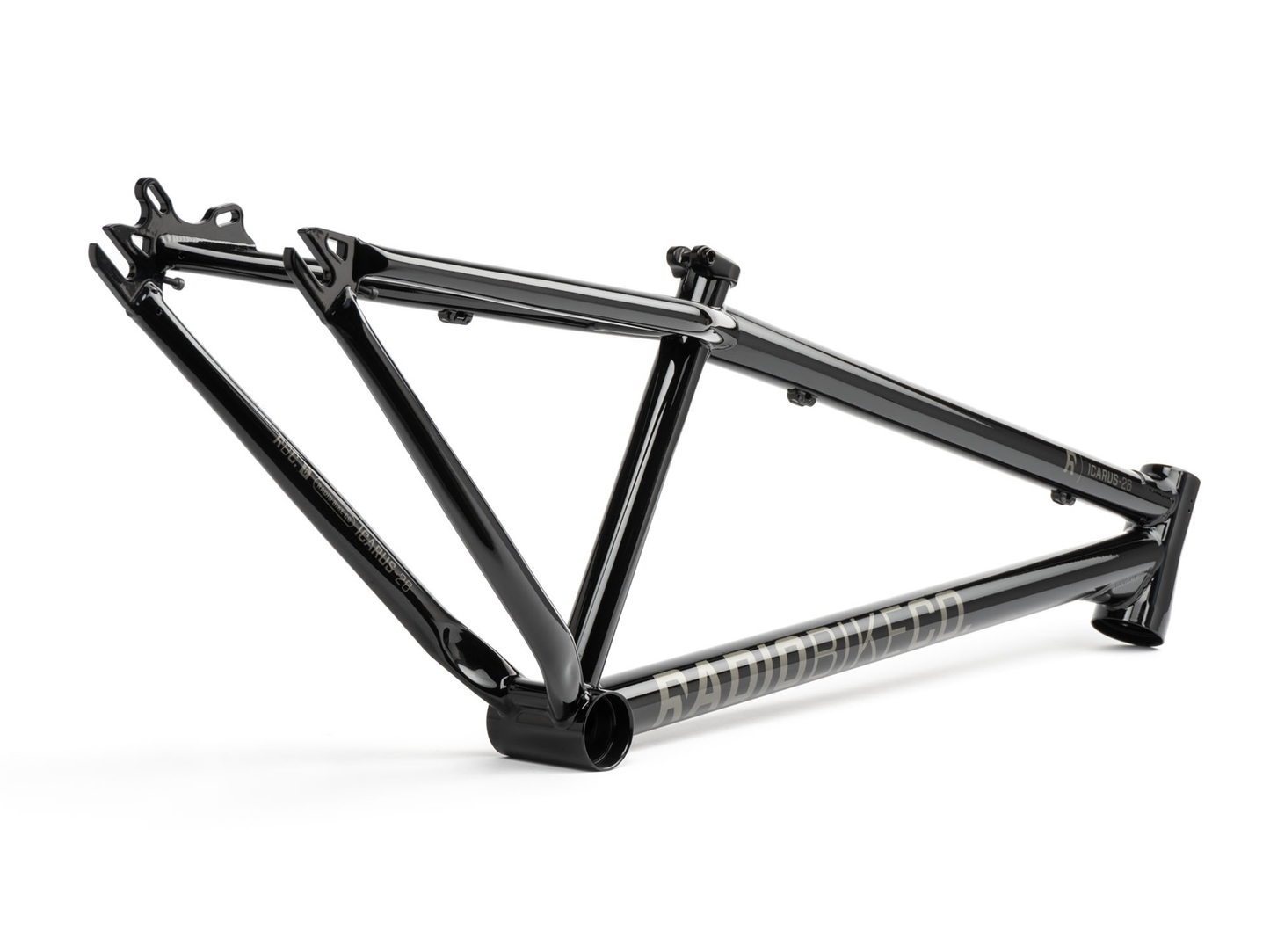

A natural evolution of Radio's legendary Asura Frame, the ICARUS is their fully heat-treated Chromoly 26″ frame made for dirt, skatepark and street riding. Designed & developed over 3 years with MTB street pioneer Niklas Tilk, the ICARUS utilizes a brand new tubing construction as well as handy features such as a Mid Sized BB style bottom bracket, rotor tabs, beefier dropouts with chain tensioners, greater compatibility for suspension forks, and oval/tapered stays for maximum tyre/sprocket clearance.

The short/snappy geometry and reinforced tubing constriction make the ICARUS the ultimate do-it-all 26″ machine. If you need any proof of what the ICARUS is capable of just take a look at Niklas Tilk’s Radio video projects. Say no more.

Features
- PRO level 26” dirt jump/park/street frame
- Designed with Niklas Tilk and the Radio Bikes team
- Full 4130 chromoly tubing
- Multiple butted tubing with reinforced material at critical areas

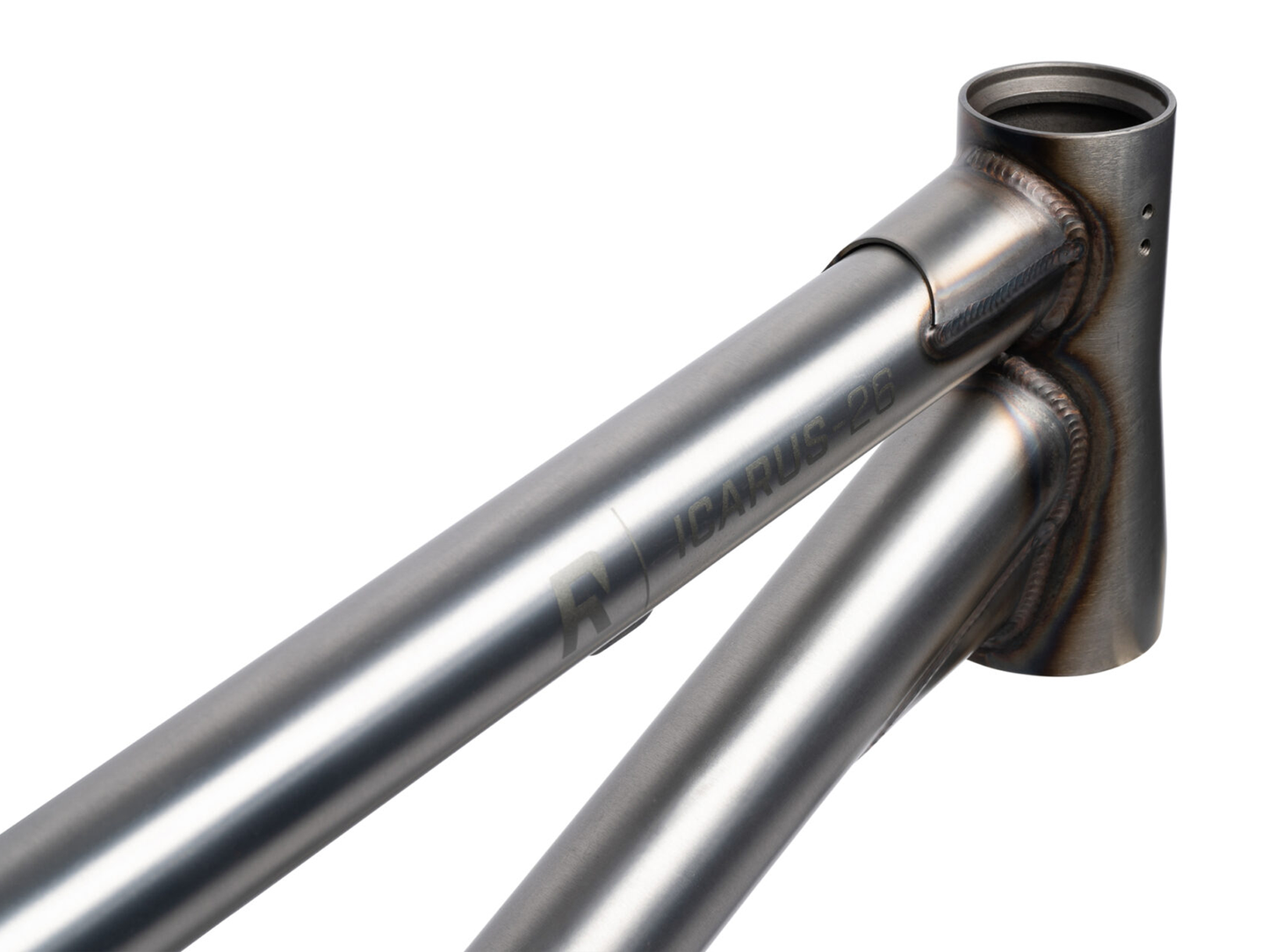

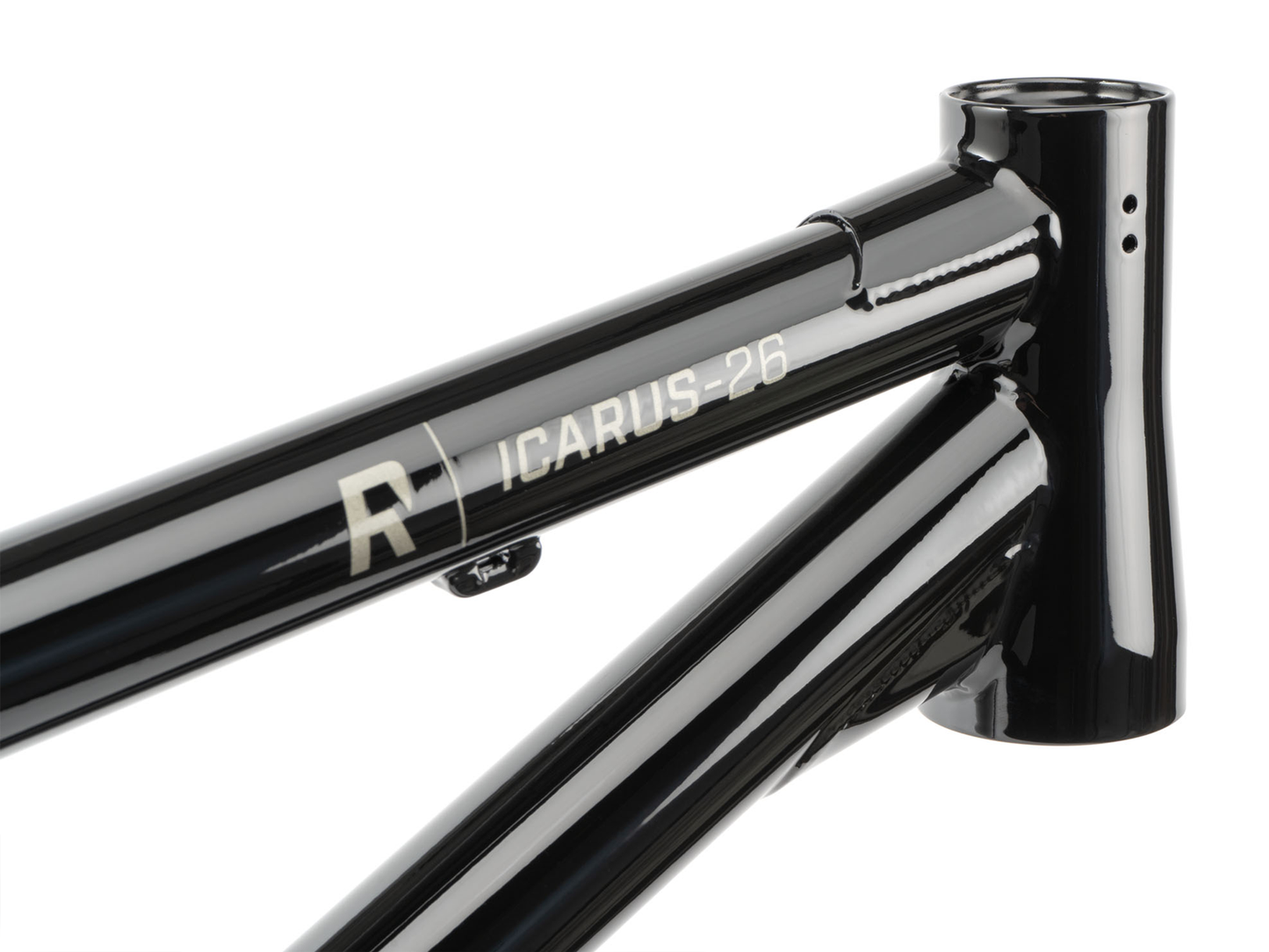

- CNC machined head tube, Integrated tapered IS42/IS52 headset, 120mm tall, drilled for gyro/rotor tabs

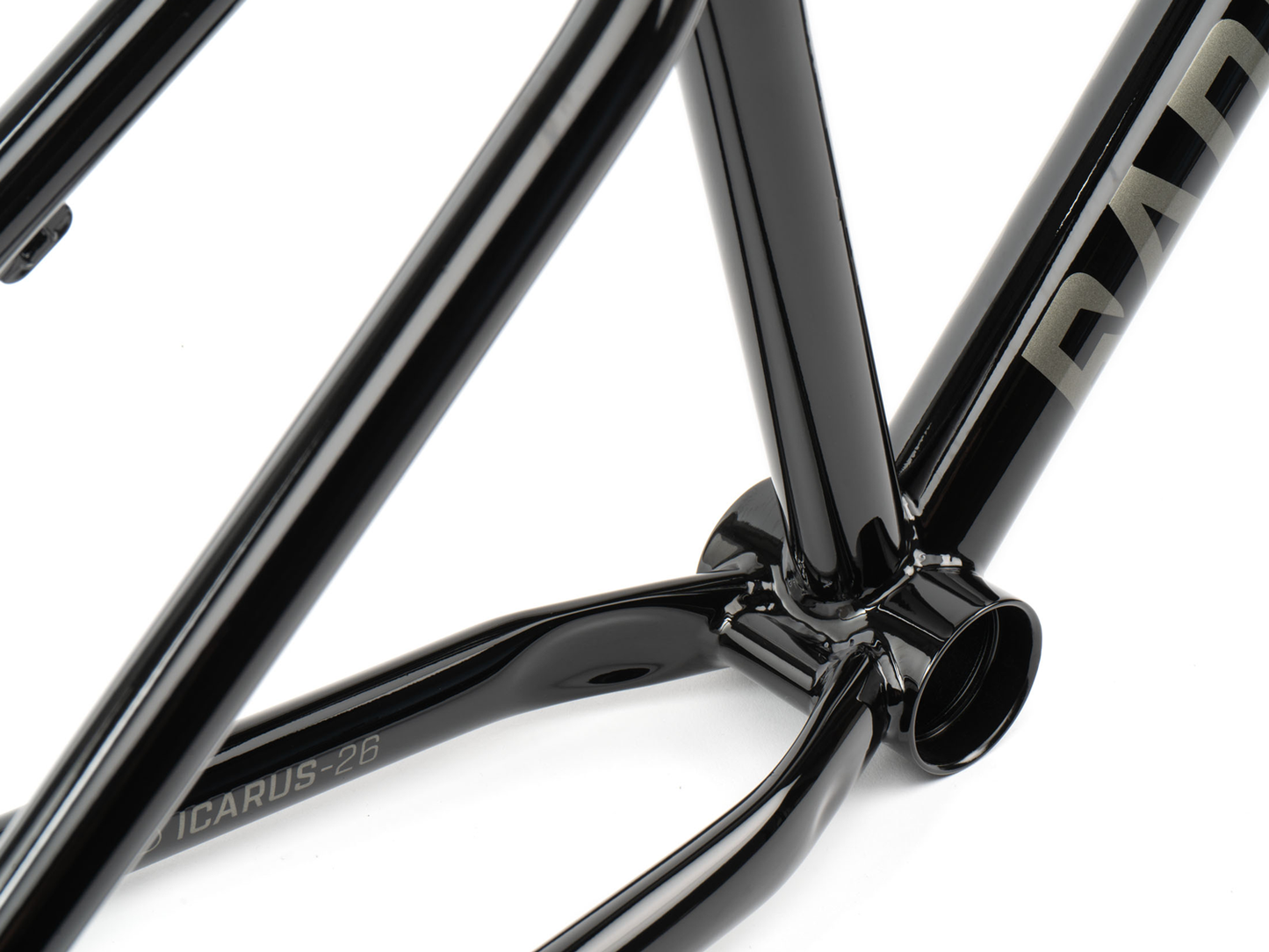

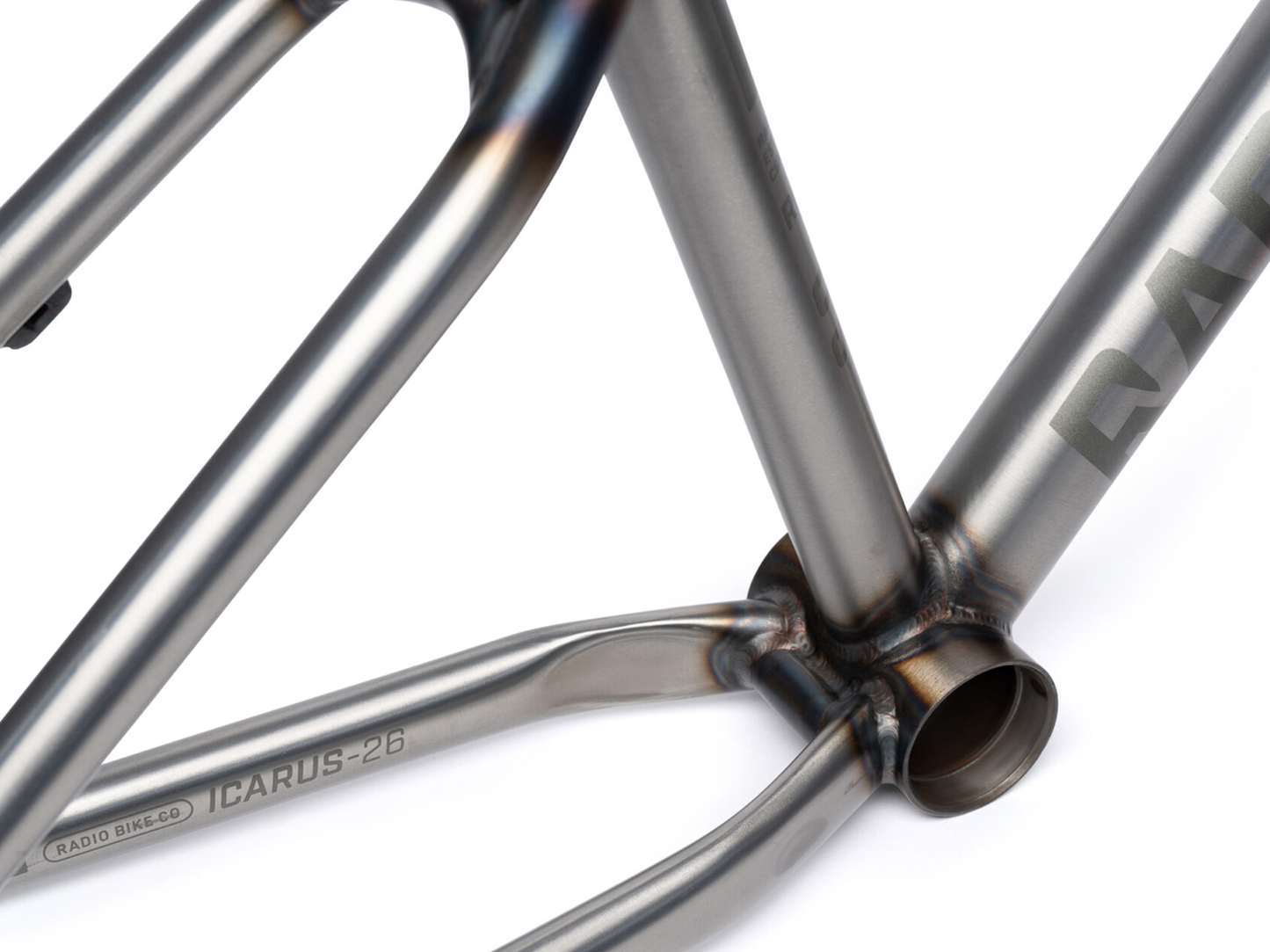

- BMX style MID sized bottom bracket, 74mm wide

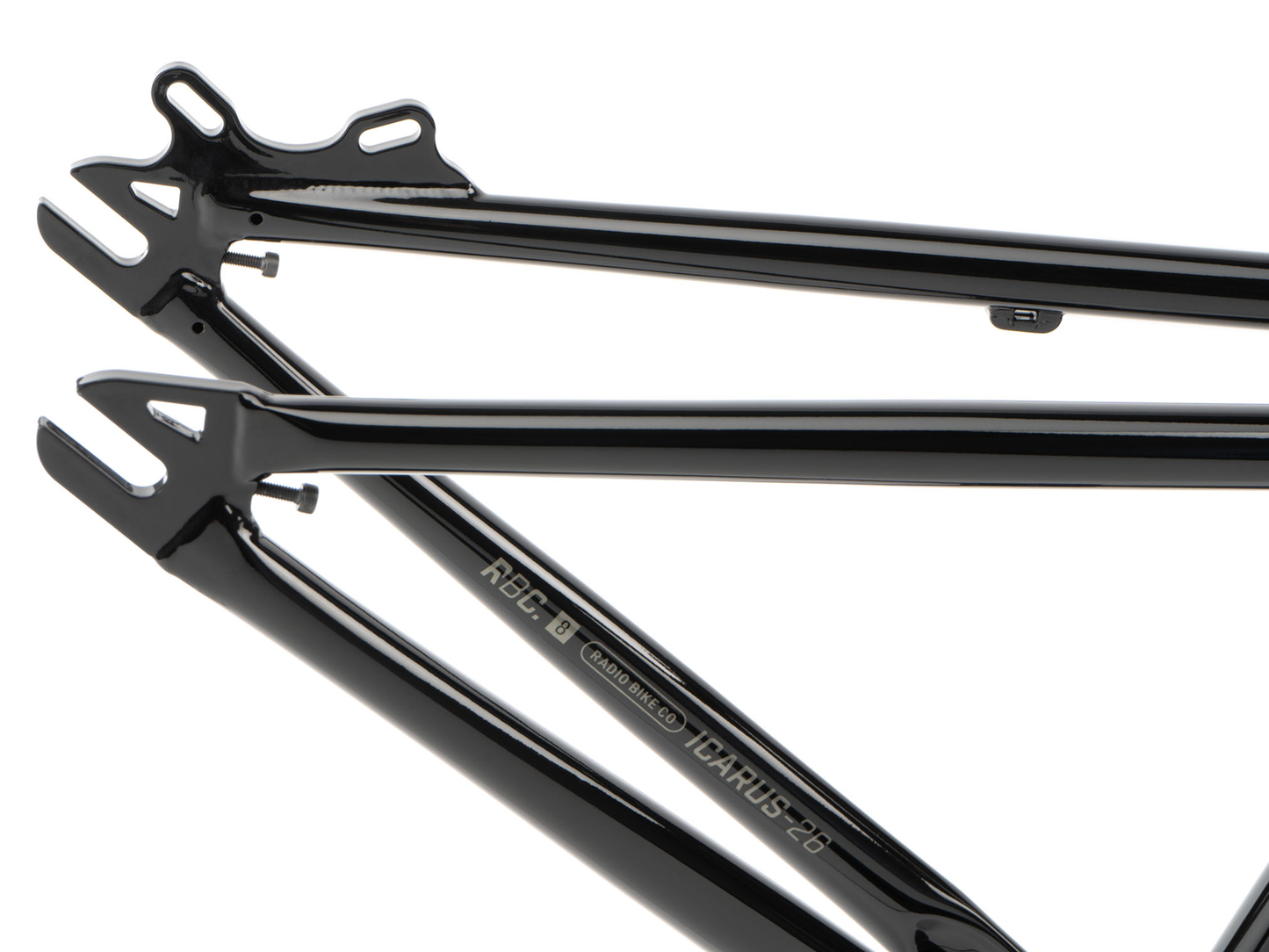

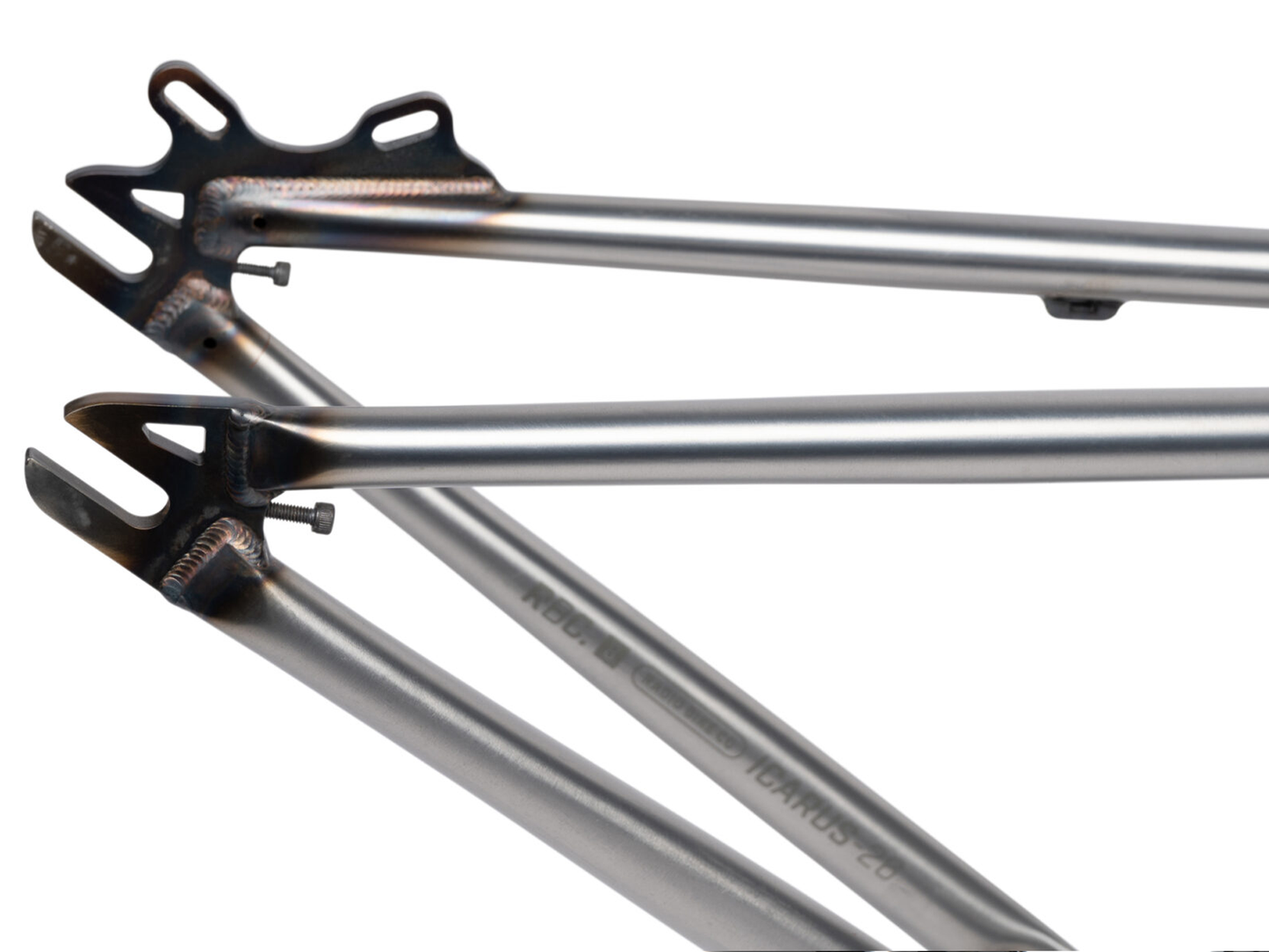

- 6mm thick heat-treated dropouts with chain tensioner bolt
- 135mm x 10mm hub spacing for dirtjump/mtb style hubs (fits our Sonar MTB Freecoaster Hub)
- Double gussets with lower box gusset for greater suspension fork clearance
- IS-2000 disc brake mount, max rotor size 185mm

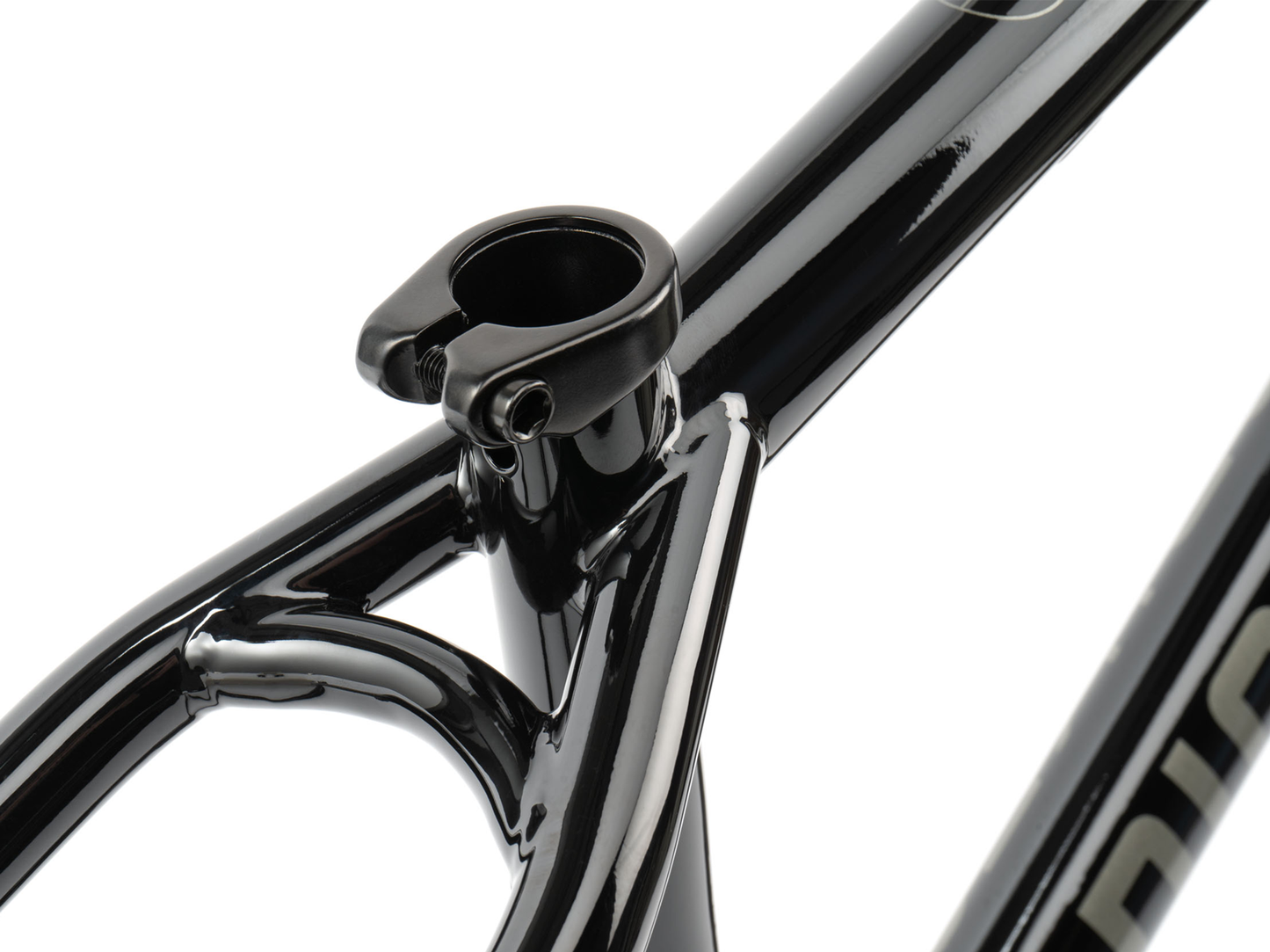

- Includes Radio 29.8mm seat clamp, for 27.2mm seat post
- Recommended fork travel: 80-120mm
- Fits up to a 2.40” (60mm) tyre (5mm clearance each side)
- Compatible with BMX style cranks, clearance for up to a 28t sprocket with 50mm chainline

Specifications
Tubing - Seamless 4130 crmo tubing, heat-treated headtube, bottom bracket and dropouts
Headtube Size - CNC machined and heat-treated, 1 1/8” to 1.5” tapered, 120mm tall with gyro tabs
Bottom Bracket – CNC machined and heat-treated MID bb, width: 74mm
Dropouts - CNC machined and heat-treated, 135mm x 10mm, 6mm thick, chaintensioner bolts, IS disc brake mount
Weight - 2.93kg

Geometry
Actual Top Tube Length - 22.3″ (566mm) and 22.8″ (578mm)
Effective Top Tube Length - 22.7″ (576mm) and 23.2″ (590mm)
Chainstay Length - 14.8″ (378mm)
Standover Height - 11.7″ (298mm)
Head Tube Angle - 71.5°
Seat Tube Angle - 72.5°
Bottom Bracket Height - 4mm rise
