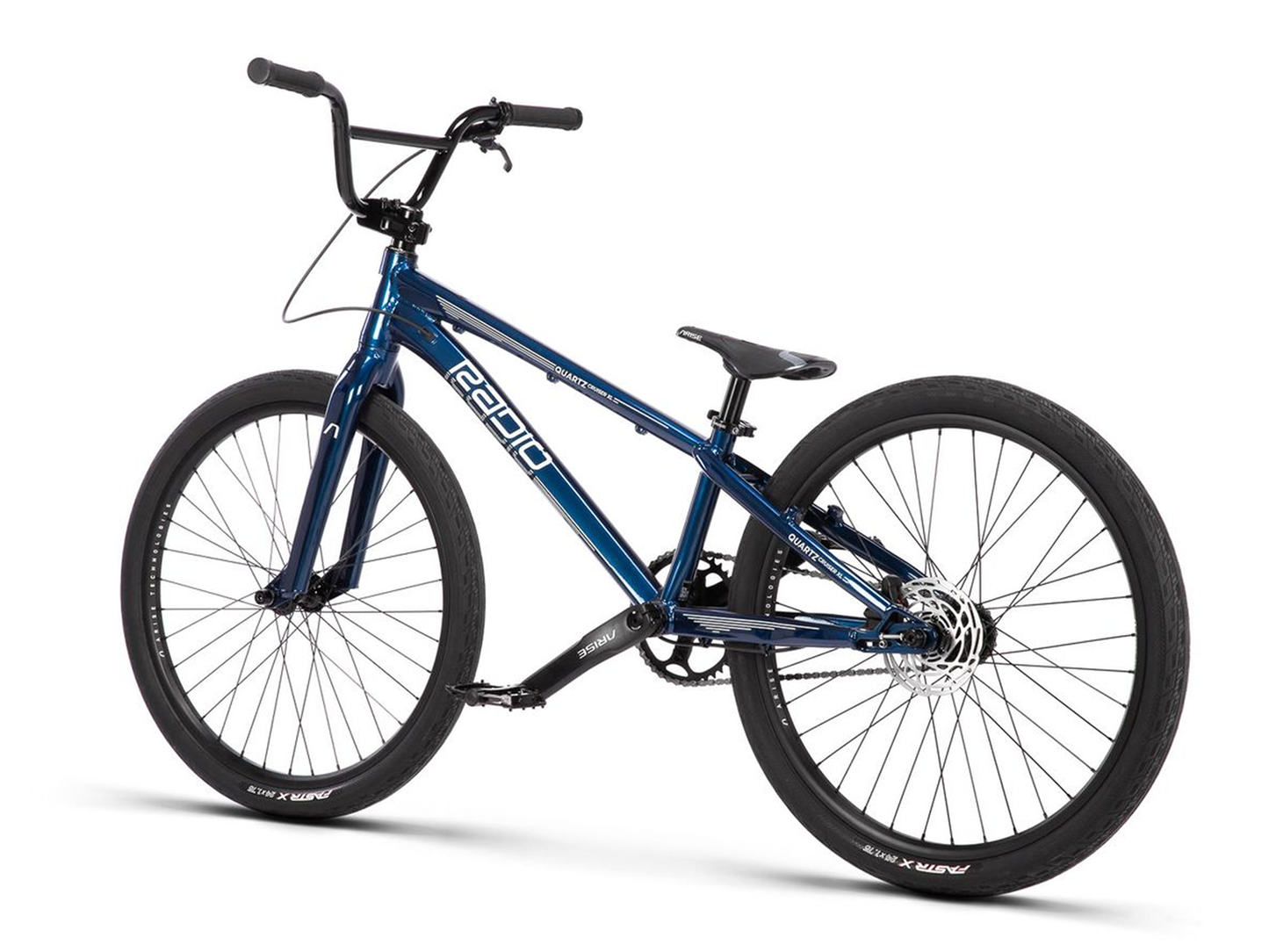

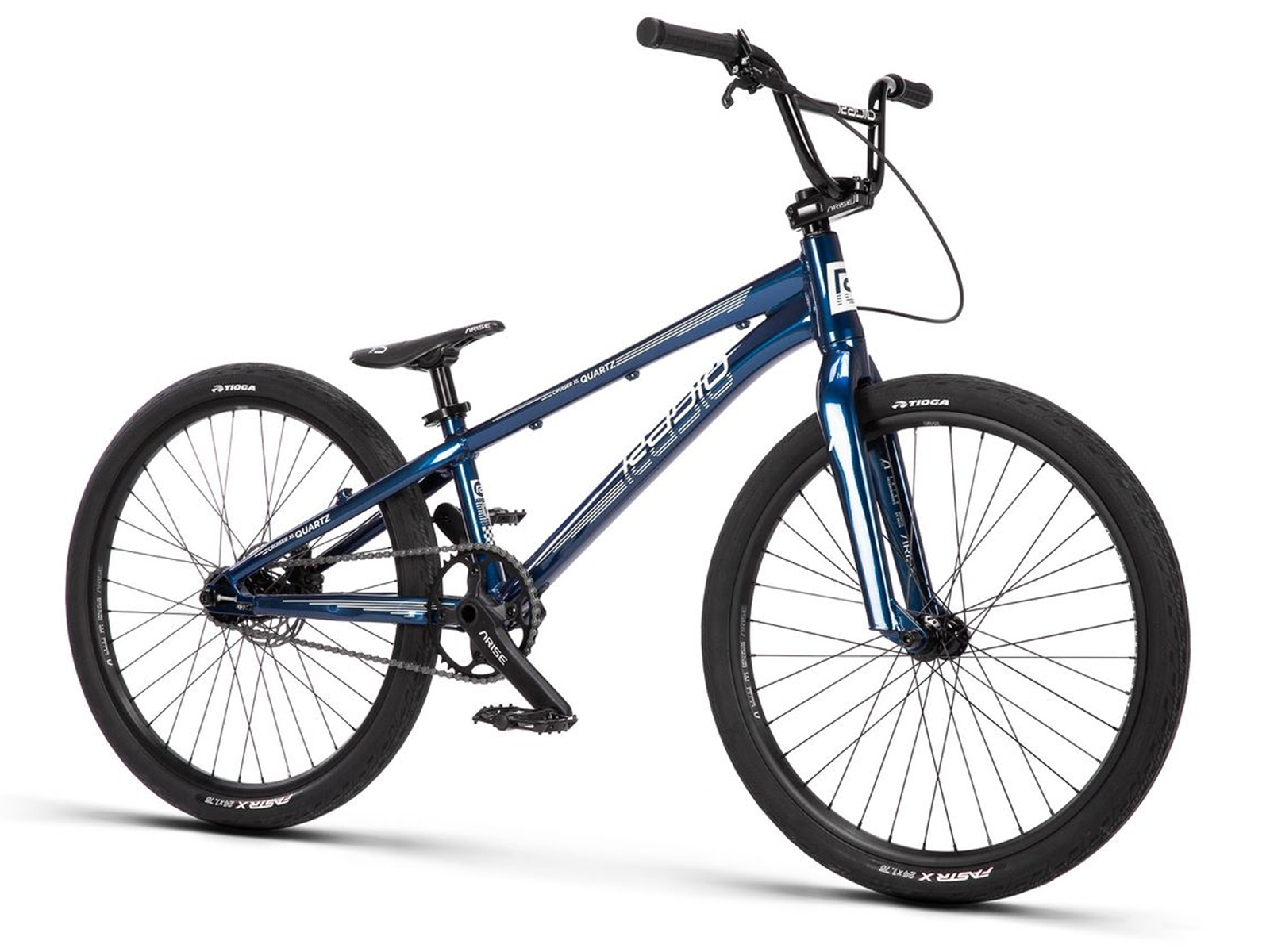

RADIO RACELINE 24" Quartz Pro Disc Bike
RADIO RACELINE 24" Quartz Pro Disc Bike
- Ships 2–3 Business Days • Pickup Available
Couldn't load pickup availability
"The best of the best! The Quartz is Radio's x6 time world championship-winning super-lightweight alloy frame with no details spared. They took this frame and draped it in only the very best components, creating a full PRO build that anyone would be jealous to own. Ready for the track and the podium, we hope you can keep up with the speed that this machine can put out!
Now with the all-new Quartz Disc frame featuring the new sliding disc dropouts with flat mount brakes and super stealthy cable routing.

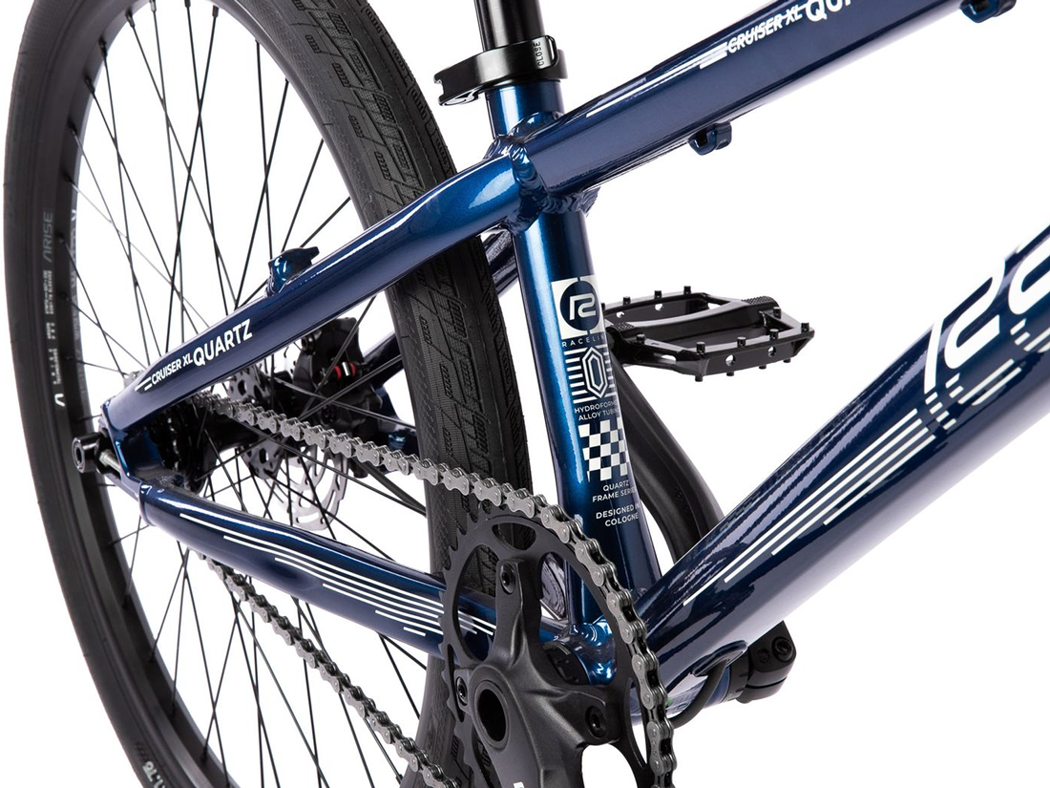

Frame - Radio Raceline Quartz Disc frame, lightweight hydroformed 6061-T6 alloy, tapered headtube, sliding forged dropouts, with int. chain tensioners, flatmount disc brake.

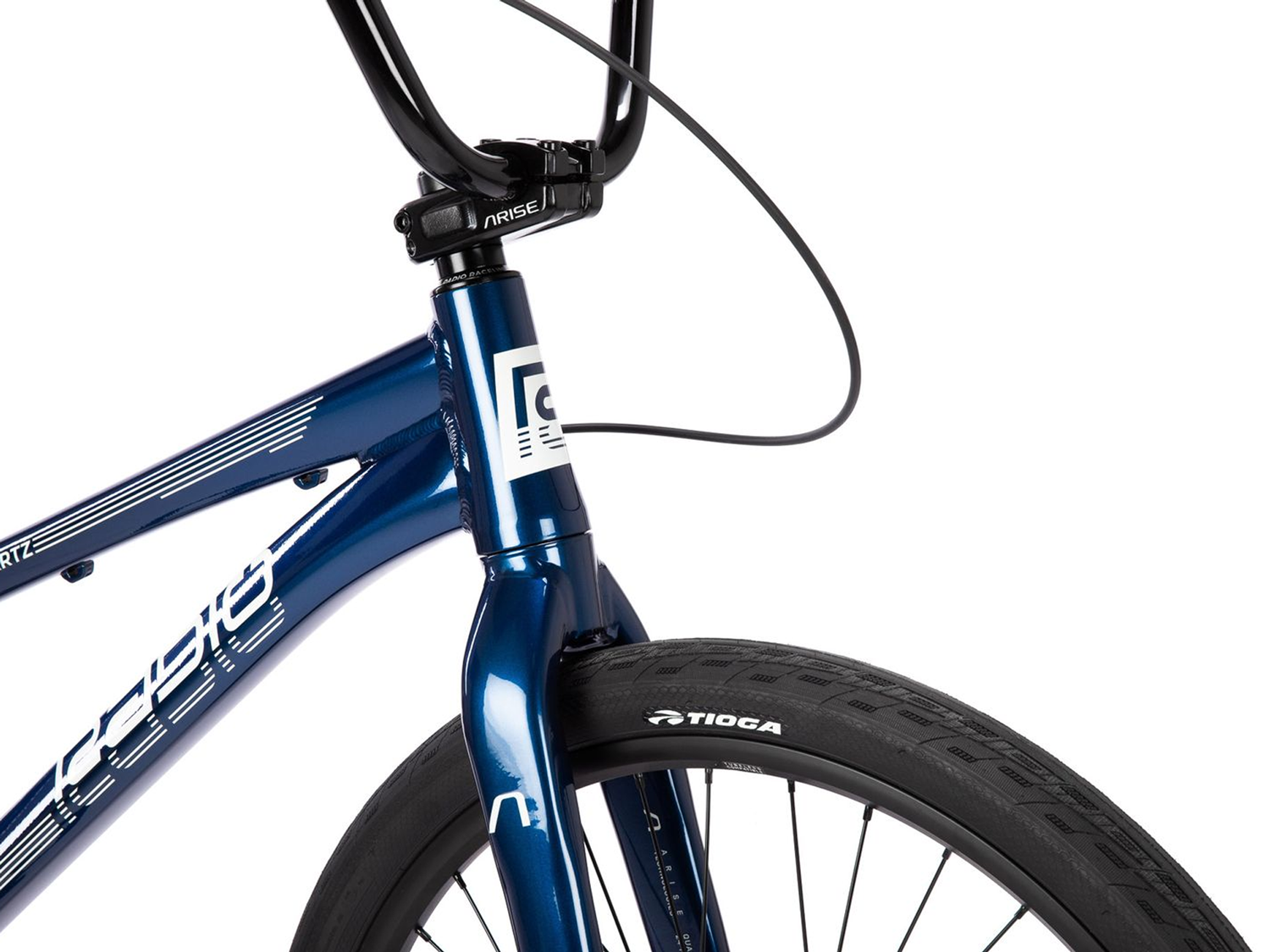

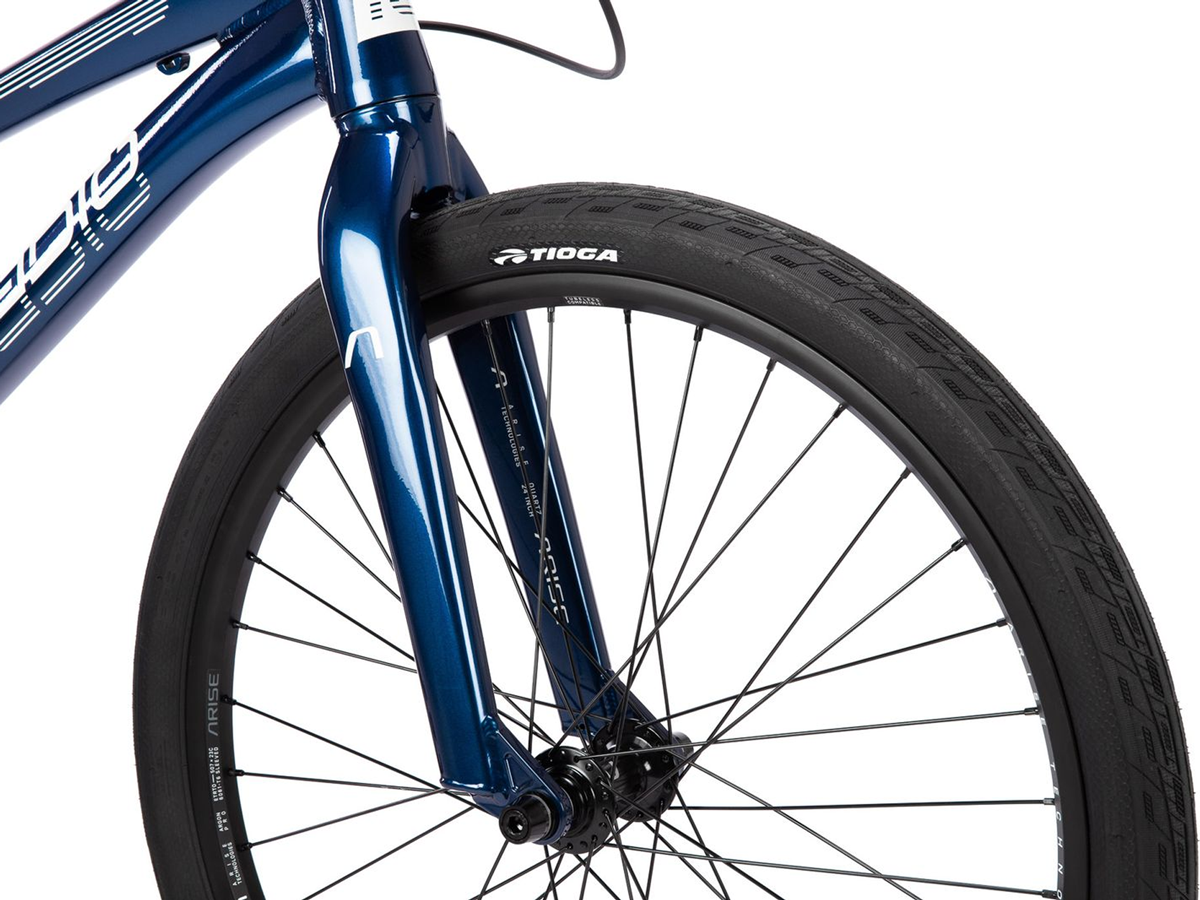

Fork - Arise Quartz Cruiser fork, Alloy, 20mm offset

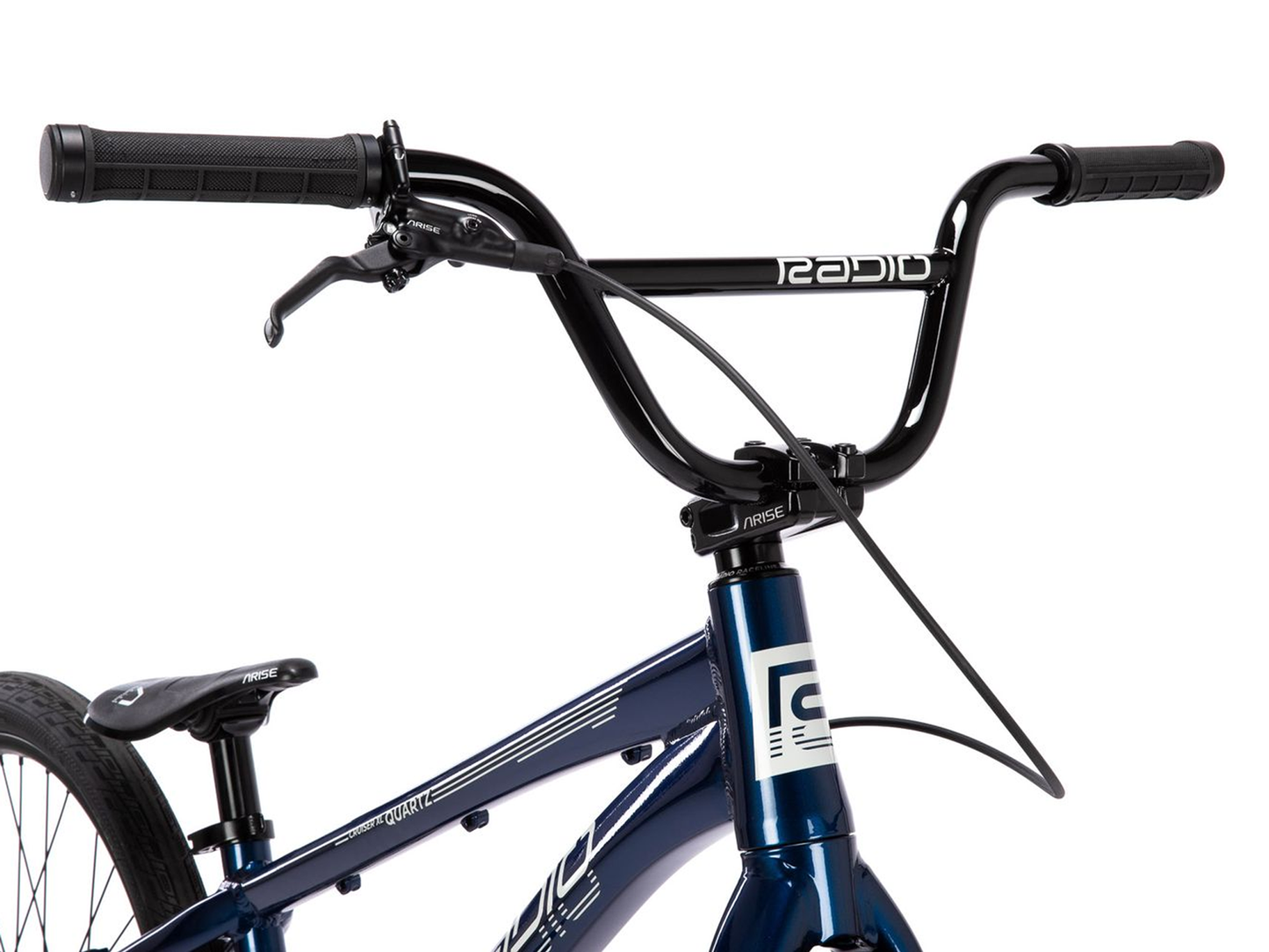

Bars - 6" 4130 crmo bar, seamless
Grips - Radio Raceline Xenon grips, diamond knurling, clamp-on grip, 139mm length

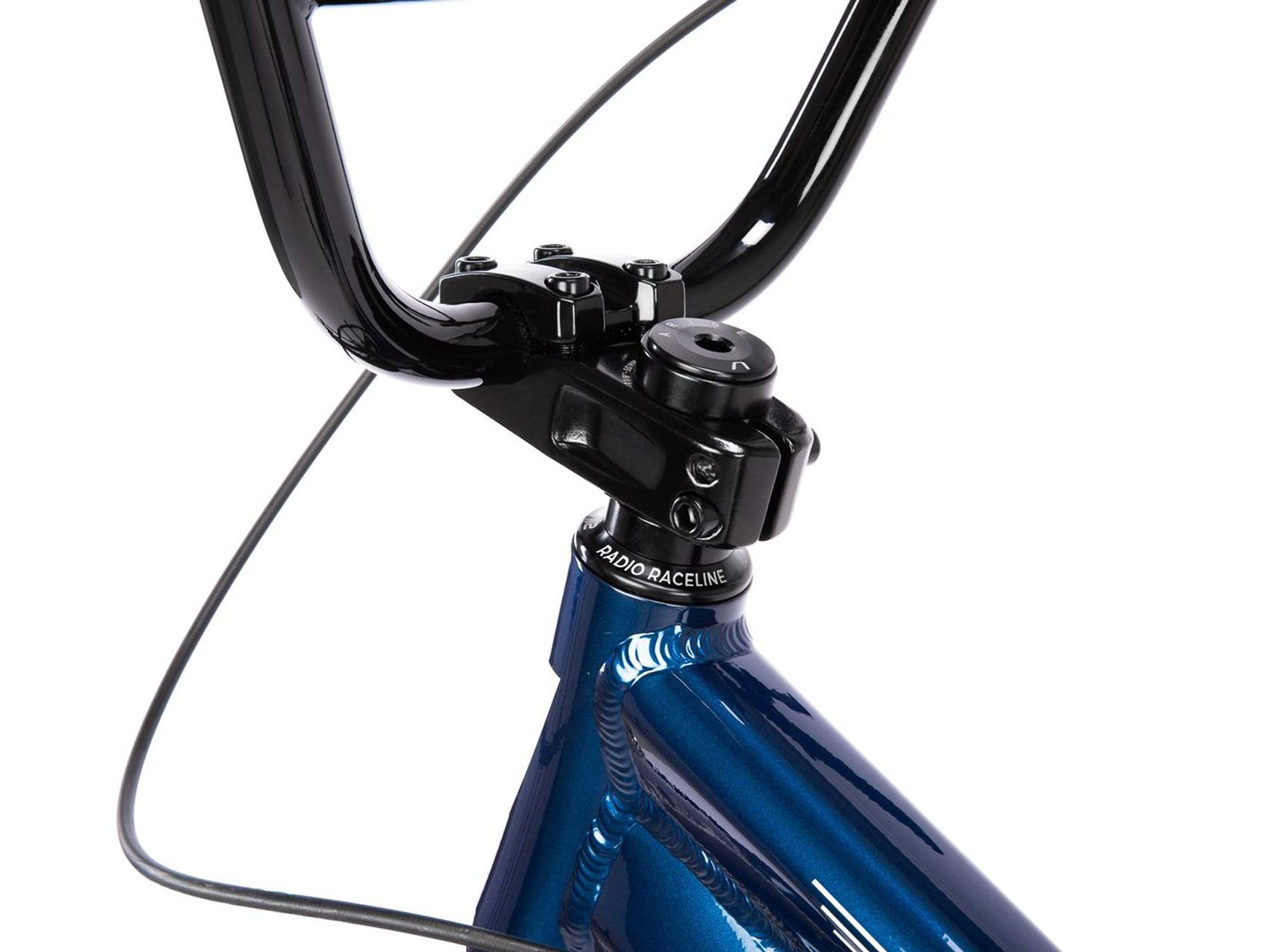

Stem - Arise Neon Pro toploader stem, ext. 54mm, CNC machined, alloy
Headset - Radio Raceline Pro integrated headset, sealed, threadless, 1-1/8" - 1.5"

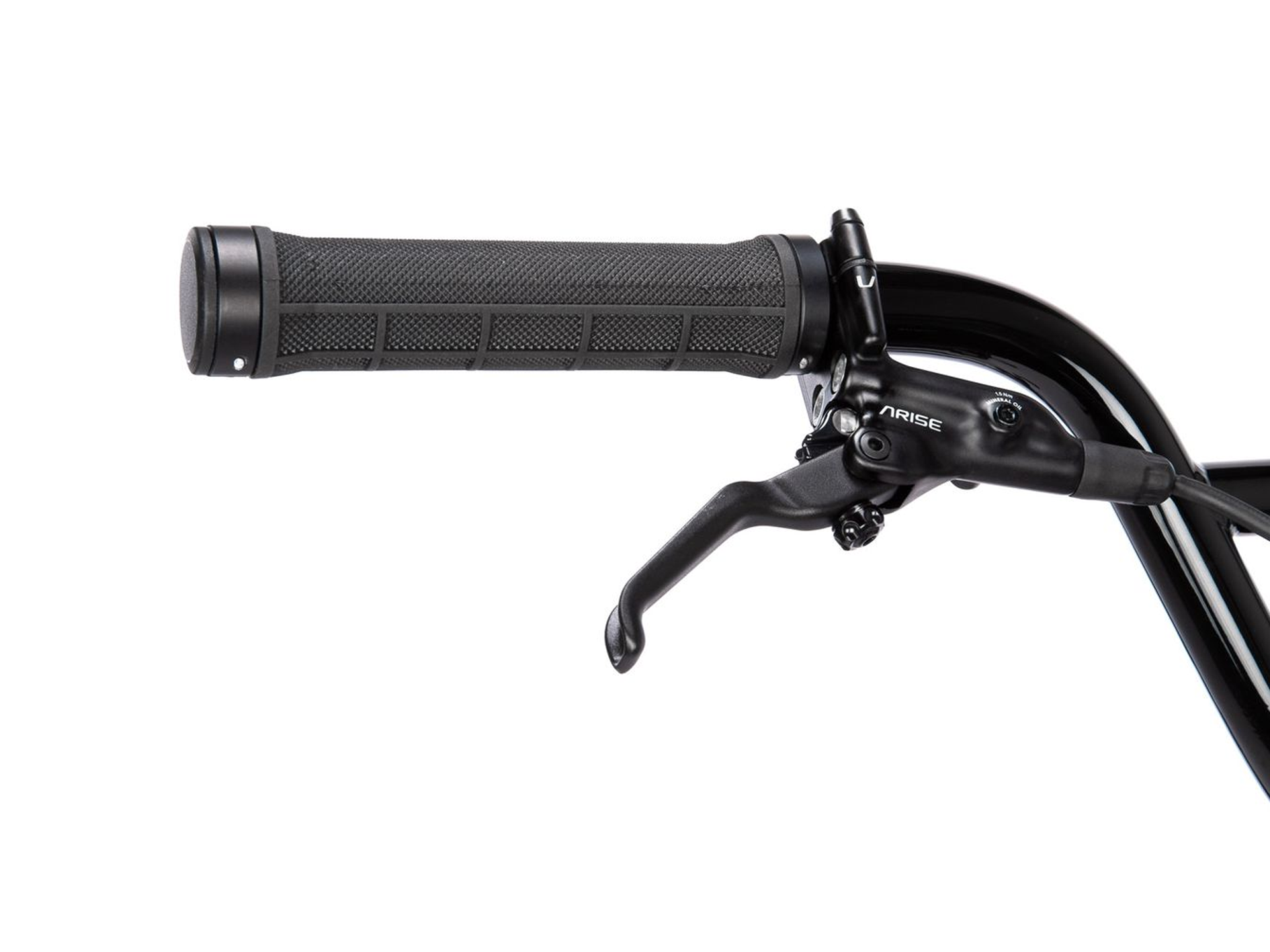

Lever - Arise Xenon disc brake lever (L/R Flippable)
Brakes - Arise Xenon disc brake, rear

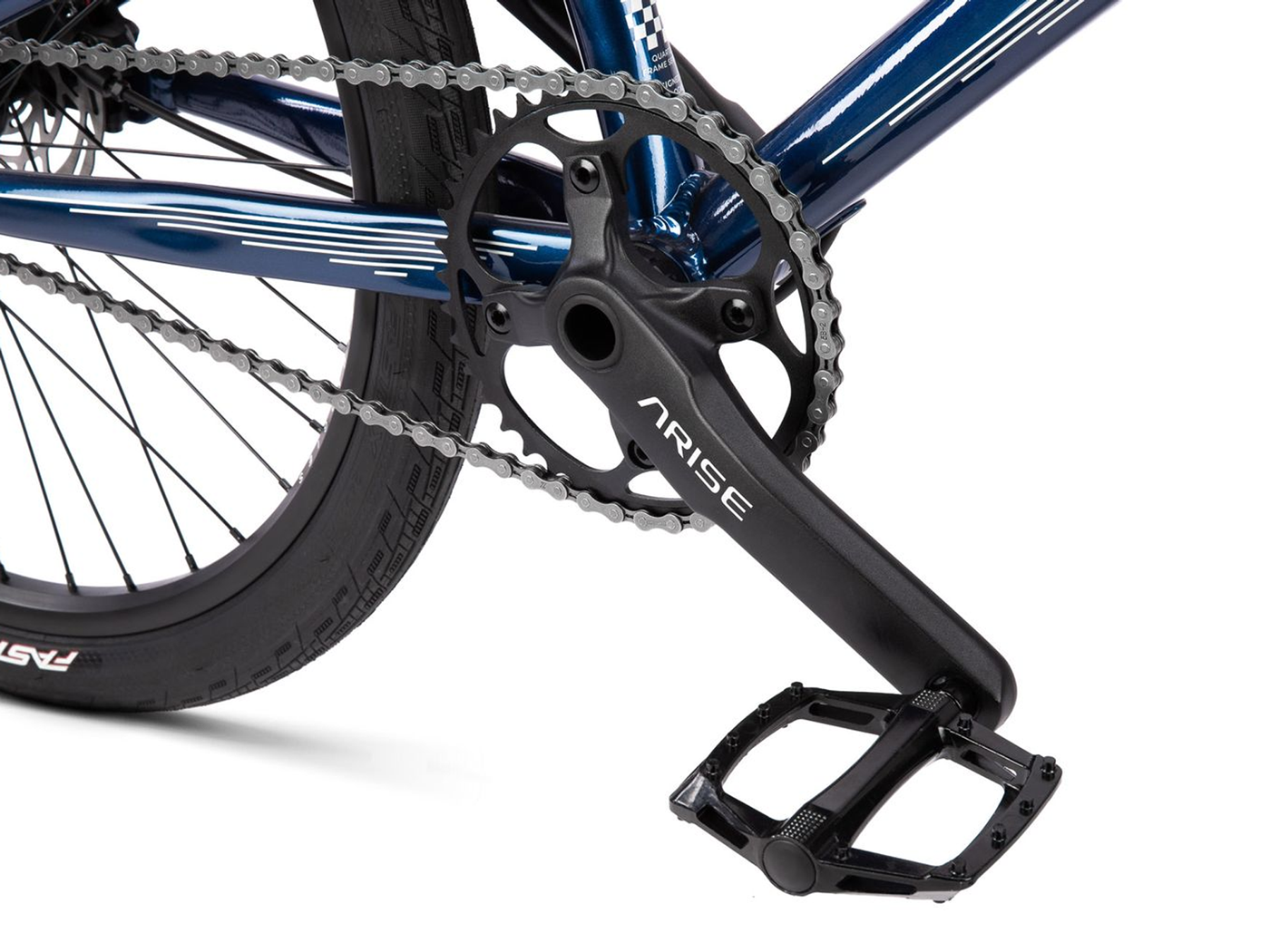

Cranks - Arise, Xenon Pro, 2pc crank, cold forged/CNC, alloy,180mm length, 24mm spindle
BB - Radio Raceline BSA 24 bb set, external bearing cups, CNC machined, sealed
Pedals - Radio Raceline Xenon Slim pedal, alloy
Chain - KMC Z1eHX chain, 1/2" x 3/32"
Sprocket - Arise Xenon Pro sprocket, 44T, alloy
Freewheel/Driver - Radio Raceline driver, 16T, 1/2" x 3/32", sealed cassette

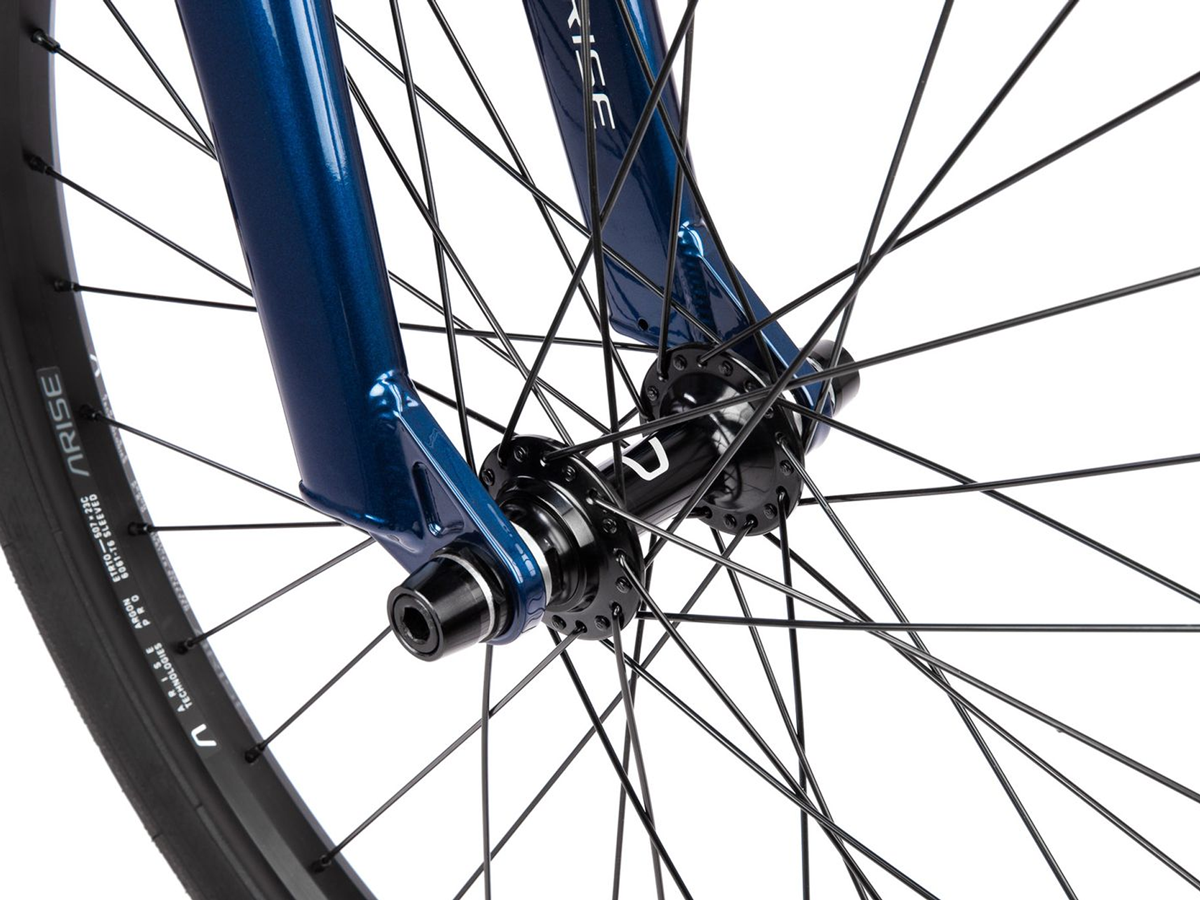

Front Hub - Alloy CNC, fully sealed, 36h, 3/8" female crmo axle

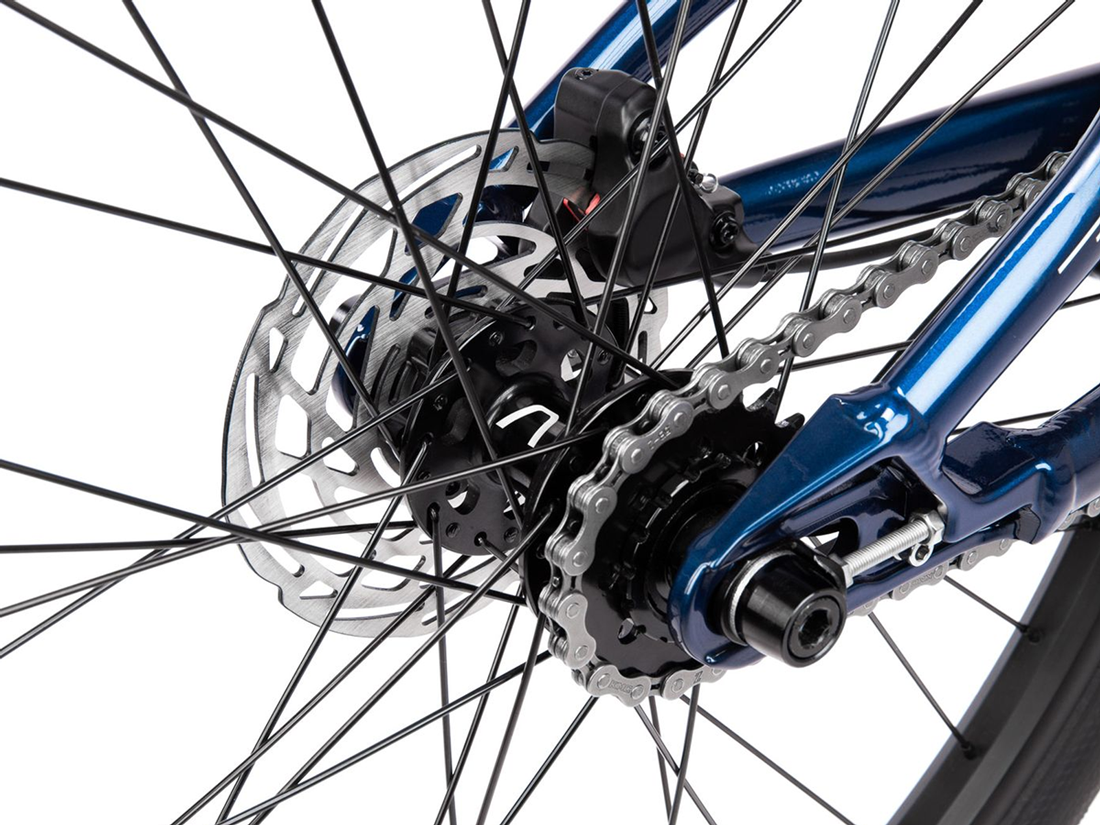

Rear Hub - Alloy CNC, fully sealed, 36h, disc brake cassette, 6 pawl, 3/8" female crmo axle
Rims - Arise Argon Pro rim, flash welded, 36h, tubeless ready, alloy

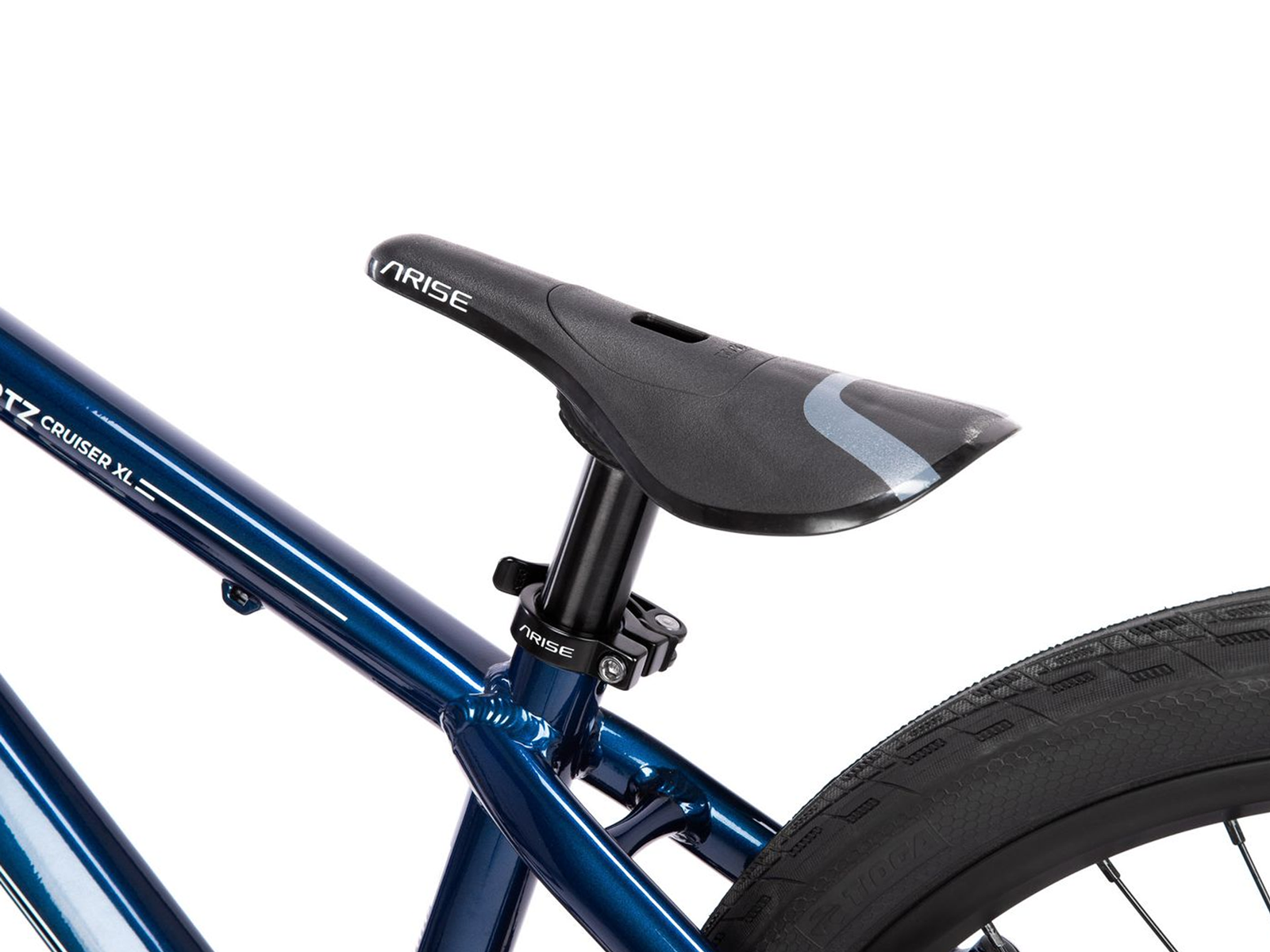

Seat - Radio Raceline Xenon pivotal seat, no padding
Post - Radio Raceline pivotal seat post, 27.2mm, alloy
Seat Clamp - Arise Helium Pro seat clamp, quick-release, alloy
Tires - Tioga Fastr tires, front: 24" x 1.75" and rear: 24" x 1.75"
Weight - TBA
Frame / Bar Geometry
Top Tube Length - LARGE - 21.5". XL - 22"
Chain Stay Length - 15.15"
Head Tube Angle - 74°
Seat Tube Angle - 71°
Bottom Bracket Height - 10.23"
Bar Rise - 6"
Bar Width - 26.8"
Bar Backsweep - 8°
Bar Upsweep - 2°
