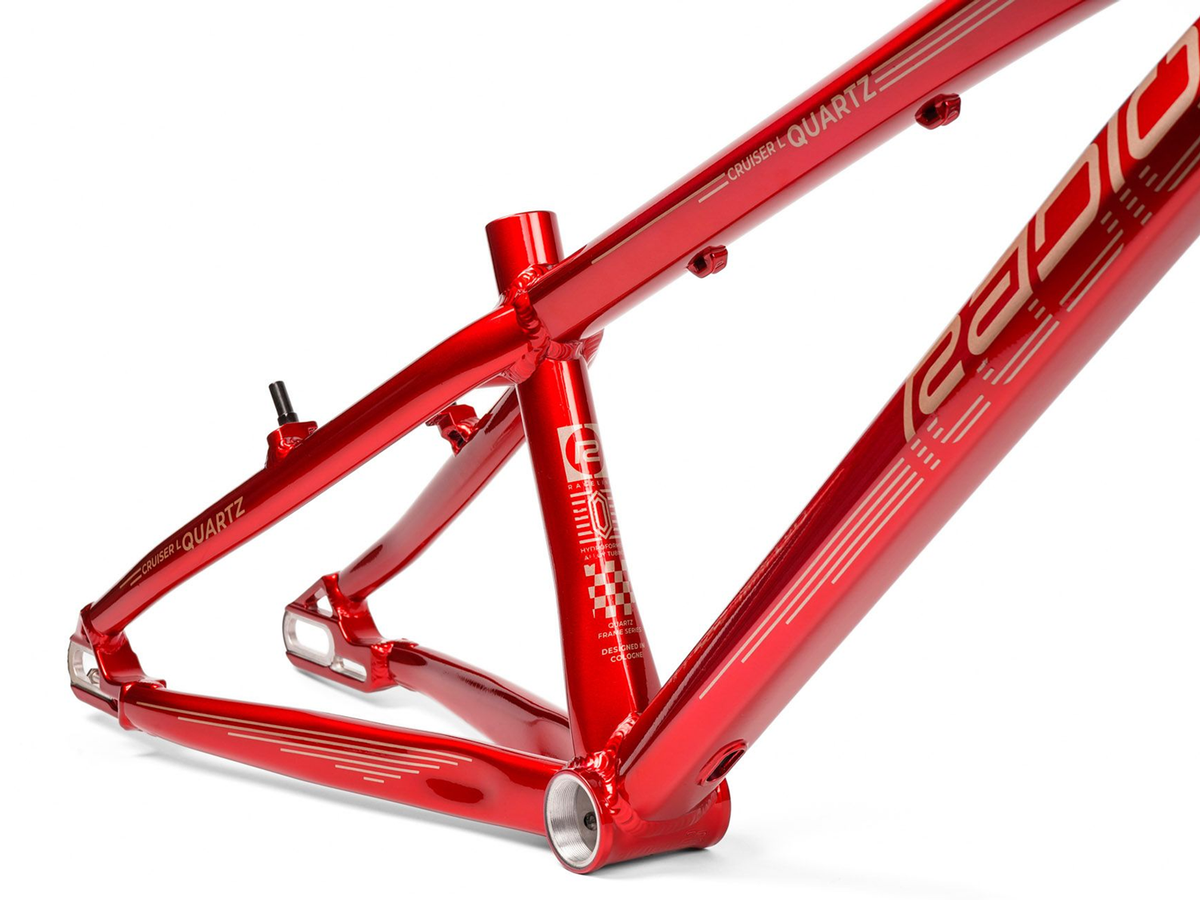

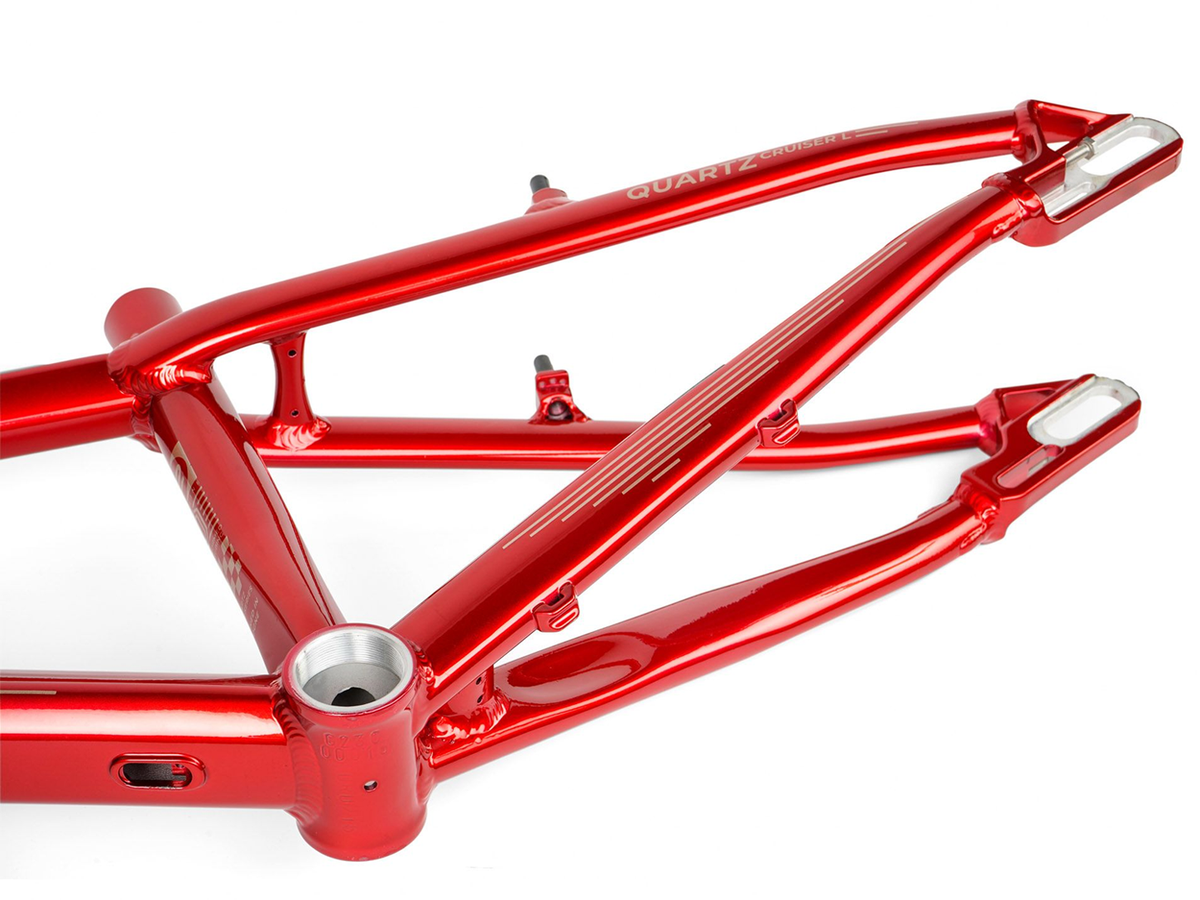

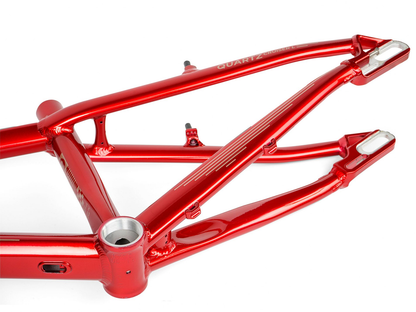

RADIO RACELINE Quartz Disc Cruiser 2027 Frame

RADIO RACELINE Quartz Disc Cruiser 2027 Frame

$1,499.00 AUD
$1,499.00 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.
Colour
Size

Low stock: 1 left

  • DAILY DISPATCH - FAST SHIPPING

Features:

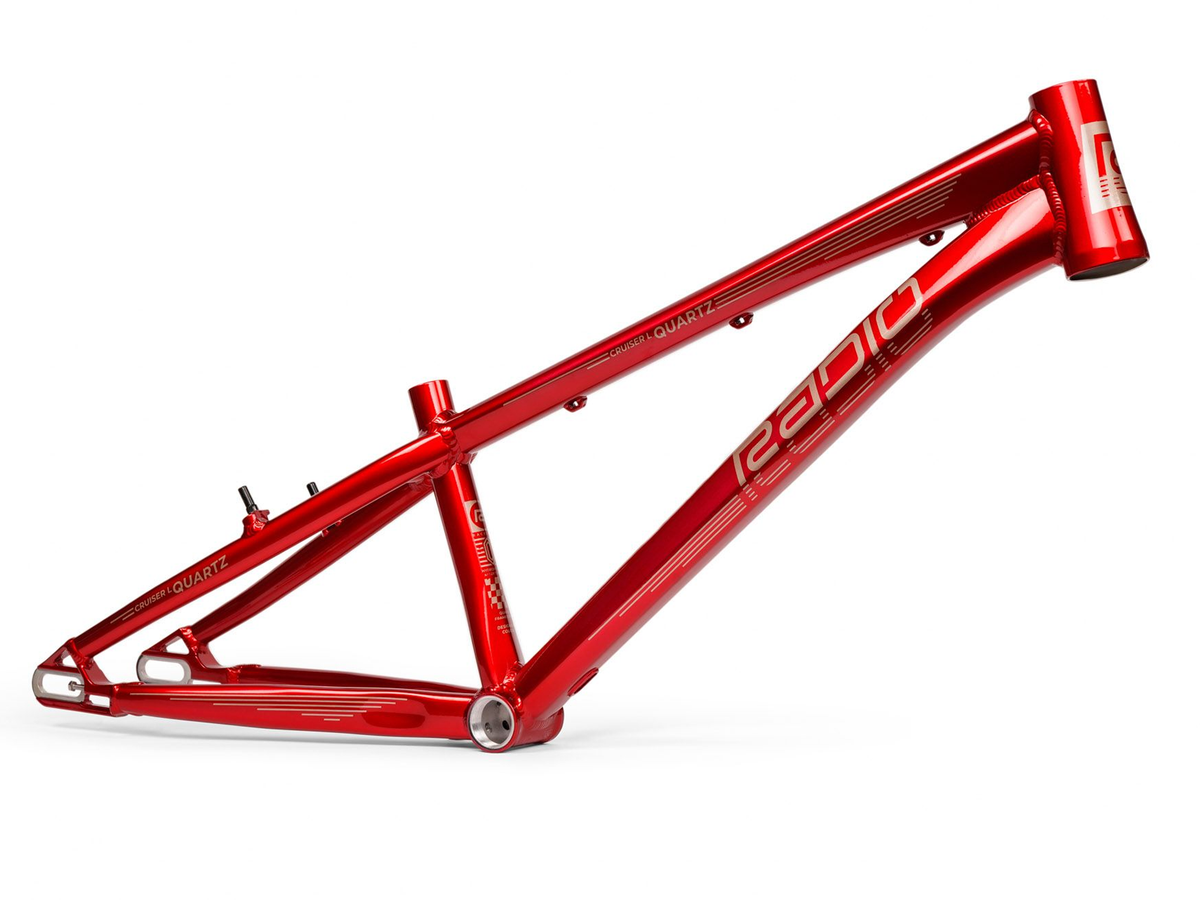

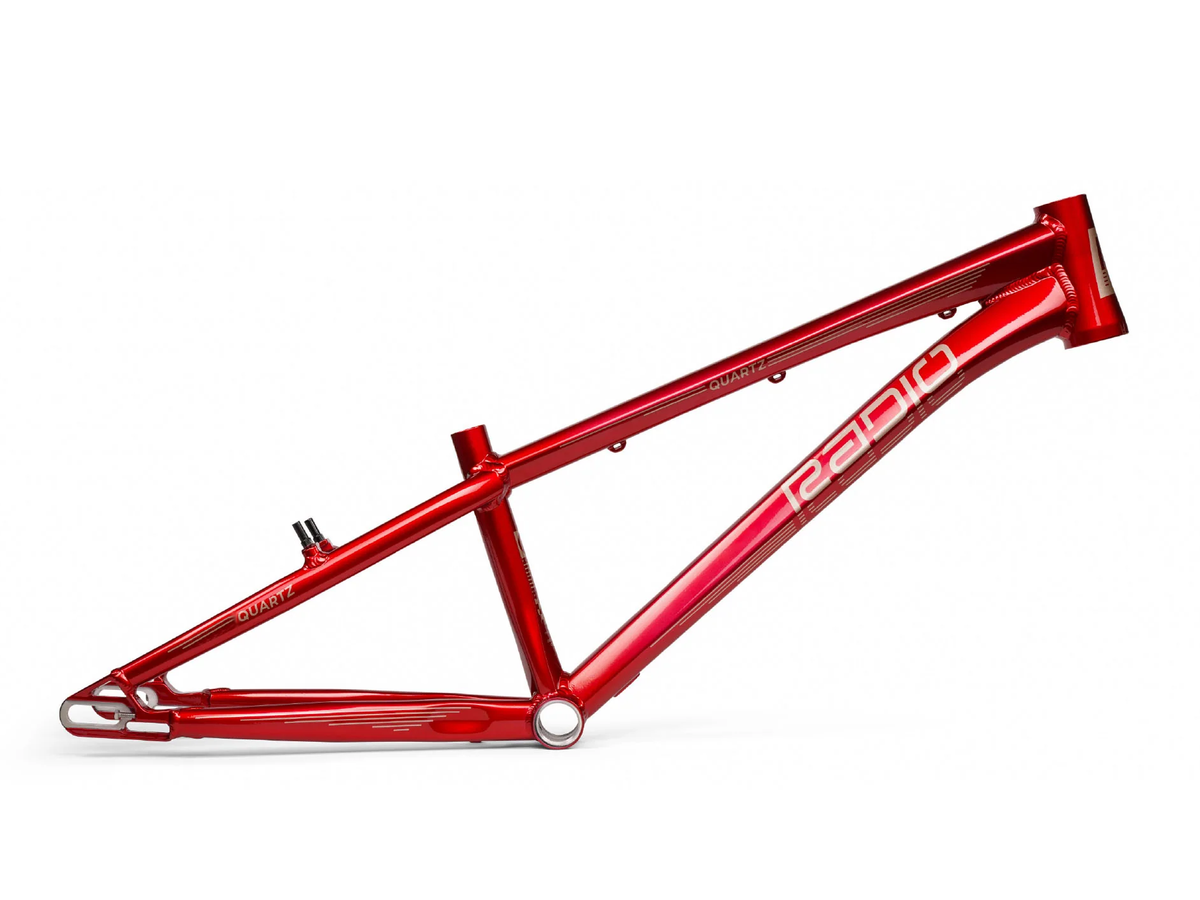

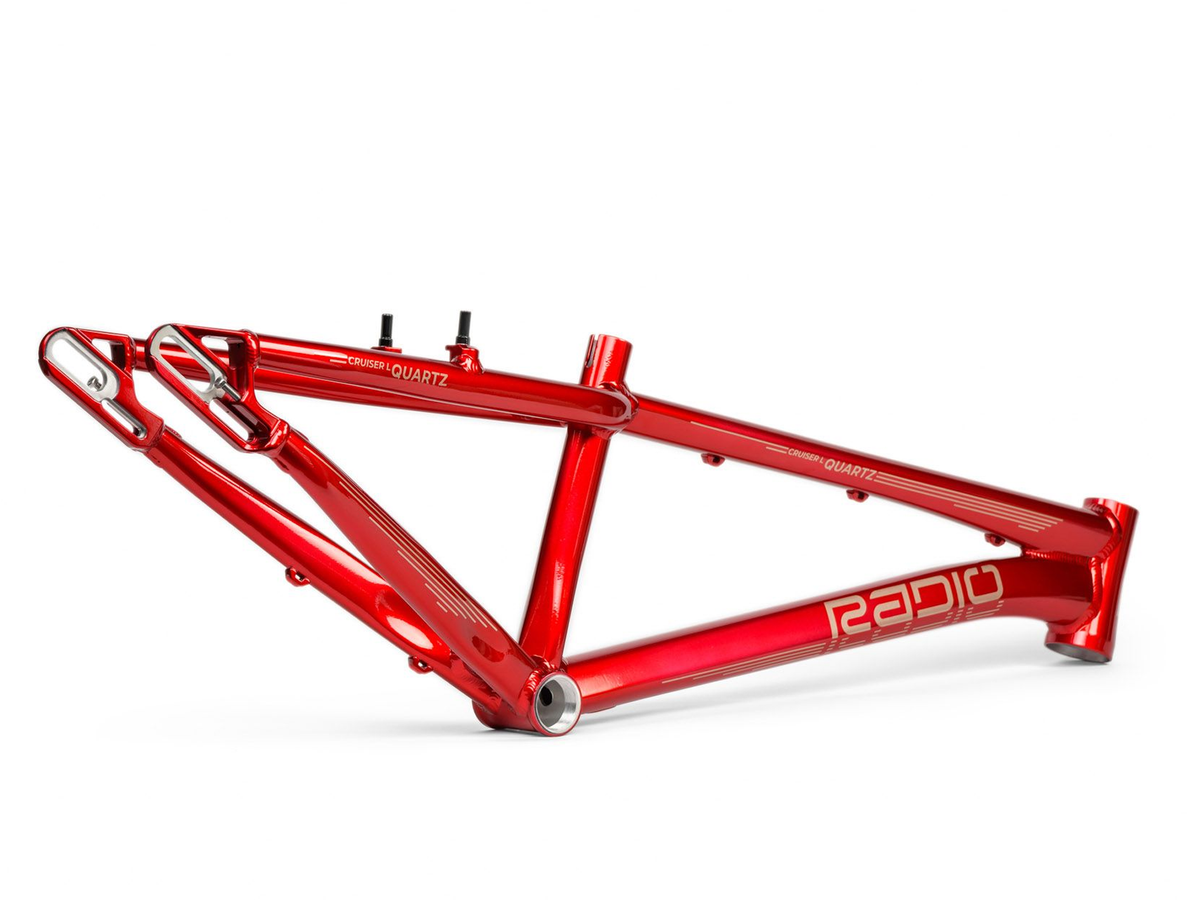

- New 24" Cruiser version of the new Quartz frame
- Two Sizes (PRO and PRO XL)

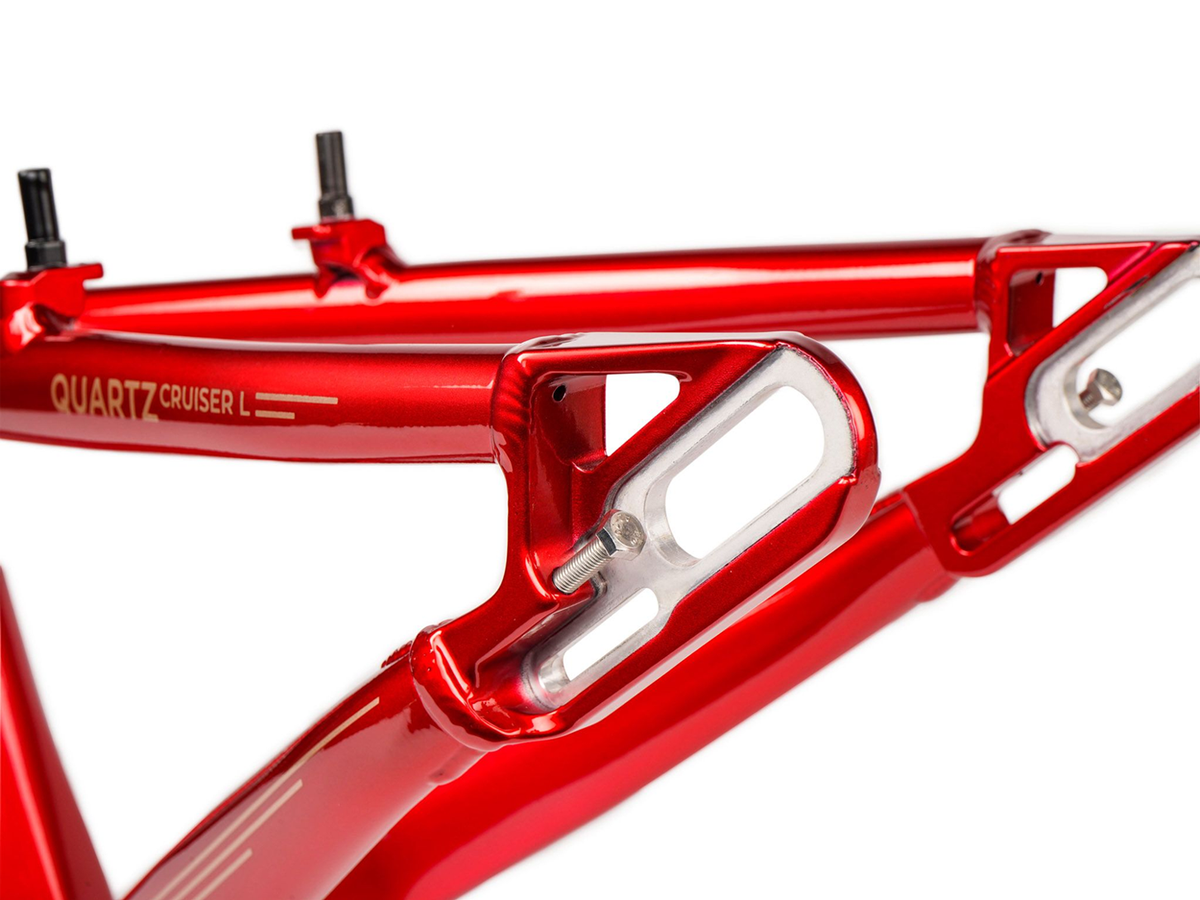

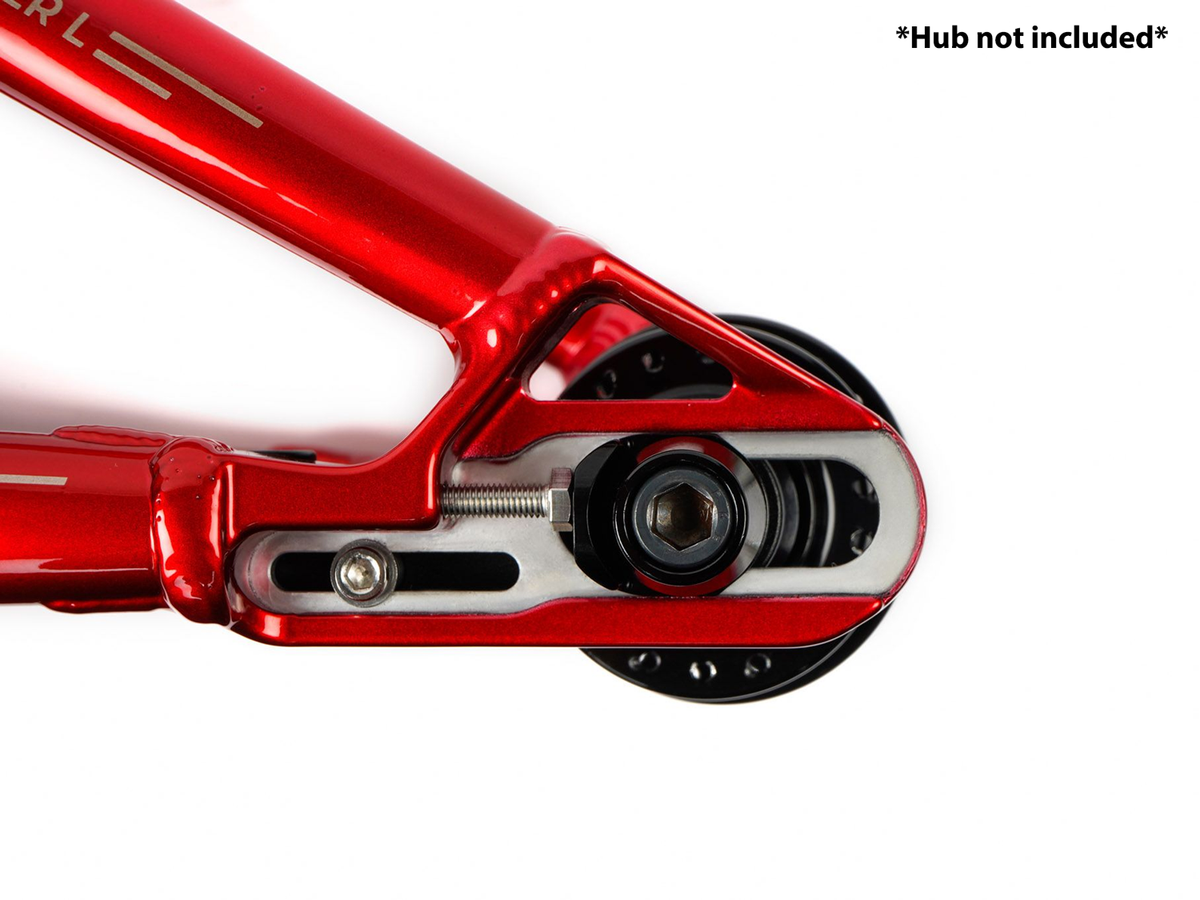

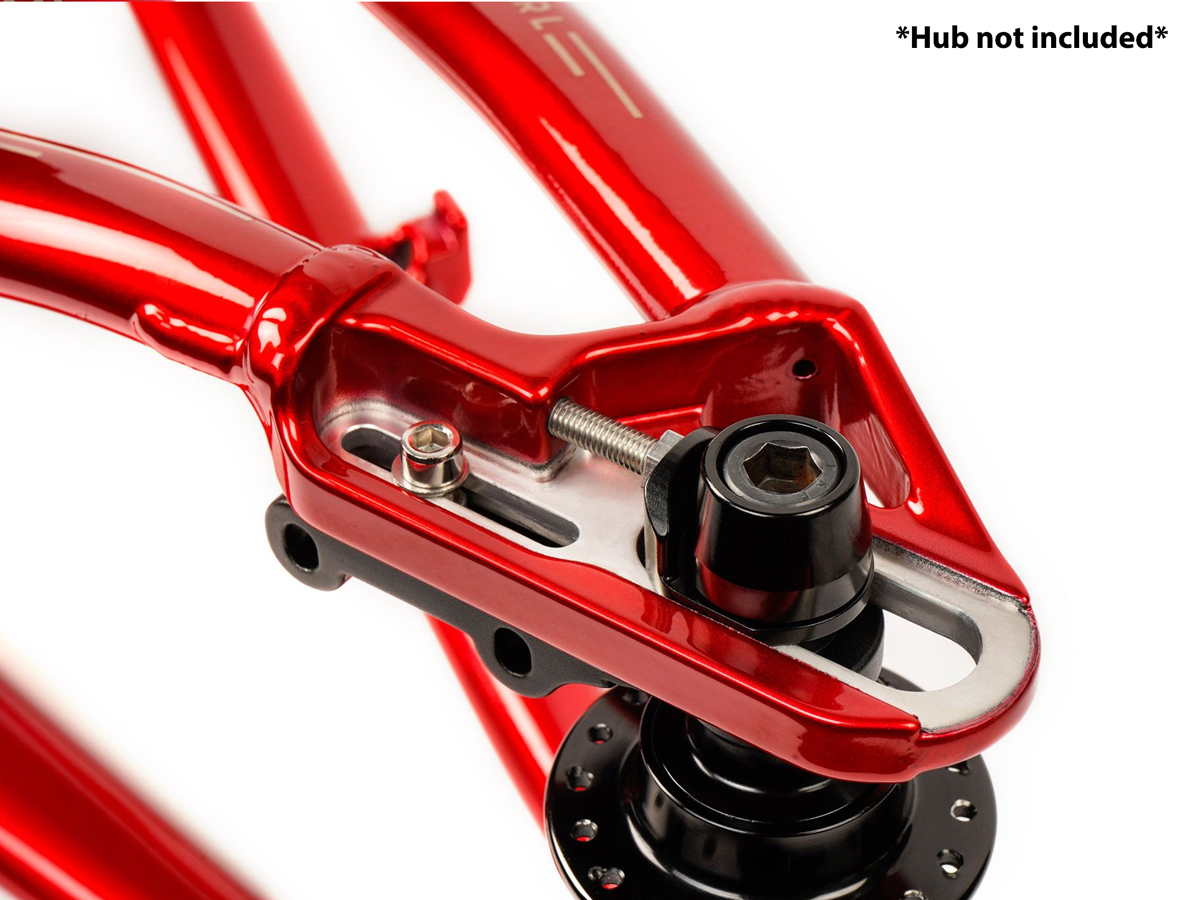

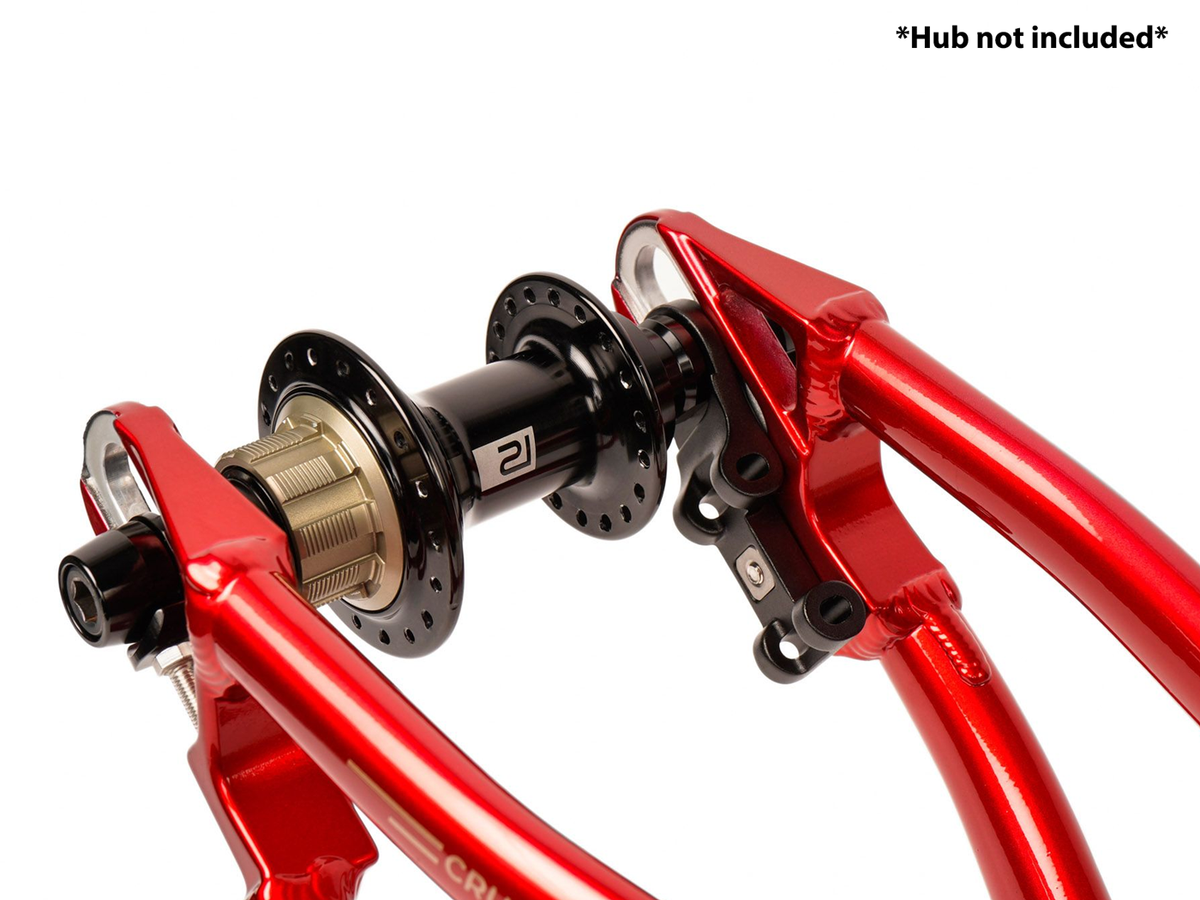

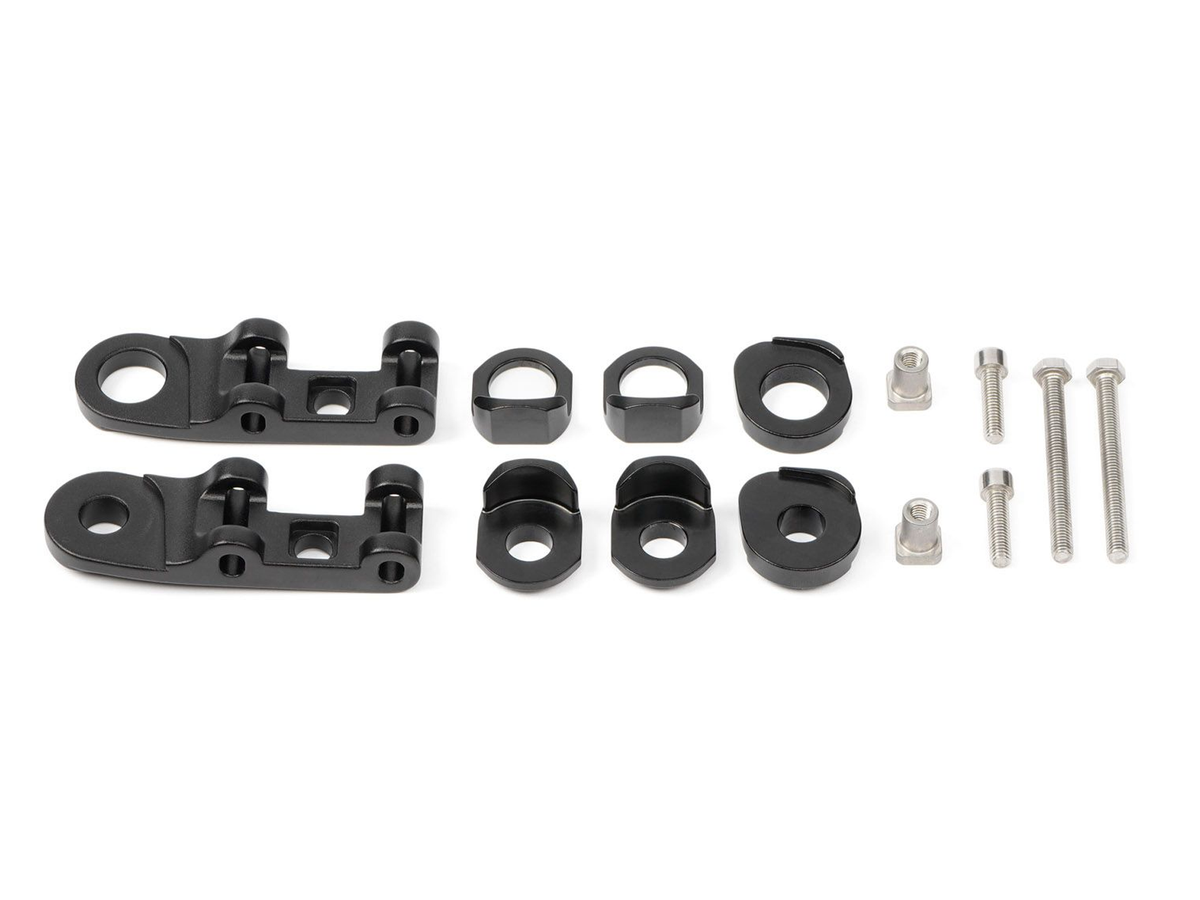

- Forged and CNC-machined Sliding Dropout Disc System (SDDS) with integrated chain tensioner (Choose from 10mm or 15mm dropout adapters)
- Super lightweight alloy frame
- Paradigm superior tubing

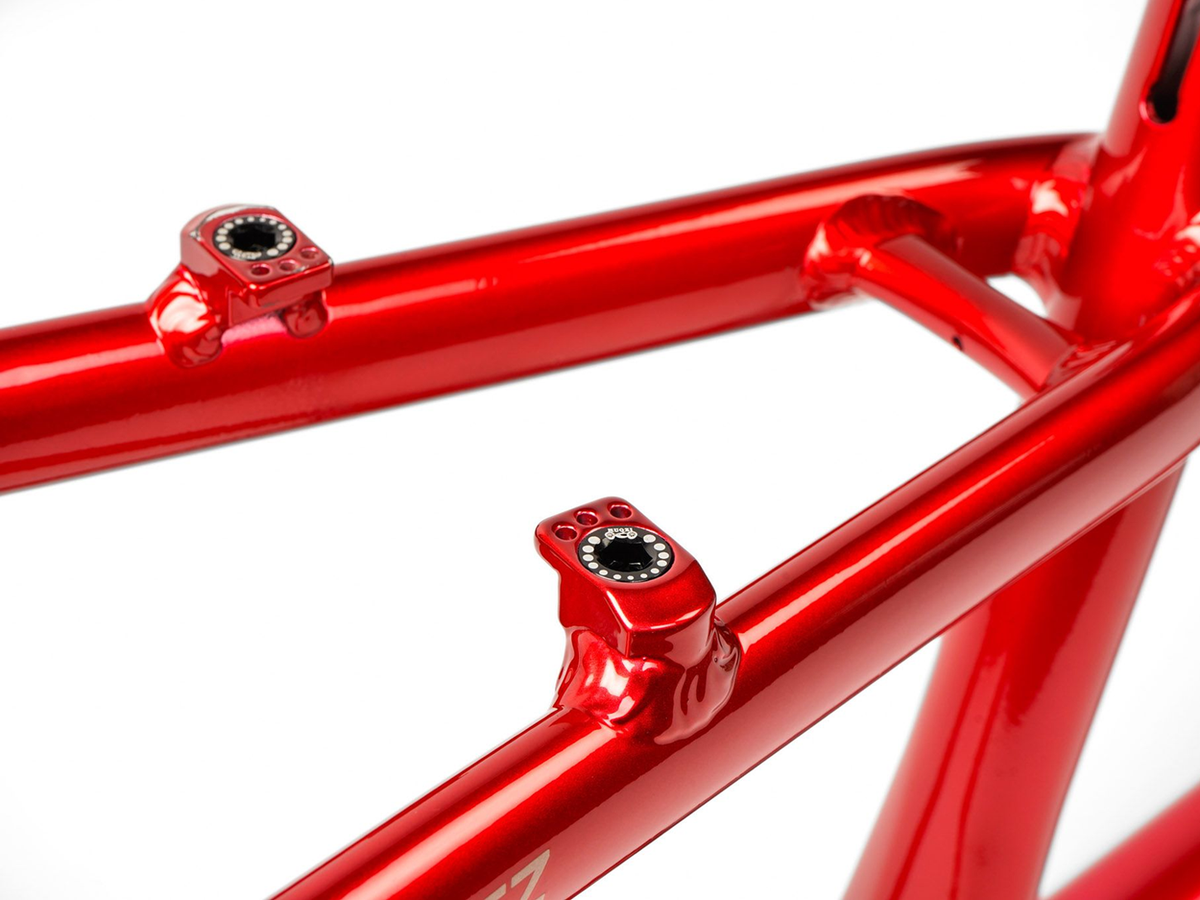

- Flat mount disc brake (with internal cable routing) and v-brakes (external routing)
- Designed for 140mm and 120mm rotors (please check 120mm rotor fitment with an authorised Radio Bikes dealer based on your hub and brake calliper dimensions)

Specifications:
Toptube Lengths:
L 21.5” (546.1 mm)
XL 22” (558.7 mm)
Chain Stay Length: 15.15" (385mm)
Rider Areas:
L 564.7mm
XL 575.1mm
Head Tube Angle: 74°
Seat Tube Angle: 71°
BB Height:
L 12"
XL 11.6"
Seat Tube Height: 9.1" (231mm)
Wheel Size: 24 x 1.75"

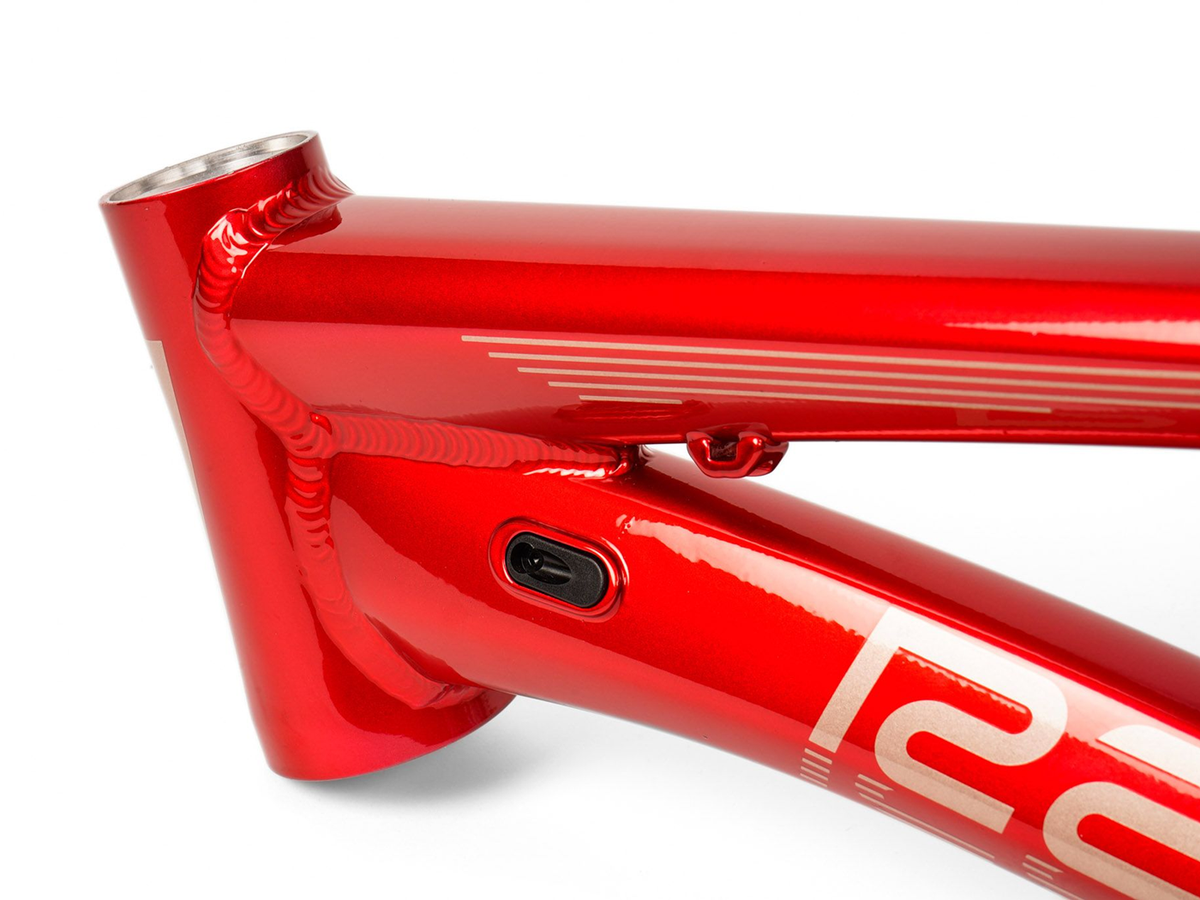

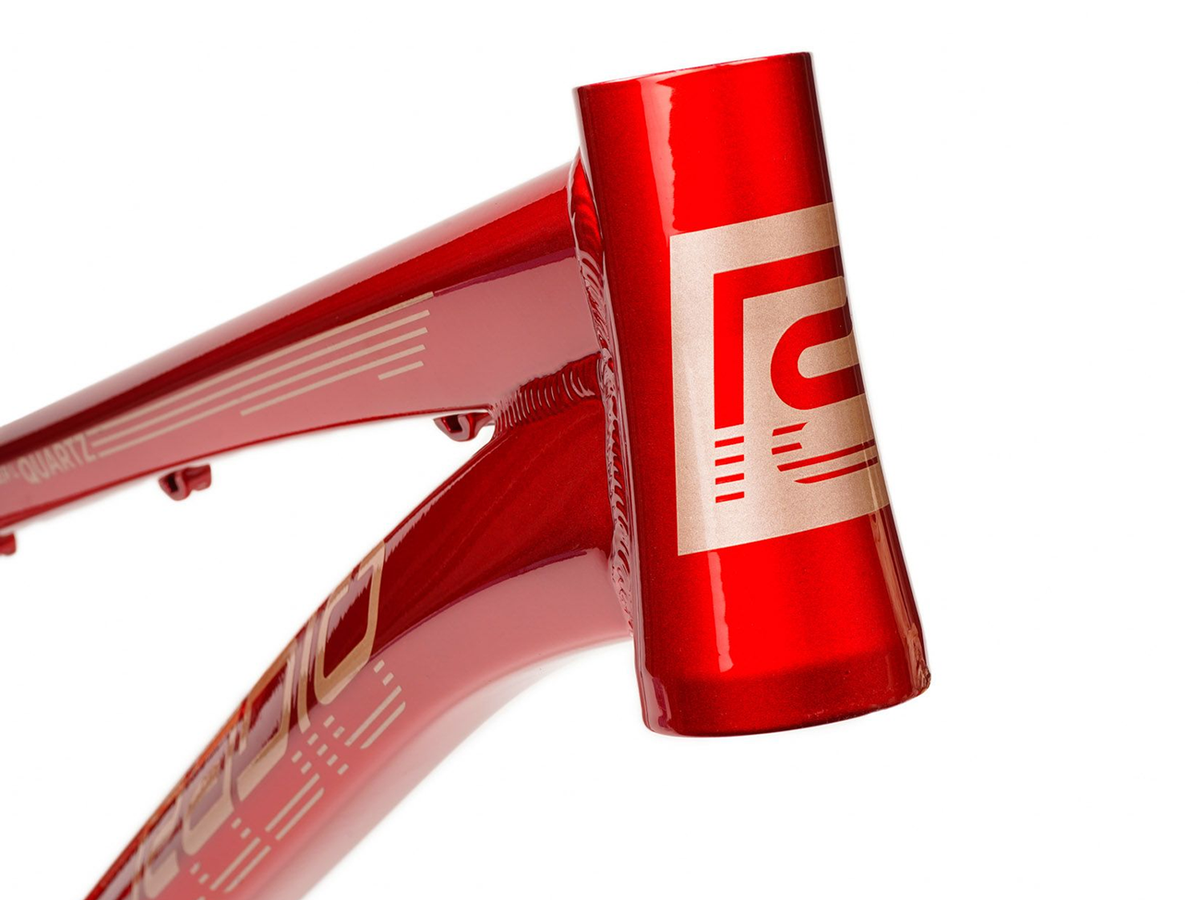

Head Tube Size: Tapered 1-1/8” - 1.5” for integrated headset (125mm)
Seat Post Size: 27.2mm
Seat Clamp Size: For 31.8mm ID seat clamp
Tubing: Hydroformed 6061 alloy, Paradigm tubing

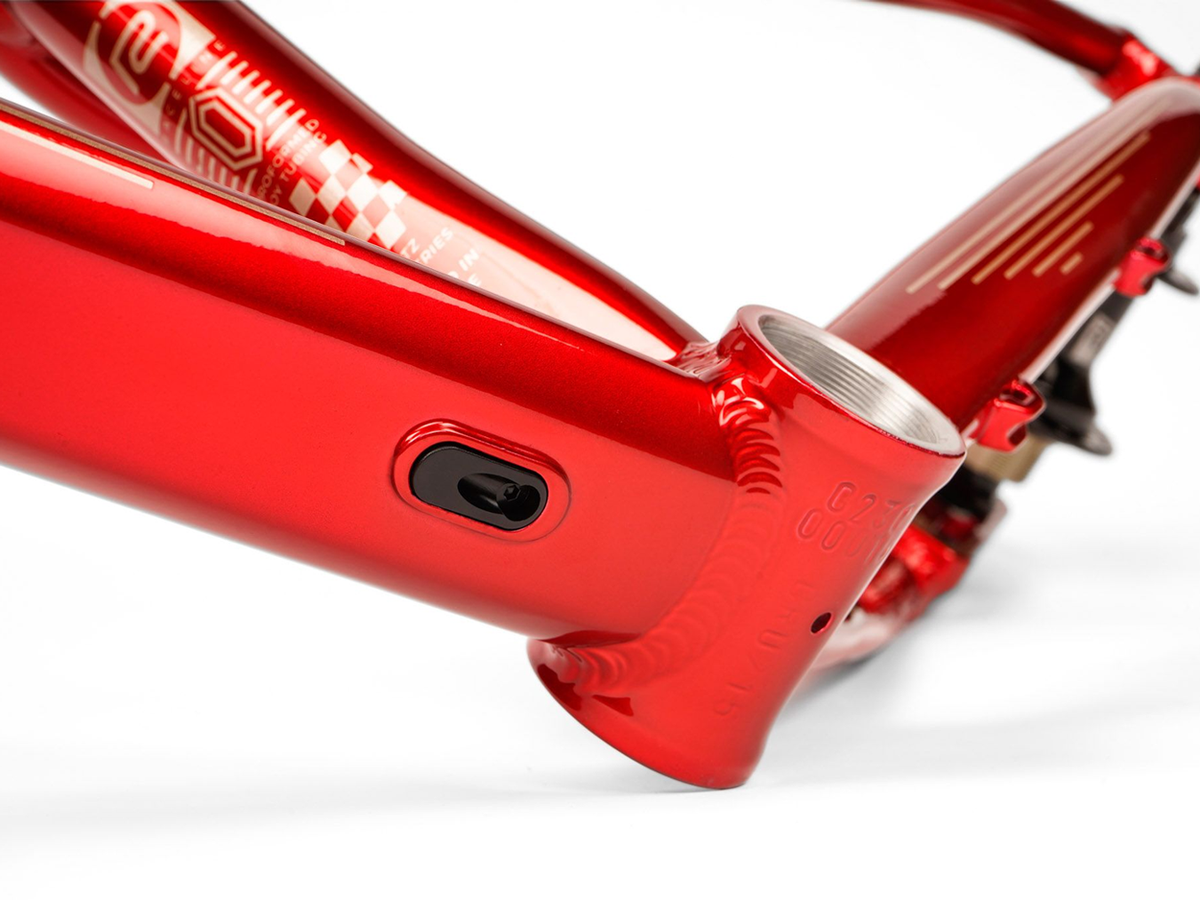

Bottom Bracket: BSA, 68mm wide
Dropouts: Sliding dropout disc system (SDDS)

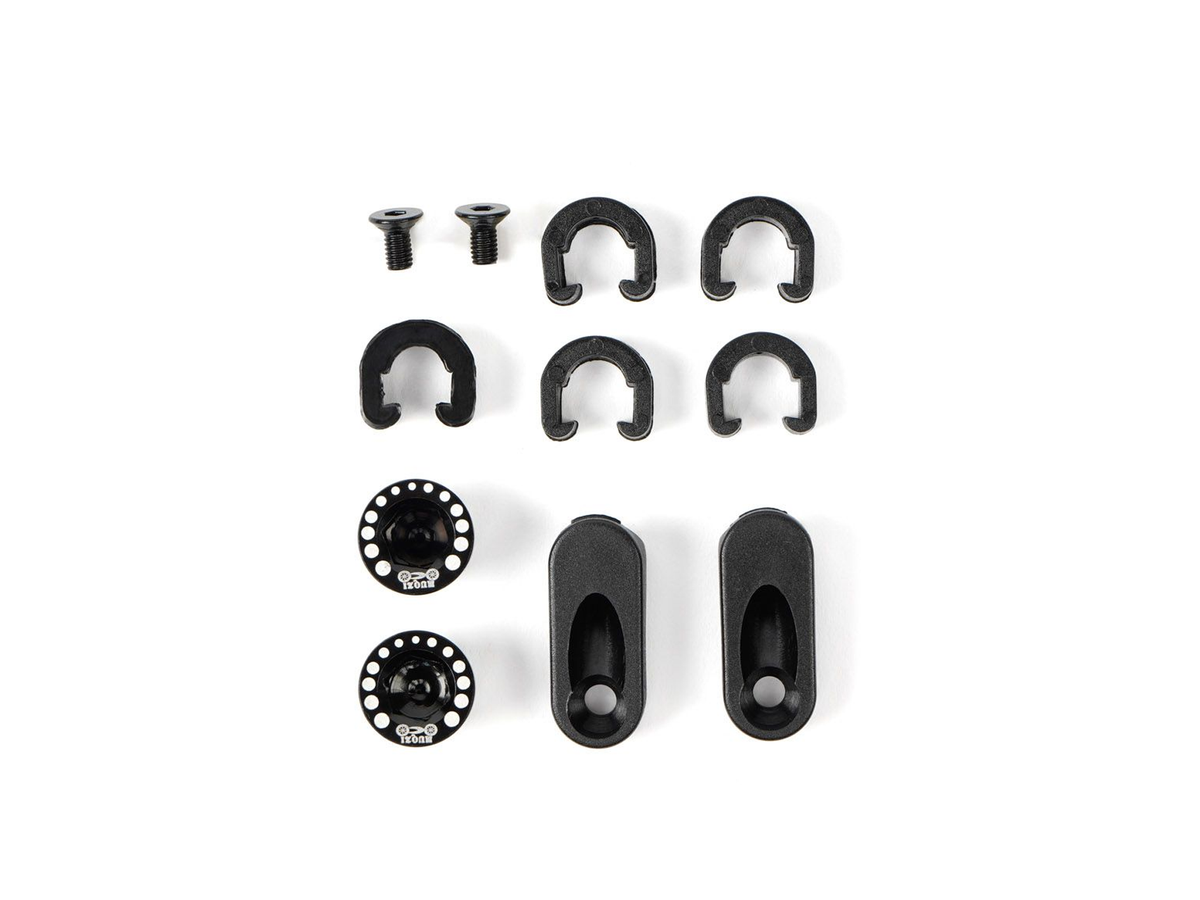

Brakes: Flat mount disc brake w/ internal cable routing and V brake with external cable routing
Weights:
L 1.81 kgs (4.01 lbs)
XL 1.83 kgs (4.09 lbs)

Please specify the required dropout hardware size when ordering: 10mm or 15mm.
