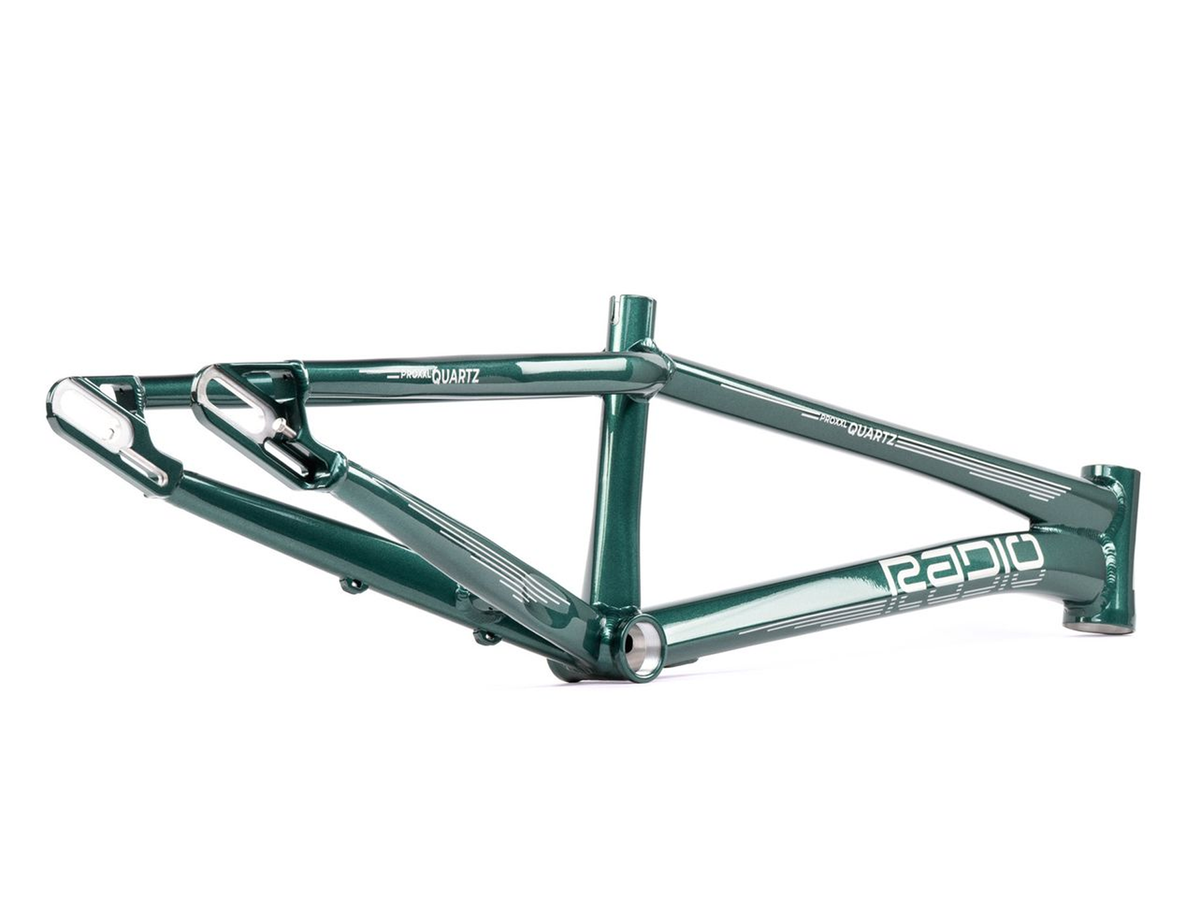

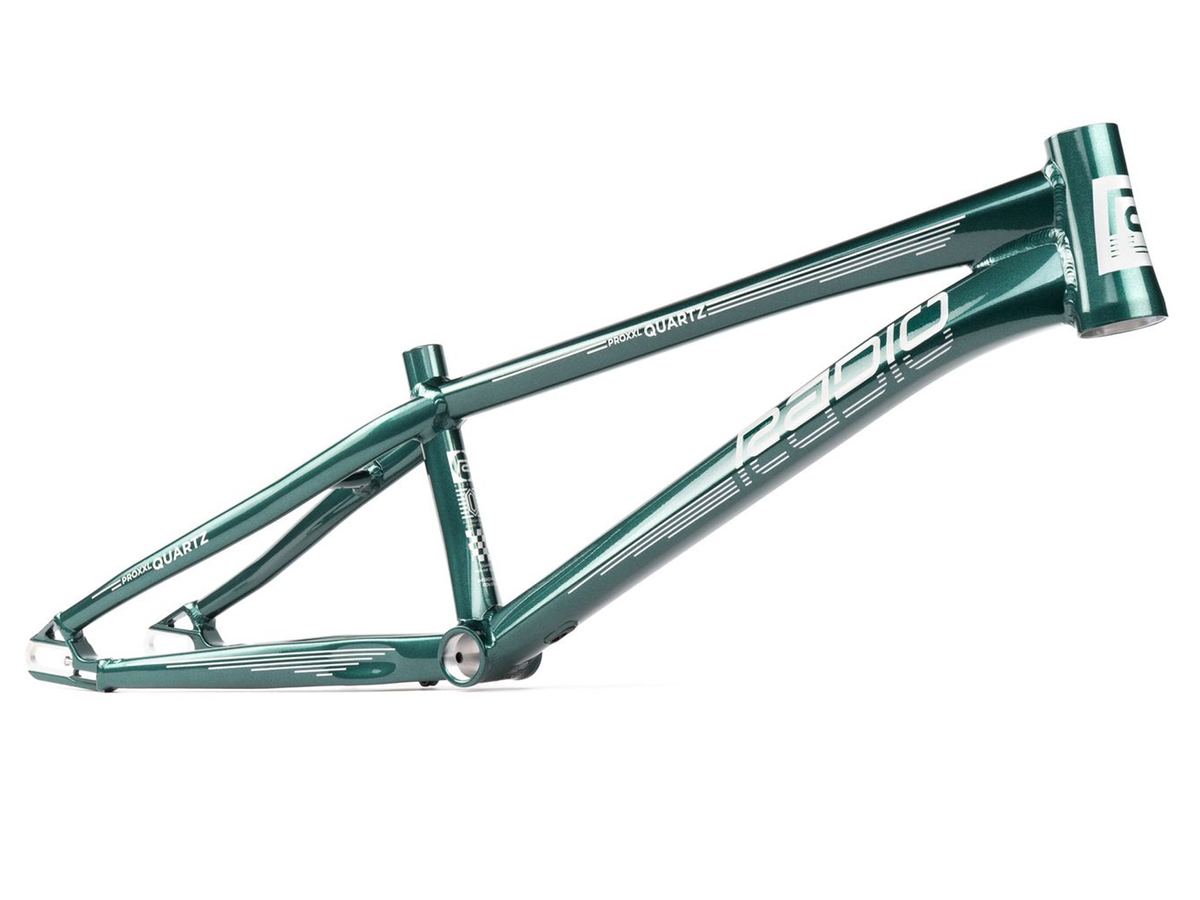

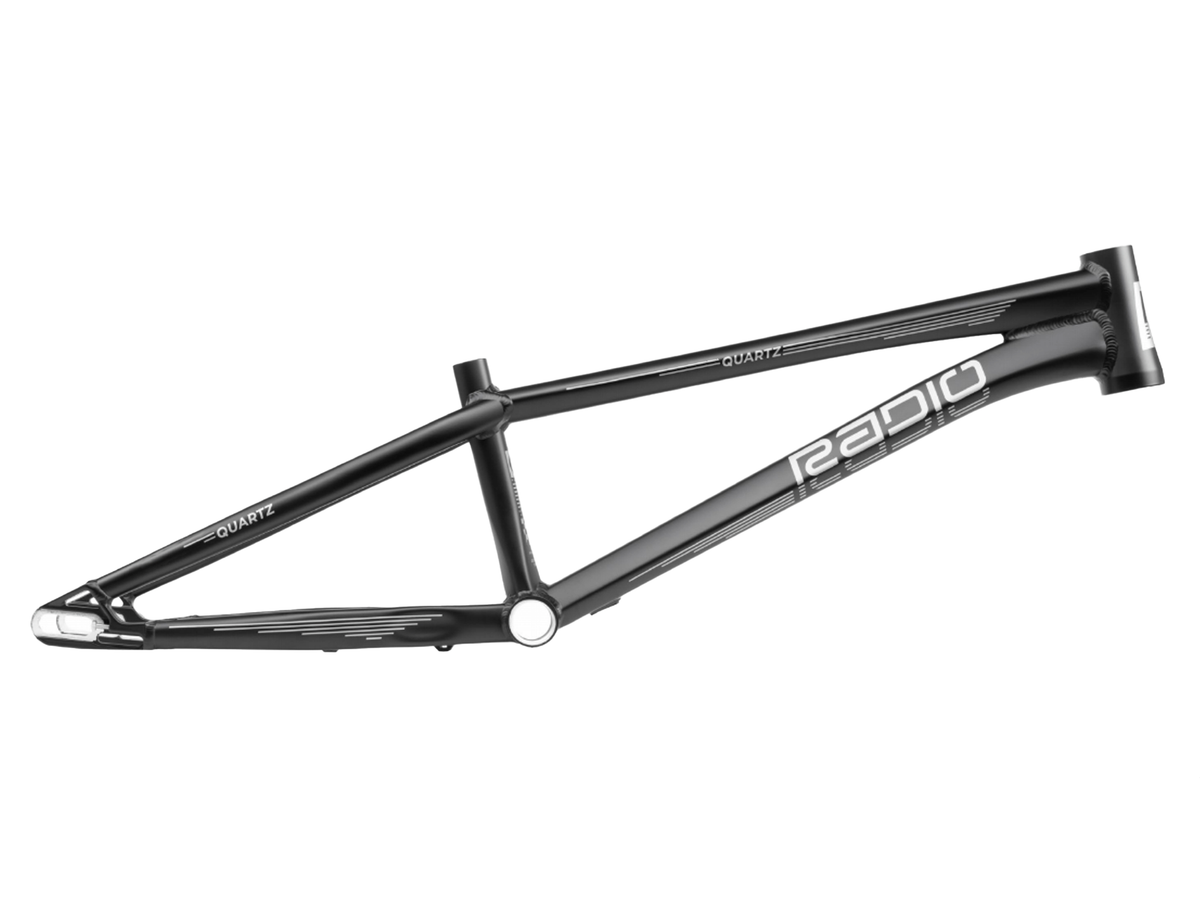

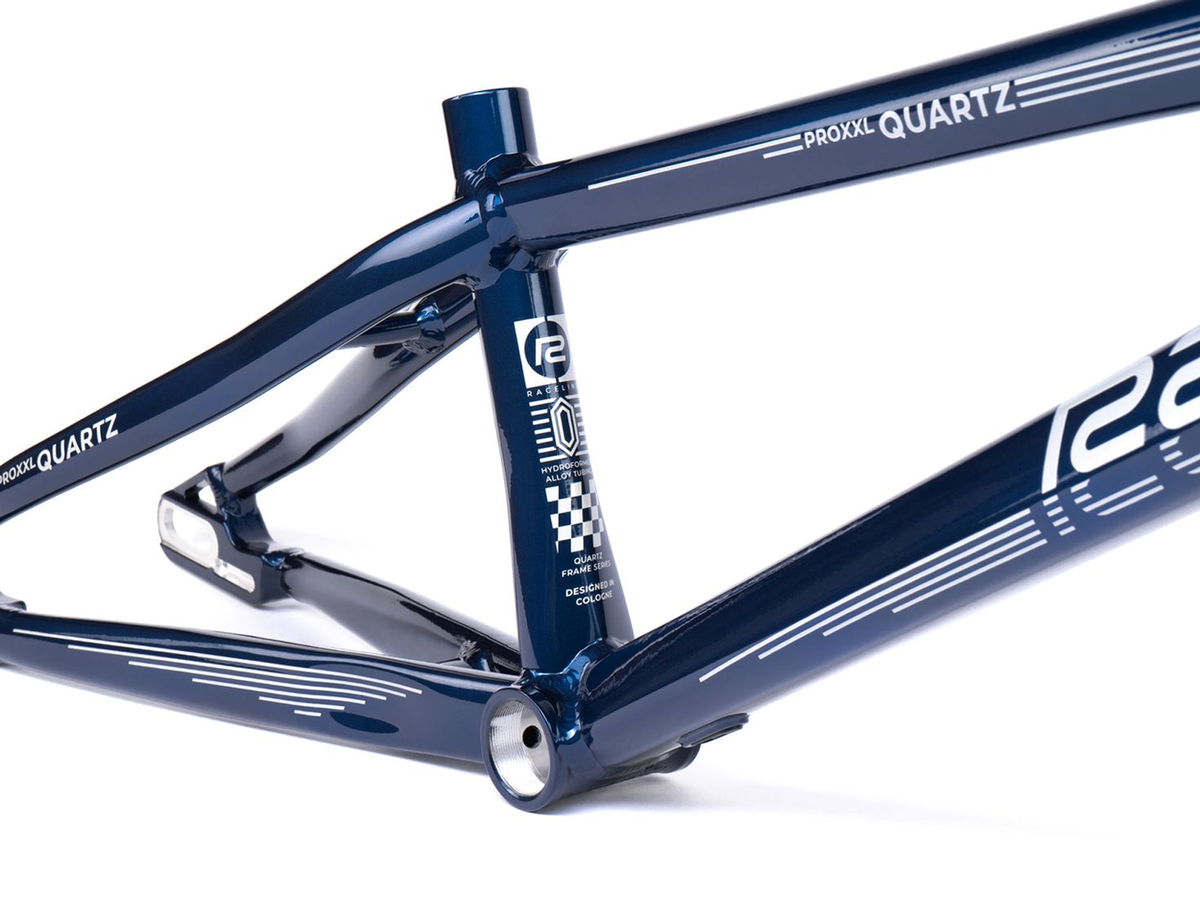

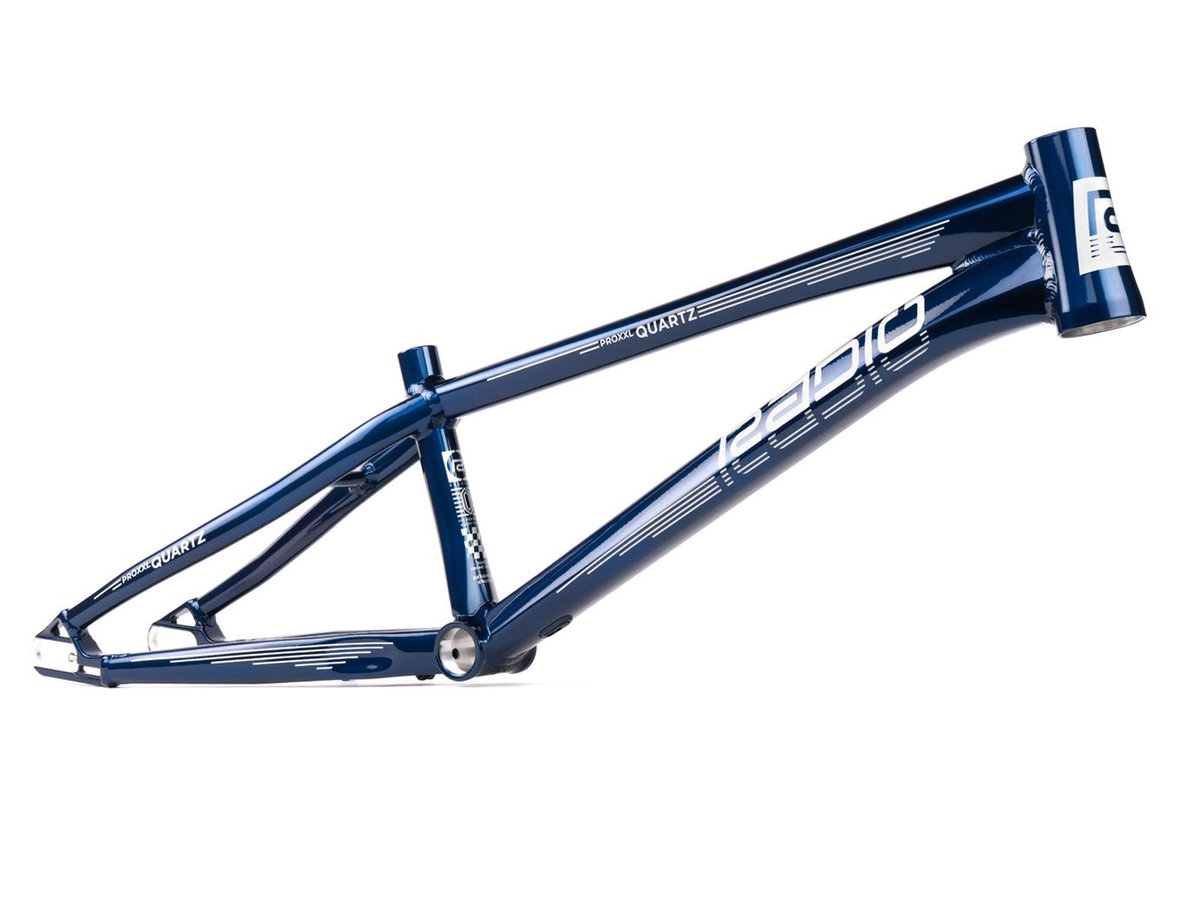

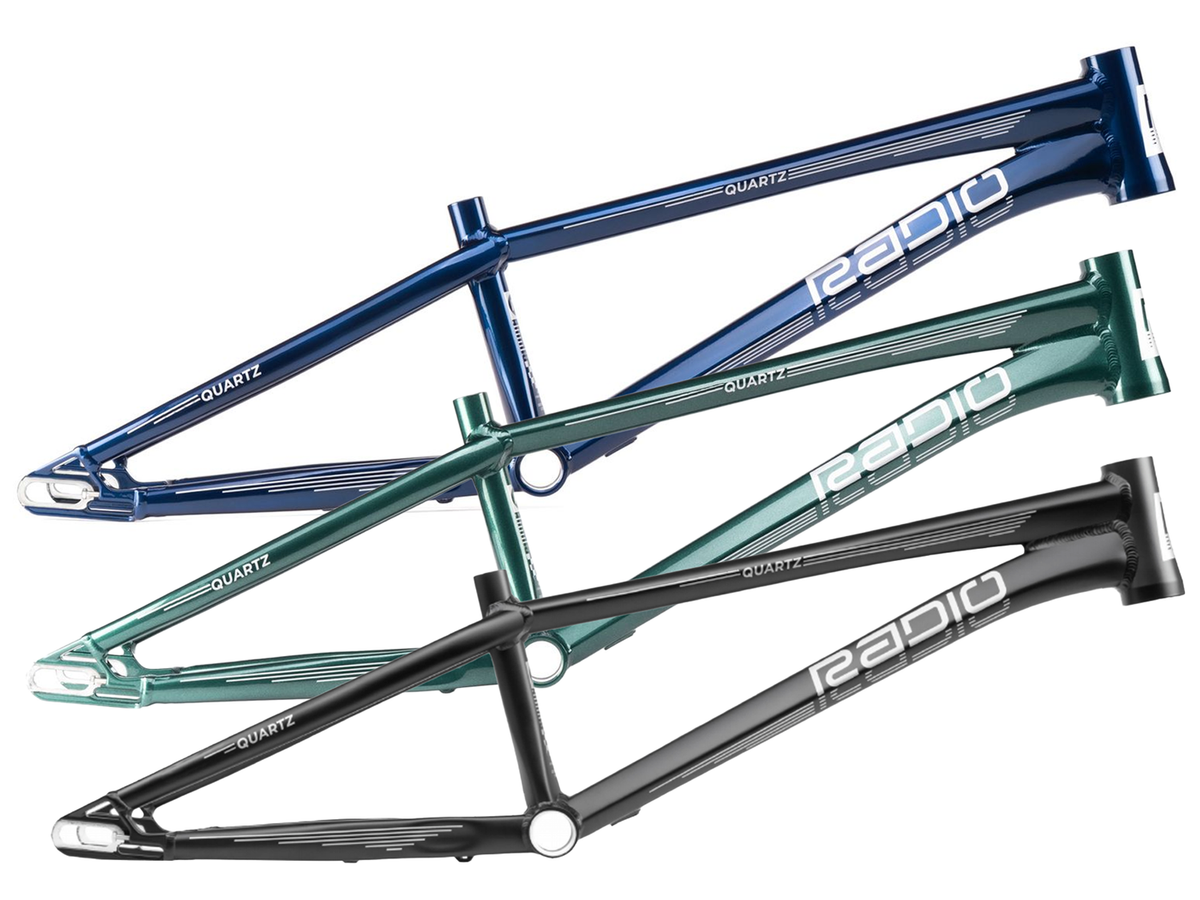

RADIO RACELINE Quartz Disc Pro 2027 Frame
RADIO RACELINE Quartz Disc Pro 2027 Frame
Low stock: 1 left
- DAILY DISPATCH - FAST SHIPPING
Couldn't load pickup availability
Radio's world championship-winning Quartz Frame is now available in a brand-new disc version, premiering the Sliding Dropout Disc System (SDDS). Utilising a flat mount style calliper and internal cable routing for the best possible braking system, with this huge upgrade, the Quartz is now one of the lightest and most progressive alloy frames on the market!
Features:

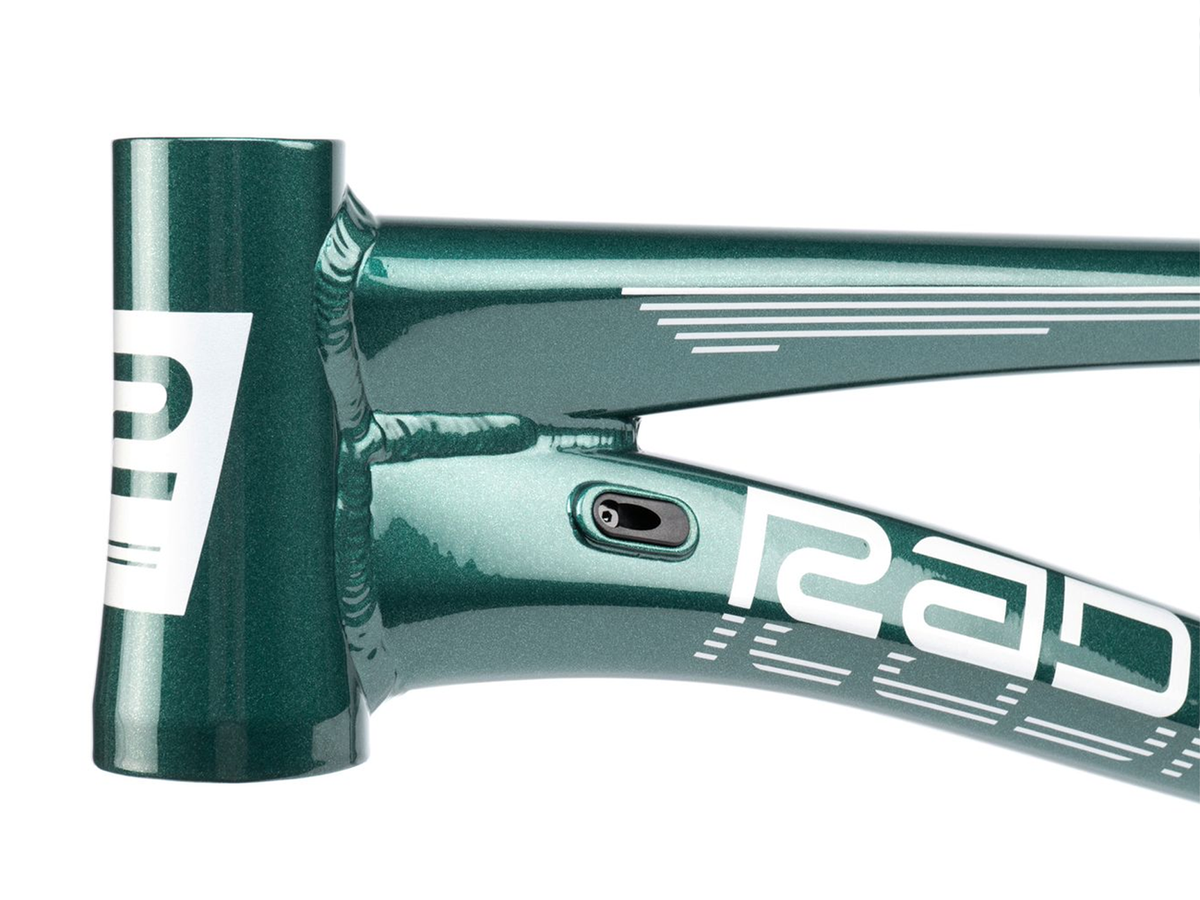

- NEW disc-brake-specific model with internal cable routing

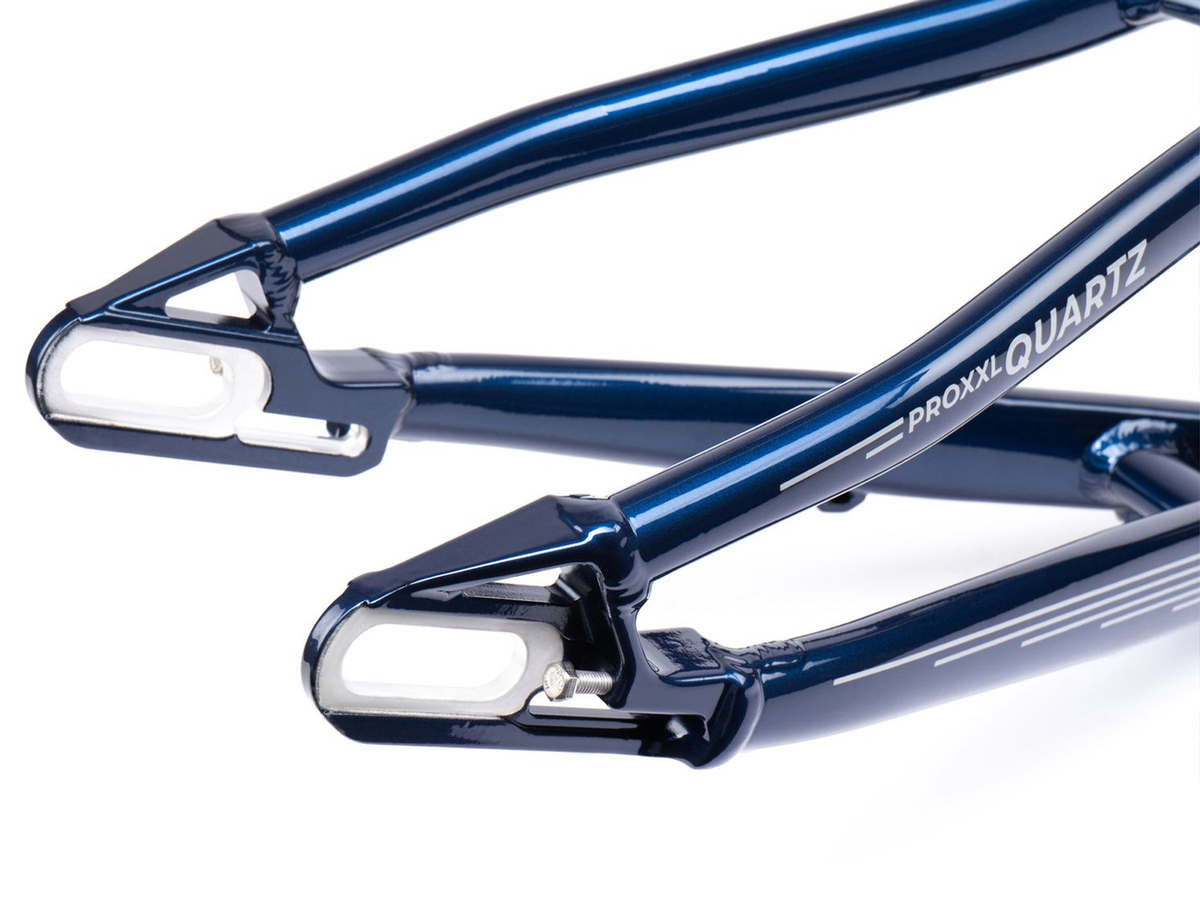

- Forged and CNC-machined Sliding Dropout Disc System (SDDS) with integrated chain tensioner (Choose from 10mm or 15mm dropout adapters)
- Super lightweight alloy frame
- x10 world championship wins
- Paradigm superior tubing
- Flat mount disc brake only (not compatible with v-brakes)
- Designed for 140mm and 120mm rotors (please check 120mm rotor fitment with an authorised Radio Bikes dealer based on your hub and brake calliper dimensions)
Specifications
Toptube Lengths:
Pro 20.5" (520mm)
L 20.9" (530mm)
XL 21.25" (540mm)
XXL 21.75" (552mm)
XXXL 22.25" (565mm)
XXXXL 22.5” (572mm)
Chain Stay Lengths:
Pro/Pro L 13.9" (353mm)
XL 14.5" (368mm)
XXL 14.8" (376mm)
XXXL 14.8" (376mm)
XXXXL 15.2” (386mm)
Rider Areas:
L 532.6mm
XL 540.7mm
XXL 551.9mm
XXXL 564.2mm
XXXXL 570.9mm
Head Tube Angle: 74°
Seat Tube Angle: 71°
BB Height: 11.6" (294.64mm)
Seat Tube Height: 9.1" (231mm)
Wheel Size: 20" (406mm) x 1.75”
Head Tube Size: Tapered 1-1/8” - 1.5” for integrated headset (125mm)
Seat Post Size: 27.2mm
Seat Clamp Size: For 31.8mm ID seat clamp
Tubing: Hydroformed 6061 alloy, Paradigm tubing

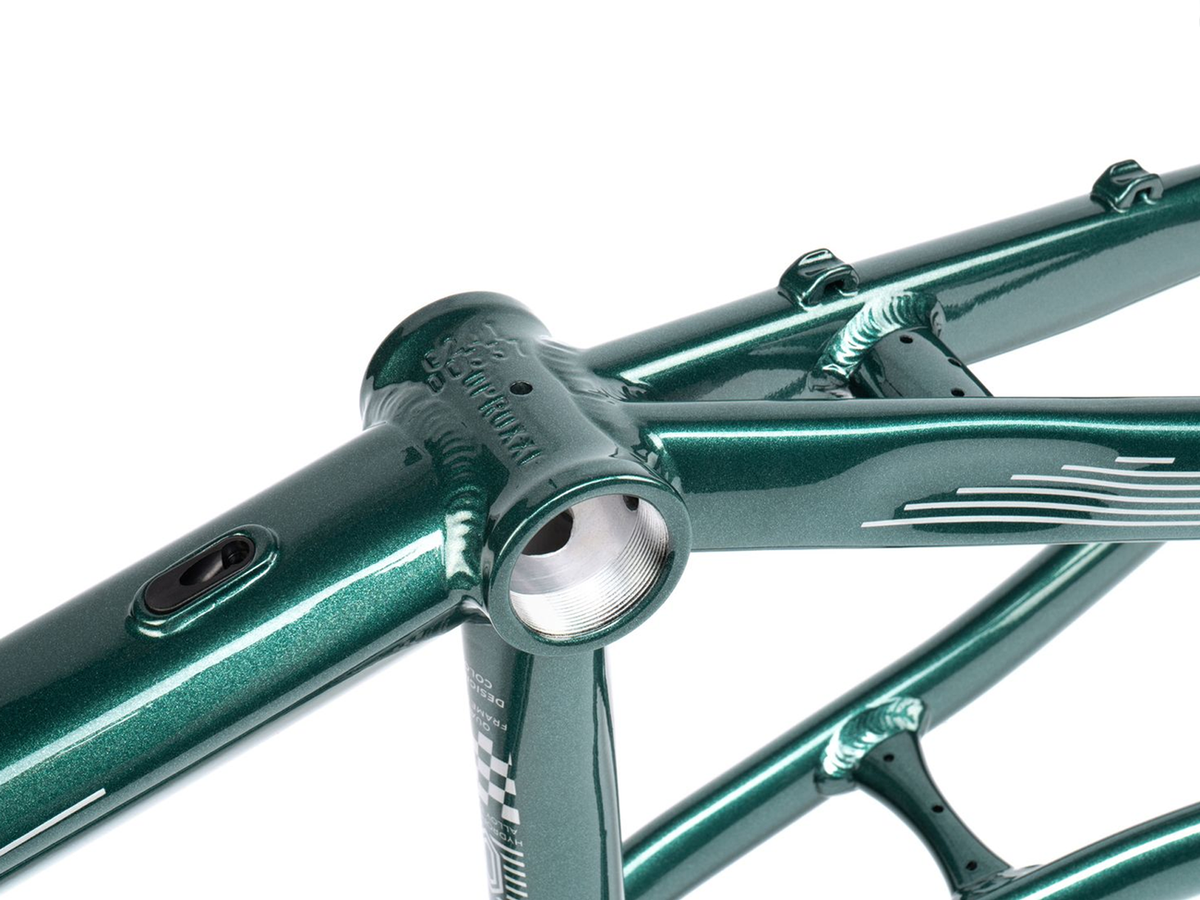

Bottom Bracket: BSA, 68mm wide
Dropouts: Sliding dropout disc system (SDDS)
Brakes: Flat mount disc brake only (not compatible with v-brakes)
Weights:
Pro/Pro L 1.73kg (3.81lbs)
XL 1.74kg (3.83lbs)
XXL 1.76kg (3.88lbs)
XXXL 1.77kg (3.90lb)
XXXXL 1.78kg (3.92lbs)
Please specify the required dropout hardware size when ordering: 10mm or 15mm.
