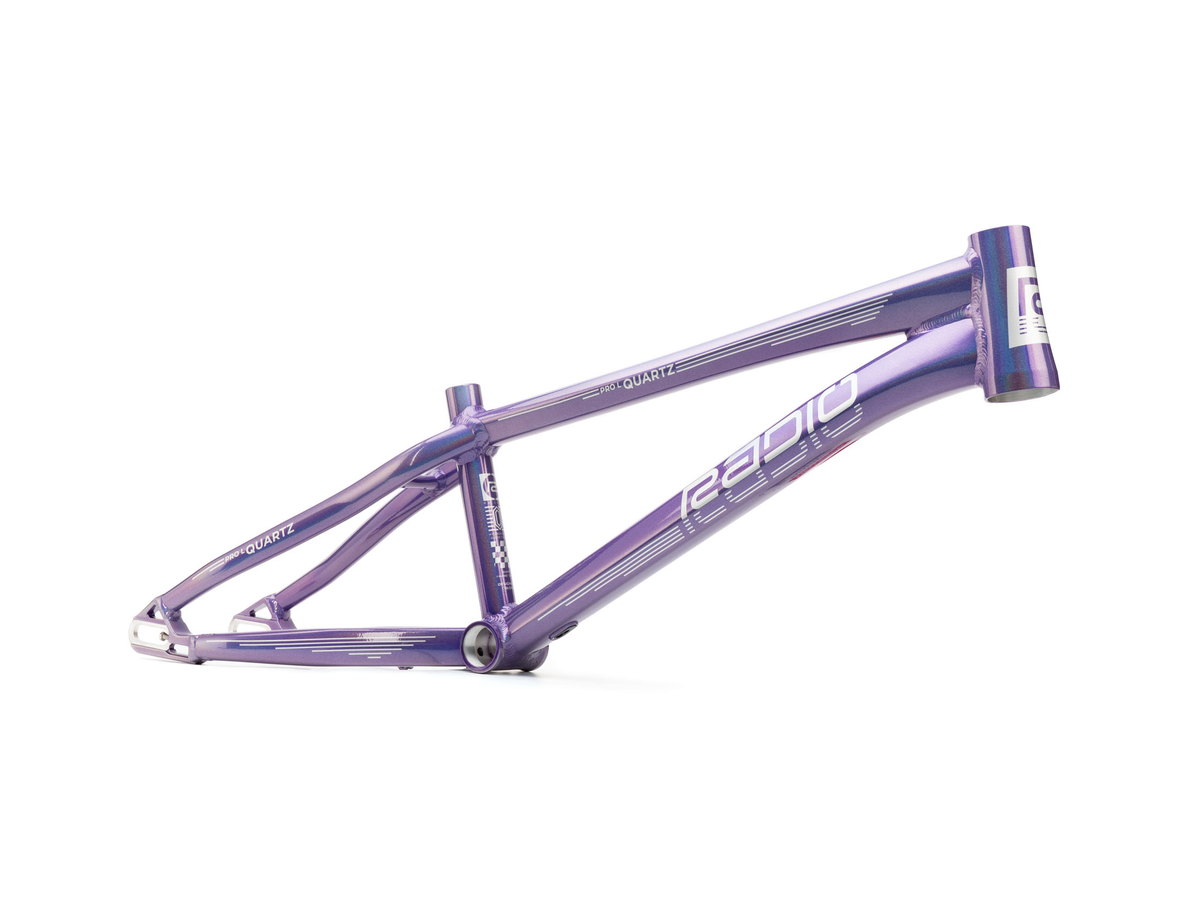

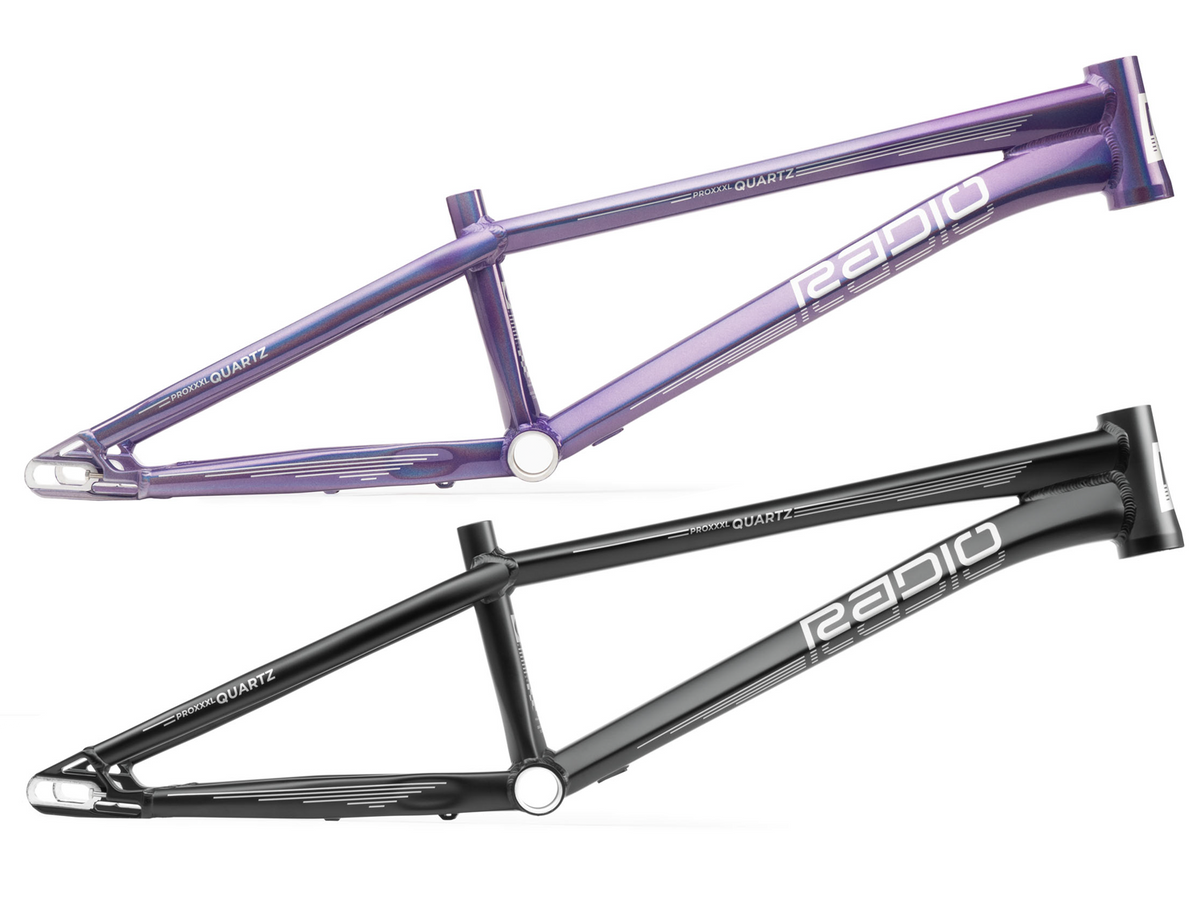

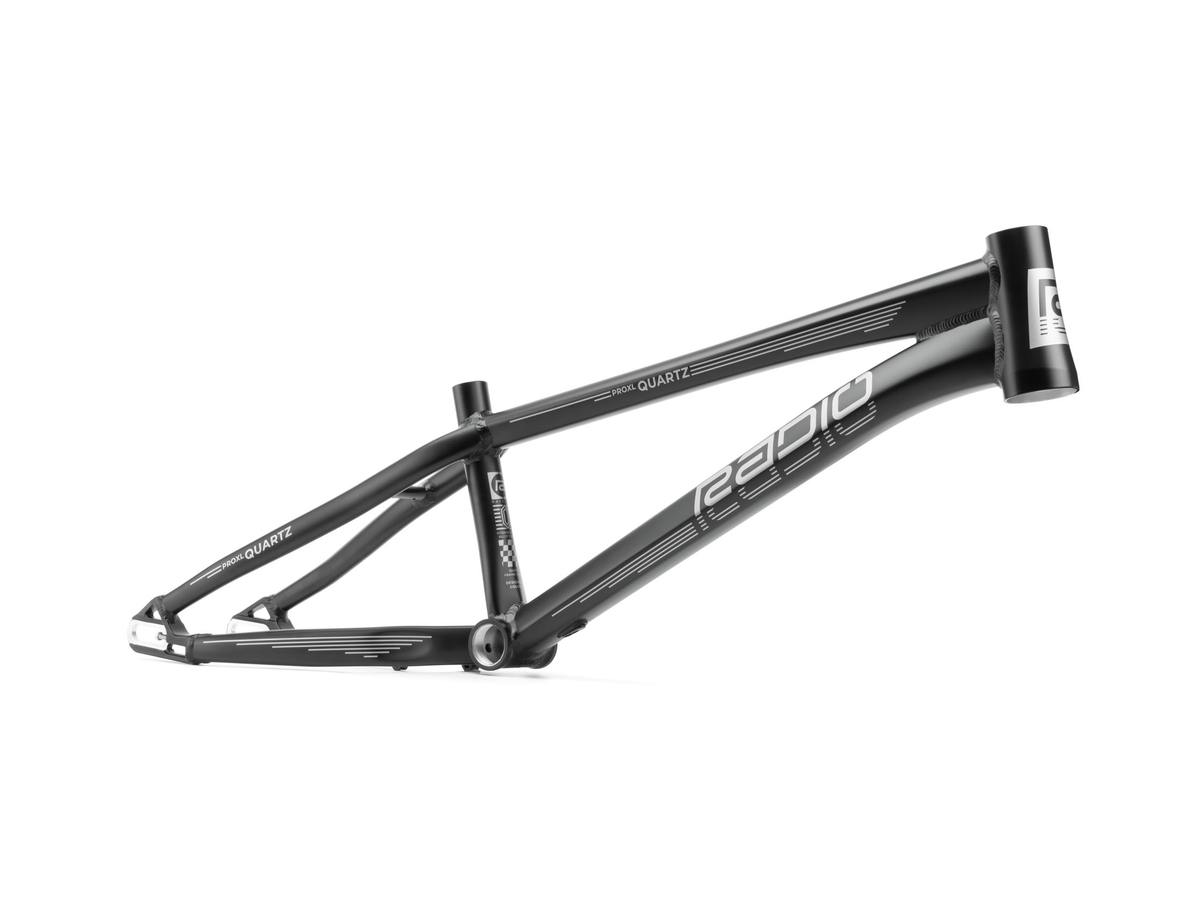

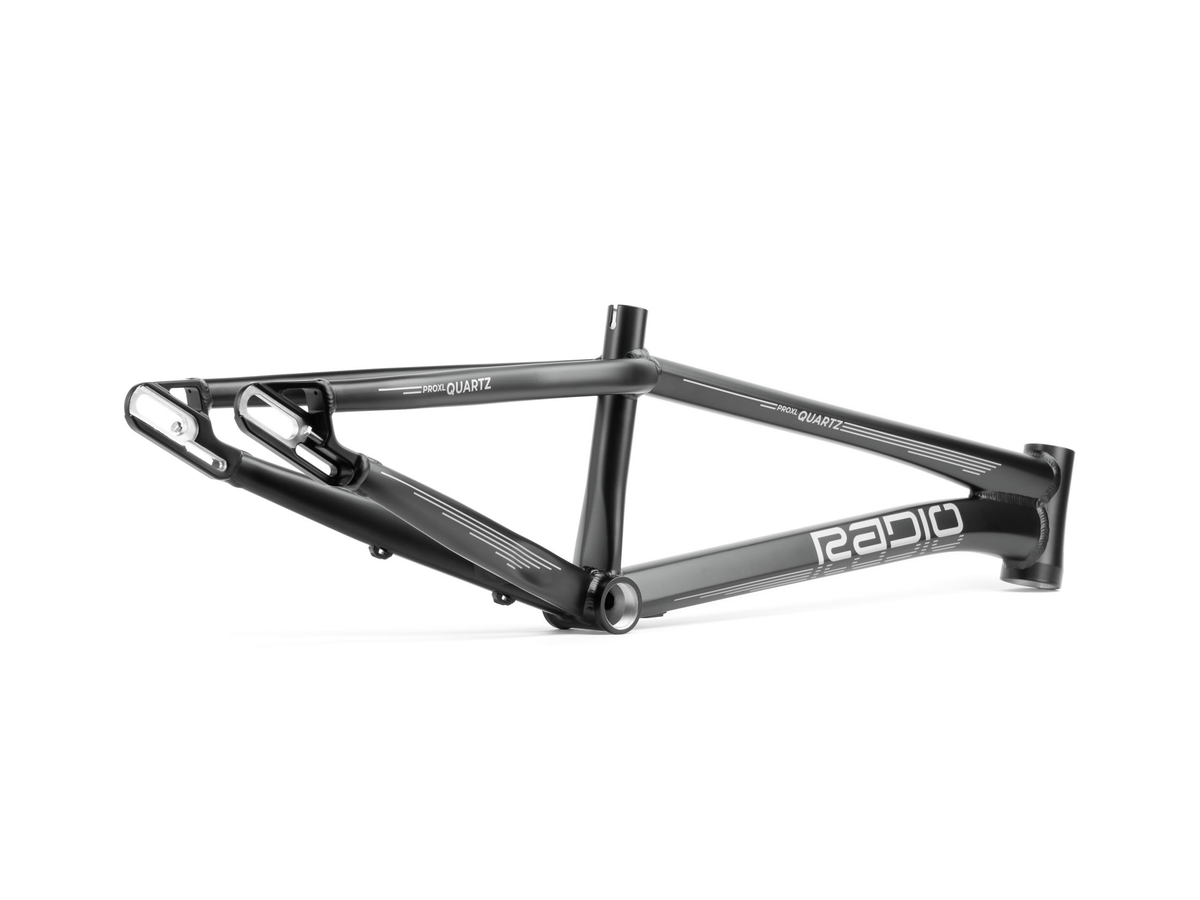

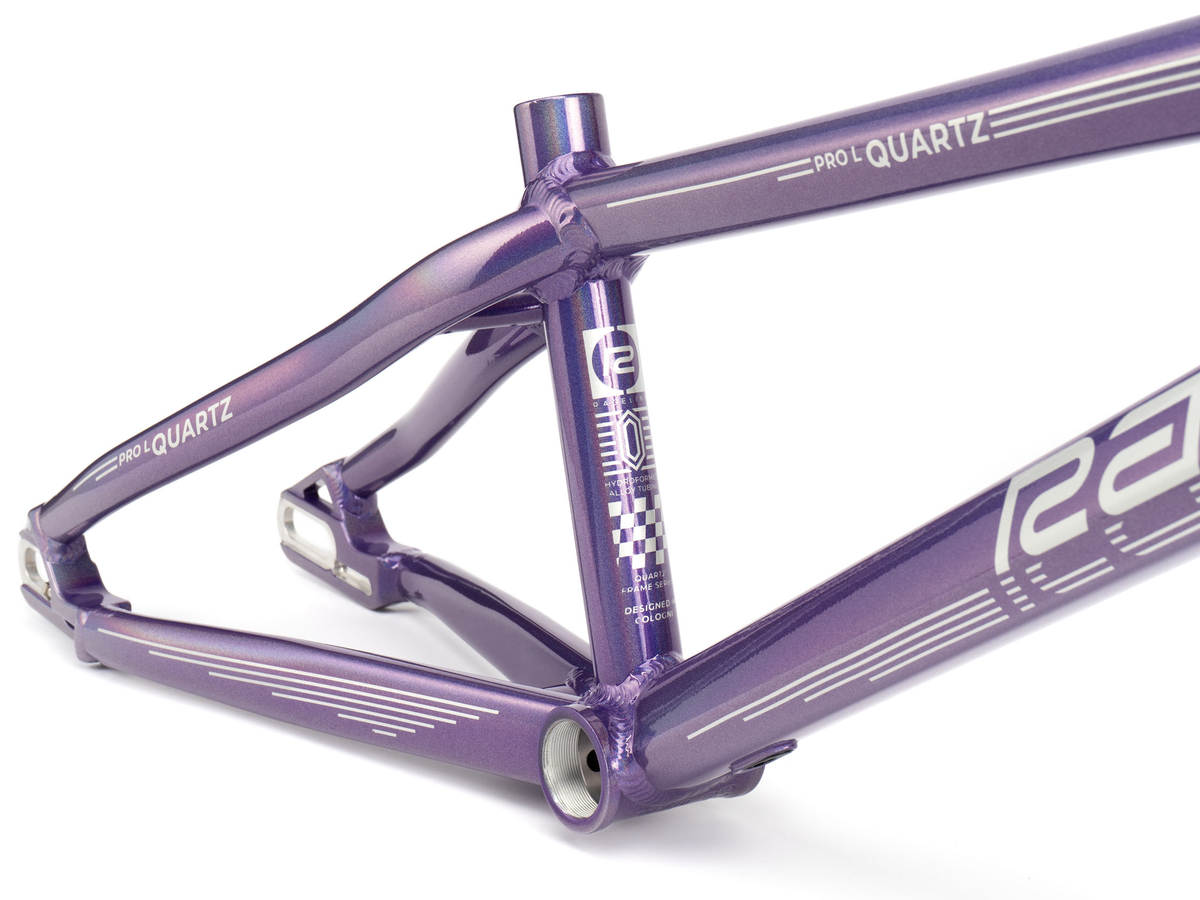

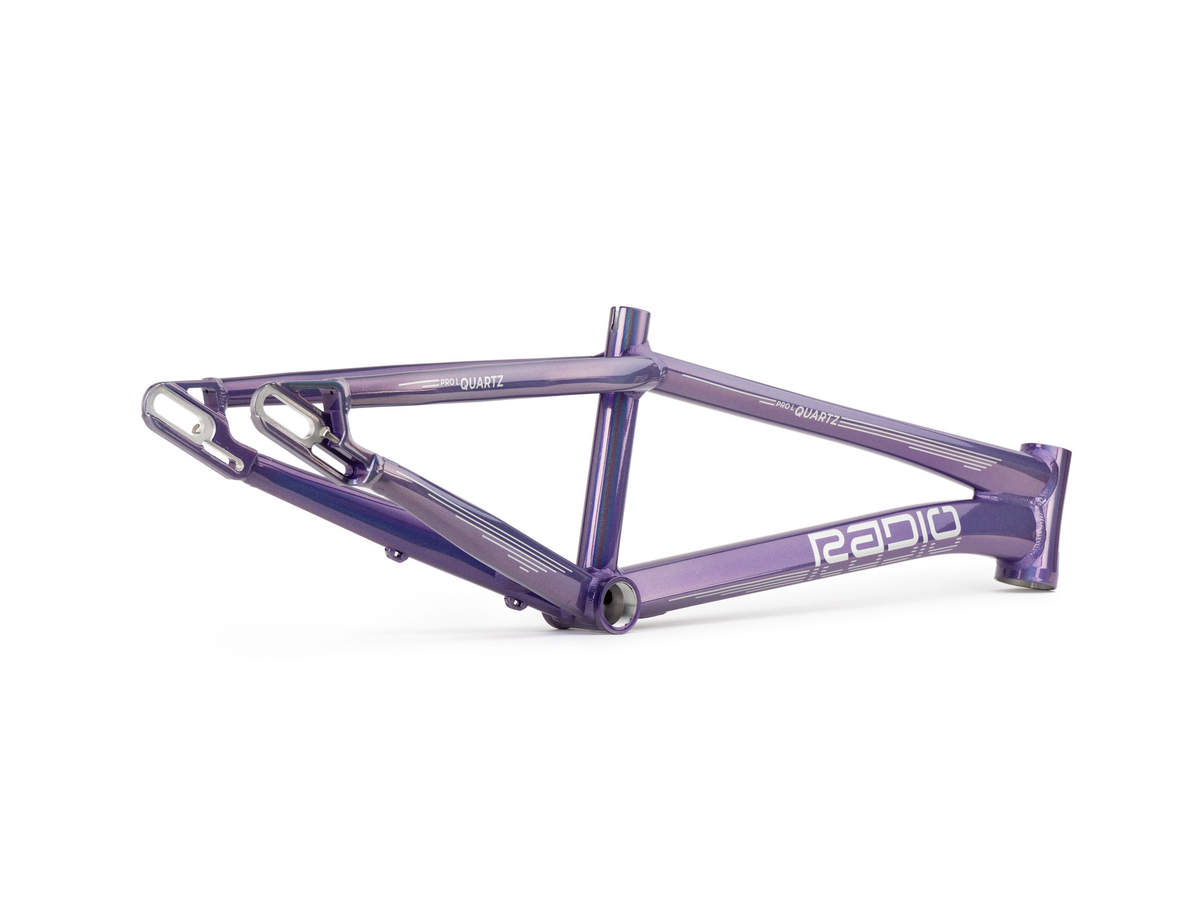

RADIO RACELINE Quartz Disc Pro Frame
RADIO RACELINE Quartz Disc Pro Frame
Low stock: 2 left
- DAILY DISPATCH - FAST SHIPPING
Couldn't load pickup availability
Features

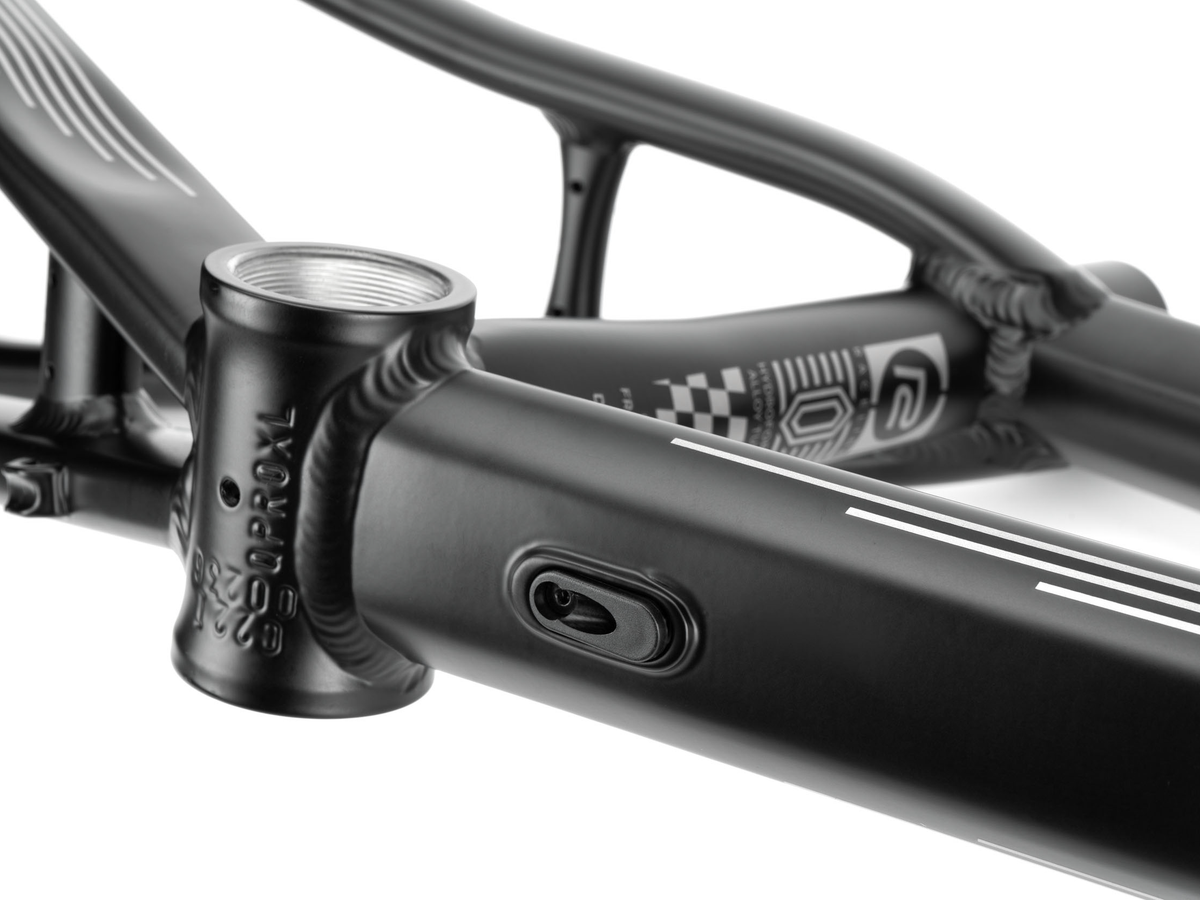

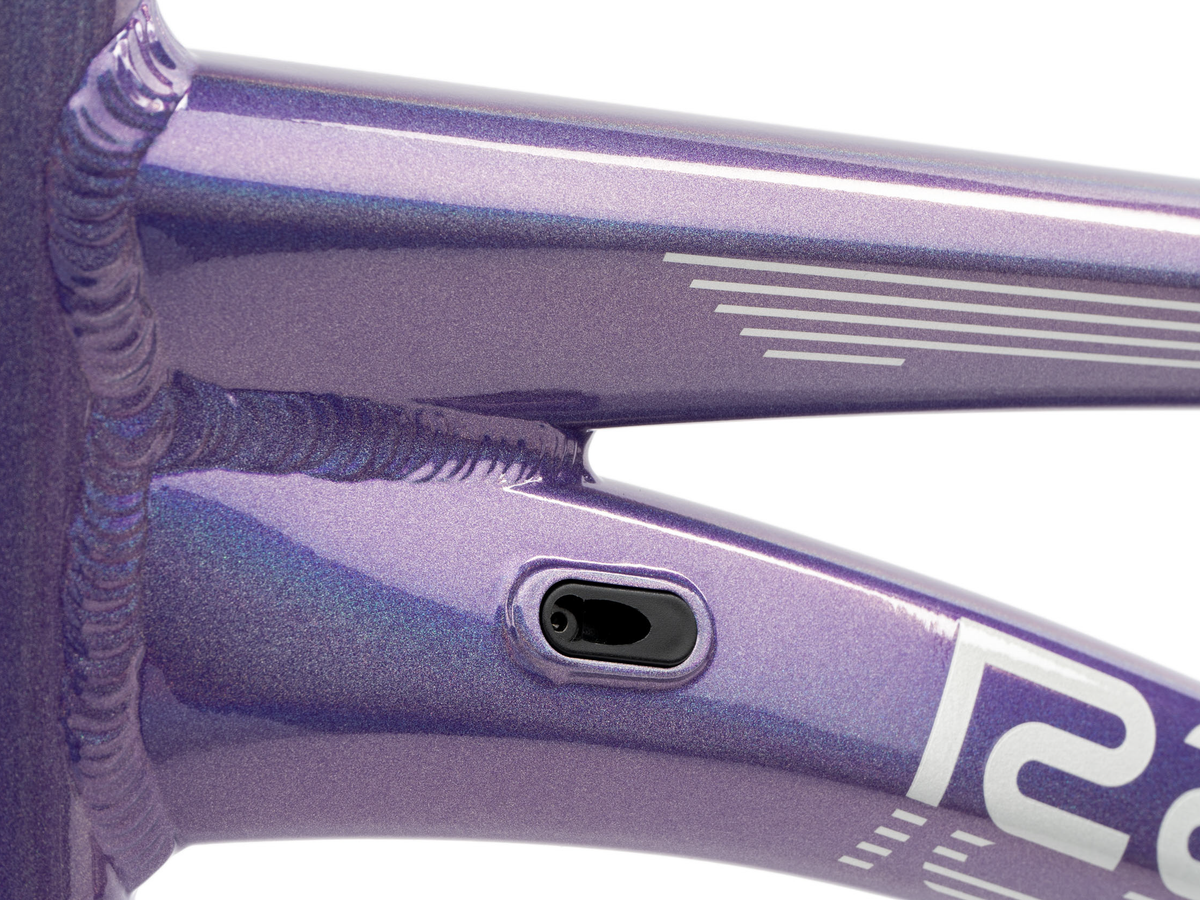

- NEW disc brake specific model with internal cable routing

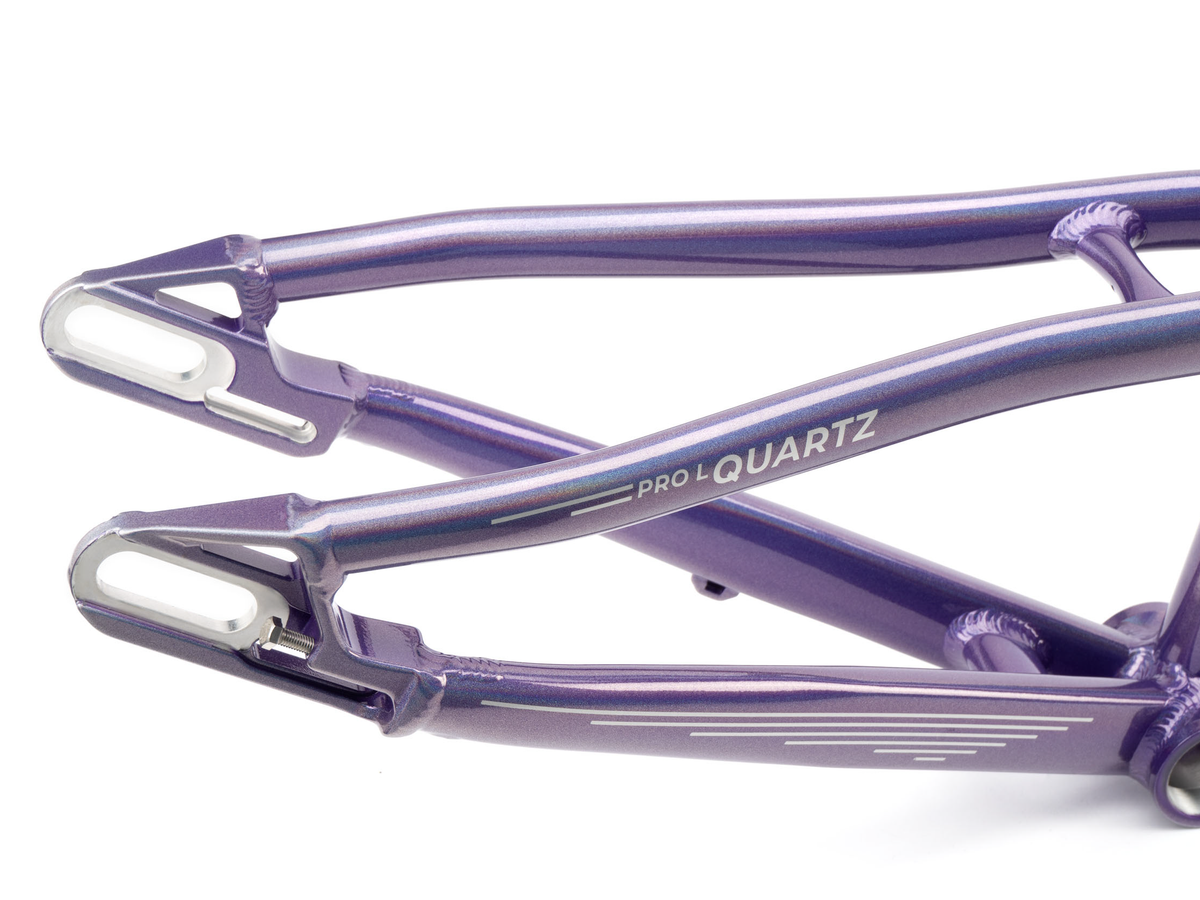

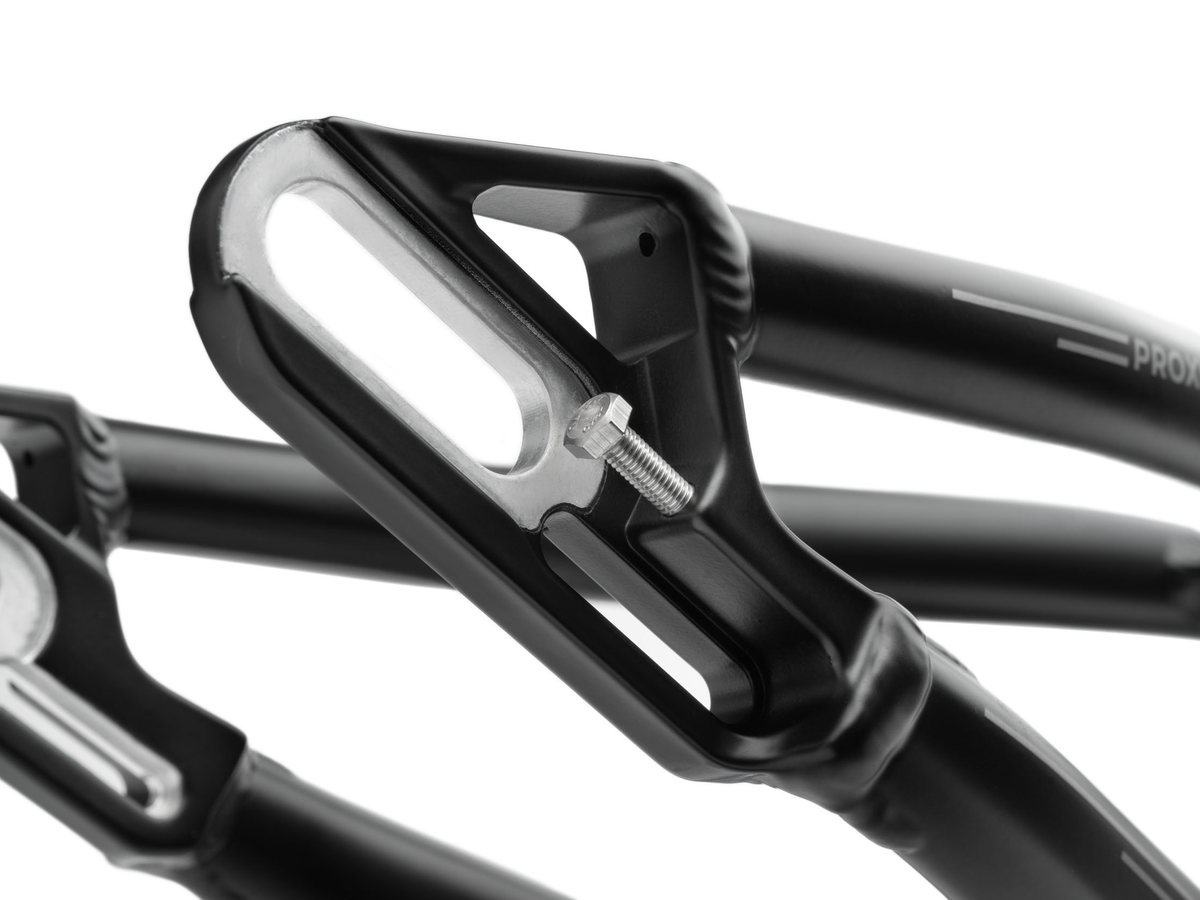

- Forged and CNC-machined Sliding Dropout Disc System with integrated chain tensioner (Choose from 10mm or 15mm dropout adapters)
- Super lightweight alloy frame (200g less than the Helium frame)
- x2 world championship wins
- Paradigm superior tubing
- For 10 or 15mm axles only
- Not compatible with v-brakes
Specifications
Material - Hydroformed 6061 alloy, Paradigm tubing
Top tube length (actual) – Pro - 20.5” (520.7mm), Pro L - 20.9” (530mm)
Chain stay length (min.) – Pro - 13.9” (353mm), Pro L - 13.9” (353mm)
Dropout size - Sliding dropout disc system (SDDS)
Head tube angle -74°
Seat tube angle - 71°

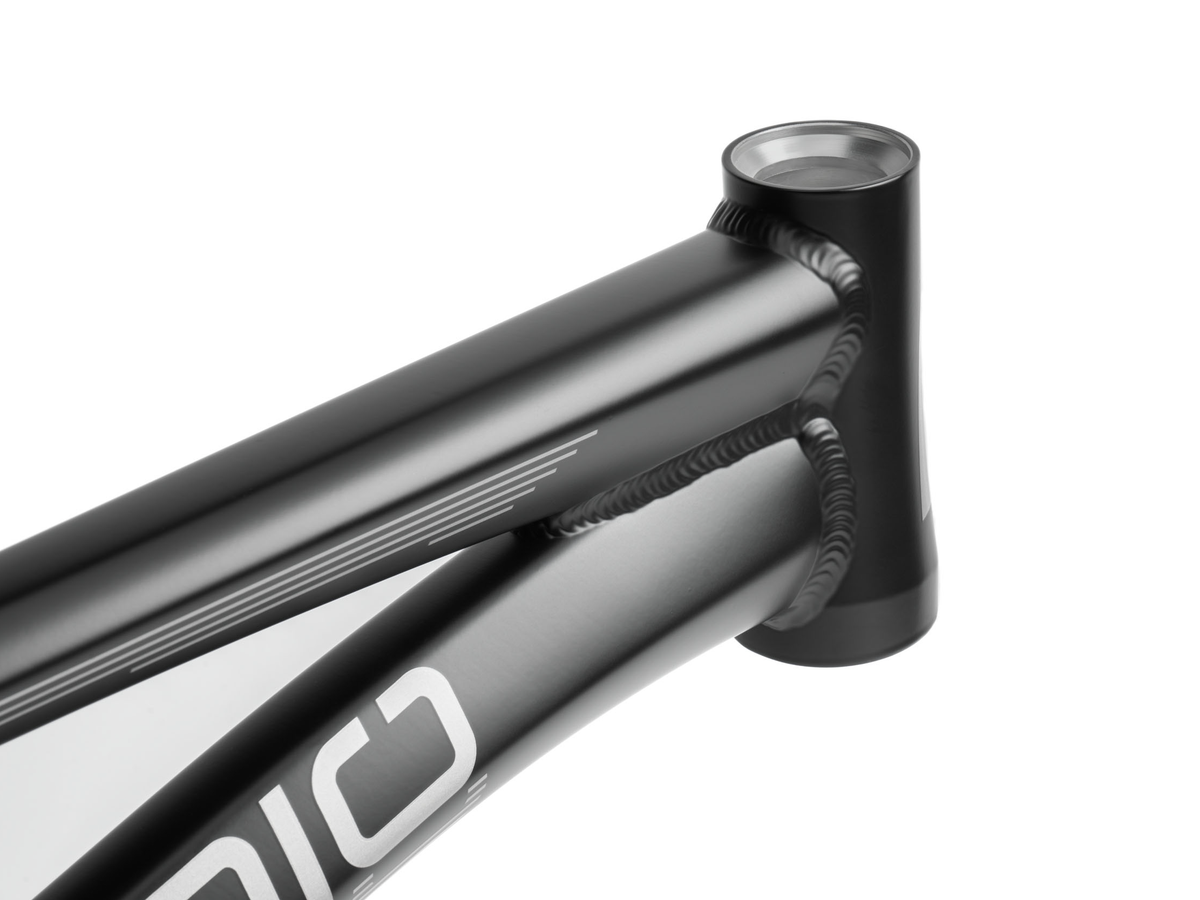

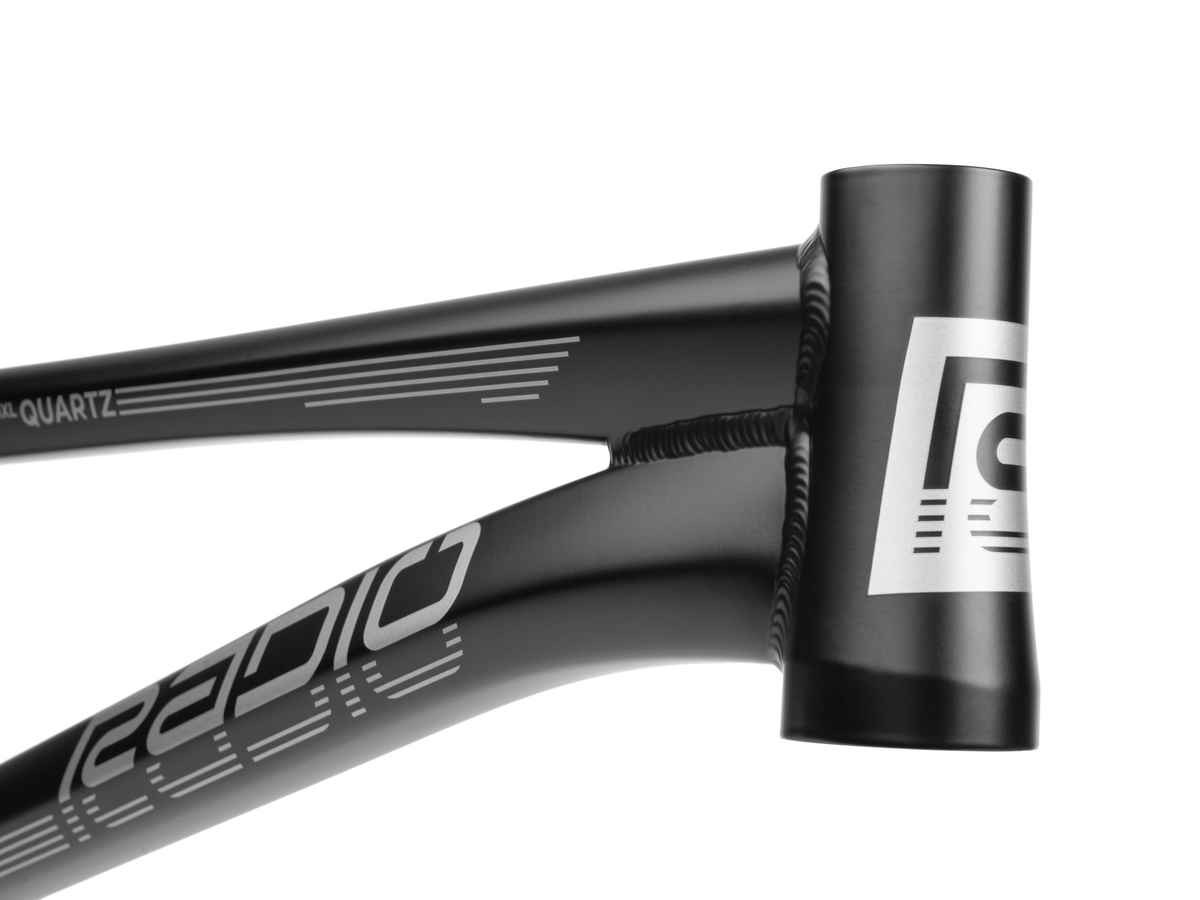

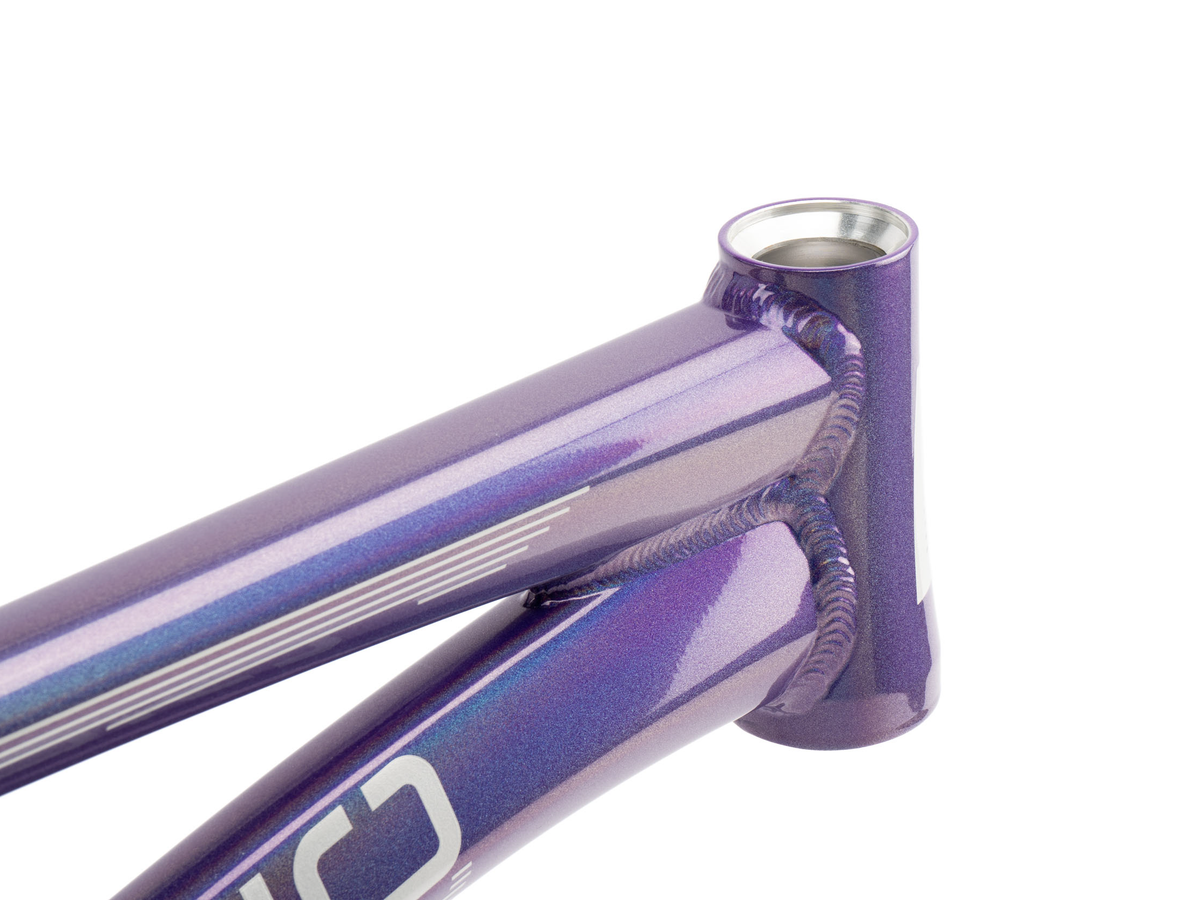

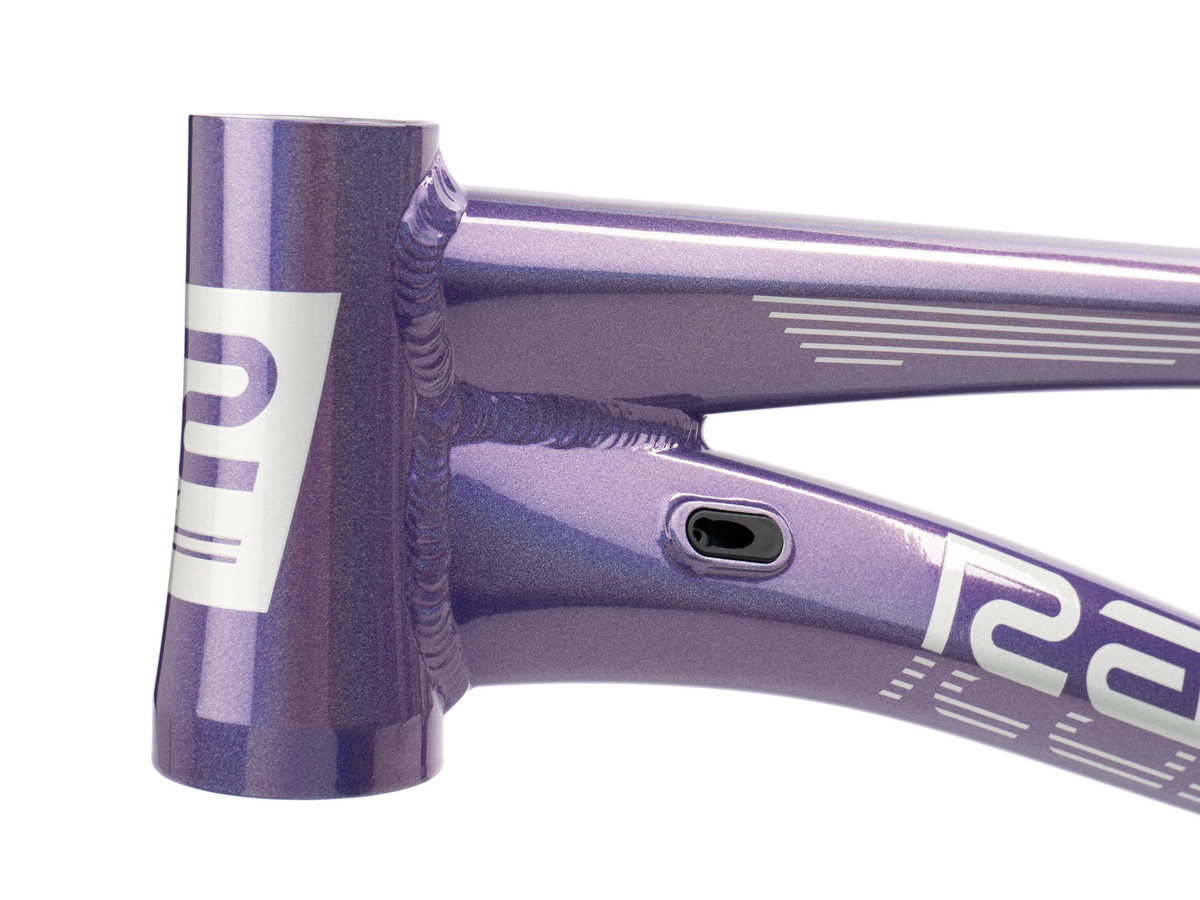

Head tube size (full int.) - tapered 1-1/8” - 1.5” (125mm)
Seat post size - 27.2mm
Seat tube length – 231mm

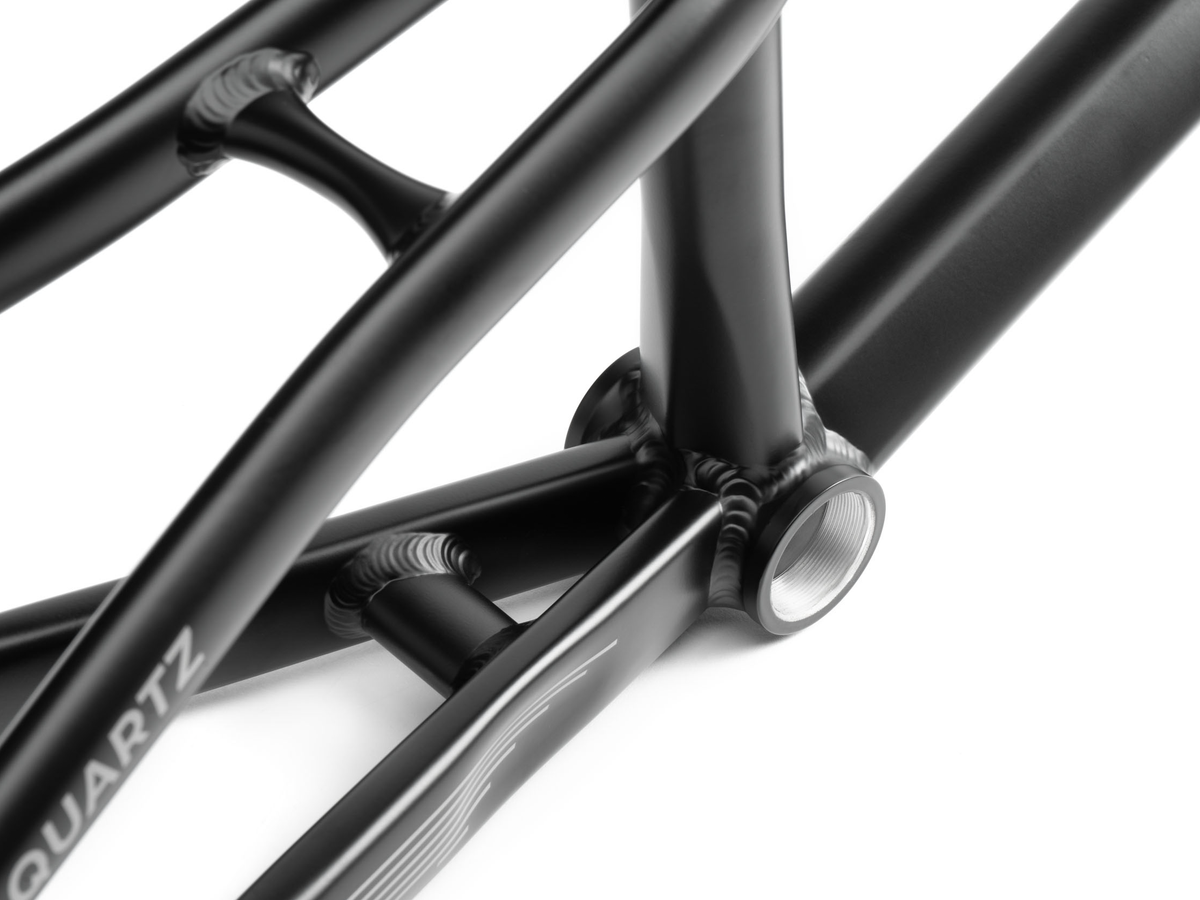

Bottom bracket type - Euro, threaded, BSA 68mm
Bottom bracket height – 11.6”
Wheel size – 20 x 1.75”
Rider area – Pro L – 532.6mm
Please specify the required dropout hardware size when ordering: 10mm or 15mm.
