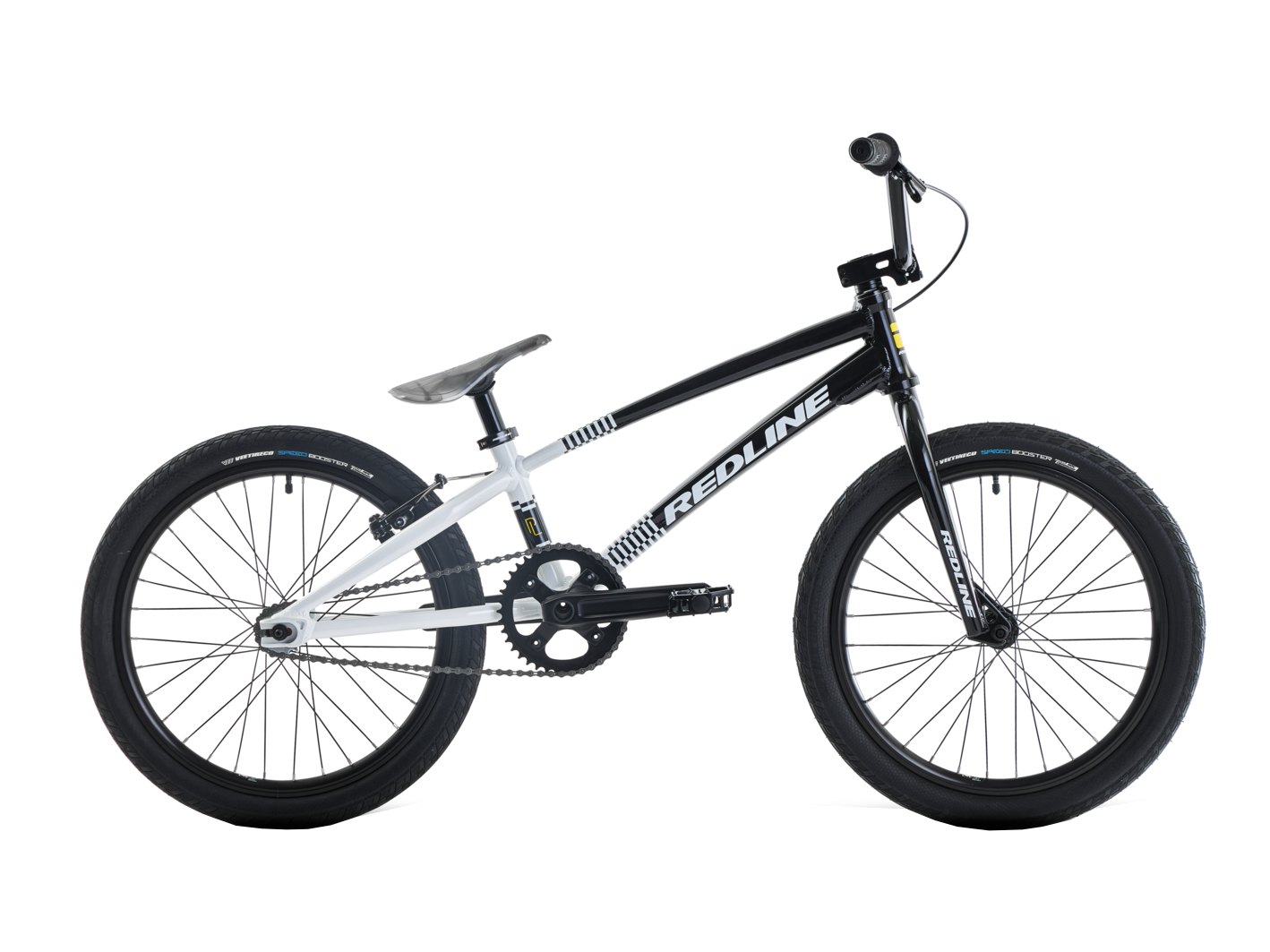

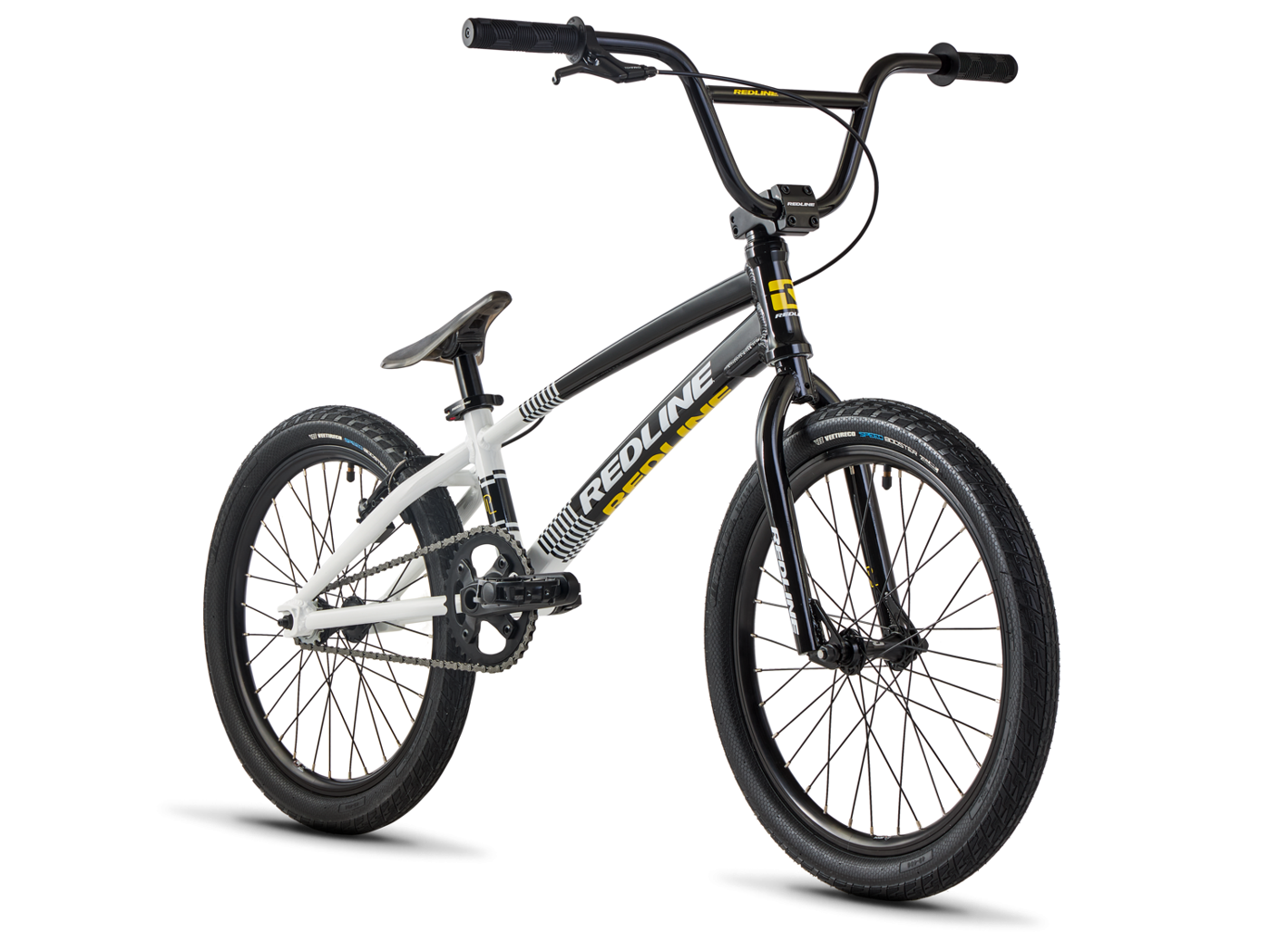

REDLINE 20" Proline Expert XL Bike
REDLINE 20" Proline Expert XL Bike
- Ships 2–3 Business Days • Pickup Available
Couldn't load pickup availability
Once tweens or teens have some laps under their belts and they’re ready to get more serious about racing, the Redline Proline Expert XL is ready to take them to the next level. Offering great performance and high quality at a mid-level price, the Proline Expert XL is made with a Redline proprietary aluminum alloy frame with a sealed Euro bottom bracket, aluminum 2-piece cranks, and sealed hubs. The 100 percent Cr-Mo steel race fork with tapered legs helps riders manouevre the Proline Expert XL more easily. The pivotal race saddle with no padding looks and acts the part at the start line.
Specifications
Frame - Proprietary alloy formed and butted tubing

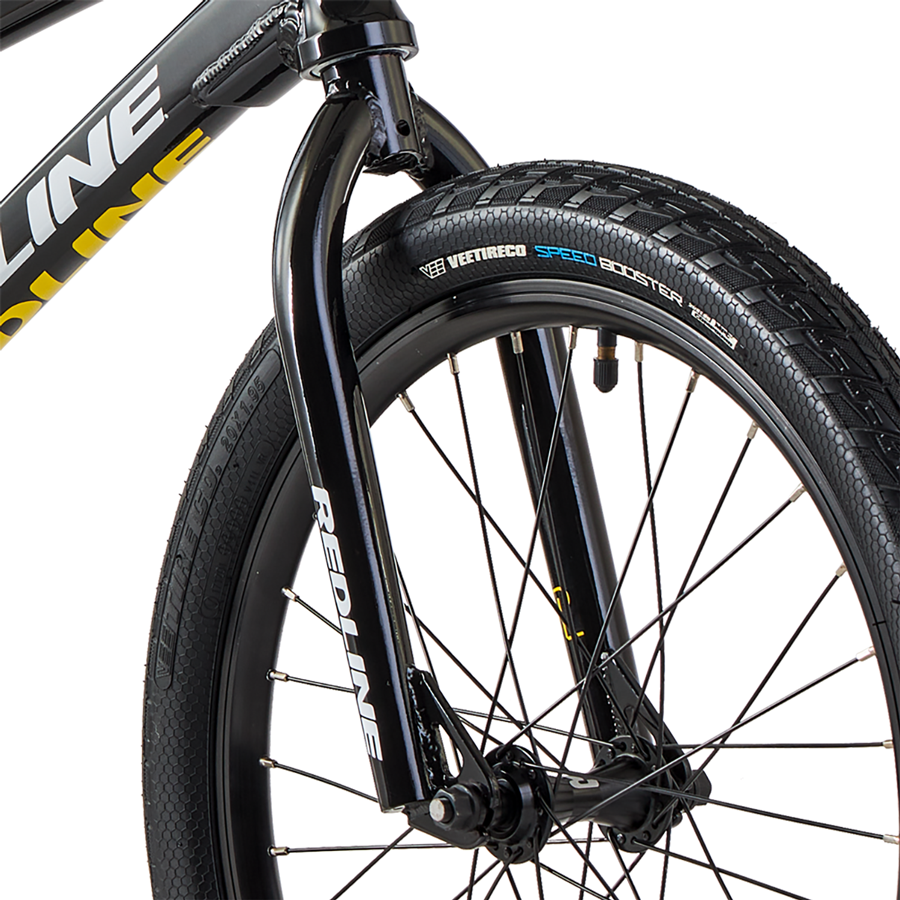

Fork - Full Cr-Mo with tapered legs
Headset - Sealed integrated headset 1 1/8, aluminum top cap

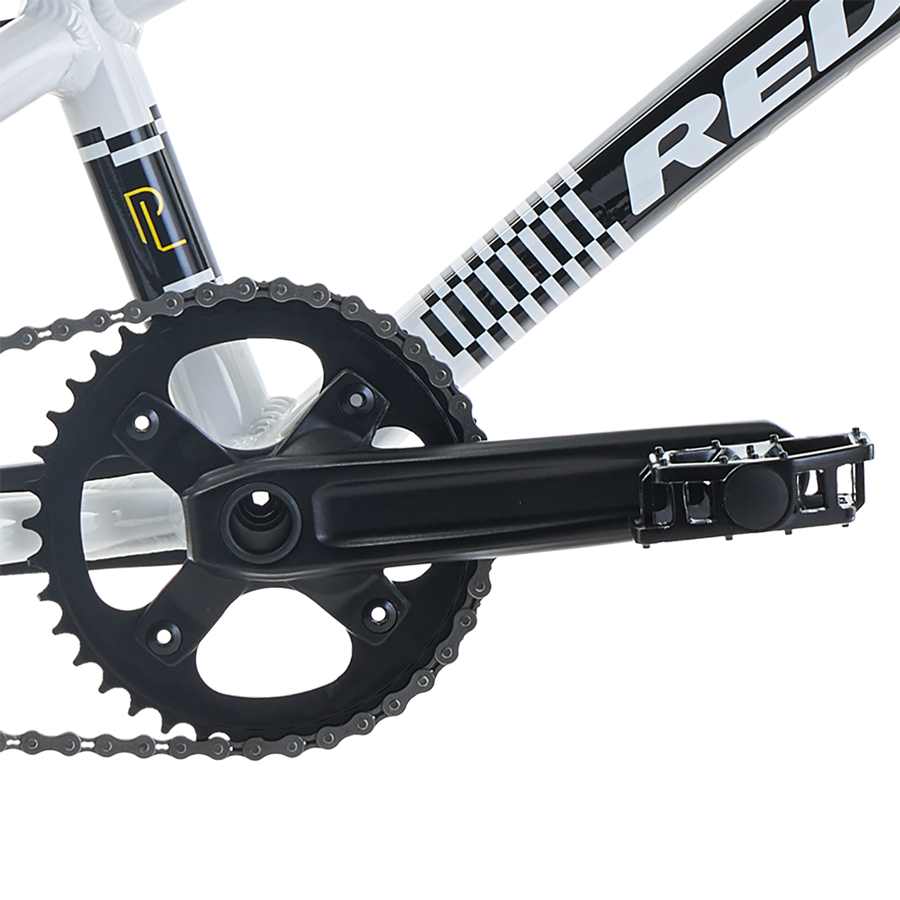

Cranks - Aluminum 2 piece 165mm cranks
Srocket - 39T, alloy, 104 BCD
Bottom Bracket - Sealed Euro BB
Cogset - 14T
Chain - KMC Z6
Front Hub - Redline aluminum fully sealed

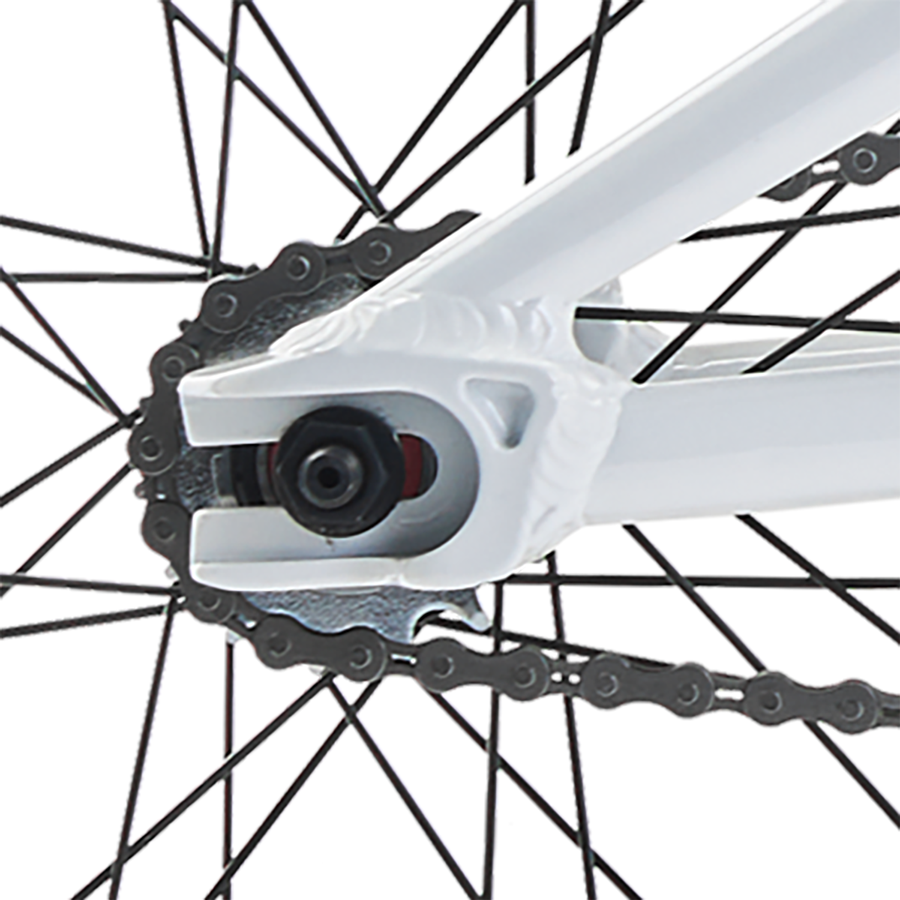

Rear hub - Redline aluminum, cassette, fully sealed
Spokes - Stainless 14g, black
Rims - A-M6 alloy 'Race', 20 X 1.5, 32H
Tyres - Vee 'Speed Booster', 20 X 1.95" front / 20 X 1.75" rear

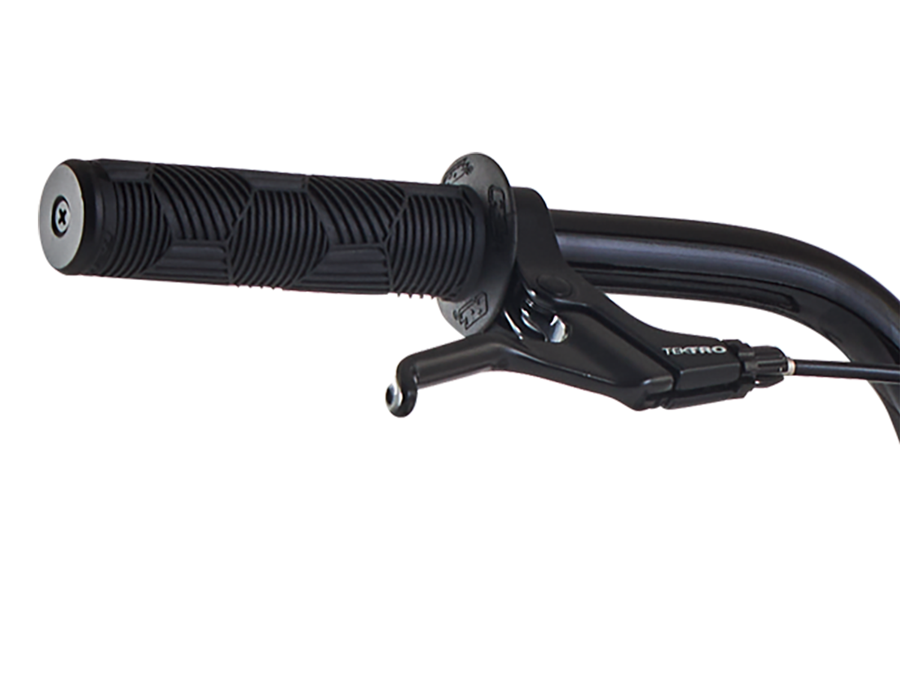

Brake Levers - Tektro '316A' linear
Pedals - Aluminum 9/16" platform

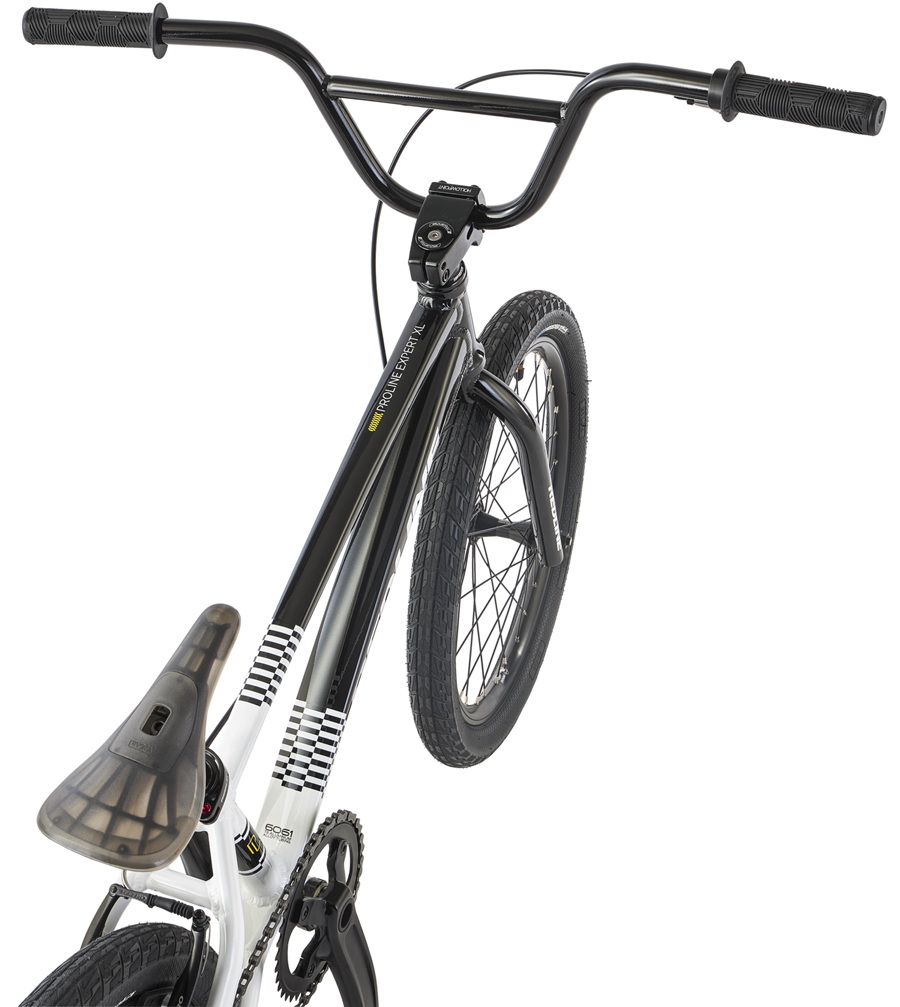

Handlebar - Cr-Mo, 6.5" rise / 12° back / 1° up
Grips- RL 'Pro' hex grips
Stem - RL aluminum hollow point

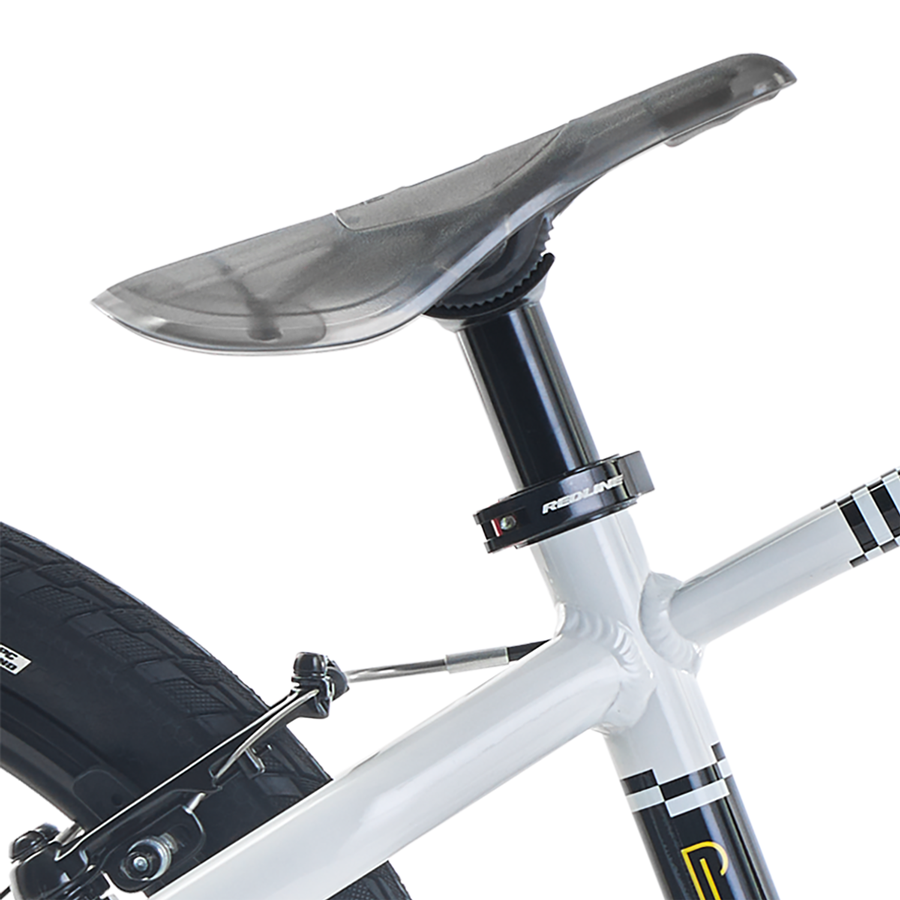

Seat - Pivotal no padding
Seatpost - Aluminum pivotal 26.8mm
Extras - Chain tensioners
Brakes - Tektro '930AL' linear
Geometry
Frame Size - 20"
Bike Top Tube Length - 20.5 "
Bike Head Angle - 73.0 °
Bike Seat Angle - 69.0 °
Bike Chain Stay Length - 13.25 "
Bike Bb Height - 11.2 "
Bike Stem Length - 50.0 mm
Bike Handlebar Width - 26.0 "
Bike Crank Length - 170.0 mm
