S&M THD Street Frame
S&M THD Street Frame
Couldn't load pickup availability

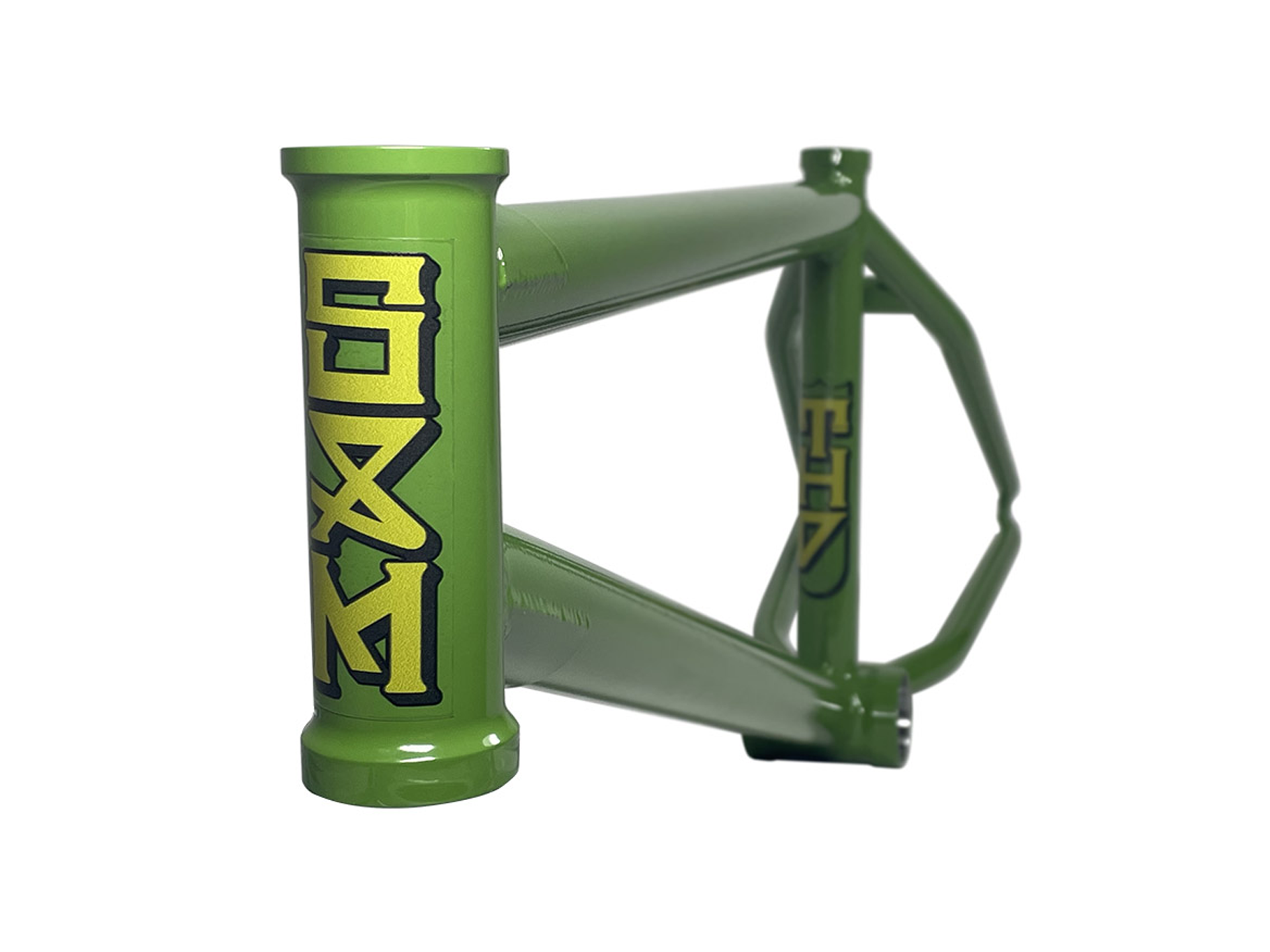

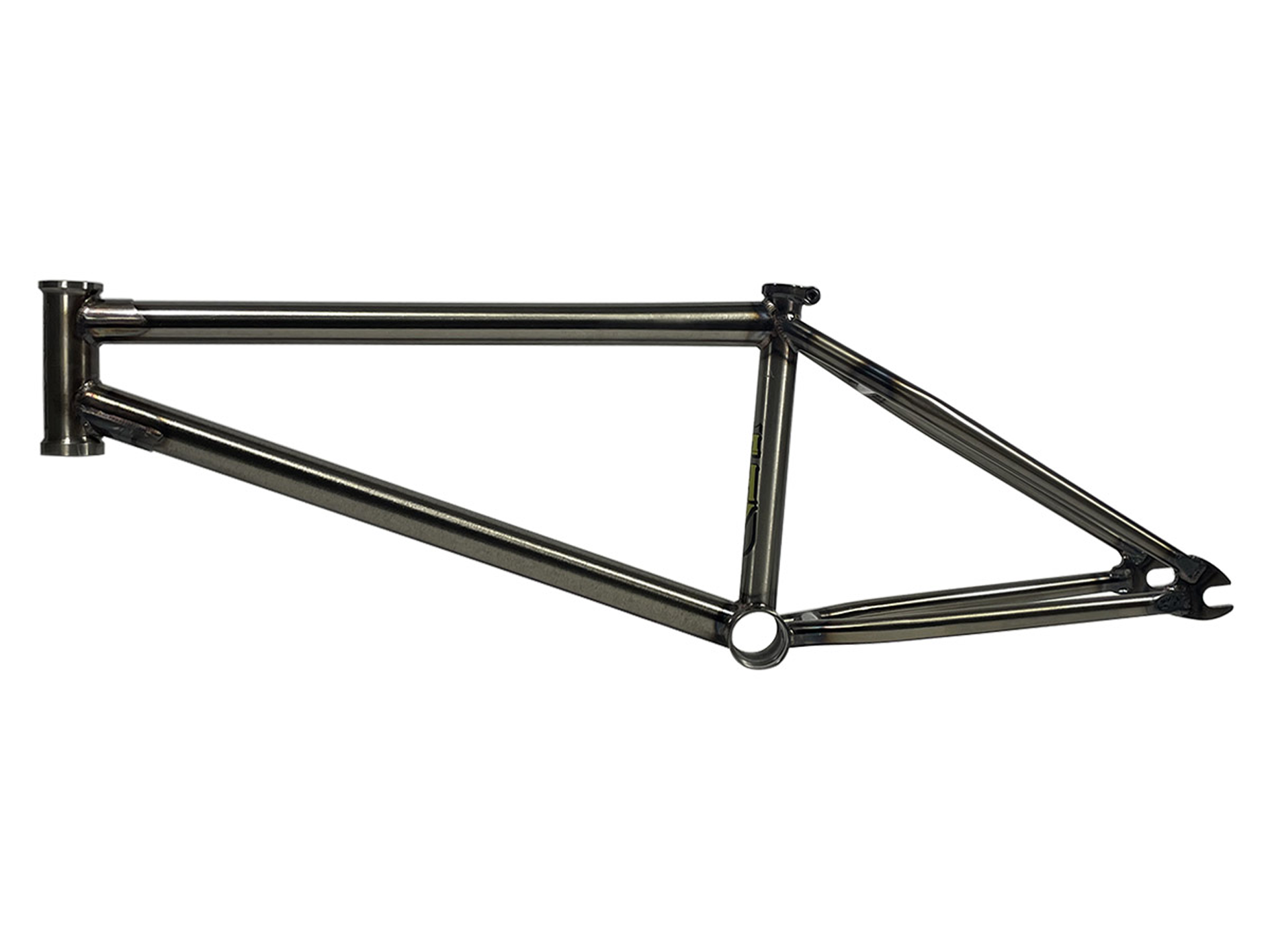

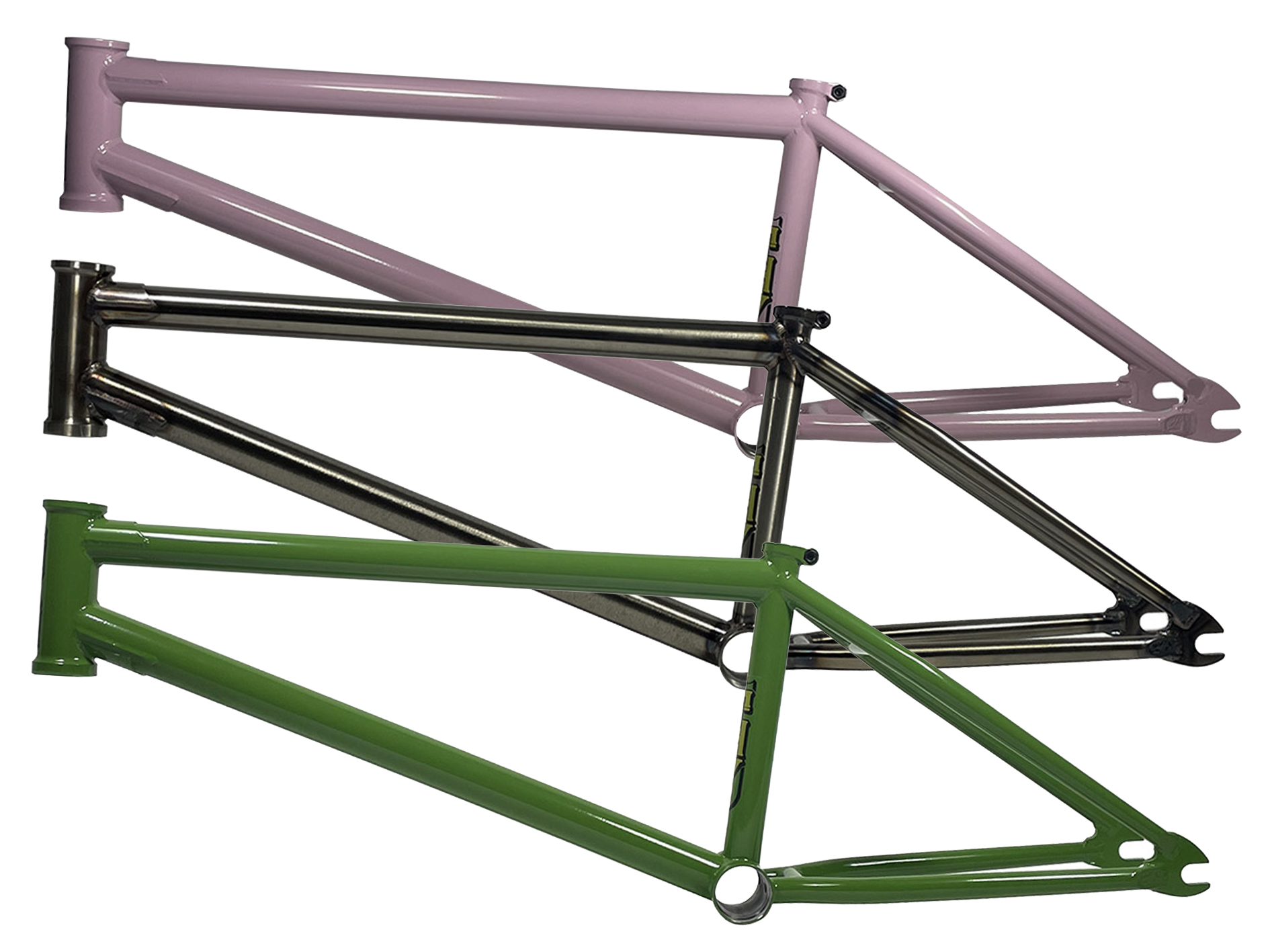

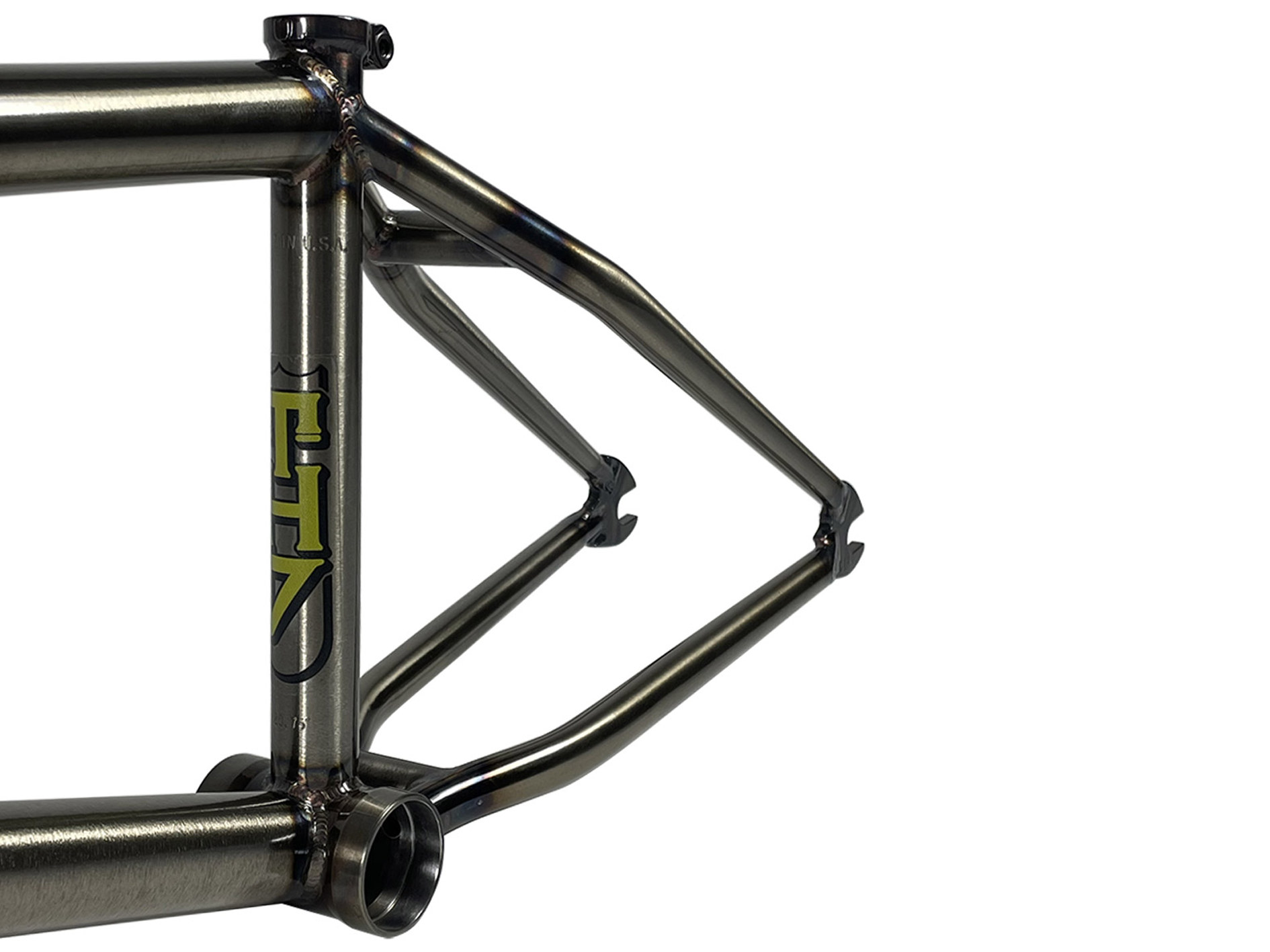

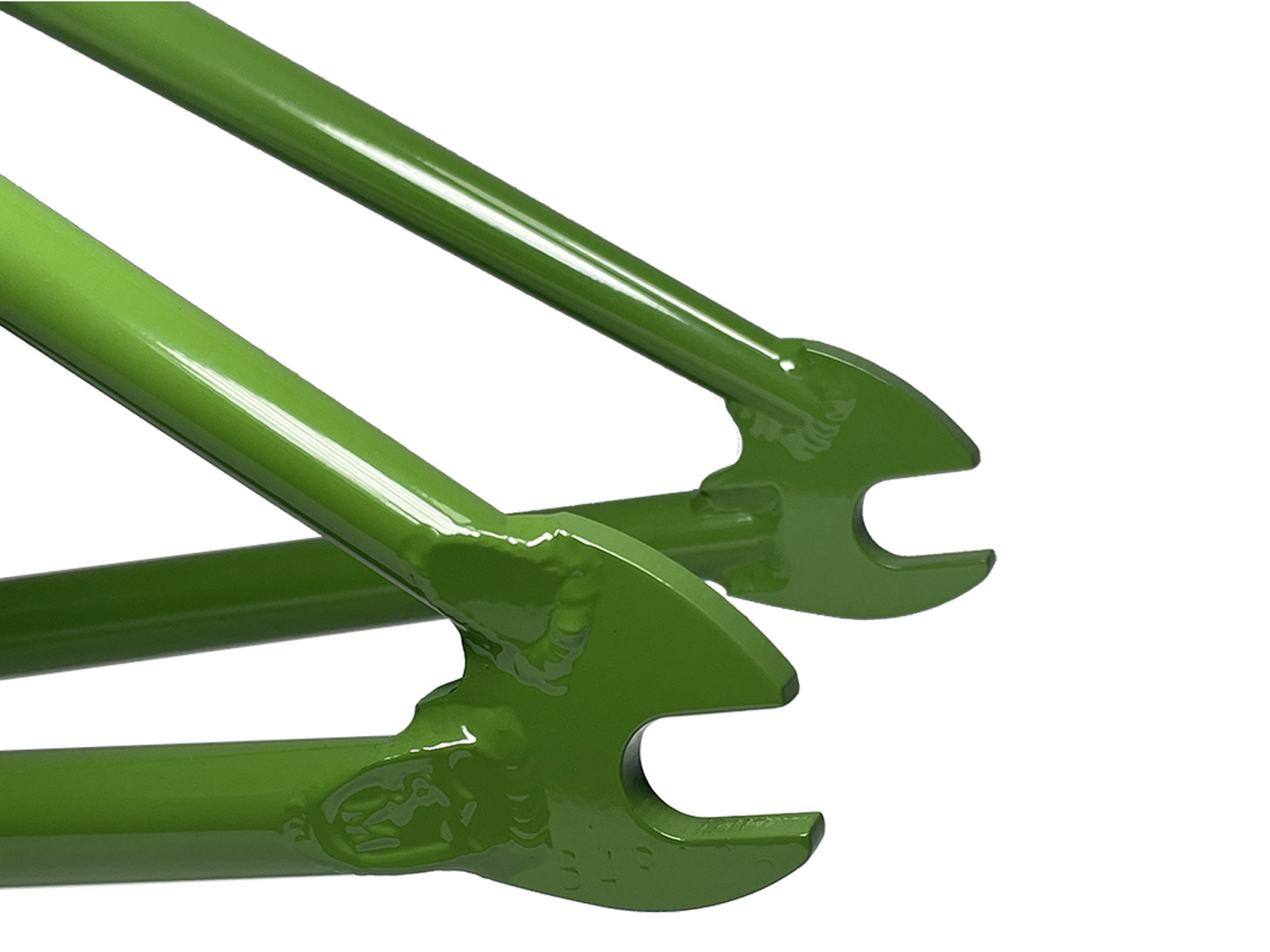

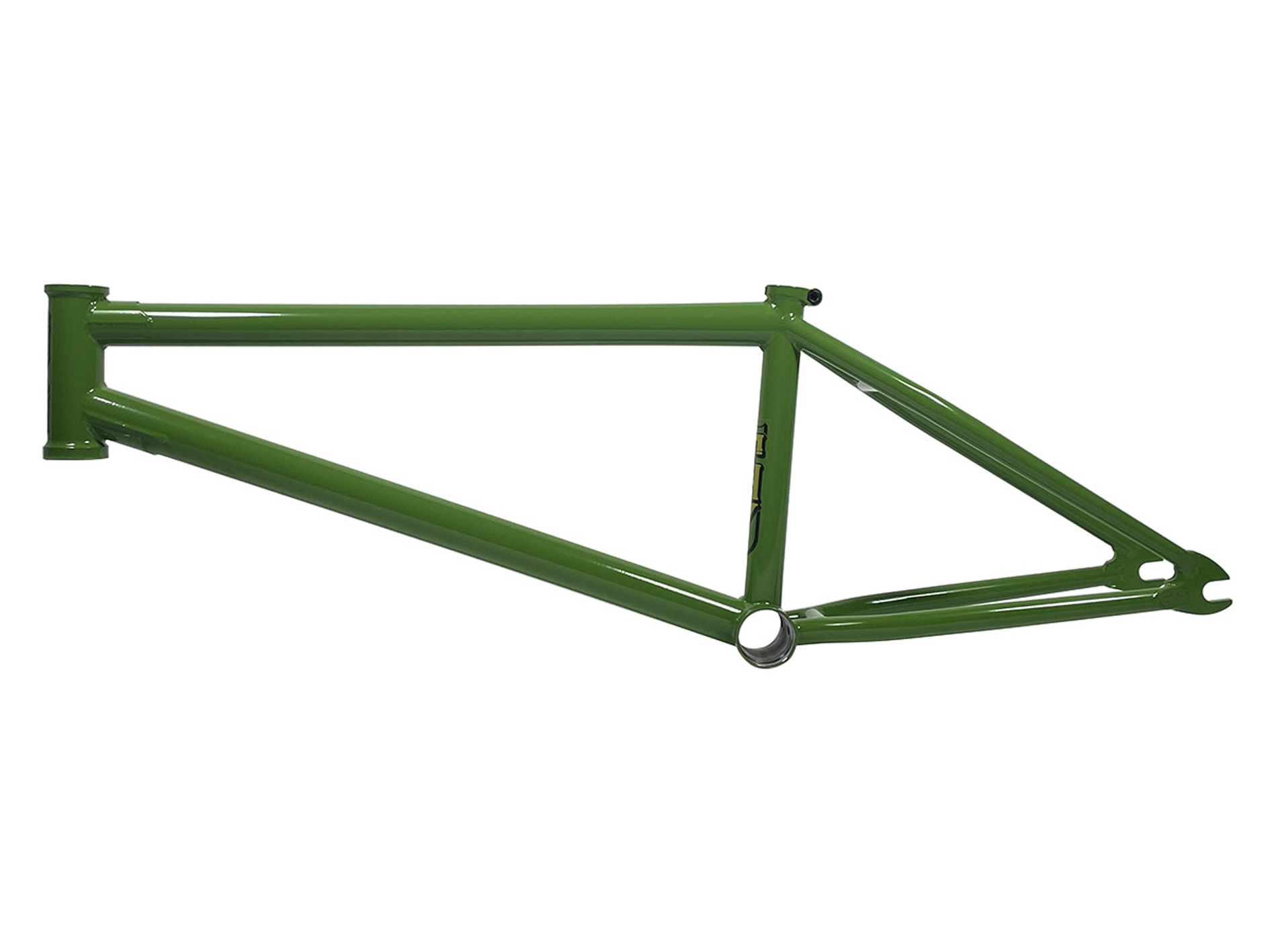

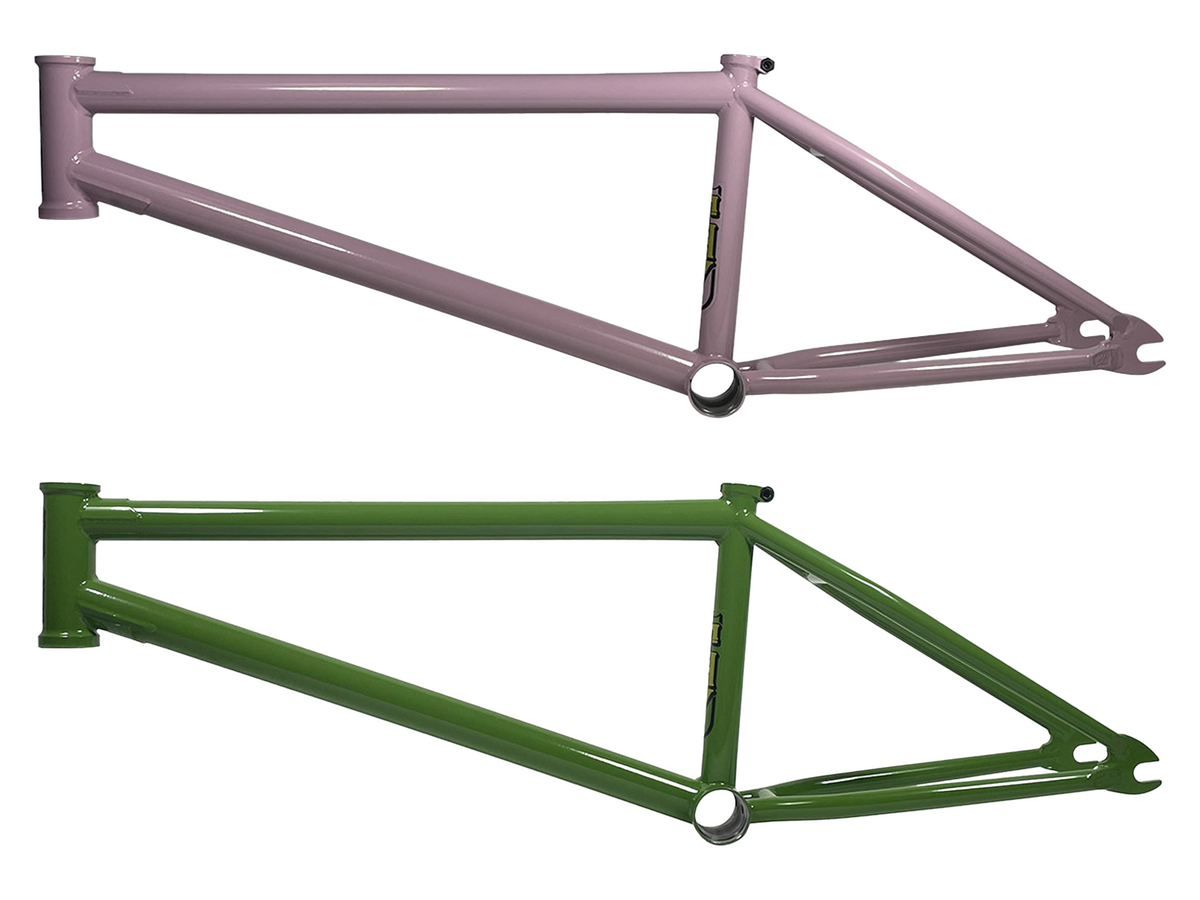

The THD street frame is an updated version of S&M's Holy Diver frame. Originally designed as an all-around frame, it has now evolved into their most street-specific model. It features ¼” thick, compact, heat-treated dropouts and offers exceptional strength and ample peg clearance. The taller head tube reduces the need for extra stem spacers, giving the front end a cleaner, more solid look.

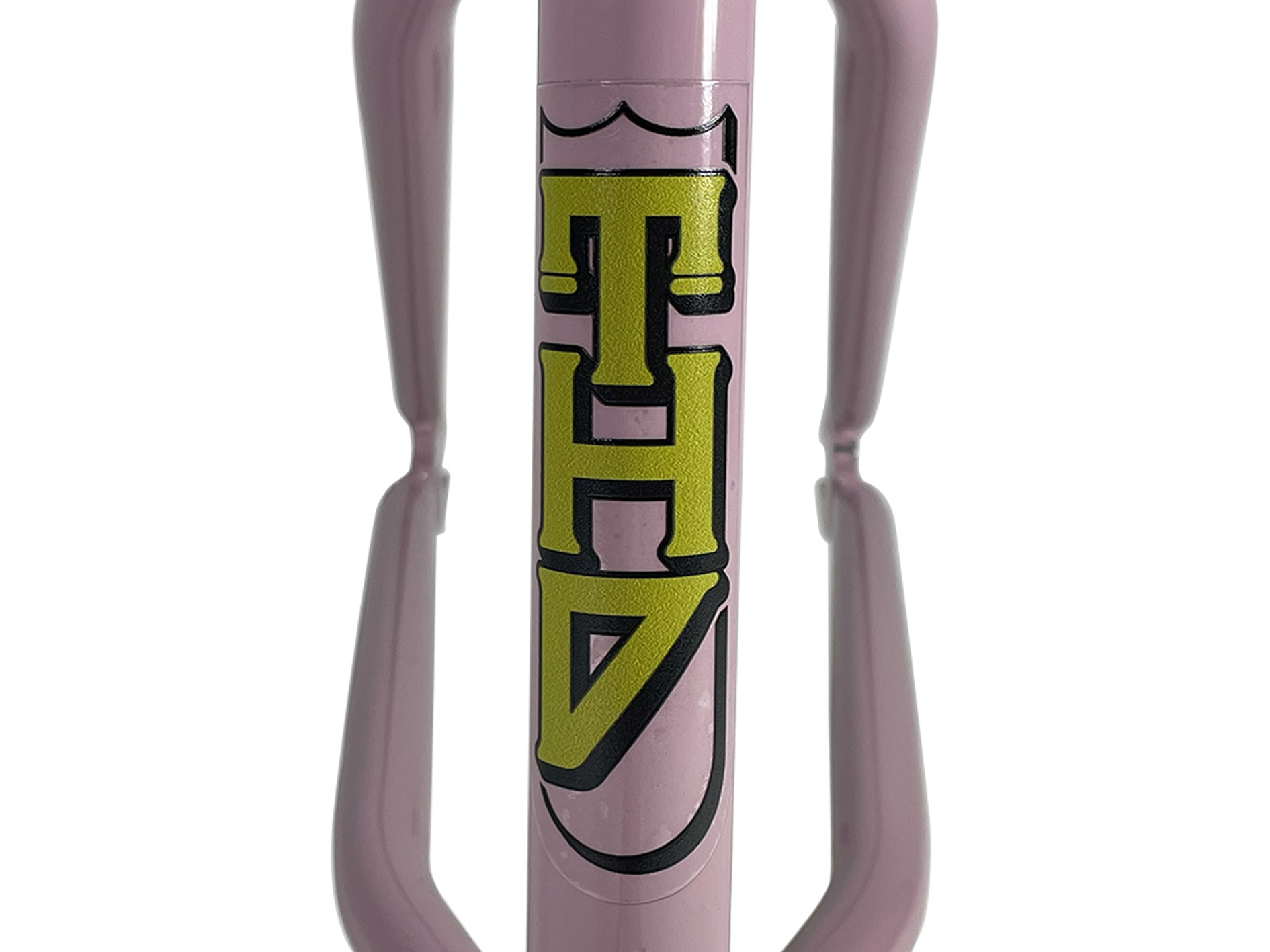

This updated version, known as the THD (or "Tall Hold Diver"), has a 9.25” standover height, which is more proportionate with the taller head tube. They have also spread the top and down tubes apart for added stability. A thicker .049” straight-gauge ThermalX downtube has been added to resist denting, and removed all brake mounts for a sleeker appearance. To top it off, Hoder designed new stickers.
Specifications:
Top Tube Lengths Available: , 20.5″, 20.75″, 21″
Rear End Length: 12.7″-13″
Head Tube Angle: 75.5°
Head Tube Style: 5″ Integrated (45°/45°, 41.8mm)
Seat Tube Angle: 71°
Seat Clamp: Investment Cast
Seat Post Size: 1″ (25.4mm)
BB Height: 11.7″
BB Style: Mid
Standover Height: 9.25″
Brake Mounts: None
Dropouts: 14mm Slot, 4Q-Baked
Weight: 5.1 lb (2.31 kg)
Tubeset: ThermalX (Thicker Downtube)
