SUNDAY 20" Darkwave Authentic (Raiford) Bike
SUNDAY 20" Darkwave Authentic (Raiford) Bike
Couldn't load pickup availability

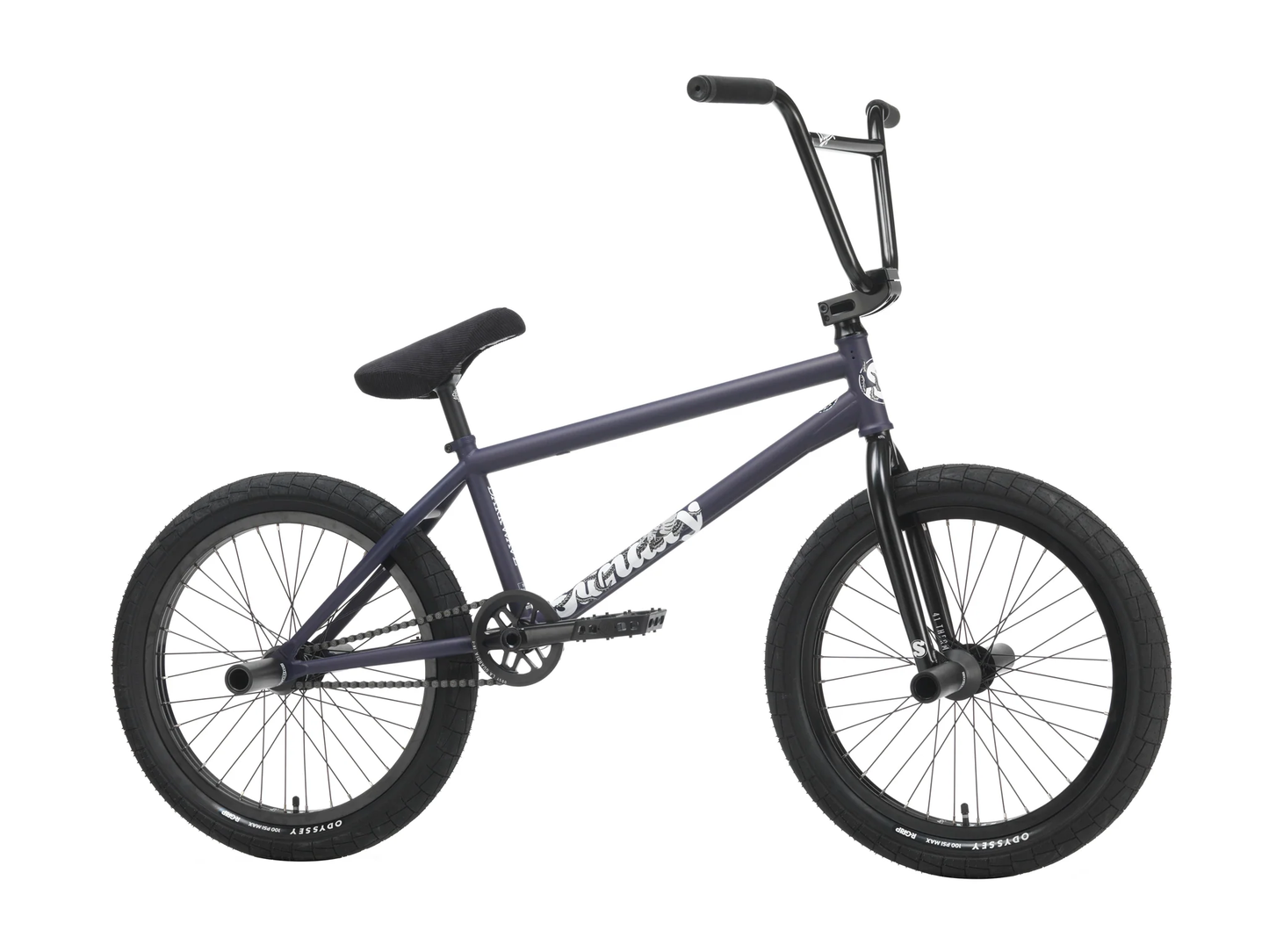

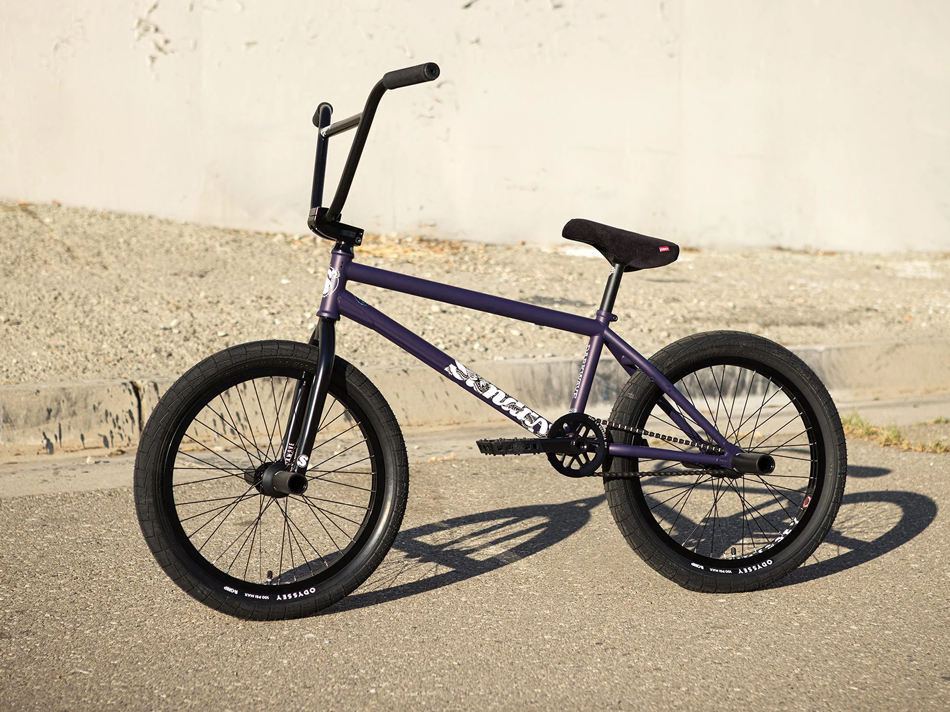

This is the Broc Raiford Darkwave Authentic.
This model is 100% aftermarket parts and exactly what Broc rides, all the way down to his signature Odyssey product.
Features
- 100% aftermarket parts kit
- Lifetime warranty on bars, forks, and cranks
- Sunday Darkwave frame
- Sunday Darkwave 41-thermal forks
- Odyssey BROC 41-thermal bars
- Odyssey Thunderbolt 41-thermal cranks
- Odyssey Broc v2 stem
- Odyssey Clutch v2 freecoaster
- Odyssey Vandero Pro front hub
- Odyssey Hazard lite rims
- Odyssey Broc tyres with R-grip
Specifications

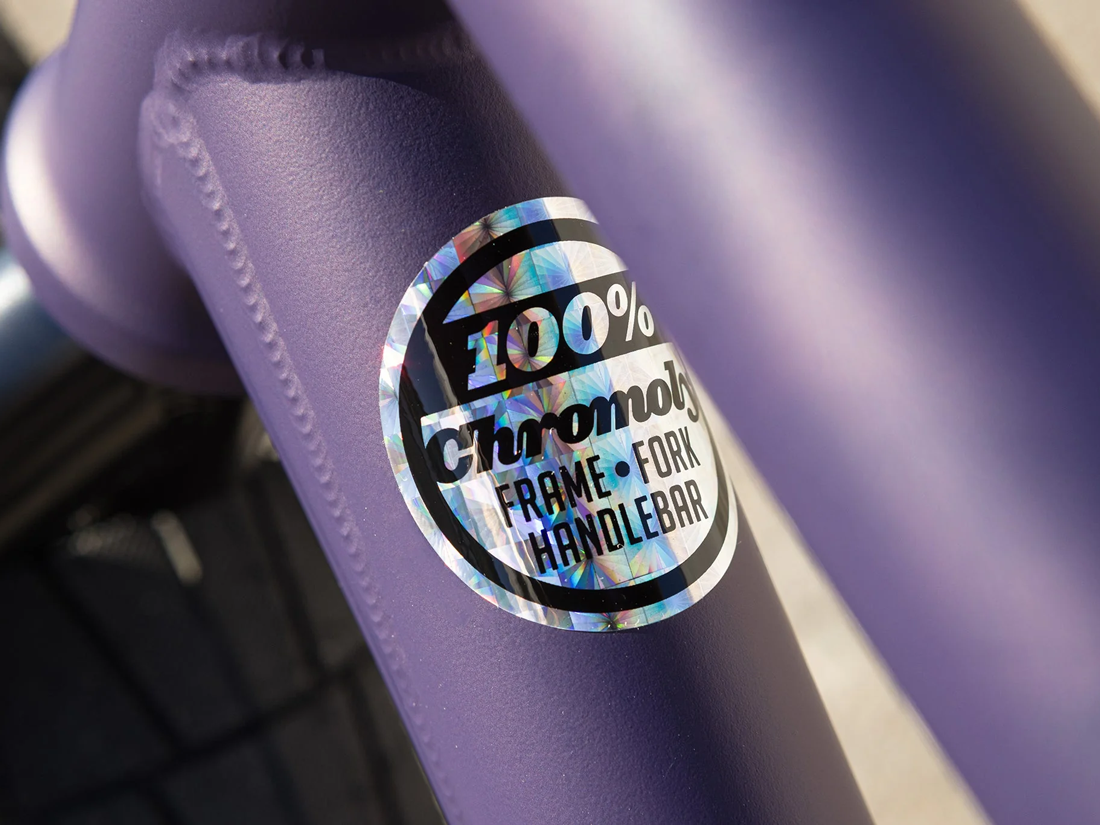

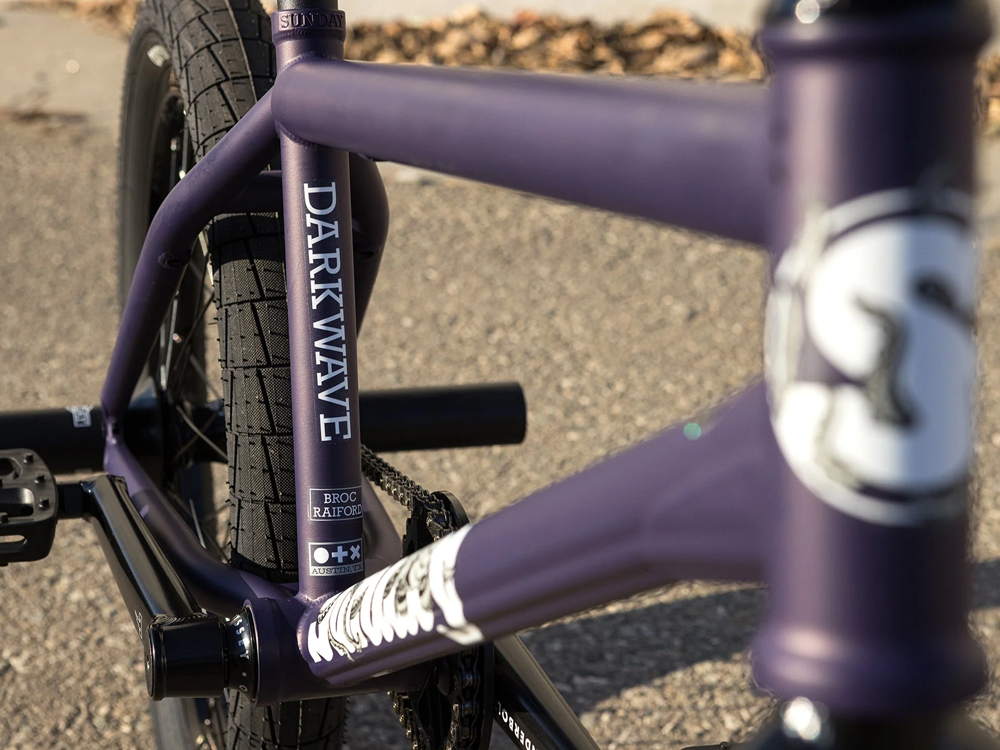

Frame - Sunday 'Darkwave', 21.25" TT, 100% chromoly, aftermarket frame, w/ wave downtube and removable brake hardware
Fork - Sunday 'Darkwave', 100% chromoly, 41-Thermal, aftermarket fork, 28mm offset

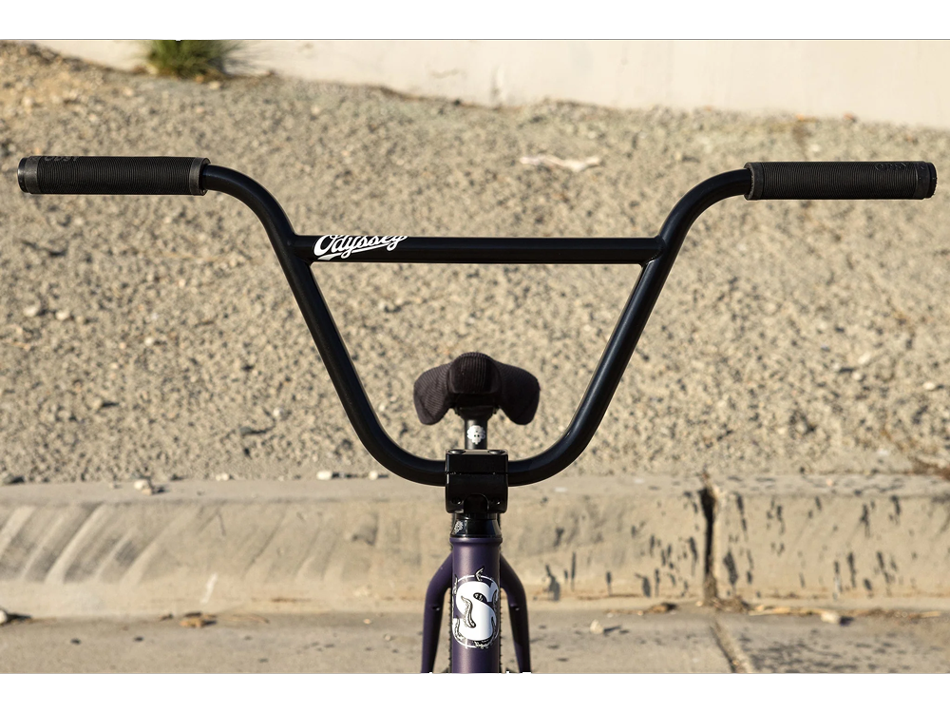

Handlebar - Odyssey 'BROC' Bar, 41-Thermal, aftermarket bar

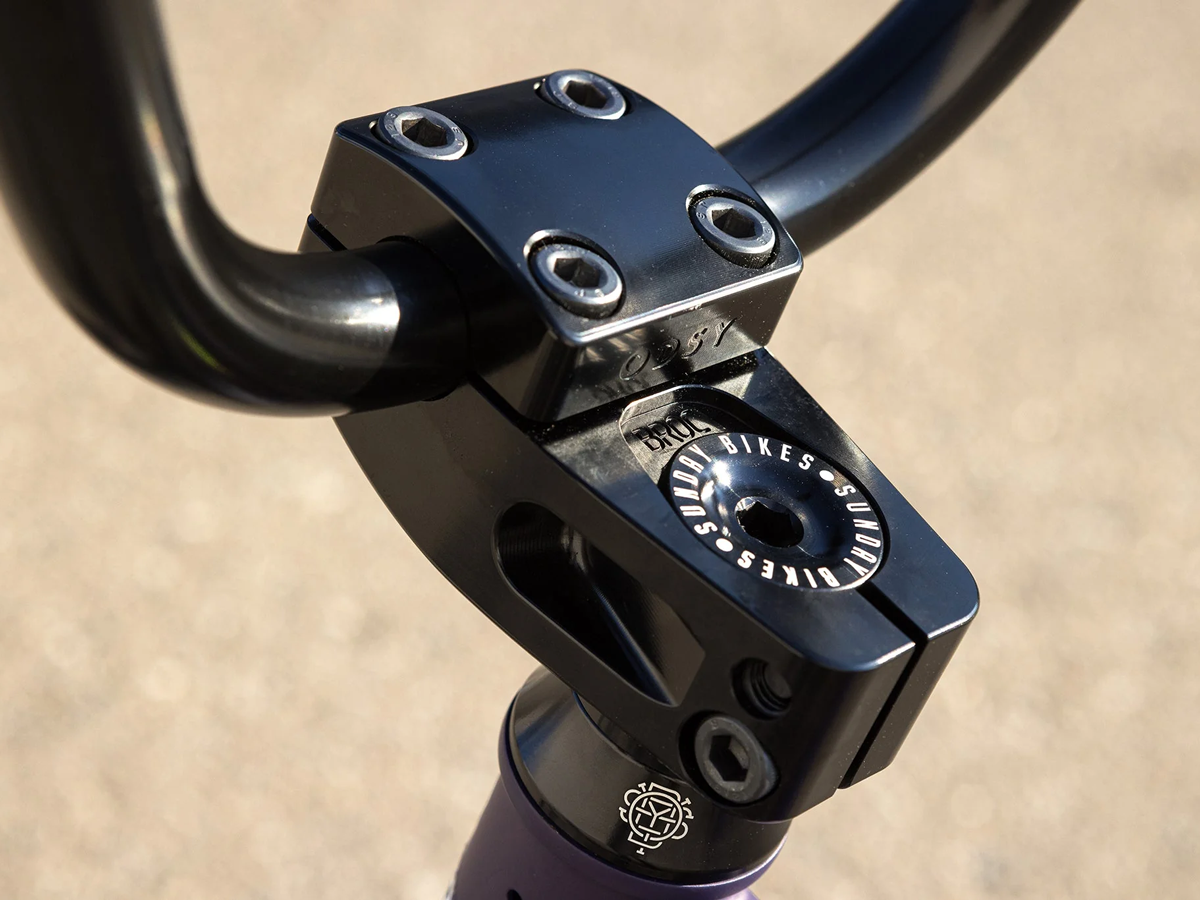

Stem - Odyssey 'BROC V2' Stem, 50mm

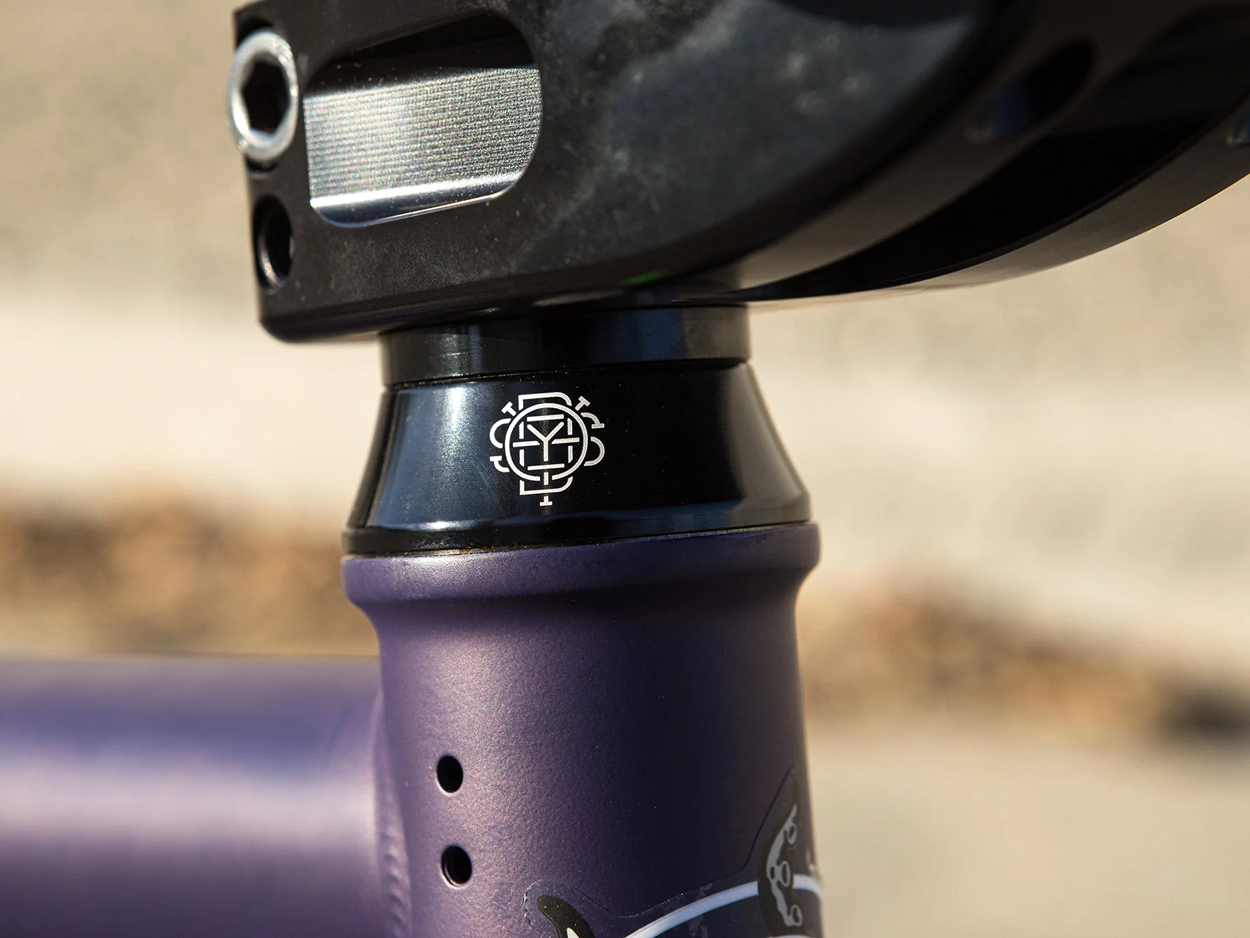

Headset - Odyssey 'Pro' Conical, 1-1/8"
Headset Cap - Sunday aftermarket, aluminum
Brake Lever - Odyssey 'Springfield'
Brakes - Odyssey 'Springfield' U-brake
Brake Cable - Odyssey Linear 'Quik Slic'

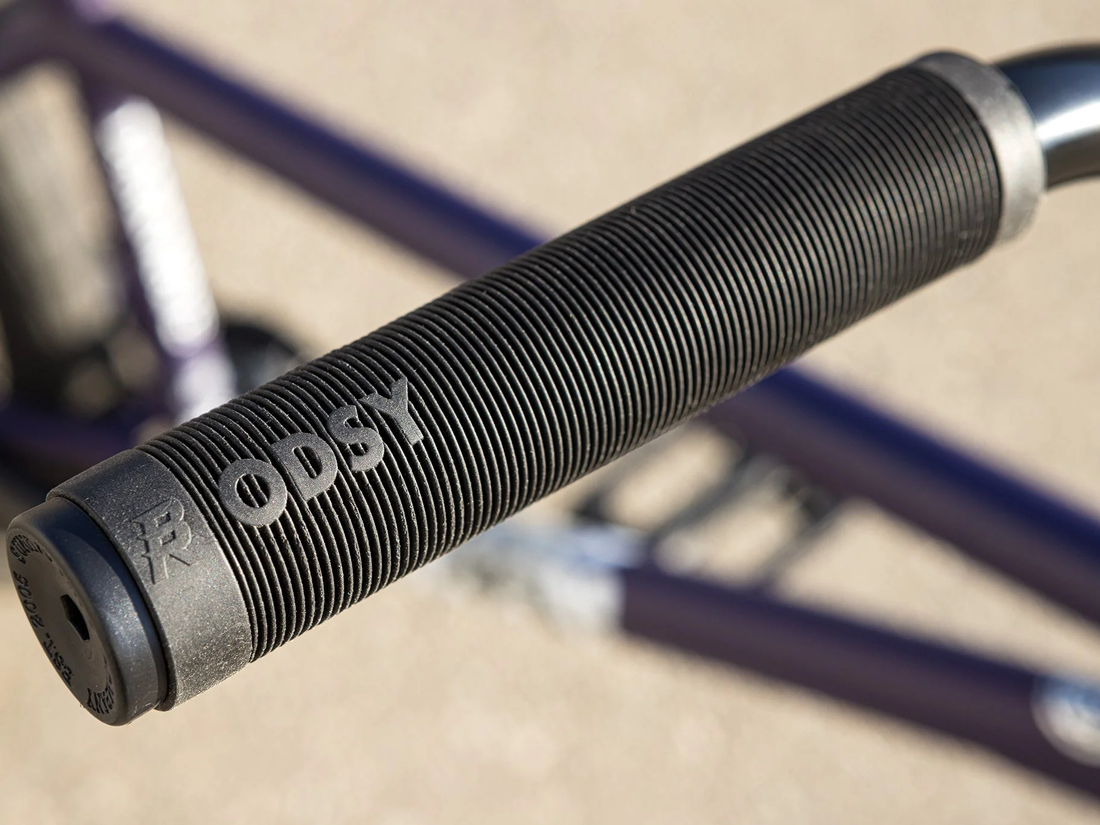

Grips - Odyssey 'Broc Raiford'

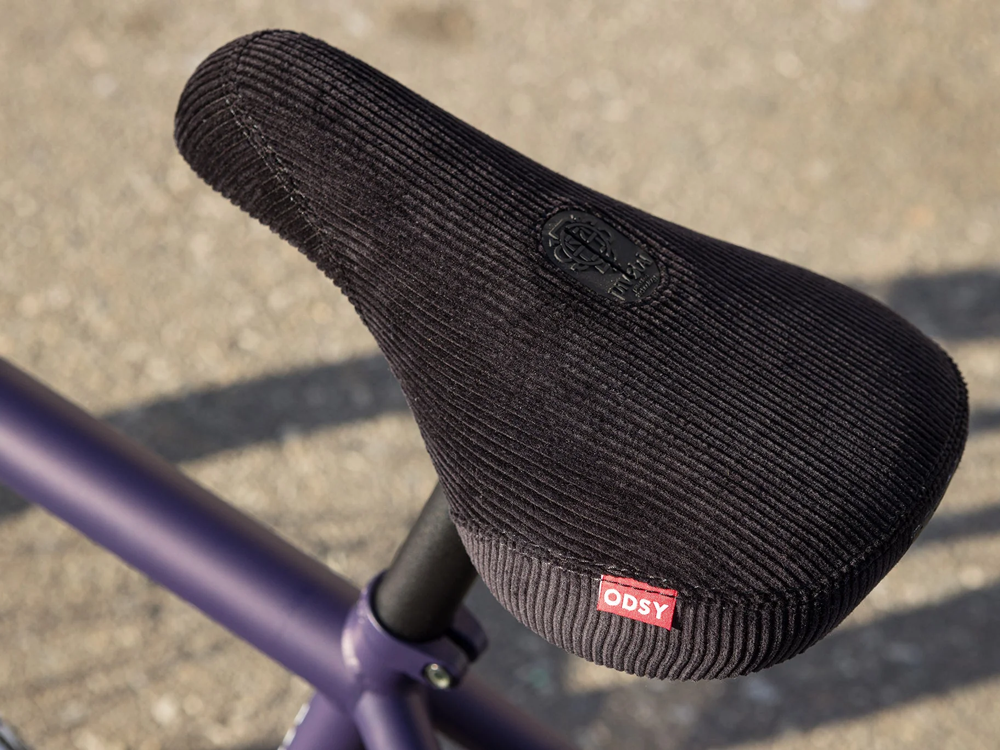

Seat - Odyssey 'Broc Raiford Signature', pivotal
Seat Alternate - Odyssey 'Big Stitch', pivotal
Seat post - Odyssey pivotal
Seat Clamp - Integrated

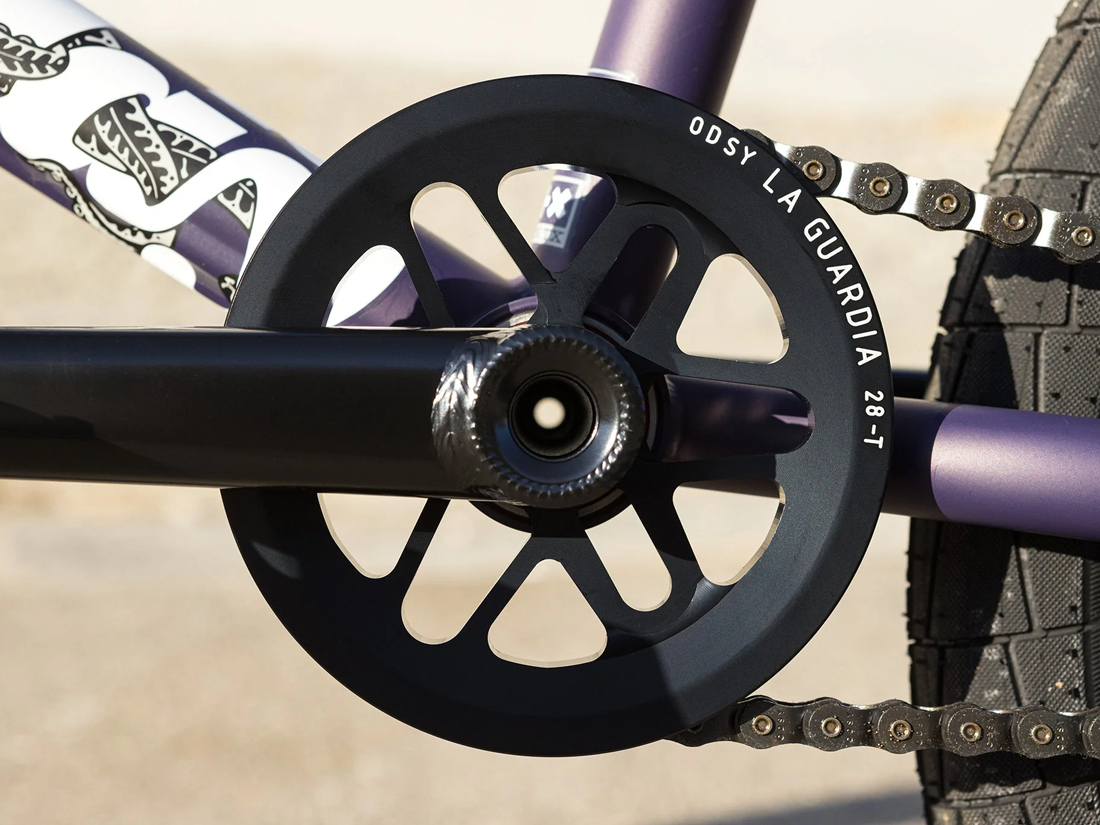

Sprocket - Odyssey 'La Guardia' sprocket, 28T
Cranks - Odyssey 'Thunderbolt', 170mm, 100% Cr-Mo, 41-thermal,
BB Parts - Odyssey sealed, mid, 22mm

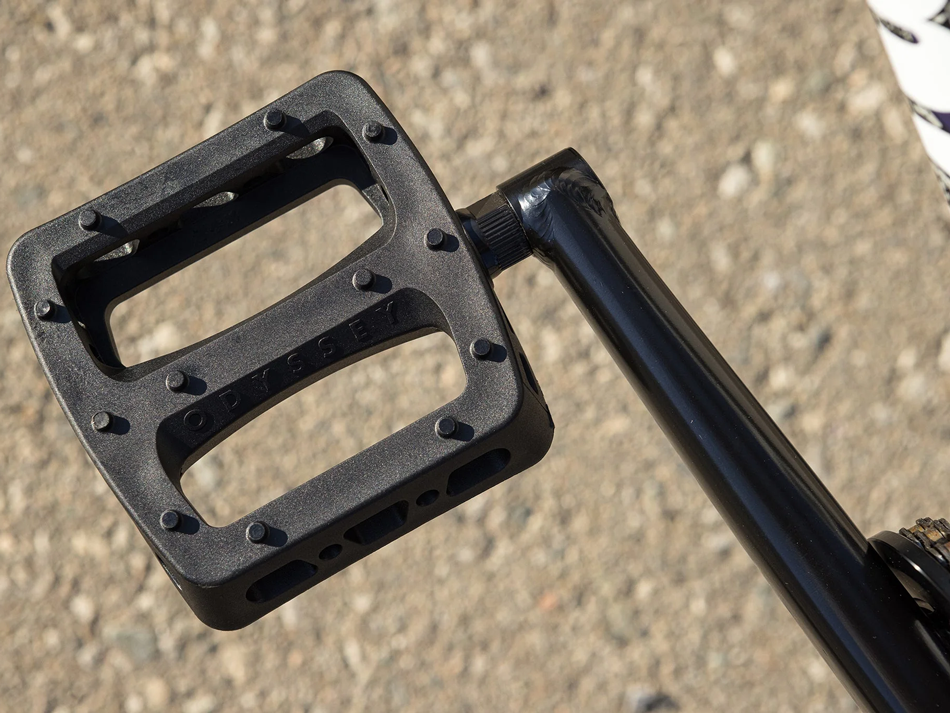

Pedals - Odyssey 'Twisted PC' Pro
Rims - Odyssey 'Hazard lite', 20", 36H
Front Hub - Odyssey 'Vandero Pro', 36H, sealed, 3/8" female axle, 2 plastic guards

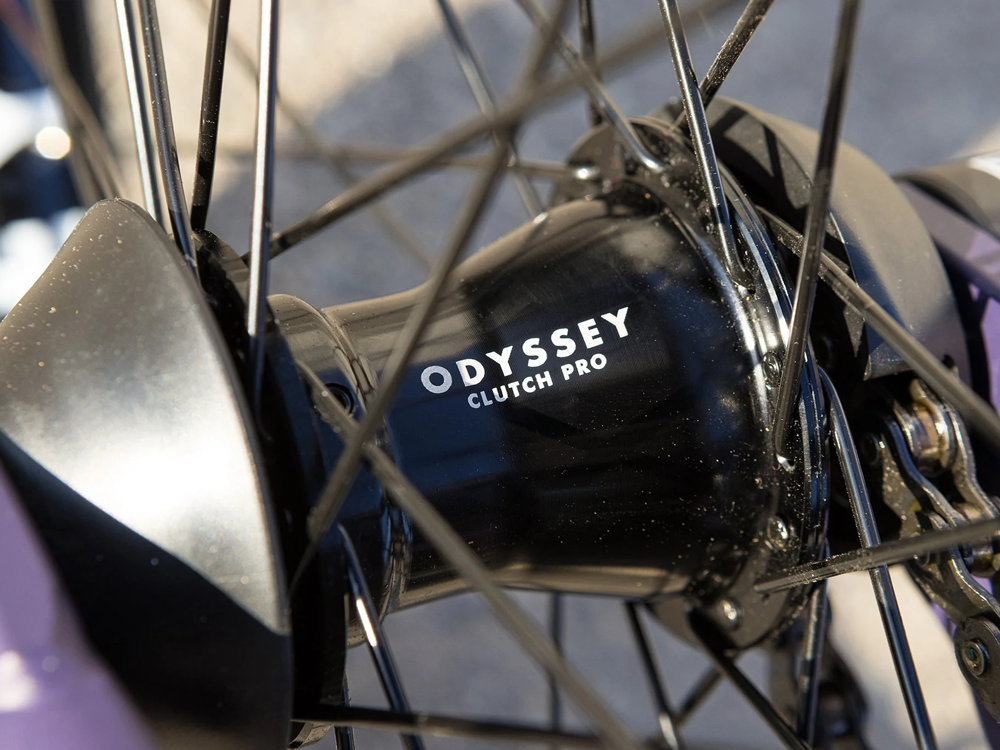

Rear Hub - Odyssey 'Clutch V2' freecoaster, 36H, 14mm female axle w/ 9T driver, non-drive side plastic guard
Spokes - 14g steel, black

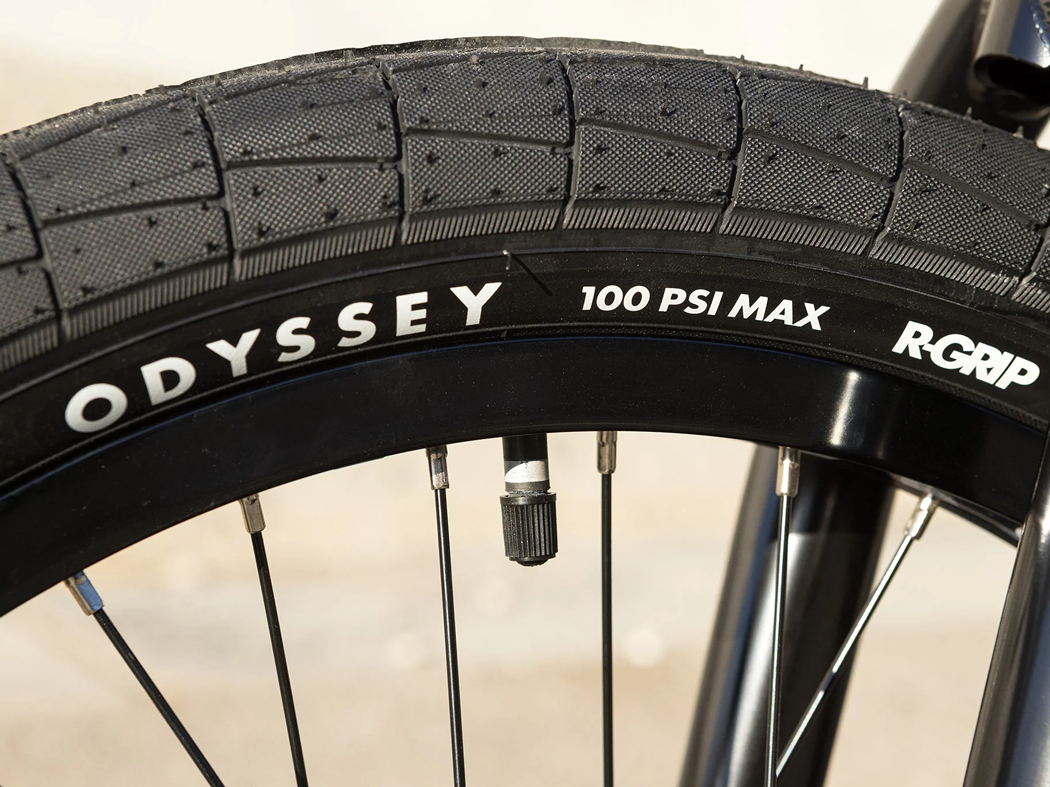

Tyres - Odyssey 'Broc' tyre, 20 x 2.4" (F & R)
Chain - Odyssey 'Bluebird' half-link
Pegs - Sunday 'Seeley' peg 4.75" (x4)
Approx. Weight - 24.97lbs (brakeless)
Frame Geometry
Top Tube Length - 21.25"
Head Tube Angle - 75.25°
Seat Tube Angle - 71°
Chainstay Length - 13.25"-13.5”
Bottom Bracket Height - 11.75"
Standover - 9.25”
Handlebar Geometry
Rise - 9.8"
Width - 29"
Backsweep - 10°
Upsweep - 2°
