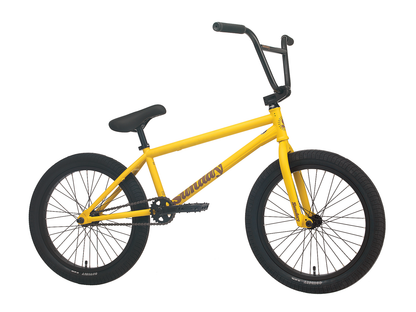

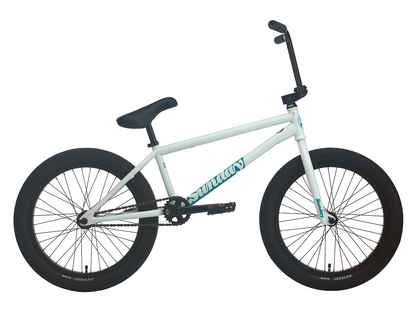

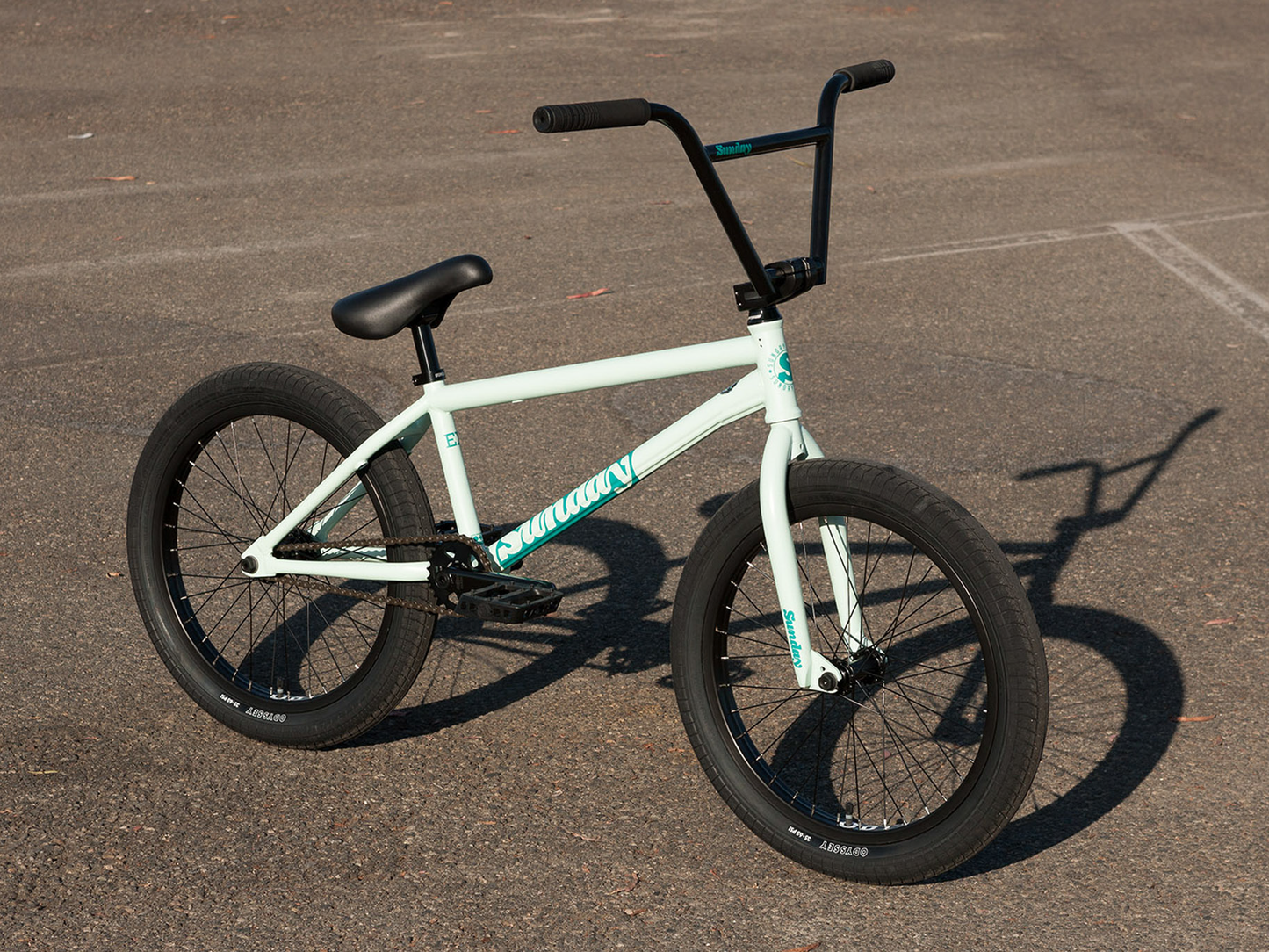

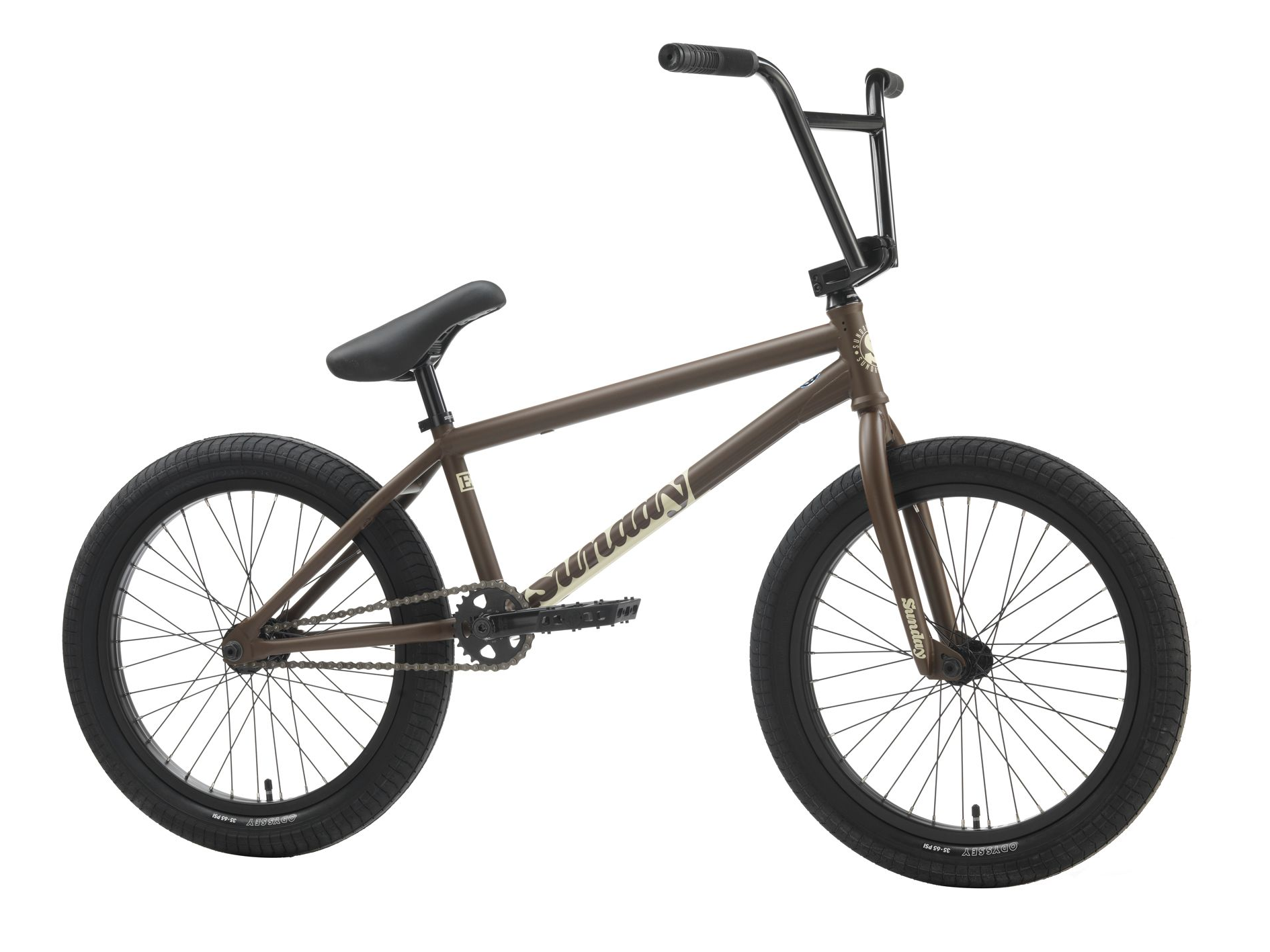

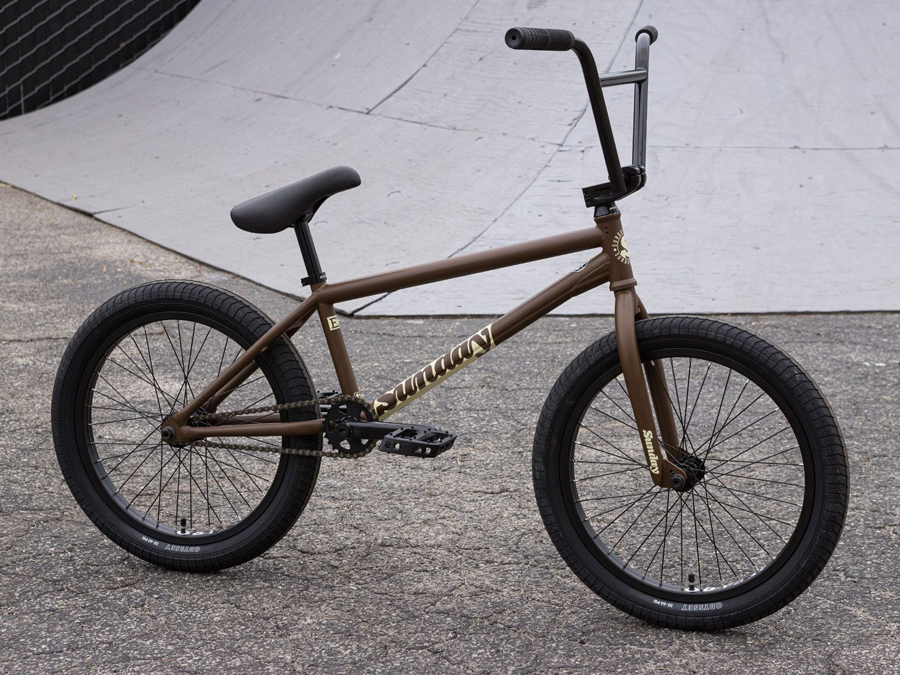

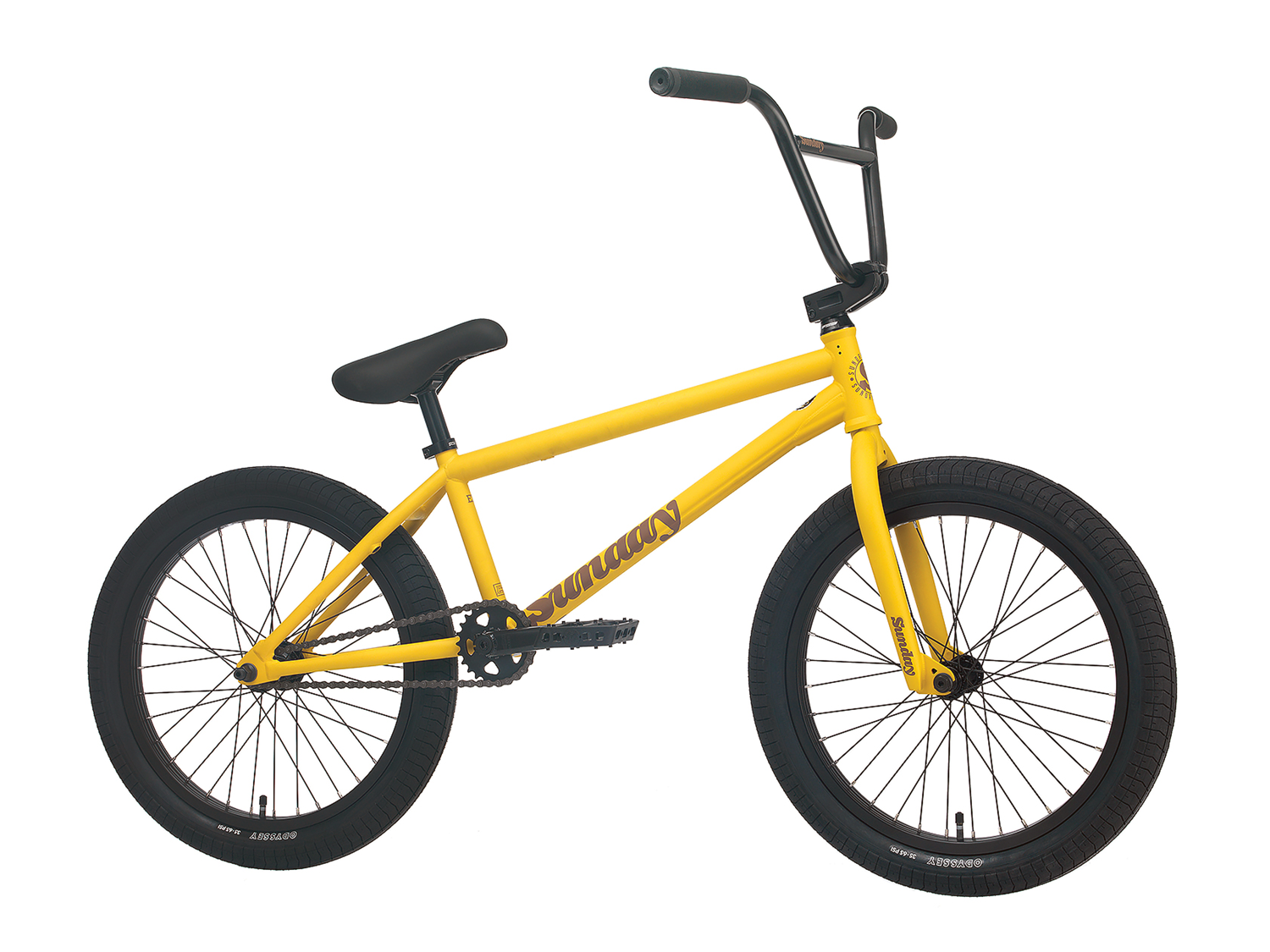

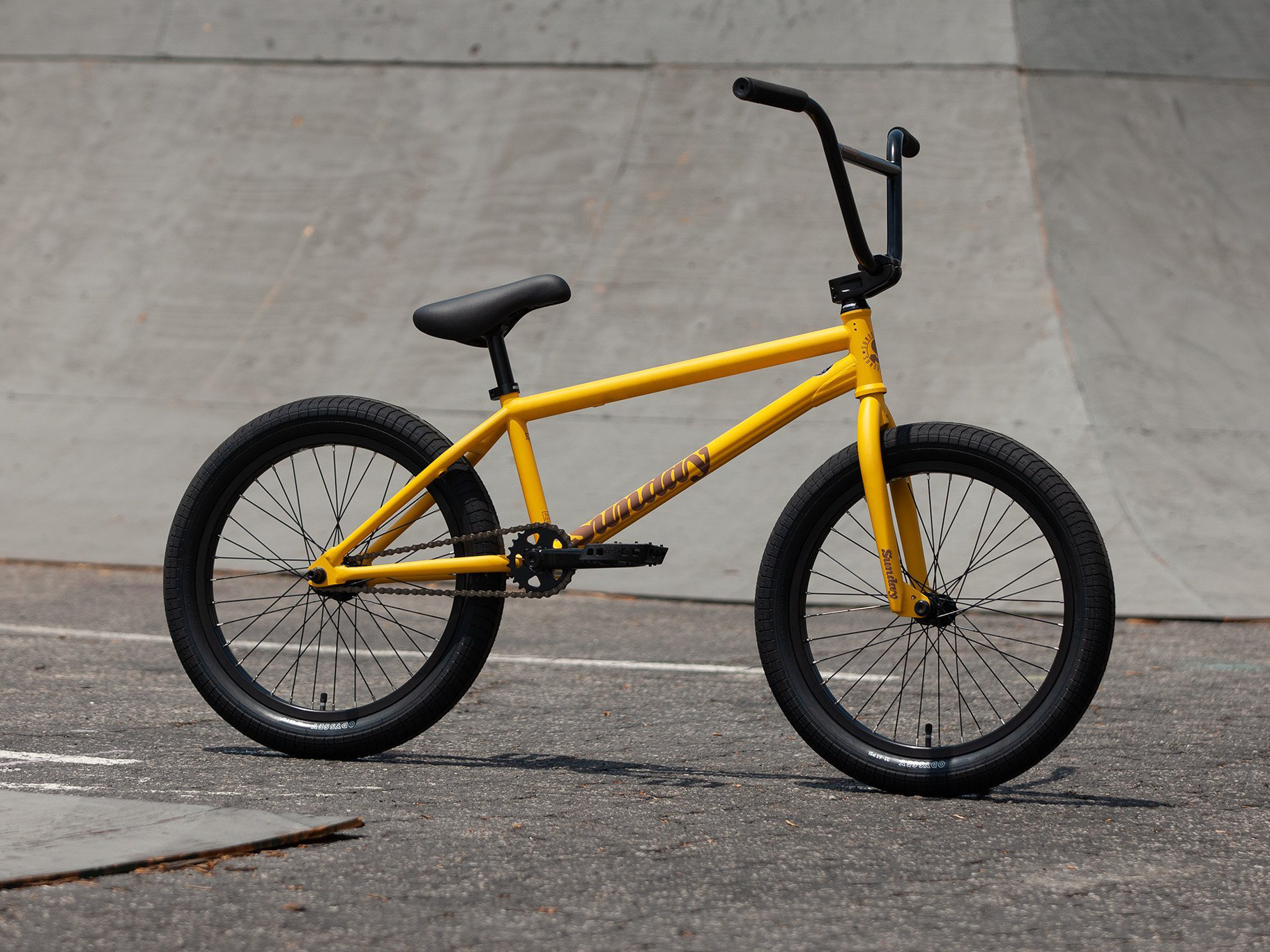

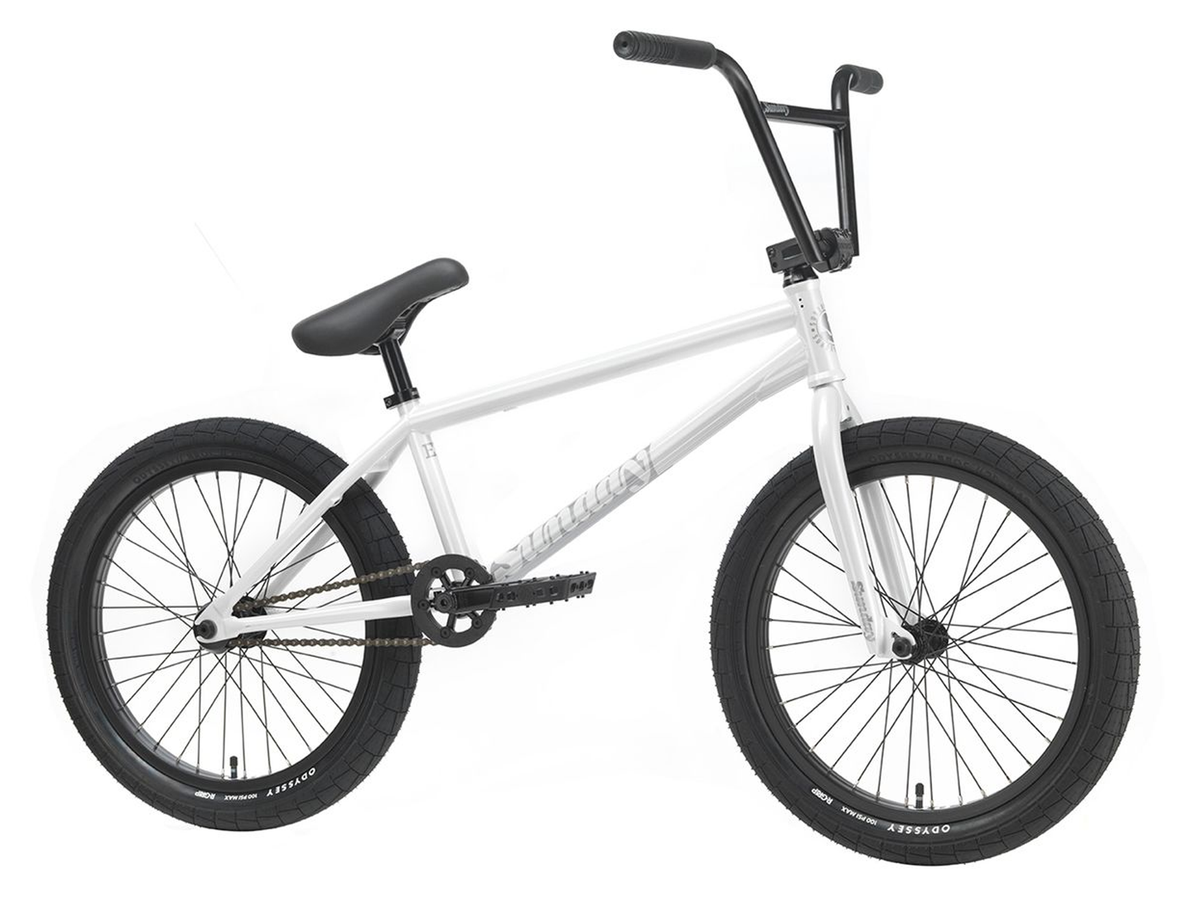

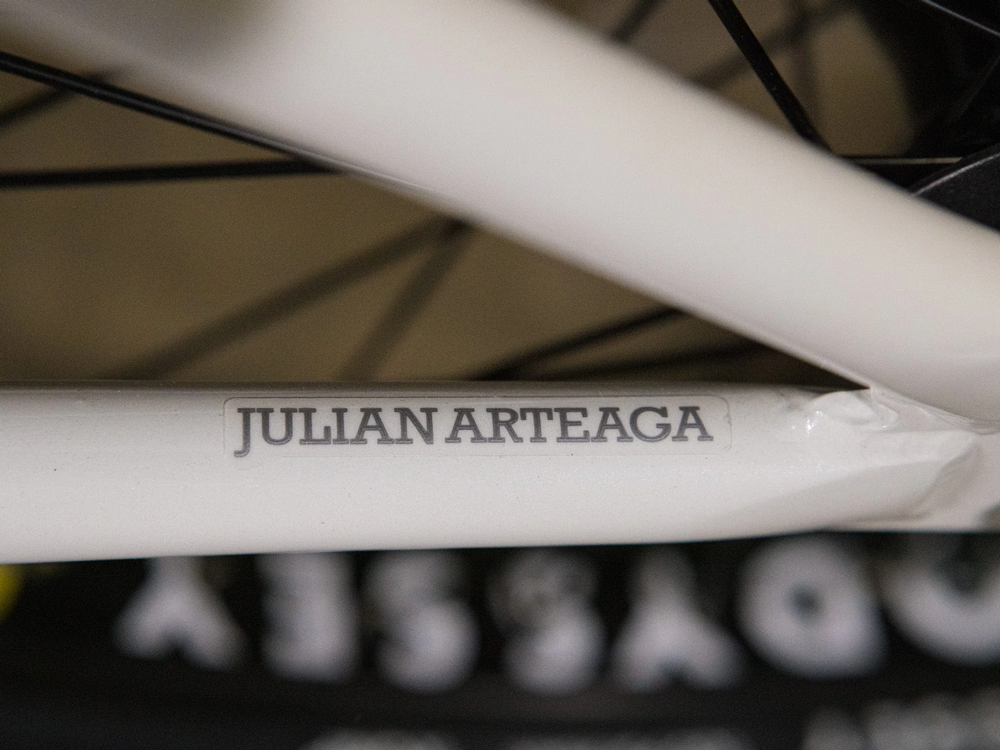

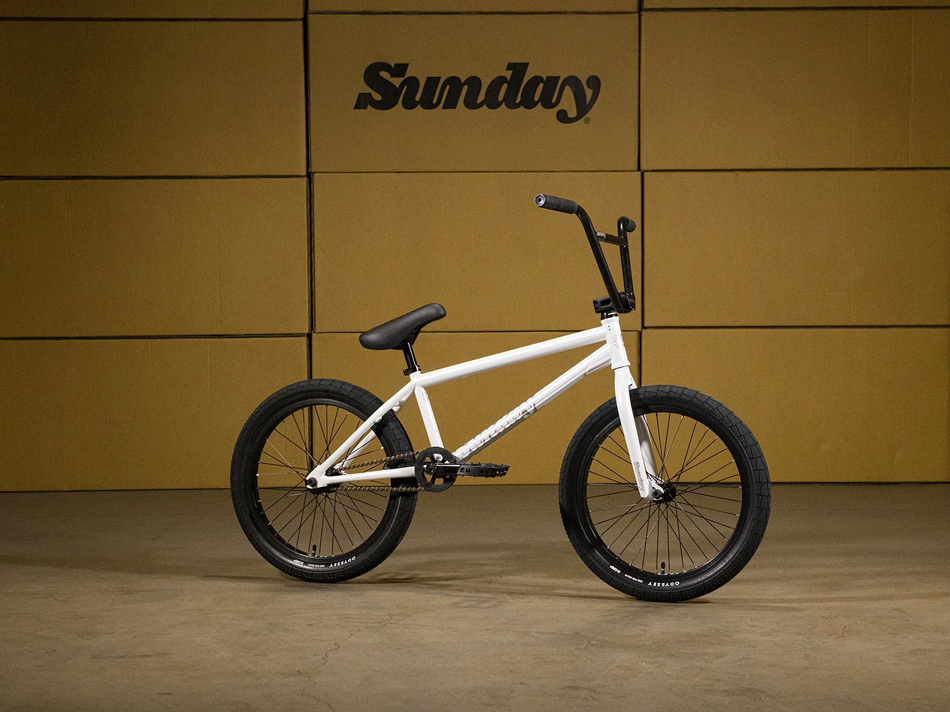

SUNDAY 20" EX (Julian Arteaga) Bike
SUNDAY 20" EX (Julian Arteaga) Bike
Couldn't load pickup availability

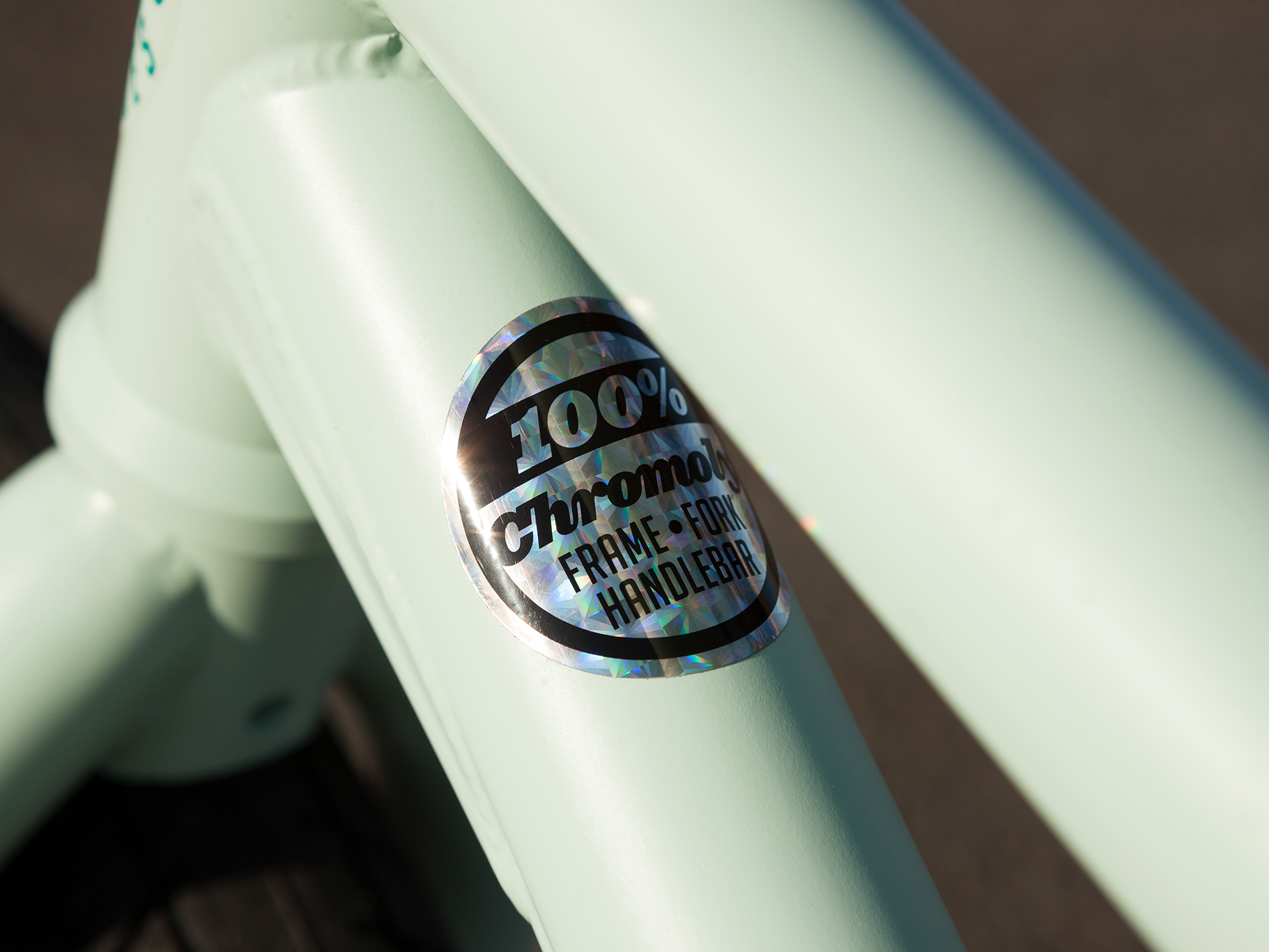

With a 100% chromoly frame, fork, and bars, the EX is a bike that is difficult to match.
Erik Elstran’s signature model pushes the envelope with a tough, pro-level, Odyssey/Sunday parts package and frame design upgrades like the EX’s removable braking hardware mean business, even when your approach to riding is all about having fun - just like Erik’s.
Follow @erikelstran.
Features

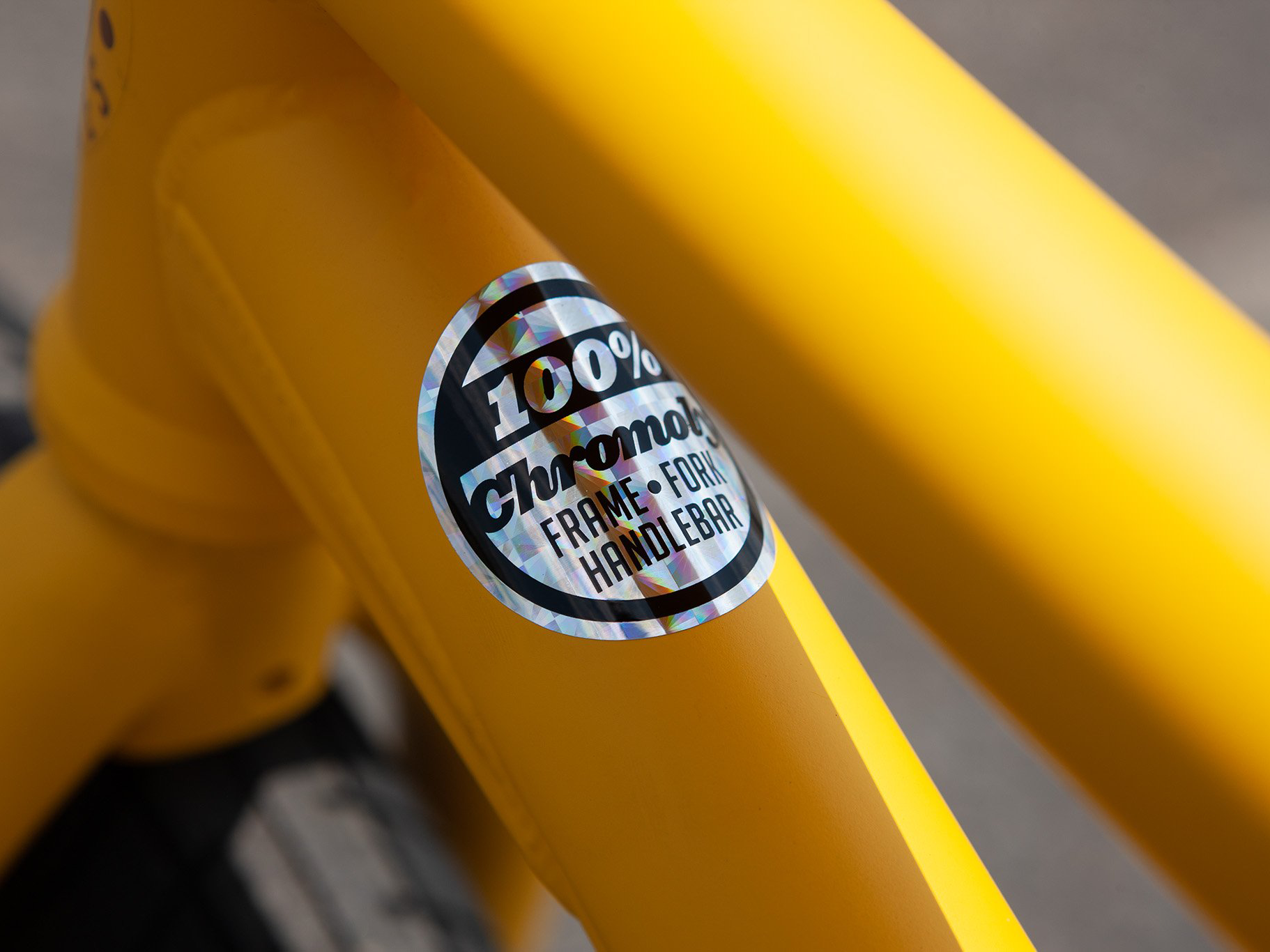

- 100% Chromoly Frame, Fork, and 4-piece Bars

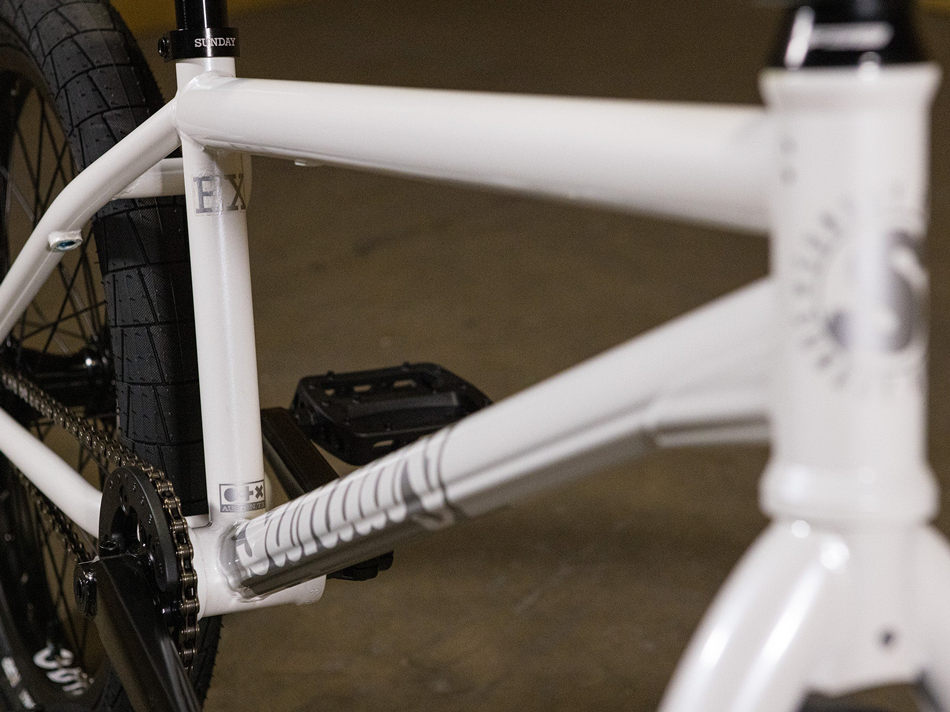

- Sunday Signature Wave Down Tube
- Sunday Seeley Signature Grips
- FSA Conical Headset
- Sunday Sabretooth v2 25t Sprocket

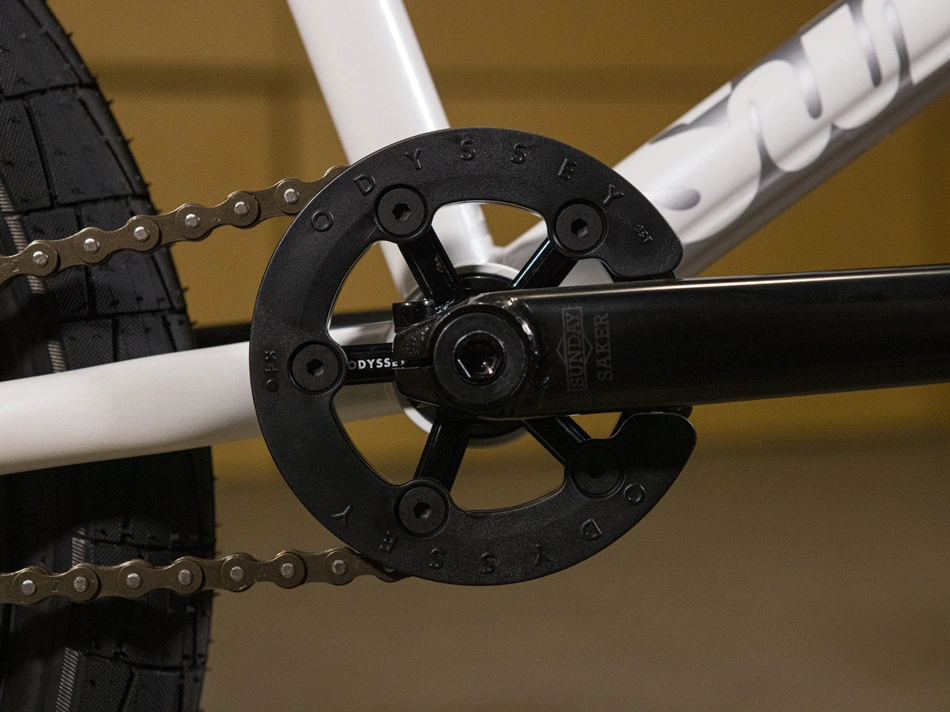

- Sunday Saker 3-PC Cranks, 165mm
- Odyssey Path Pro OEM 2.40" Tyres

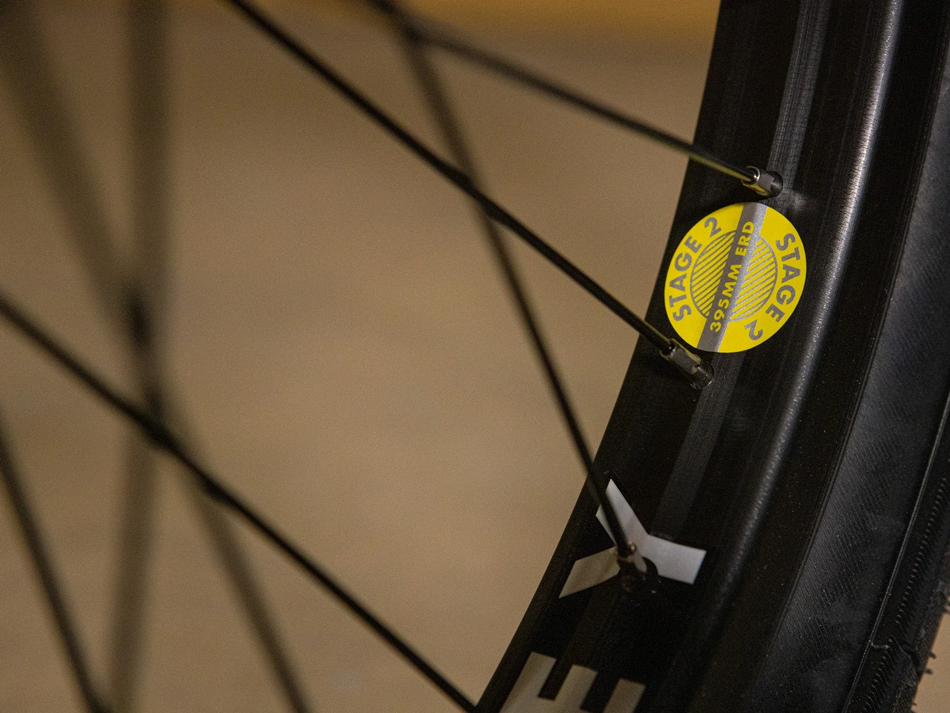

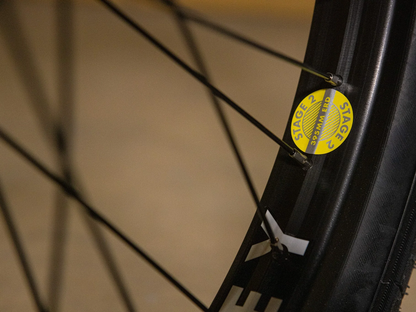

- Odyssey Stage 2 Rims
- Odyssey C5 Cassette Hub
- Sealed Front and Rear Hubs
Specifications

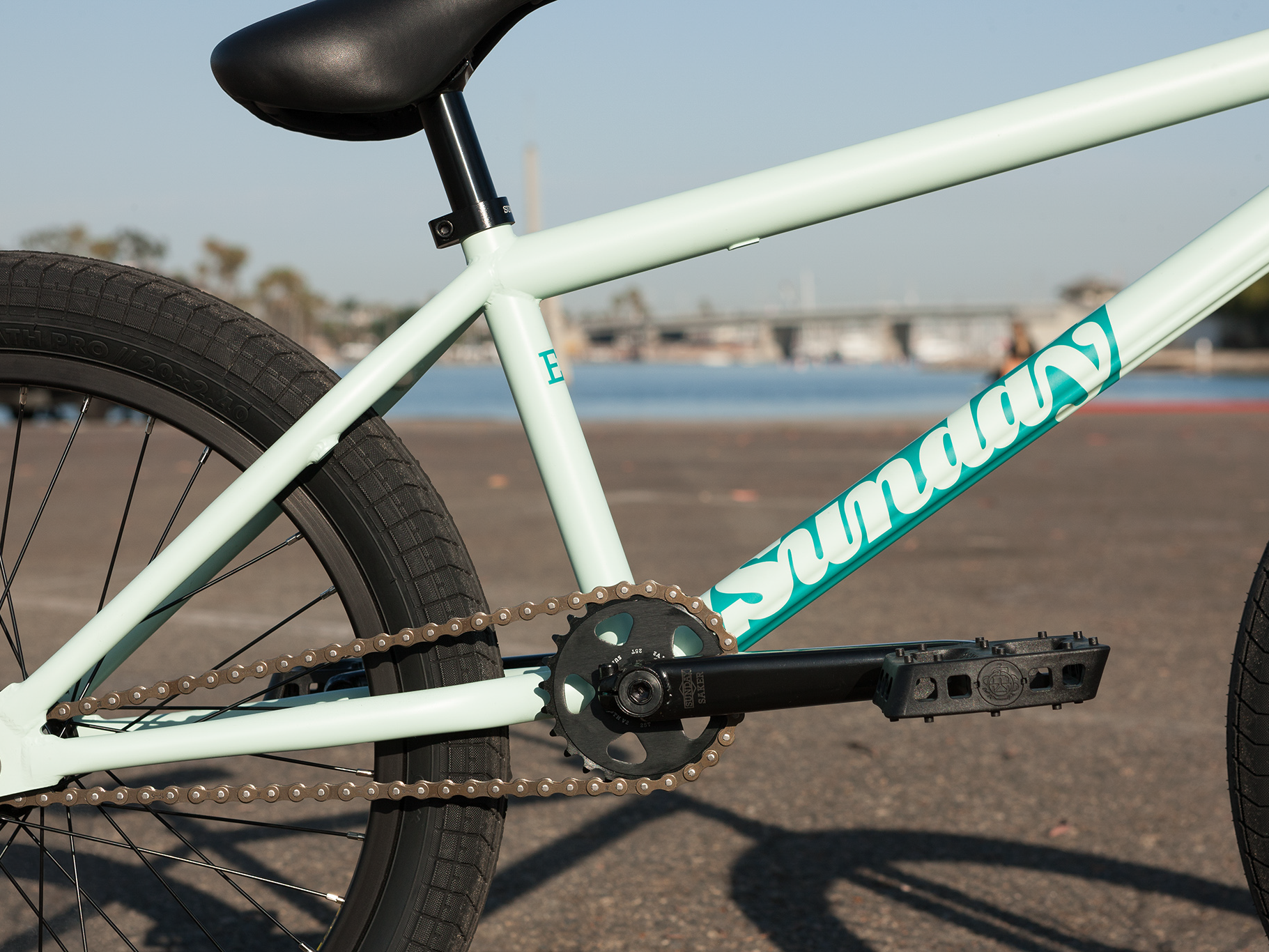

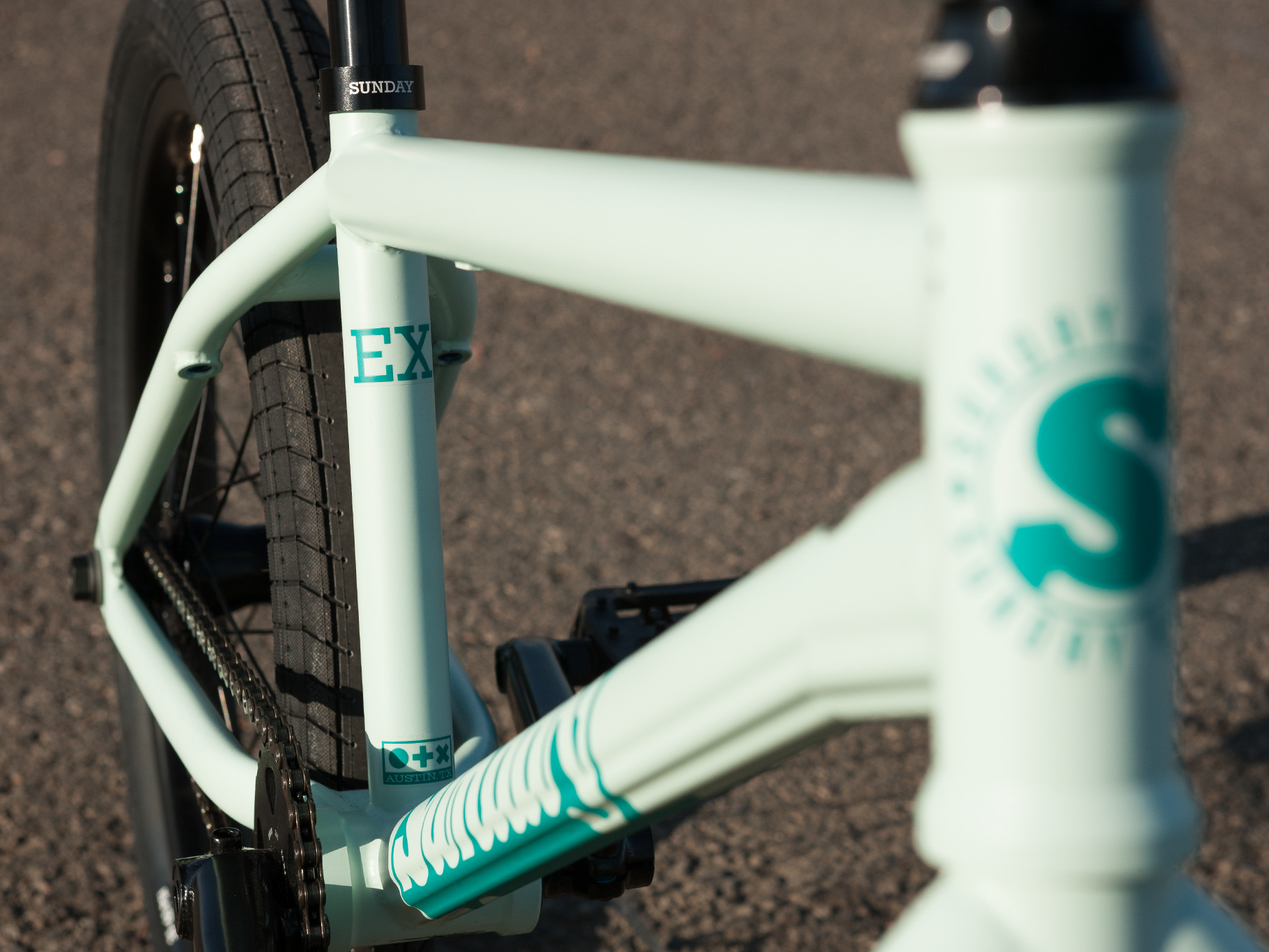

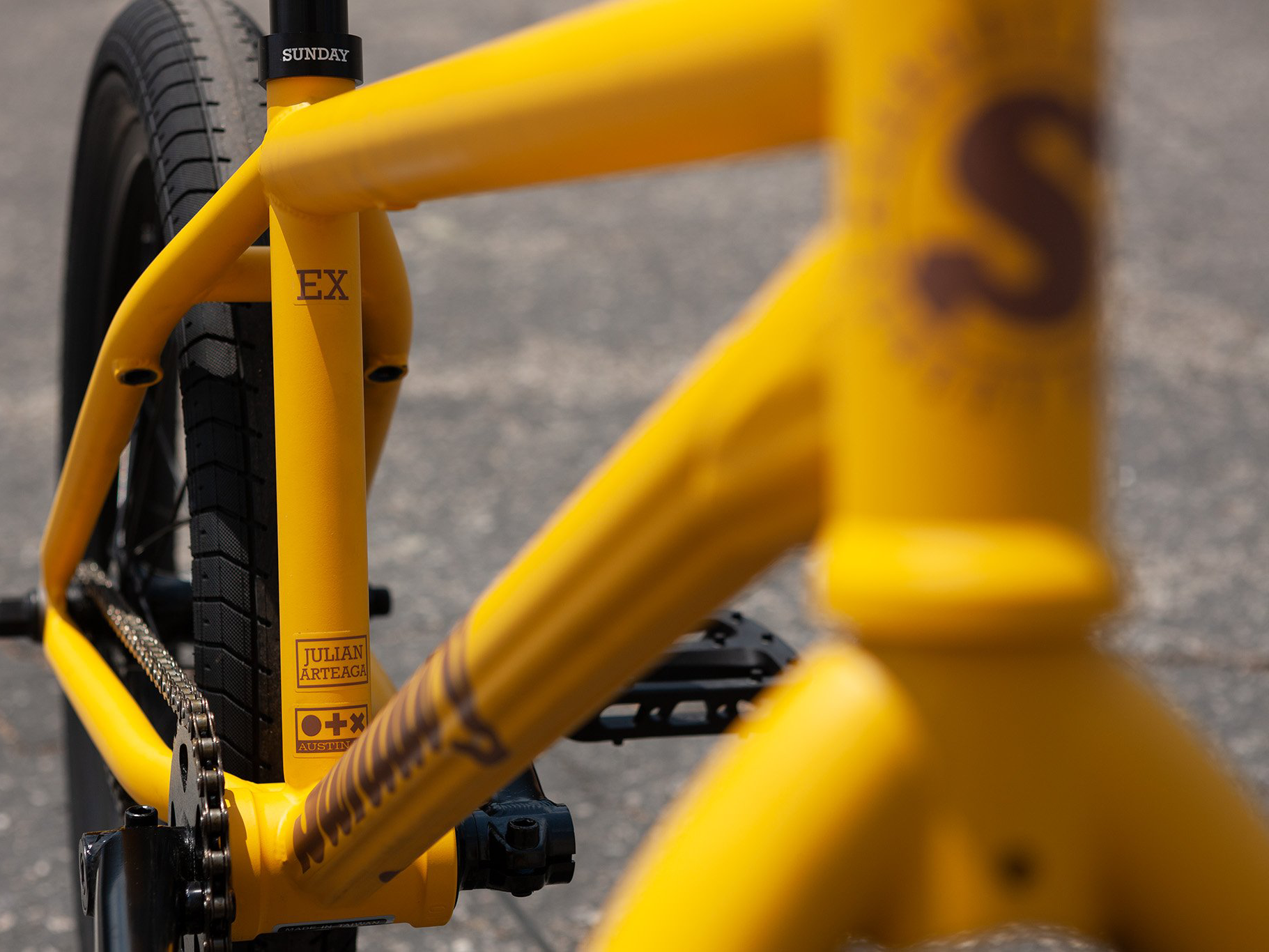

Frame: Sunday EX, 20.75" TT, 100% chromoly frame with wave downtube, w/ removable brake hardware
Fork: Sunday EX, 20", 100% chromoly fork w/ 2-piece steerer tube and welded pre-load, 25mm offset

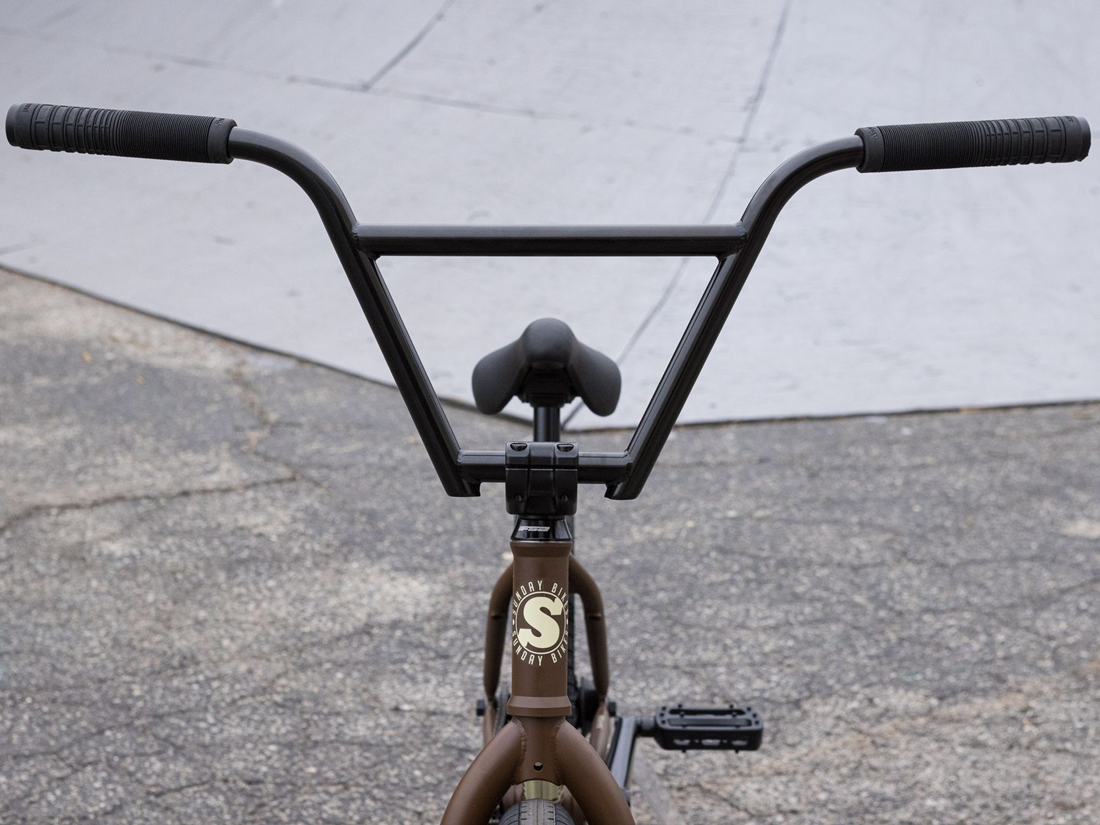

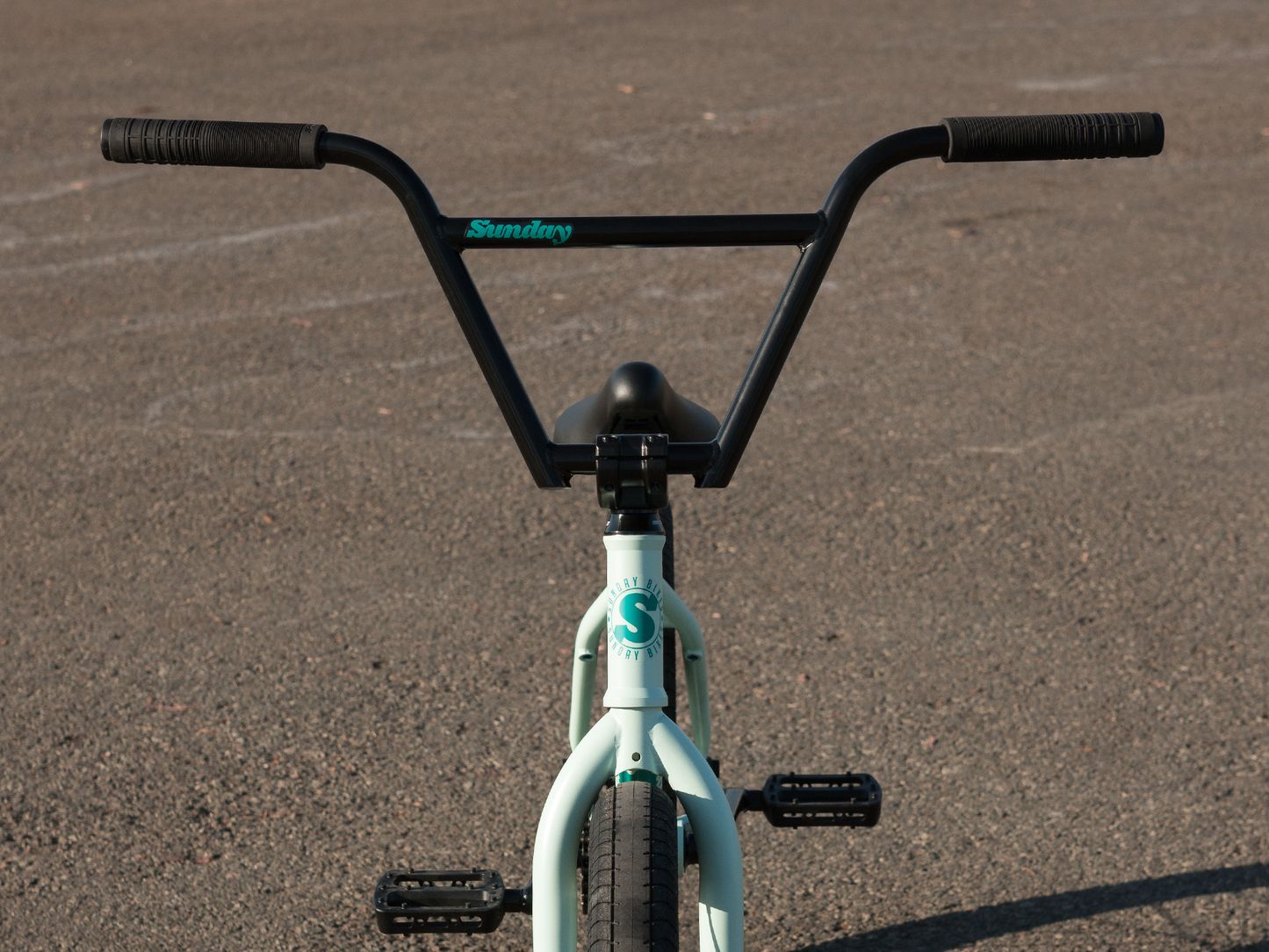

Handlebar: Sunday, 100% chromoly, 4-piece

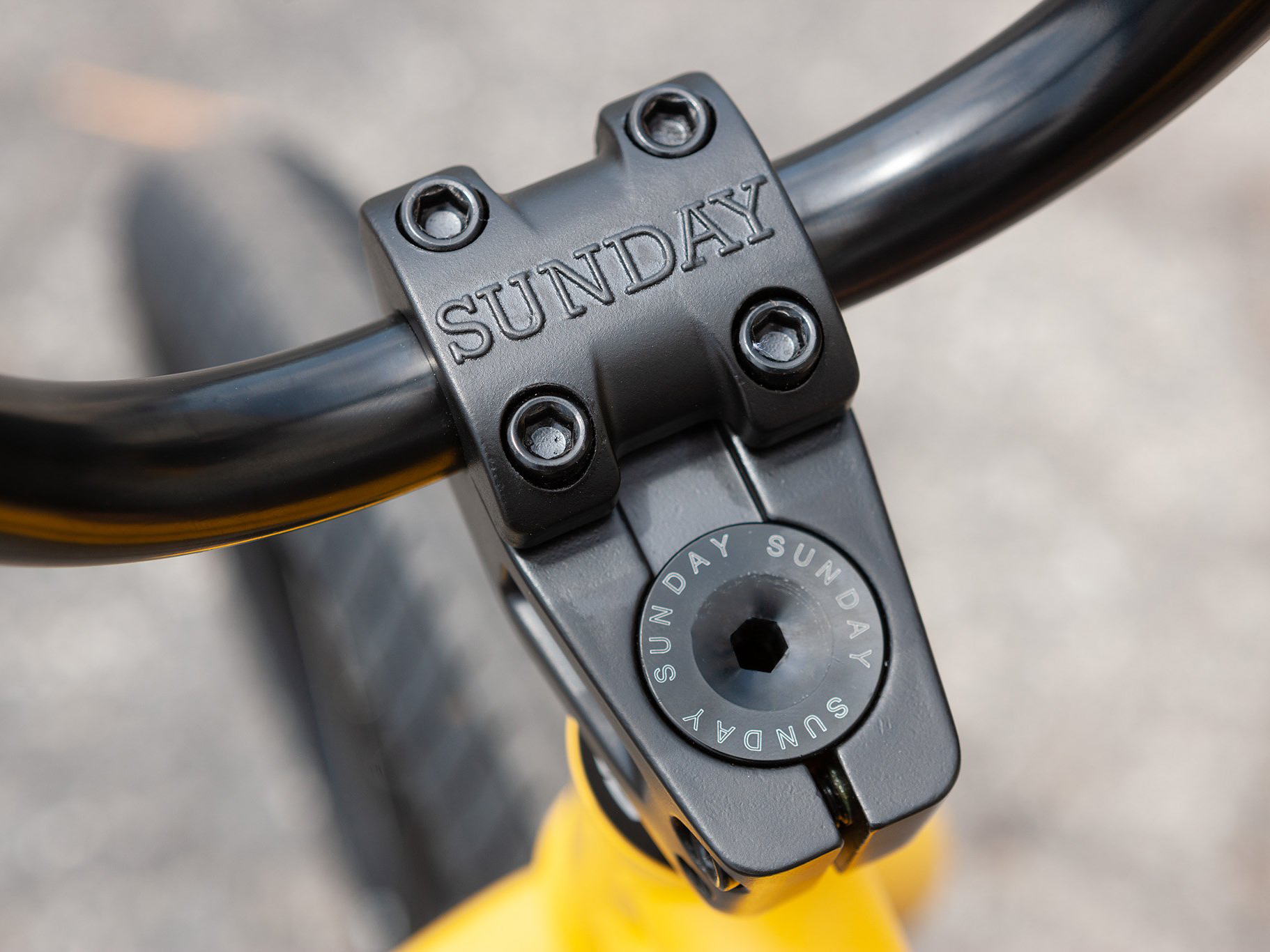

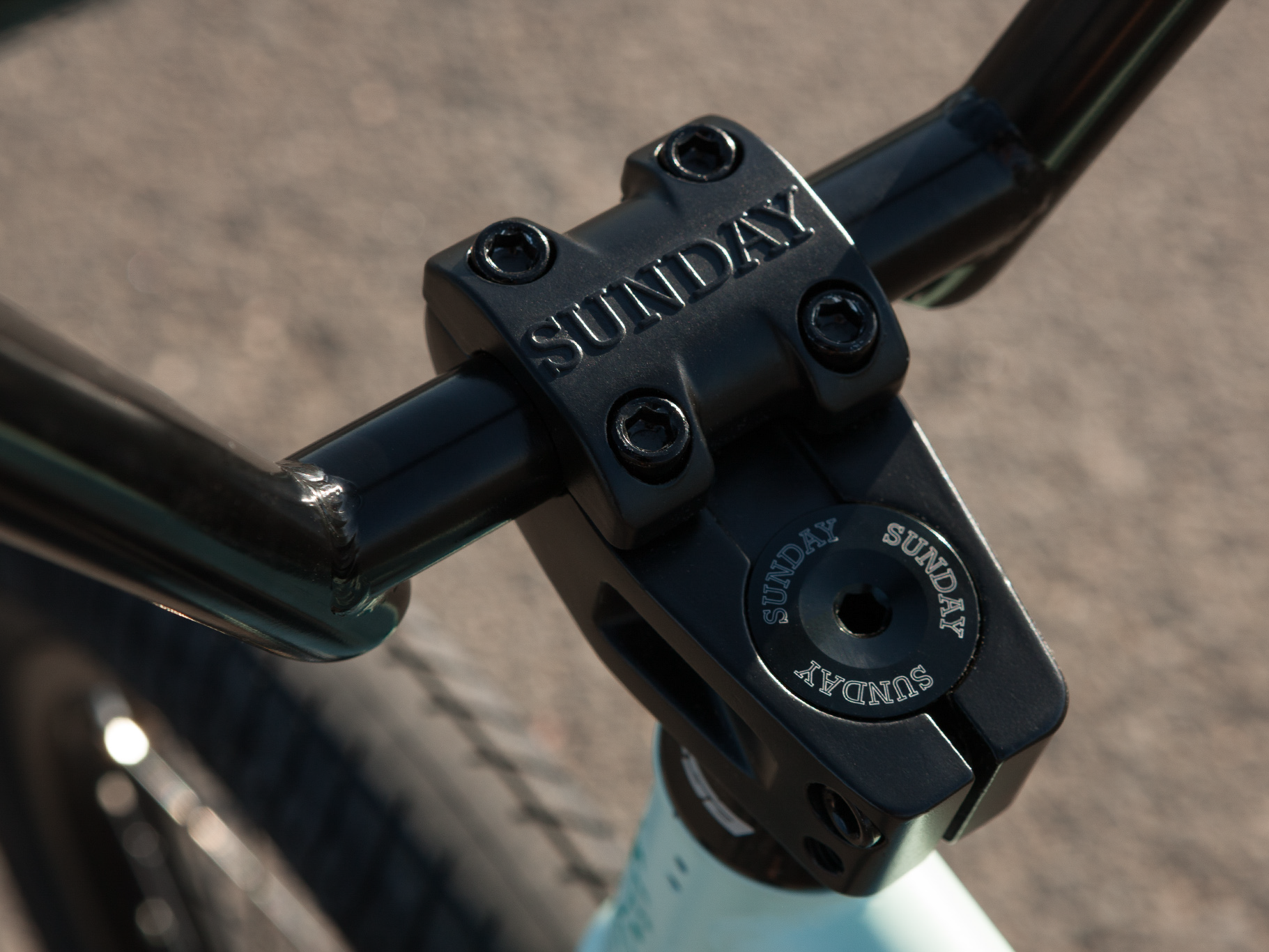

Stem: Sunday Freeze front load, 48mm
Headset: FSA integrated conical, 1-1/8"
Alloy Cap: Sunday M16, aluminum
Brake Lever: Odyssey Springfield
Brakes: Odyssey Springfield U-brake
Brake Cable: Odyssey Quik Slic

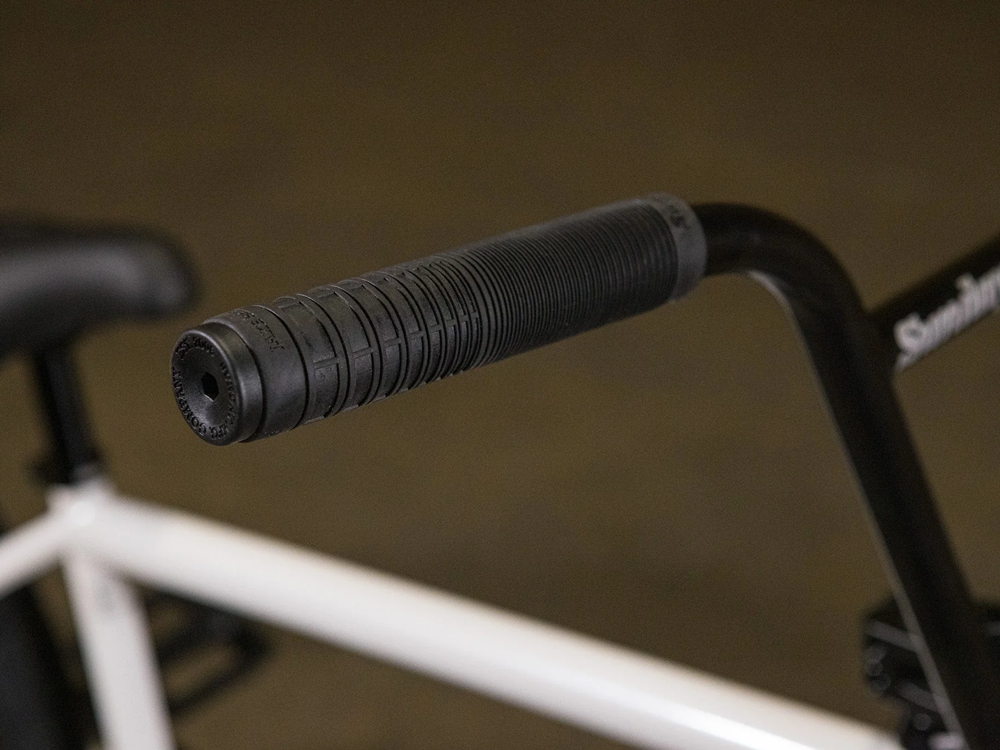

Grips: Sunday Jake Seeley

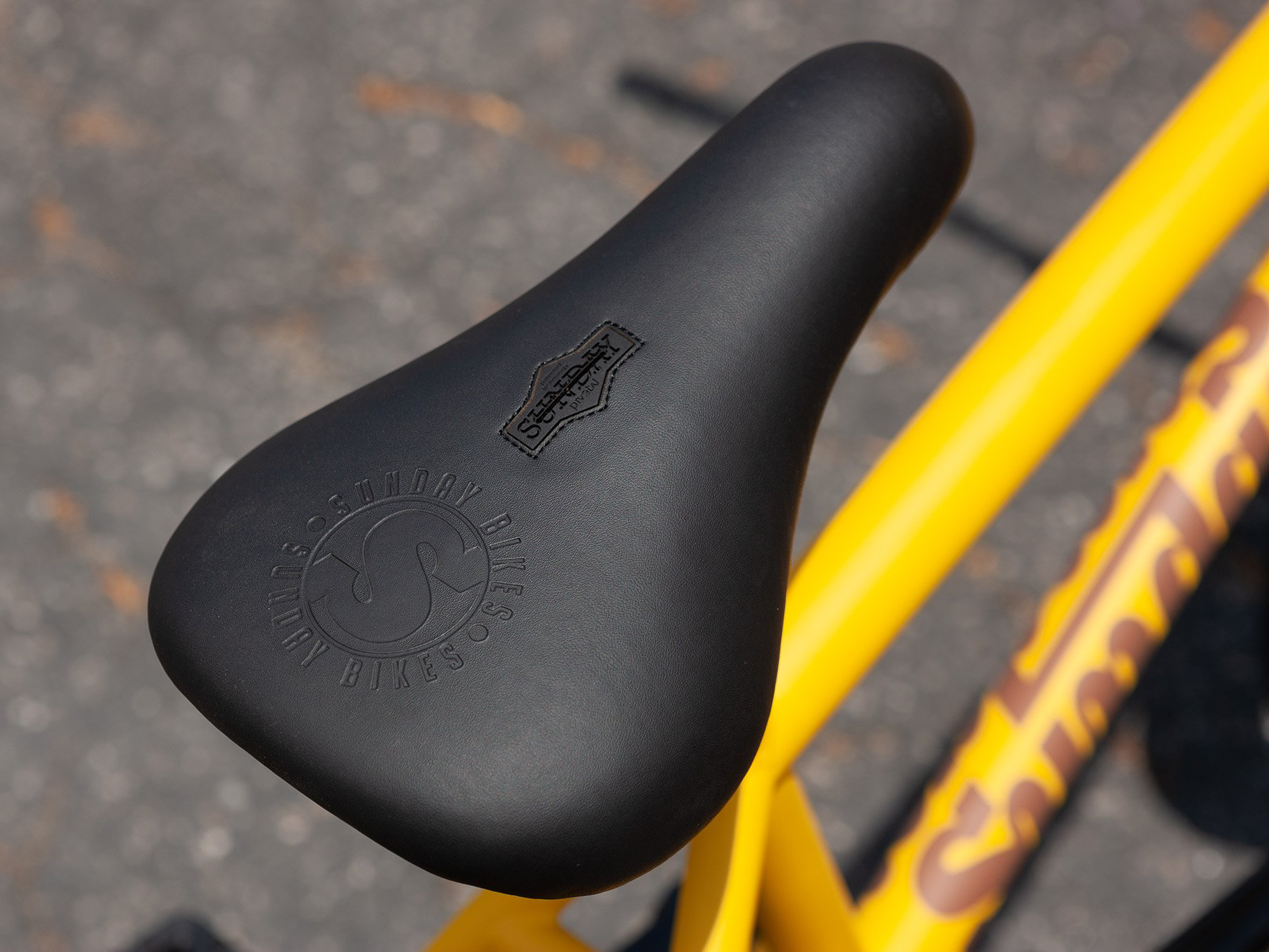

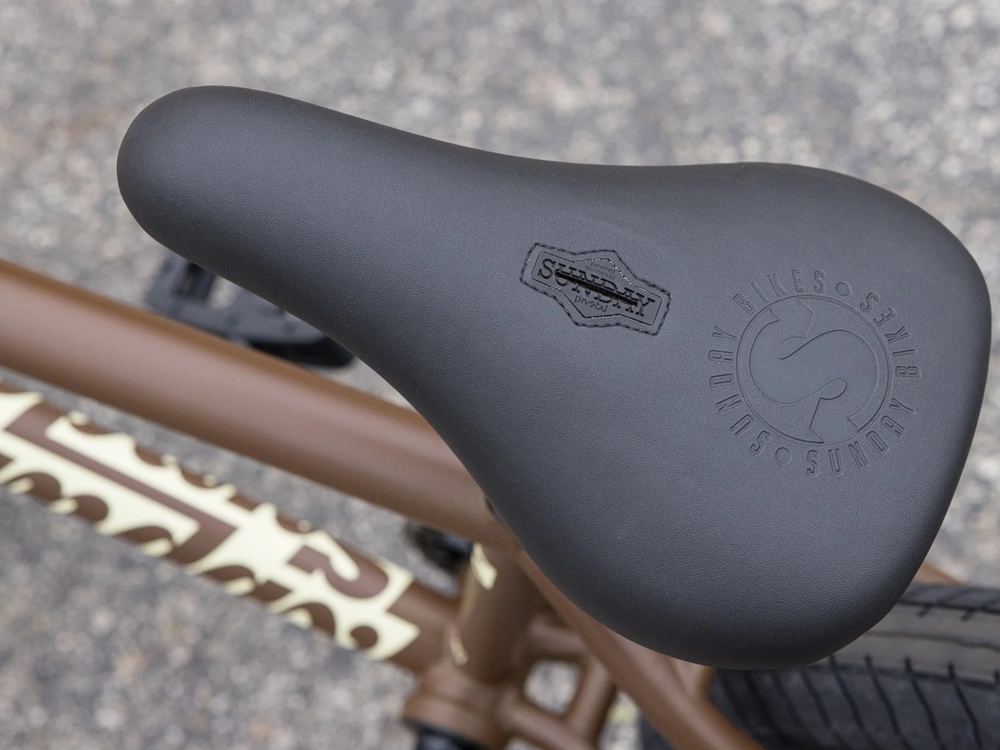

Seat: Sunday Badge, Pivotal
Seat post: Sunday Pivotal
Seat Clamp: Sunday

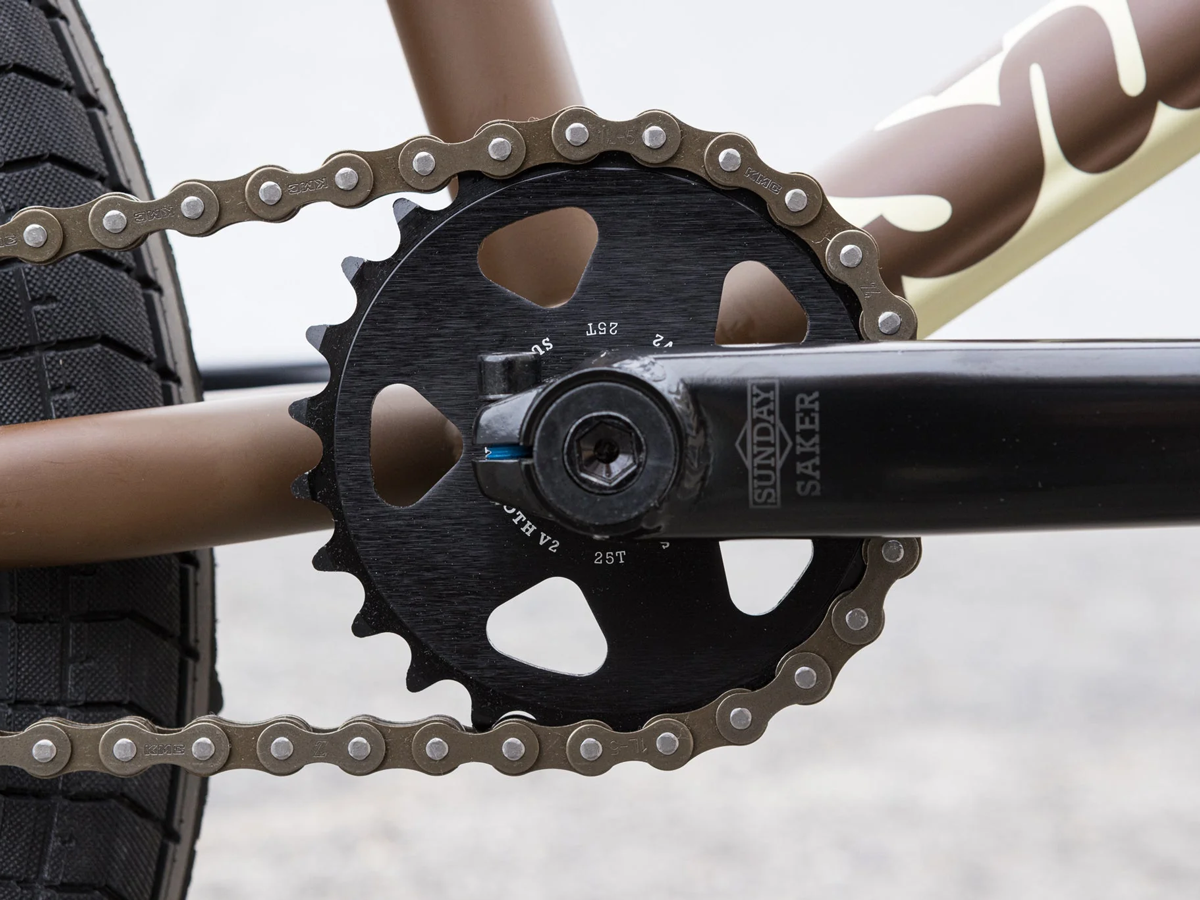

Sprocket: Sunday Sabertooth v2, 25T, 6061 aluminum
Cranks: Sunday Saker, 165mm
BB Parts: Sealed, Mid, 19mm

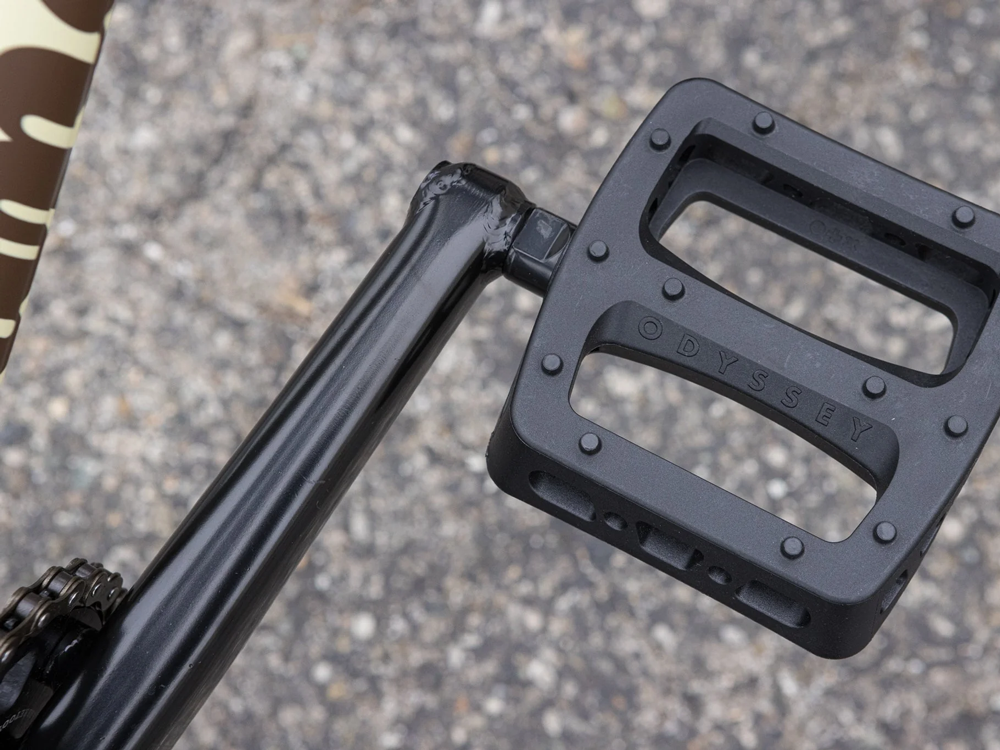

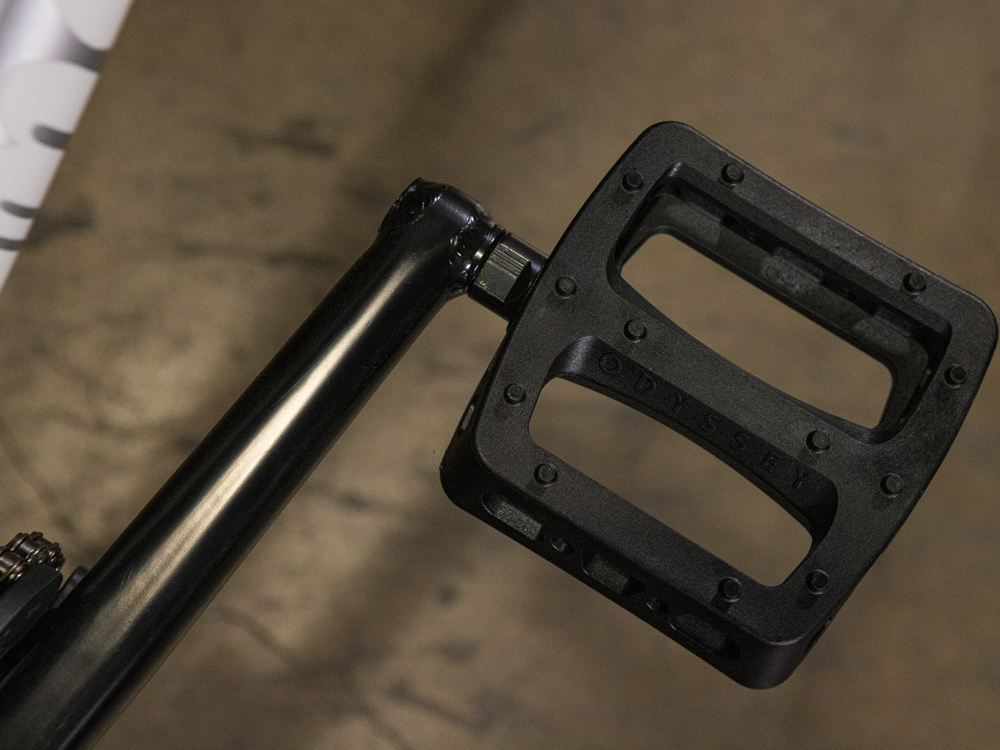

Pedals: Odyssey Twisted PC Pro
Rims: Sunday Lighting Rims

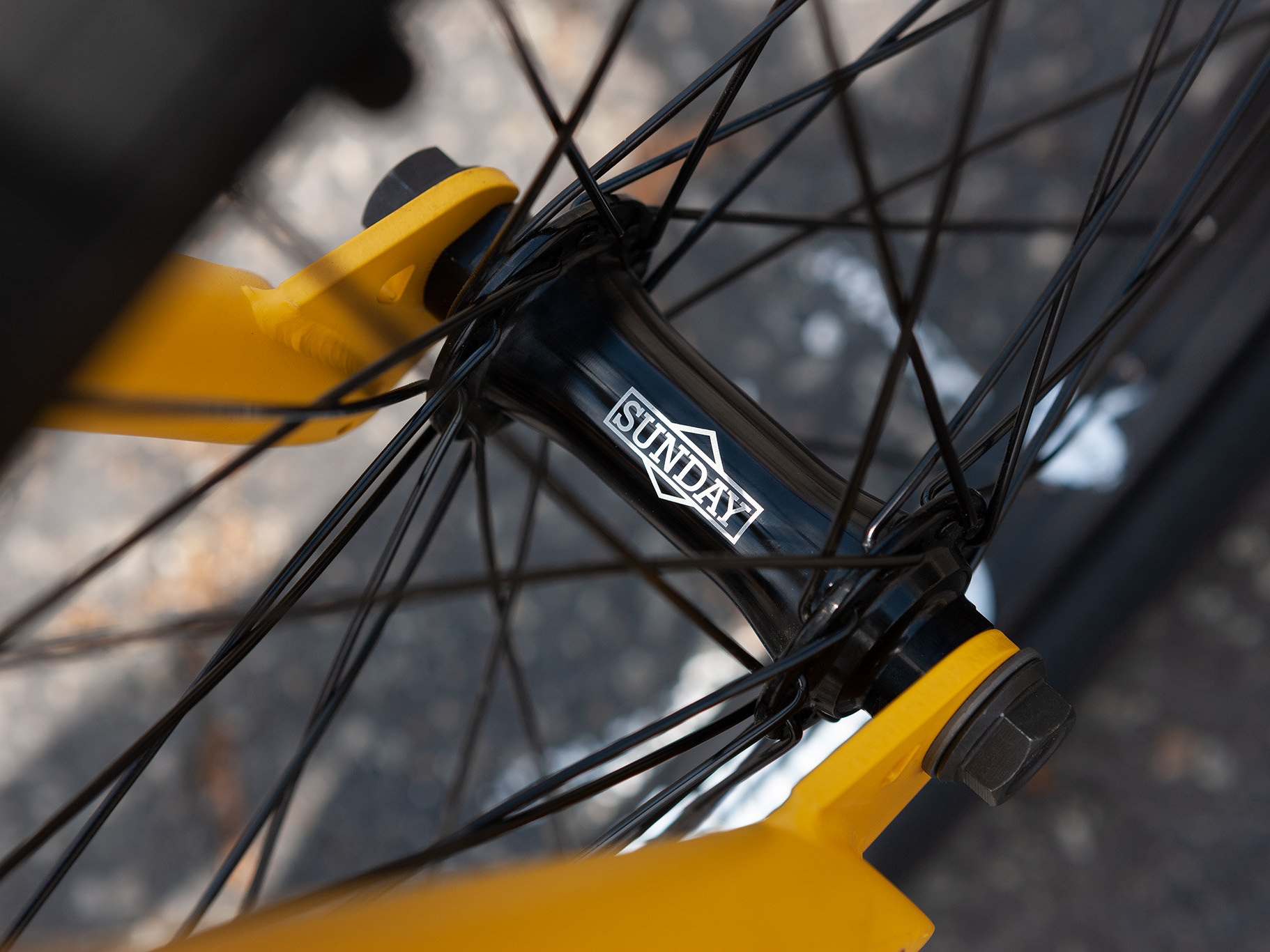

Front Hub: Sunday, 36H, low-flange, sealed , 3/8" female axle

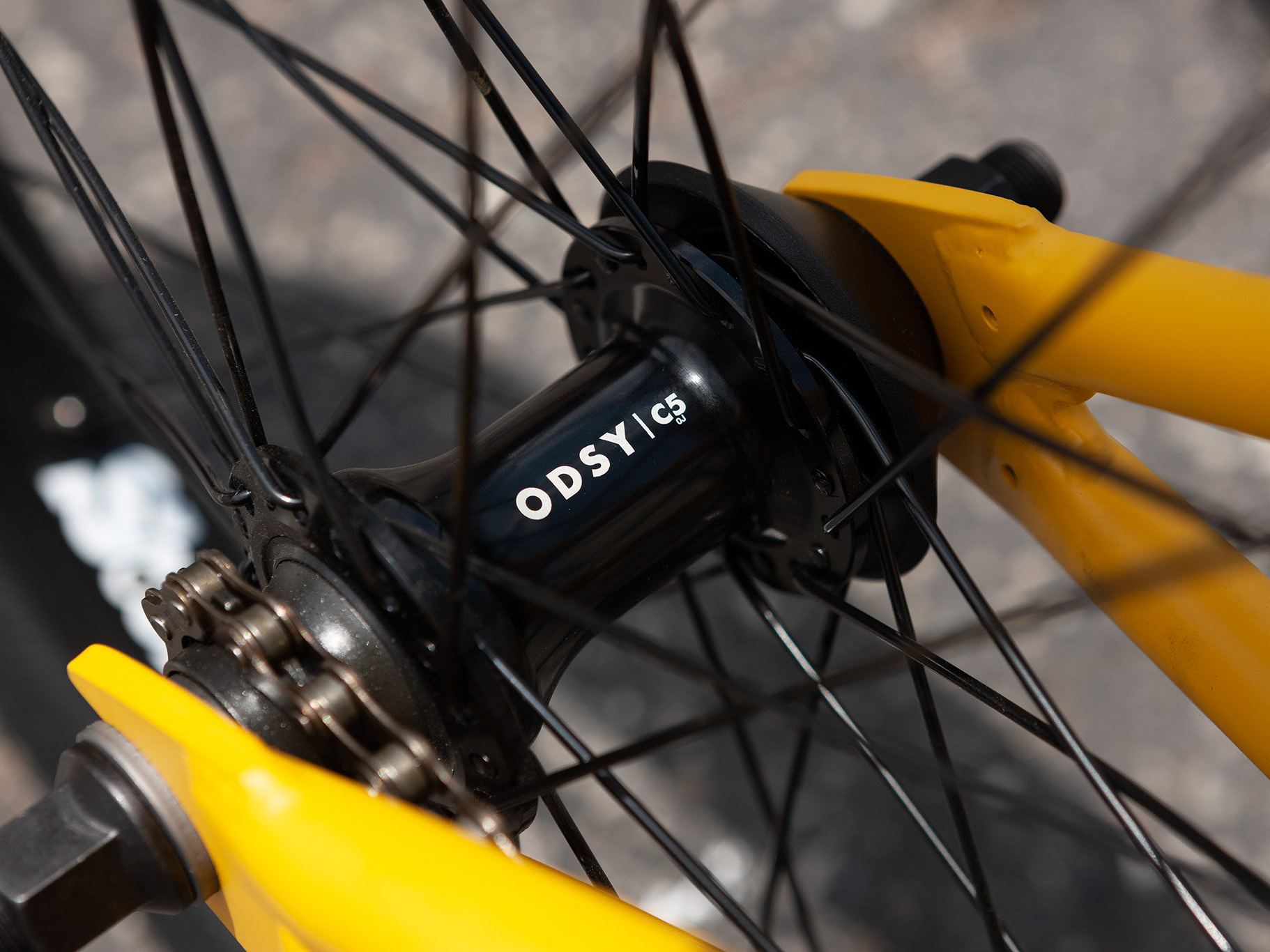

Rear Hub: Odyssey C5 Cassette Hub, 36H, 14mm male axle, 9T Driver, non-drive side plastic guard
Spokes: 14g steel, black

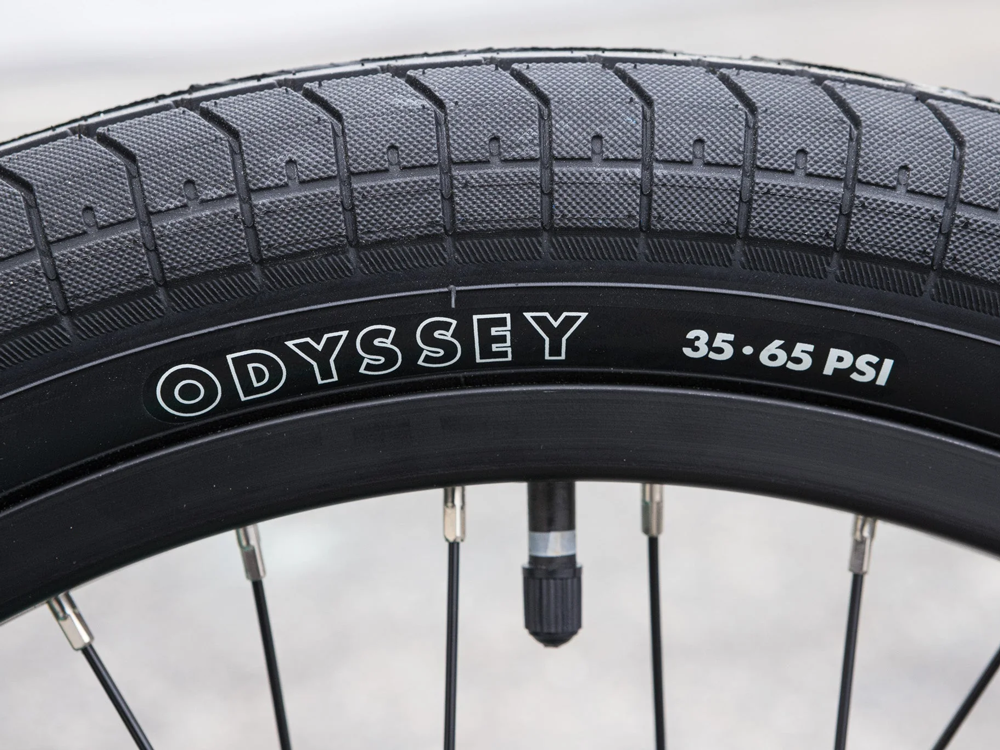

Tyres: Odyssey Path Pro OEM, 20 x 2.4" (F & R)
Chain: KMC Z1 wide
Approx. Weight: 11.7kgs (with brakes)
Frame Geometry
Top Tube Length: 20.75"
Head Tube Angle: 75°
Seat Tube Angle: 71°
Chainstay Length: 13.2-13.5”
Bottom Bracket Height: 11.5"
Standover: 9"
Handlebar Geometry
Rise: 9"
Width: 29"
Backsweep: 12°
Upsweep: 3°
