SUNDAY 20" Forecaster (Broc Raiford) Bike
SUNDAY 20" Forecaster (Broc Raiford) Bike
Couldn't load pickup availability

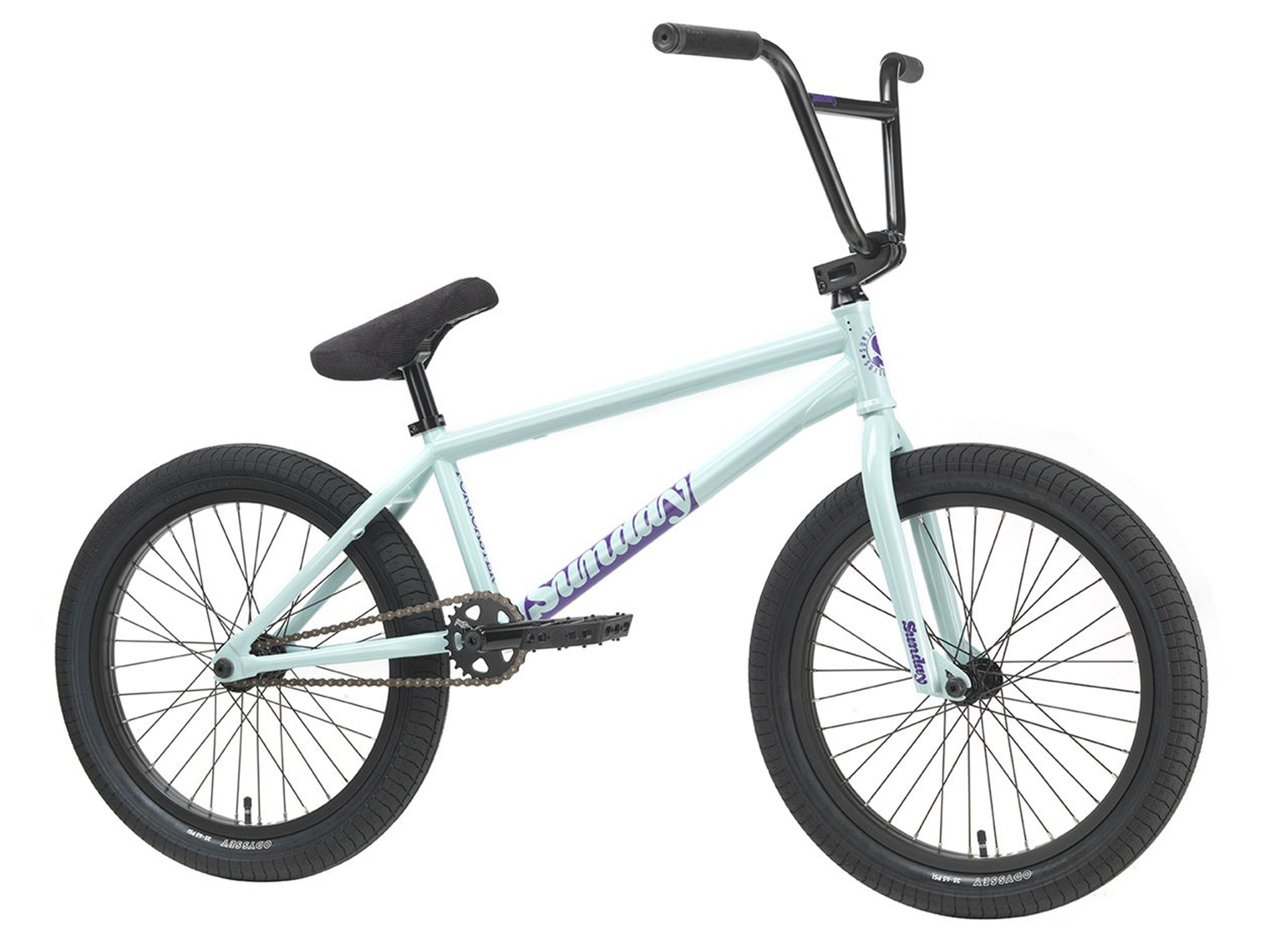

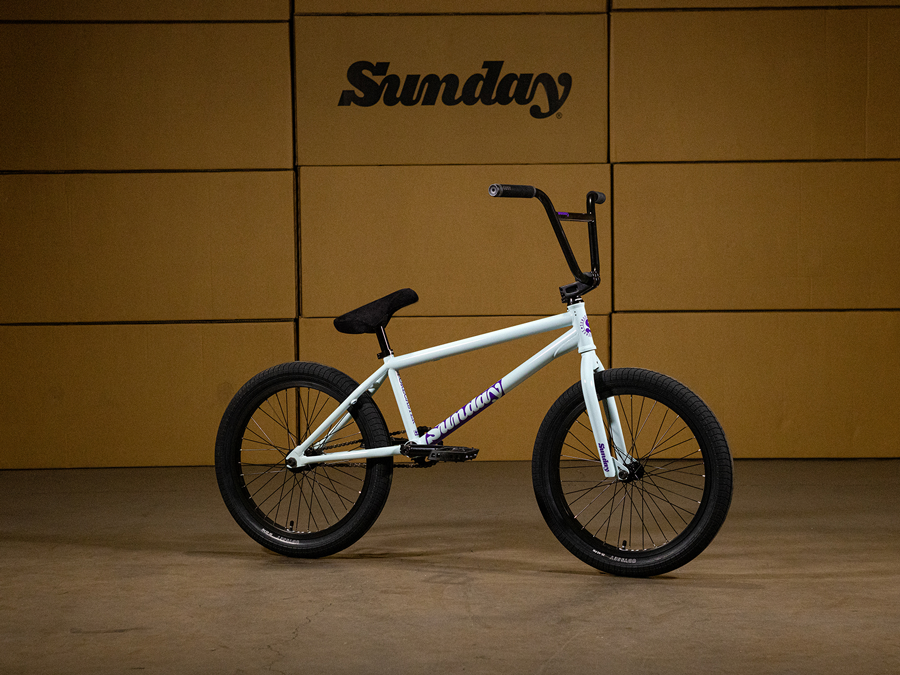

The Forecaster is a model that rides, feels and looks like a pro-level bike. It features a full 100% chromoly frame, removable brake hardware, incredible spec and fully sealed front and rear hubs.

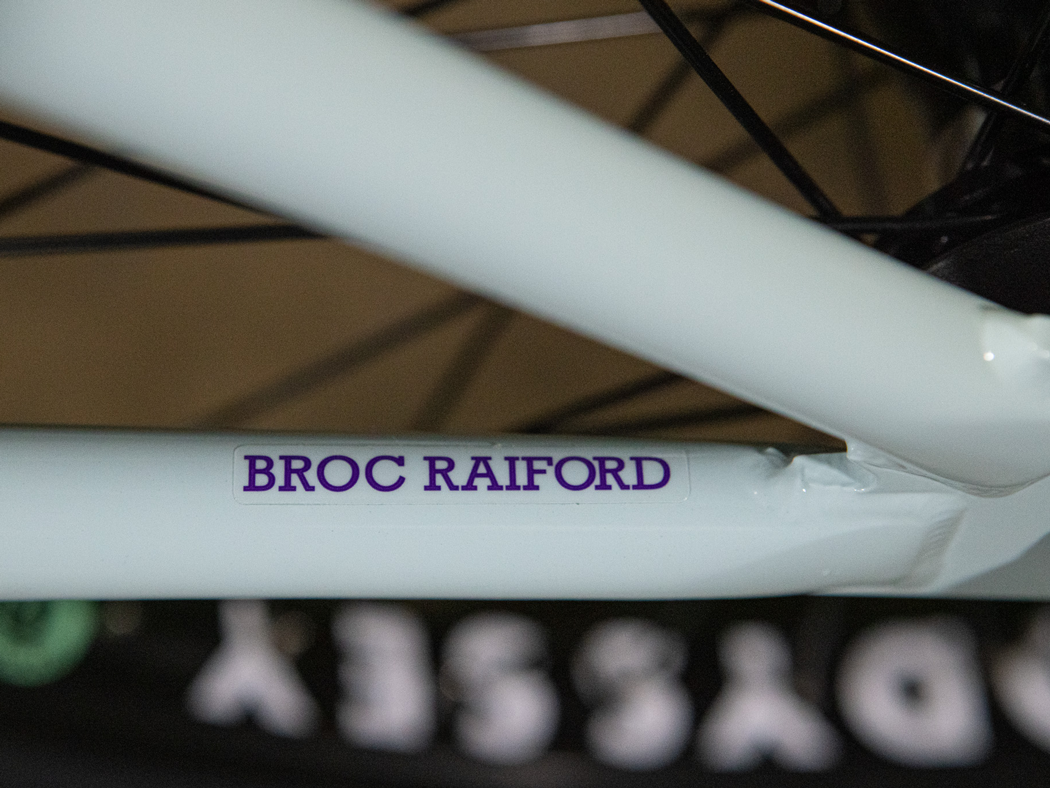

Broc Raiford’s signature Forecaster in Gloss Sky Blue is available in both RHD and LHD options. It’s spec’d with his very own Odyssey signature grips and saddle, and paired with incredible Odyssey parts including a Clutch v2 Freecoaster hub, Twisted Pro pedals, Path Pro tyres and Stage 1 rims.
Odyssey Springfield Brake, Lever and Quik-Slick Kable are included (not pictured).
Key Features
- 100% Chromoly Frame
- Sunday Freeze Top Load Stem
- Odyssey BROC Grips
- Odyssey Broc Pivotal Seat
- Removable Brake Hardware
- Odyssey Clutch v2 Freecoaster
- Available in LHD or RHD
- Odyssey Stage 1 Rims
- Odyssey Path Pro OEM 2.40" Tires
Specifications

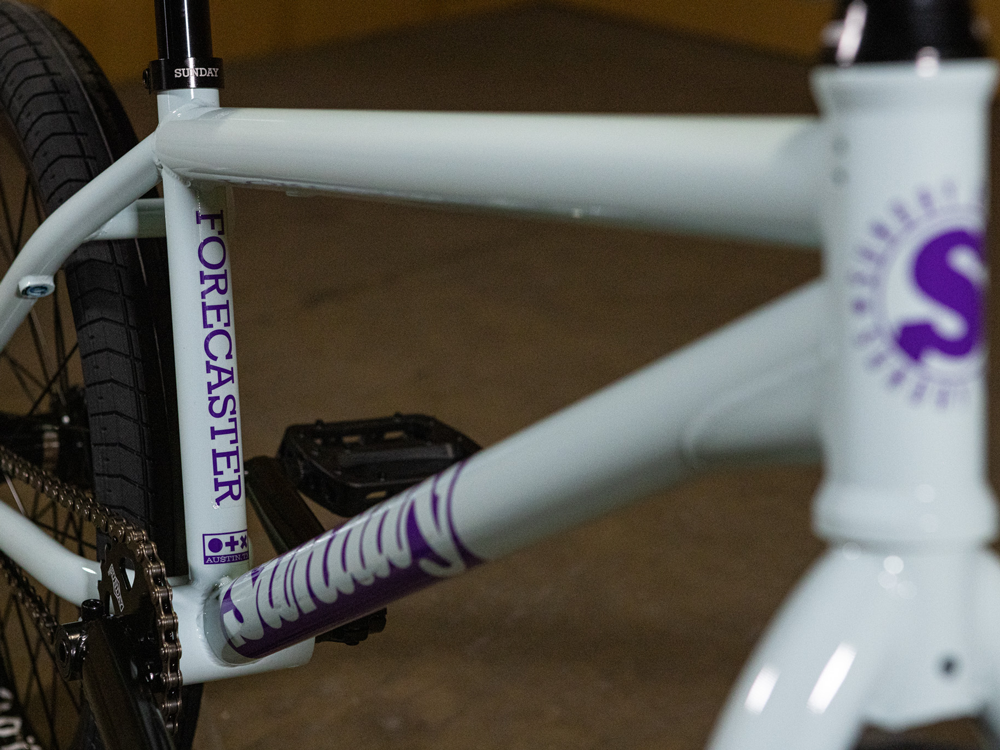

Frame: Sunday Forecaster, 21" TT, 100% chromoly frame with integrated 1-1/8" head tube, and removable brake hardware

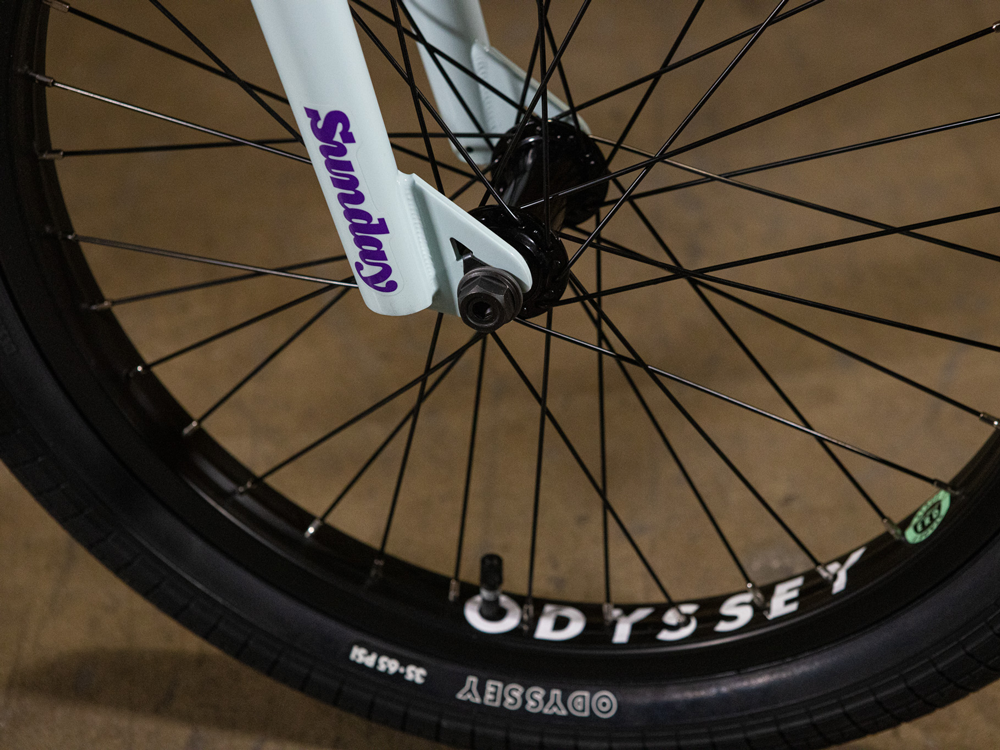

Fork: Sunday Forecaster, 20" fork w/ 2-piece chromoly steerer tube and welded pre-load

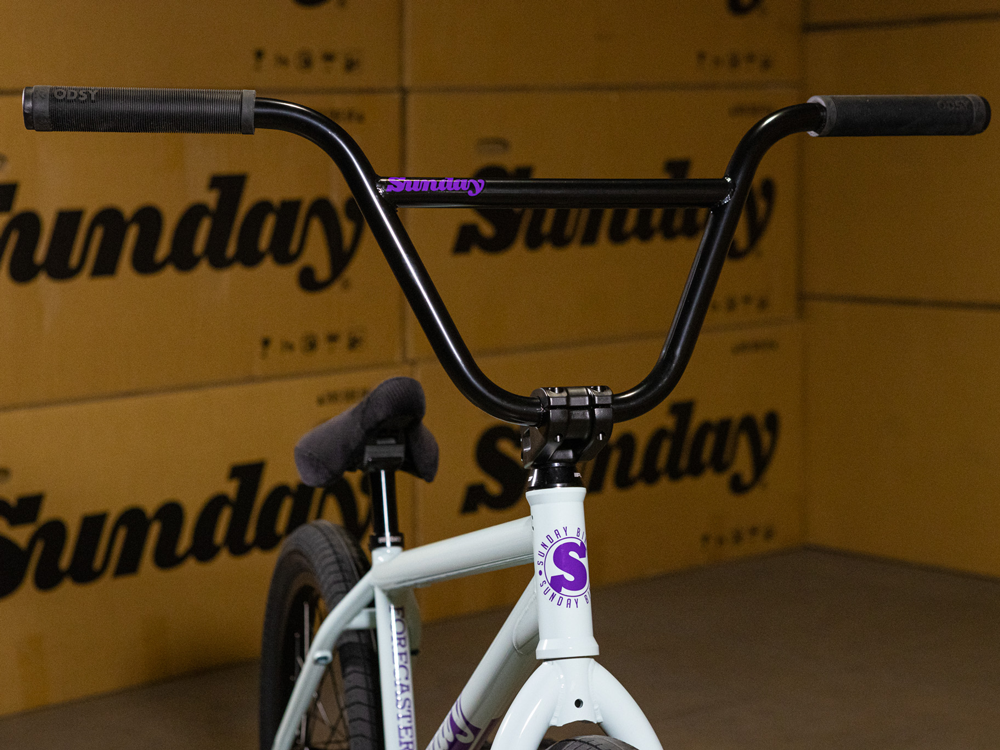

Handlebar: Sunday, 2-piece
Stem: Sunday Freeze front load, 48mm
Headset: FSA integrated conical, 1-1/8"
Alloy Cap: Sunday M16, aluminium
Brake Lever: Odyssey Springfield
Brakes: Odyssey Springfield U-brake
Brake Cable: Odyssey Quik Slic
Grips: Odyssey Broc Raiford

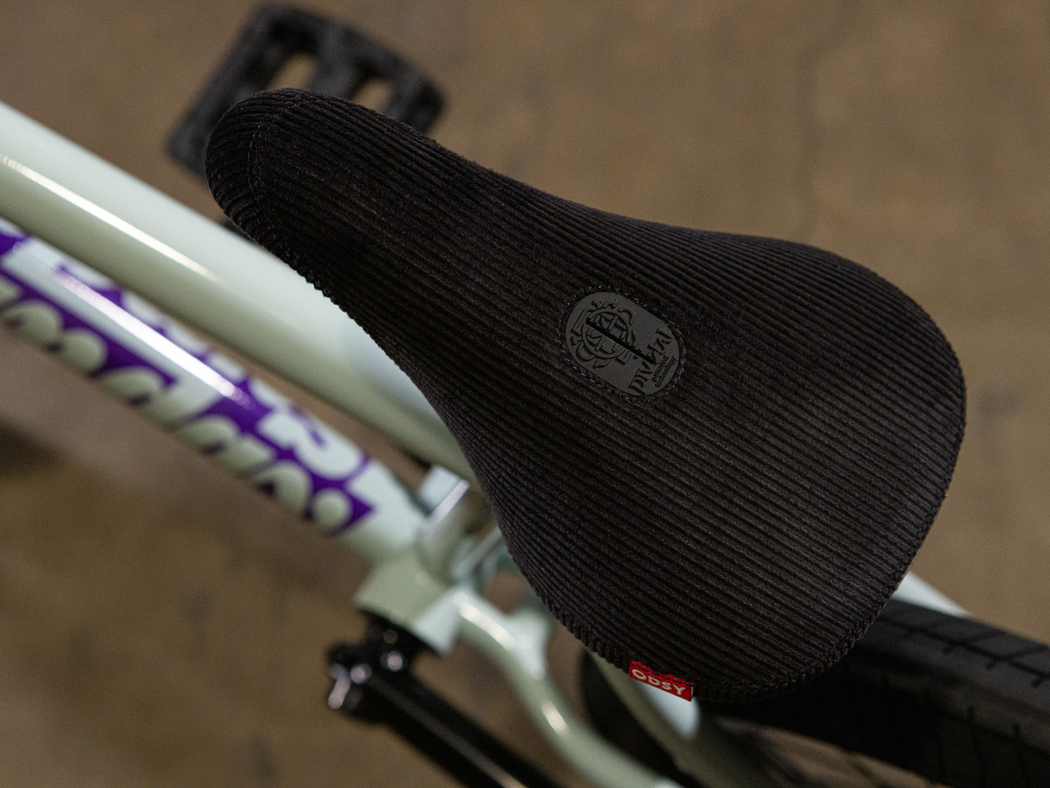

Seat: Odyssey Broc Raiford Signature, Pivotal
Seat Alternate: Odyssey, Pivotal
Seat Post: Sunday Pivotal
Seat Clamp: Sunday

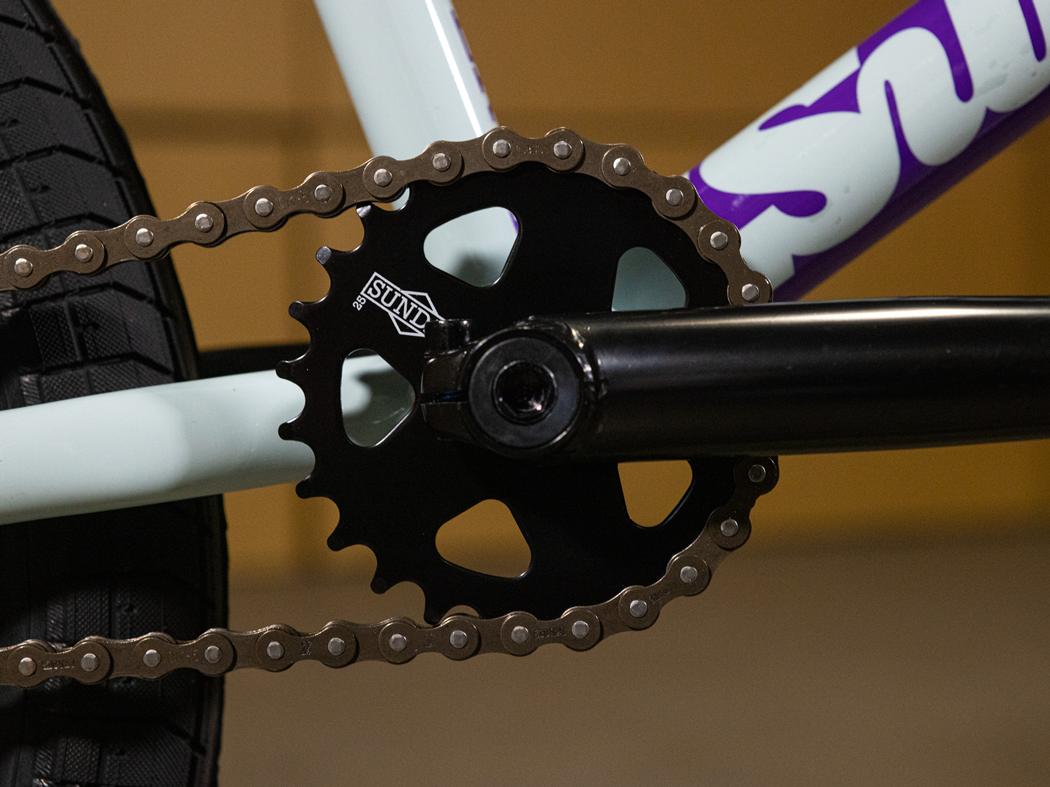

Sprocket: Sunday Sabertooth v2, 25T, steel
Cranks: 170mm, 3-piece, chromoly
BB Parts: Sealed, Mid, 19mm

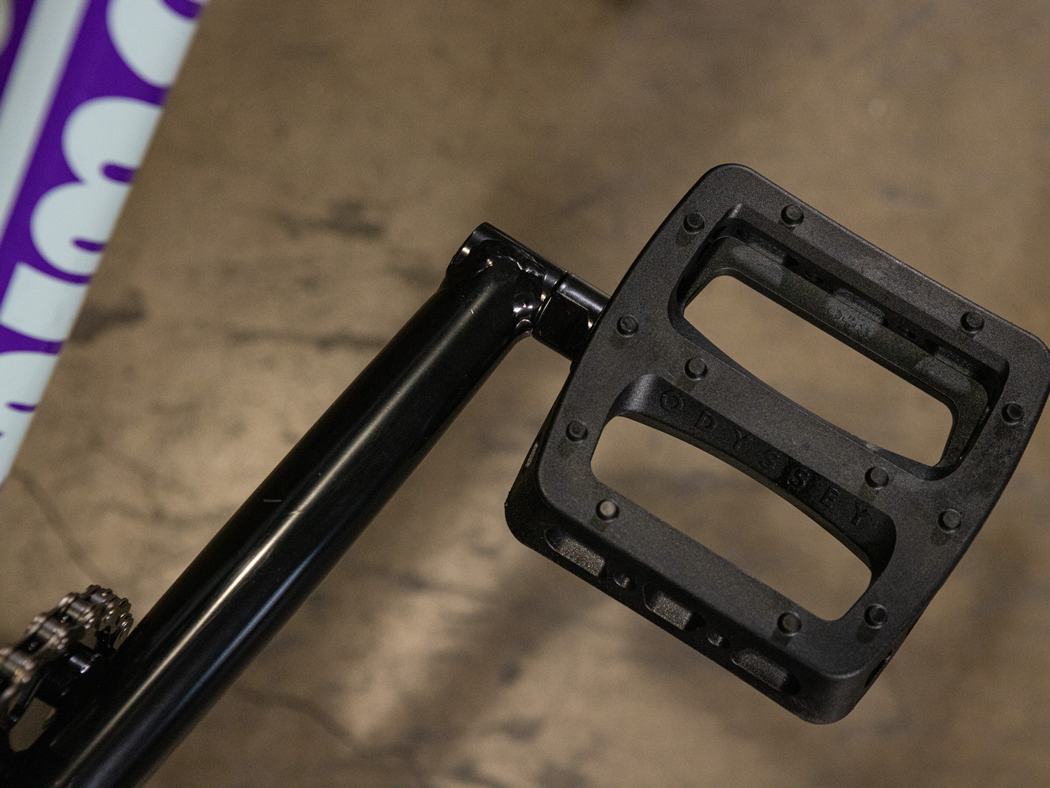

Pedals: Odyssey Twisted PC Pro
Rims: Odyssey Stage 1, 20", 36H
Front Hub: Sunday, 36H, low-flange, sealed , 3/8" inbound axle bolts

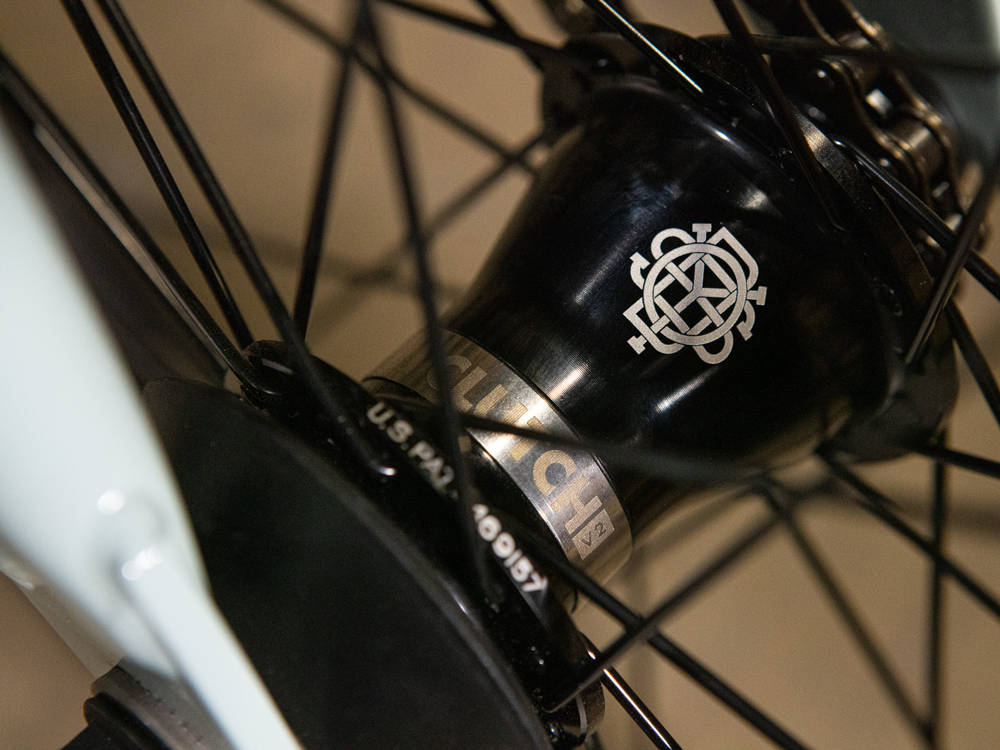

Rear Hub: Odyssey Clutch v2 freecoaster, 36H, 14mm inbound axle bolts w/ 9T driver, LHD or RHD, non-drive side plastic guard
Spokes: 14g steel, black
Tyres: Odyssey Path Pro OEM, 20 x 2.4" (F & R)
Chain: KMC Z1 wide
Approx. Weight: 12.14kgs (with brakes)
Frame Geometry
Top Tube Length: 21"
Head Tube Angle: 75.5°
Seat Tube Angle: 71°
Chainstay Length: 13.2-13.5”
Bottom Bracket Height: 11.7"
Standover: 9"
Handlebar Geometry
Rise: 9"
Width: 28.5"
Backsweep: 12°
Upsweep: 4°
