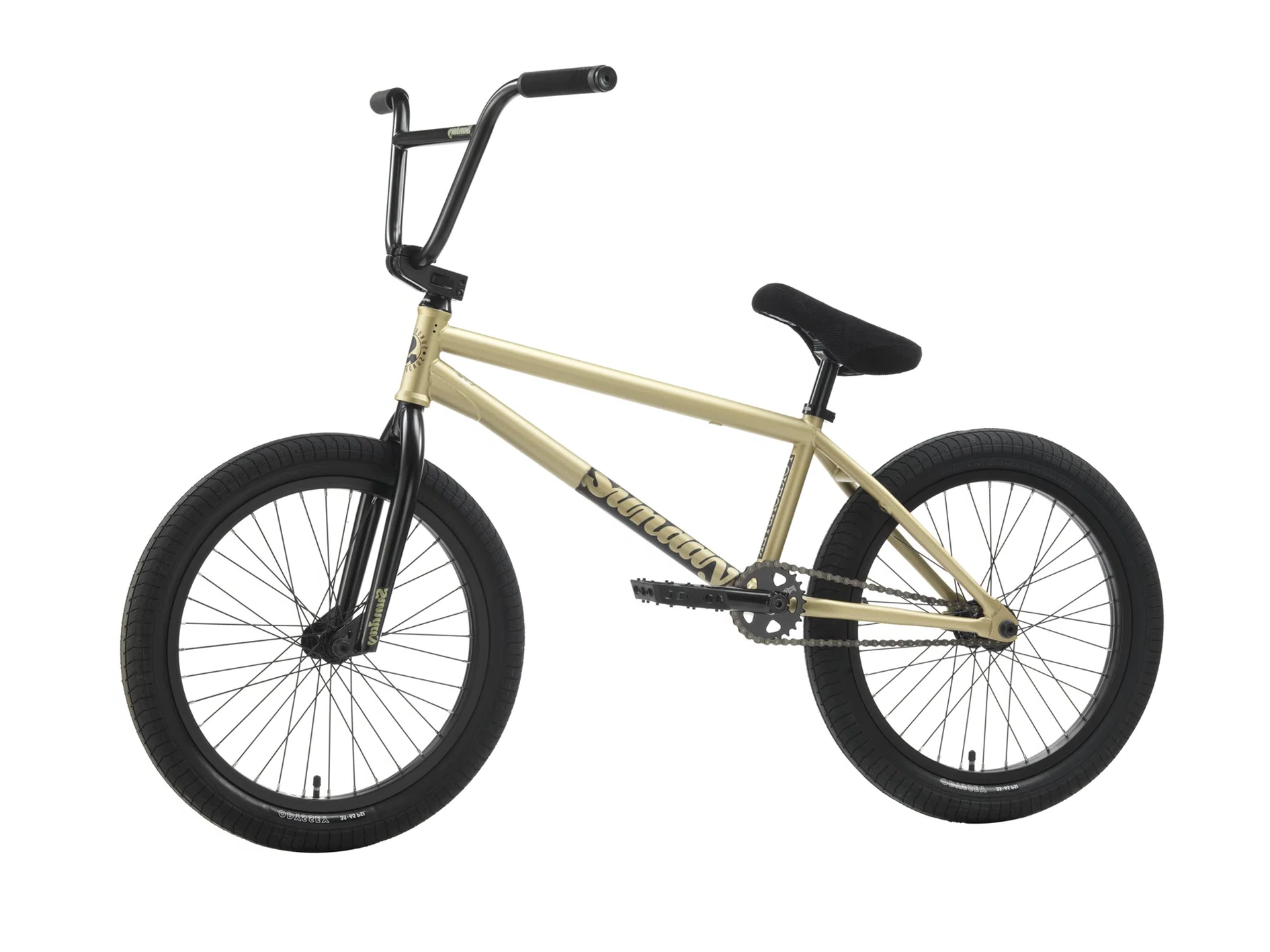

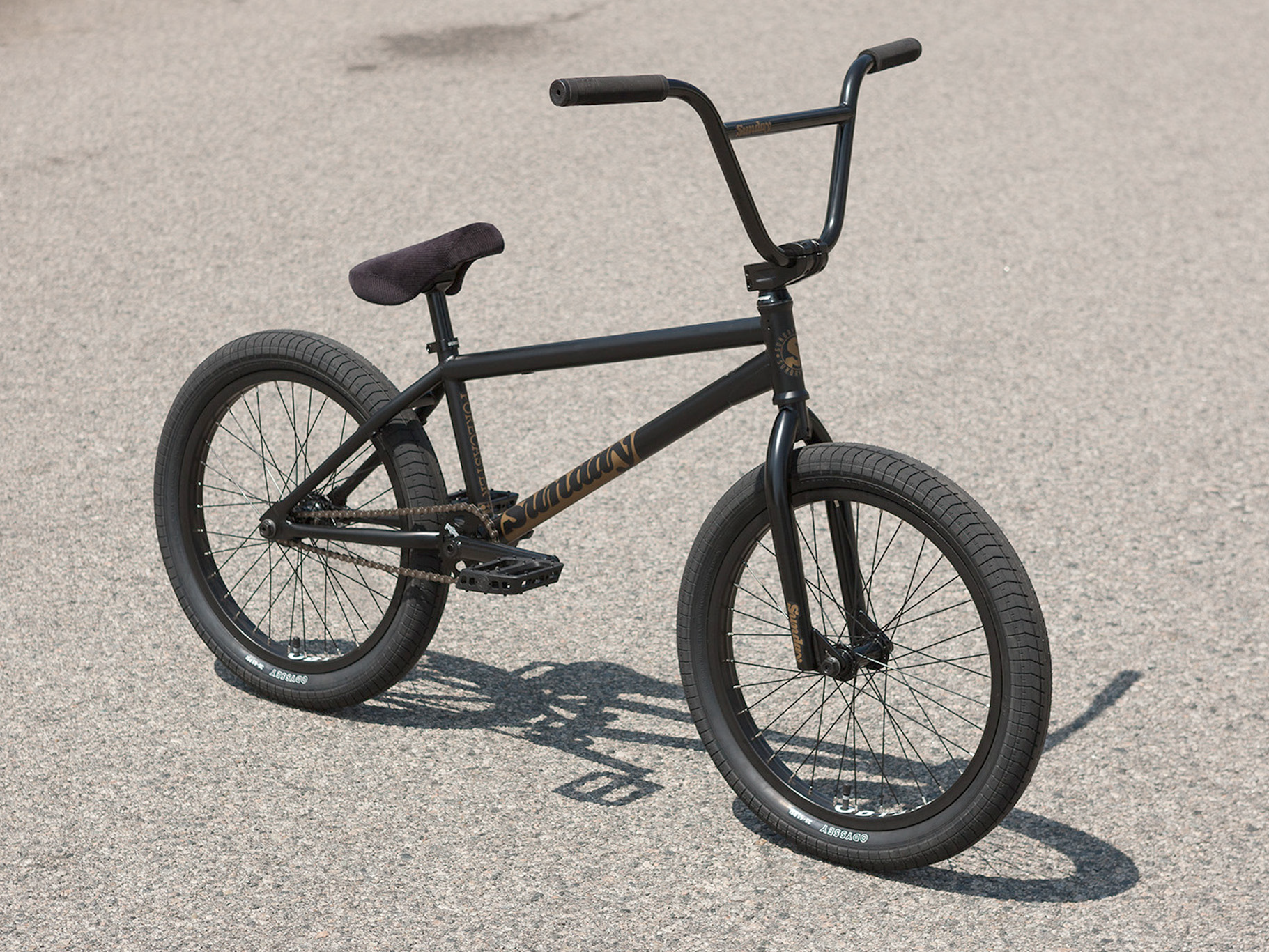

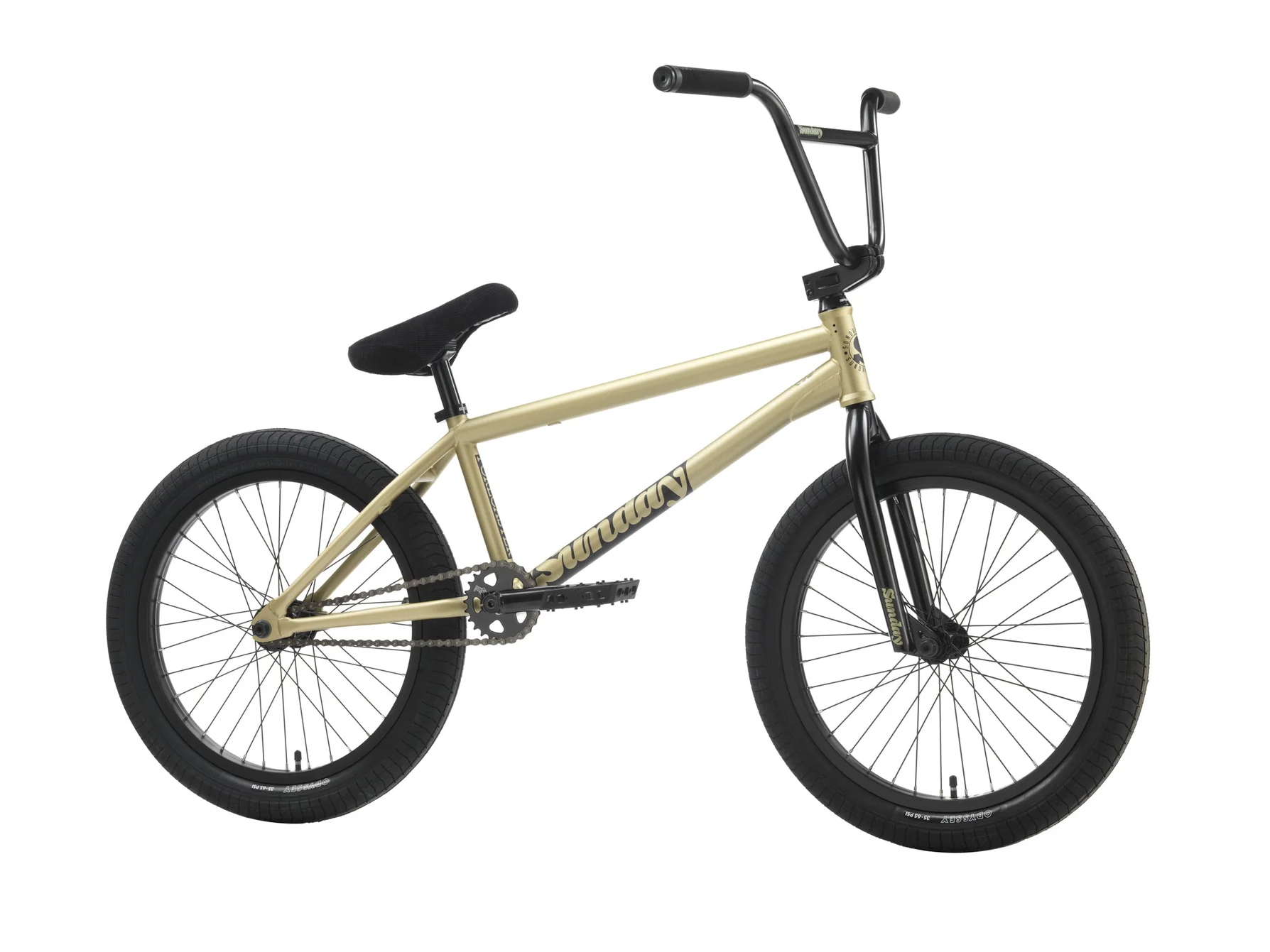

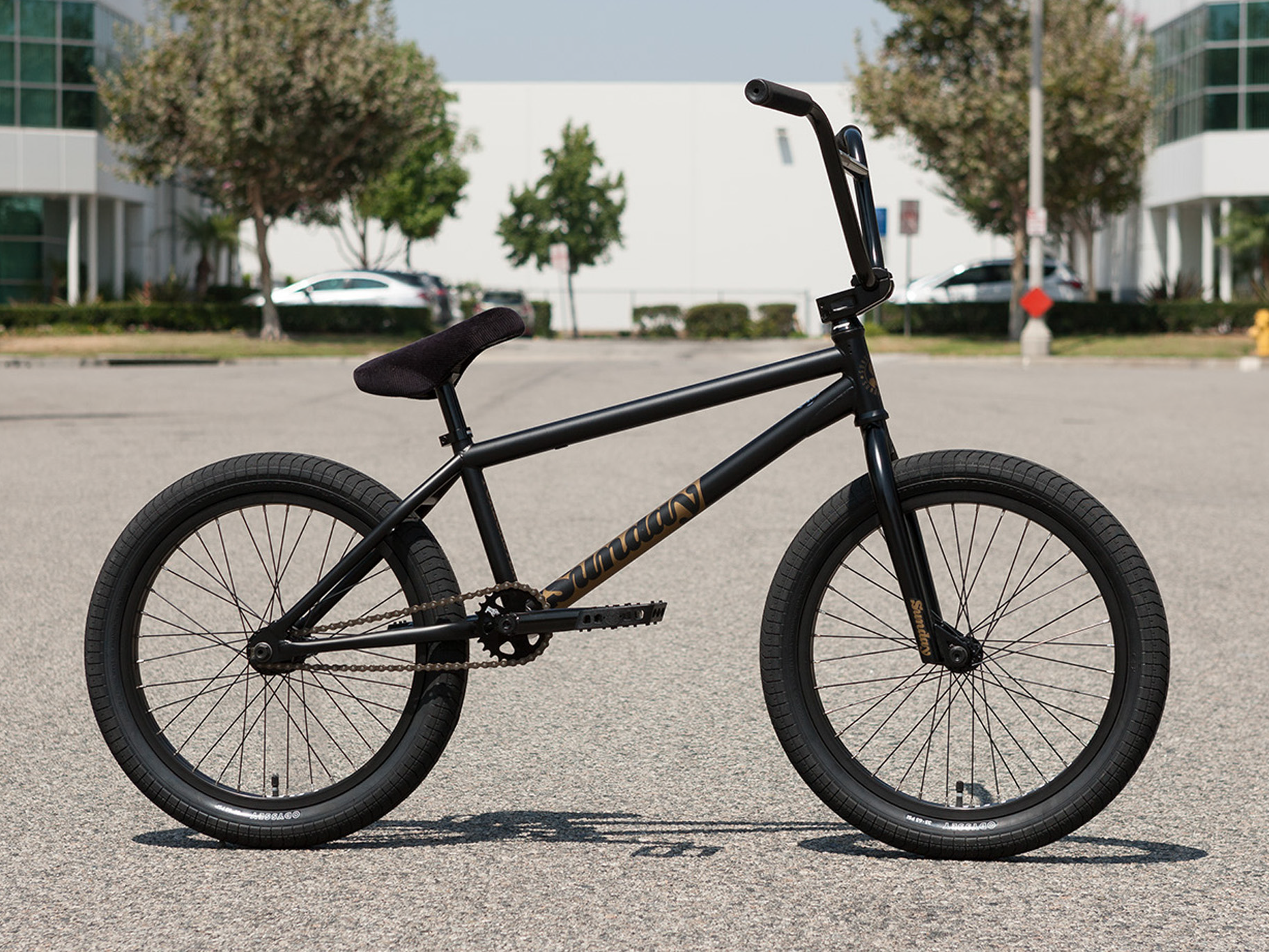

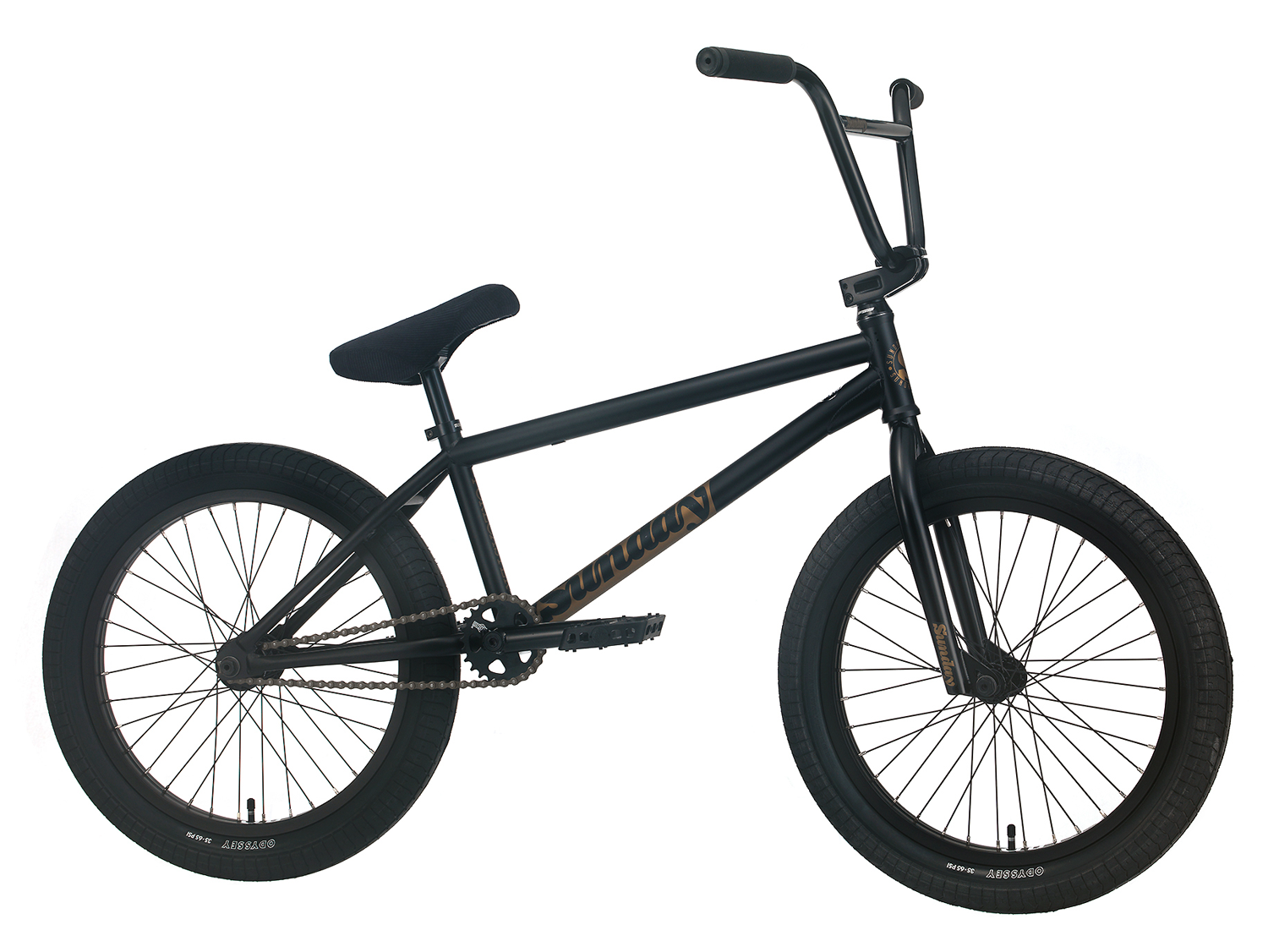

SUNDAY 20" Forecaster (Raiford) Bike
SUNDAY 20" Forecaster (Raiford) Bike
Couldn't load pickup availability
Signature Grips, combined with incredible parts like a Odyssey Clutch v2 Freecoaster hub, Odyssey Twisted Pro pedals, and Path Pro tyres.
A truly dialed bike for every style of riding. Follow @brocraiford.
Features

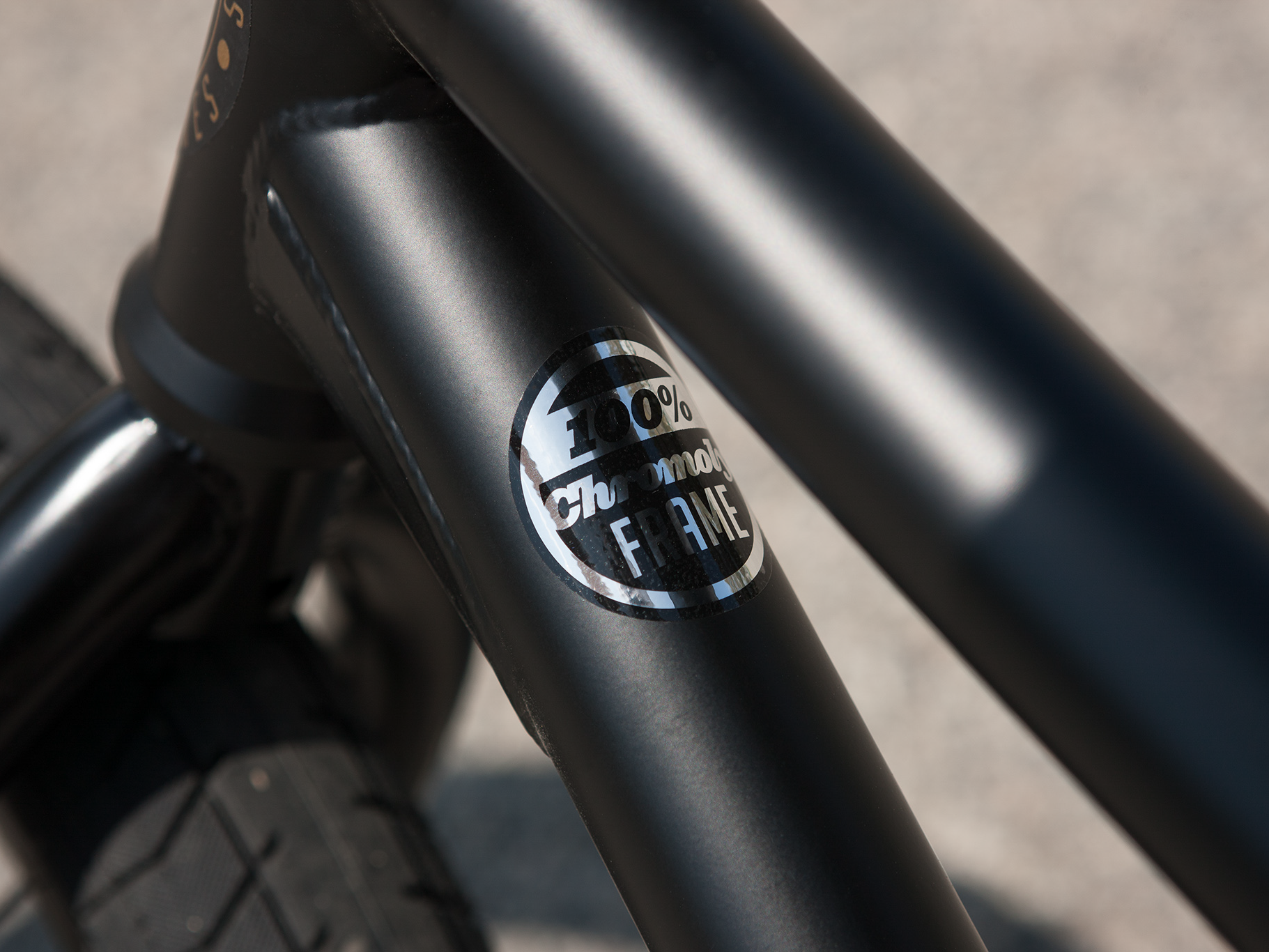

- 100% Chromoly Frame
- Odyssey Clutch v2 Freecoaster
- Sealed Front and Rear Hubs
- Odyssey Stage 1 Rims
- Removable Brake Hardware
- Sunday Seeley Signature Grips
- Odyssey Twisted Pro Pedals
- Sunday Freeze Top Load Stem
- Odyssey Springfield Brakes and Lever
- Odyssey Path Pro OEM 2.40" Tyres
- Odyssey Broc Pivotal Seat
- FSA Conical Headset
Specifications

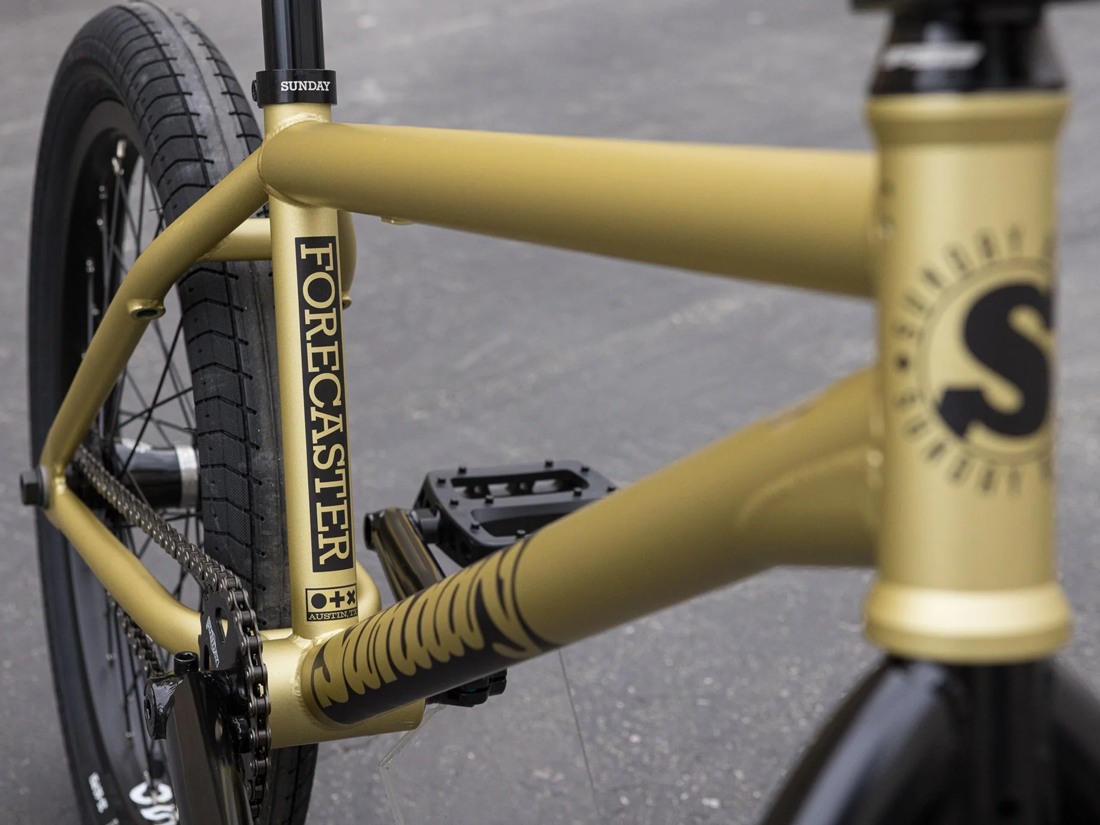

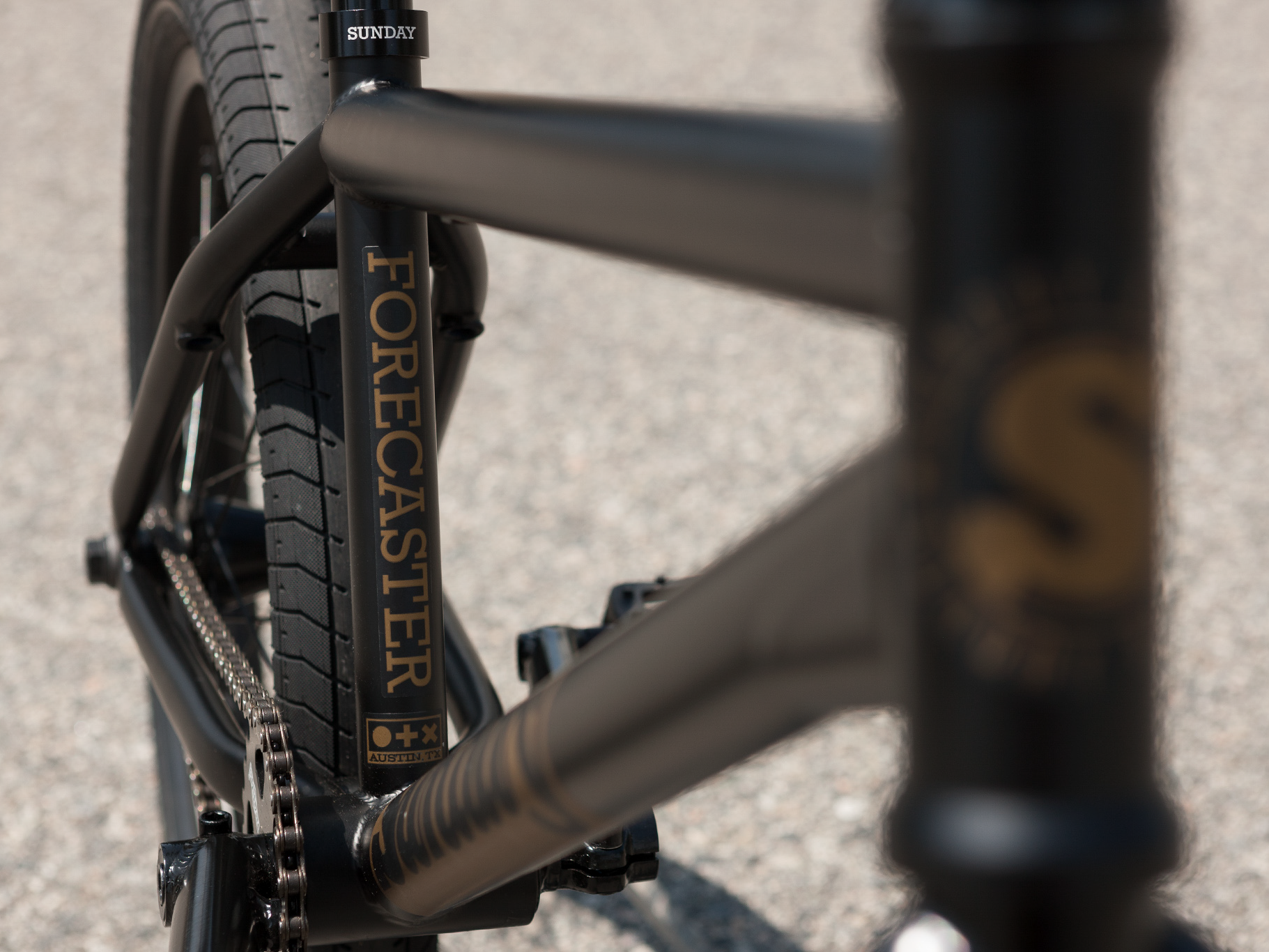

Frame: Sunday Forecaster, 21" TT, 100% chromoly frame with integrated 1-1/8" head tube, and removable brake hardware
Fork: Sunday Forecaster, 20" fork w/ 2-piece chromoly steerer tube and welded pre-load

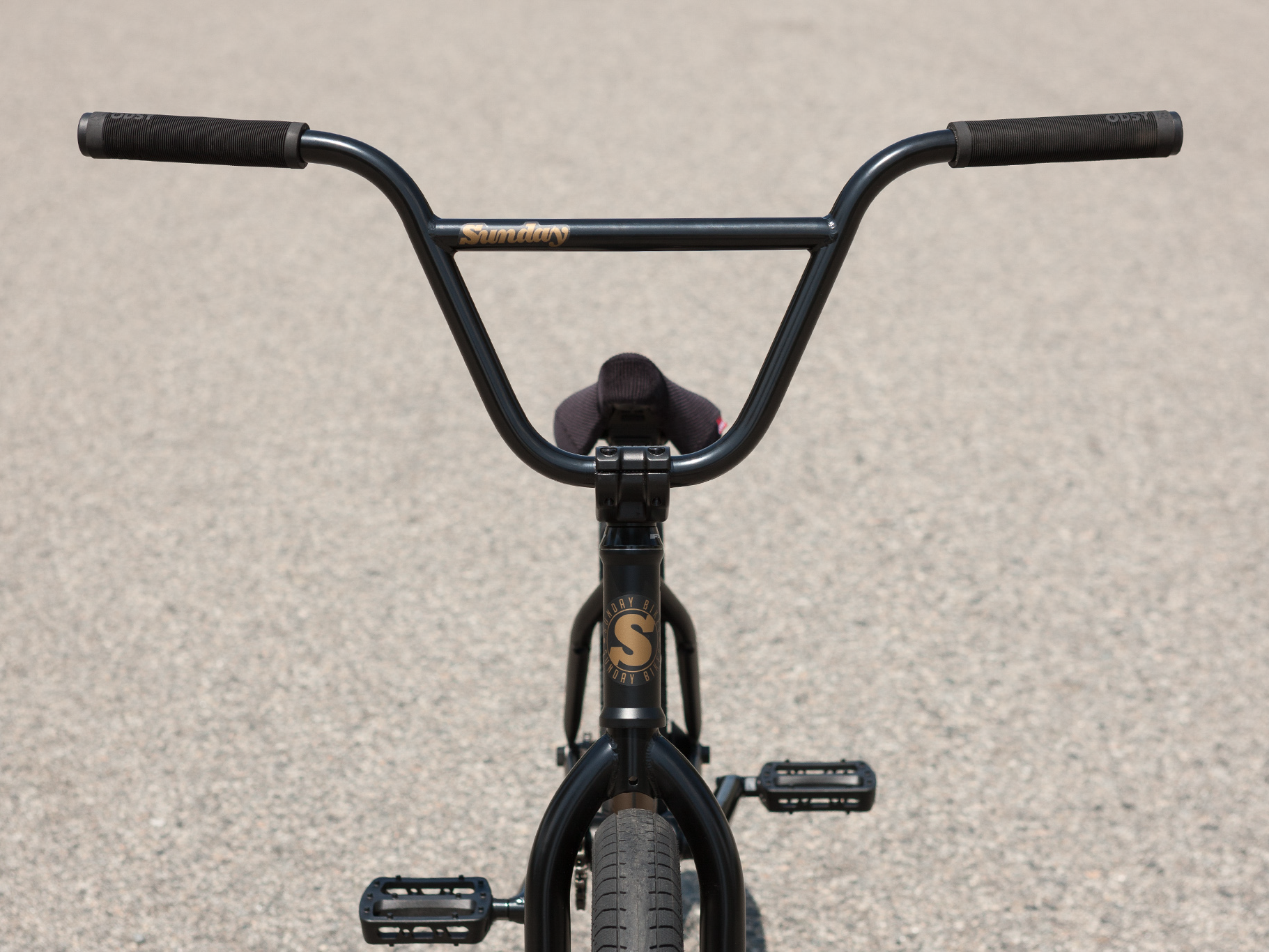

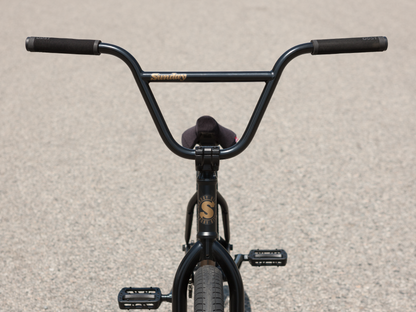

Handlebar: Sunday, 2-piece
Stem: Sunday Freeze front load, 48mm

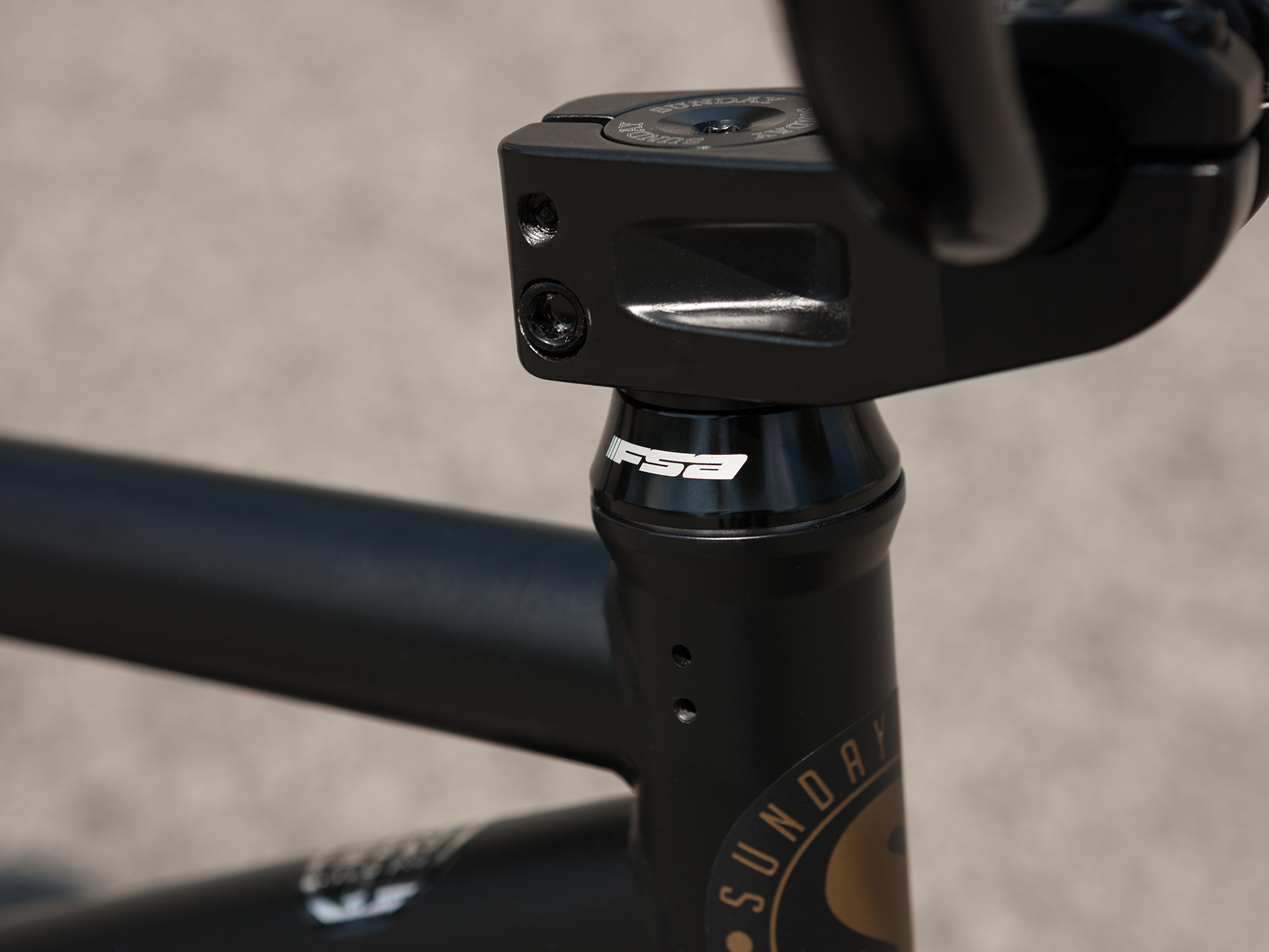

Headset: FSA integrated conical, 1-1/8"
Alloy Cap: Sunday M16, aluminum
Brake Lever: Odyssey Springfield
Brakes: Odyssey Springfield U-brake
Brake Cable: Odyssey Quik Slic
Grips: Odyssey Broc Raiford

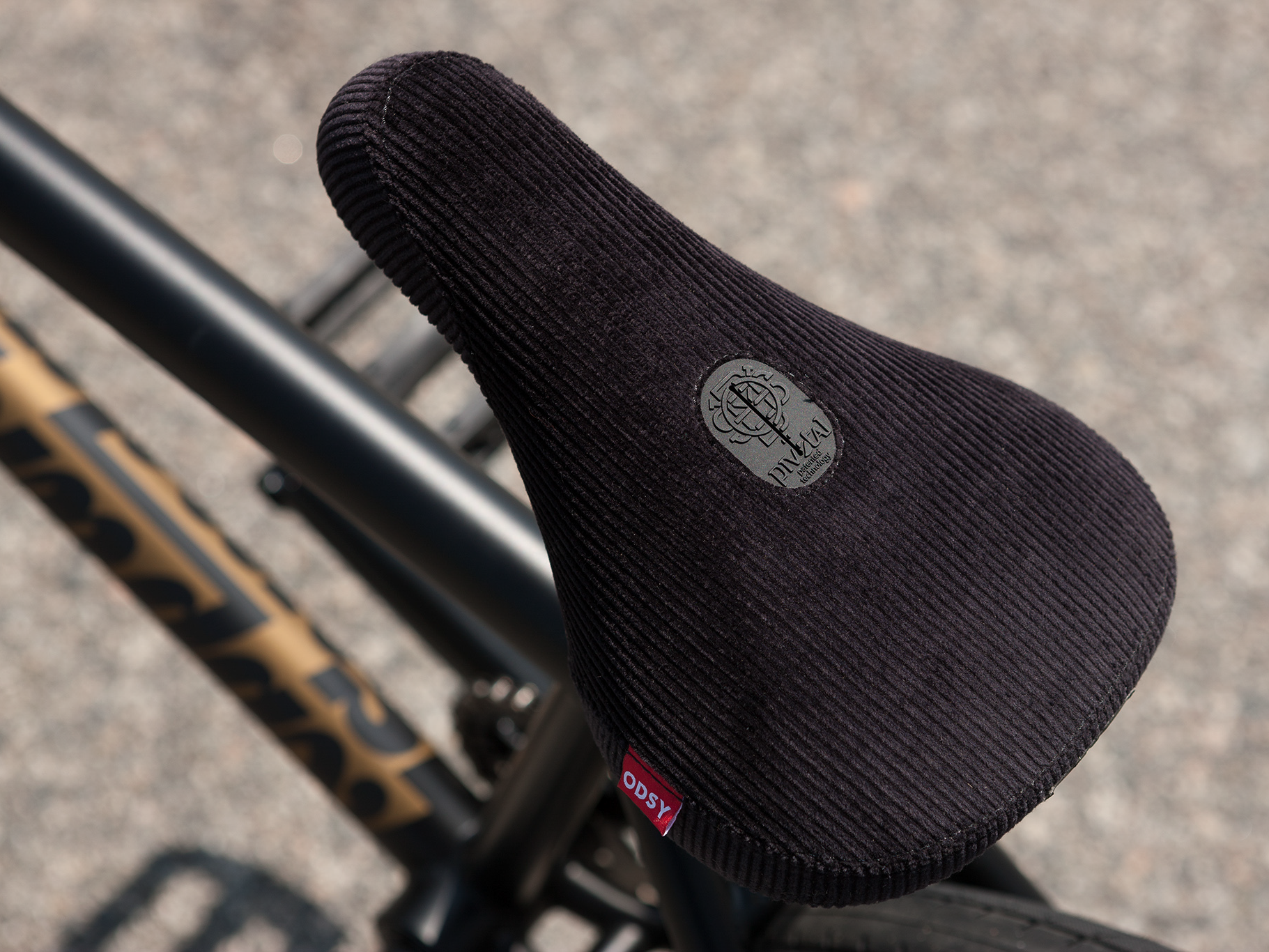

Seat: Odyssey Broc Raiford Signature, Pivotal
Seat Alternate: Odyssey Big Stitch, Pivotal
Seat Post: Sunday Pivotal
Seat Clamp: Sunday

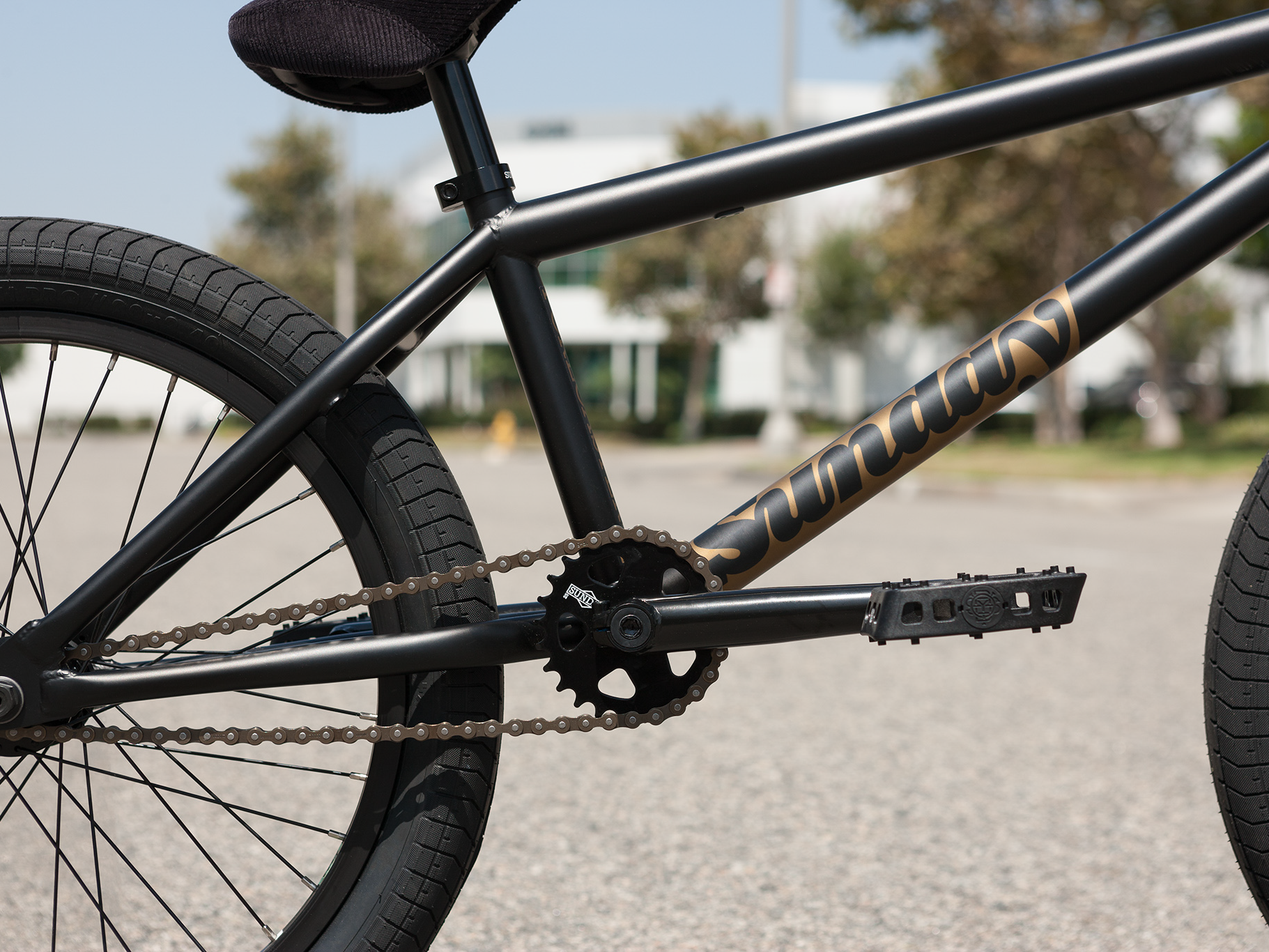

Sprocket: Sunday Sabertooth v2, 25T, steel
Cranks: 170mm, 3-piece, chromoly
BB Parts: Sealed, Mid, 19mm
Pedals: Odyssey Twisted PC Pro
Rims: Odyssey Stage 1, 20", 36H
Front Hub: Sunday, 36H, low-flange, sealed , 3/8" female axle
Rear Hub: Odyssey Clutch v2 freecoaster, 36H, 14mm female axle w/ 9T driver, LHD or RHD, non-drive side plastic guard
Spokes: 14g steel, black
Tyres: Odyssey Path Pro OEM, 20 x 2.4" (F & R)
Chain: KMC Z1 wide
Approx. Weight: 12.14kgs (with brakes)
Frame Geometry
Top Tube Length: 21"
Head Tube Angle: 75.5°
Seat Tube Angle: 71°
Chainstay Length: 13.2-13.5”
Bottom Bracket Height: 11.7"
Standover: 9"
Handlebar Geometry
Rise: 9"
Width: 28.5"
Backsweep: 12°
Upsweep: 4°
