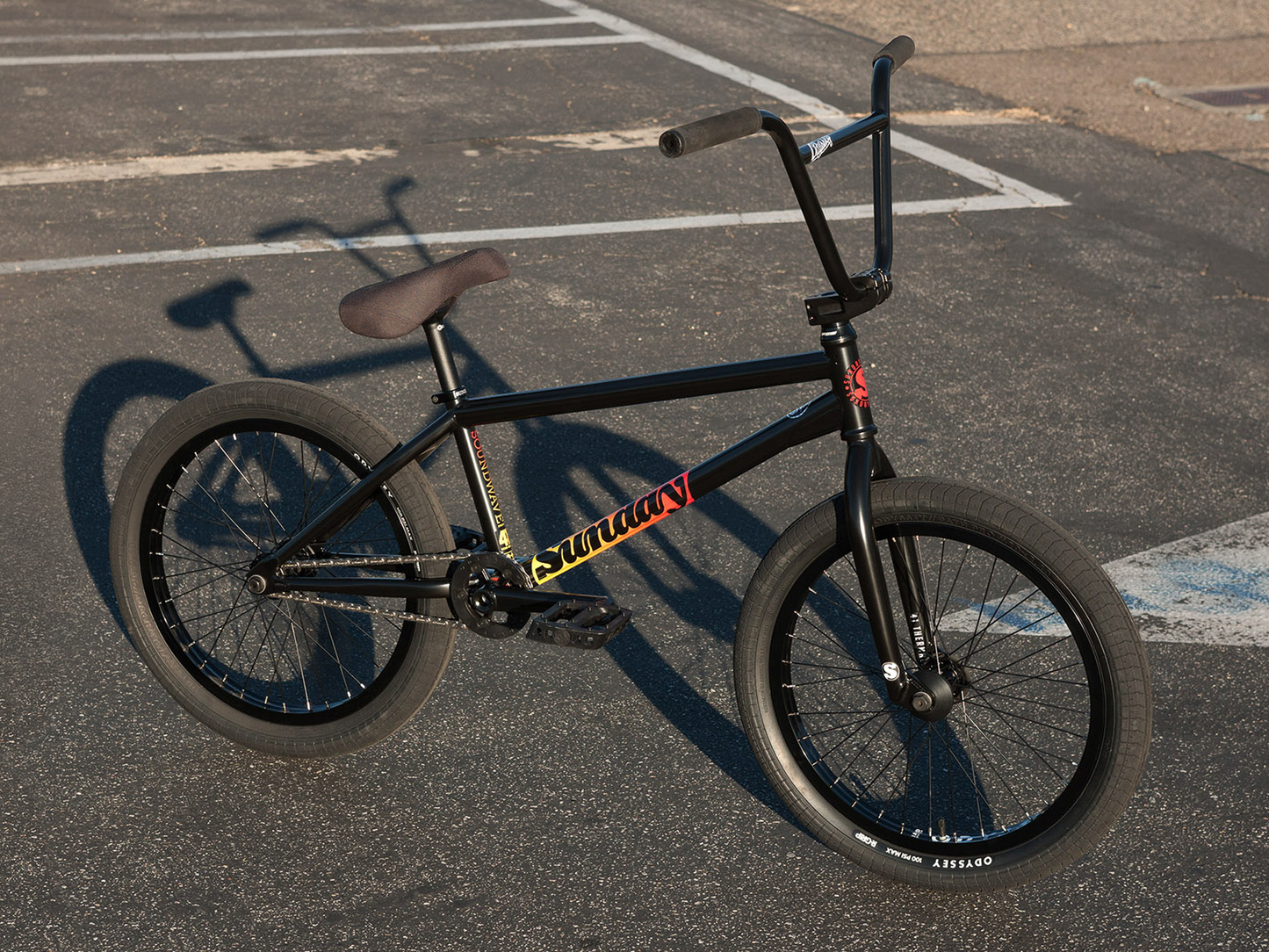

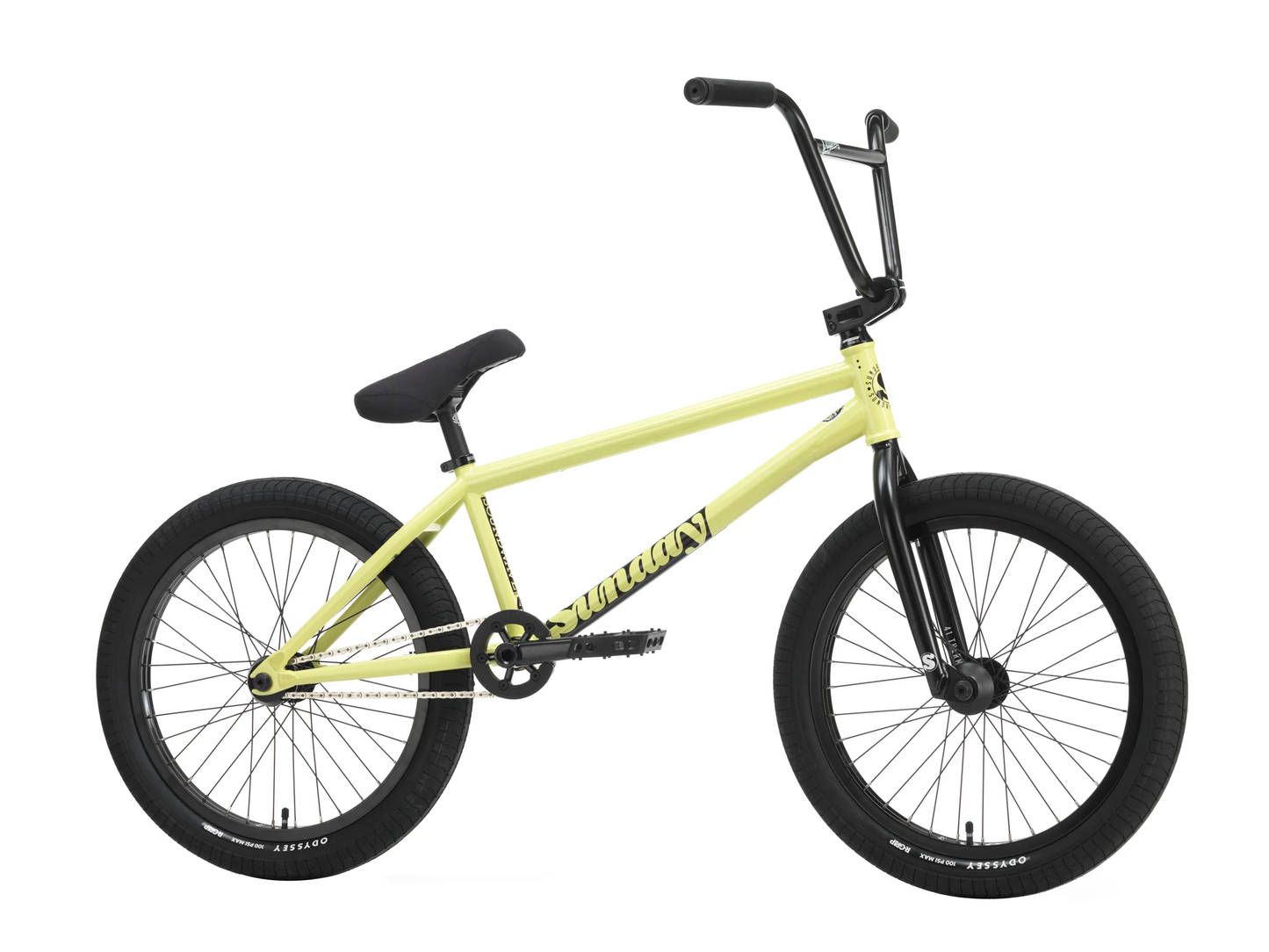

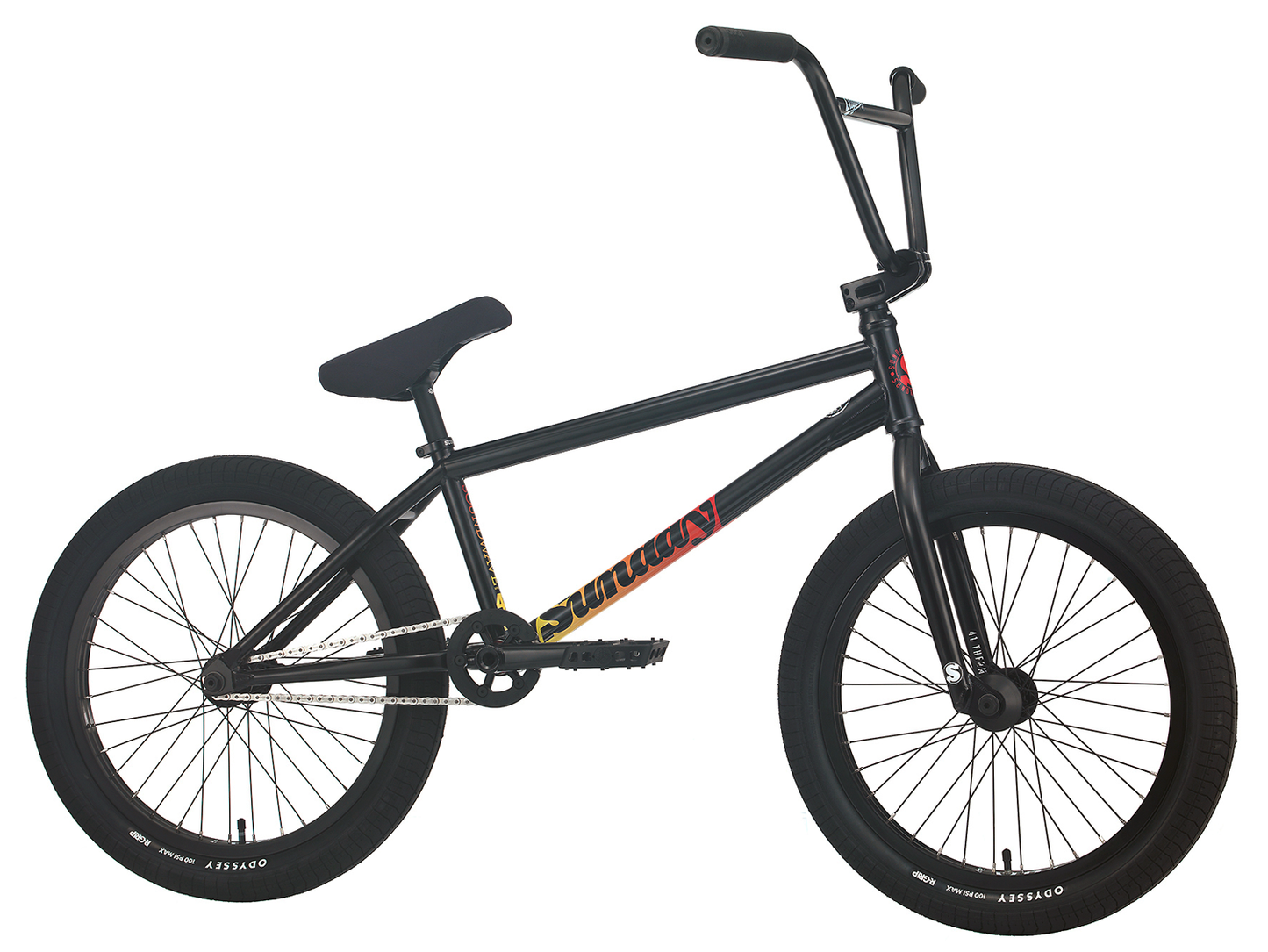

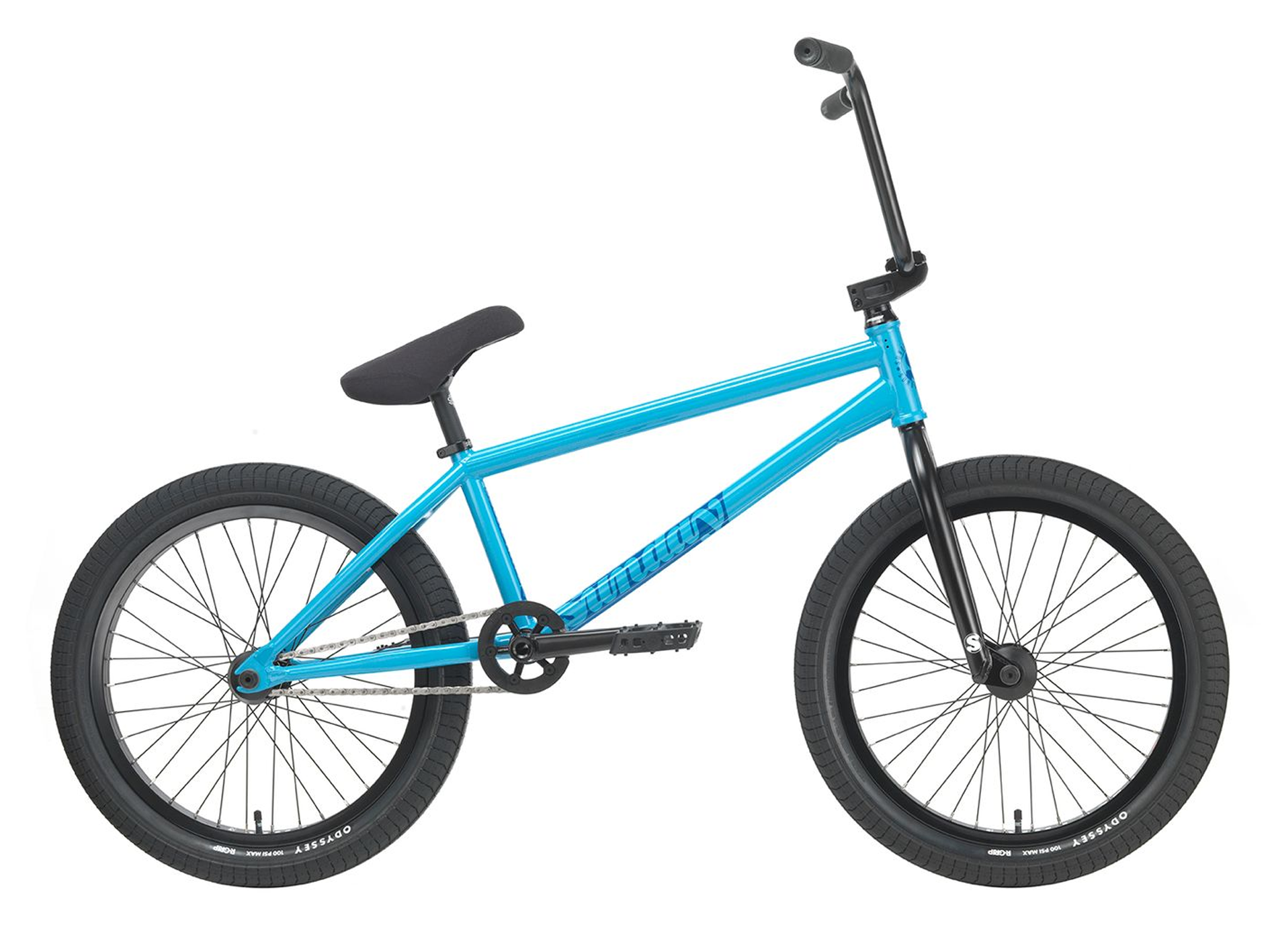

SUNDAY 20" Soundwave Special Bike
SUNDAY 20" Soundwave Special Bike
Couldn't load pickup availability
Features
- 100% aftermarket
- 41-Thermal® Lifetime Warranty on frame, fork, bars, and cranks
- Sunday Soundwave v3 frame
- Sunday Darkwave forks
- Odyssey Super Highway bars
- Odyssey Thunderbolt+ cranks
- Odyssey Utility Pro sprocket
- Odyssey Hazard Lite rims
- Odyssey Clutch v2 freecoaster
- Odyssey Path Pro tyres
- Right hand or left hand drive
Specifications

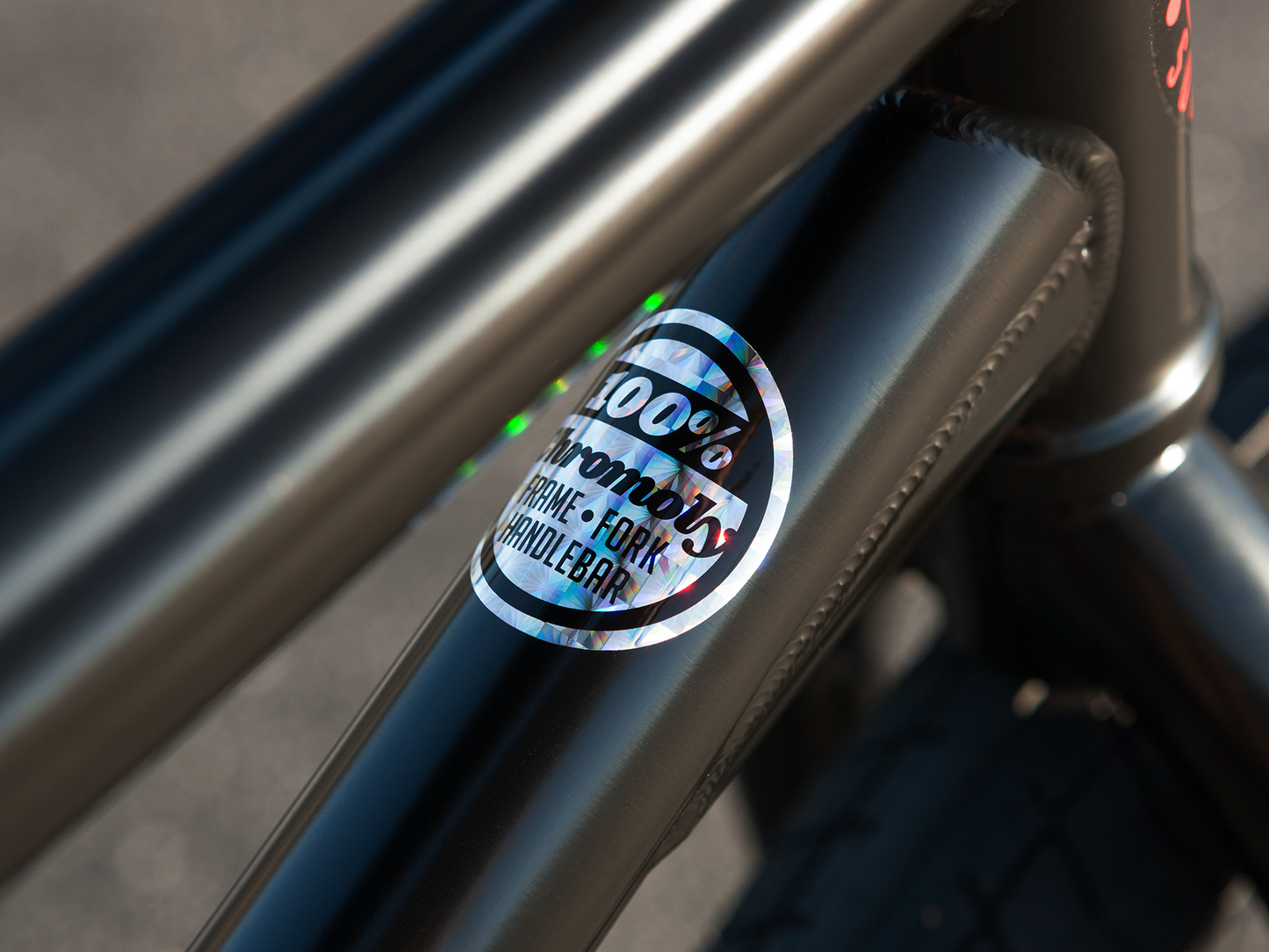

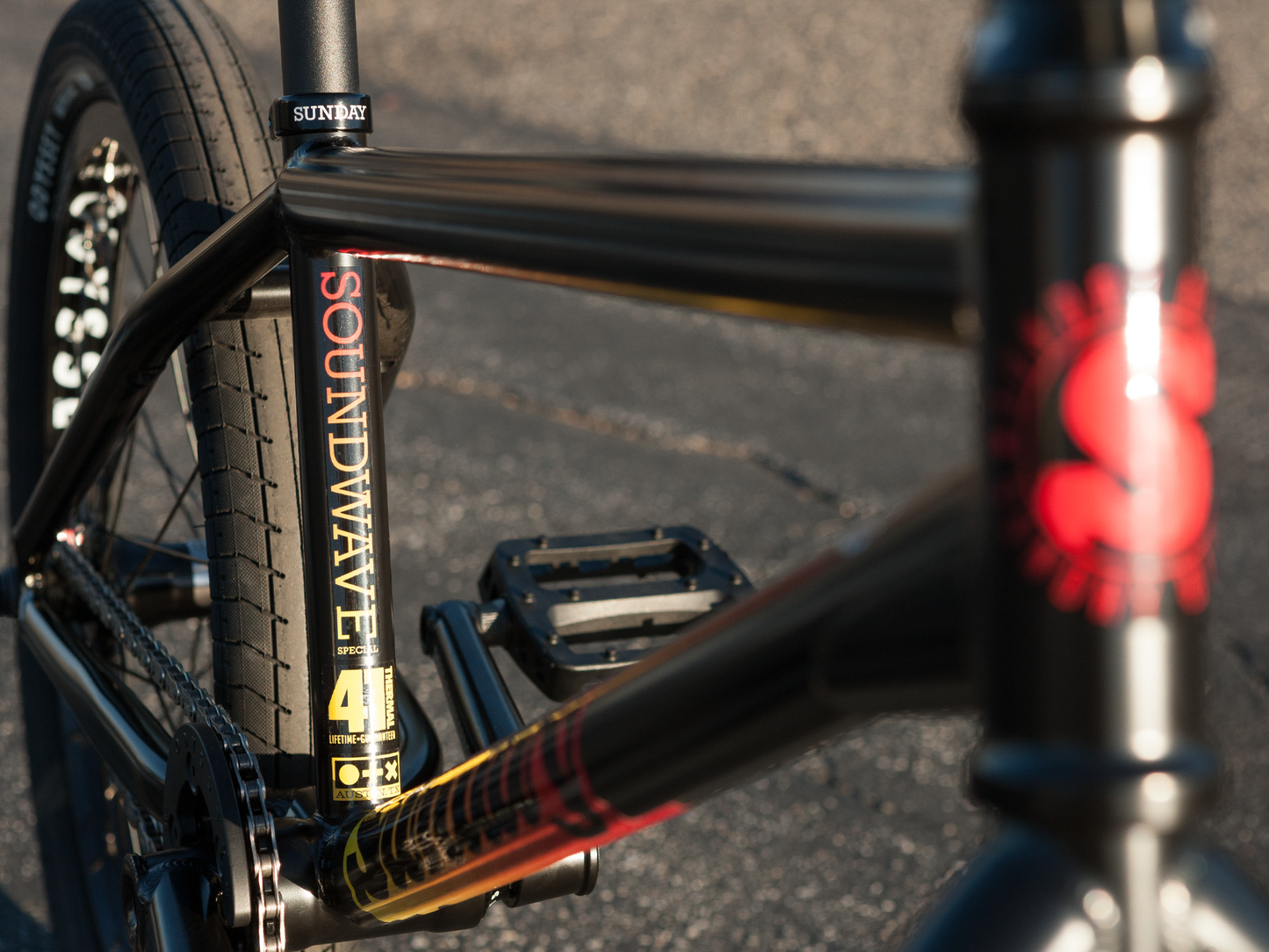

Frame - Sunday Soundwave v3, 21" top tube, 100% chromoly aftermarket frame, 41-Thermal® lifetime warranty, removable brake hardware
Fork - Sunday Darkwave, 20", 100% chromoly aftermarket fork, 41-Thermal® lifetime warranty, 28mm offset

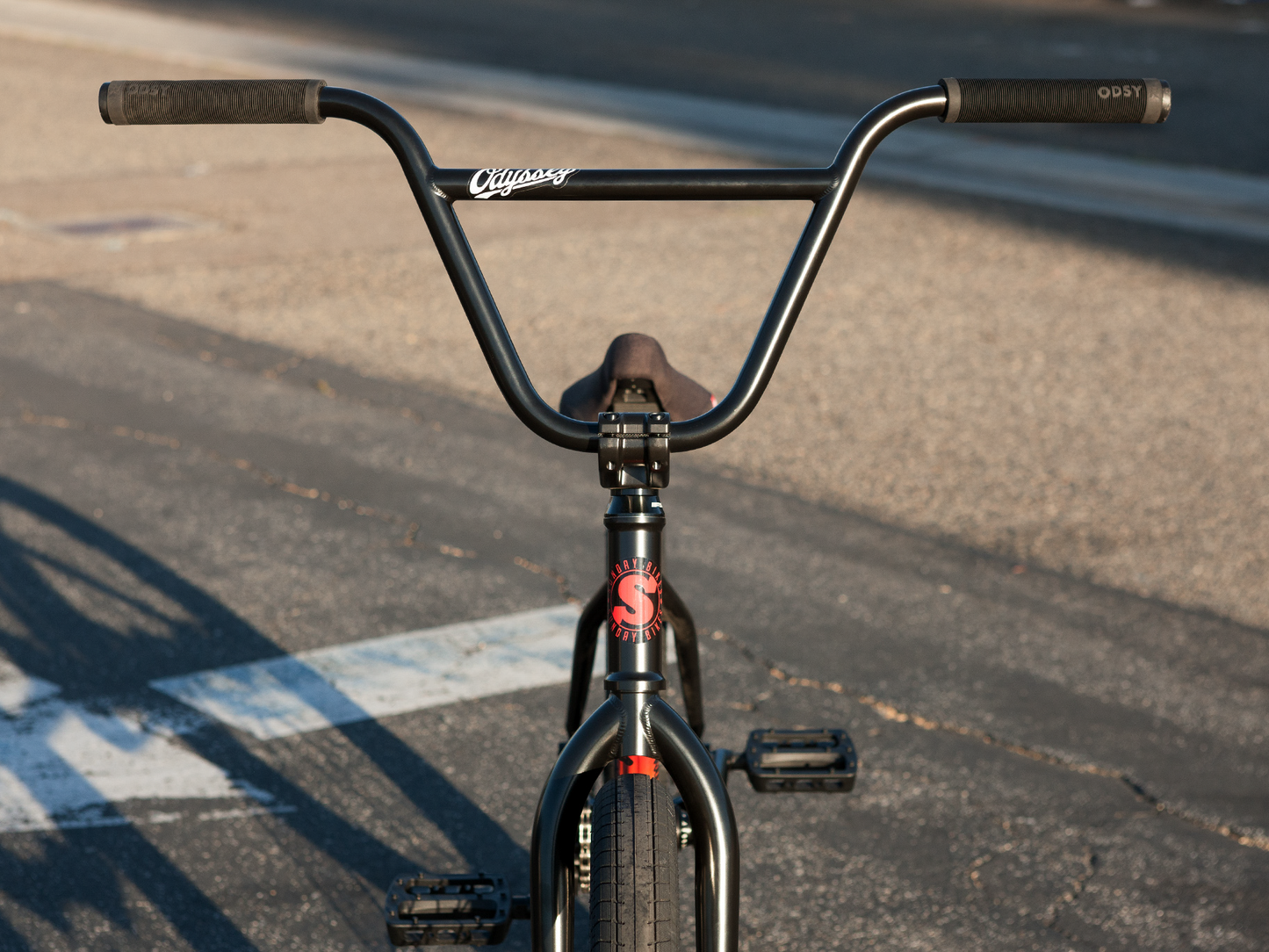

Handlebar - Odyssey Super Highway,100% chromoly aftermarket bar, 2-piece
Stem - Sunday Freeze top load, 48mm
Headset - FSA integrated conical, 1-1/8"
Alloy Cap - Sunday aftermarket, aluminum
Brake Lever - Odyssey Monolever
Brakes - Odyssey Springfield U-brake
Brake Cable - Odyssey Quik Slic
Grips - Odyssey BROC

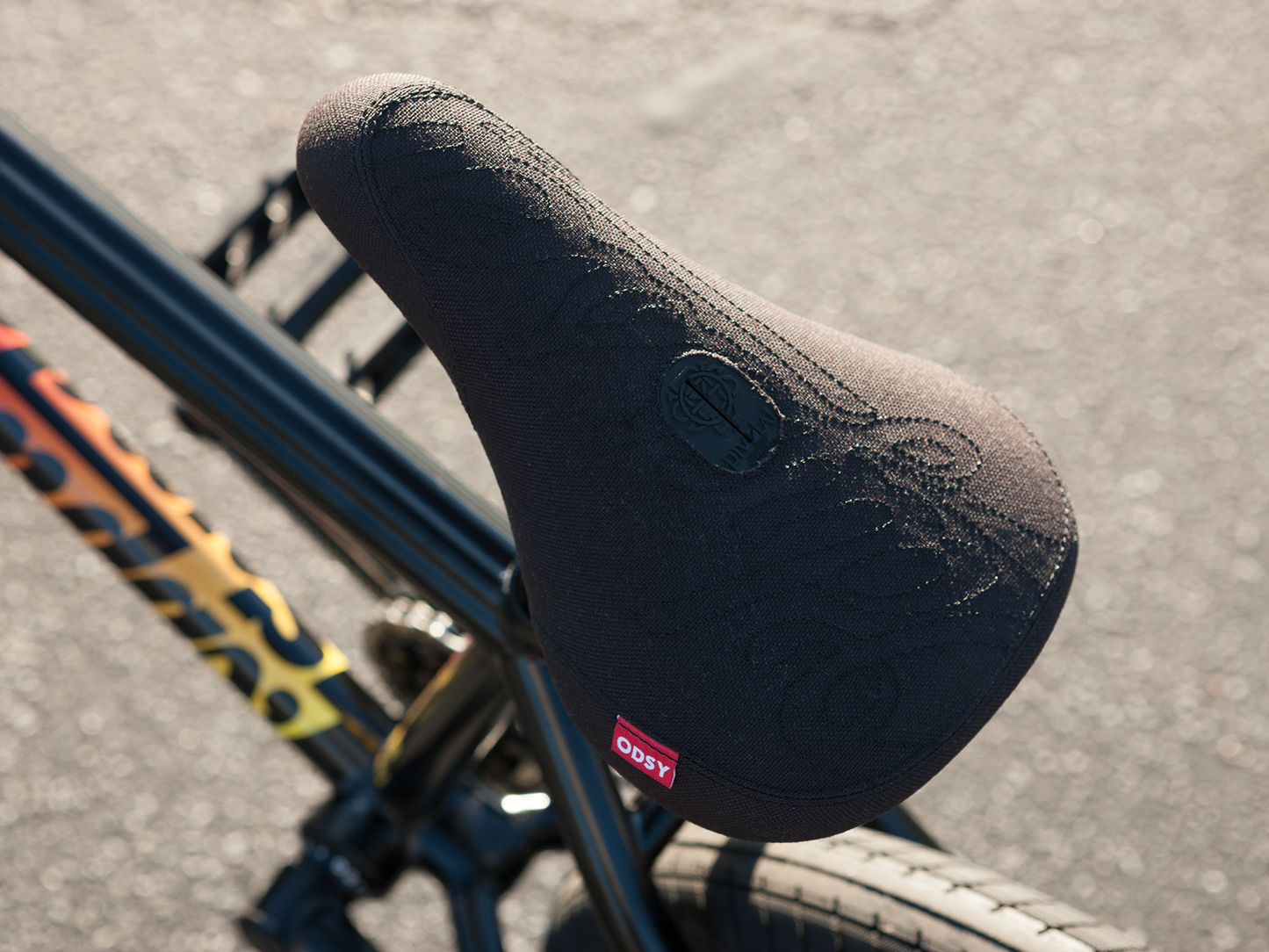

Seat - Odyssey Slugger stitch, pivotal
Seat post - Odyssey pivotal
Seat Clamp - Sunday aftermarket
Sprocket - Odyssey Utility Pro, 25T w/ plastic guard

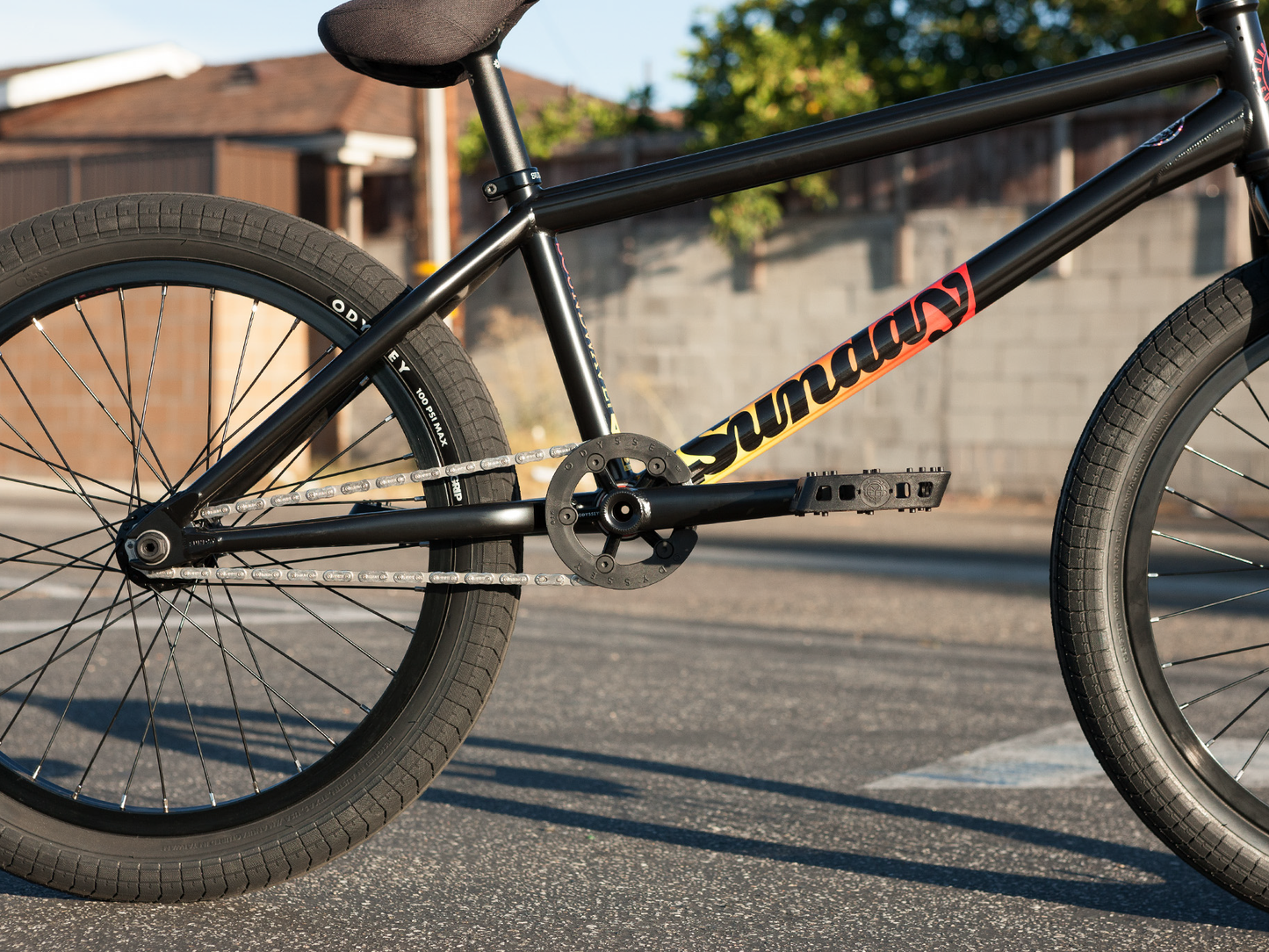

Cranks - Odyssey Thunderbolt+, 170mm, 100% chromoly, 41-Thermal® lifetime warranty, LHD or RHD
BB Parts - Sealed, mid, 22mm
Pedals - Odyssey Twisted PC Pro
Rims - Odyssey Hazard Lite, 20", 36H
Front Hub - Odyssey Vandero Pro, 36H, sealed, 3/8" female axle, 2 plastic guards
Rear Hub - Odyssey Clutch v2 Freecoaster, 36H, 14mm female axle w/ 9T driver, non-drive plastic guard
Spokes - 14g steel, black
Tyres - Odyssey Path Pro, aftermarket, 20 x 2.4" (F & R)
Chain - KMC Z1 eHX-W
Approx. Weight - 10.61kgs (brakeless)
Frame Geometry
Top Tube Length - 21"
Head Tube Angle - 75°
Seat Tube Angle - 71°
Chainstay Length - 13.2" - 13.5"
Bottom Bracket Height - 11.5"
Standover - 9”
Handlebar Geometry
Rise - 9.5"
Width - 29"
Backsweep - 11°
Upsweep - 1°
