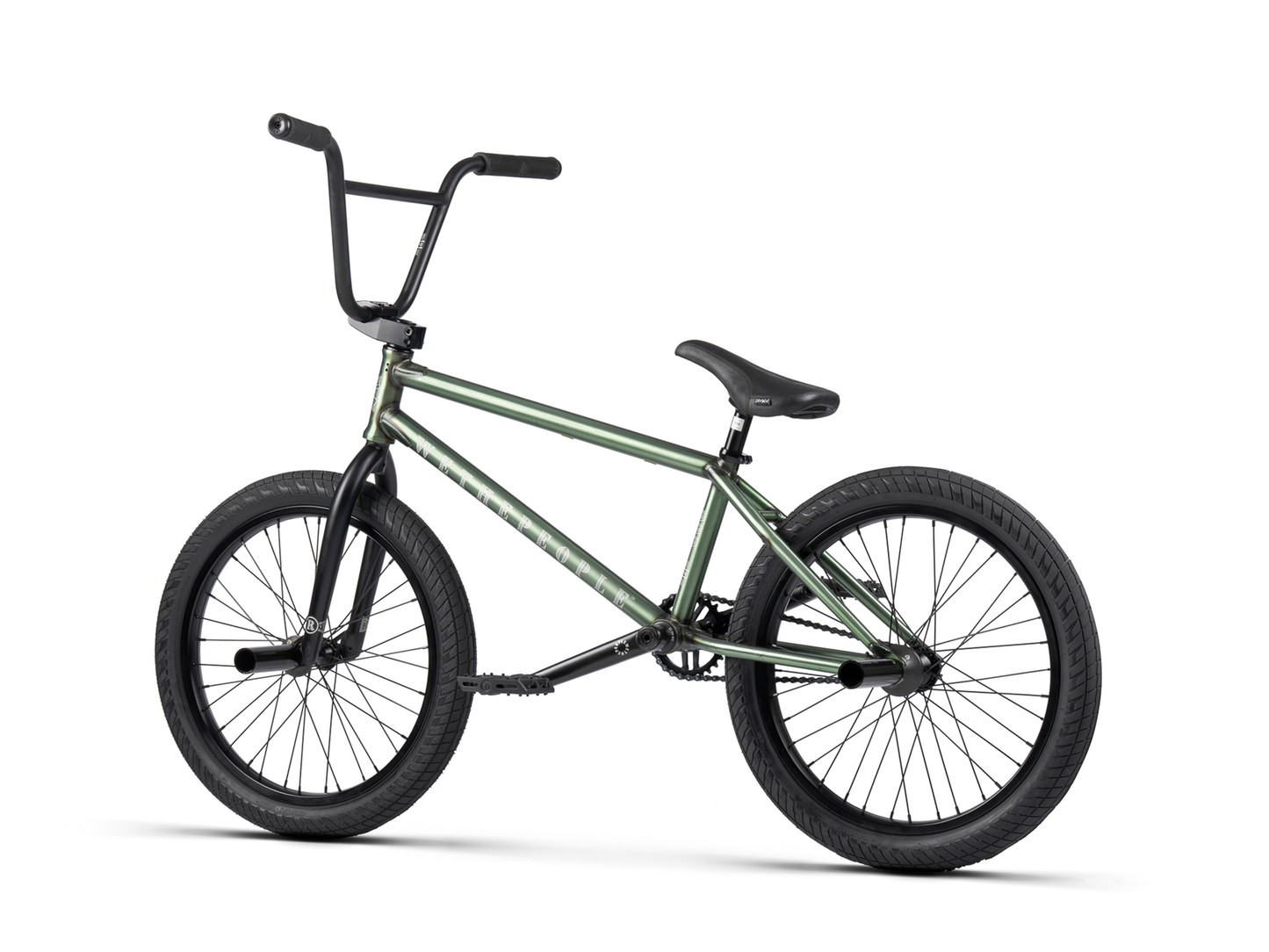

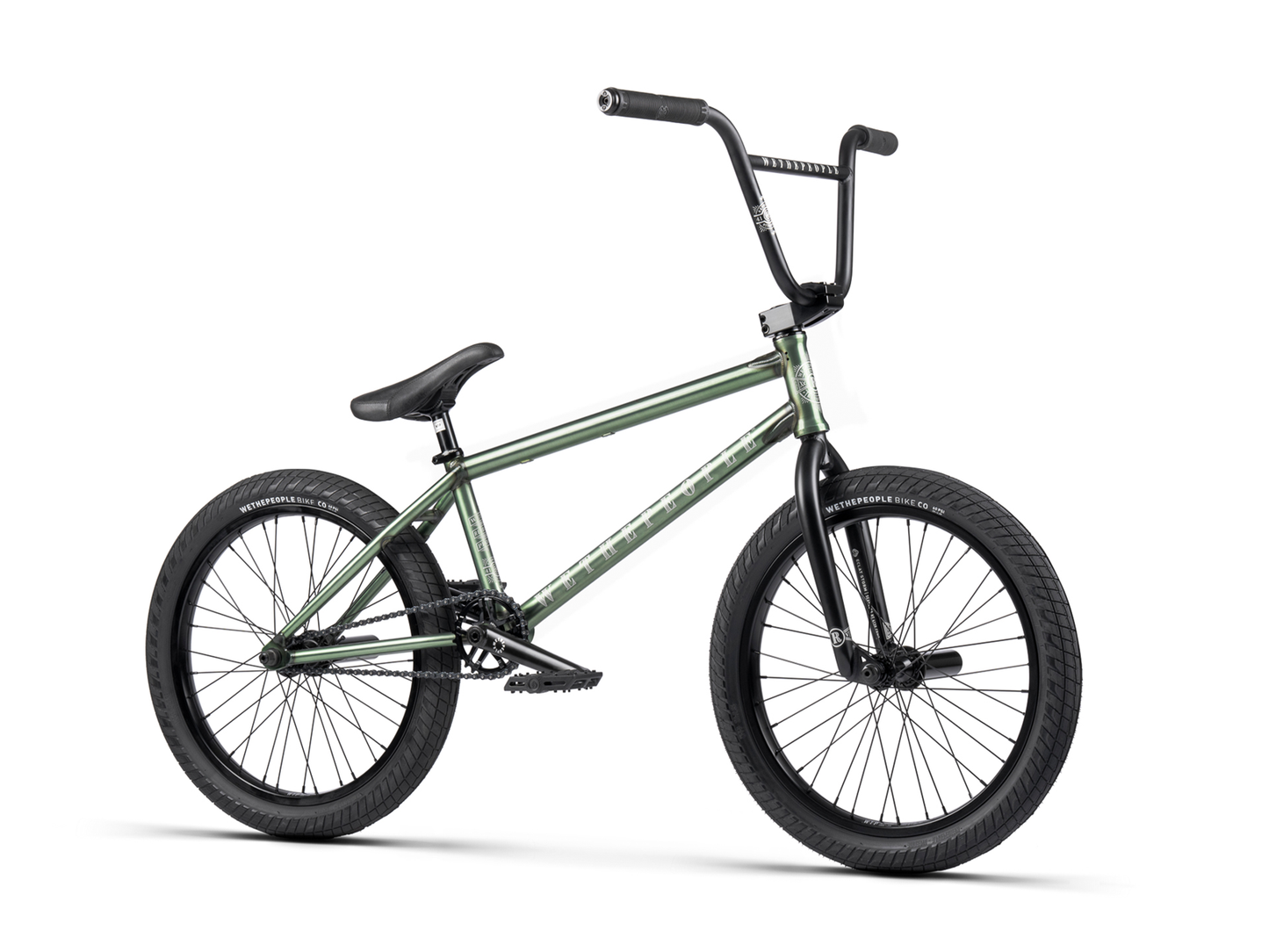

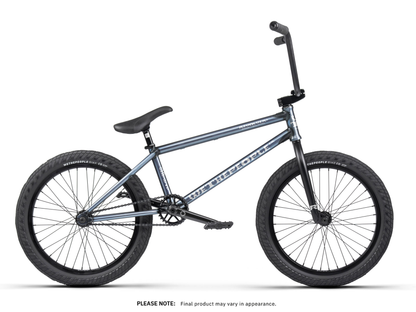

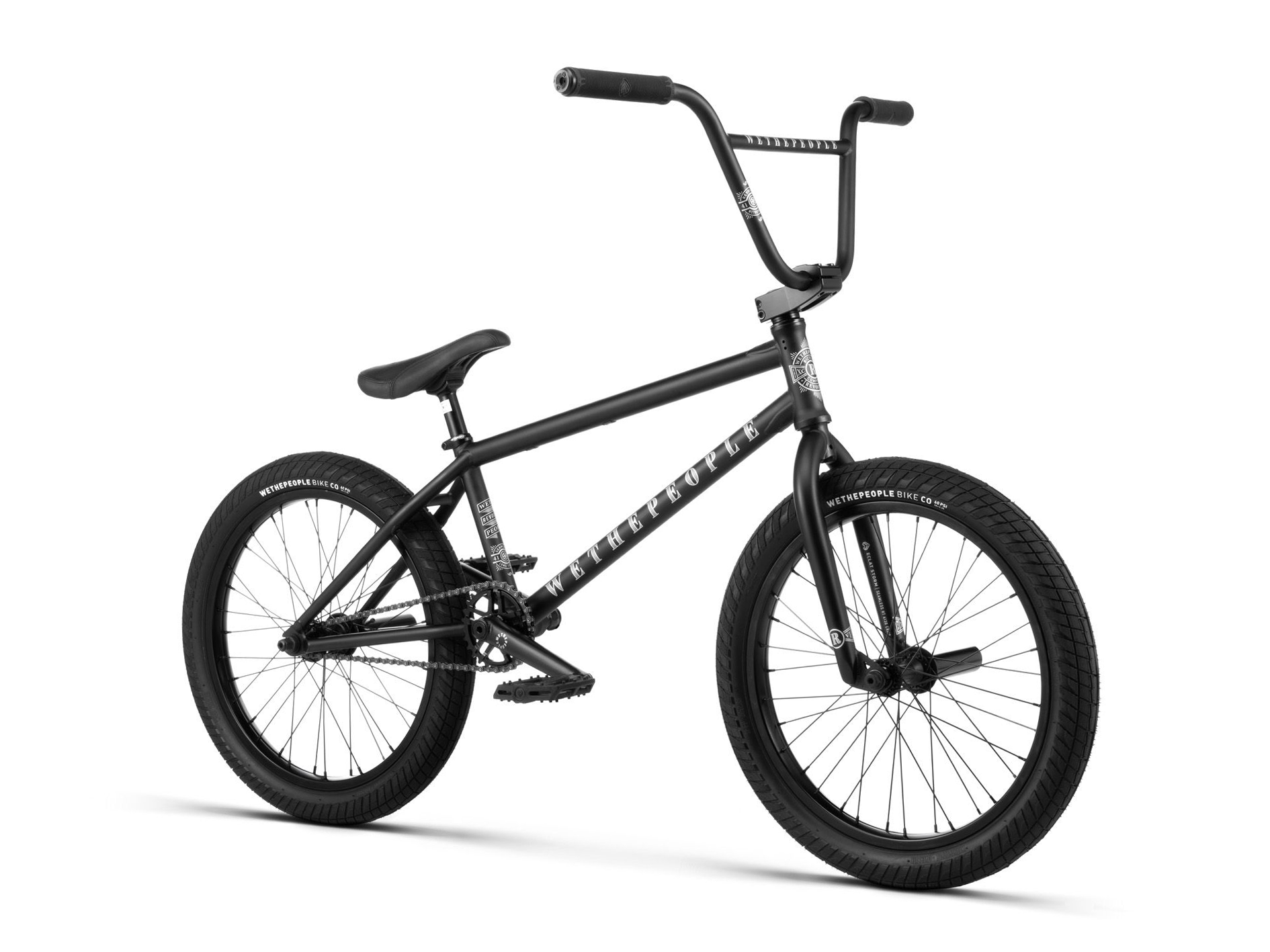

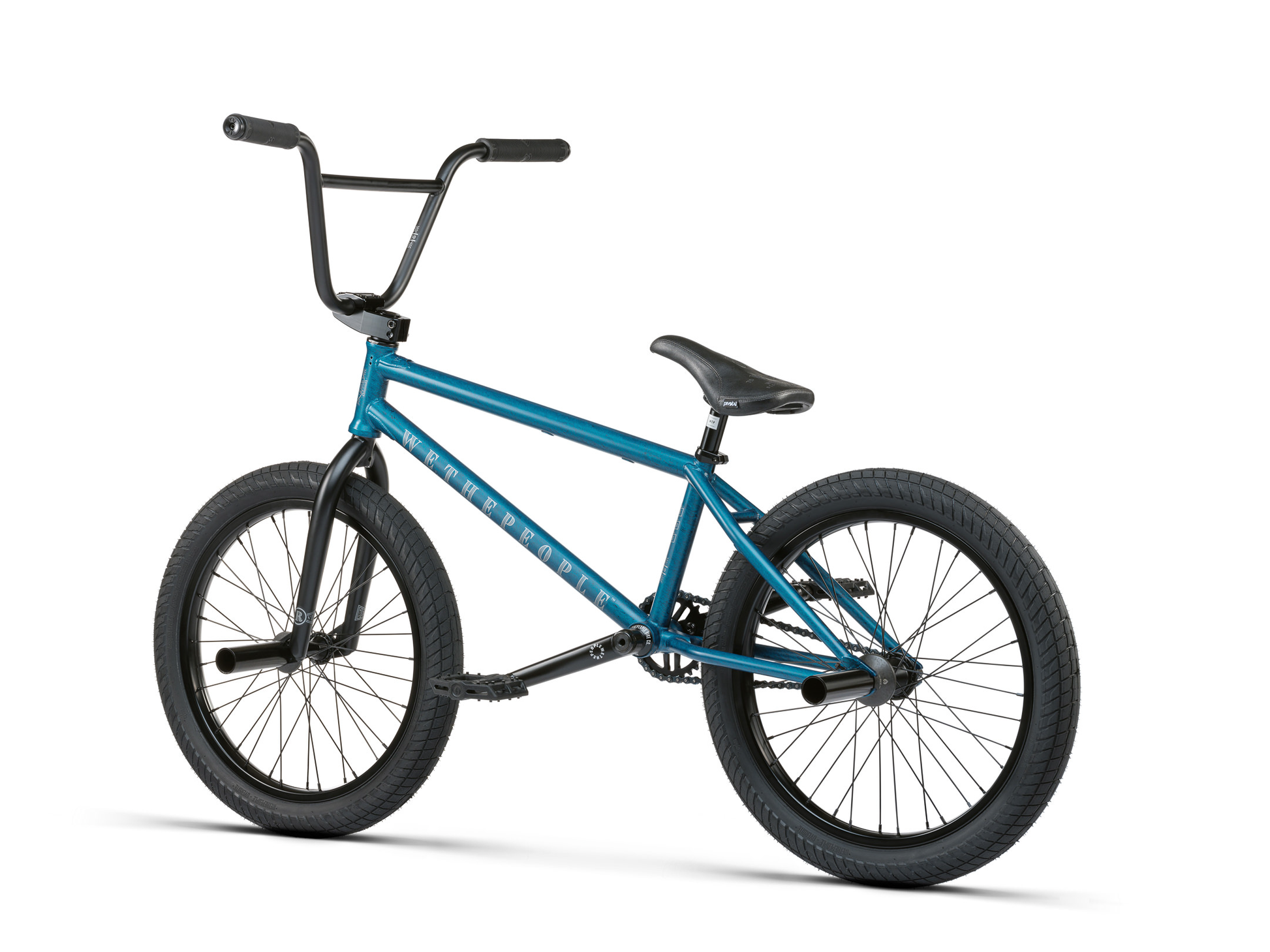

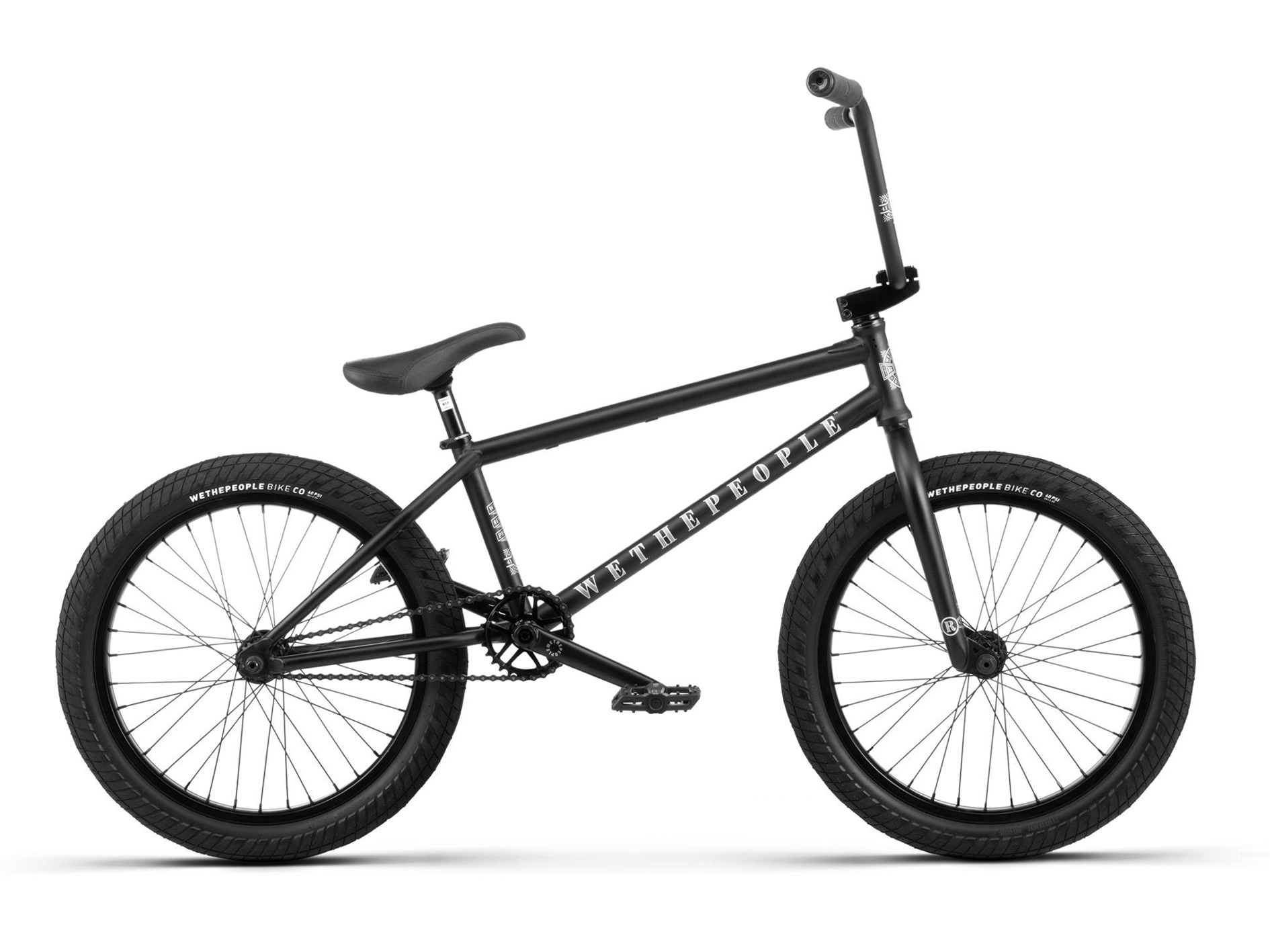

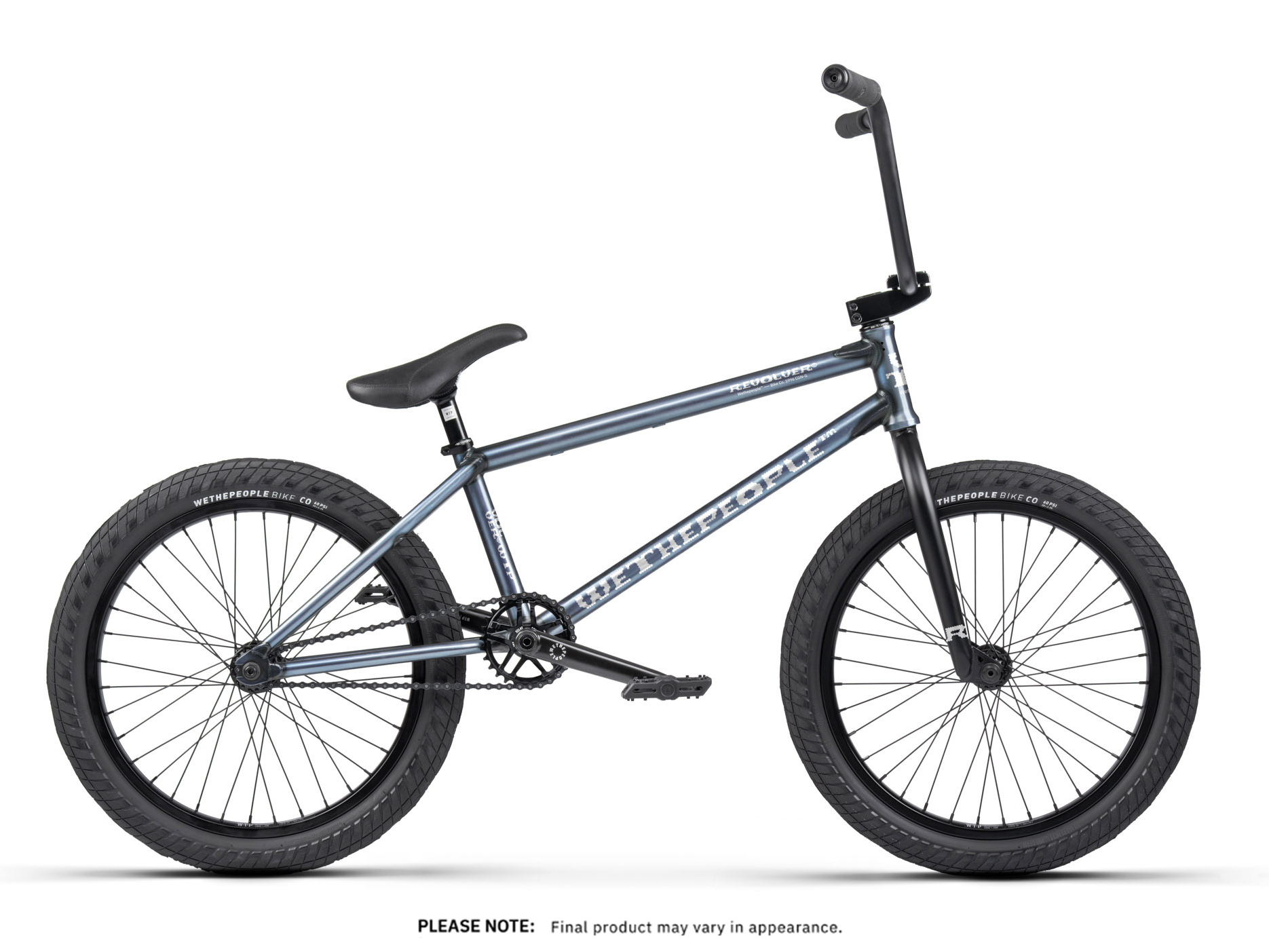

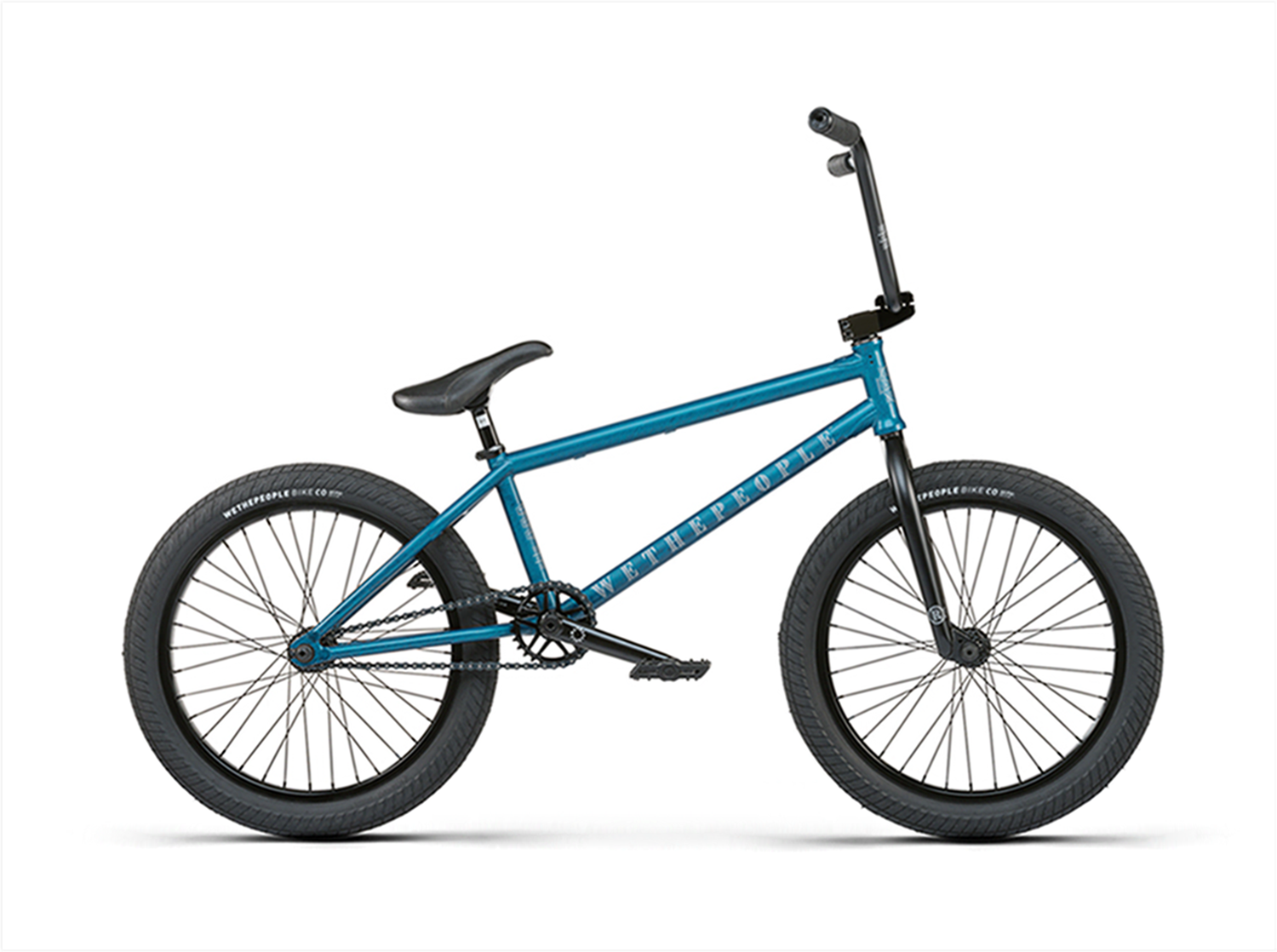

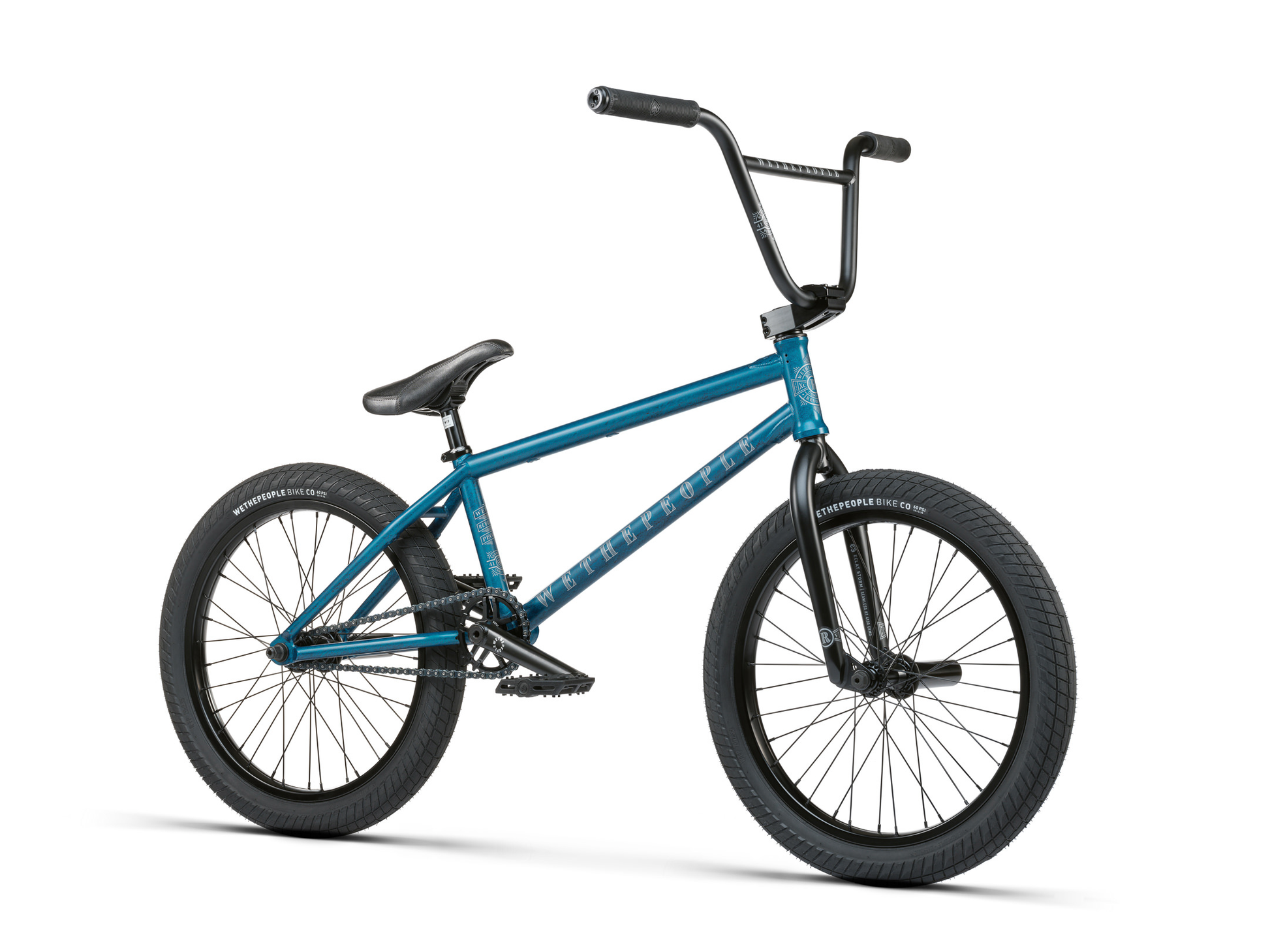

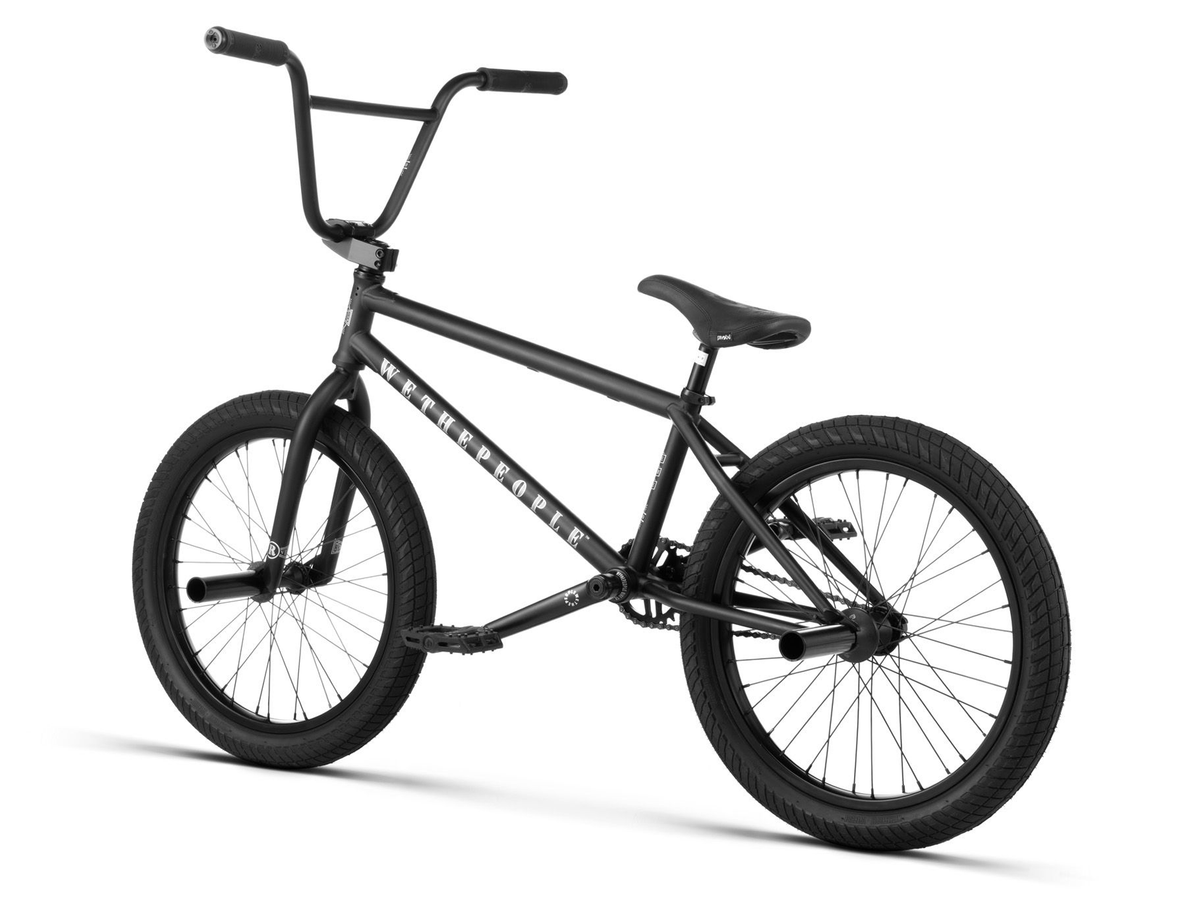

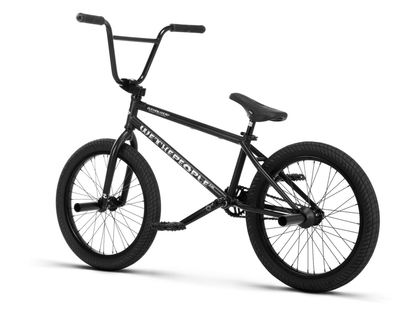

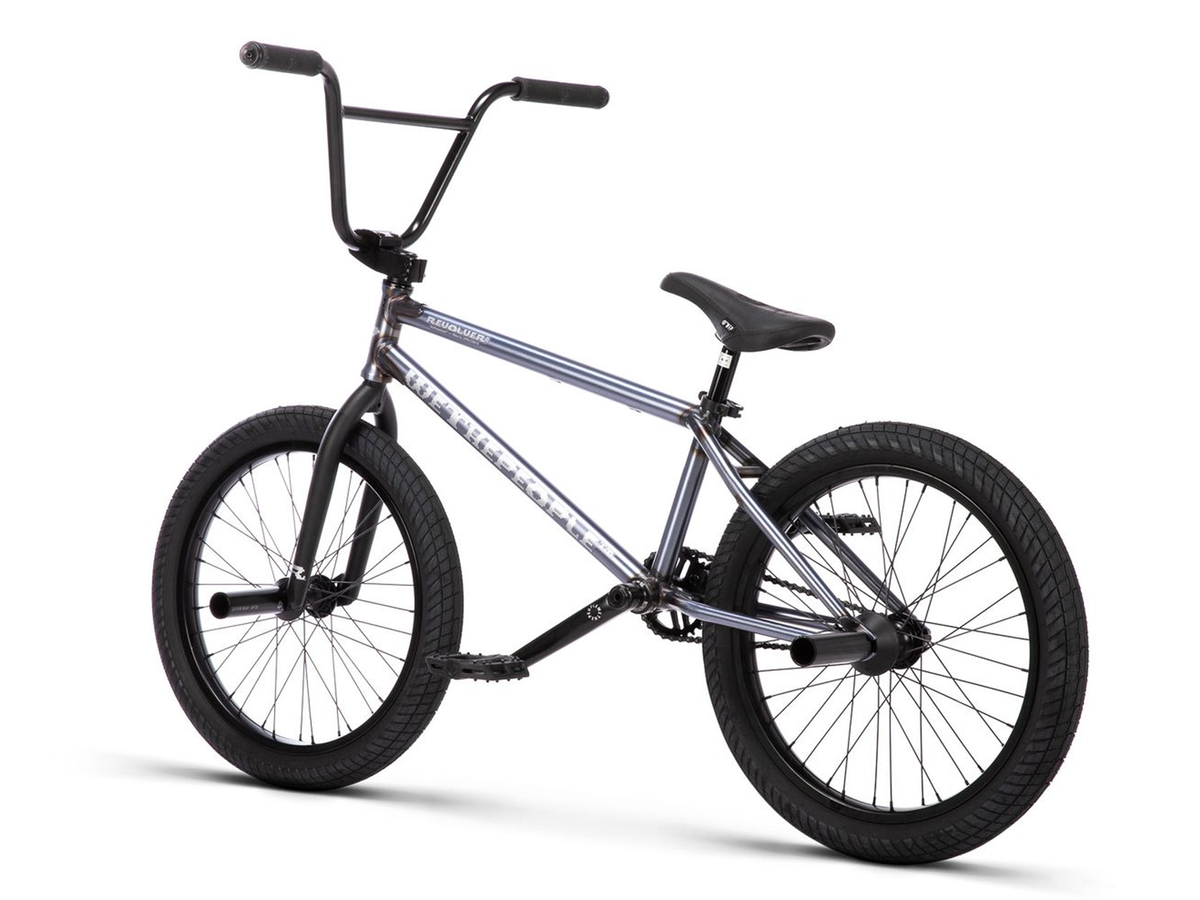

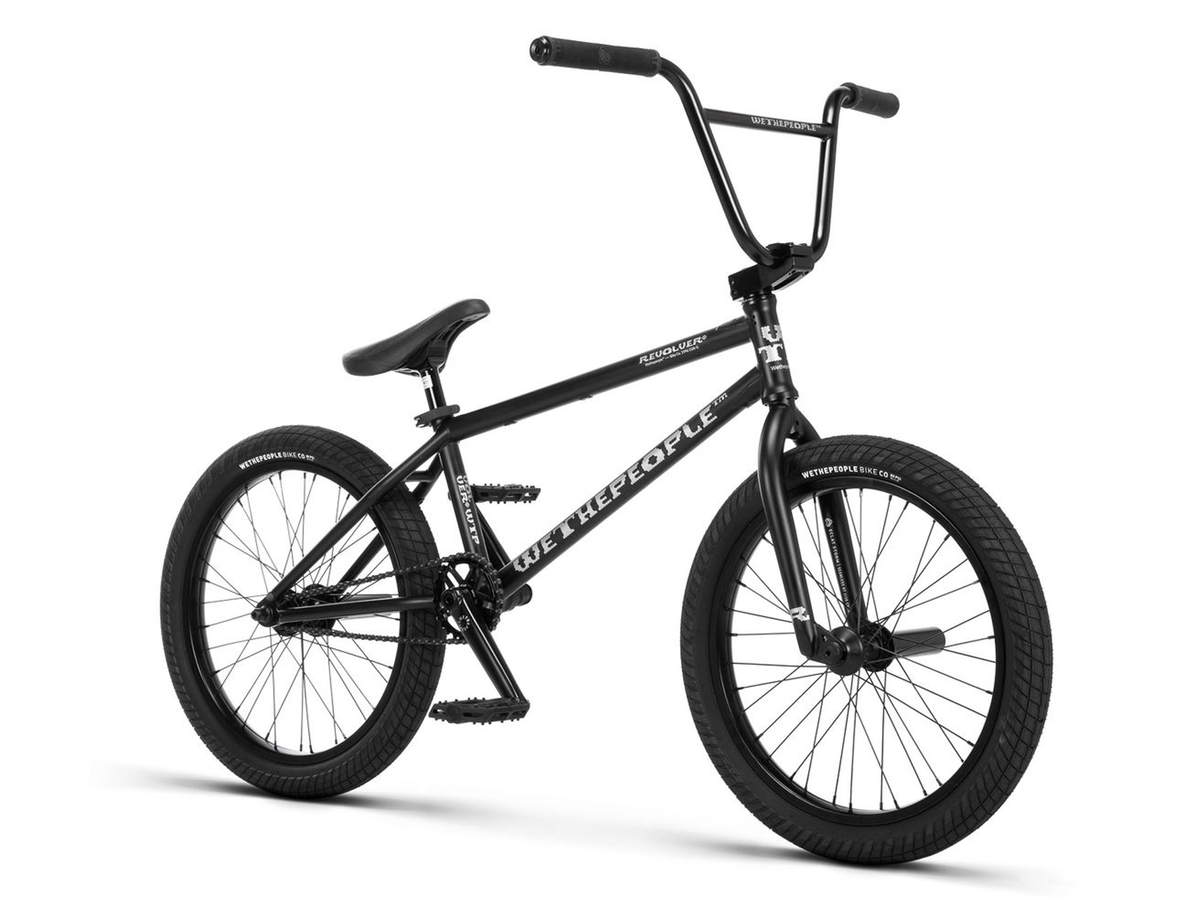

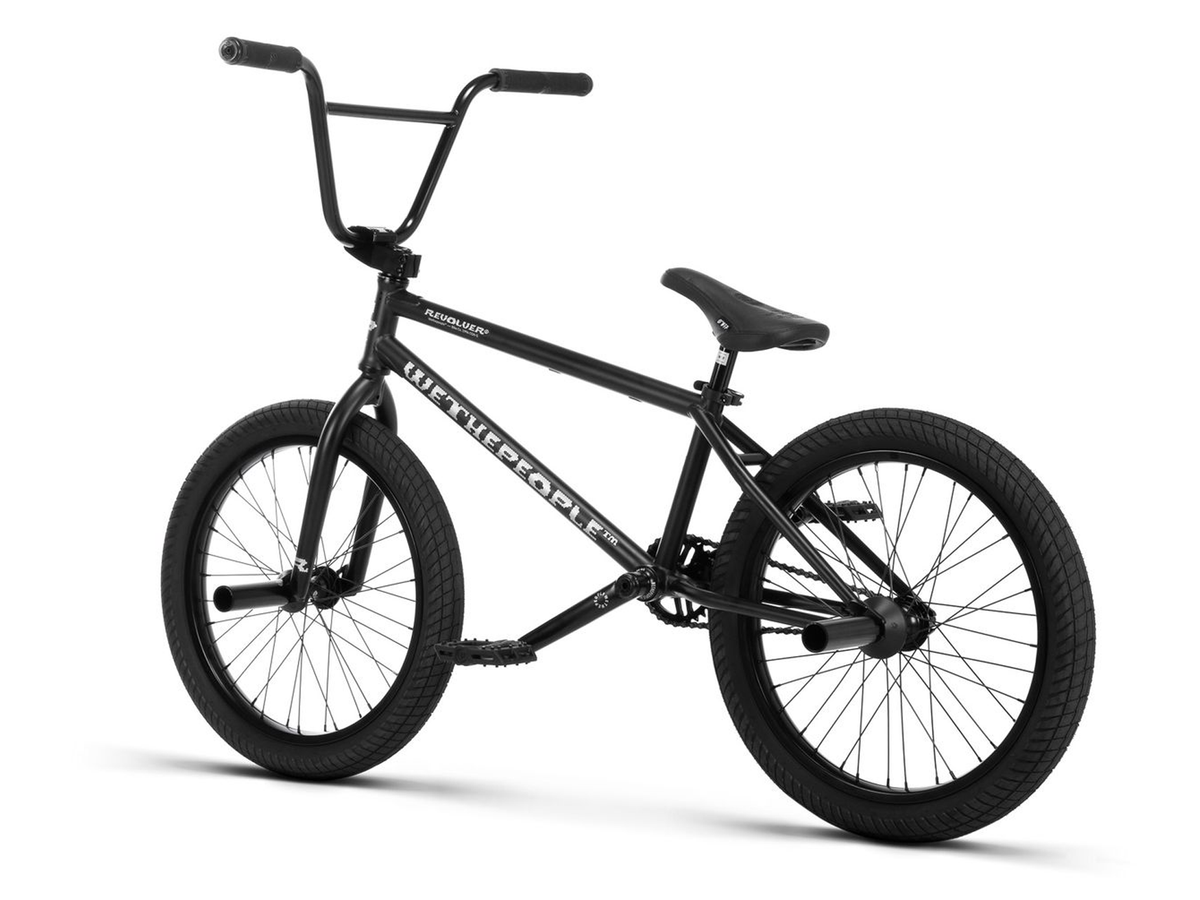

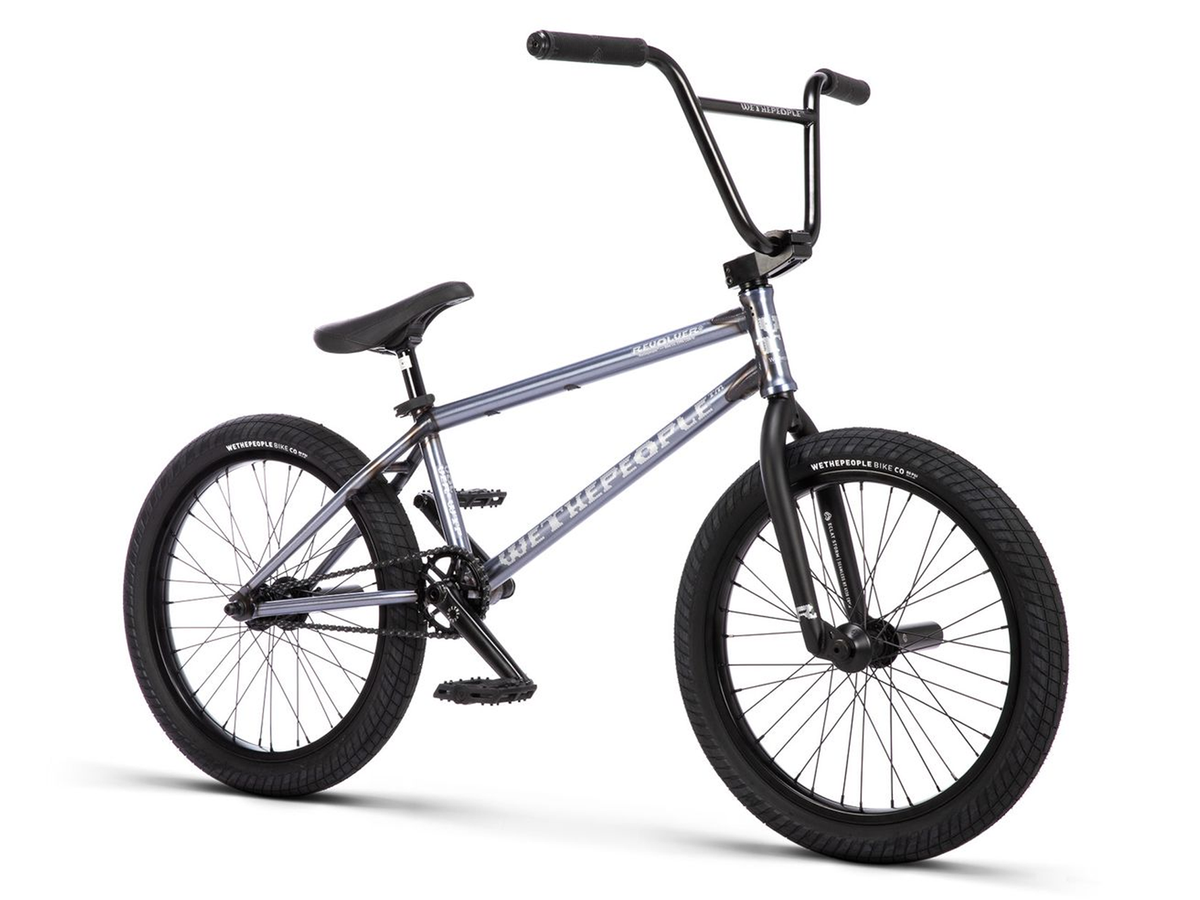

WETHEPEOPLE 20" Revolver Bike
WETHEPEOPLE 20" Revolver Bike
Couldn't load pickup availability
"A bike of quality, craftmanship and style.
Wethepeople took their "do-it-all" aftermarket Revolver frame and draped it in some of the finest high-end components, They've managed to create an incredibly sophisticated and balanced bike for the kind of rider that appreciates the finer things in life. The longer 21" top tube and perfect all-round geometry make the Revolver perfectly comfortable on any terrain from the deepend of a bowl, to the main line of your local trails or even the back streets of a big city.
The harder 28-9 gearing gives this rig plenty of juice when the time for pedalling fast comes into play, and the and full assortment of ECLAT Dura chromoly pegs and hub guards allow you to gun it down any rail in sight. Wrap it up with a lifetime guaranteed ECLAT Storm fork and a mesmerising paint finish, the need to build a custom bike really doesn't exist any more when you could be riding on a bike like this fresh out of the box."
INCLUDES LIFETIME GUARANTEE ON THE FRAME & FORK
Specifications

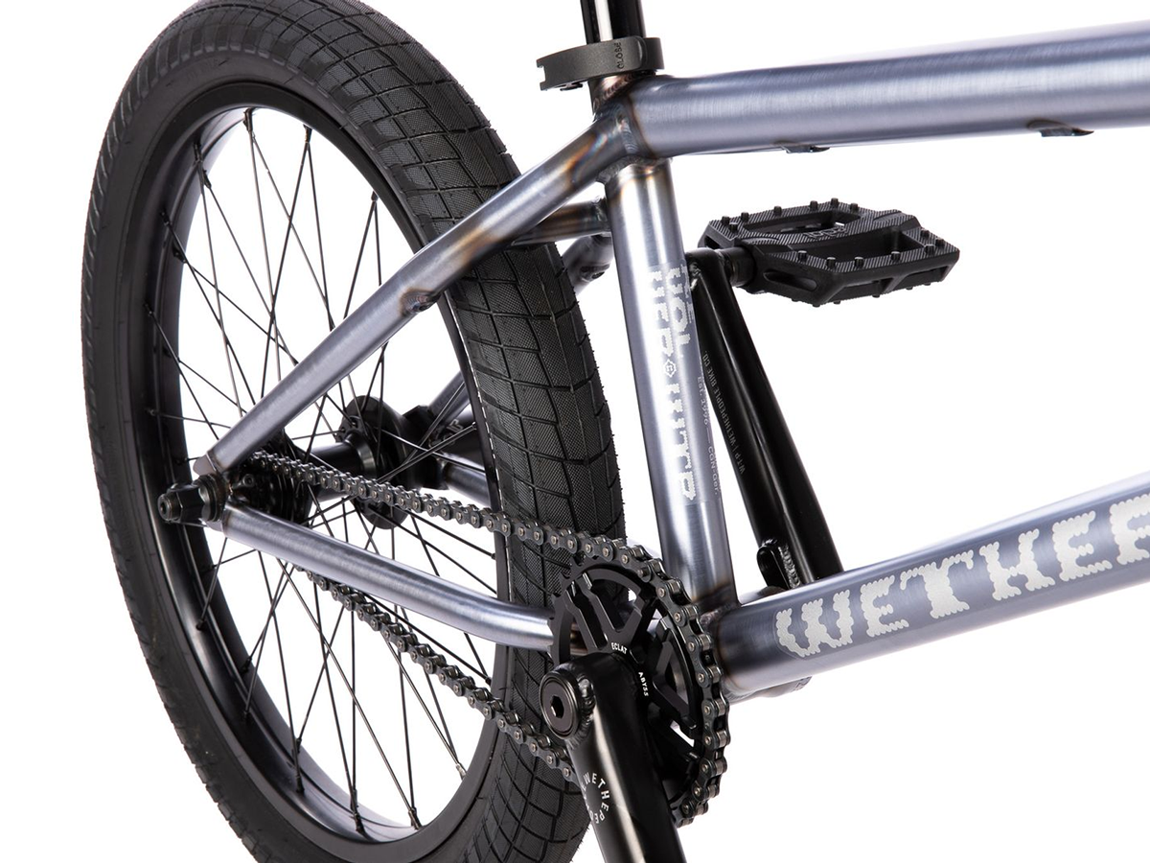

Frame - Wethepeople 'Revolver' frame, 4130 full Sanko, invest cast wishbone & 7.5mm dropouts

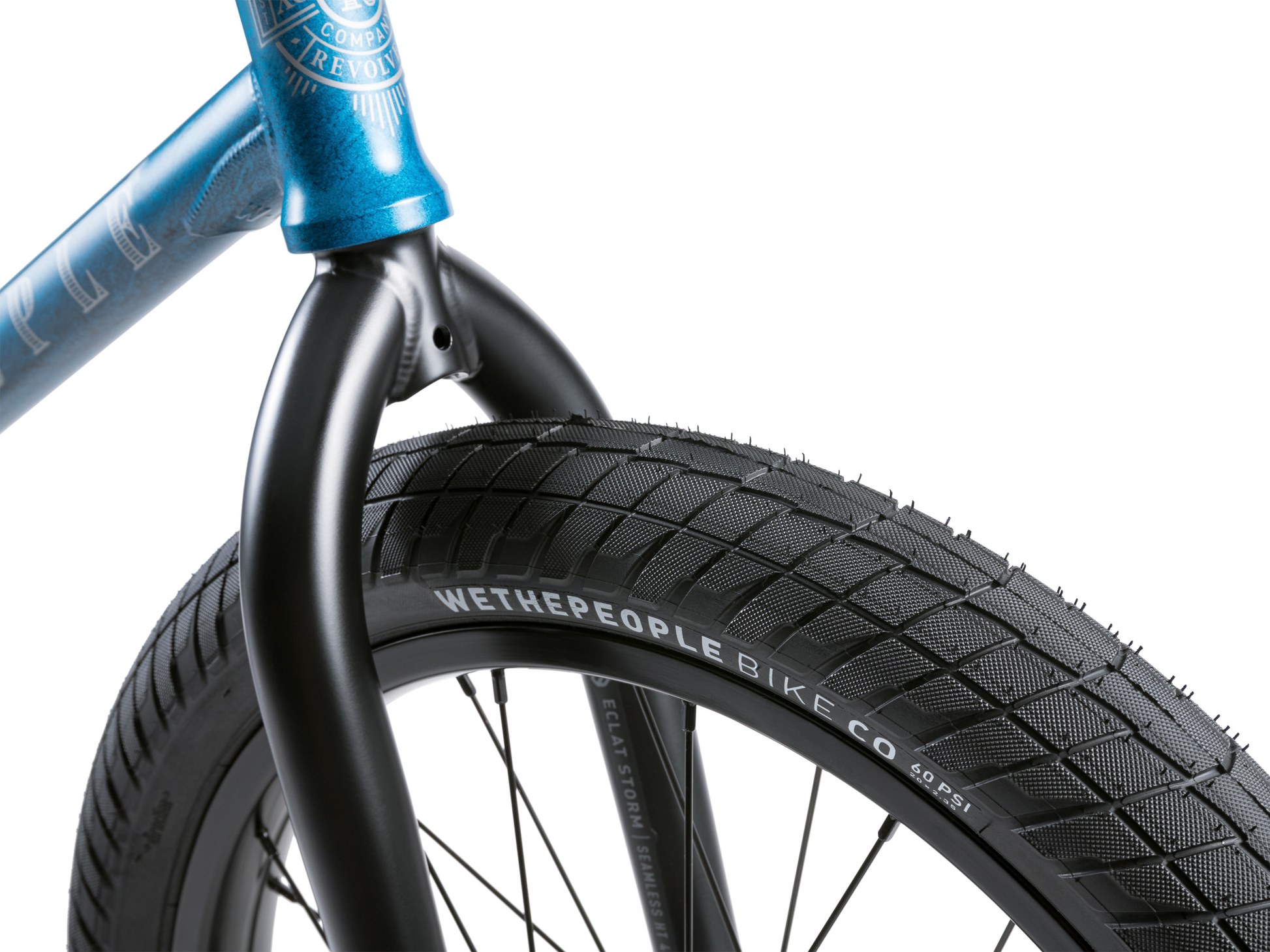

Fork - Éclat 'Storm' fork, post liquid heat-treated & butted Sanko tubing, 30mm offset

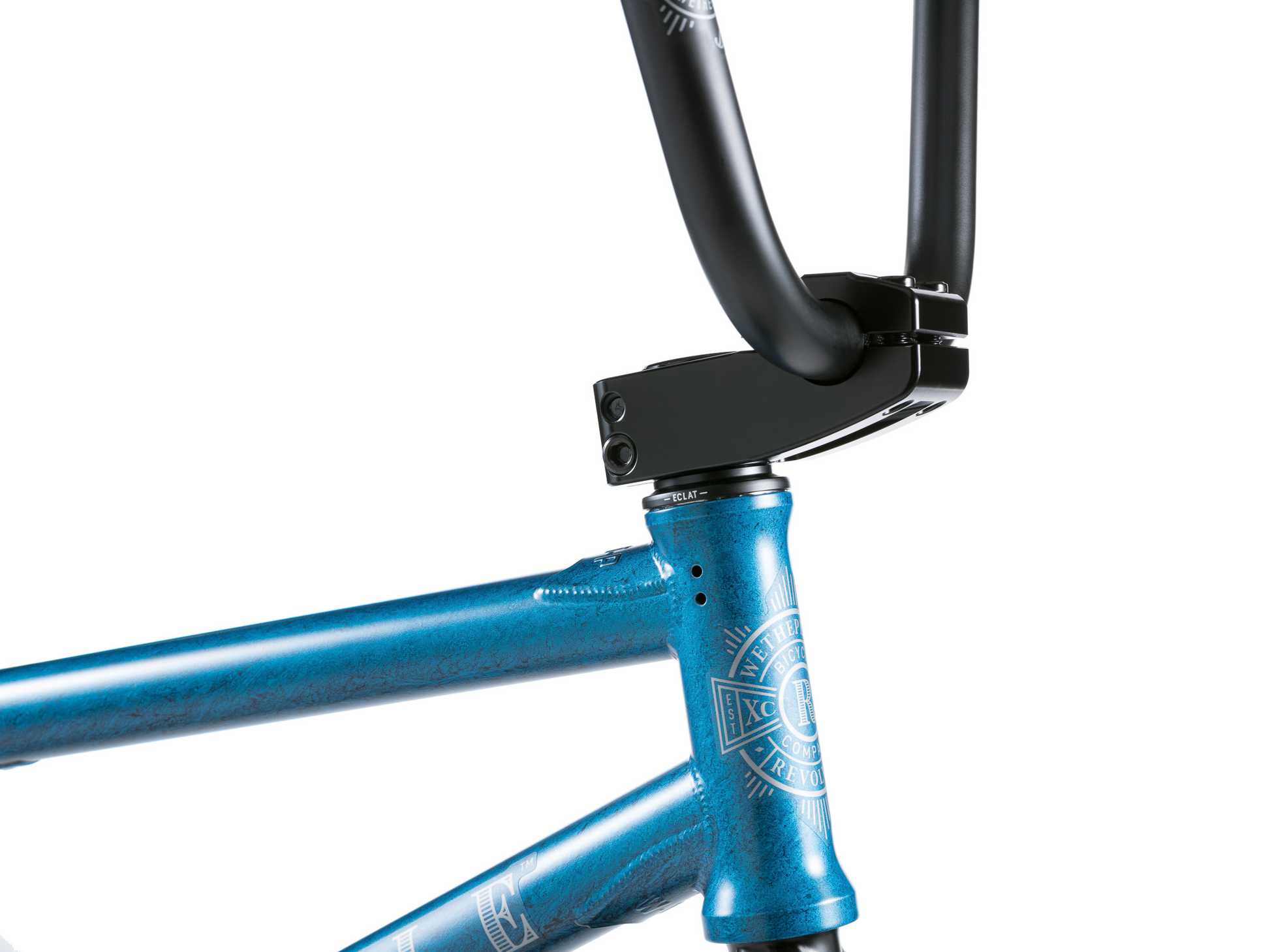

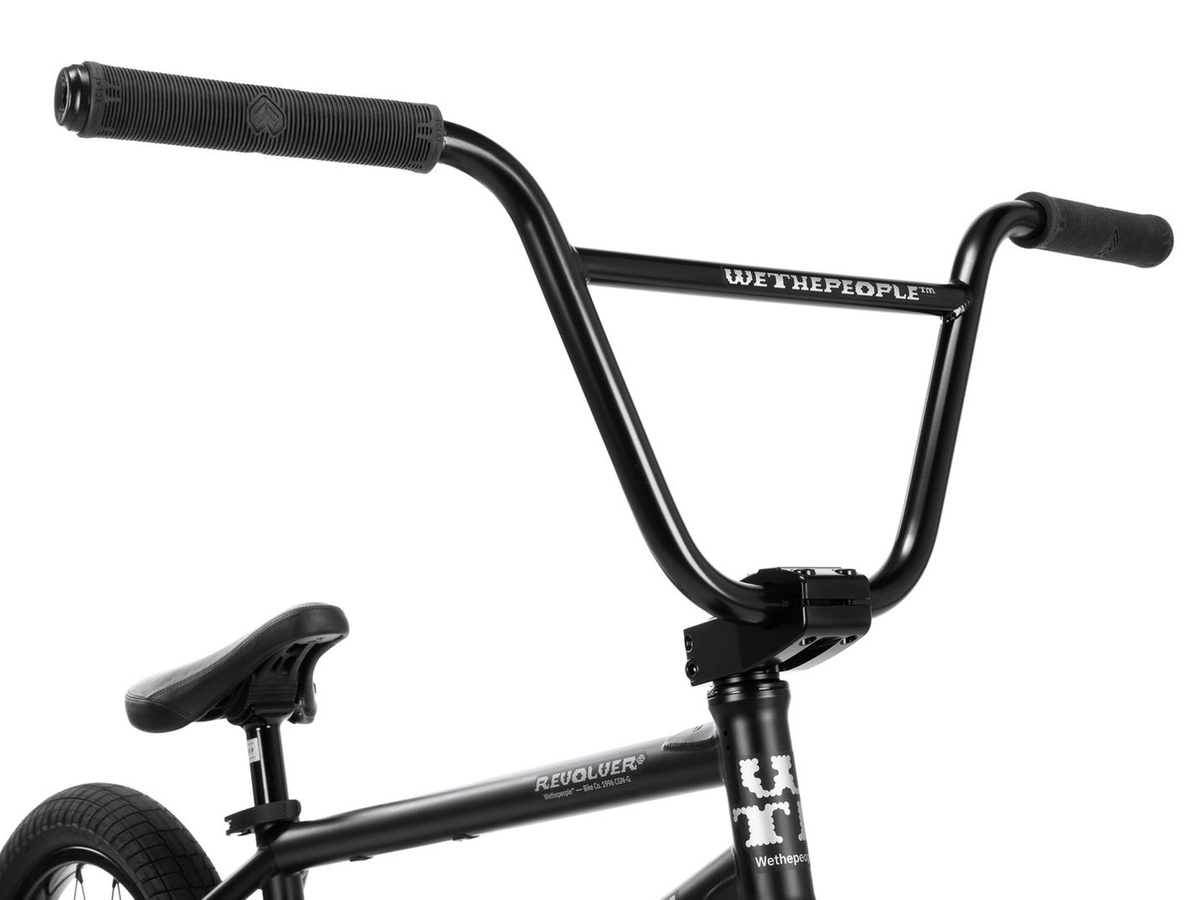

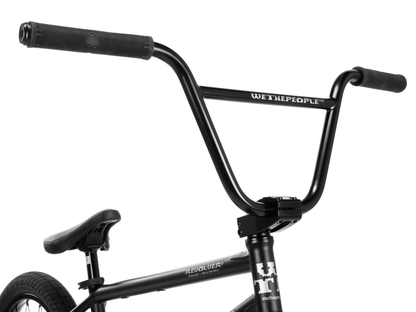

Bars - Wethepeople 'Revolver' bar, post liquid heat-treated 4130 Cr-Mo
Grips - Éclat 'Filter' grips, flangeless, with Éclat 'Tech-Bolt' barends

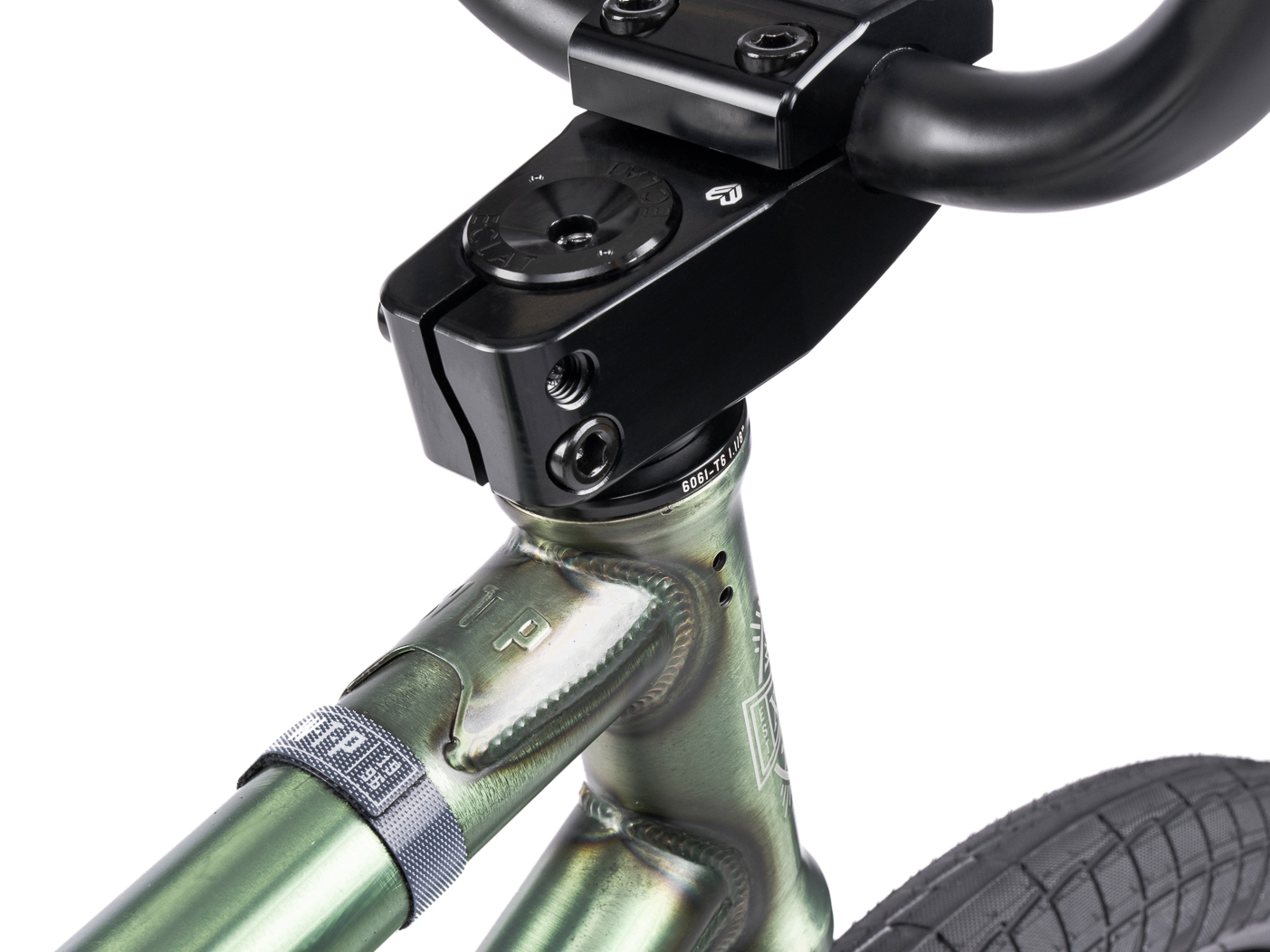

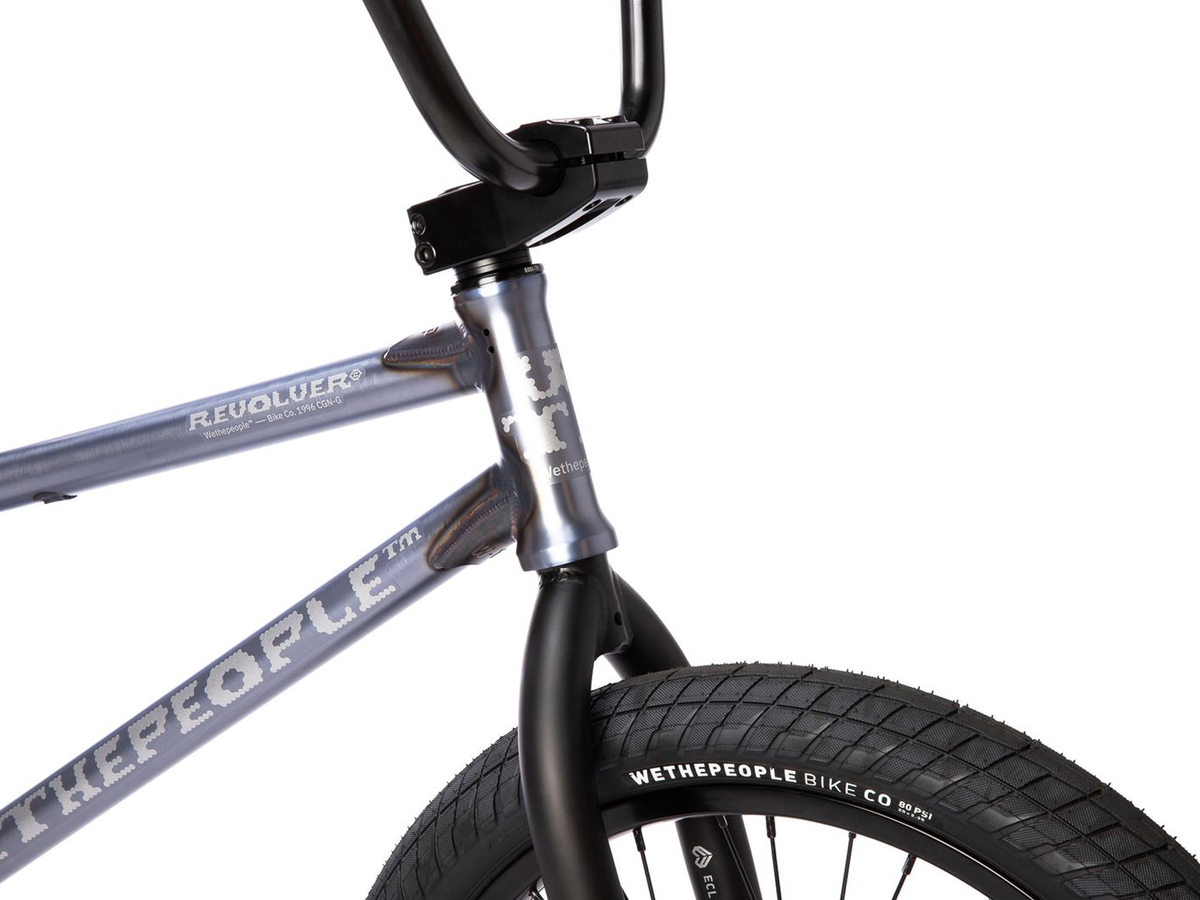

Stem - Éclat 'Metra' topload Stem, CNC alloy, 51mm reach, 30mm rise
Headset - Éclat 'Wave 6' int. headset, sealed bearing
Gyro - Holes for removable gyro tabs
Lever - Salt 'Moto' brake lever, alloy
Brakes - Éclat 'Talon' U-brake rear, alloy

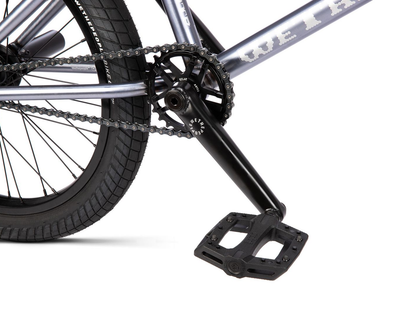

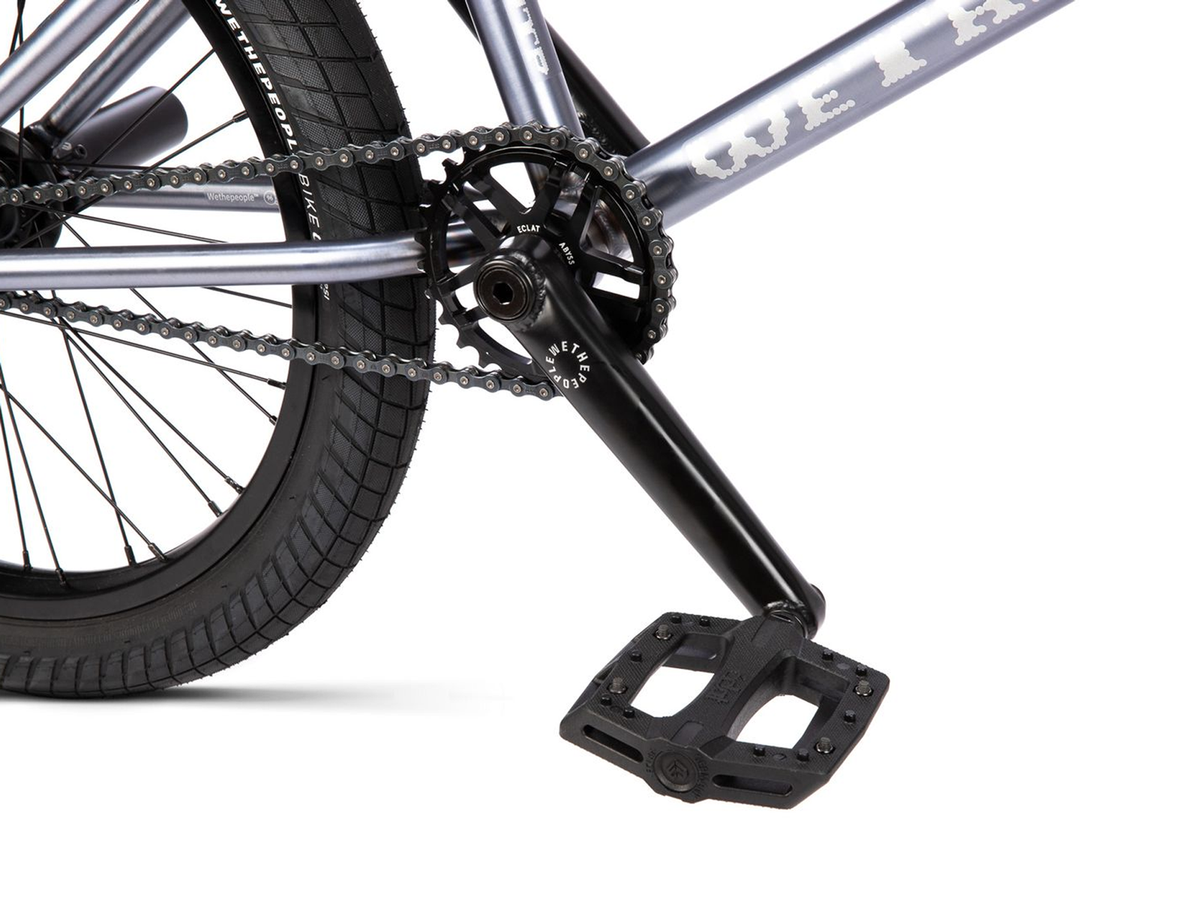

Cranks - Wethepeople 'Logic' tubular 3pc crank, 22mm, Cr-Mo, 175mm, 48 spline
BB - Wethepeople 'Compact' BB, 22mm, press fit, sealed bearing

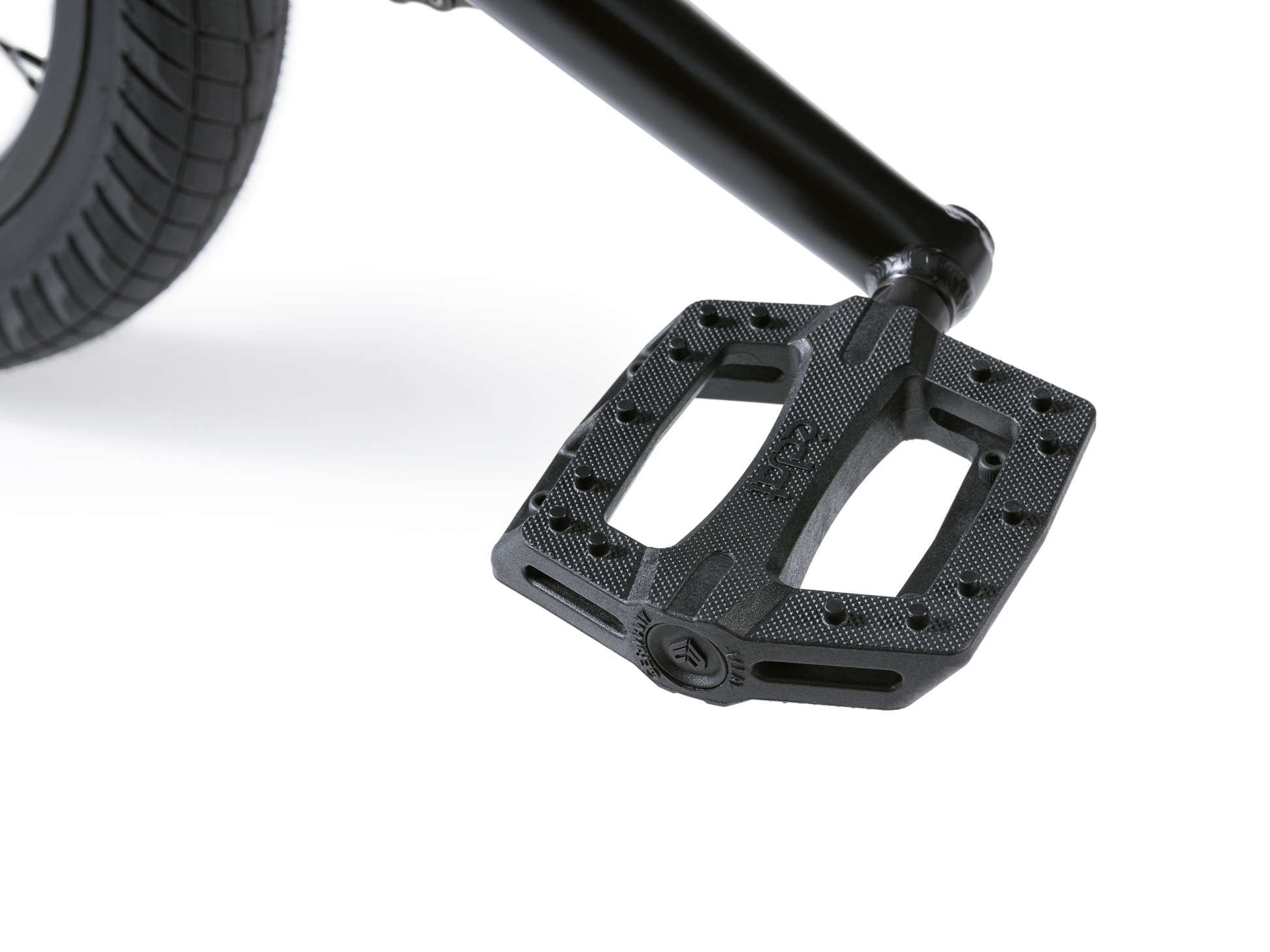

Pedals - Éclat 'Contra' pedals, nylon/fibreglass
Chain - Éclat 'Diesel' chain

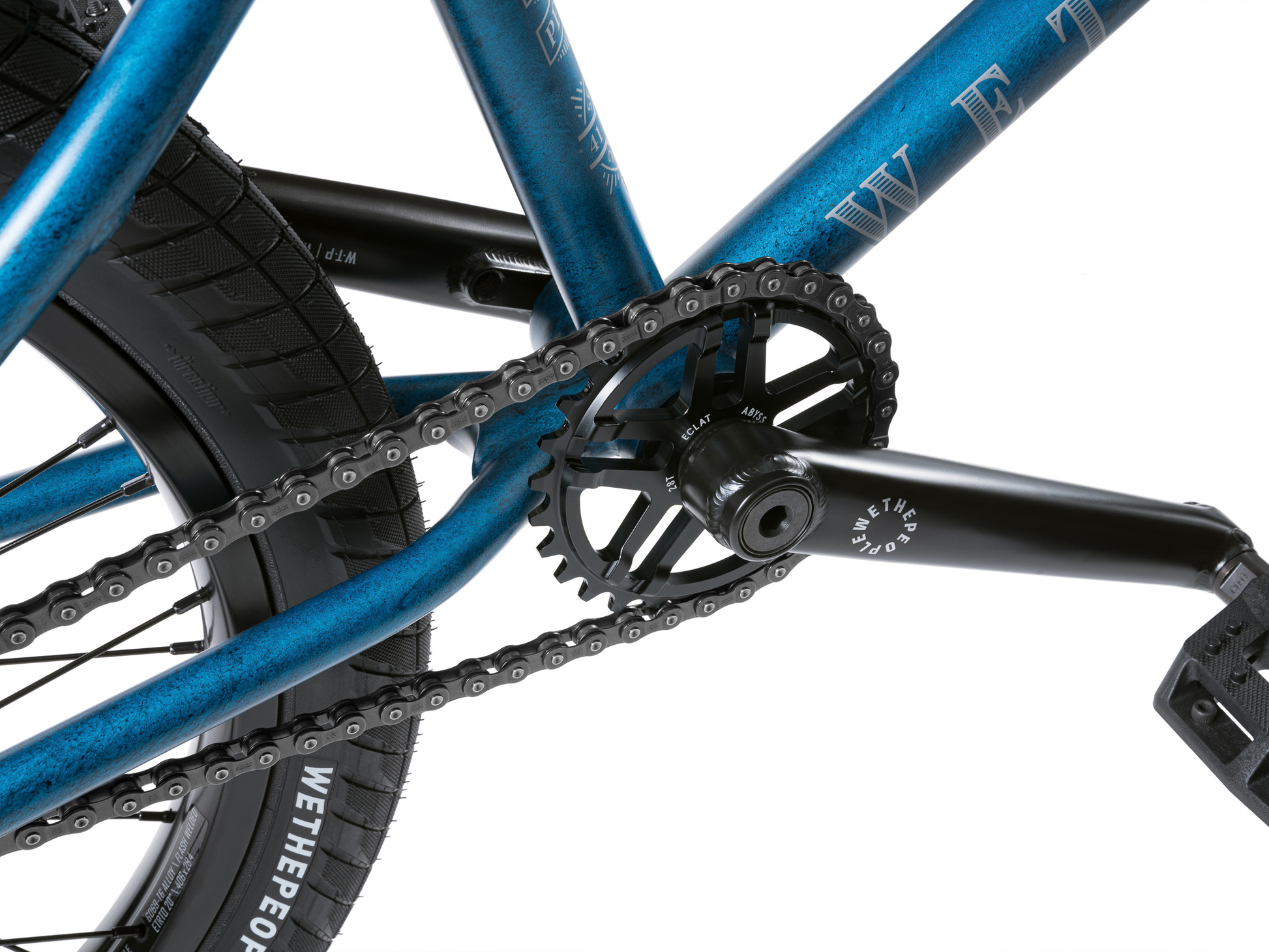

Sprocket - Éclat 'Abyss' sprocket, CNC, 6061-T6 alloy, 28T
Driver - 1pc cassette driver, 9T, full bushing, SDS (RSD/LSD switchable)

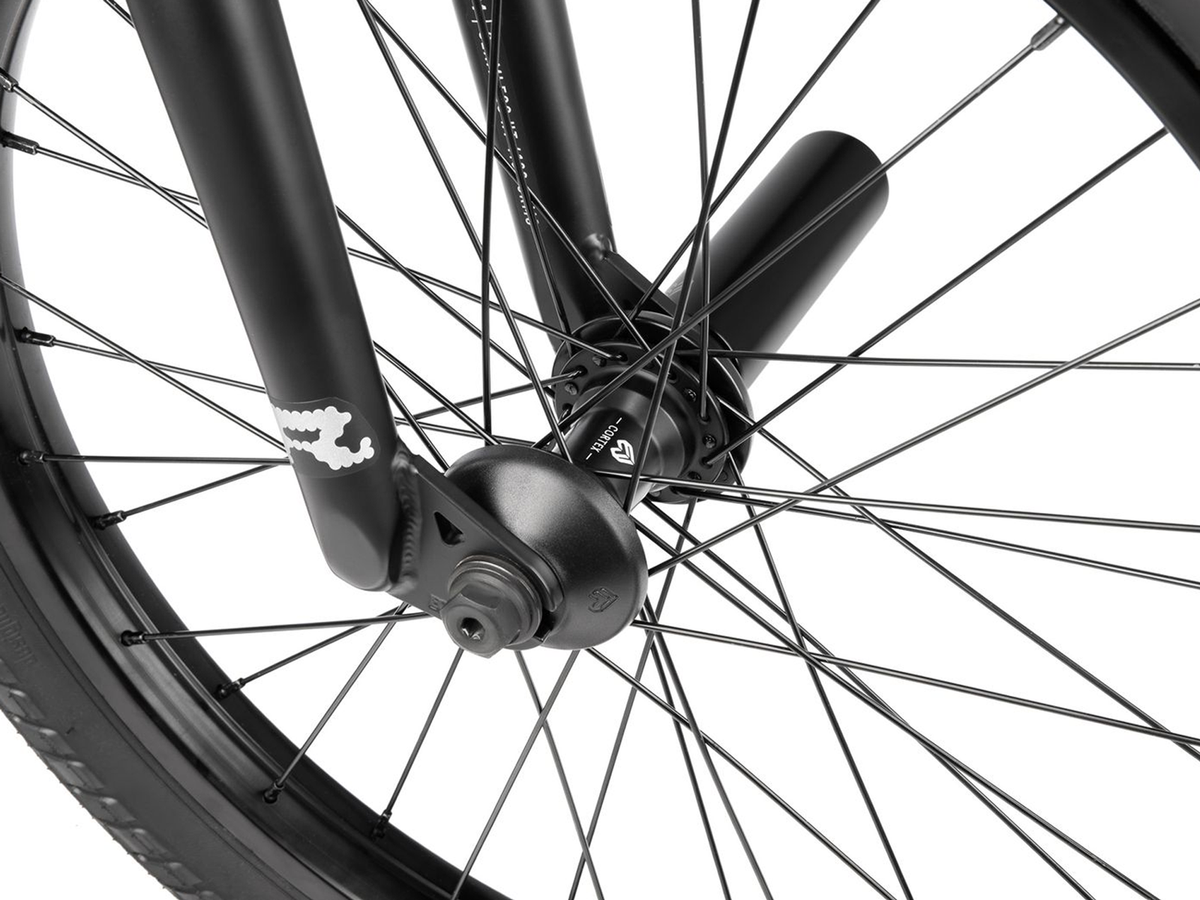

Front Hub - Éclat 'Pulse' hub, fully sealed, 3/8"S axle, 36H

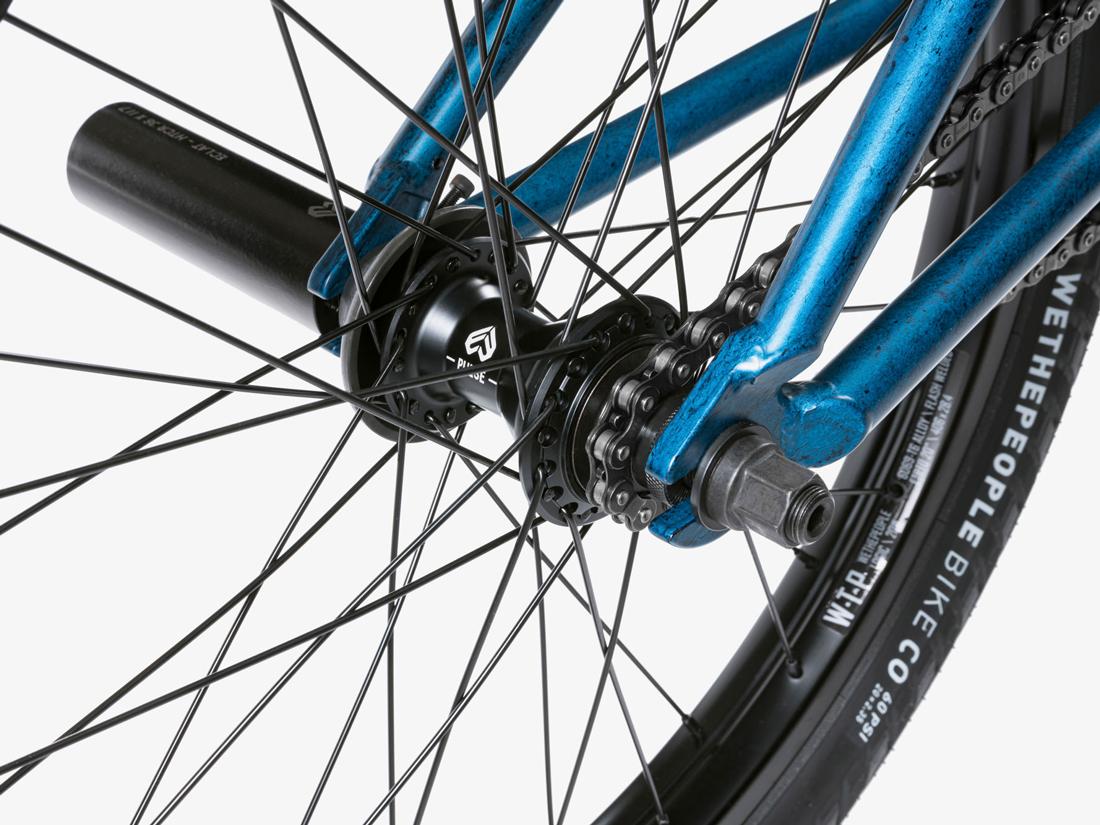

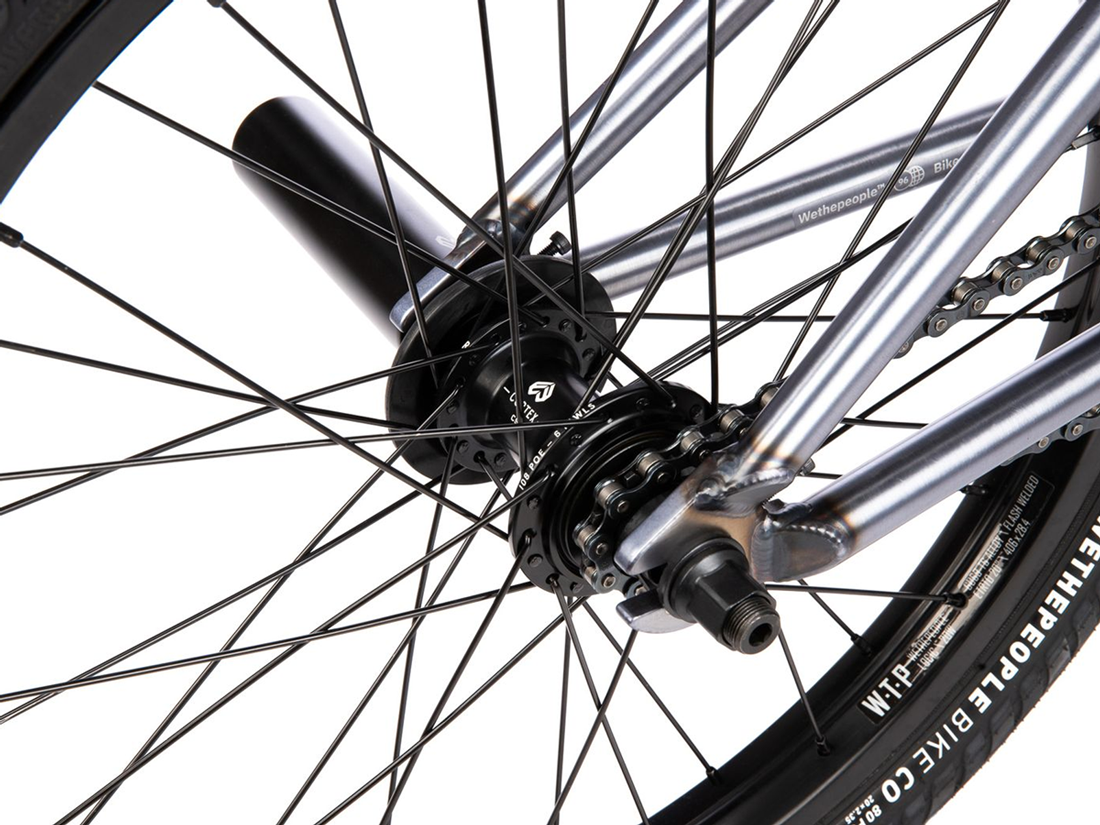

Rear Hub - Éclat 'Pulse' cassette hub, fully sealed, 9T, 14mm axle, 36H, SDS driver
Hub Guards - Éclat 'Pulse' hub guards - 4140 Cr-Mo front (1x), 4140 Cr-Mo rear (1x)
Front Rim - Wethepeople 'Logic' rim, double wall, welded, 36H
Rear Rim - Wethepeople 'Logic' rim, double wall, welded, 36H

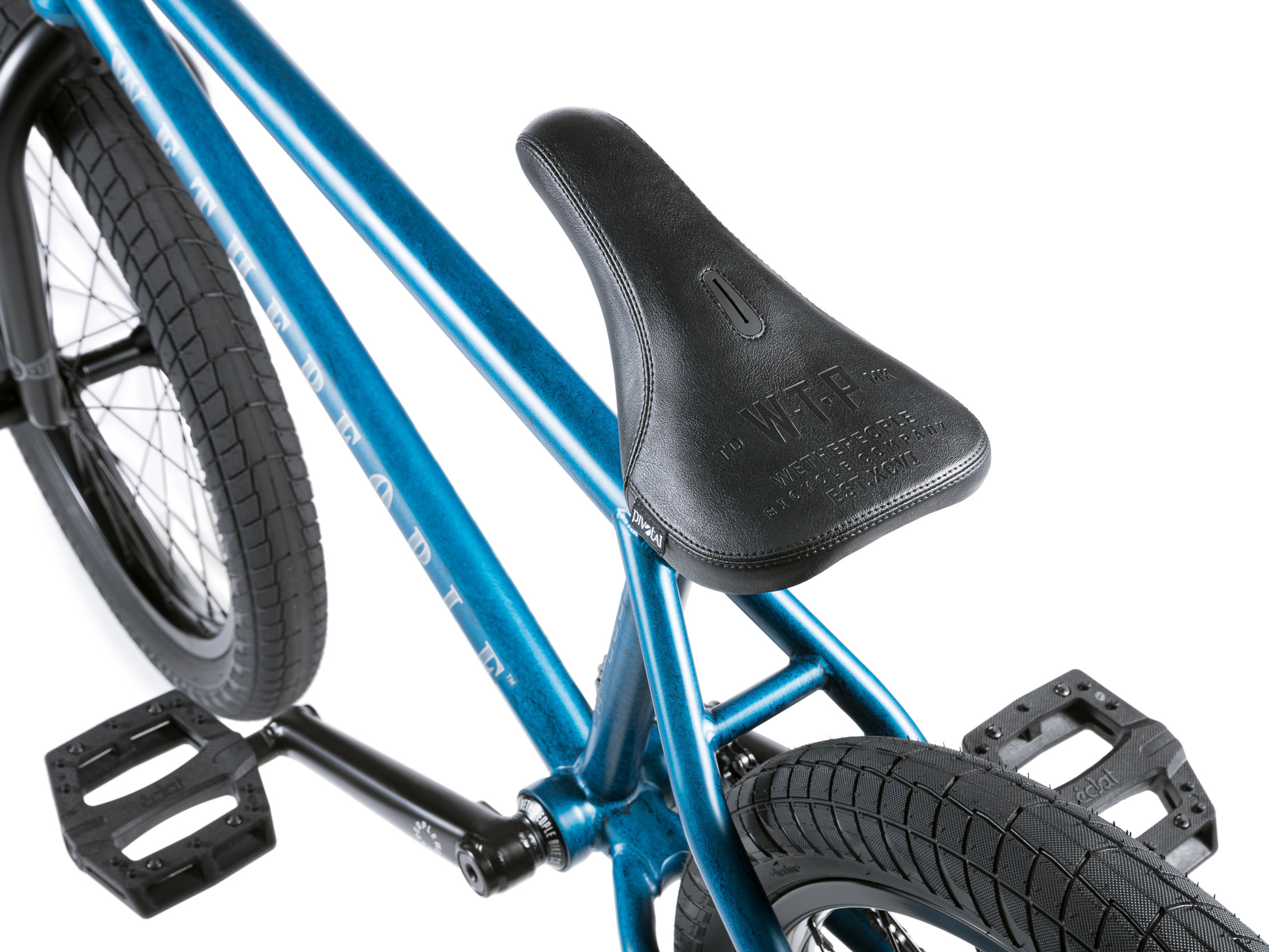

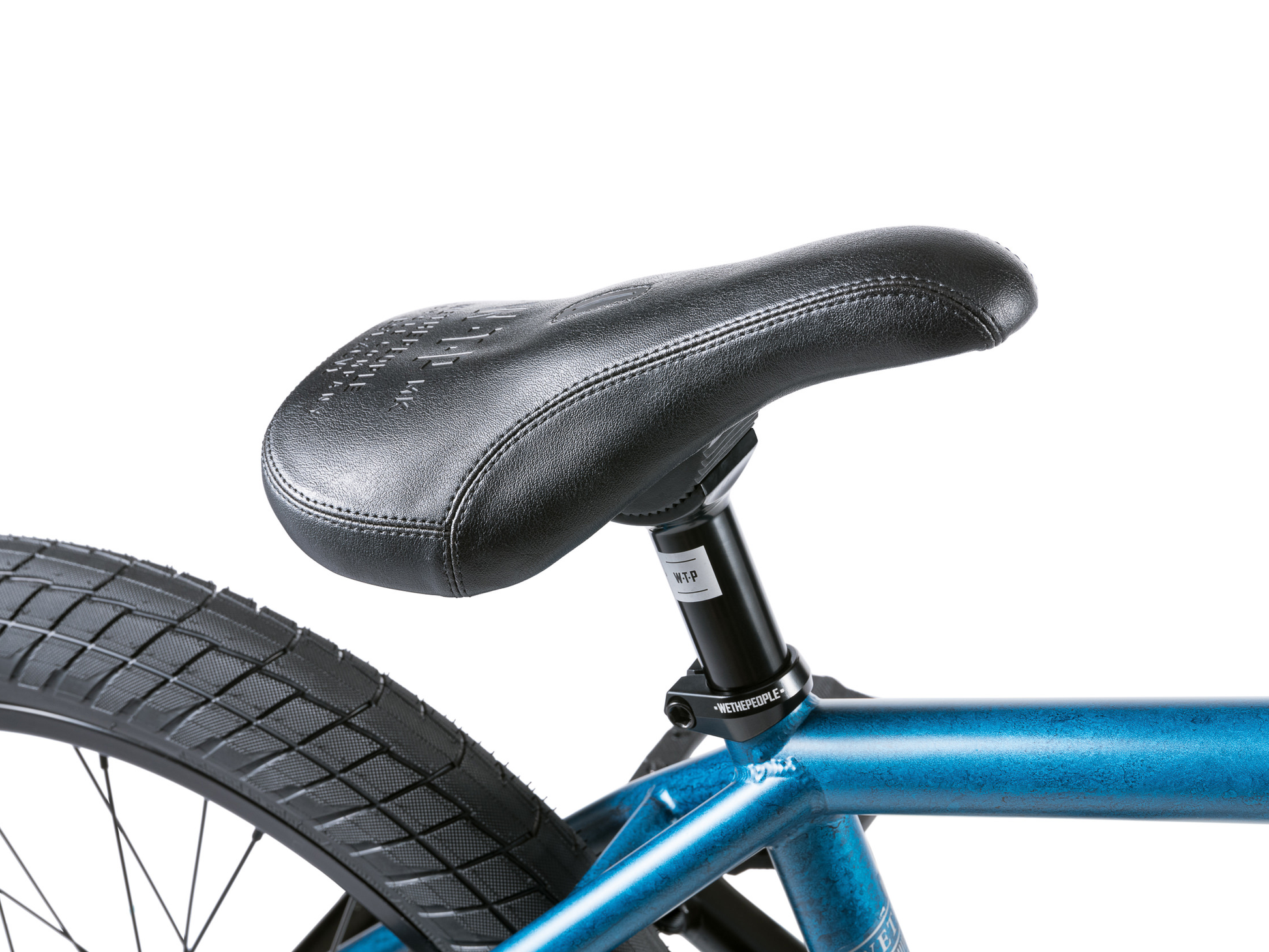

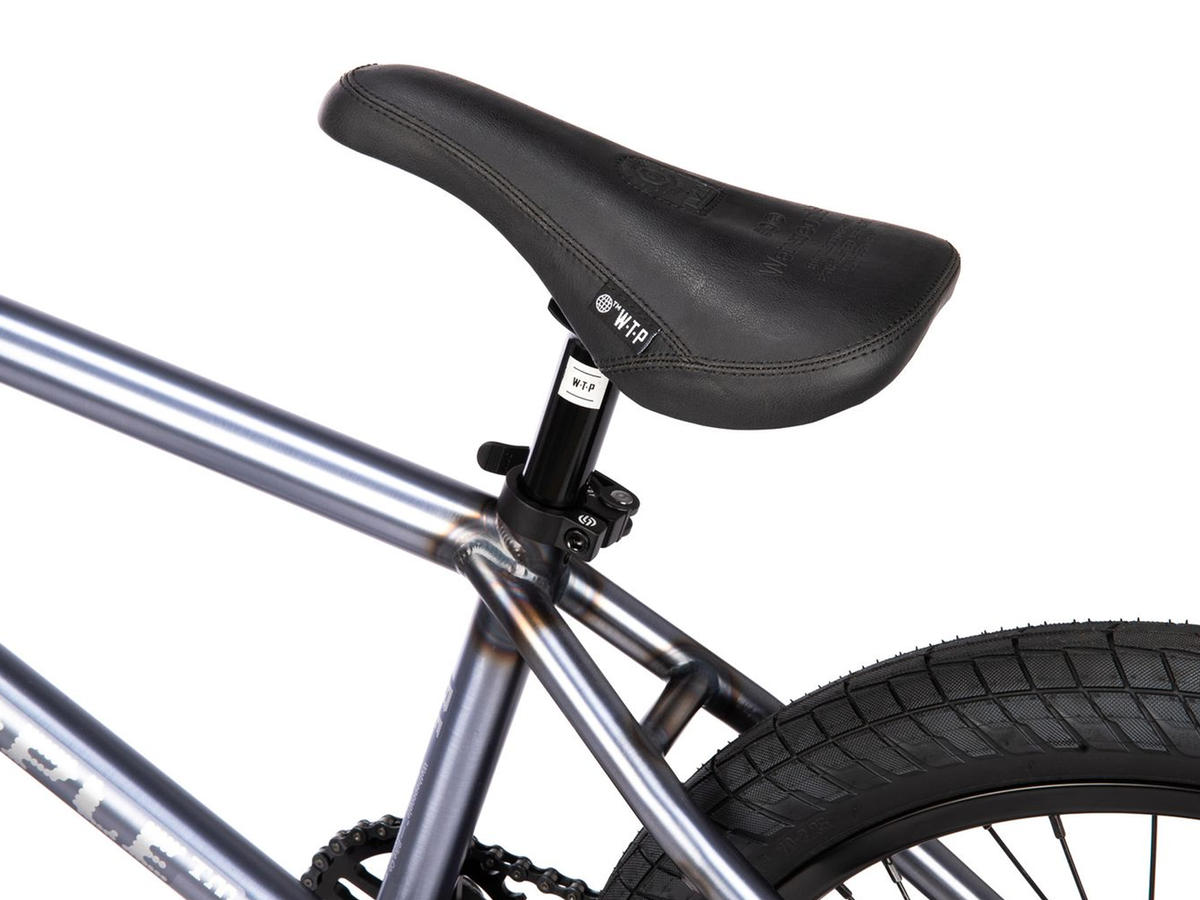

Seat - Éclat 'Bios' pivotal seat, slim padded
Seat Post - Wethepeople 'Team' pivotal seat post, 200mm long, 6061-T6 alloy
Seat Clamp - Wethepeople 'Supreme' seat clamp, CNC alloy
Tyres - Wethepeople 'Overbite' tyres, 2.35" front & rear
Pegs - Éclat 'Dura' pegs, 4140 heat-treated Cr-Mo pegs, 4.6" long, x2
Weight - 11.72kg
Frame / Bar Geometry
Top Tube Length - 21"
Chain Stay Length - 13.4" (13.25"-13.75")
Head Tube Angle - 74.85°
Seat Tube Angle - 71°
Bottom Bracket Height - 11.47"
Stand Over Height - 9.1"
Bar Rise - 9.25"
Bar Width - 29.7"
Bar Back Sweep - 11°
Bar Upsweep - 2.5°
