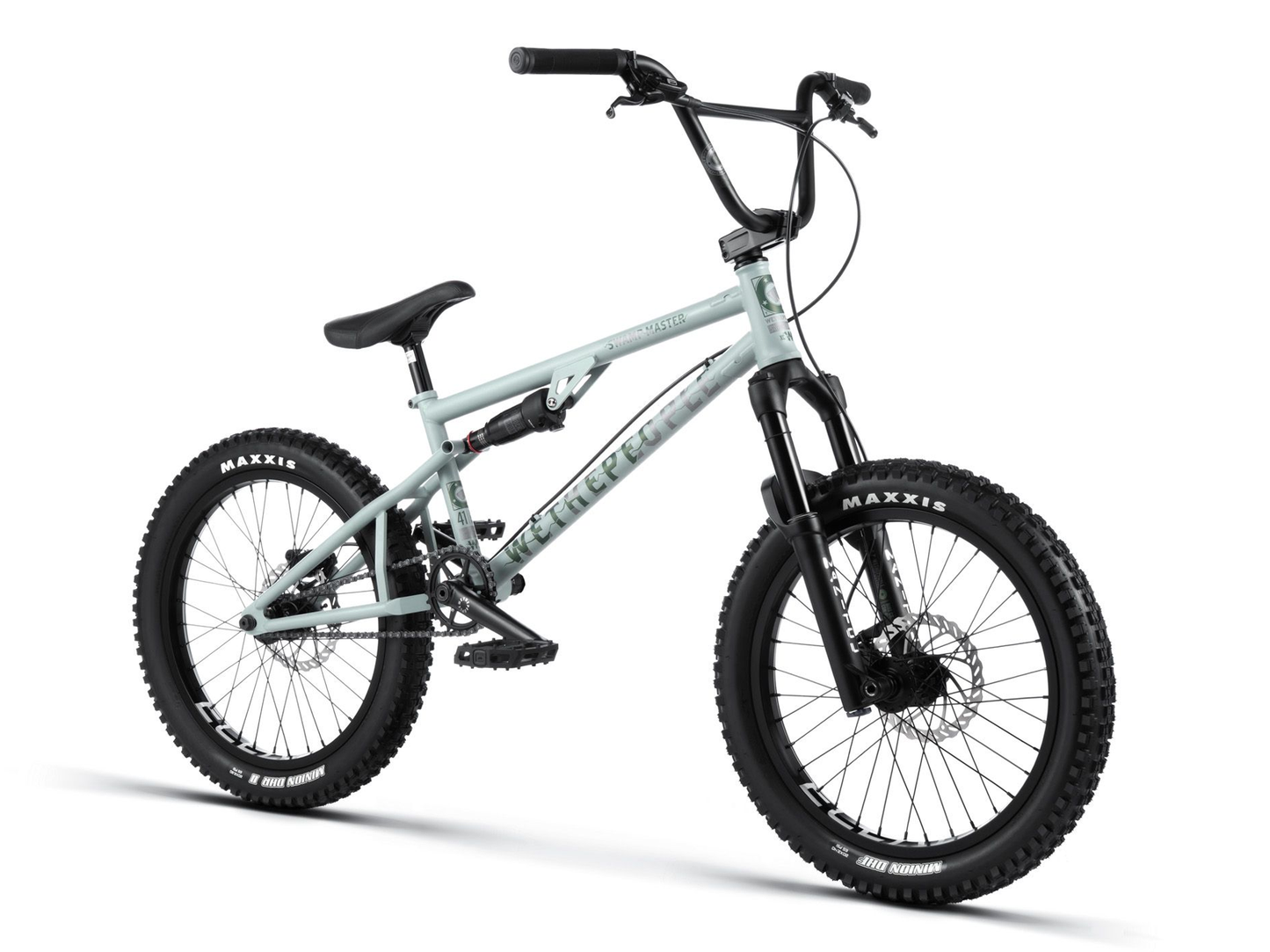

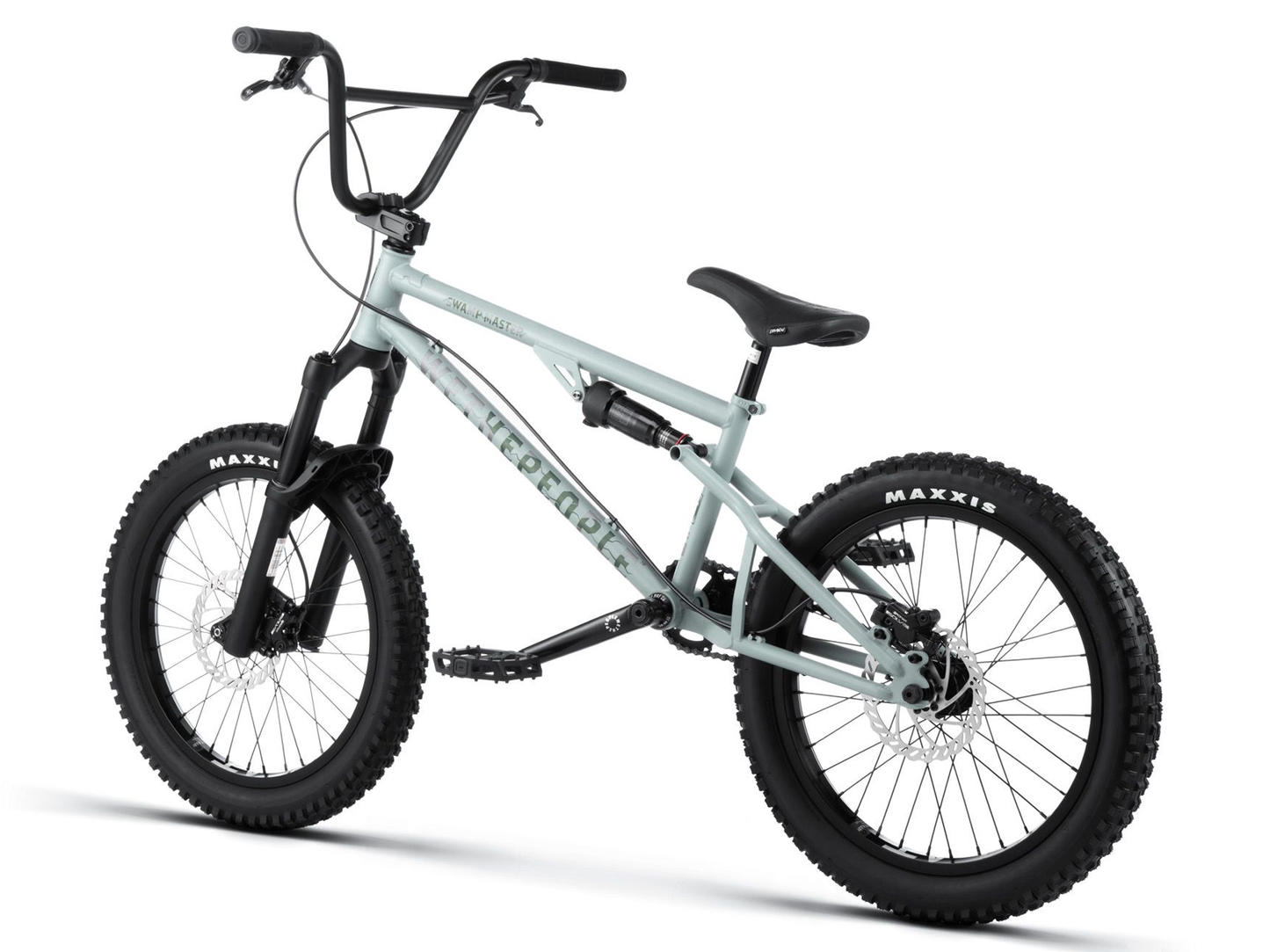

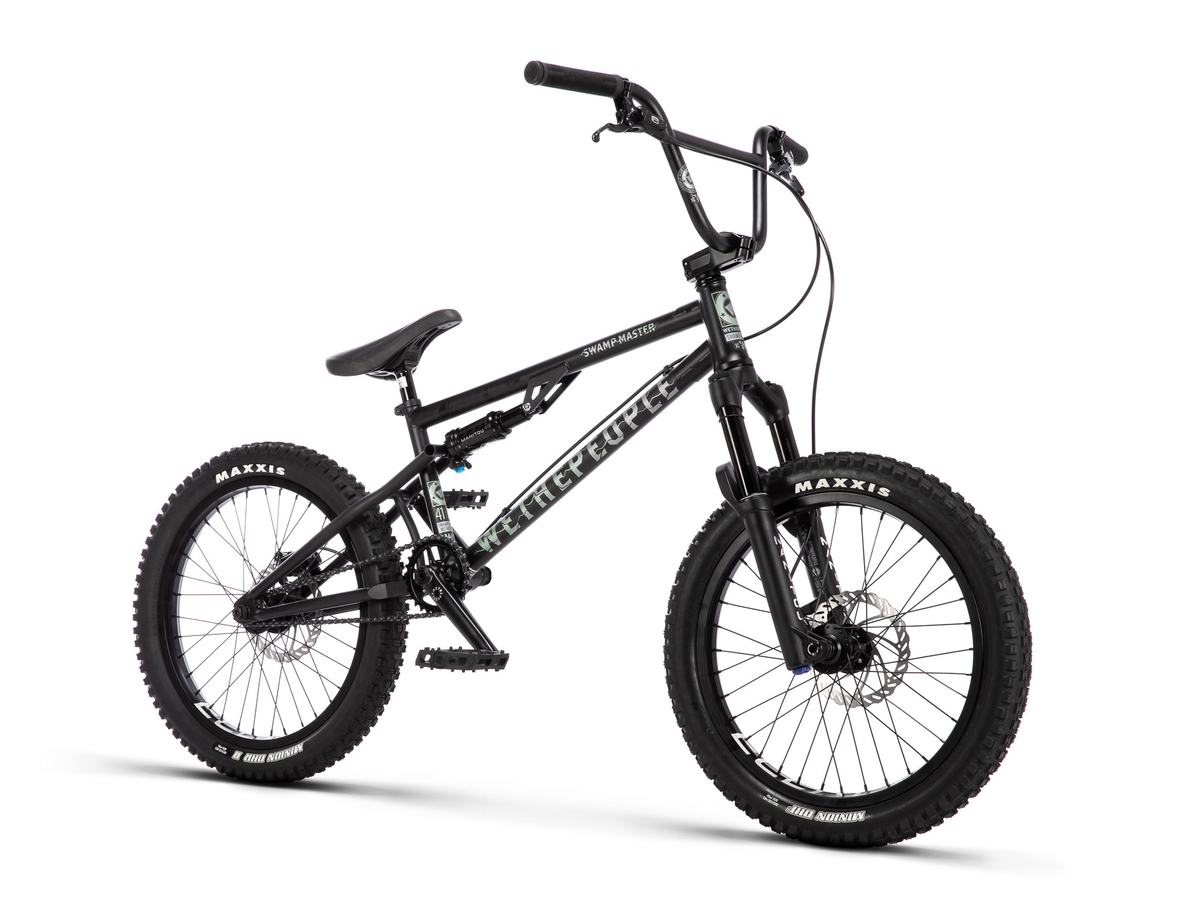

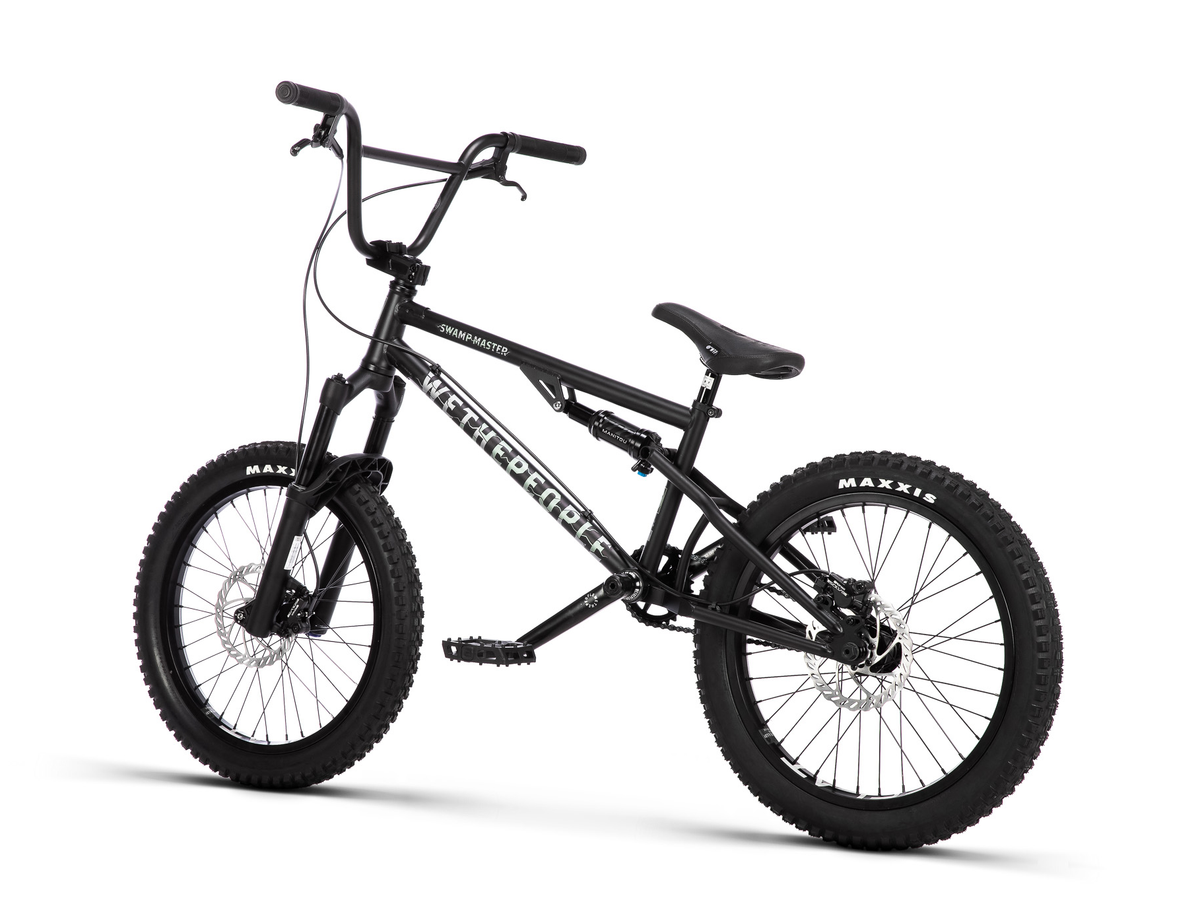

WETHEPEOPLE 20" The Swampmaster Bike
WETHEPEOPLE 20" The Swampmaster Bike
Couldn't load pickup availability

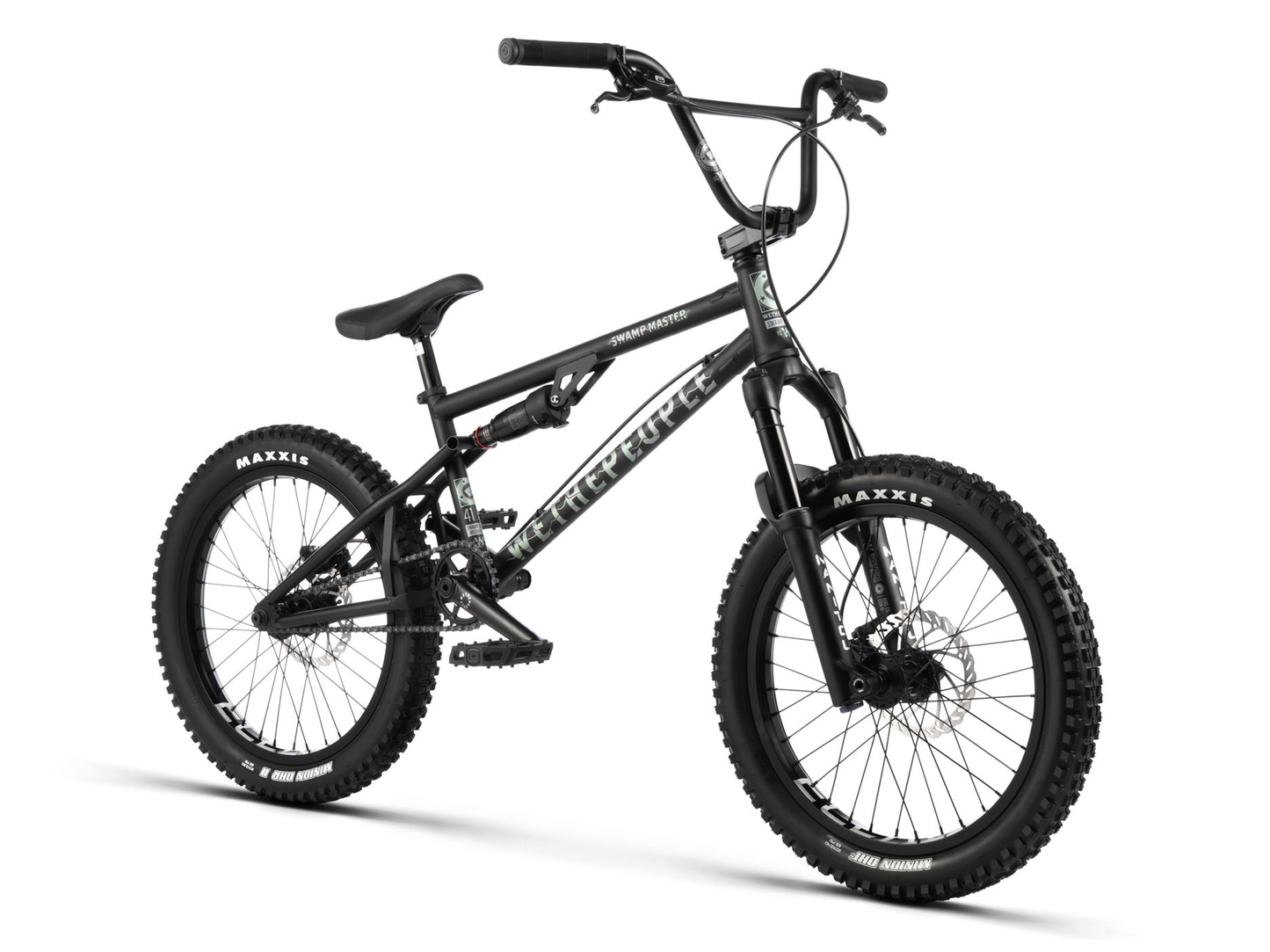

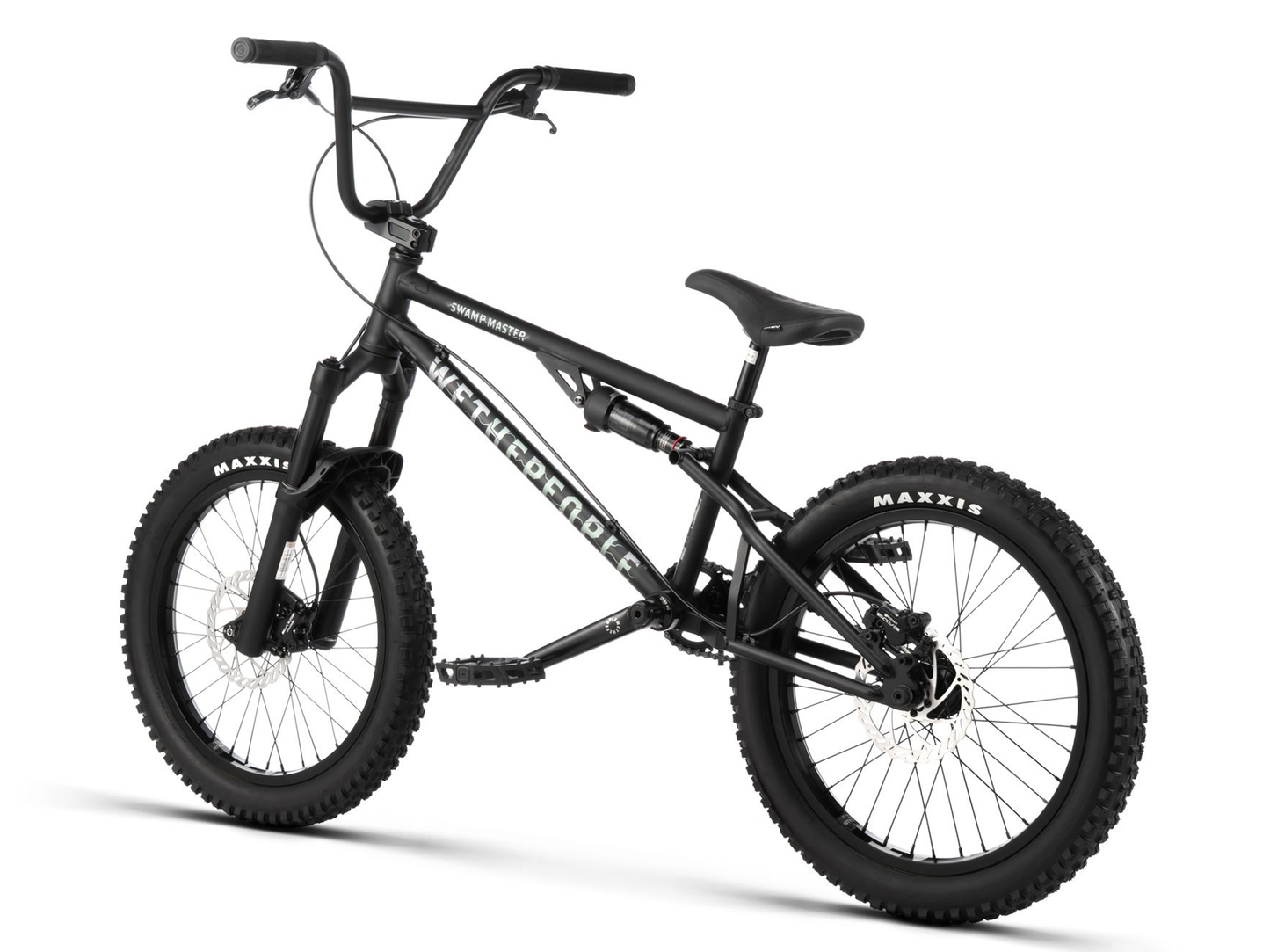

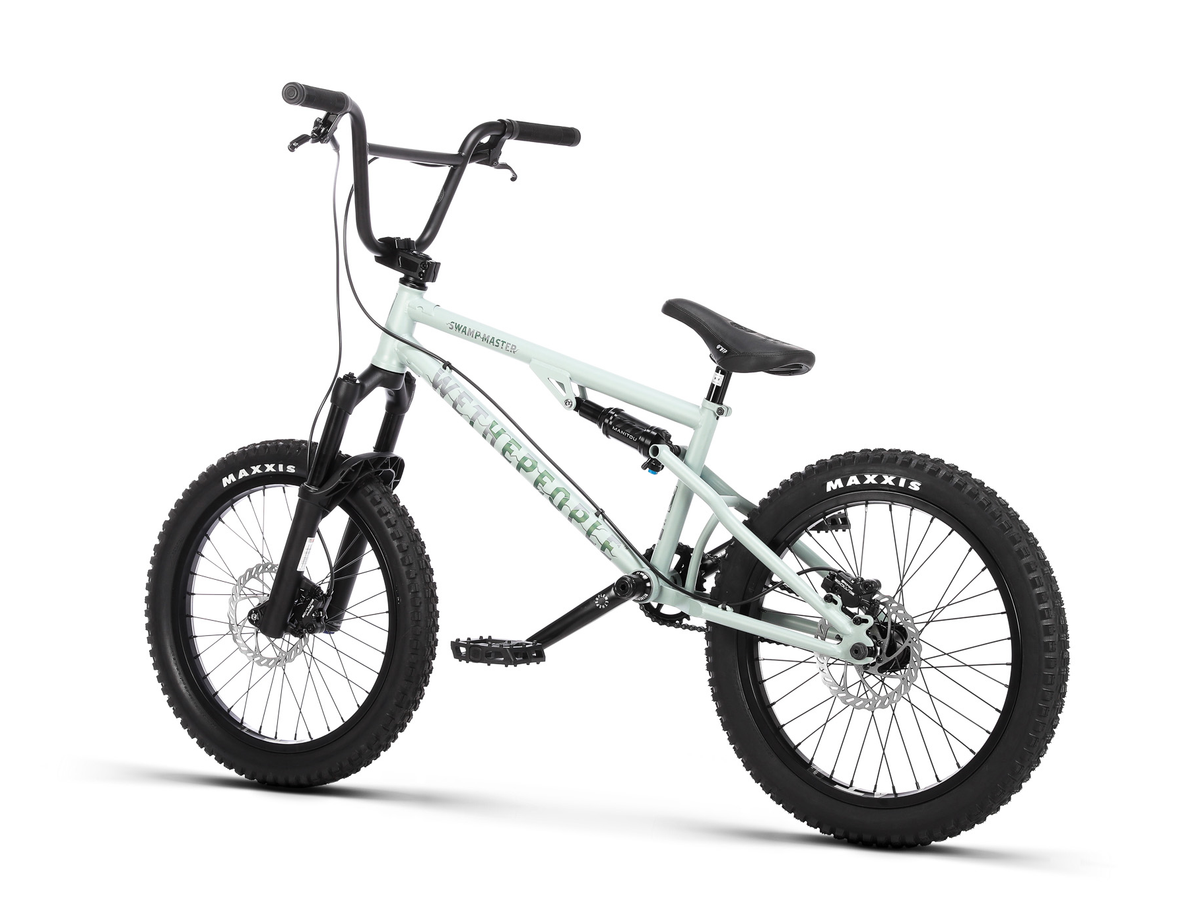

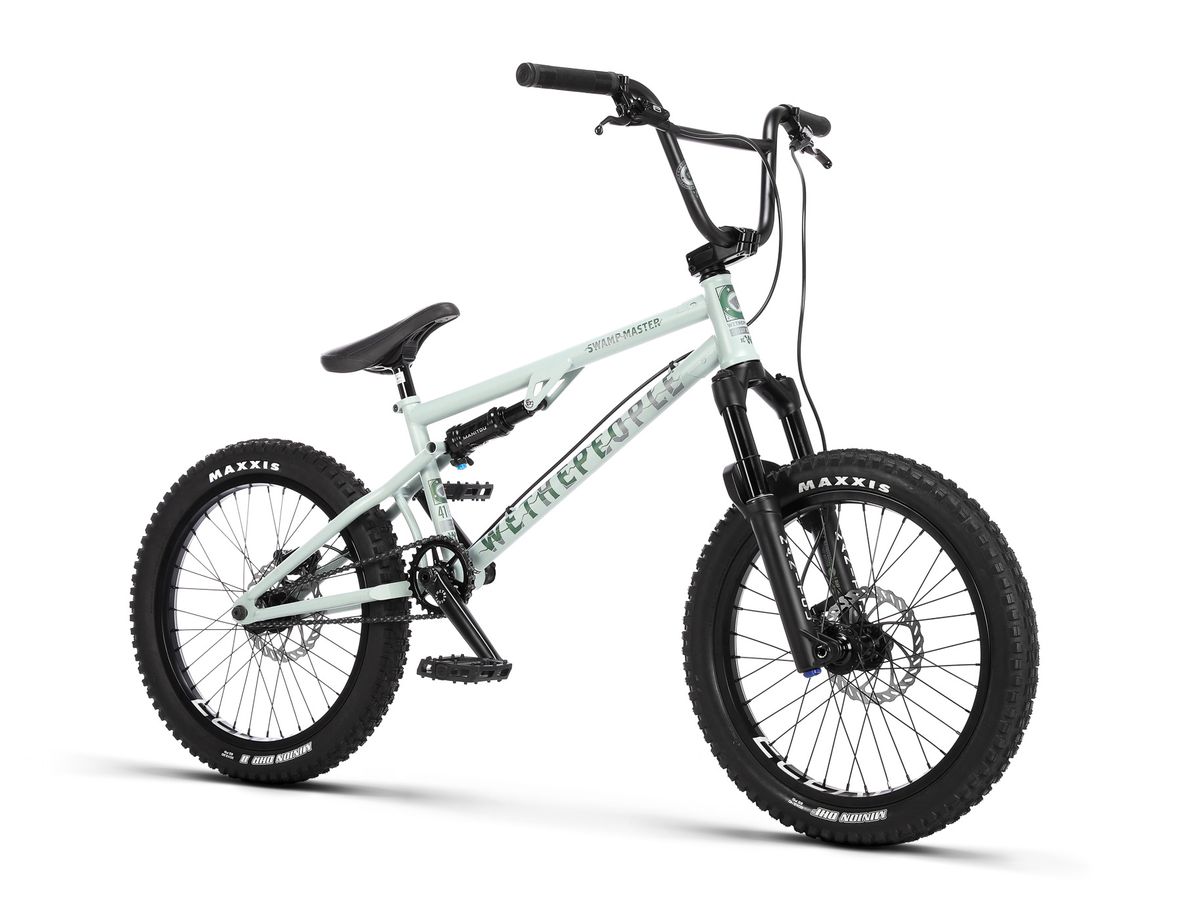

A whole new world of fun, the Swamp Master is the first full suspension complete BMX bike. Inspired by the world of downhill mountain biking, mixed with classic BMX roots and fun, this bike is unique to say the least. Engineered in Cologne, Germany, the Swamp Master is designed for serious downhill shredding whilst gaining the movement and freedom that a BMX bike offers. Spec’d with a mixture of WTP’s own aftermarket BMX components and genuine MTB parts from Kenda and Manitou, the Swamp Master is the first production complete bike of its kind and is set to revolutionise a new chapter in BMX and MTB fusion.
Specifications

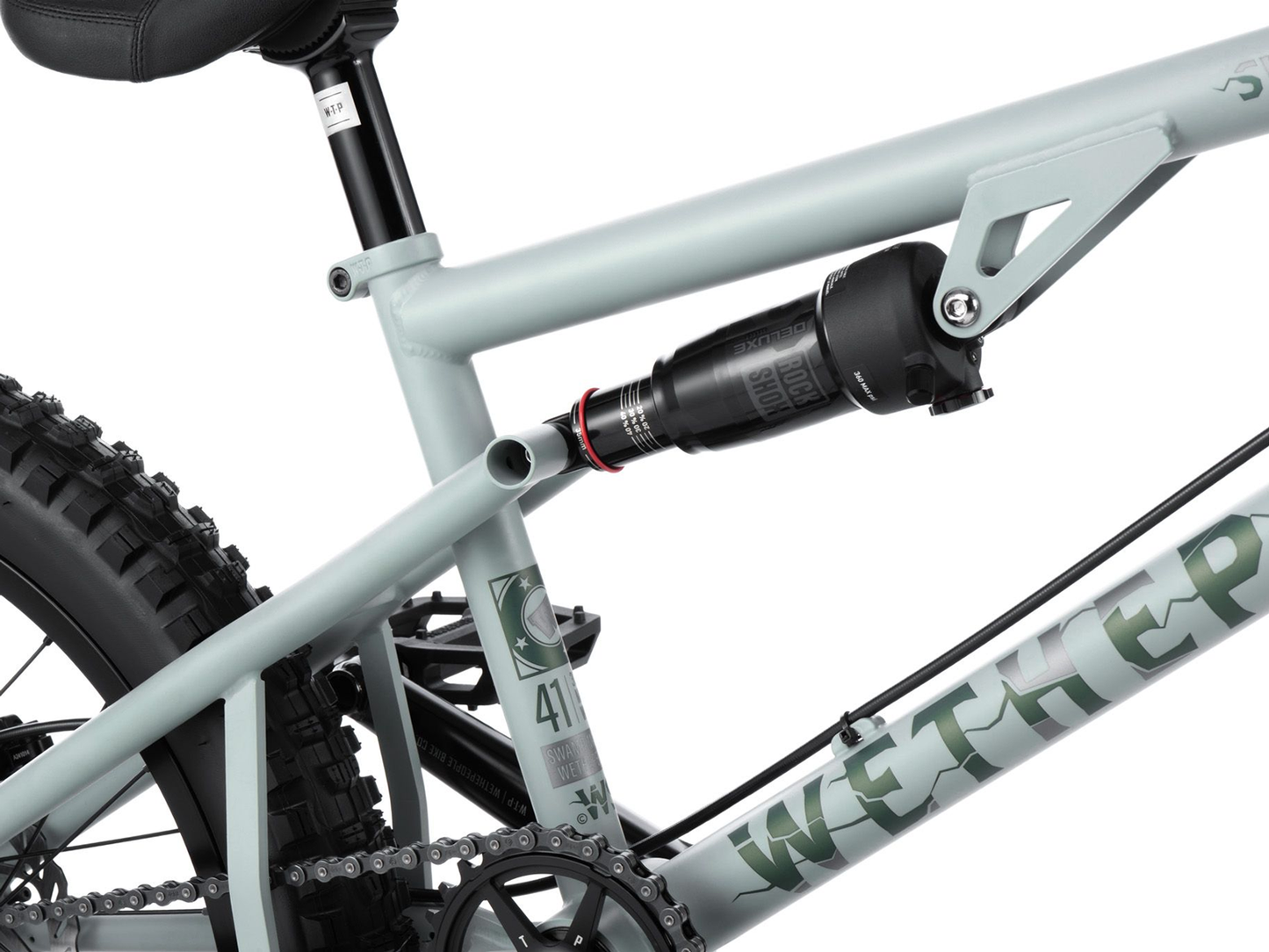

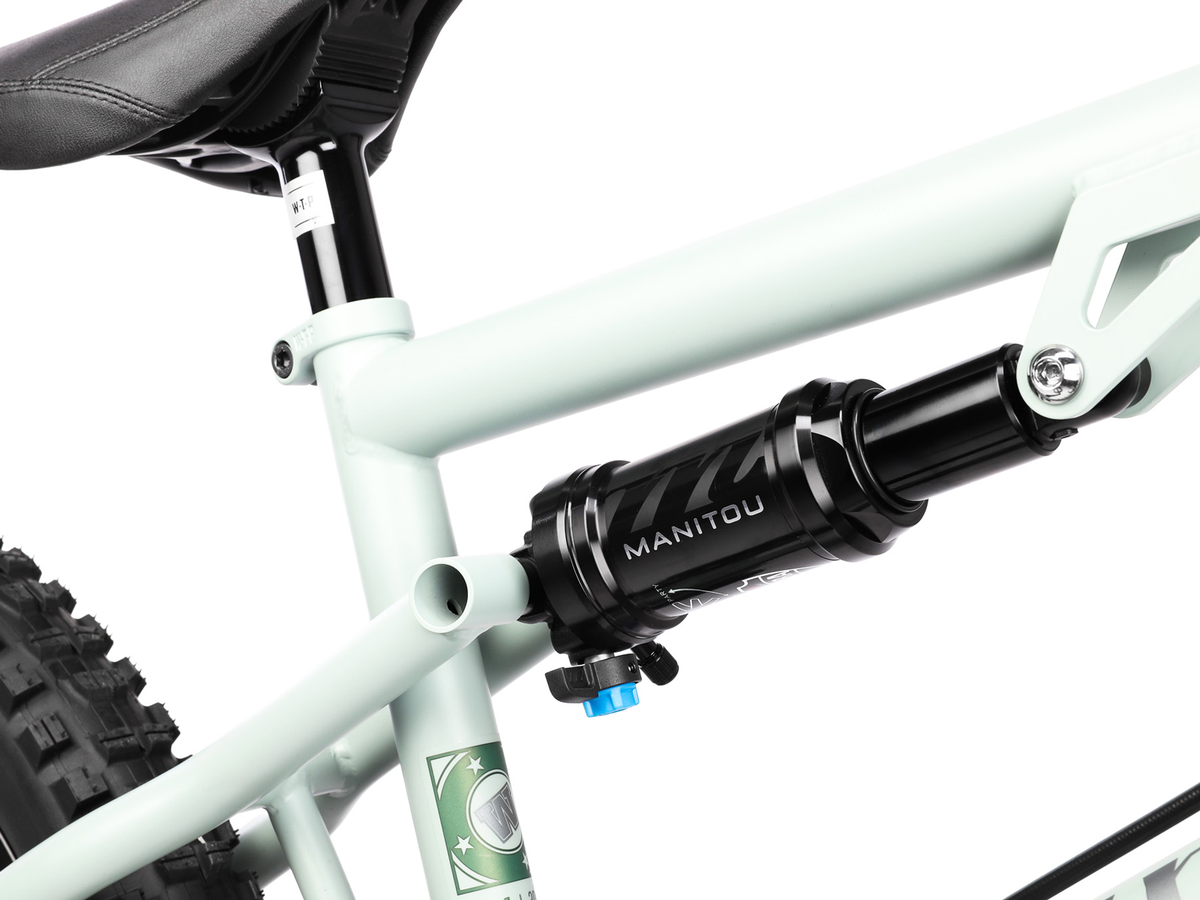

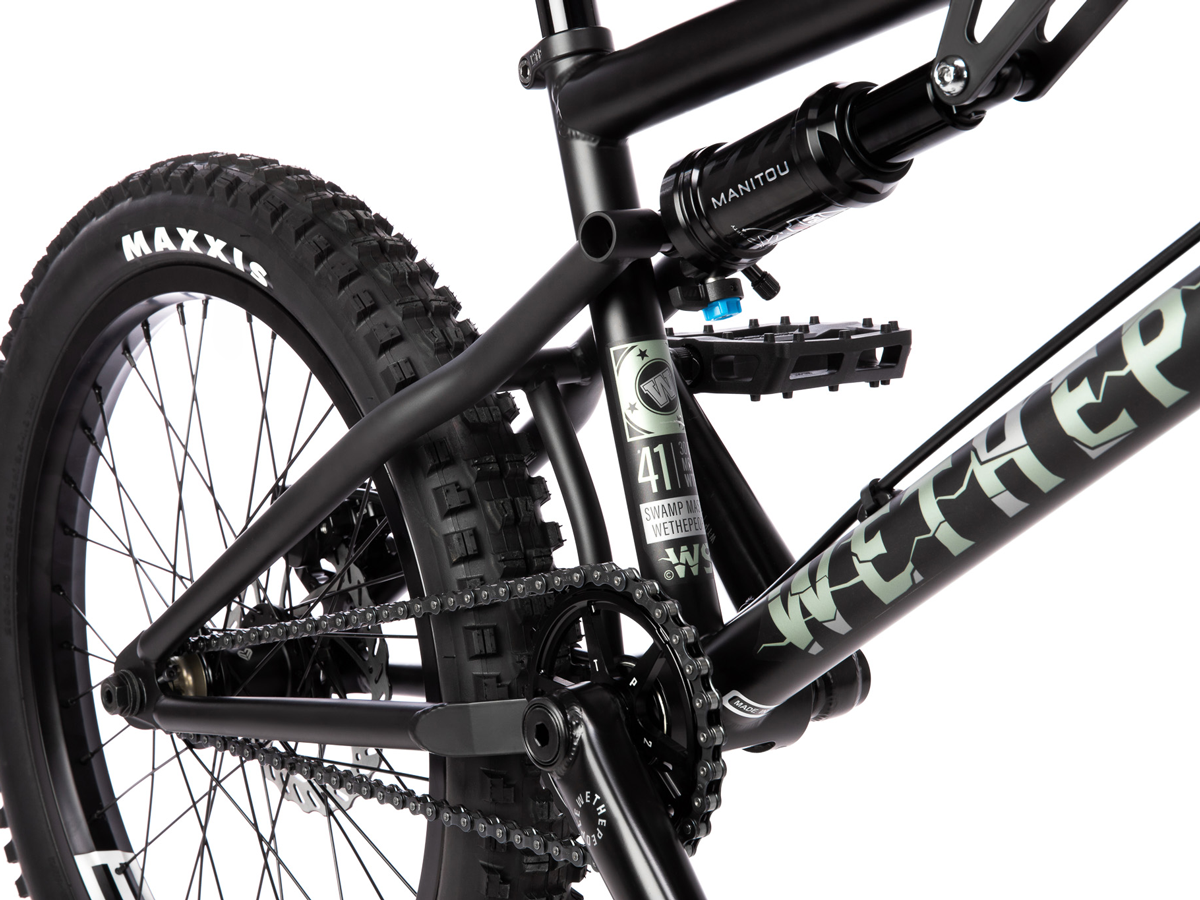

Frame - Wethepeople 'Swamp Master' frame, 4130 full Cr-Mo, RockShox Deluxe Select 170x35mm

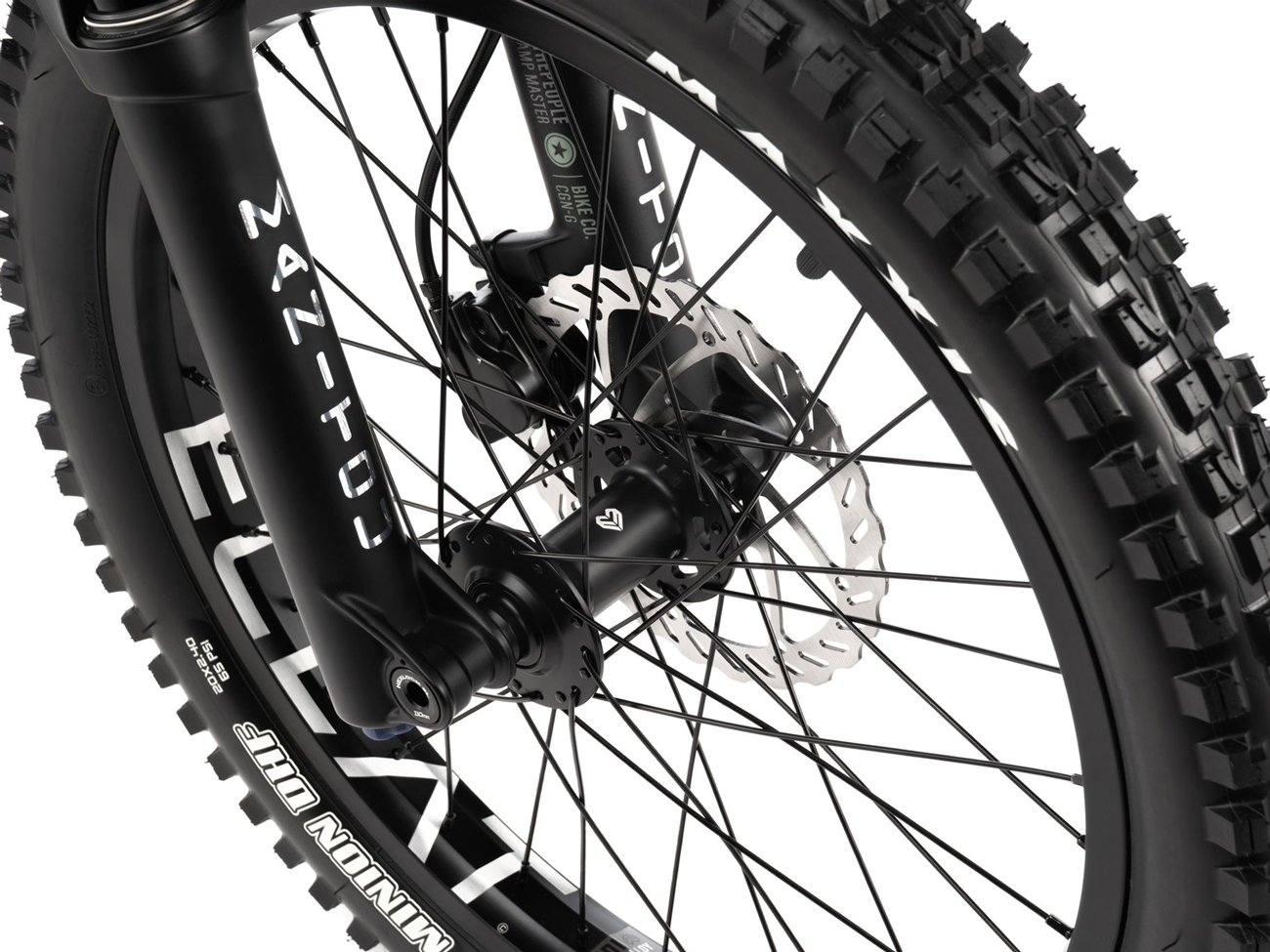

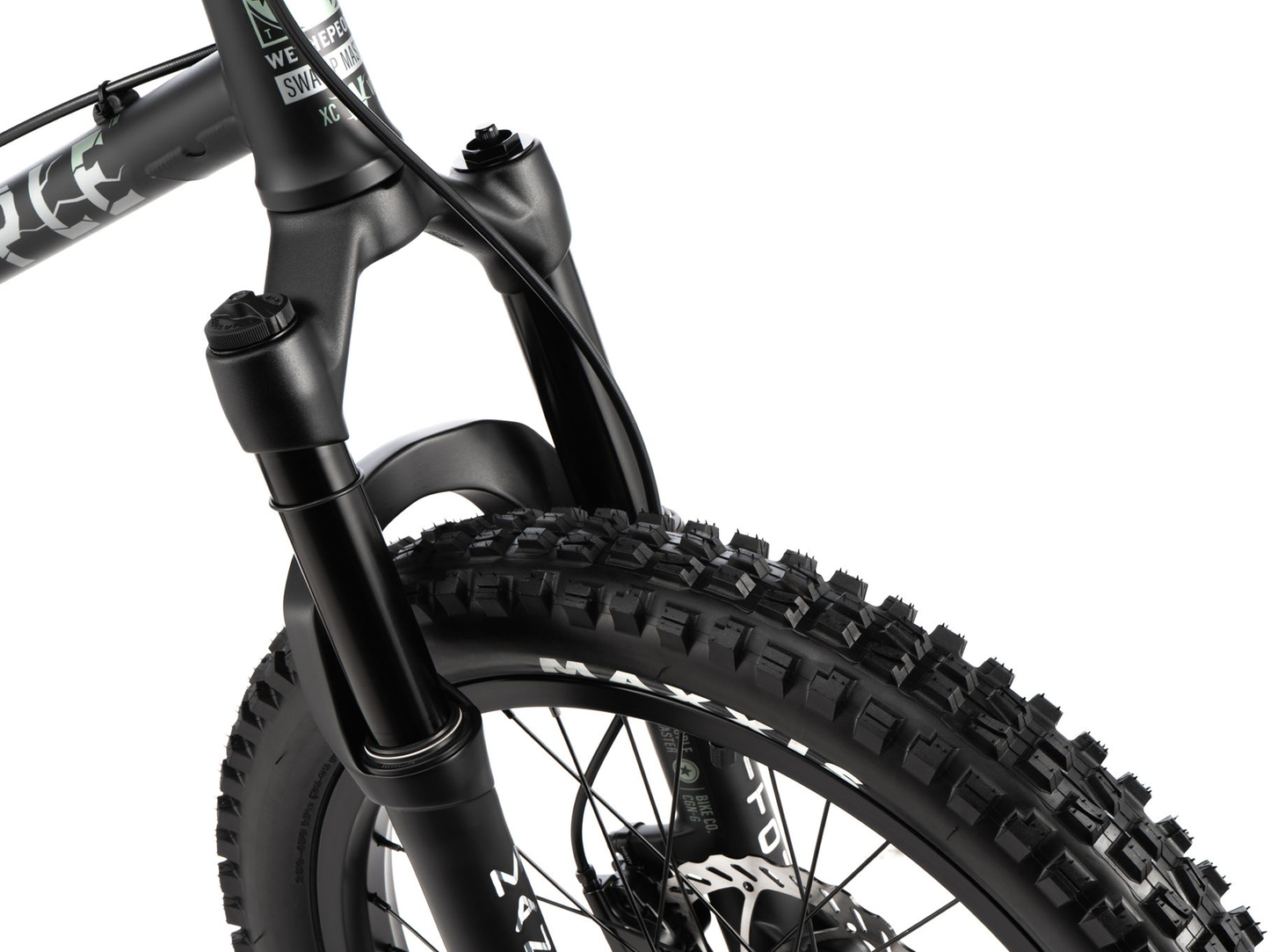

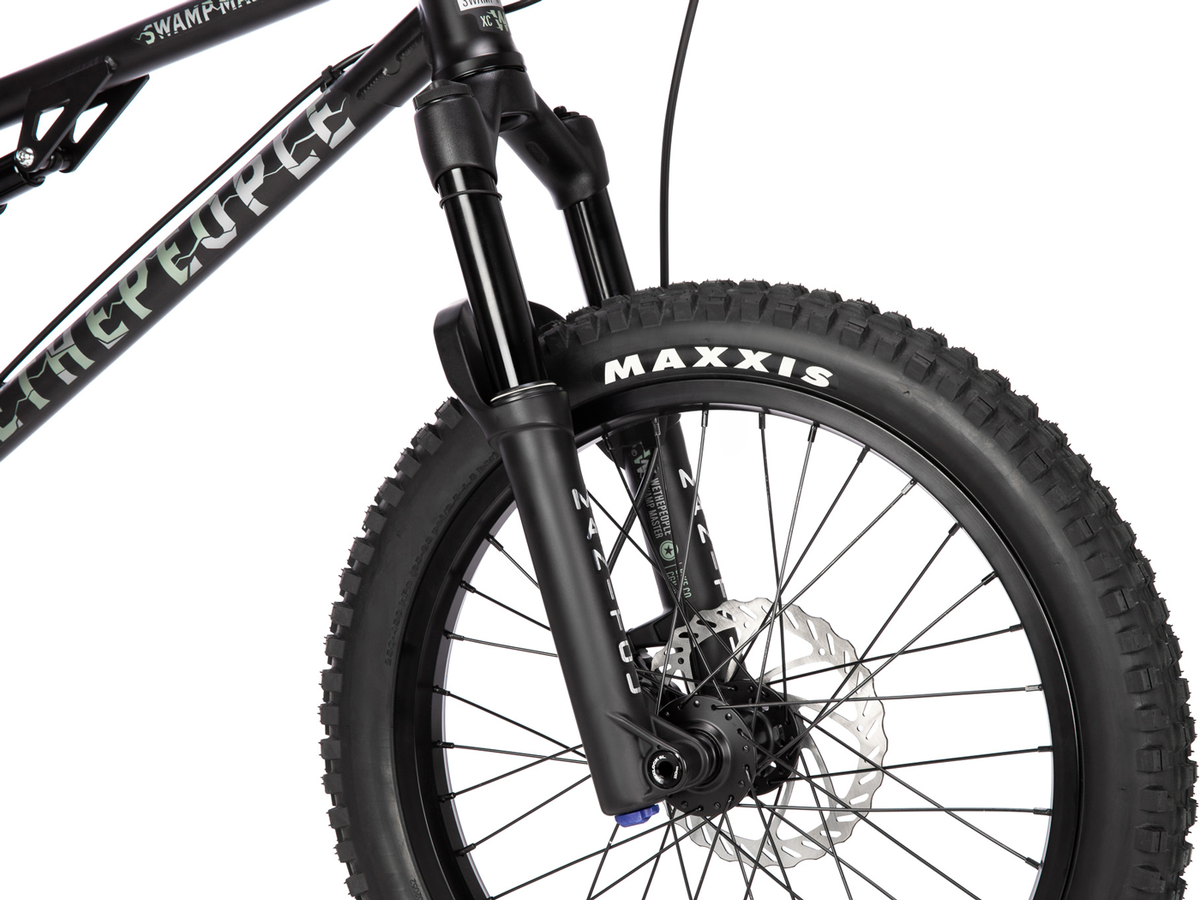

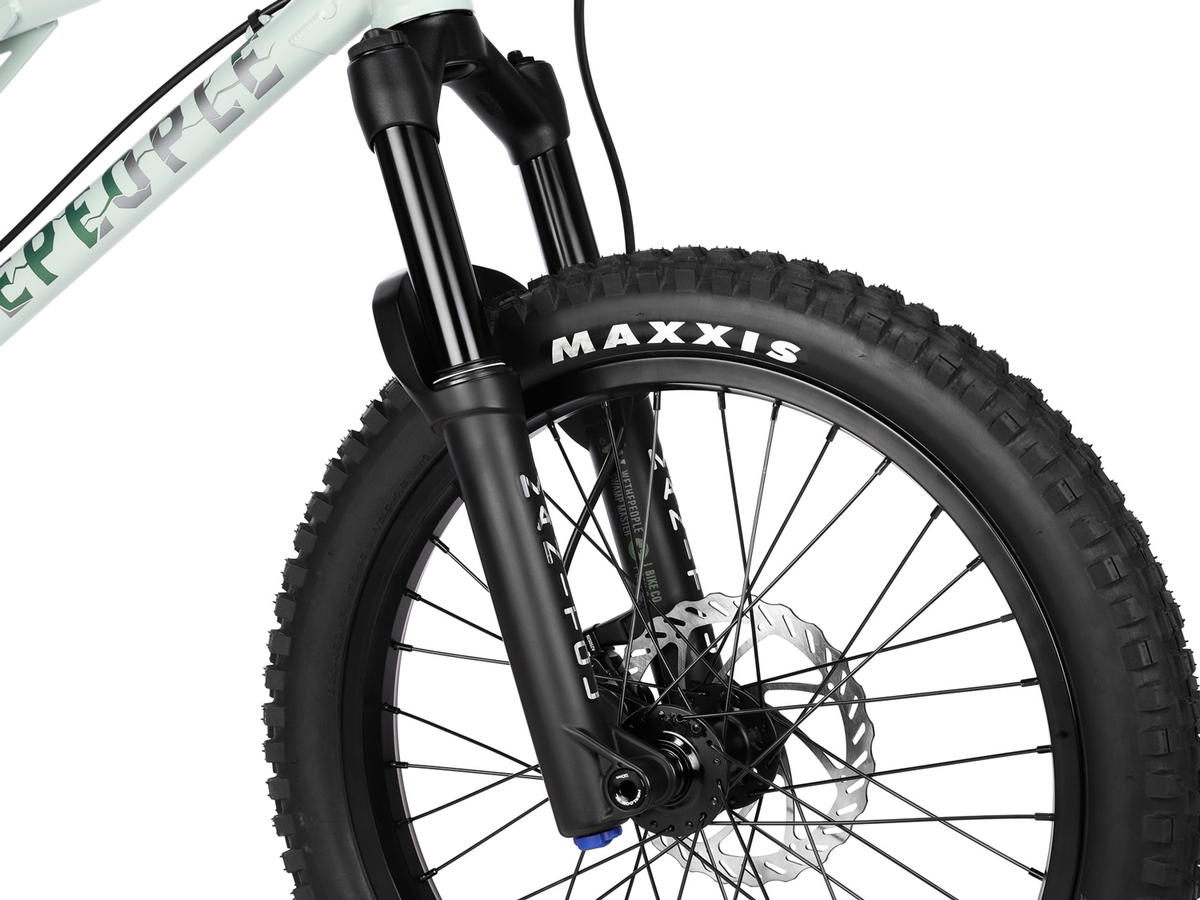

Fork - Manitou "Machete J-Unit Comp" fork, custom tuned, 100mm travel, thru-axle

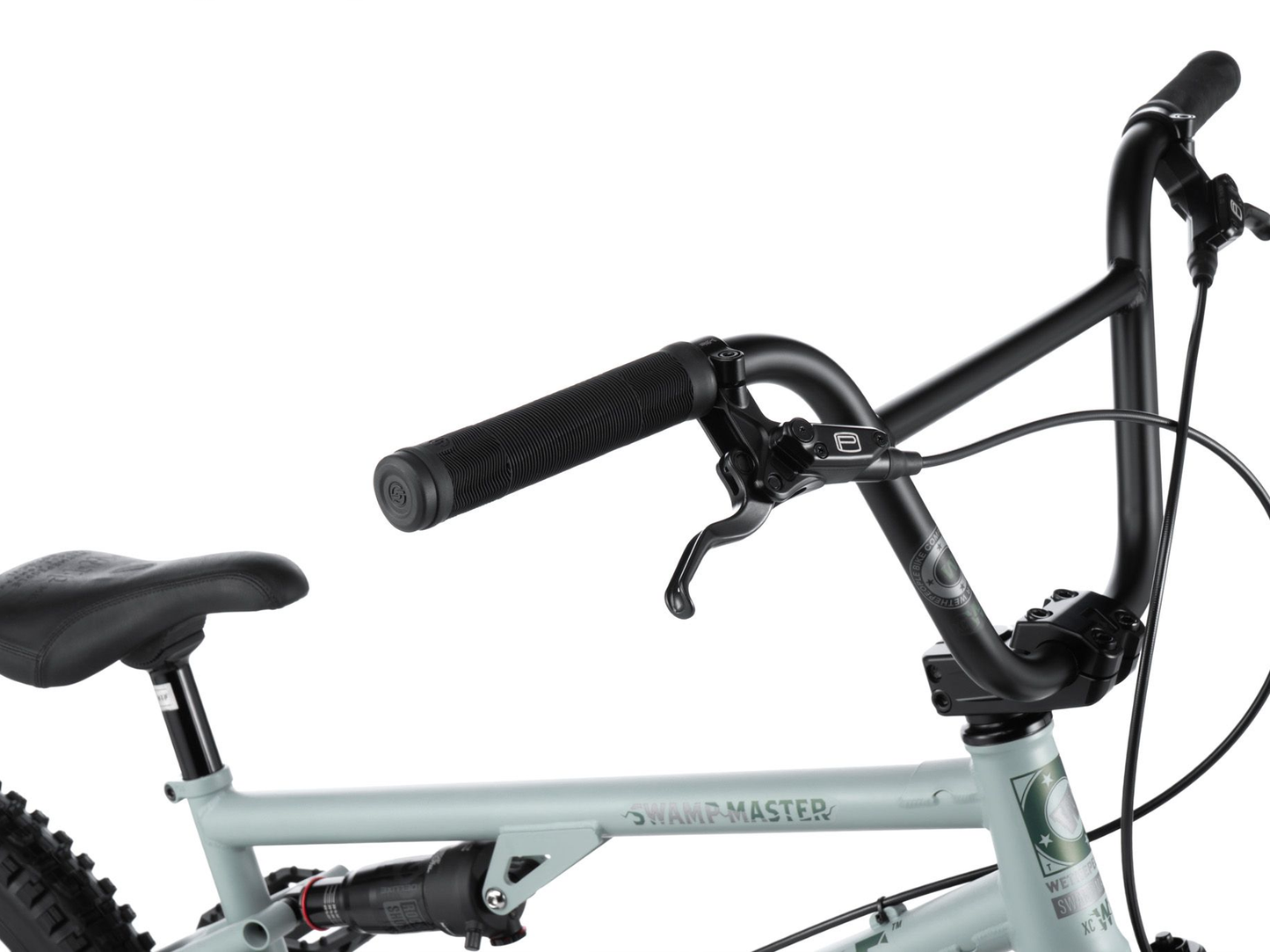

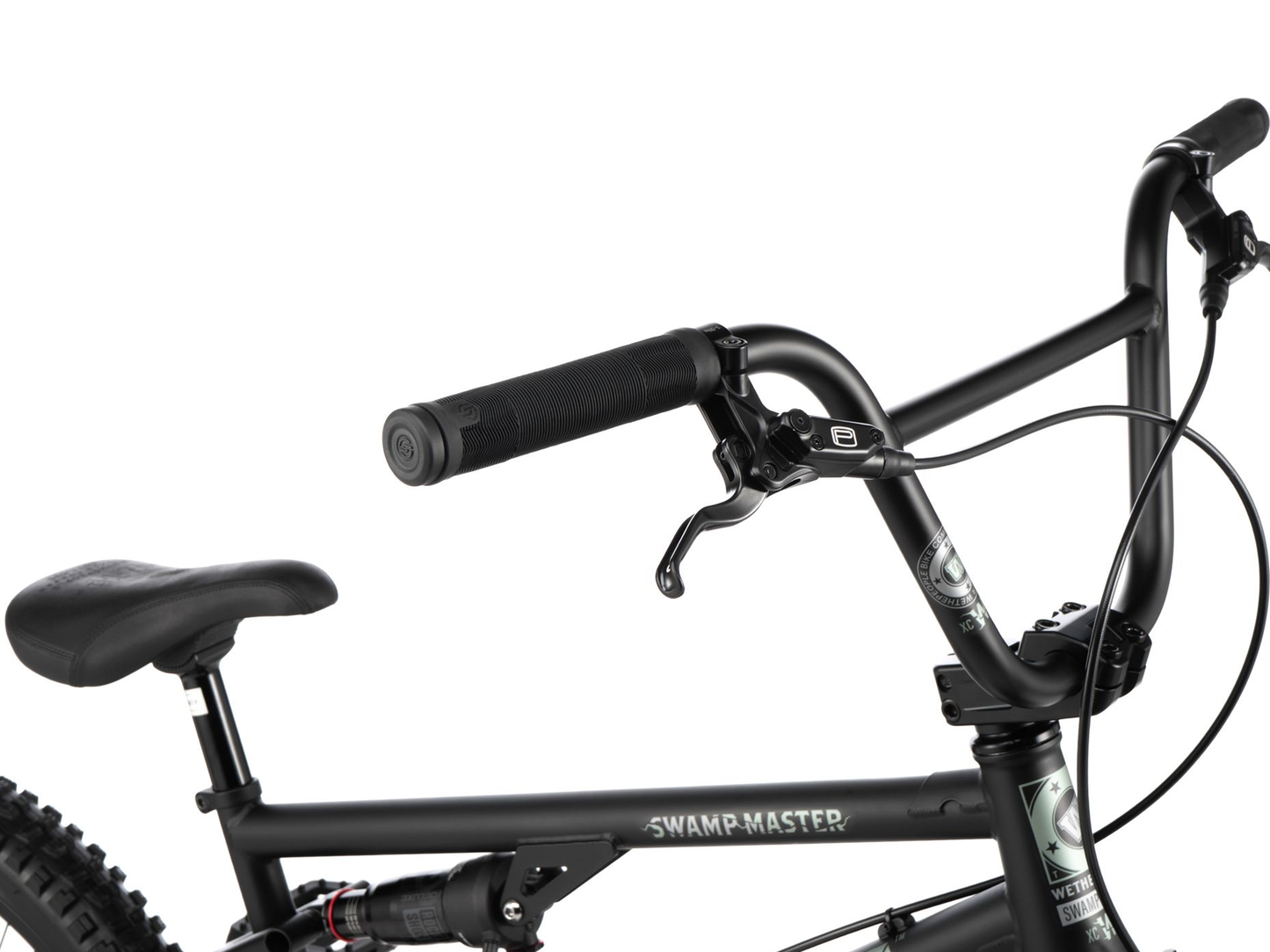

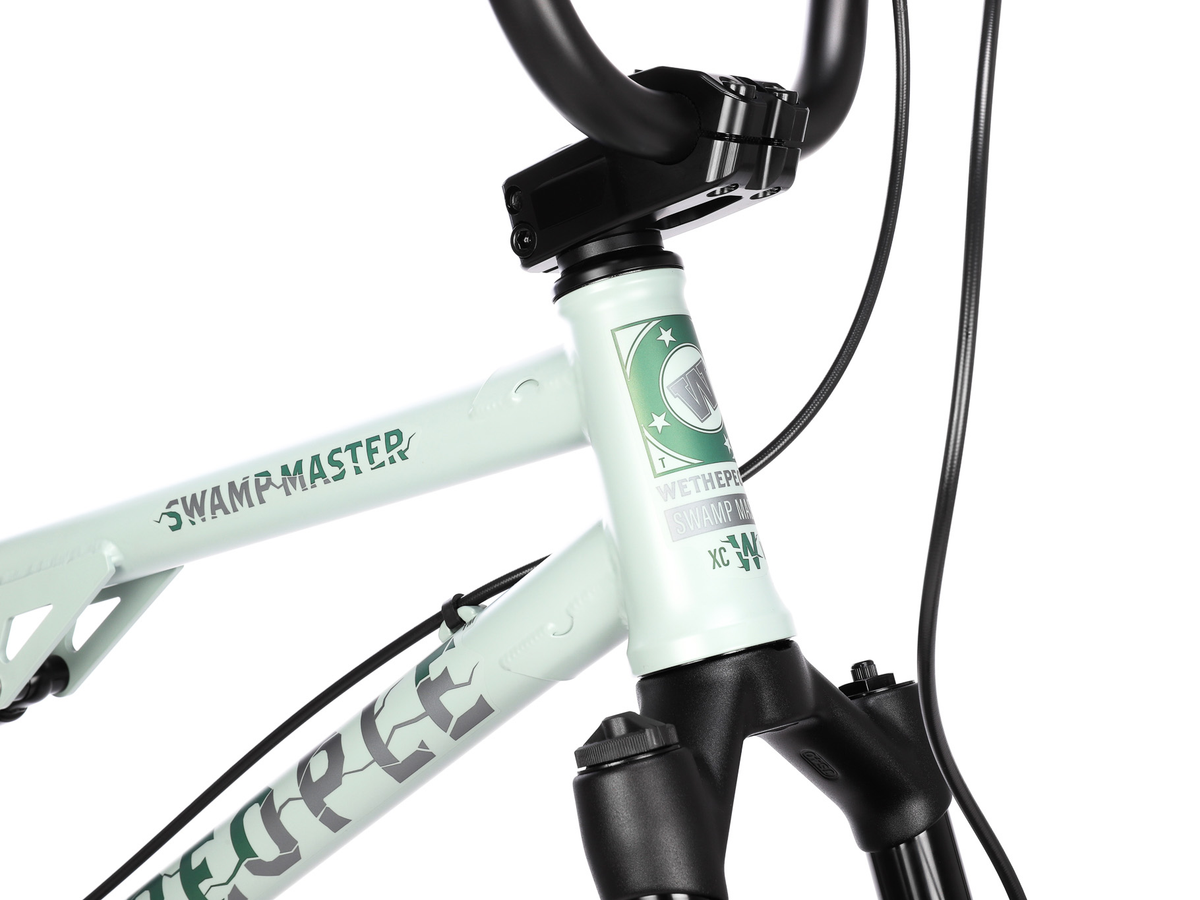

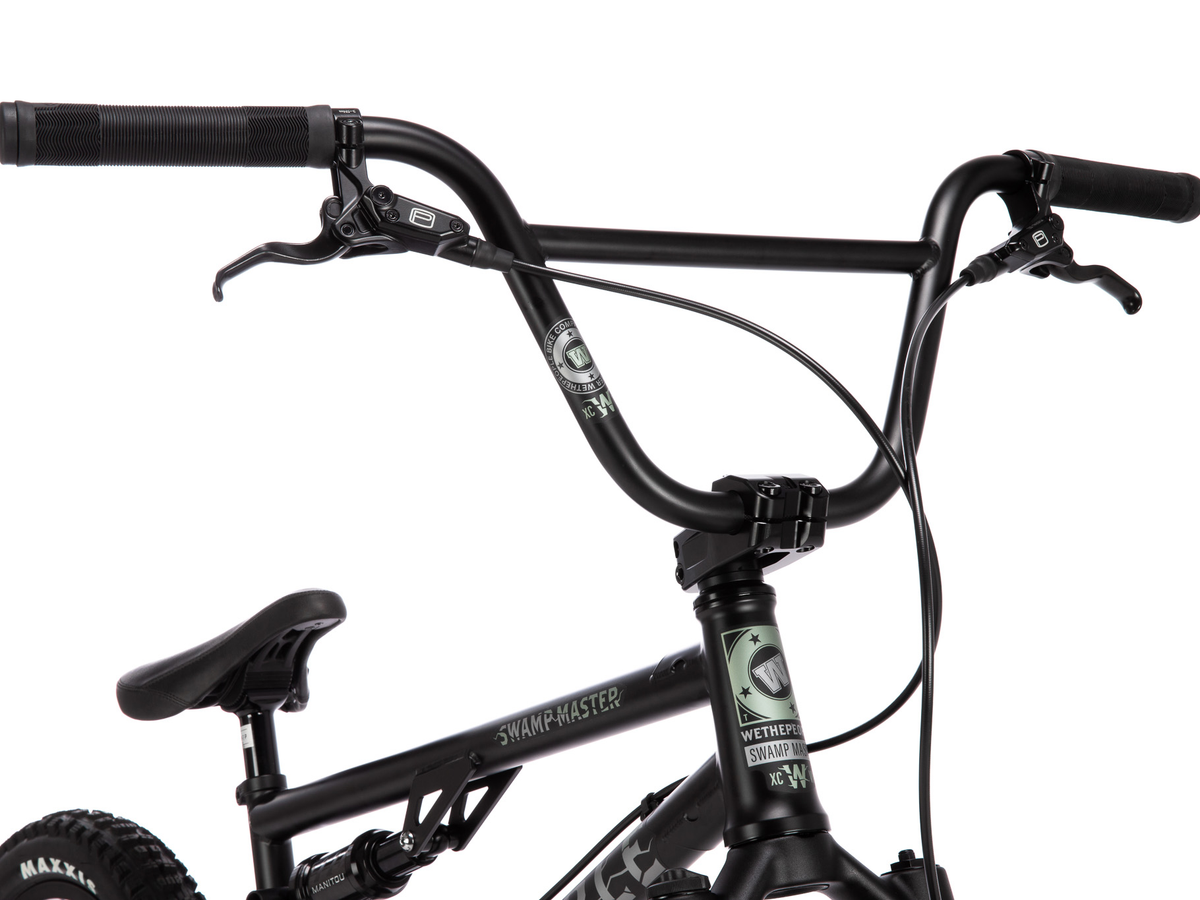

Bars - Wethepeople 'Swamp Master' bar, post liquid heat-treated 4130 Cr-Mo
Grips - Salt 'EX' grips, 154mm, flangeless

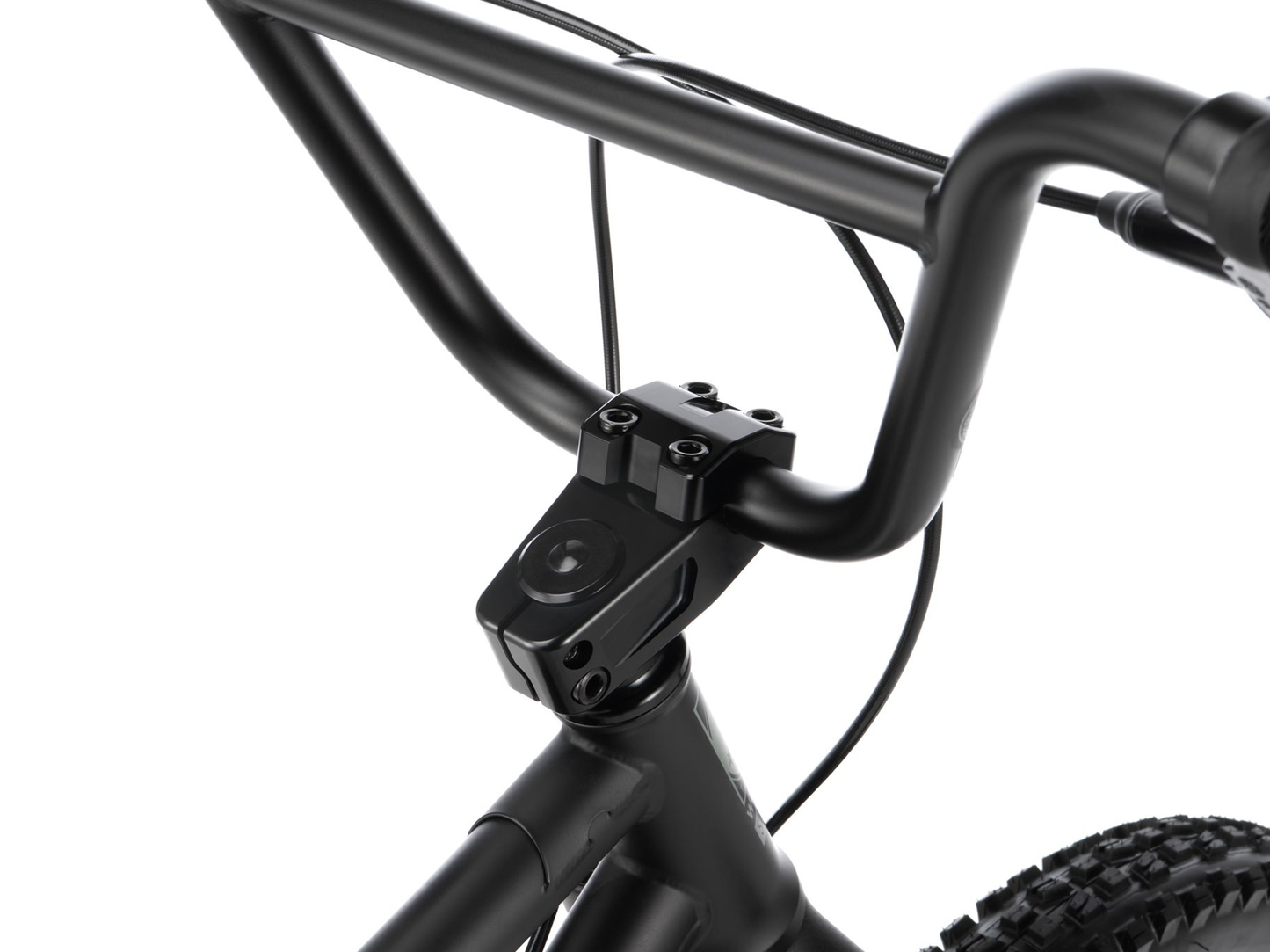

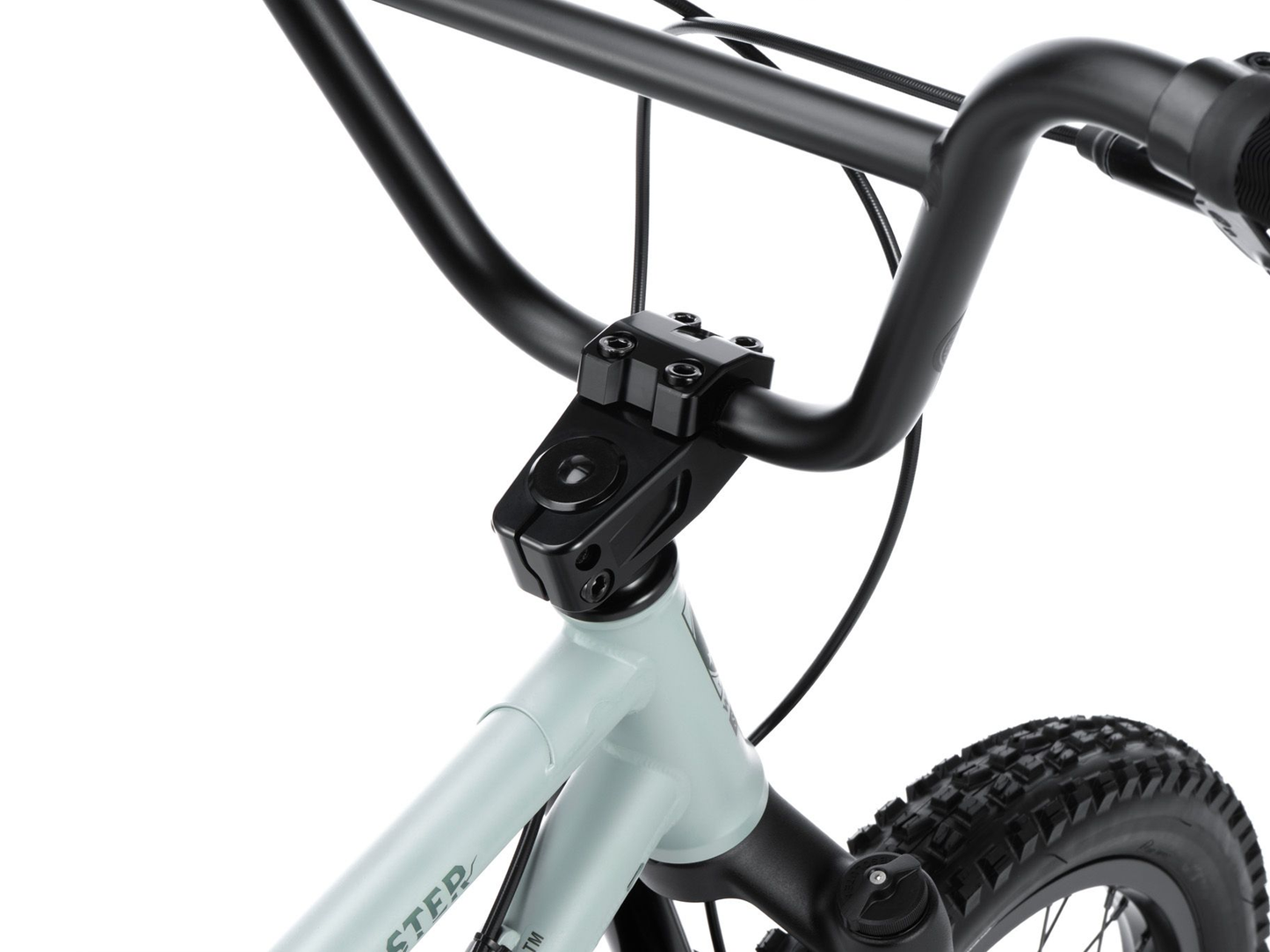

Stem - Eclat 'Burns' topload stem, CNC alloy, 51mm reach
Headset - Wethepeople 'Compact' int. headset, sealed bearing
Lever - Promax Solve Hydraulic - DSK-923S

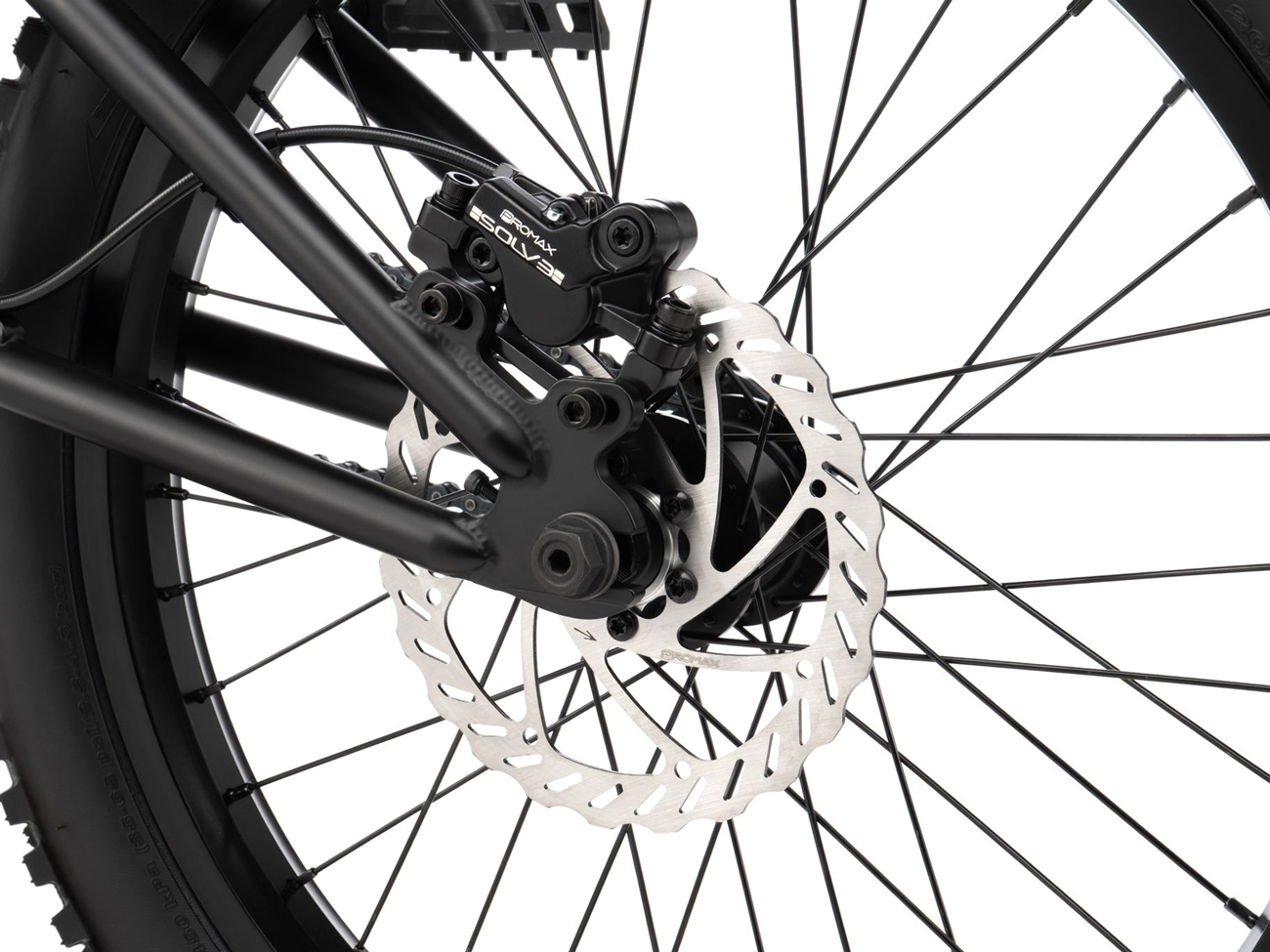

Brakes - Promax Solve Hydraulic - DSK-923S

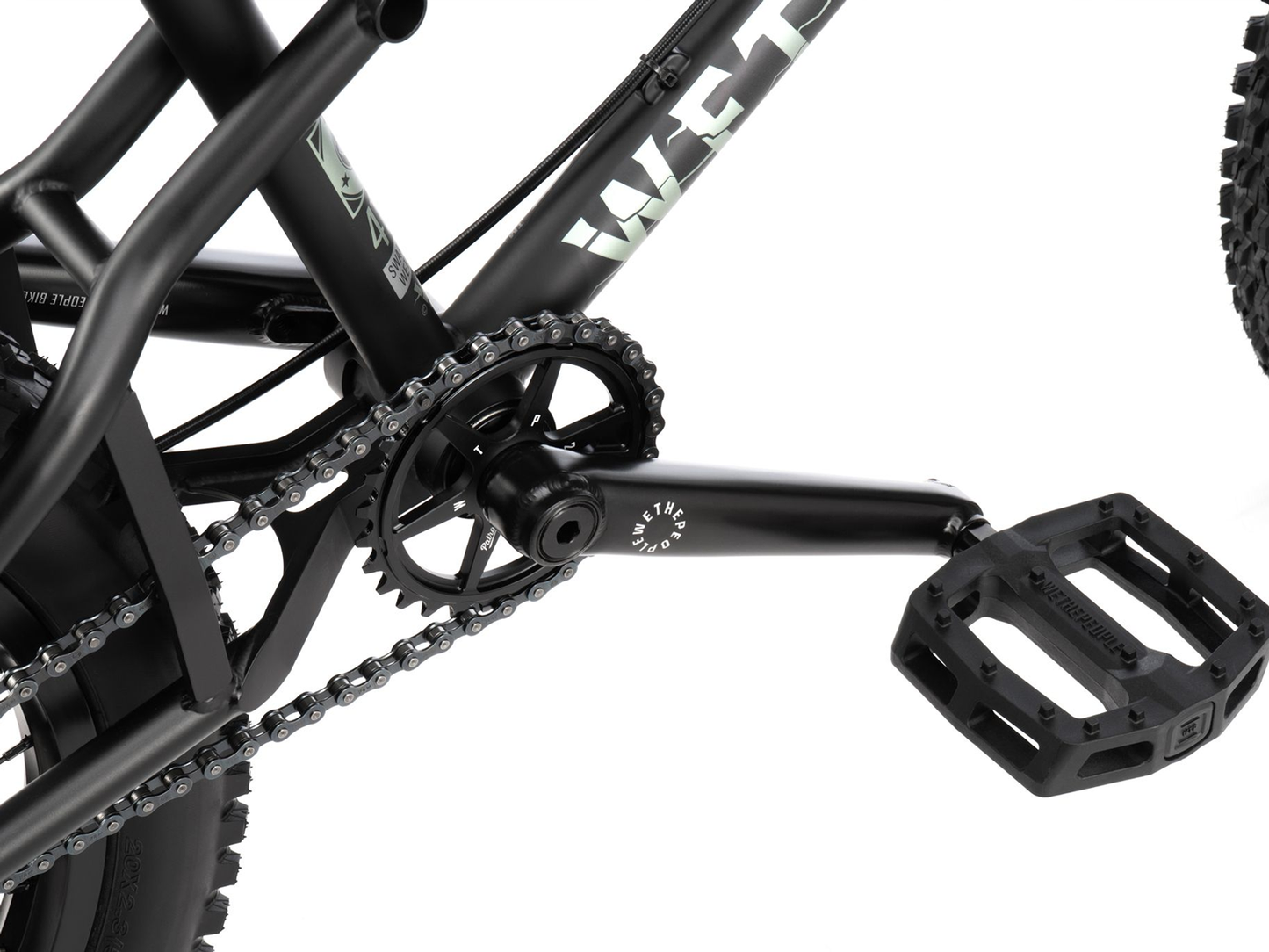

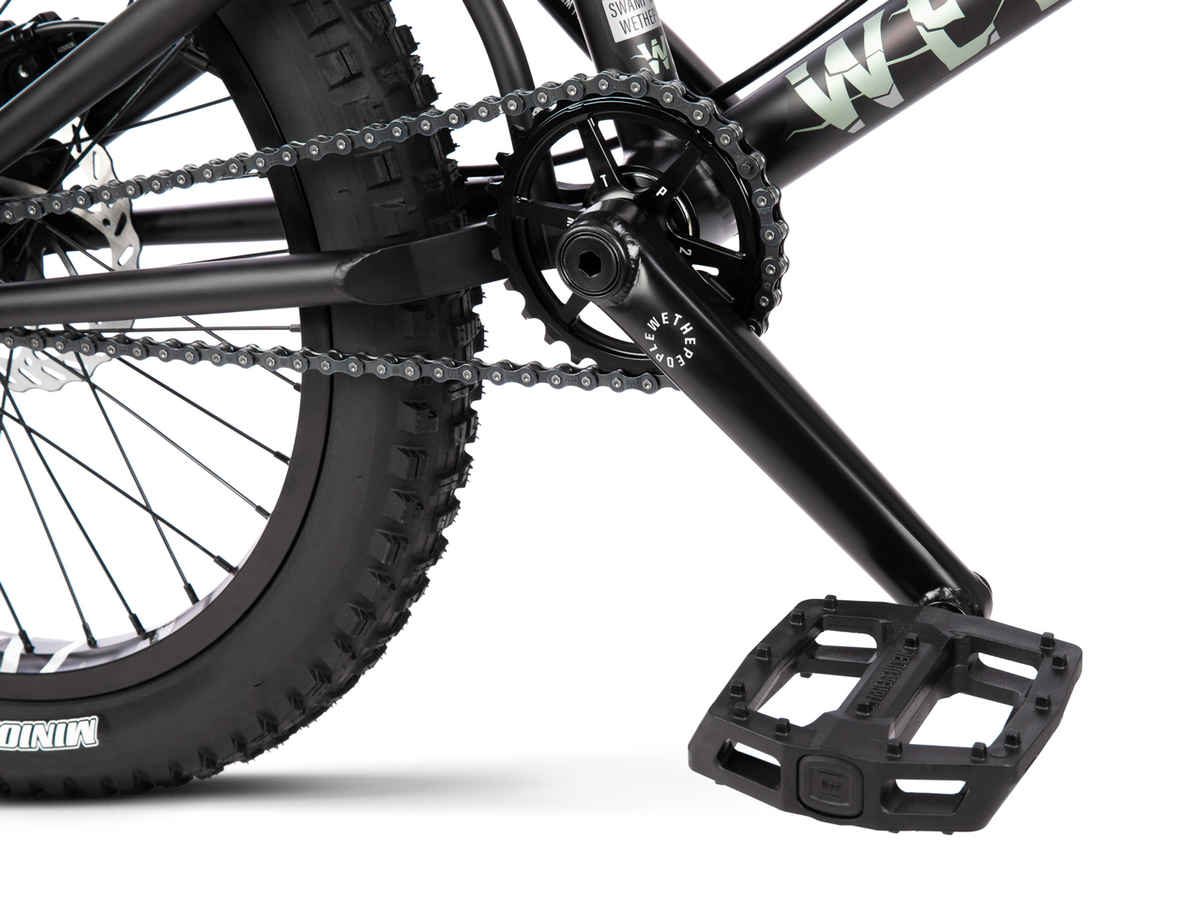

Cranks - Wethepeople 'Logic' tubular 3pc crank, 22mm, Cr-Mo, 175mm, 48 spline
BB - Wethepeople 'Compact' BB, 22mm, press fit, sealed bearing
Pedals - Wethepeople 'Logic' pedals, nylon/fibreglass
Chain - Eclat 'Diesel' chain
Sprocket - Wethepeople 'Patrol' sprocket, CNC, 6061-T6 alloy, 28T
Driver - 1pc cassette driver, 9T, sealed bearing, 6 pawl, 120 POE

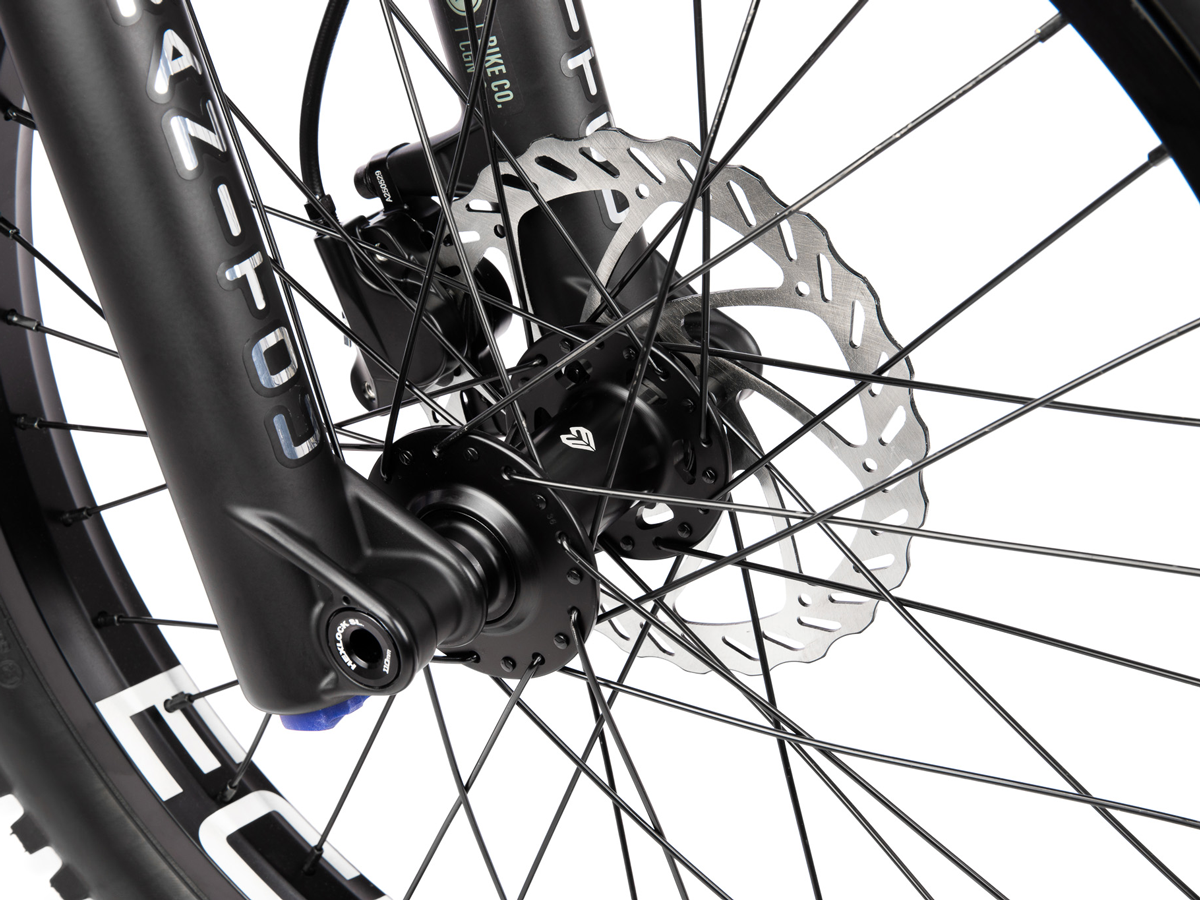

Front hub - Eclat 'Exile' disc front hub, boost 110mm, fully sealed, 15mm thru axle, 36H

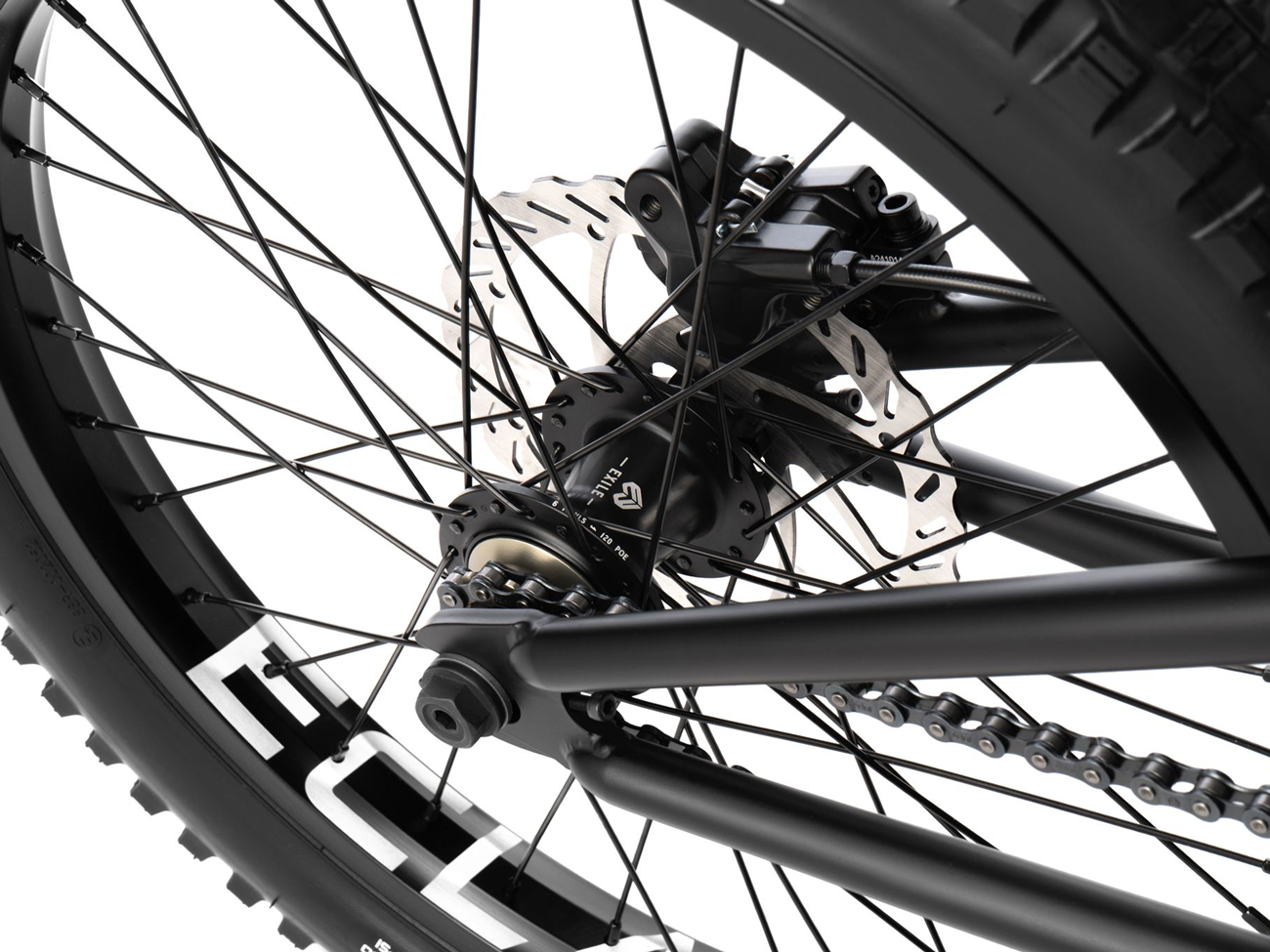

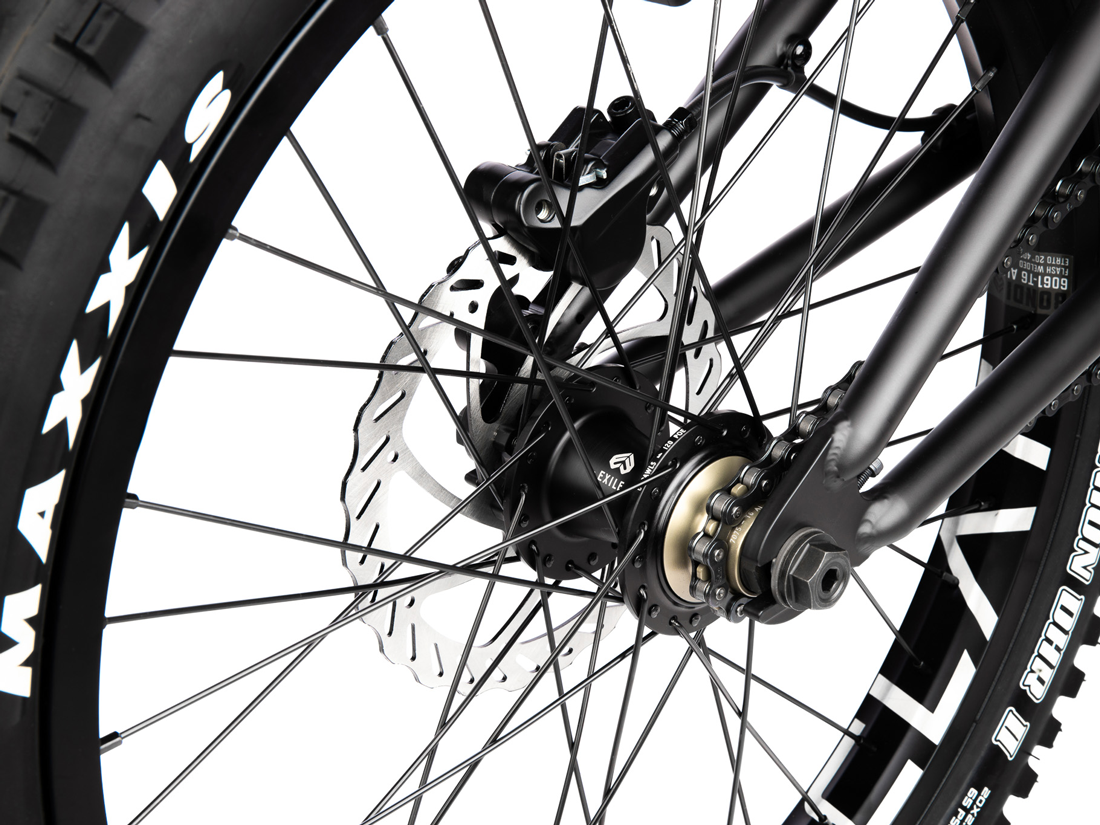

Rear hub - Eclat 'Exile' disc cassette hub, fully sealed, 3/8" female bolts, 36H, 120 POE
Front rim - Eclat 'Bondi' rim, 38mm wide, flash welded, double wall, 36H
Rear rim - Eclat 'Bondi' rim, 38mm wide, flash welded, double wall, 36H

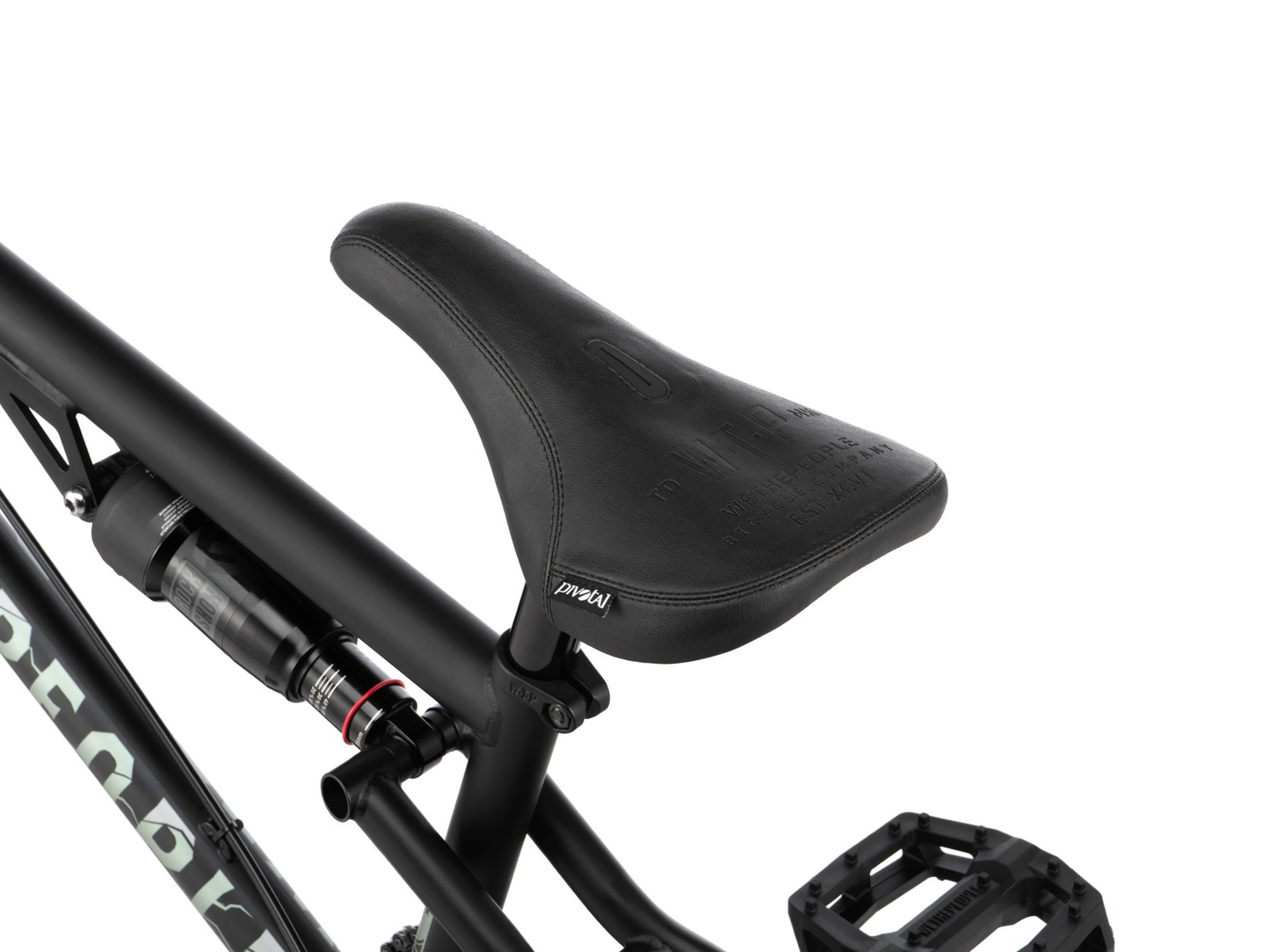

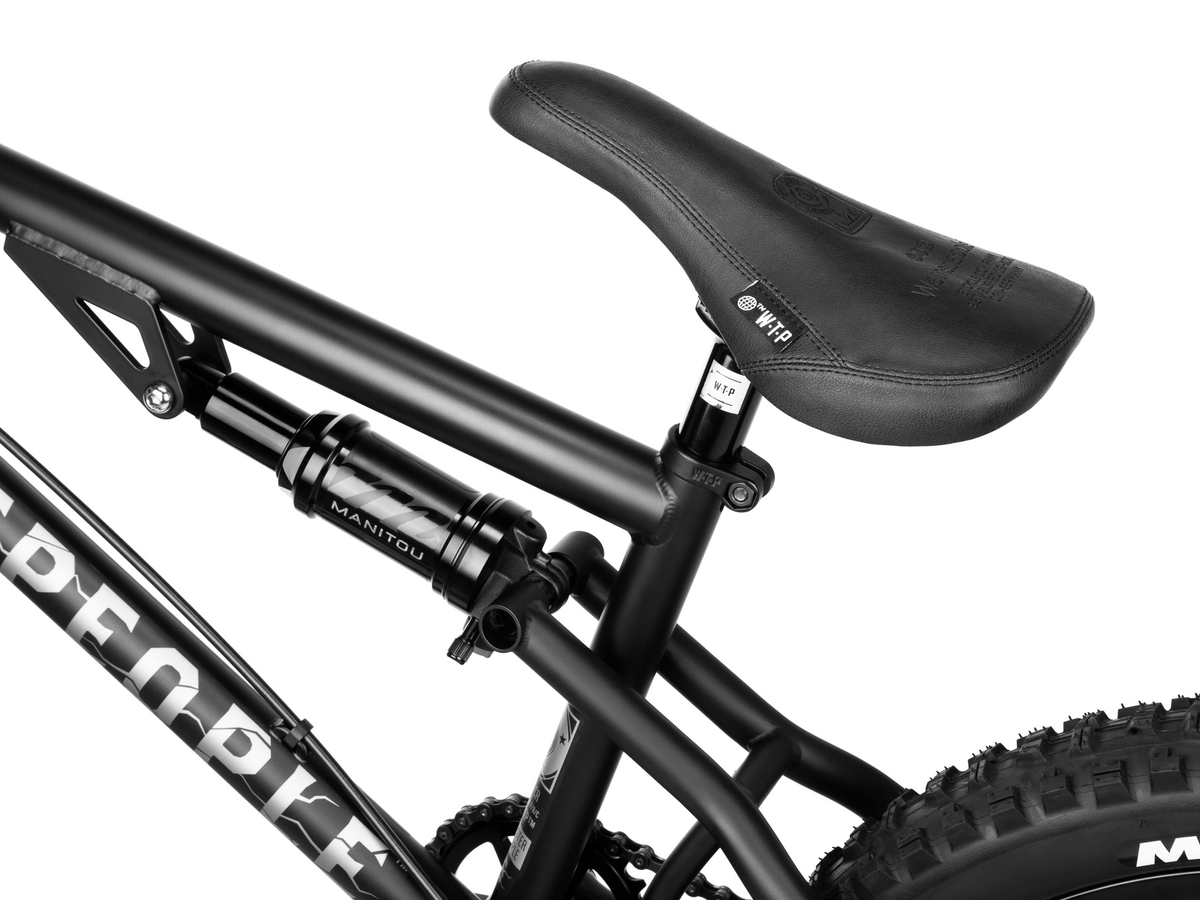

Seat - Eclat 'Bios' pivotal seat, slim padded
Seat post - Wethepeople 'Team' pivotal seat post, 200mm long, 6061-T6 alloy
Seat clamp - Integrated seat clamp
Tyres - Front - Maxxis "Minion DHF" 20x2.4, Rear - Maxxis "Minion DHR II" 20x2.3
Weight - 14.5kg
Frame Geometry
Top Tube Length - 21.5"
Chain Stay Length - 14.1" - 14.8"
Head Tube Angle - 71°
Seat Tube Angle - 70°
BB Height - 12.15"
Standover Height - 9.5"
Handlebar Geometry
Bar Rise - 8"
Bar Width - 29.15"
Bar Back sweep - 11°
Bar Up Sweep - 2.5°
