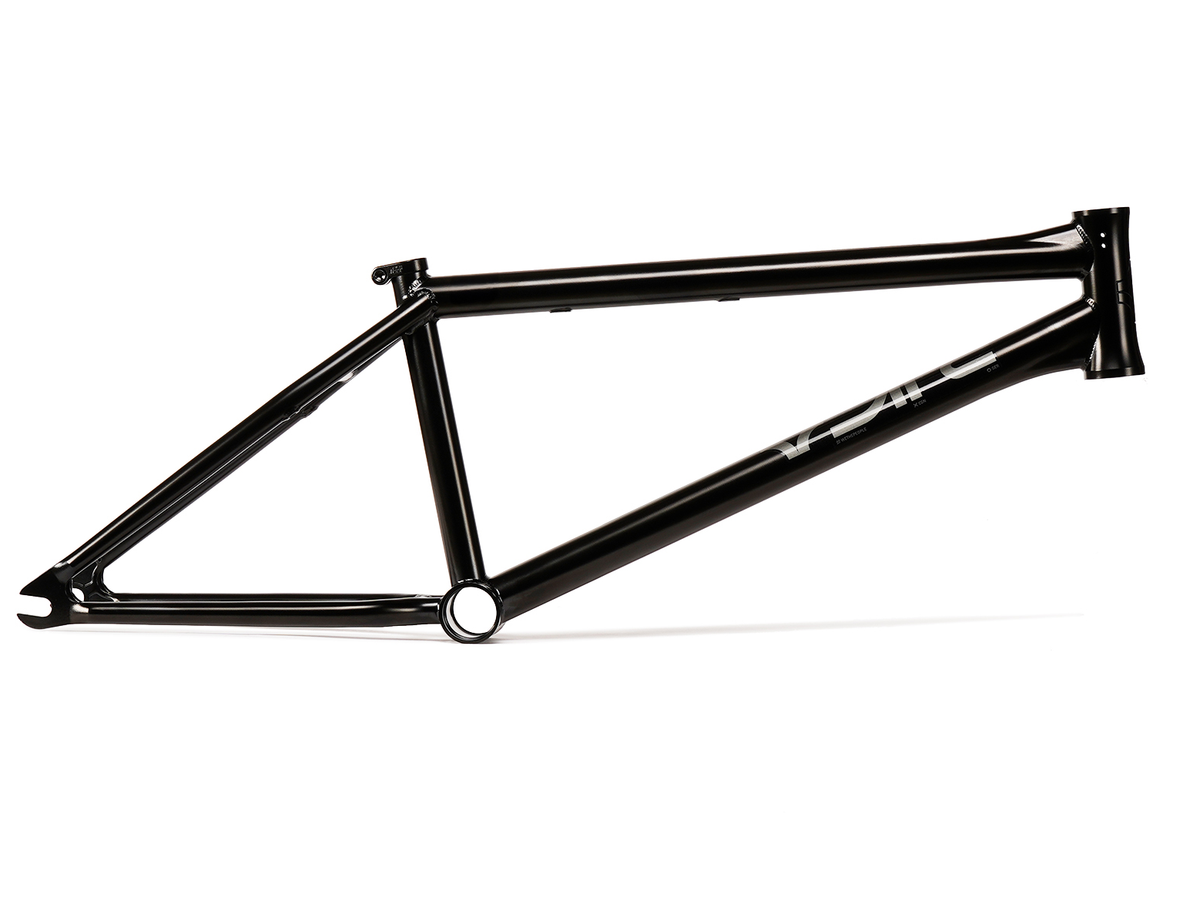

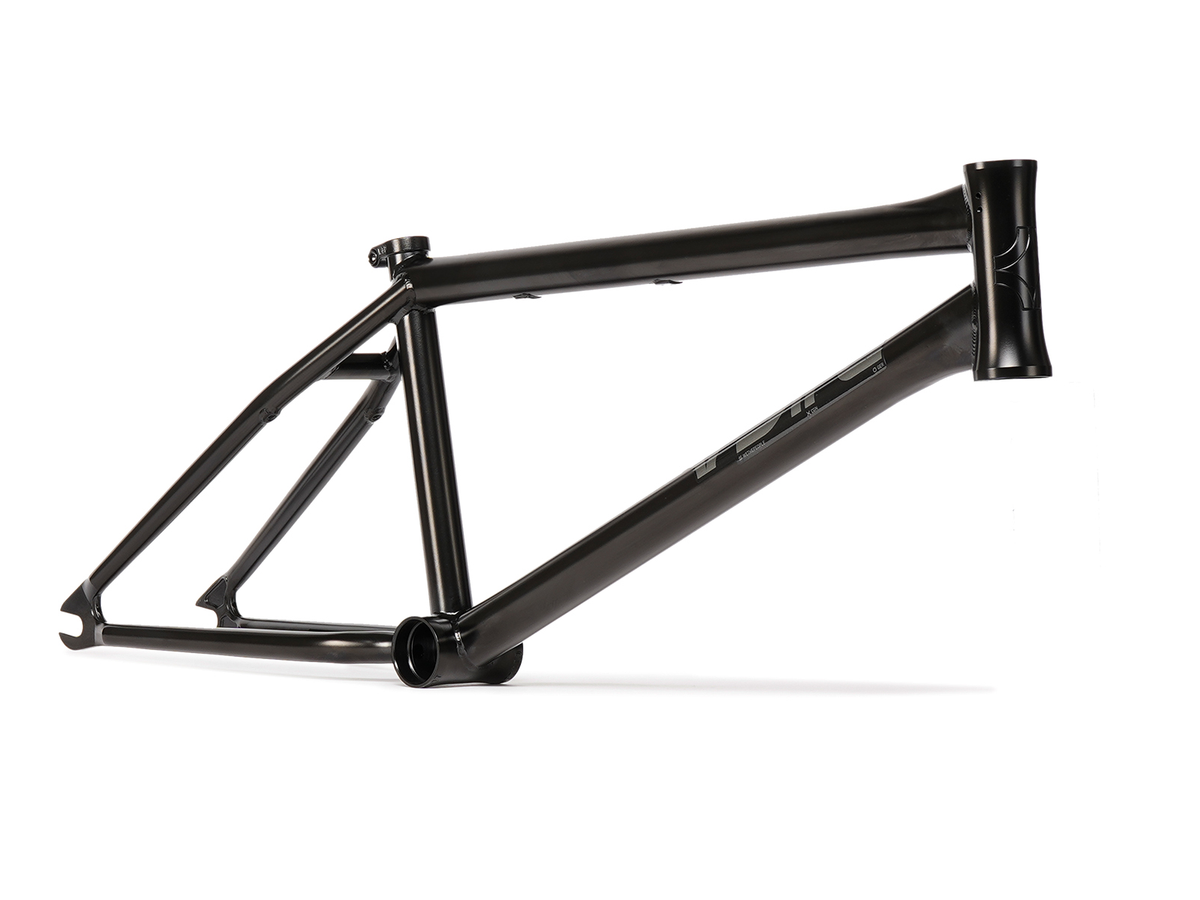

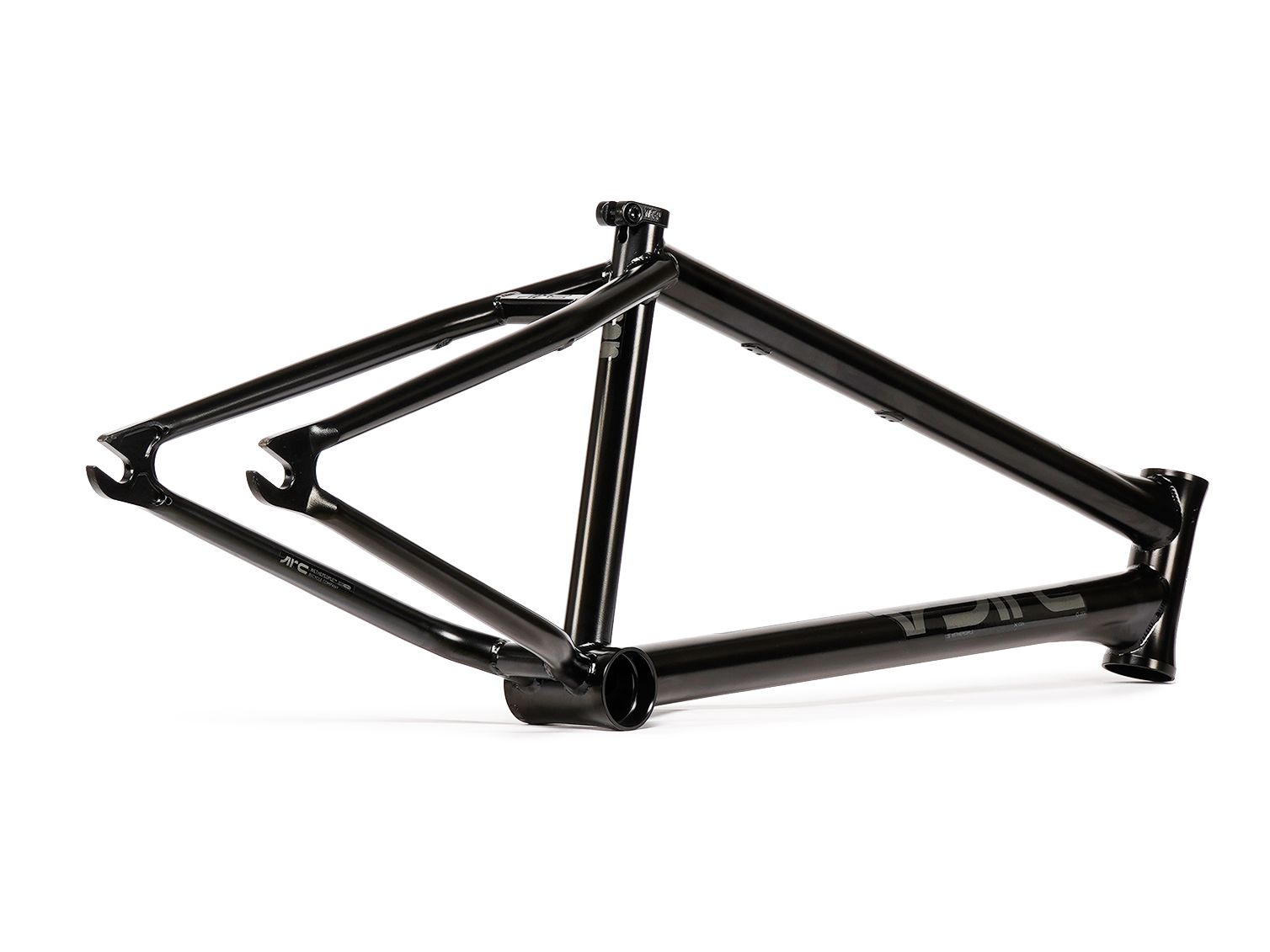

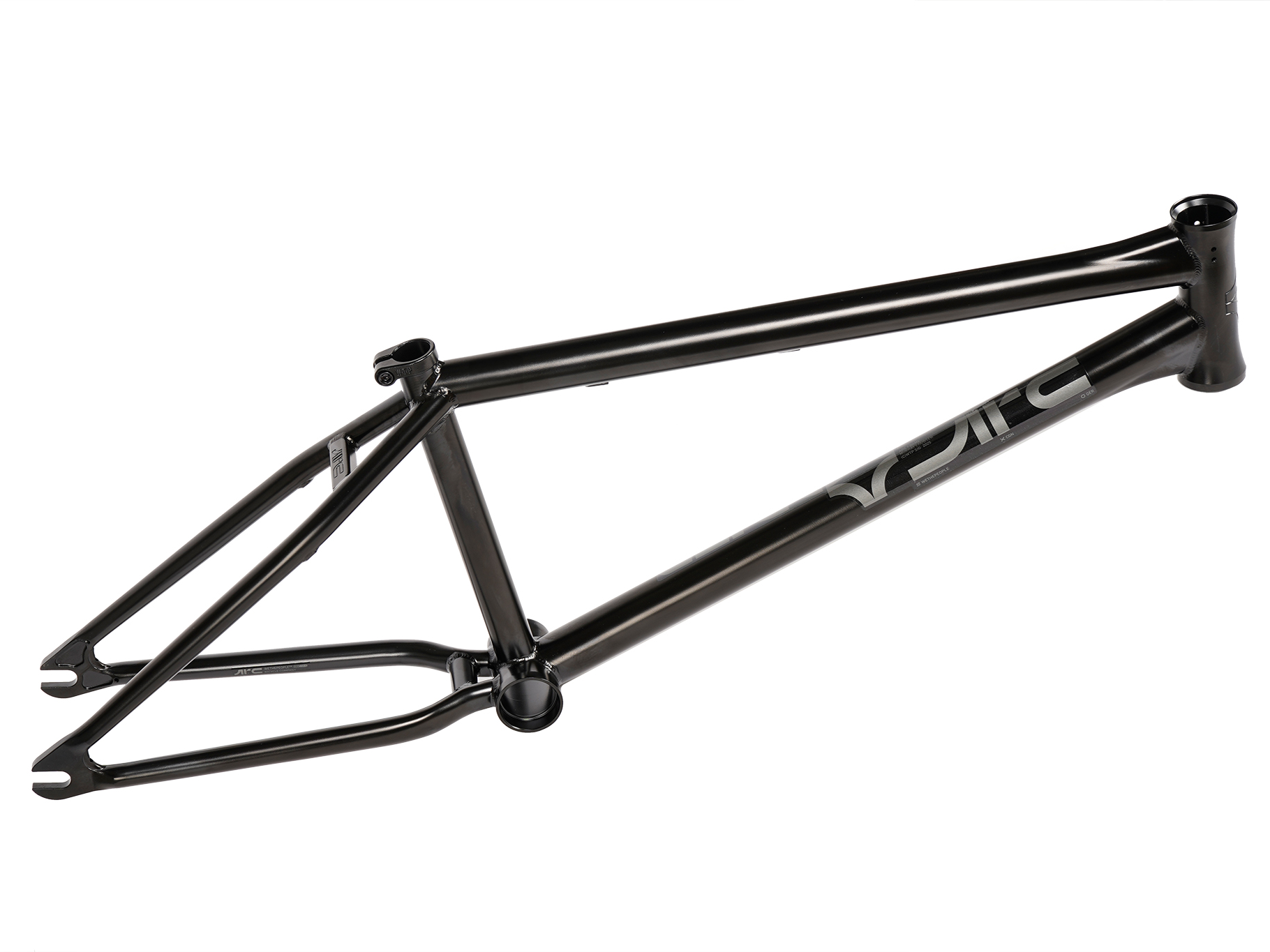

WETHEPEOPLE ARC (Murray Loubser) Frame
WETHEPEOPLE ARC (Murray Loubser) Frame
- Ships 2–3 Business Days • Pickup Available
Couldn't load pickup availability
Features:
- Murray Loubser signature frame
- Responsive and technical street frame
- Hydroformed top tube and down tube for superior strength and stiffness
- Short 12.75” chainstay and steeper 76.1 degree headtube for reduced wheelbase
- Smaller dropout shape for no overhang with pegs for smoother grinds
- Slacker 70-degree seat tube angle creates shorter reach

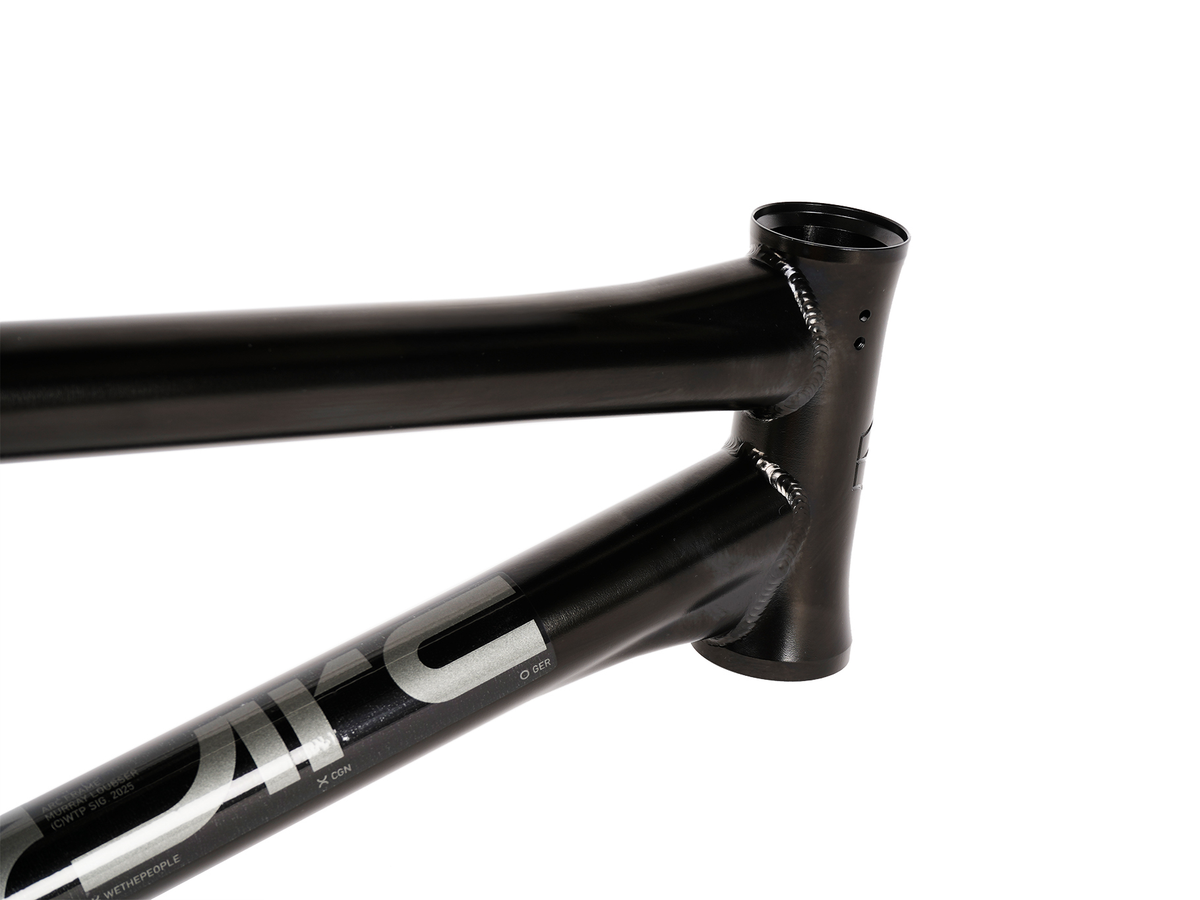

- Larger 1.8mm welding at the head tube
- Extra thick double butted top tube

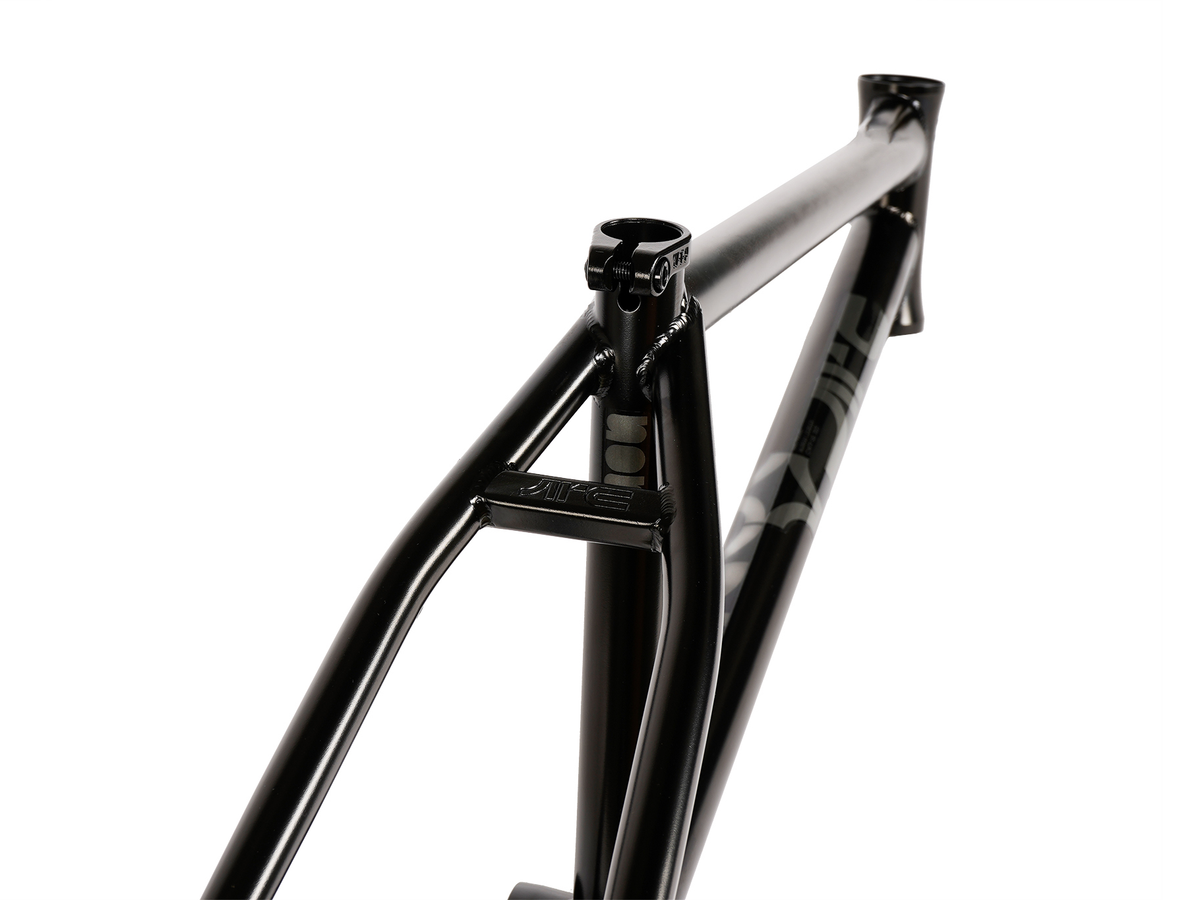

- Box-section seat and chain stay braces for increased stiffness
- CNC detailing on head tube and seat stay bridge
- Ovalized chain stays for increased tire and sprocket clearance
- Wider rear triangle allows clearance for a 2.5" tire
- Investment cast seat clamp
Tubing - Butted, Japanese seamless 4130 CrMo tubing
Bottom bracket - 74mm mid size, CNC machined and heat-treated, super thick for grinding

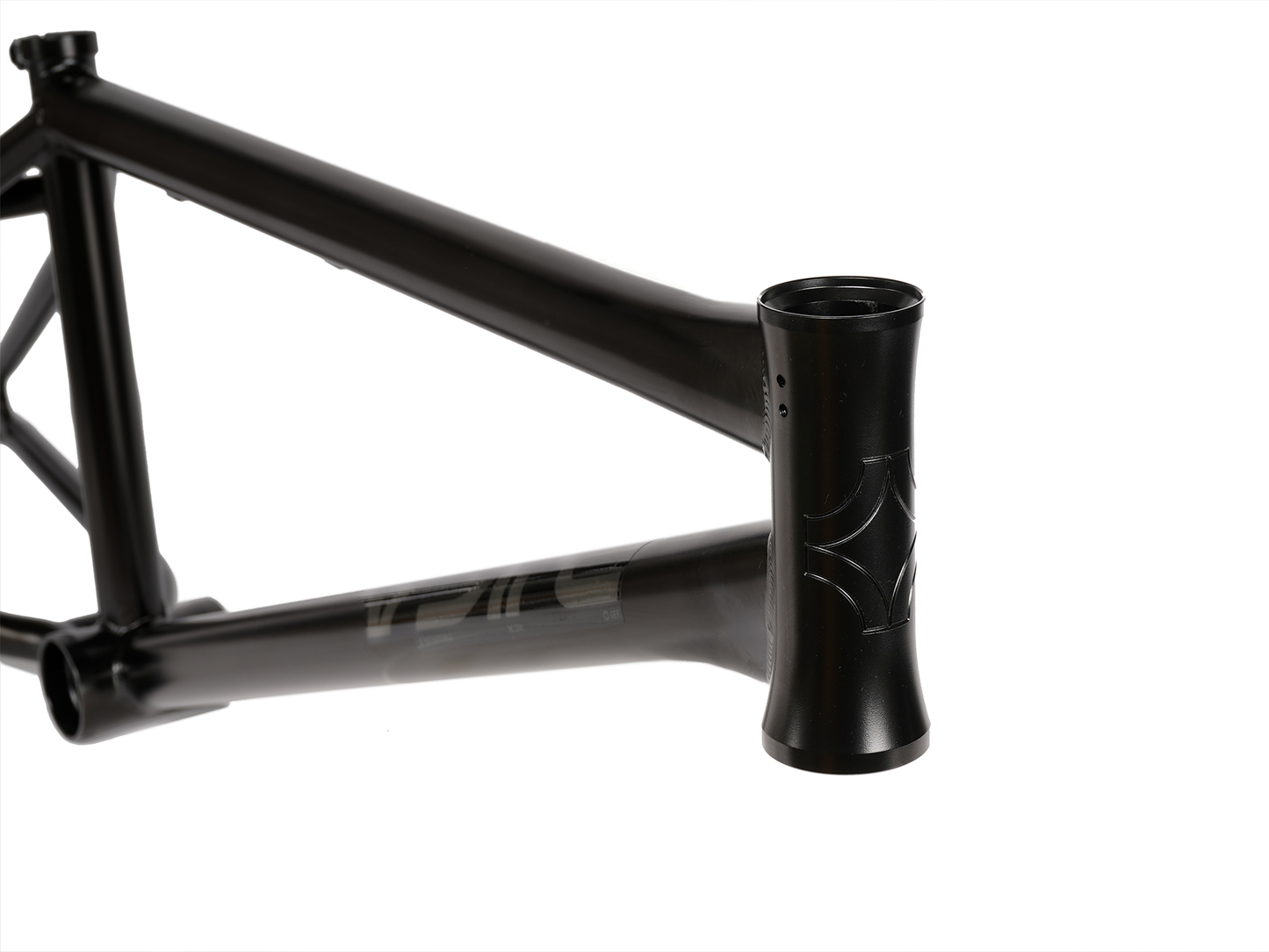

Head tube - 127mm CNC machined and heat-treated, integrated headset, holes for rotor tabs

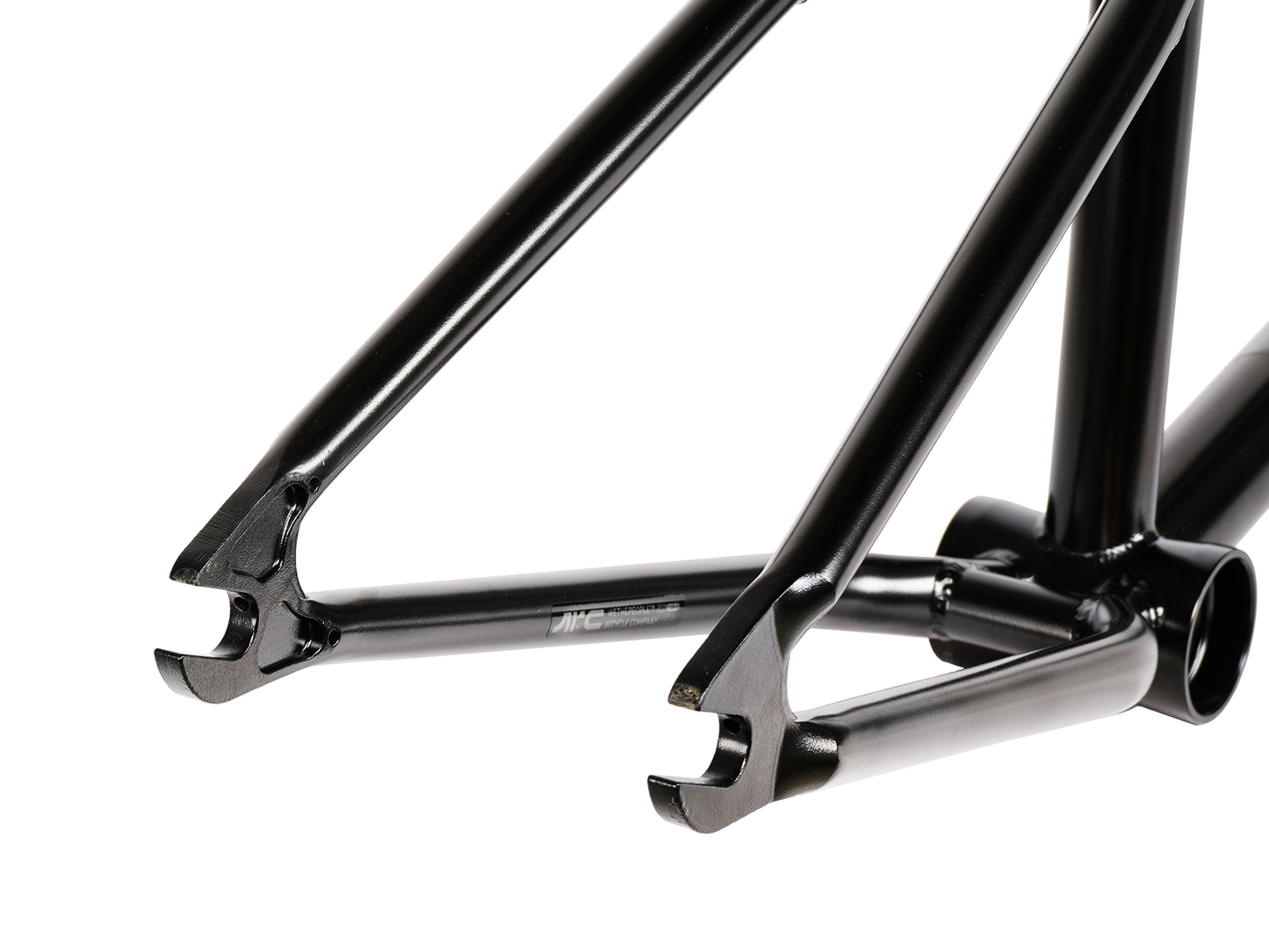

Dropouts - 7.5mm investment cast with integrated chain tensioners, heat-treated 4130 CrMo
Brakes - Pivot-3 removable brake mounts, frame comes without replacement brake hardware
Weight
2.54kg (89.59oz / 5.59lbs) - 20.75"
Frame Geometry
Top tube length: 20.75", 21"
Chain stay length: 12.75" - 13.1" (optimised for 12.75" with 25-9)
Head tube angle: 76.1°
Seat tube angle: 70°
BB height: 11.8"
Standover height: 9.6"
