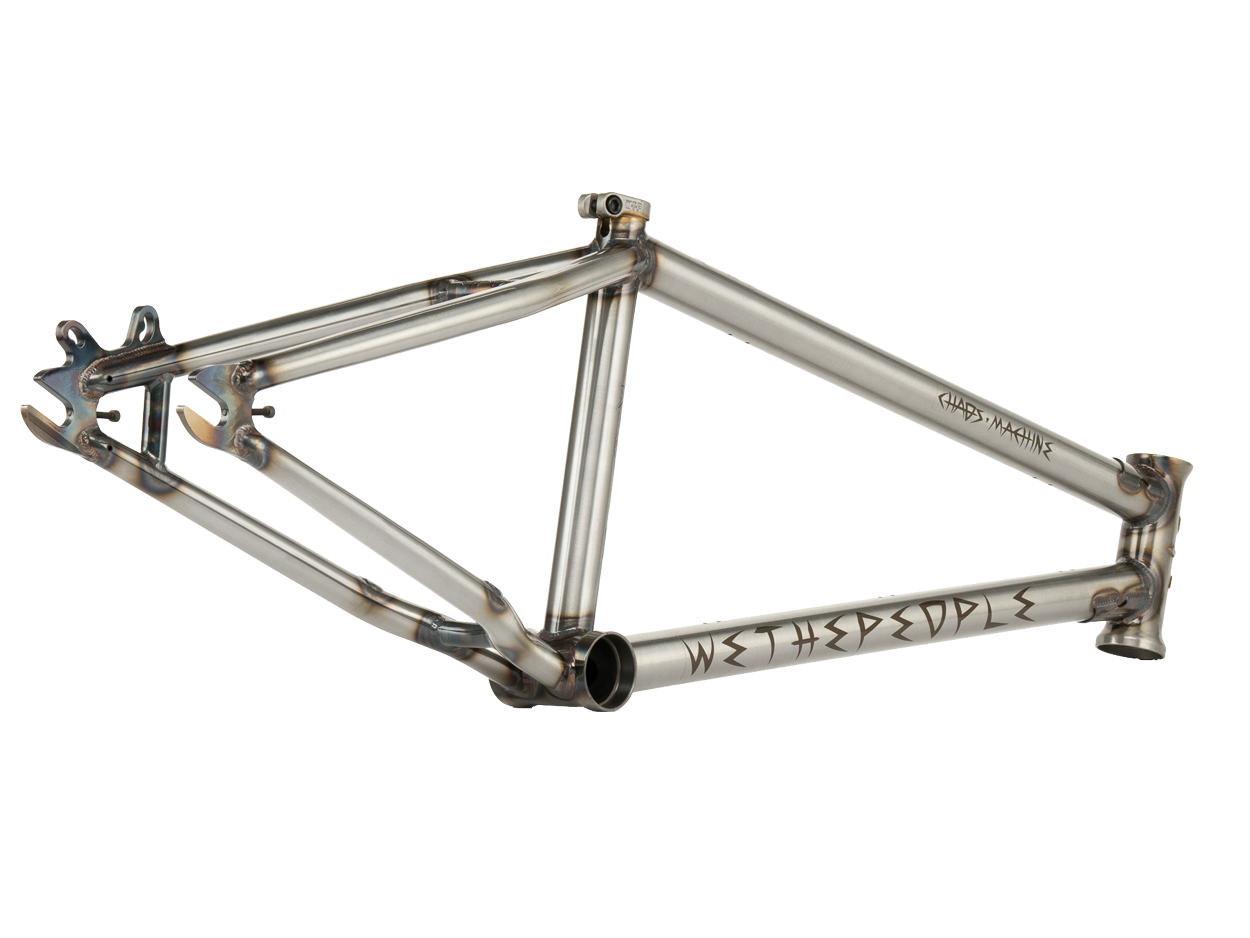

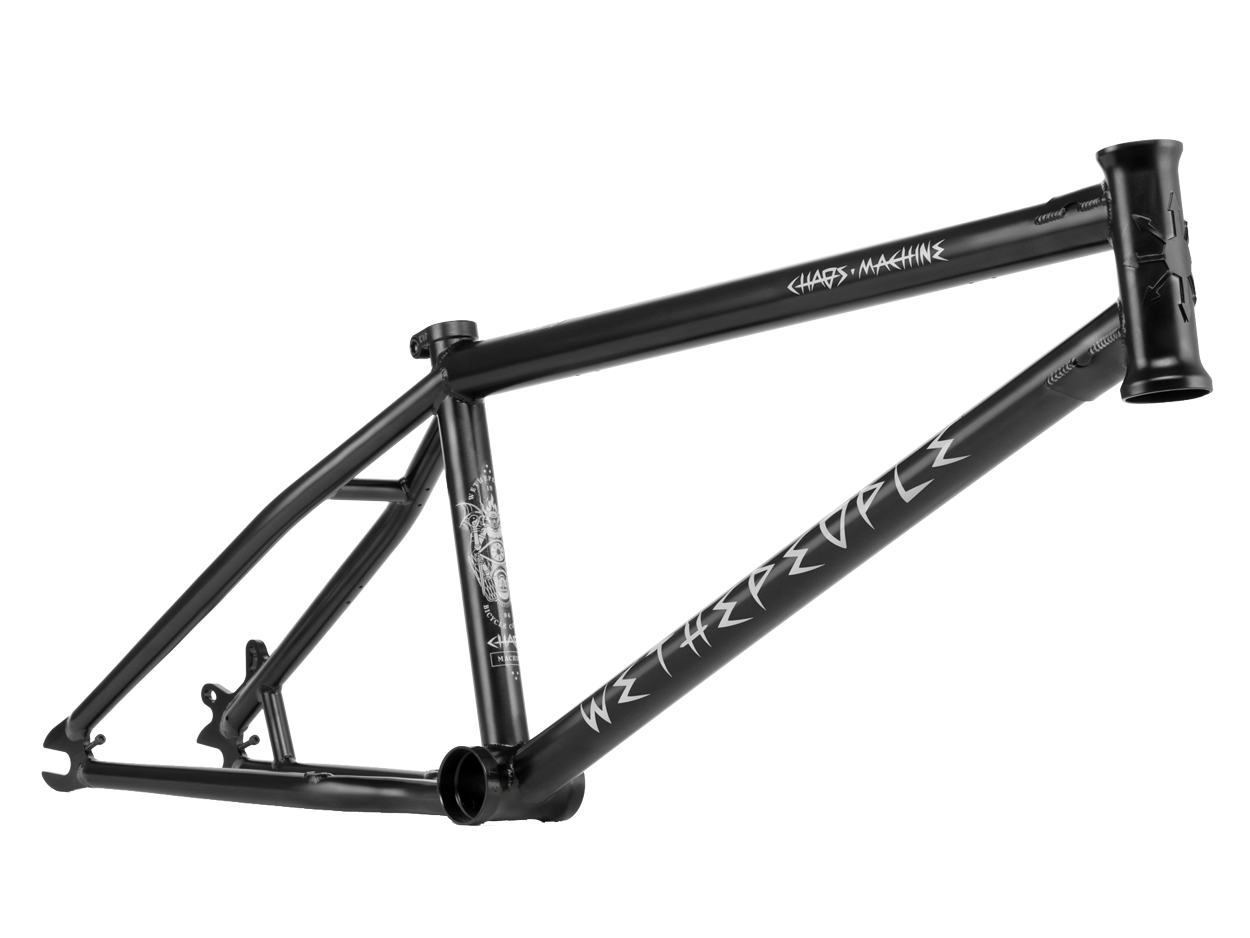

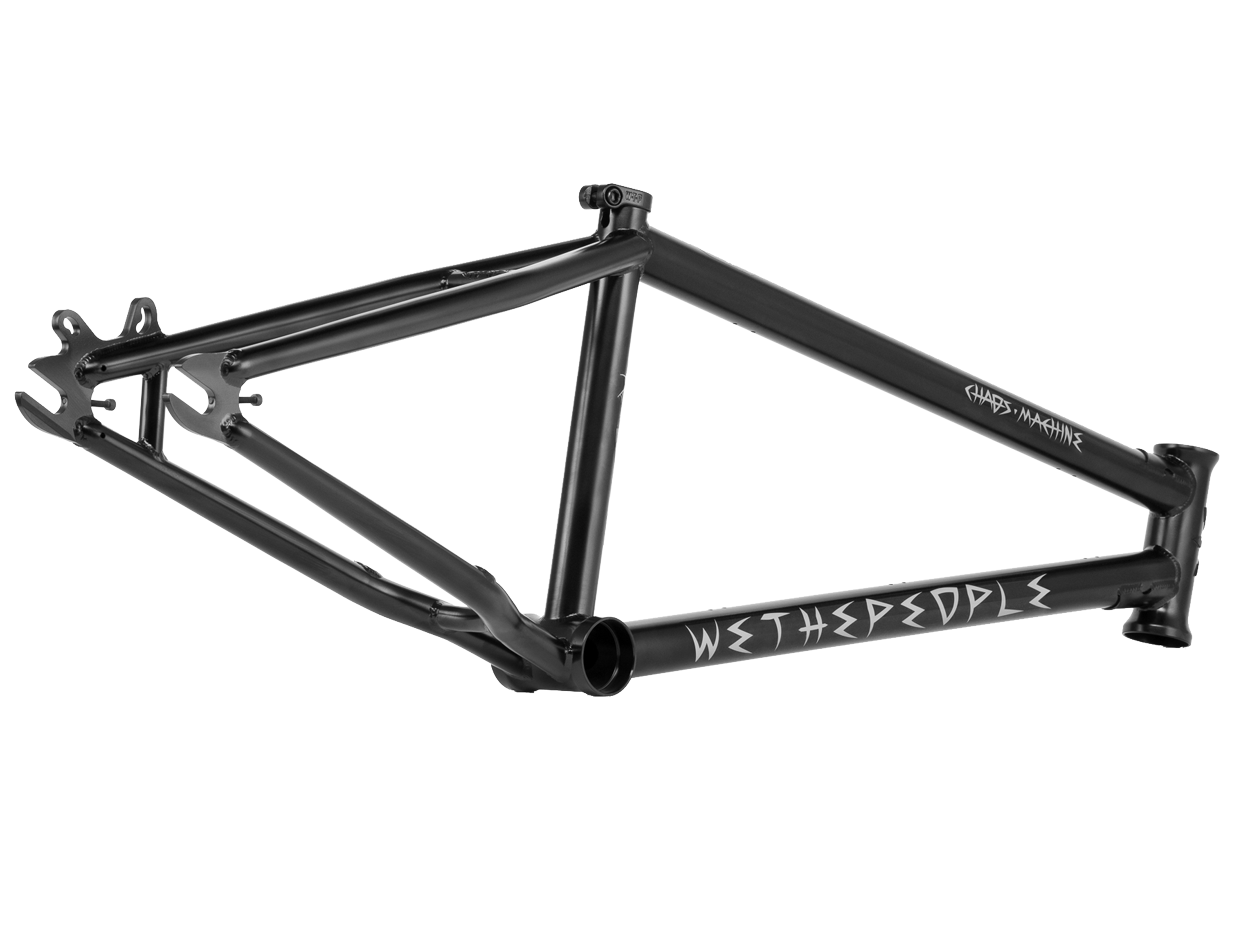

WETHEPEOPLE Chaos Machine 20 (Jones-Peni) Frame

WETHEPEOPLE Chaos Machine 20 (Jones-Peni) Frame

$799.99 AUD
$799.99 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

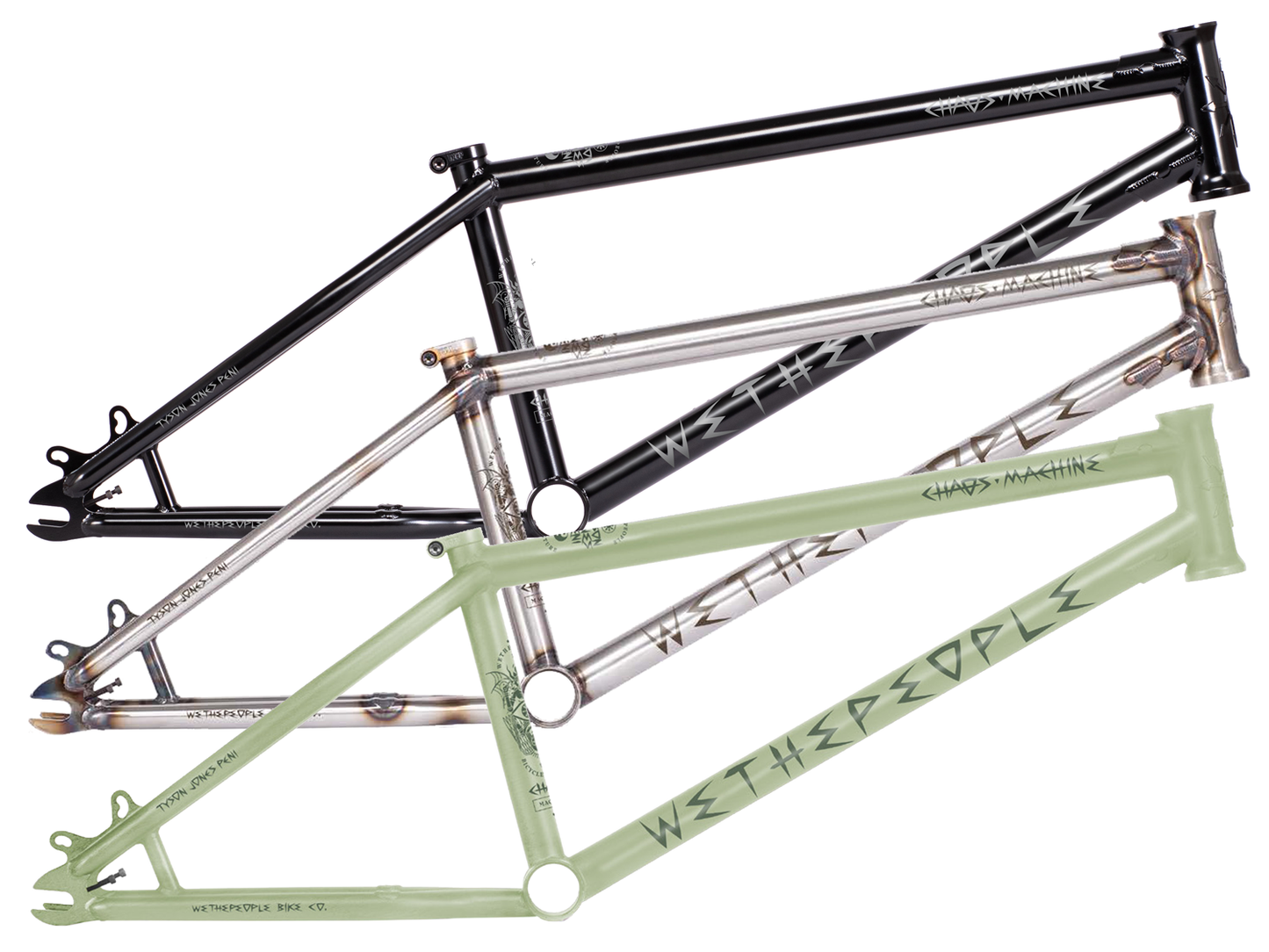

Colour
Top Tube
WTP, worked with Aussie trail boss and BMX lifer Tyson Jones-Peni on an all-out trail and bowl roasting machine. The Chaos Machine Frame features long and stable geometry, combined with Wethepeople’s legendary frame building technology making it one of the meanest and toughest rigs in the game. Tyson isn’t scared to go fast and hit the mainline with some serious speed so we equipped his signature steed with mounts for a disc brake (and a regular u-brake) making it the first frame of its kind and perfect for riders needing some upgraded stopping power. From the super long 14"+ chainstay to the unique detailing on the seat stay bridge and head tube, the Chaos Machine frame is one of the most “signature” frames WTP have ever made.

Features
- Tyson Jones-Peni signature trail/transition frame
- Long and stable trail geometry

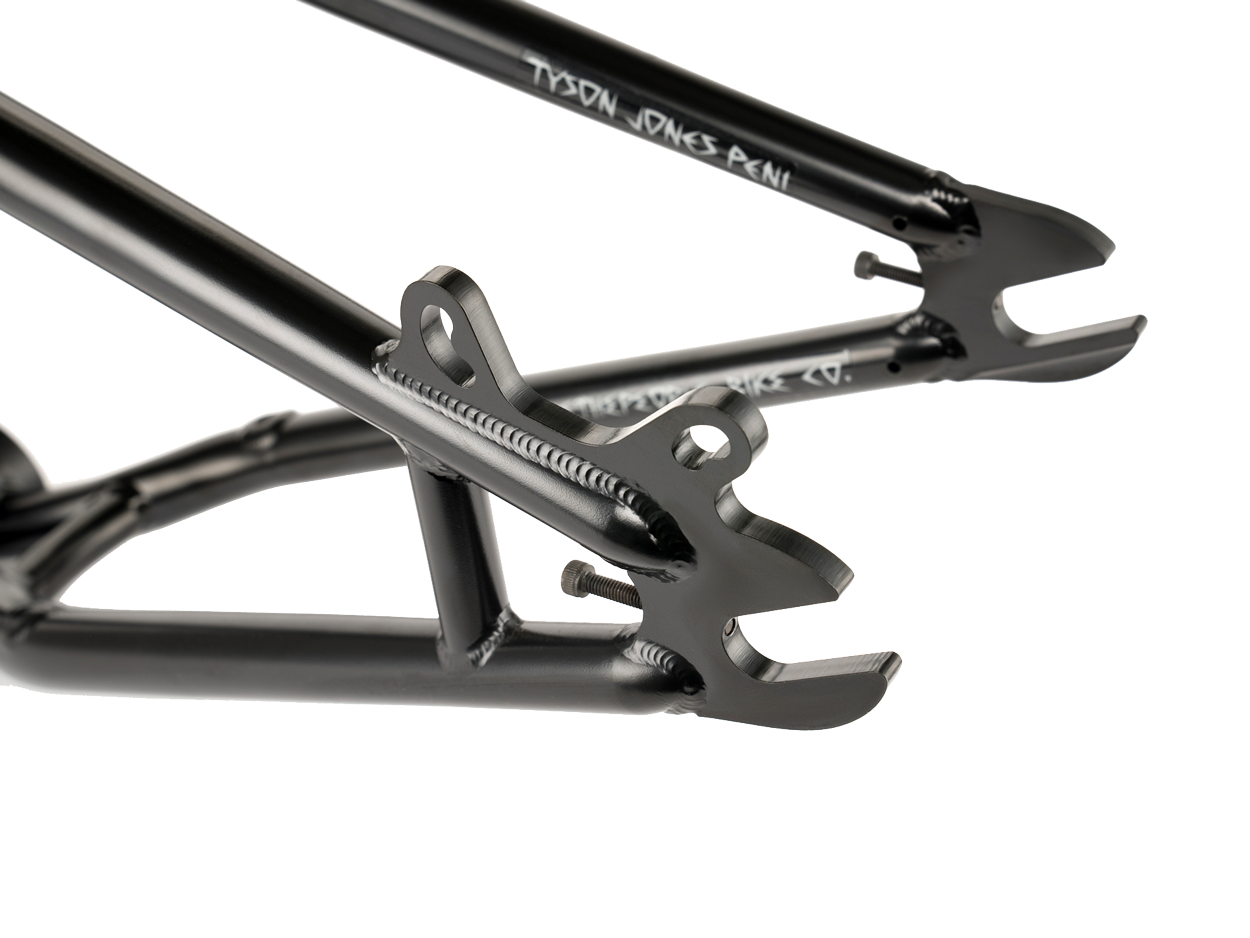

- IS disc mount for 120mm-160mm rotors & removable u-brake mounts
- unique disc brake mount works in multiple chain stay positions

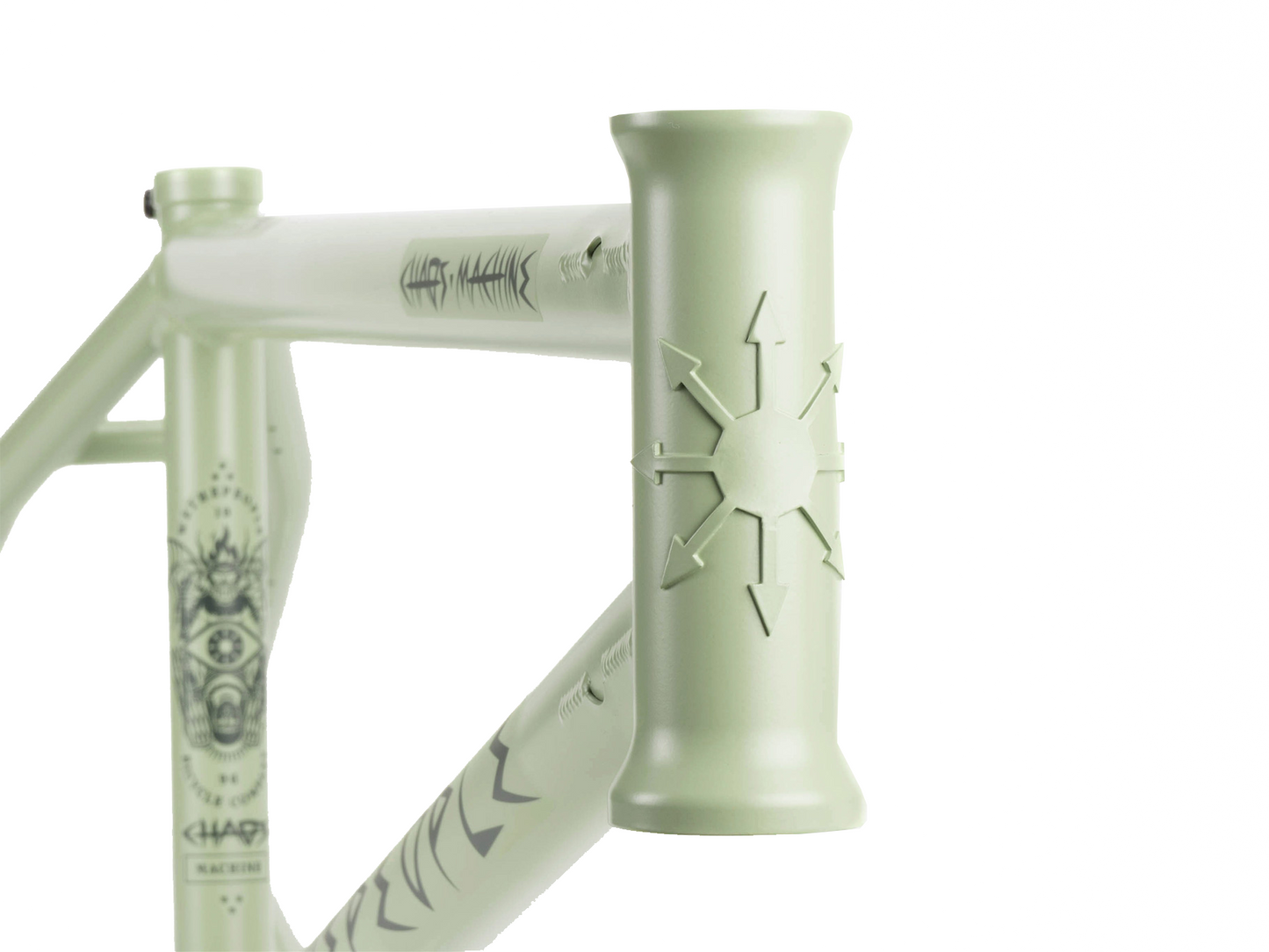

- 127mm tall head tube for less spacers with an uncut fork
- larger radius stay tubing for a stiffer and stronger back end

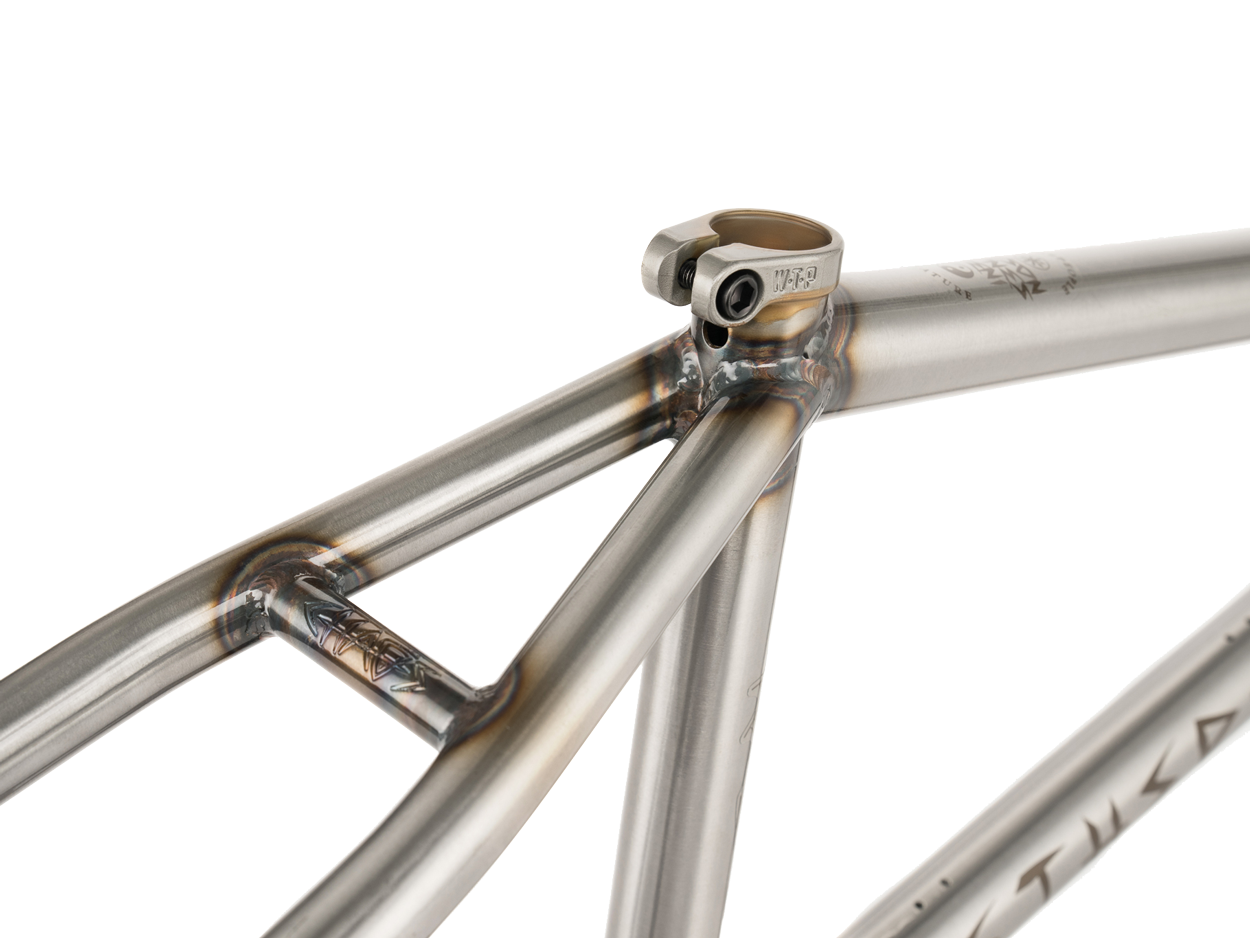

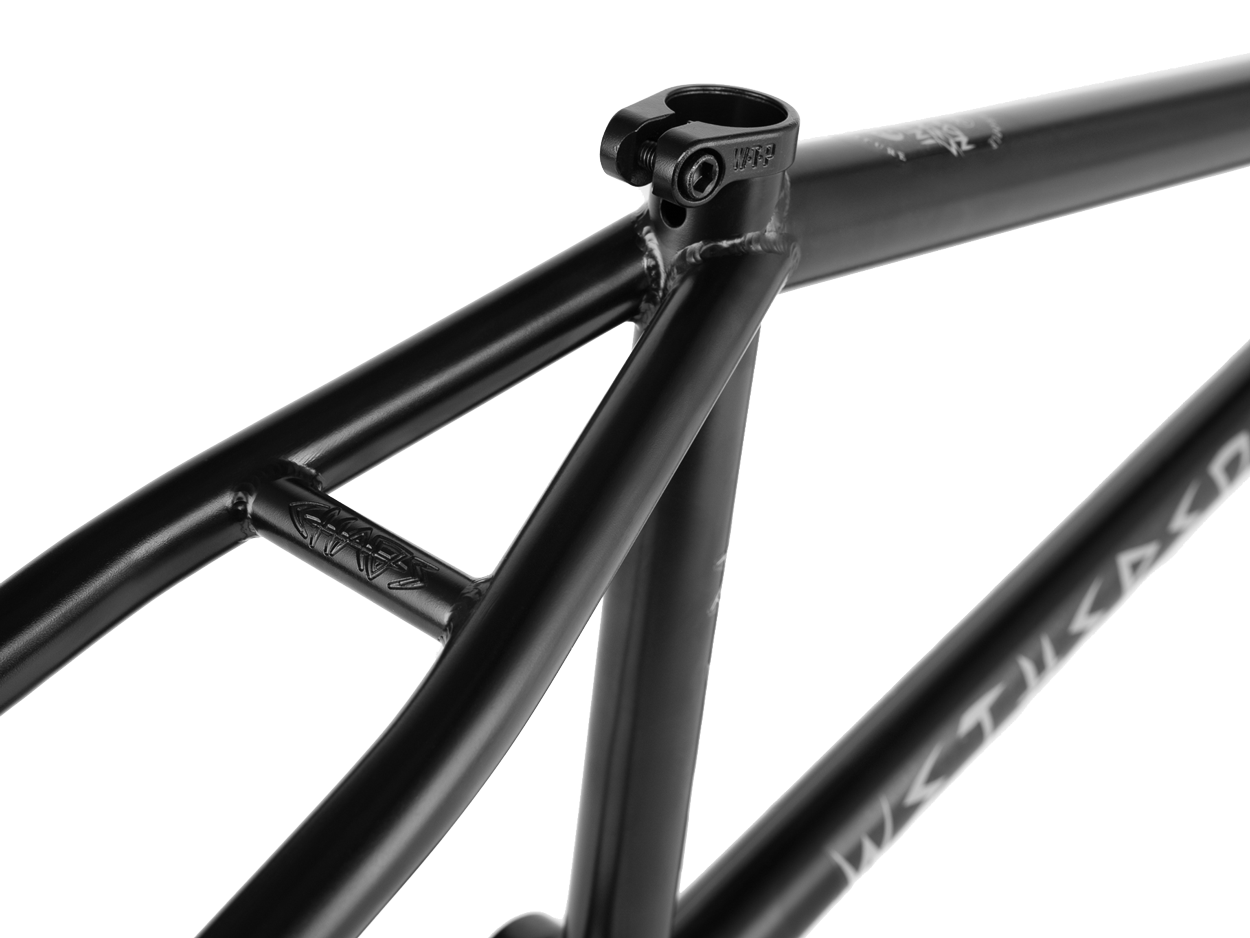

- cnc machined seat stay bridge
- disc brace on stays for extra braking stiffness
- larger 1.8mm welding at head tube
- investment cast seat clamp
- wider rear triangle allows clearance for a 2.4" tyre
- WTP top tube and down tube gusset
- includes lifetime guarantee

Specifications
Tubing - Butted, Japanese seamless 4130 crmo tubing

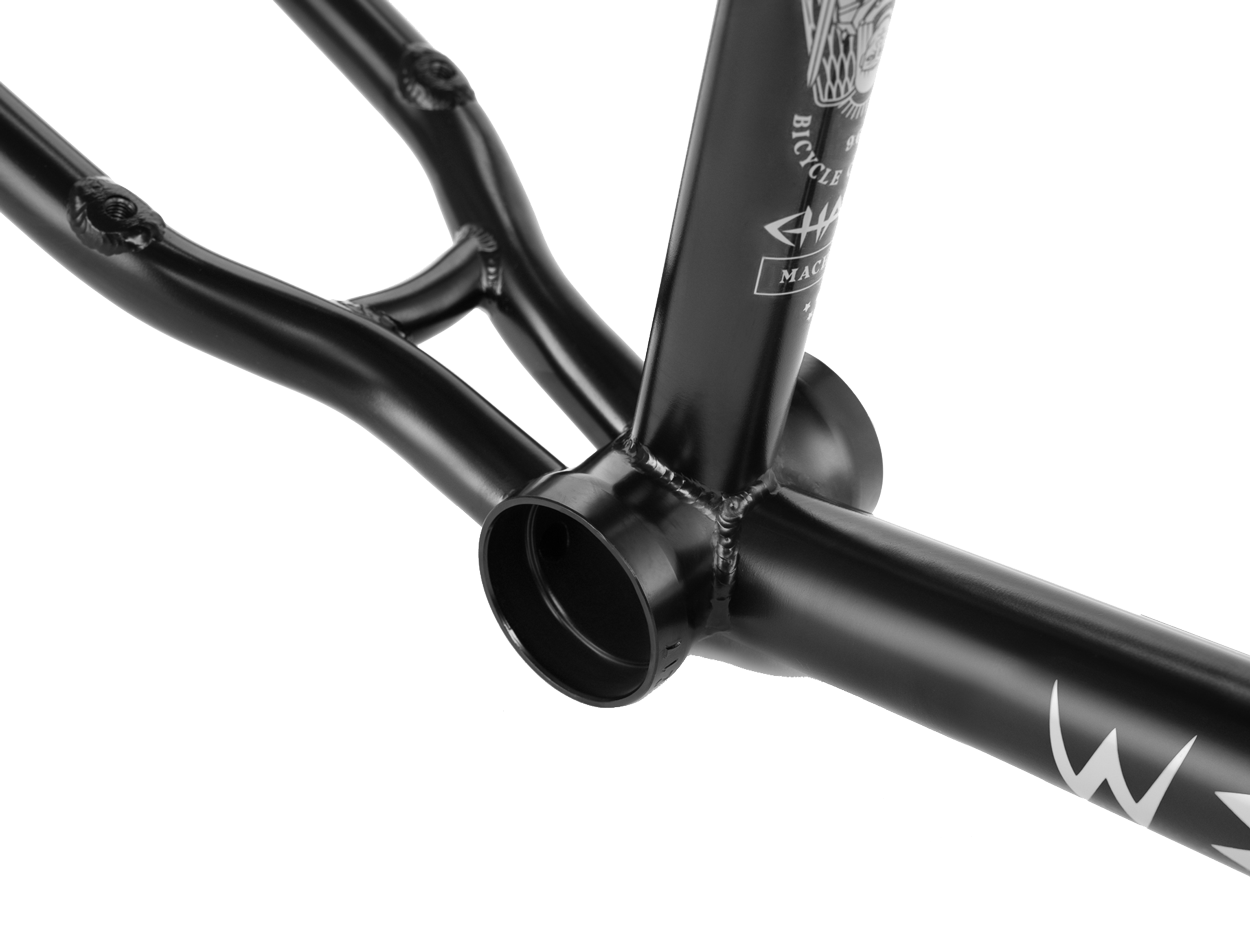

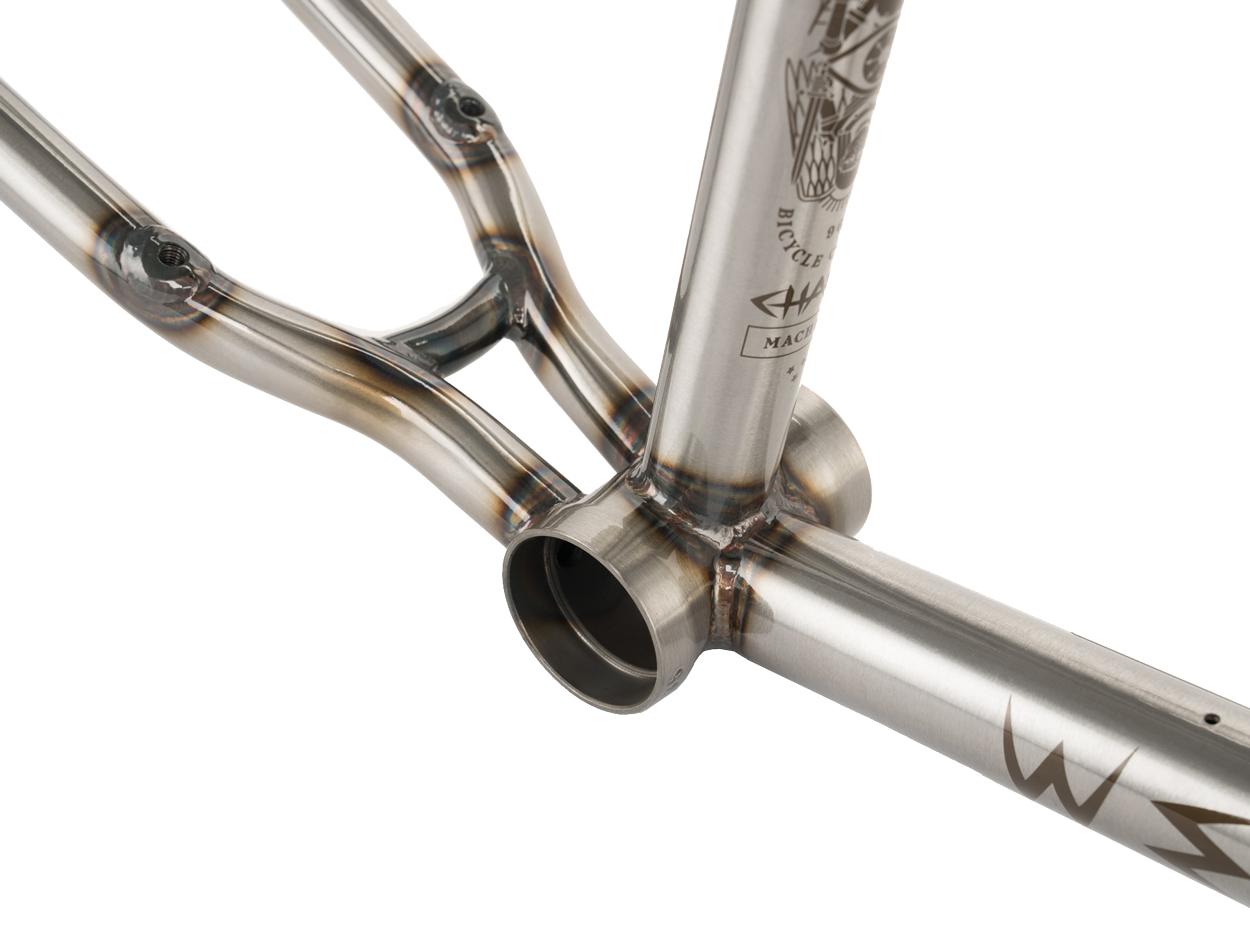

Bottom bracket - 74mm mid size

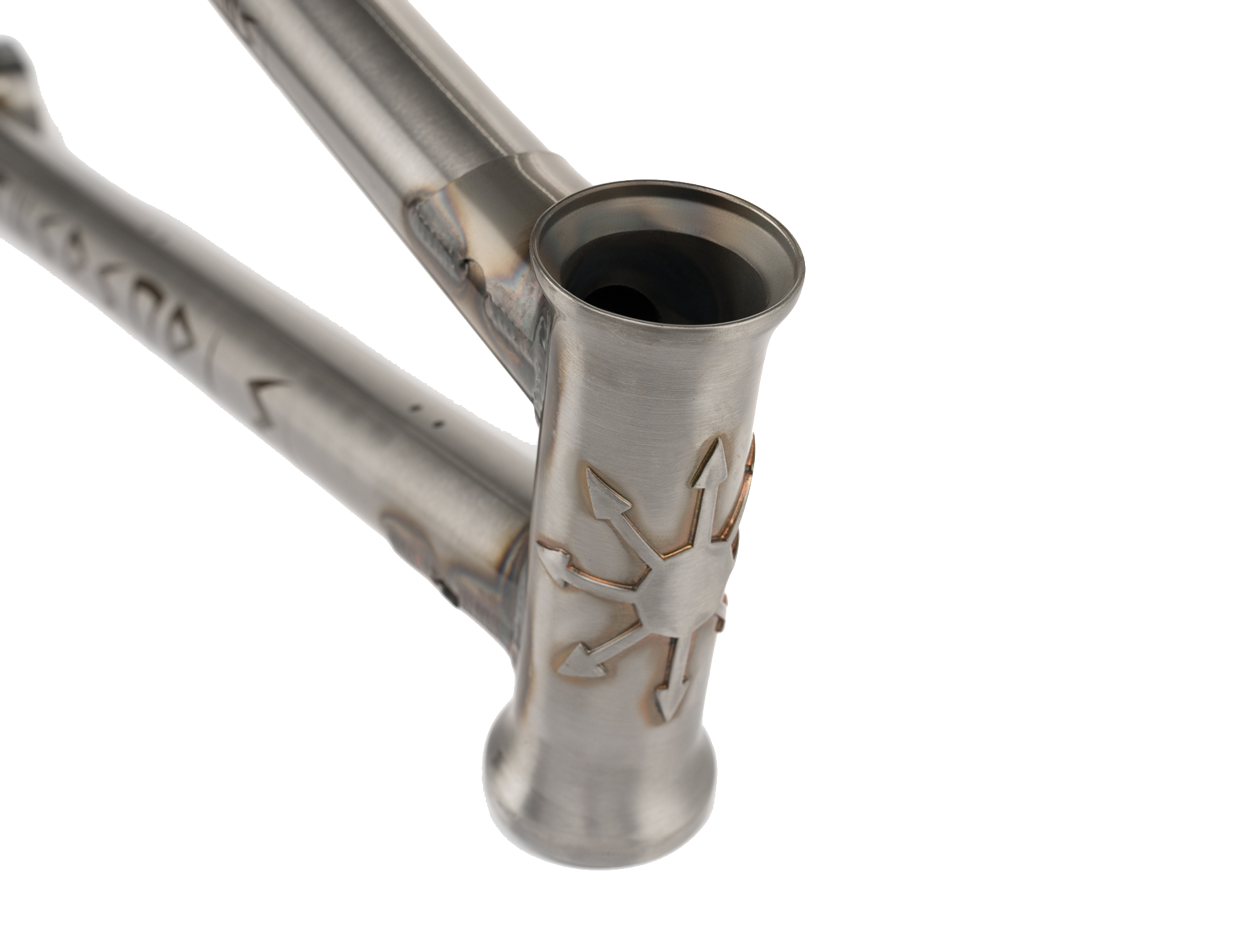

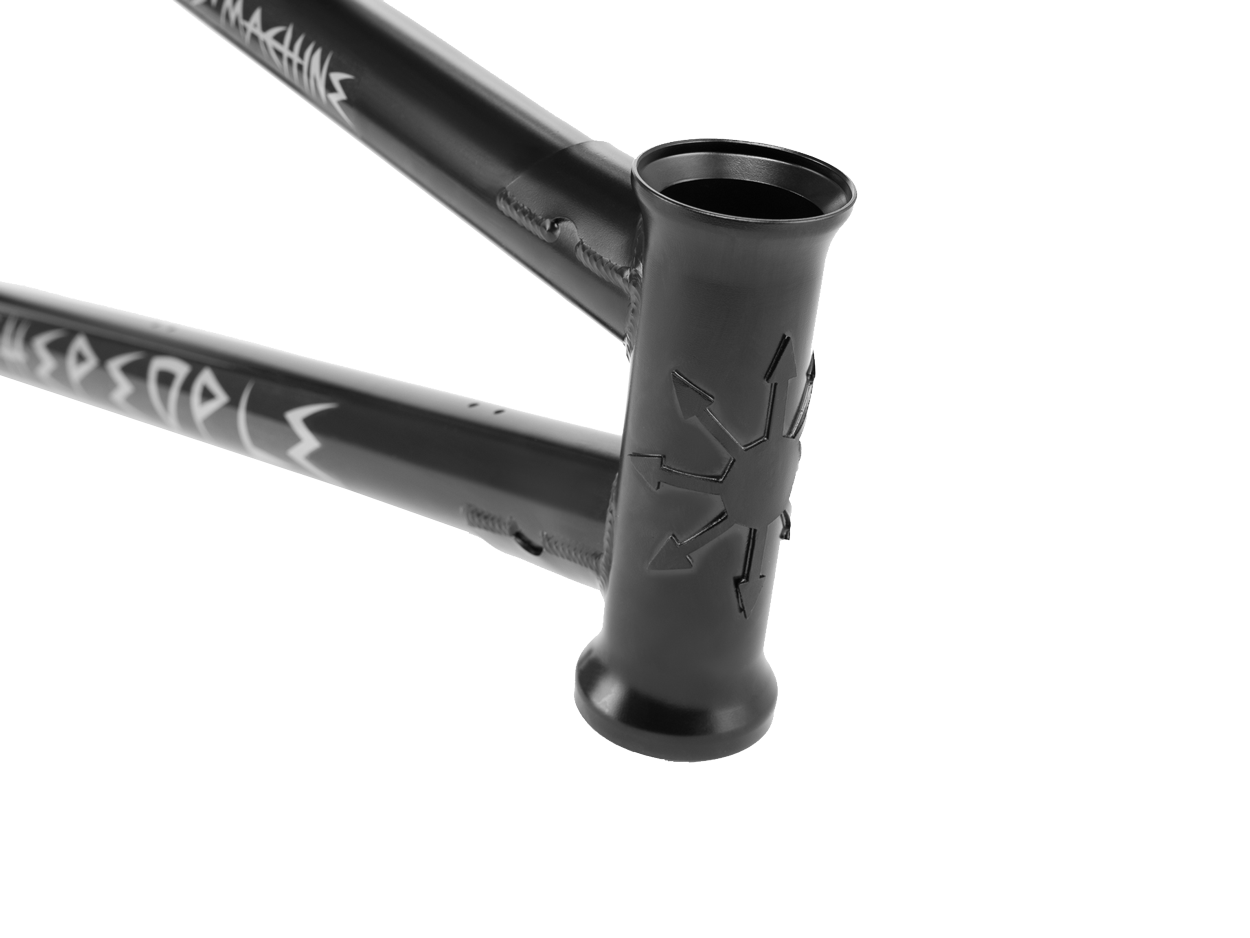

Head tube - 127mm cnc machined and heat-treated, integ. h/set, badge

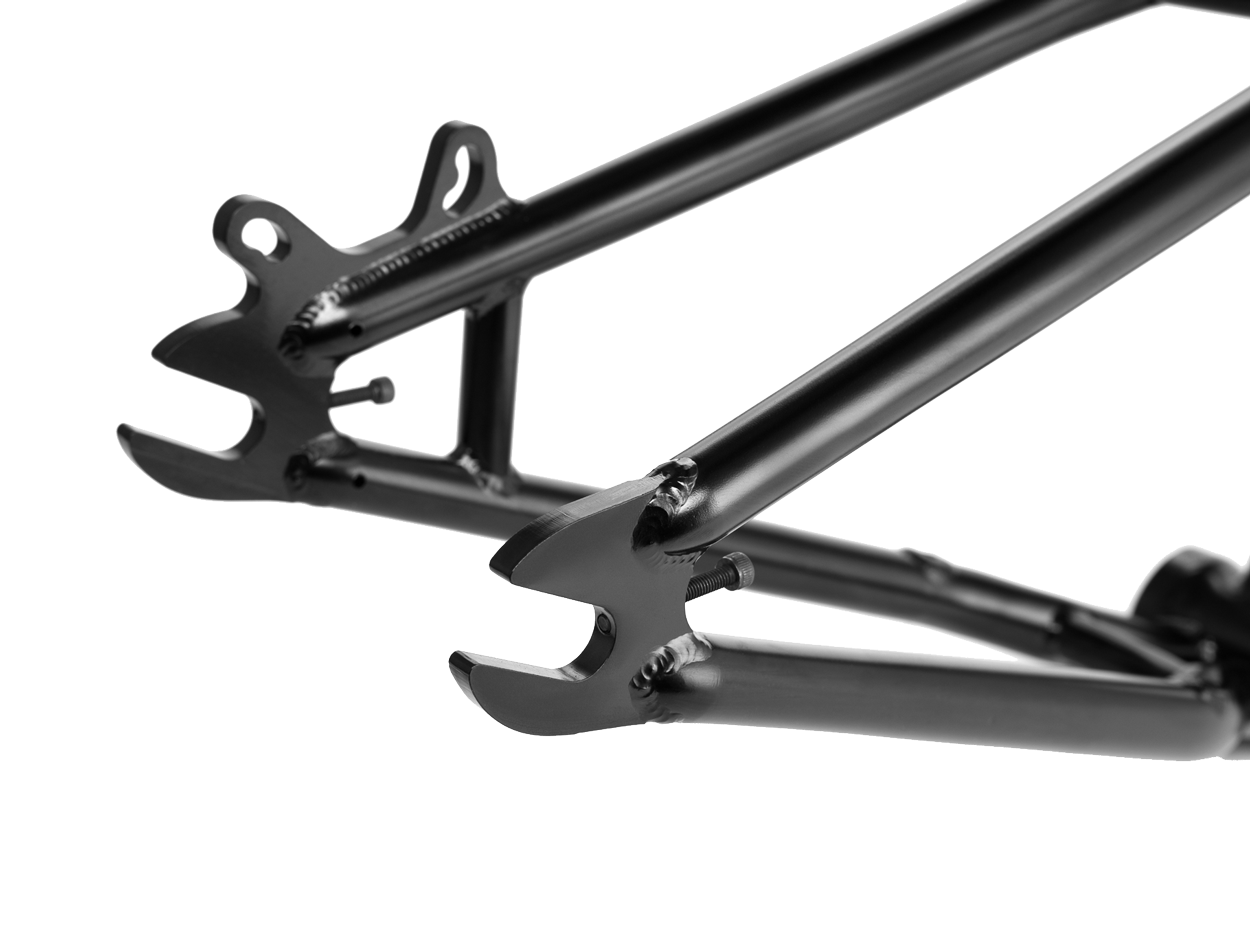

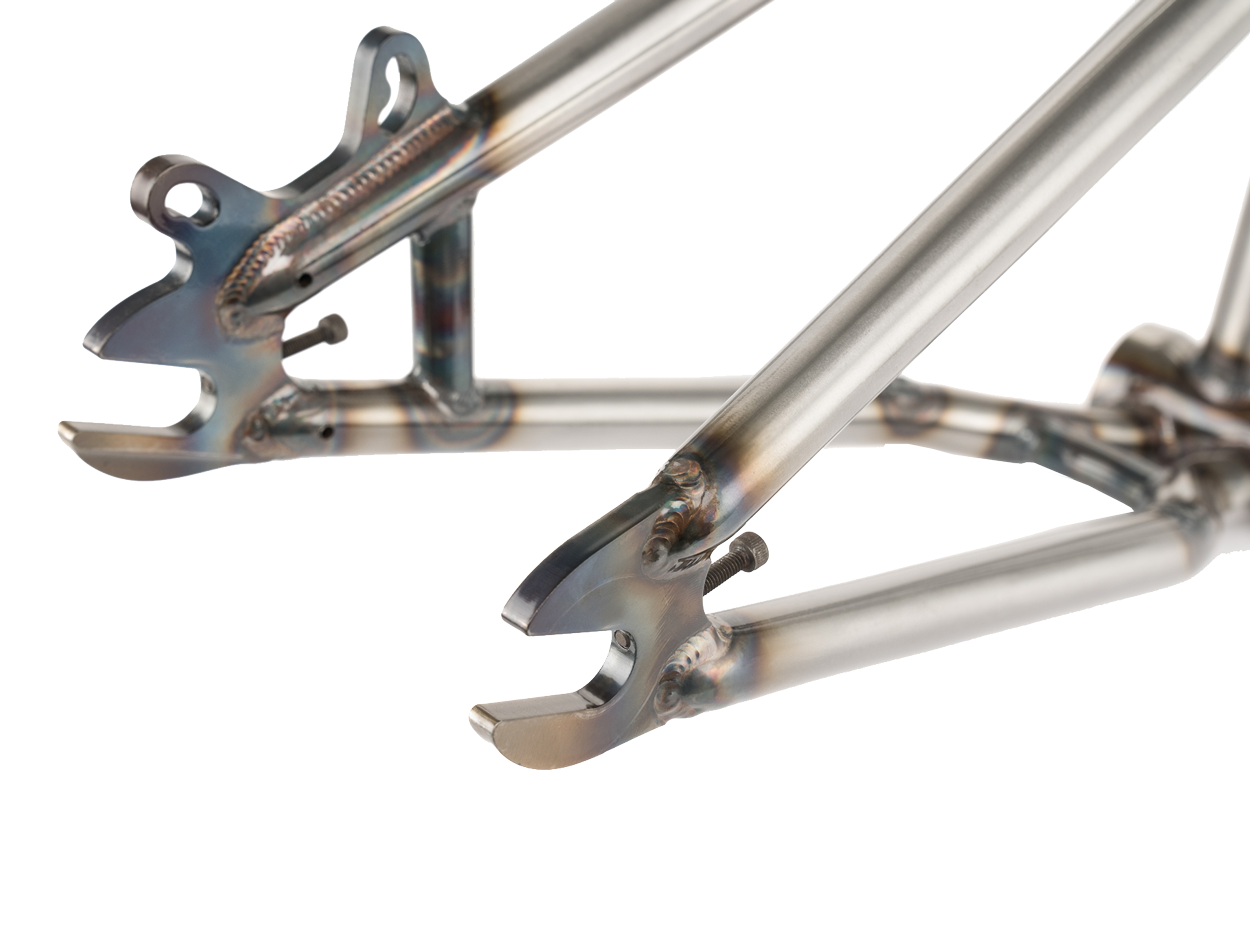

Dropouts - Minimal size, not suitable for pegs, 6mm cnc machined heat-treated crmo, integrated chain tensioners
Brakes - Disc mount for 120-160mm rotors, frame comes with repl. brake hardware, pivot-3 removable brake mounts.
Weight - 2.40kg – 21.35" tt

Frame Geometry
Top tube length - 21", 21.35", 21.7"
Chain stay length - 14" - 14.75" / optimised for 14.1"/14.35"/14.7" with 30-9 gearing
Head tube angle - 74.25°
Seat tube angle - 71°
BB height - 11.5"
Standover height - 9.5"
