WETHEPEOPLE Patrol Frame

With a solid line of frames designed to take the brunt of today's heavy street riding, WTP felt that, in contrast to this, they should do something a bit less aggressive, but still, with all the details and technologies they have developed over the years. The patrol frame is heavily influenced by the trails and concrete park riding that has always been a part of the brand, and features longer, slacker geometry with features and details catered for the rider who likes to go fast and roast!

Features
- Longer, slacker geometry designed for trails and transition riding
- Extruded down tube with integrated threads for cable guides
- Curved seat stay bridge and chain stay bridge
- Tapered seat stays and chain stays with bullet-tipped ends
- Taller 125mm extended head tube for fewer spacers with an uncut fork
- Chain stay-located brake mounts for improved braking power
- Wider rear triangle allows clearance for a 2.4" tyre
- WTP top tube and down tube gusset
- 6mm seat clamp bolt
- Includes a lifetime guarantee

Specifications
Tubing - Butted, Japanese seamless 4130 chromo tubing

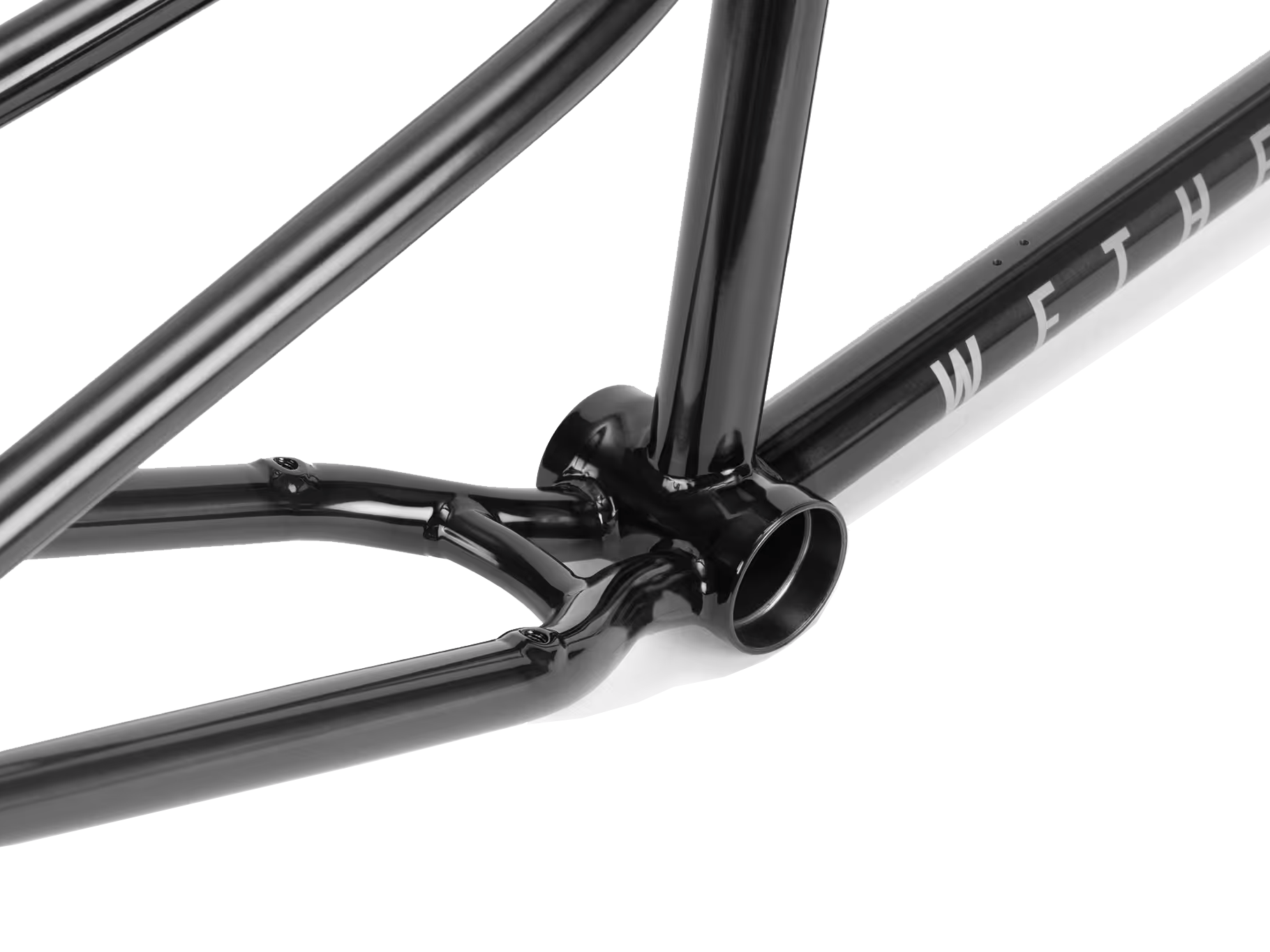

Bottom bracket - 74mm mid-size, CNC machined and heat-treated

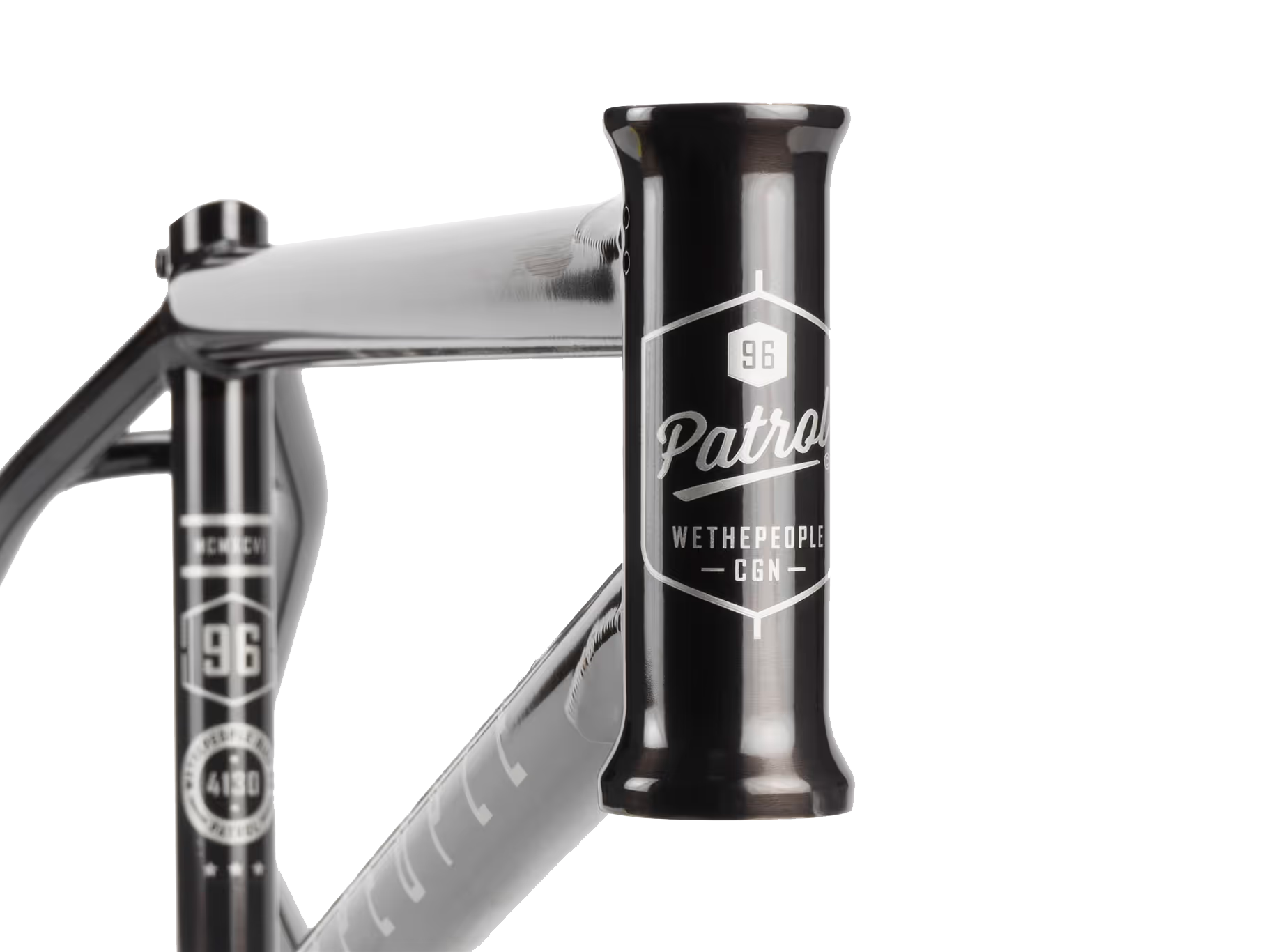

Head tube - 125mm CNC machined and heat-treated. Integrated headset. Drilled for gyro tabs
Dropouts - Minimal size, not suitable for pegs, 6mm CNC machined heat-treated chromo, integrated chain tensioners
Brakes - Pivot-3 removable brake mounts, the frame comes without brake hardware
Weight - 2.37kg - 21.15" tt

Geometry
Top tube length - 21.15" or 21.5"
Chain stay length - 13.6" – 14" – optimized for 13.75'' w/28-9
Head tube angle - 74.25°
Seat tube angle - 71°
Bb height - 11.5"
Standover height - 8.9"
