WETHEPEOPLE Revolver Frame
WETHEPEOPLE Revolver Frame
Couldn't load pickup availability

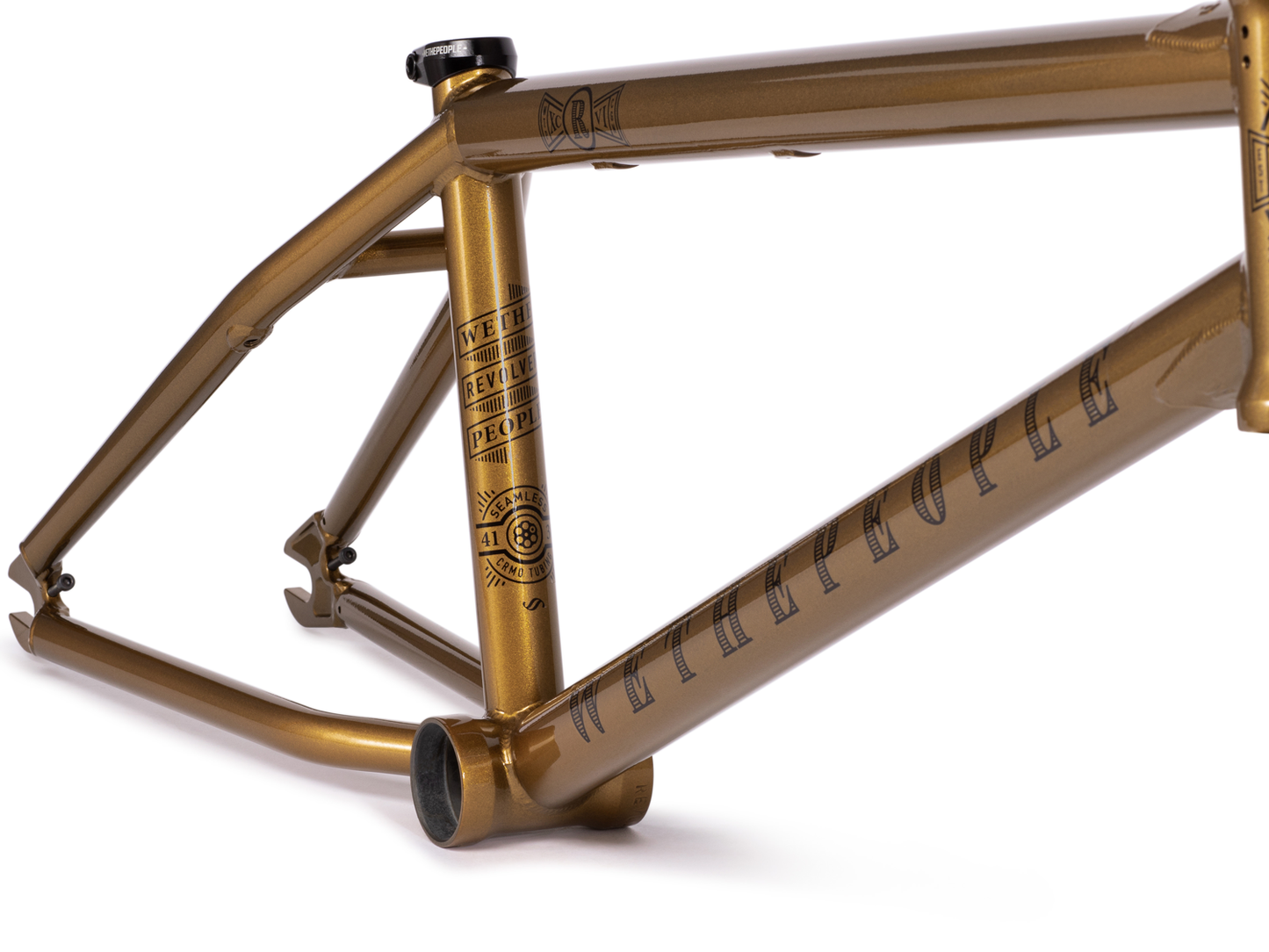

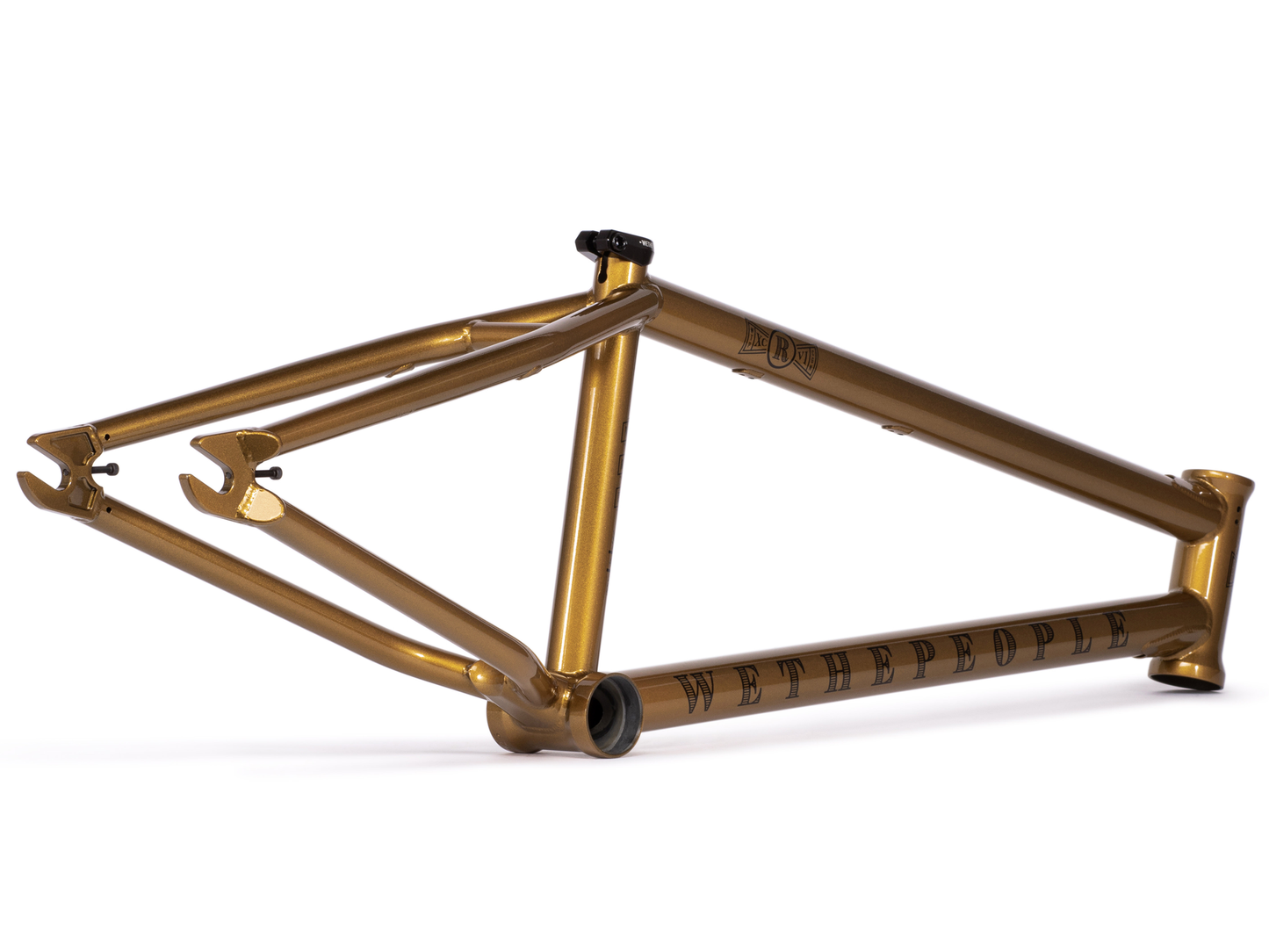

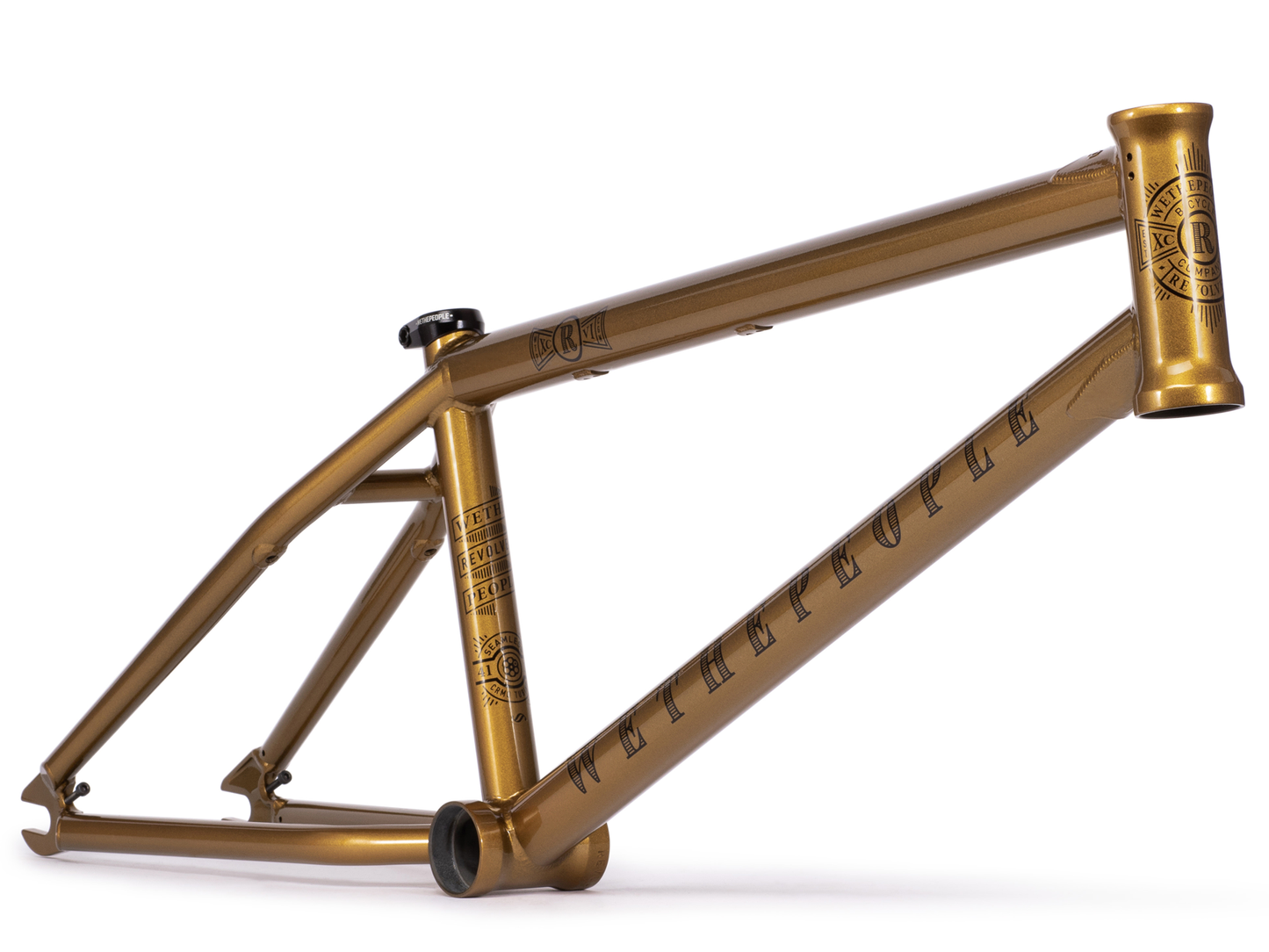

The Revolver frame is the perfect do-it-all and do-it-well model. A frame that was created with the sole intention of shredding on any terrain. WTP used larger diameter rear tubing and an invest cast wishbone, to not only give the revolver a strong and unique look but more importantly to strengthen and stiffen the whole frame up - giving it a stable yet responsive feel. Combined with 7.5mm thick invest cast dropouts with integrated chain tensioners - the revolver is a deadly weapon capable of just about anything. Includes lifetime guarantee.
Features
-Perfect all-round frame with carefully balanced geometry, and bullet-proof tubing
-Investment cast wishbone design for an extra stiff backend

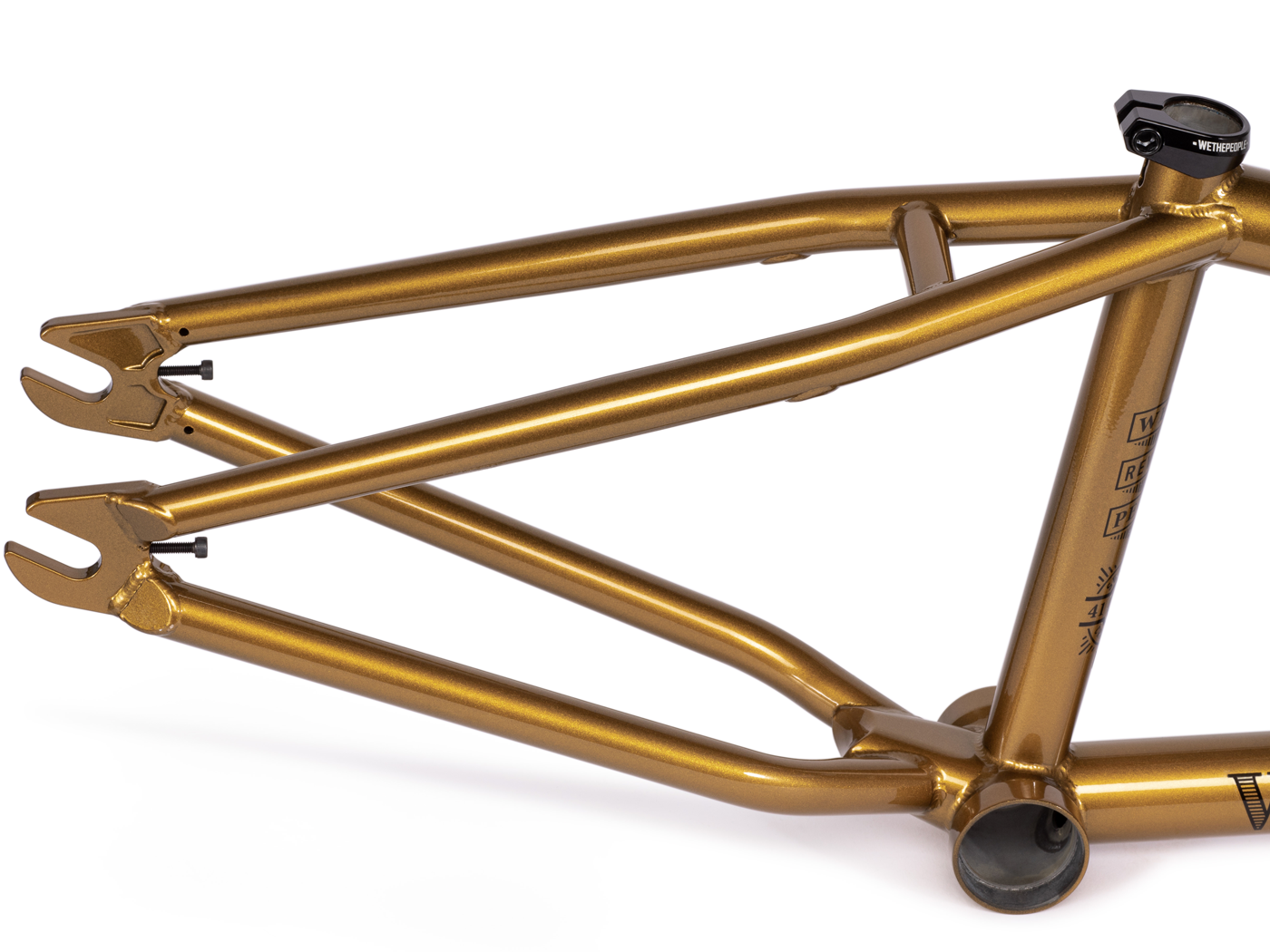

-Larger radius stay tubing for a stiffer and stronger back end
-Wider rear triangle allows clearance for a 2.4" tyre
-WTP top tube and down tube gusset

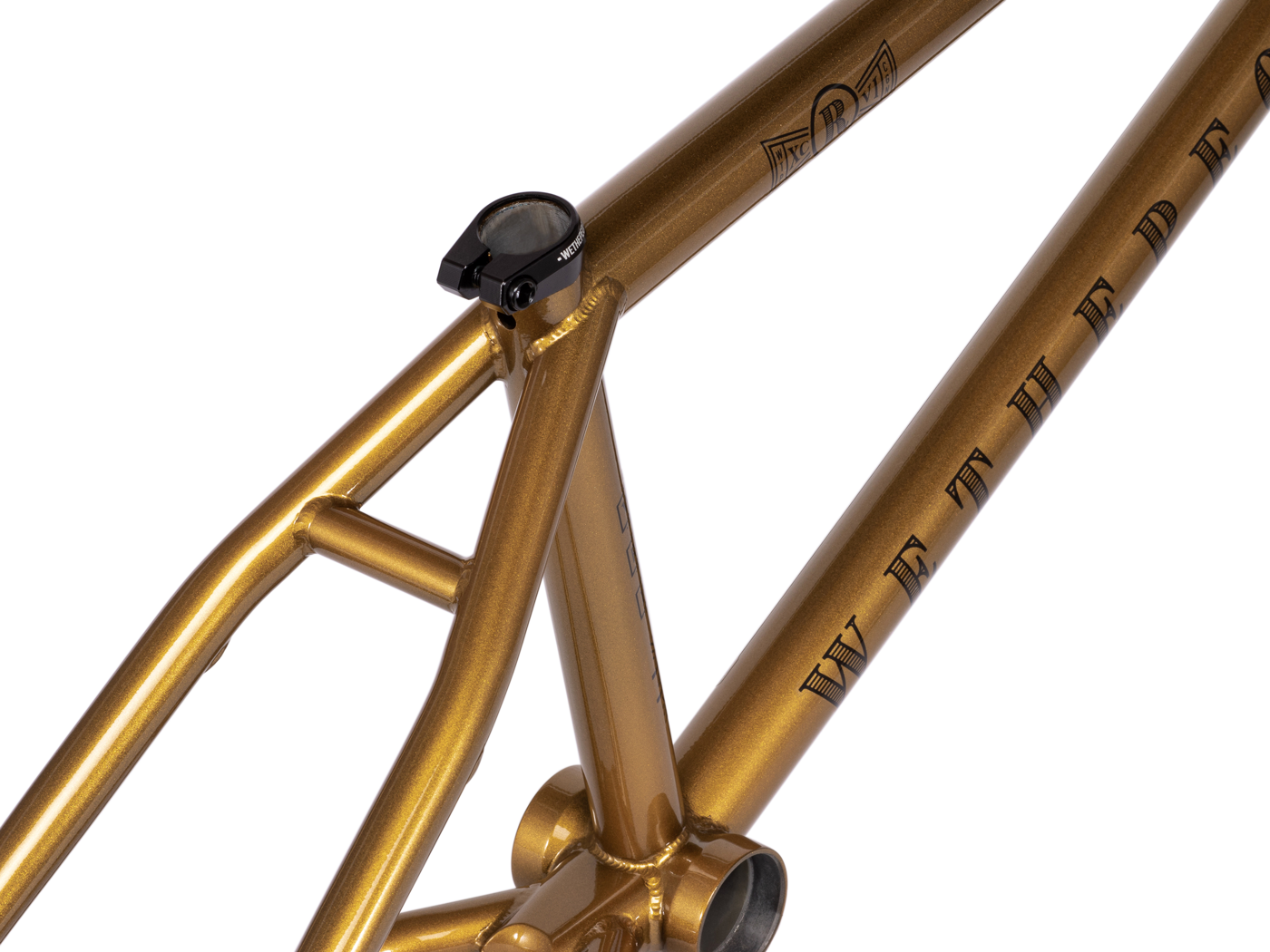

-Includes WTP supreme 6061-t6 alloy aftermarket seat clamp
-Includes lifetime guarantee
Specifications
Tubing - Butted, japanese seamless 4130 crmo tubing

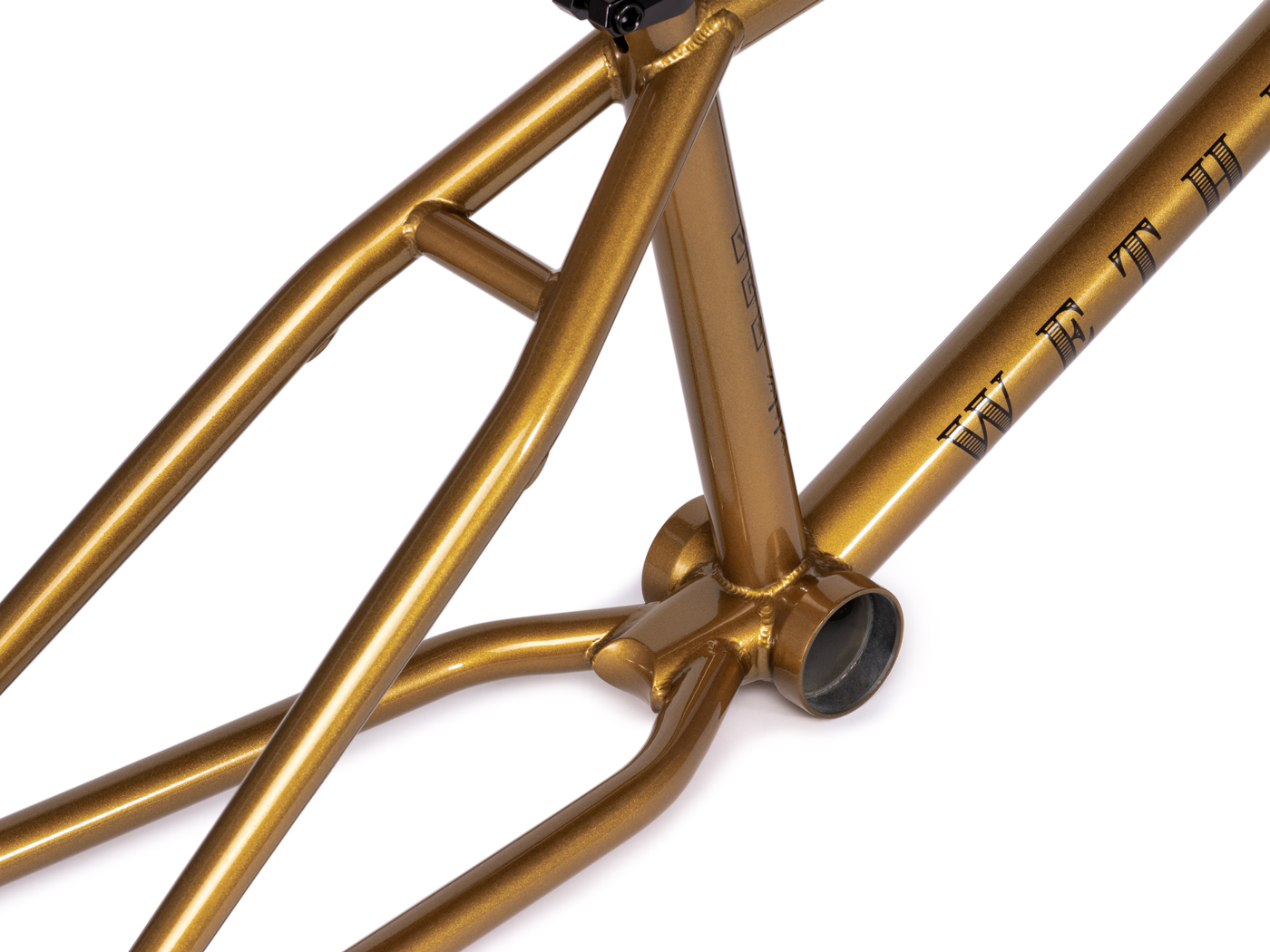

Bottom bracket - 74mm mid size, cnc machined and heat-treated

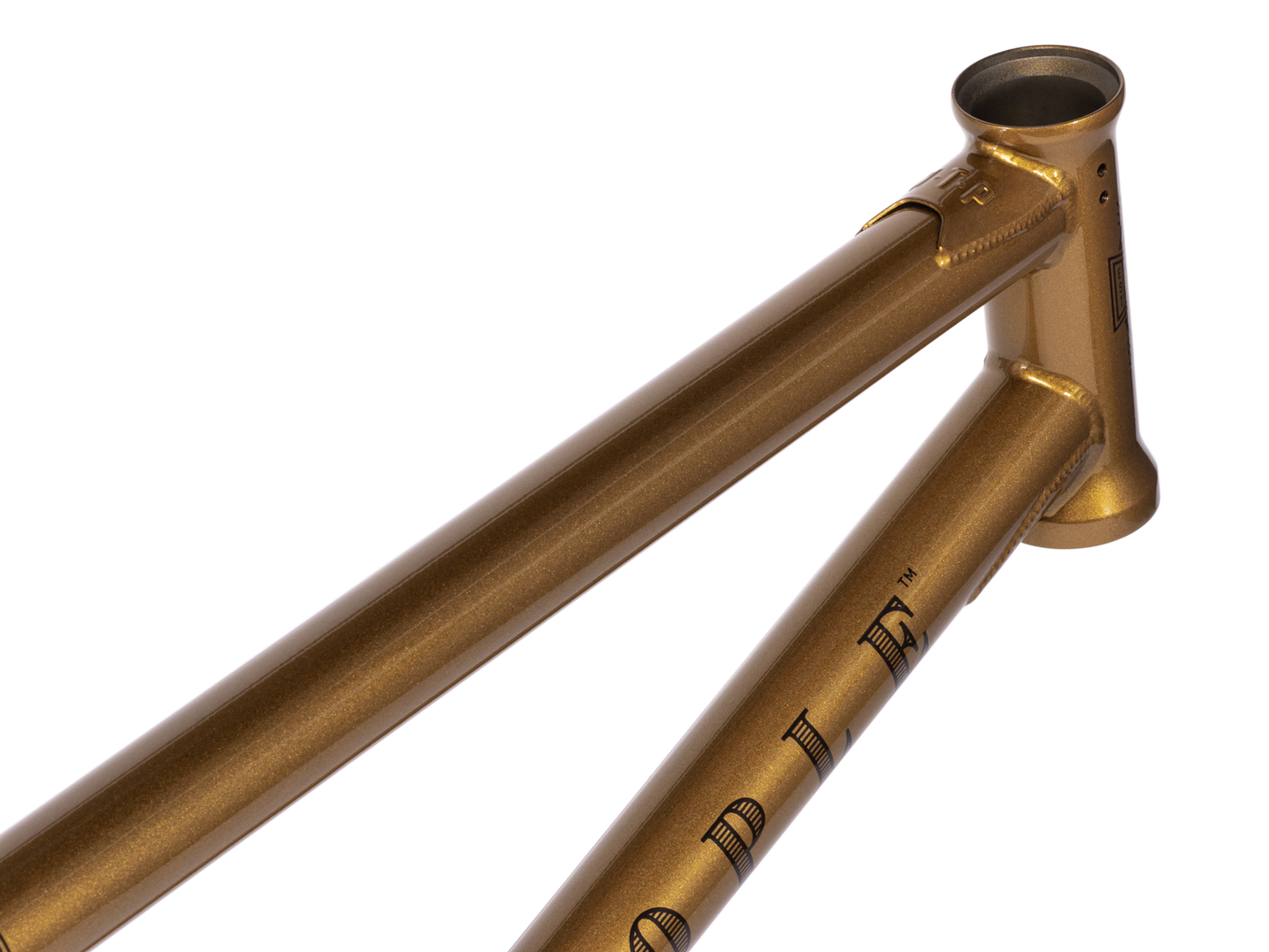

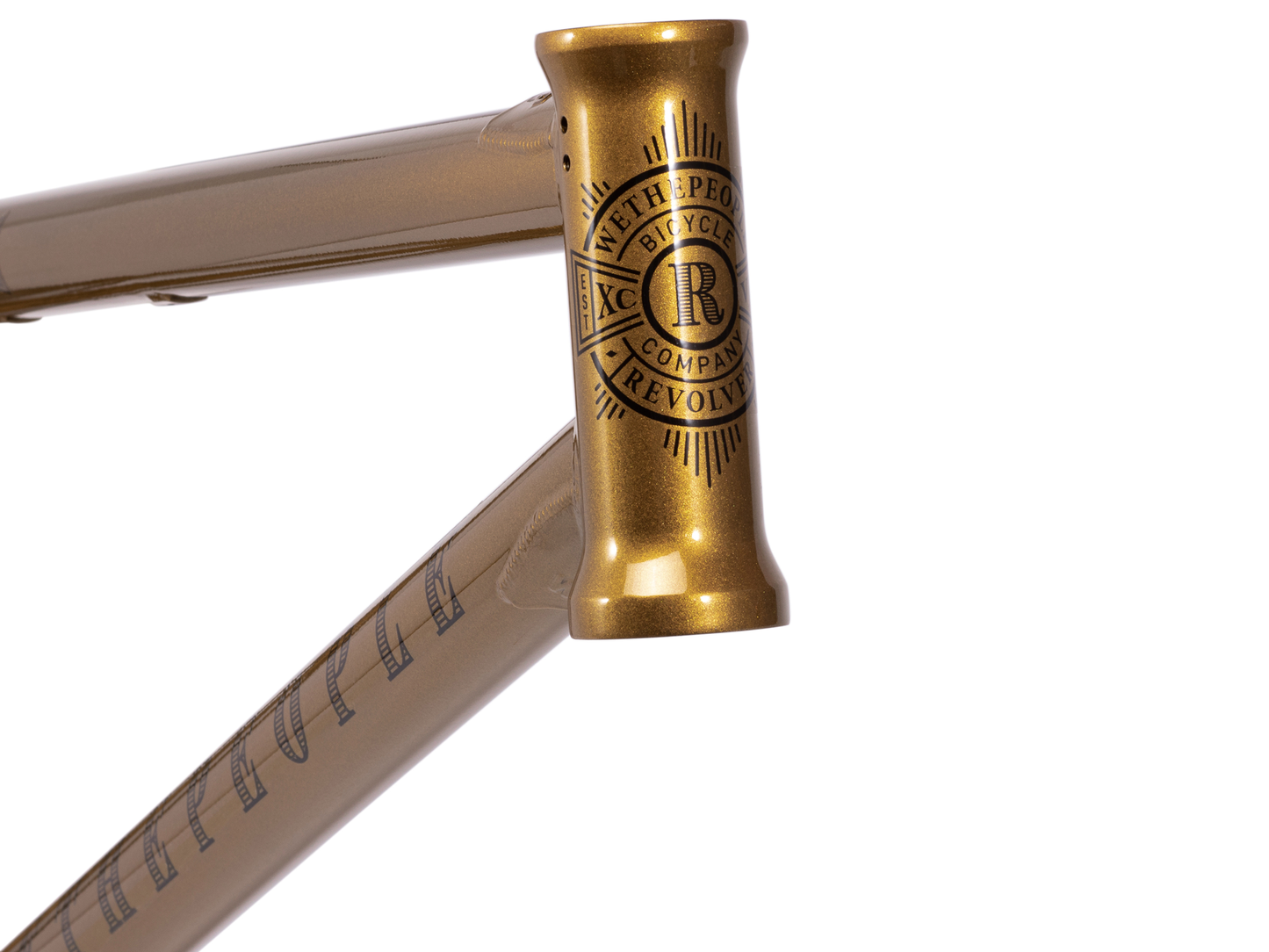

Head tube - 127mm cnc machined and heat-treated, integ. H/set, drilled for gyro tabs
Dropouts - 7.5mm investment cast with integrated chain tensioners, heat-treated 4130 crmo
Brakes - pivot-3 removable brake mounts, frame comes without repl. Brake hardware
Weight - 2.385kgs - 21" tt
Geometry
Top tube length - 20.75"
Chain stay length - 13.25"-13.75'' – optimized for 13.25"/13.5'' w/ 28-9
Head tube angle - 74.85°
Seat tube angle - 71°
Bb height - 11.5"
Standover height - 9.1"
